Code Track Bar Code Tracking For Ro Ro
“Code. Track” Bar Code Tracking For Ro Ro Port and Terminal Operations
Benefits l. Accurately l. Simple l. Quick Recording Events (liability) (no computer skilled staff) (Rail, Transporters, Customers, Ships / Tides) l. Prevent errors (loading / manifest / customs issues) l. Physically Robust - Heat, Cold, Rain - Equipment - Labels l. Flexible (different working practices) (different host systems)
Codeway l Provide ‘Data Capture’ Expertise (founded in 1983) l Experience in Global Ro Ro Applications l Equipment - Readers - Printers - Accessories and Labels l System Software and INTEGRATION
Scanner Applications l Receiving l Locating l Measuring Re-measuring l Tally Active and Passive l Discharge Active and Passive l Damage Reporting l Label Printing l Roll Trailer Tracking l High & Heavy l Van. Packs
Data Transfer l Data From l Forwarding Agents l Shipping Companies l Manufacturers Processed in Codeway’s Codetrack System l Data To l. Customers (e. g. Shipping Companies)

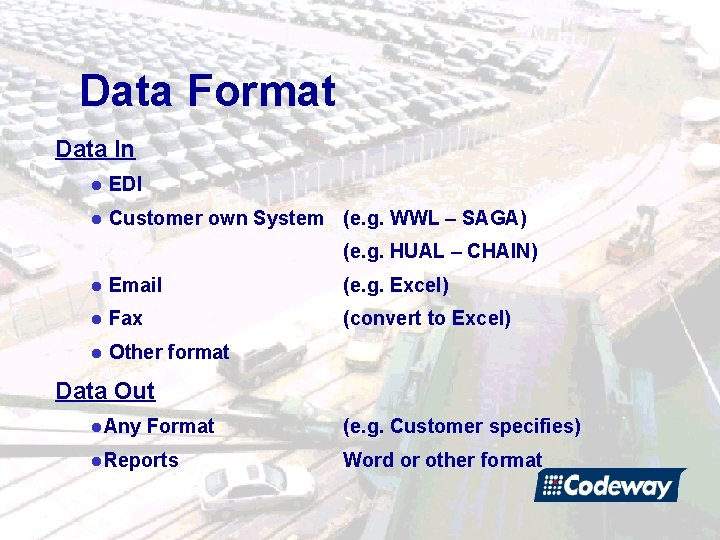

Data Format Data In l EDI l Customer own System (e. g. WWL – SAGA) (e. g. HUAL – CHAIN) l Email (e. g. Excel) l Fax (convert to Excel) l Other format Data Out l. Any Format l. Reports (e. g. Customer specifies) Word or other format
Customer System Forwarding Agent Shipping Line Other Identification Data VIN / Chassis No. Make / Model / Other POD / Vessel / Voyage etc. Codeway Server Data in agreed format Barcode Scanners (Batch or RF) RF: 802. 11 b Wi. Fi GPRS Identification Status (loaded, received, on hold etc. ) POD / Vessel / Voyage etc. Shipping Line System
Data Collected • • • Cargo Arrived Cargo Received Cargo Located Cargo Measured Damage check …. . Other - Physical - Liability - Or re-measured - e. g. PDI - Valet - Repair (etc) • Cargo Held / Loaded / Unloaded • Location / Relocation • Delivery / Returns
Cargo Display (1)
Cargo Display (2)
Cargo Display - History Tab
Label Printing
Dolphin 95 xx Scanner l¼ VGA Colour Touch Screen l 1. 5 m drop test l. IP 64 rated (weatherproof) l. MS Mobile 2003 O/S -. NET l. Integrated l. Choice l 6 -10 l. RF Matrix Imager of 3 Keyboard Layouts Hours Battery Life 802. 11 b – GPRS - Batch

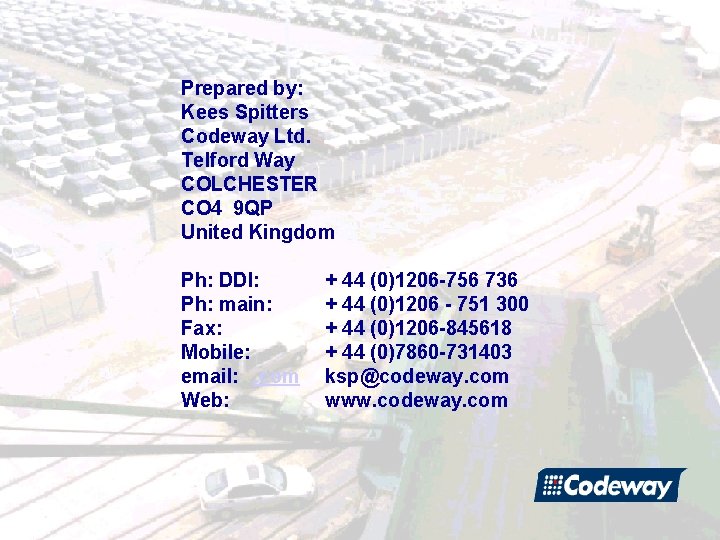

Prepared by: Kees Spitters Codeway Ltd. Telford Way COLCHESTER CO 4 9 QP United Kingdom Ph: DDI: Ph: main: Fax: Mobile: email: . com Web: + 44 (0)1206 -756 736 + 44 (0)1206 - 751 300 + 44 (0)1206 -845618 + 44 (0)7860 -731403 ksp@codeway. com www. codeway. com
