Digital Microwave Radio 8800 series The Digital Microwave Radio (DMR) 8800 series uses the split Indoor Unit and Outdoor unit (IDU/ODU) configuration common to most high frequency radios

Digital Microwave Radio 8800 series • The Digital Microwave Radio (DMR) 8800 series is a robust and flexible platform that builds on over a decade of Codan experience in the Links industry. • Built on the Legacy of the Codan 7700 Low to Medium Capacity PDH Radio – 10 Year Legacy. • Both the IDU and ODU are manufactured in-house by Codan. • Available in a range of capacities and bandwidths up to 16 E 1 , E 3 or 52 Mb/s Ethernet Capacity • Supplied with a 3 Year Warranty

Mixed Transport Circuit Switched 2/4/8/16 E 1 E 3 Packet Switched Handle all of your data transport with the Codan 8800 DMR Convergence IEEE 802. 3 Ethernet LAN/WAN/VLAN

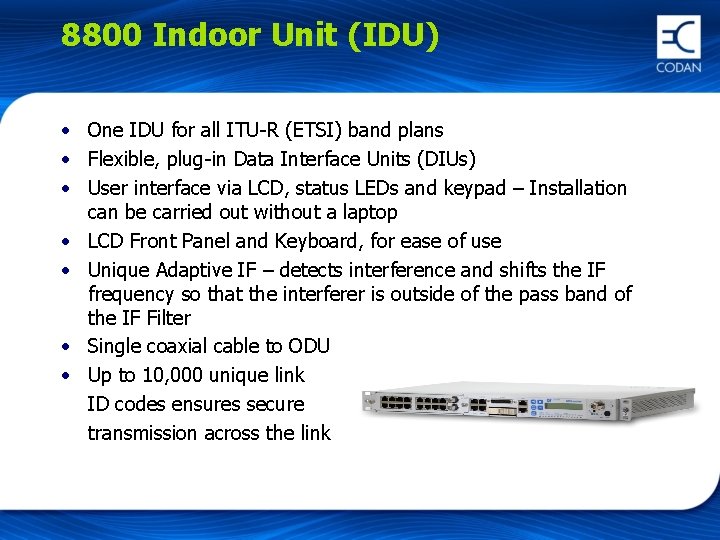

8800 Indoor Unit (IDU) • One IDU for all ITU-R (ETSI) band plans • Flexible, plug-in Data Interface Units (DIUs) • User interface via LCD, status LEDs and keypad – Installation can be carried out without a laptop • LCD Front Panel and Keyboard, for ease of use • Unique Adaptive IF – detects interference and shifts the IF frequency so that the interferer is outside of the pass band of the IF Filter • Single coaxial cable to ODU • Up to 10, 000 unique link ID codes ensures secure transmission across the link

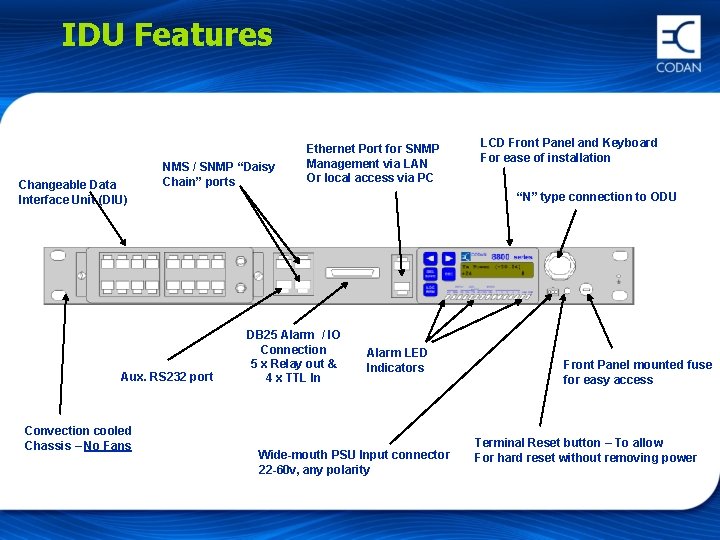

IDU Features Changeable Data Interface Unit (DIU) NMS / SNMP “Daisy Chain” ports Aux. RS 232 port Convection cooled Chassis – No Fans Ethernet Port for SNMP Management via LAN Or local access via PC LCD Front Panel and Keyboard For ease of installation “N” type connection to ODU DB 25 Alarm / IO Connection 5 x Relay out & 4 x TTL In Alarm LED Indicators Wide-mouth PSU Input connector 22 -60 v, any polarity Front Panel mounted fuse for easy access Terminal Reset button – To allow For hard reset without removing power

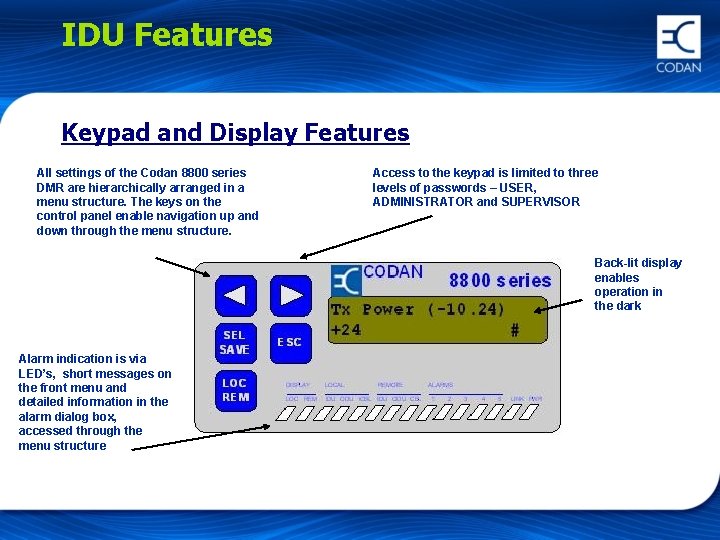

IDU Features Keypad and Display Features All settings of the Codan 8800 series DMR are hierarchically arranged in a menu structure. The keys on the control panel enable navigation up and down through the menu structure. Access to the keypad is limited to three levels of passwords – USER, ADMINISTRATOR and SUPERVISOR Back-lit display enables operation in the dark Alarm indication is via LED’s, short messages on the front menu and detailed information in the alarm dialog box, accessed through the menu structure

8800 Data Interface Unit (DIU) PDH 2 – 4 E 1 Plus EOW PDH 2 – 16 E 1 or E 3+E 1 2 – 16 DS 1 or DS 3+4 DS 1 PDH SCSI (with or without 1 x E 3) 2 – 16 E 1 or E 3+E 1, EOW 2 – 16 DS 1 or DS 3+4 DS 1 (1+0) and (1+1) Wireless Bridge (LAN) Ethernet +4 E 1 Ethernet +4 DS 1 100 Base T

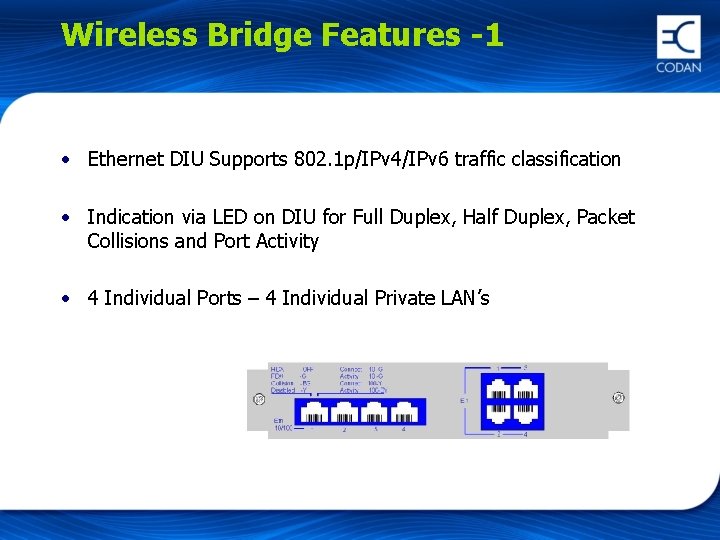

Wireless Bridge Features -1 • Ethernet DIU Supports 802. 1 p/IPv 4/IPv 6 traffic classification • Indication via LED on DIU for Full Duplex, Half Duplex, Packet Collisions and Port Activity • 4 Individual Ports – 4 Individual Private LAN’s

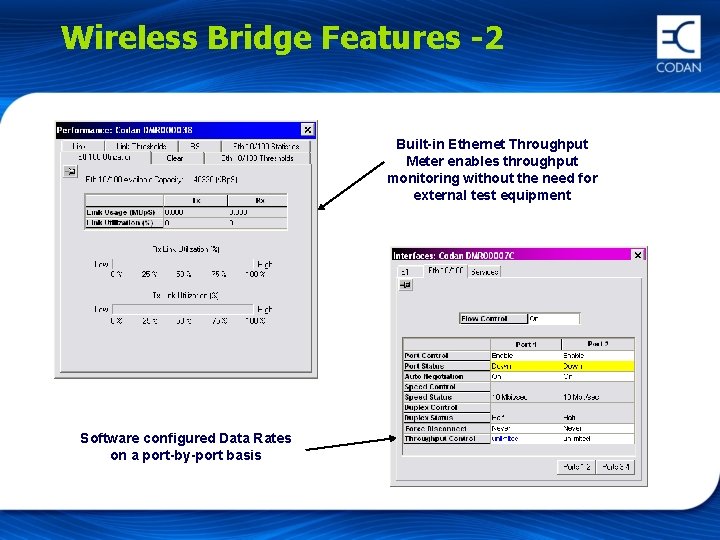

Wireless Bridge Features -2 Built-in Ethernet Throughput Meter enables throughput monitoring without the need for external test equipment Software configured Data Rates on a port-by-port basis

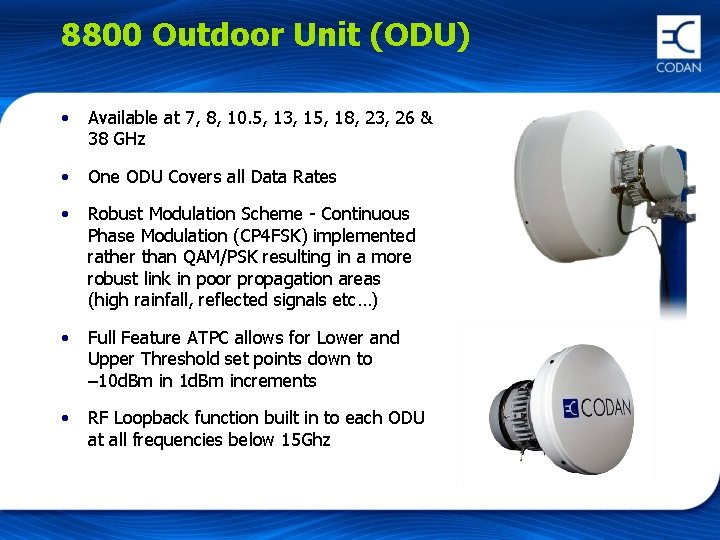

8800 Outdoor Unit (ODU) • Available at 7, 8, 10. 5, 13, 15, 18, 23, 26 & 38 GHz • One ODU Covers all Data Rates • Robust Modulation Scheme - Continuous Phase Modulation (CP 4 FSK) implemented rather than QAM/PSK resulting in a more robust link in poor propagation areas (high rainfall, reflected signals etc…) • Full Feature ATPC allows for Lower and Upper Threshold set points down to – 10 d. Bm in 1 d. Bm increments • RF Loopback function built in to each ODU at all frequencies below 15 Ghz

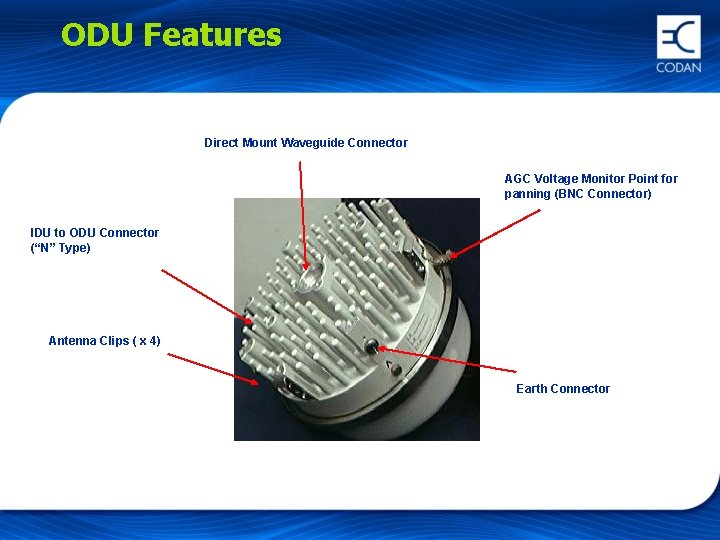

ODU Features Direct Mount Waveguide Connector AGC Voltage Monitor Point for panning (BNC Connector) IDU to ODU Connector (“N” Type) Antenna Clips ( x 4) Earth Connector

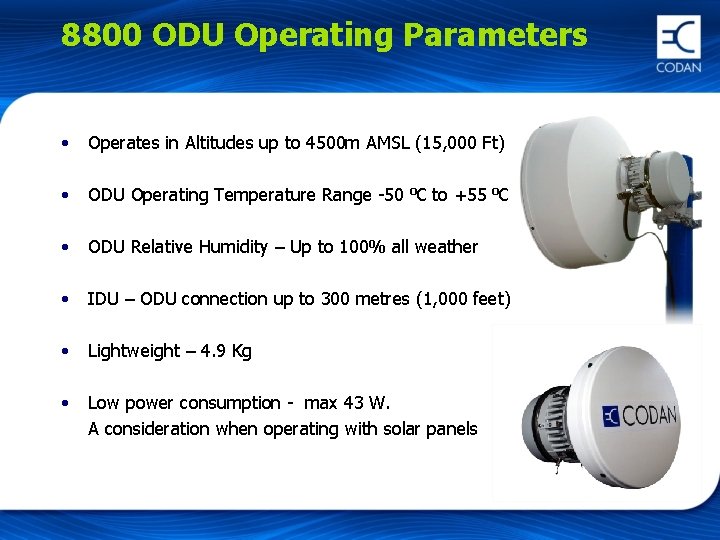

8800 ODU Operating Parameters • Operates in Altitudes up to 4500 m AMSL (15, 000 Ft) • ODU Operating Temperature Range -50 ⁰C to +55 ⁰C • ODU Relative Humidity – Up to 100% all weather • IDU – ODU connection up to 300 metres (1, 000 feet) • Lightweight – 4. 9 Kg • Low power consumption - max 43 W. A consideration when operating with solar panels

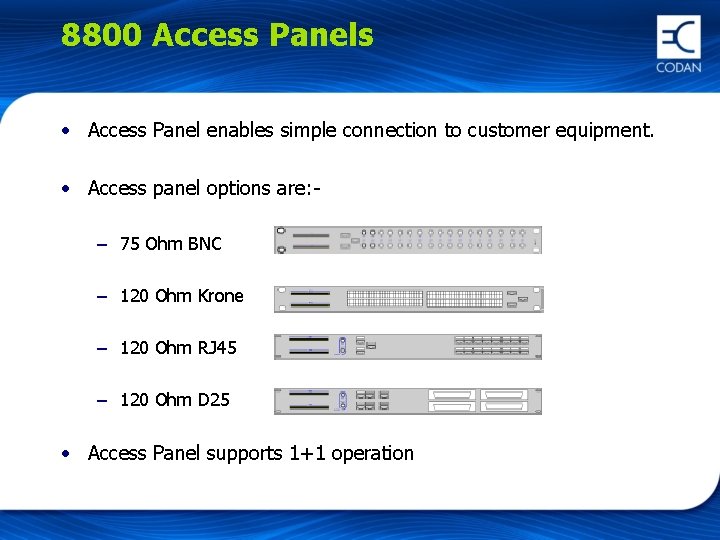

8800 Access Panels • Access Panel enables simple connection to customer equipment. • Access panel options are: – 75 Ohm BNC – 120 Ohm Krone – 120 Ohm RJ 45 – 120 Ohm D 25 • Access Panel supports 1+1 operation

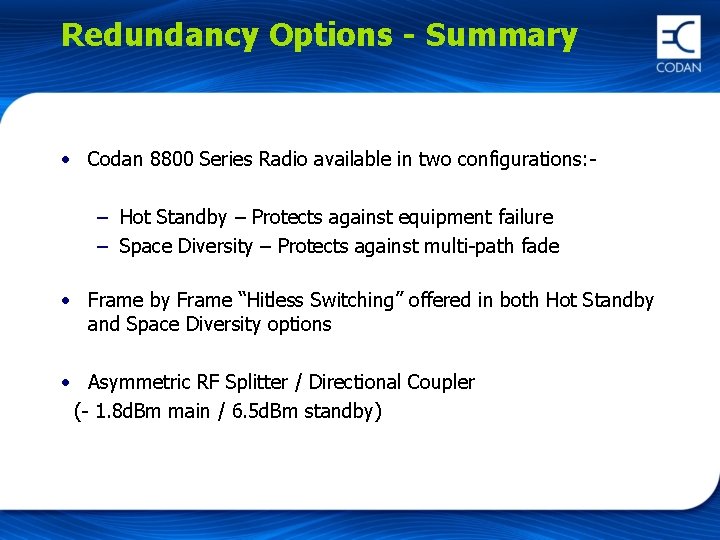

Redundancy Options - Summary • Codan 8800 Series Radio available in two configurations: – Hot Standby – Protects against equipment failure – Space Diversity – Protects against multi-path fade • Frame by Frame “Hitless Switching” offered in both Hot Standby and Space Diversity options • Asymmetric RF Splitter / Directional Coupler (- 1. 8 d. Bm main / 6. 5 d. Bm standby)

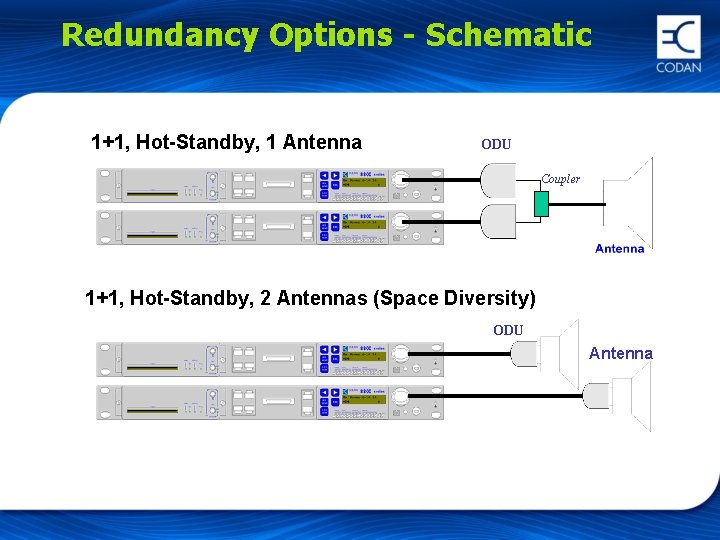

Redundancy Options - Schematic 1+1, Hot-Standby, 1 Antenna ODU Coupler 1+1, Hot-Standby, 2 Antennas (Space Diversity) ODU Antenna

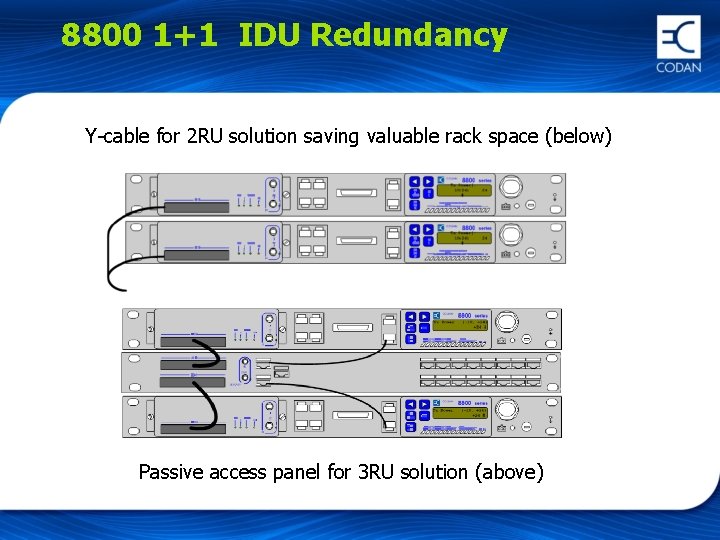

8800 1+1 IDU Redundancy Y-cable for 2 RU solution saving valuable rack space (below) Passive access panel for 3 RU solution (above)

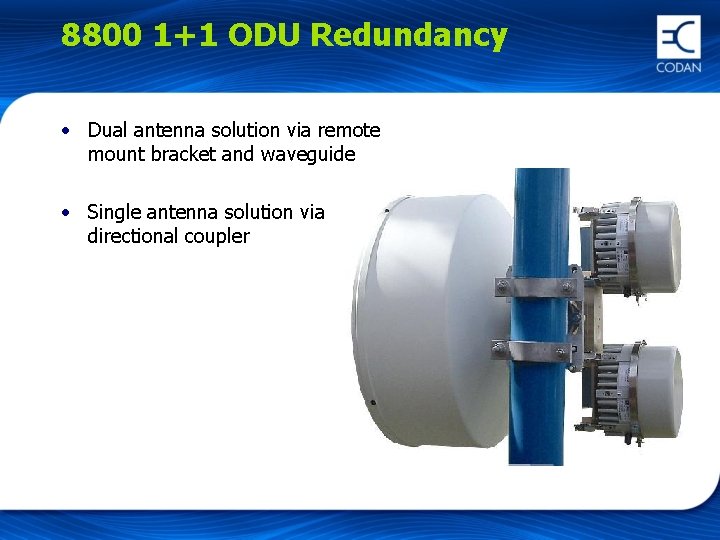

8800 1+1 ODU Redundancy • Dual antenna solution via remote mount bracket and waveguide • Single antenna solution via directional coupler

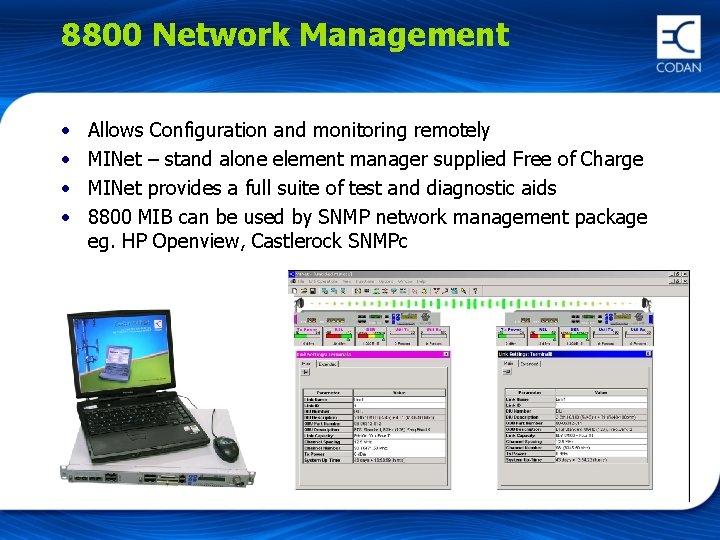

8800 Network Management • • Allows Configuration and monitoring remotely MINet – stand alone element manager supplied Free of Charge MINet provides a full suite of test and diagnostic aids 8800 MIB can be used by SNMP network management package eg. HP Openview, Castlerock SNMPc

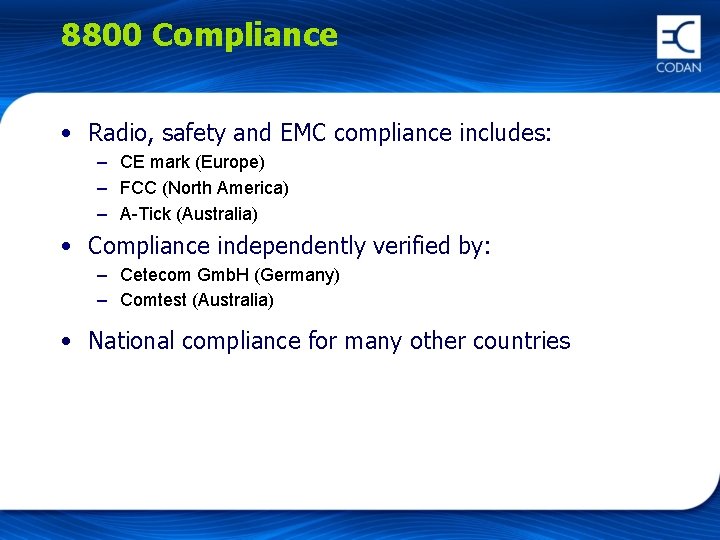

8800 Compliance • Radio, safety and EMC compliance includes: – CE mark (Europe) – FCC (North America) – A-Tick (Australia) • Compliance independently verified by: – Cetecom Gmb. H (Germany) – Comtest (Australia) • National compliance for many other countries

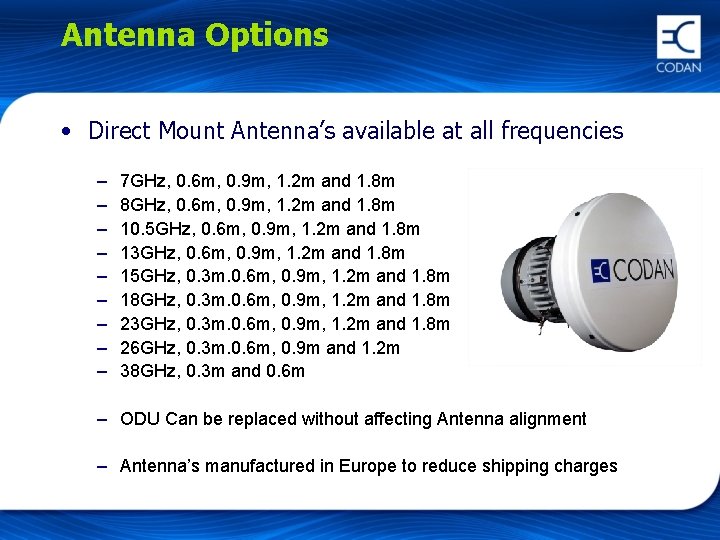

Antenna Options • Direct Mount Antenna’s available at all frequencies – – – – – 7 GHz, 0. 6 m, 0. 9 m, 1. 2 m and 1. 8 m 8 GHz, 0. 6 m, 0. 9 m, 1. 2 m and 1. 8 m 10. 5 GHz, 0. 6 m, 0. 9 m, 1. 2 m and 1. 8 m 13 GHz, 0. 6 m, 0. 9 m, 1. 2 m and 1. 8 m 15 GHz, 0. 3 m. 0. 6 m, 0. 9 m, 1. 2 m and 1. 8 m 18 GHz, 0. 3 m. 0. 6 m, 0. 9 m, 1. 2 m and 1. 8 m 23 GHz, 0. 3 m. 0. 6 m, 0. 9 m, 1. 2 m and 1. 8 m 26 GHz, 0. 3 m. 0. 6 m, 0. 9 m and 1. 2 m 38 GHz, 0. 3 m and 0. 6 m – ODU Can be replaced without affecting Antenna alignment – Antenna’s manufactured in Europe to reduce shipping charges

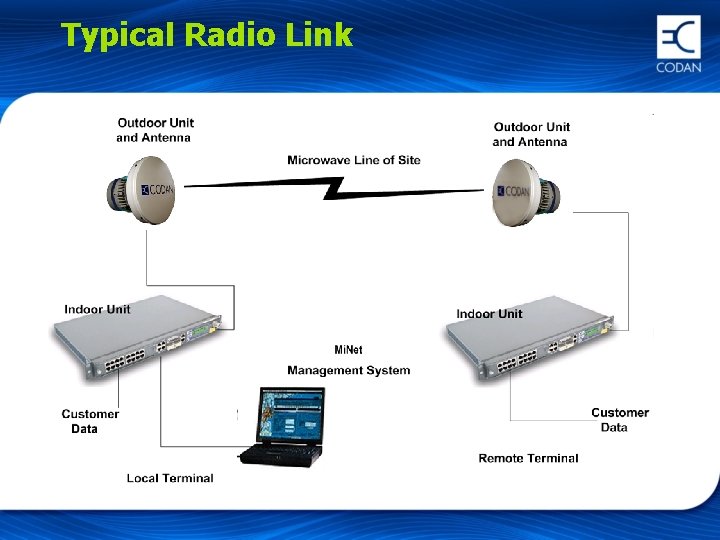

Typical Radio Link

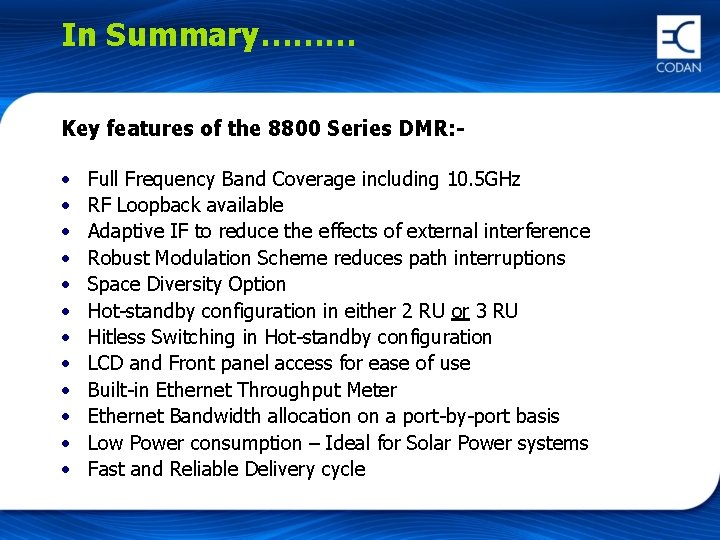

In Summary……… Key features of the 8800 Series DMR: • • • Full Frequency Band Coverage including 10. 5 GHz RF Loopback available Adaptive IF to reduce the effects of external interference Robust Modulation Scheme reduces path interruptions Space Diversity Option Hot-standby configuration in either 2 RU or 3 RU Hitless Switching in Hot-standby configuration LCD and Front panel access for ease of use Built-in Ethernet Throughput Meter Ethernet Bandwidth allocation on a port-by-port basis Low Power consumption – Ideal for Solar Power systems Fast and Reliable Delivery cycle
