Cocoa Butter crystallization tempering bloom Plan Lipid structure

Cocoa Butter crystallization, tempering, bloom

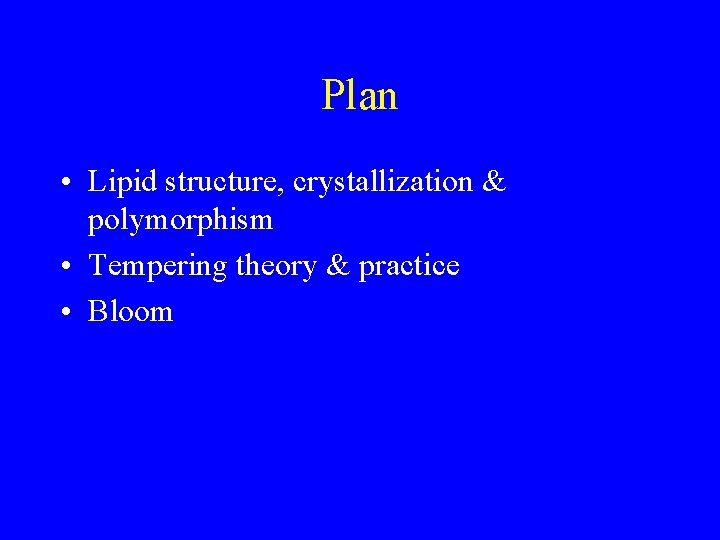

Plan • Lipid structure, crystallization & polymorphism • Tempering theory & practice • Bloom

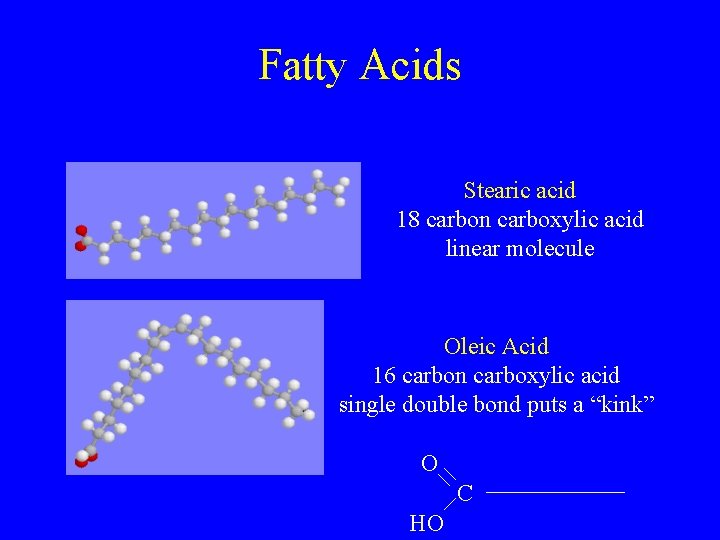

Fatty Acids Stearic acid 18 carbon carboxylic acid linear molecule Oleic Acid 16 carbon carboxylic acid single double bond puts a “kink” O C HO

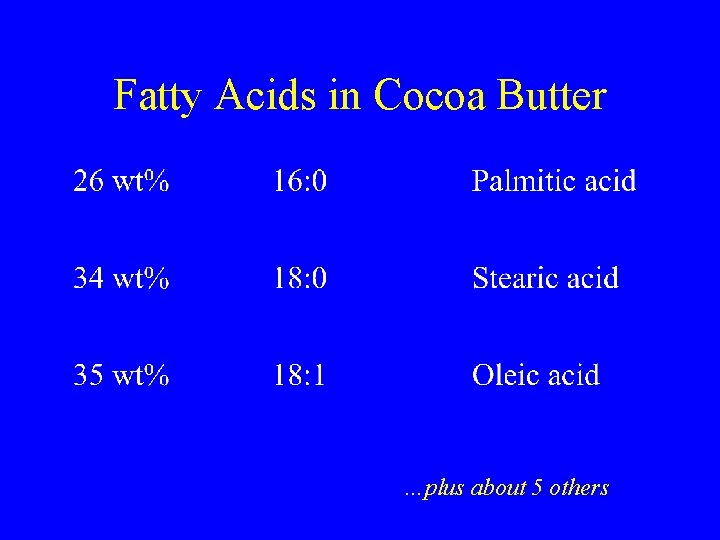

Fatty Acids in Cocoa Butter …plus about 5 others

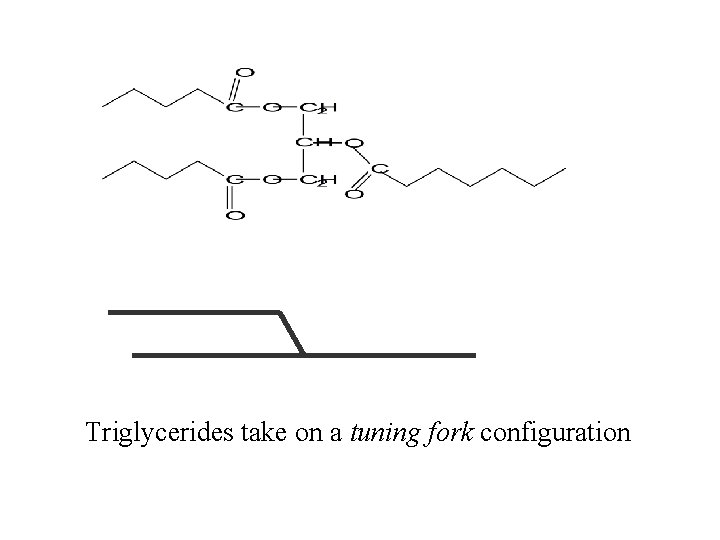

Triglycerides take on a tuning fork configuration

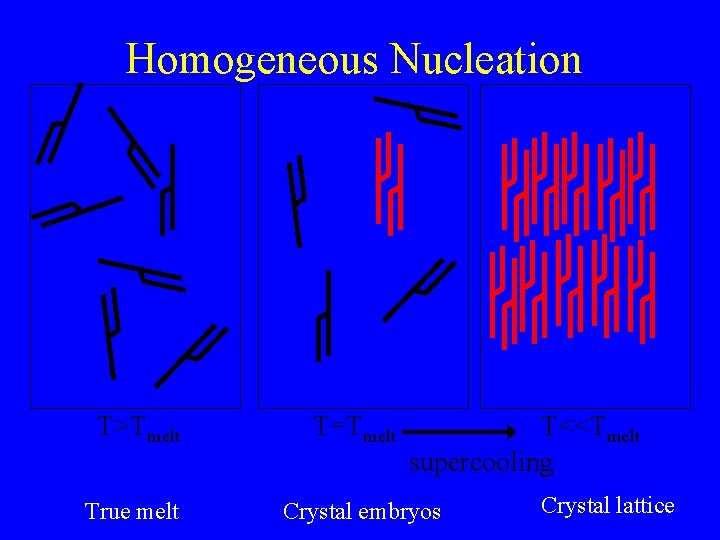

Homogeneous Nucleation T>Tmelt True melt T=Tmelt T<<Tmelt supercooling Crystal embryos Crystal lattice

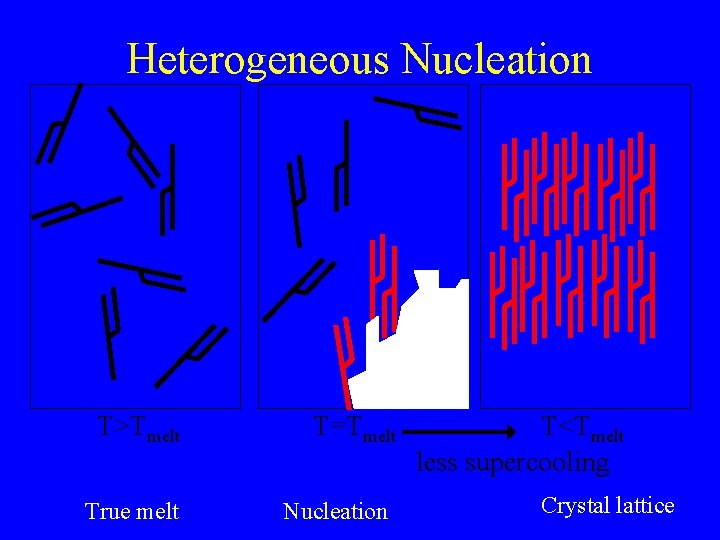

Heterogeneous Nucleation T>Tmelt True melt T=Tmelt Nucleation T<Tmelt less supercooling Crystal lattice

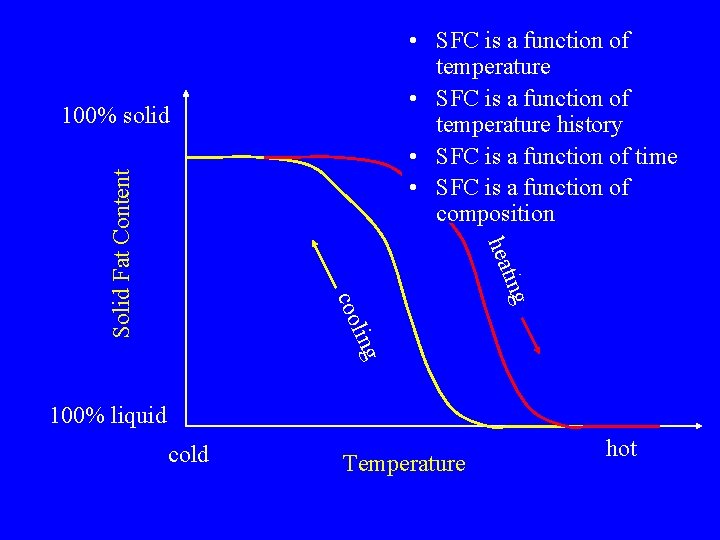

• SFC is a function of temperature history • SFC is a function of time • SFC is a function of composition ing l coo ting hea Solid Fat Content 100% solid 100% liquid cold Temperature hot

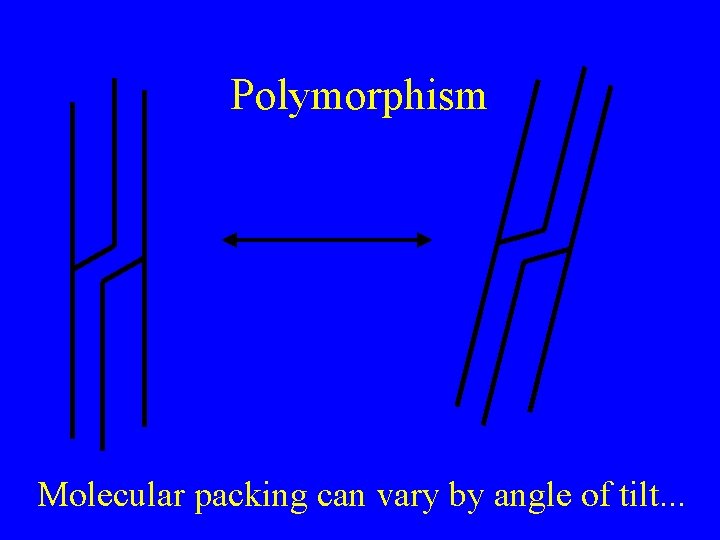

Polymorphism Molecular packing can vary by angle of tilt. . .

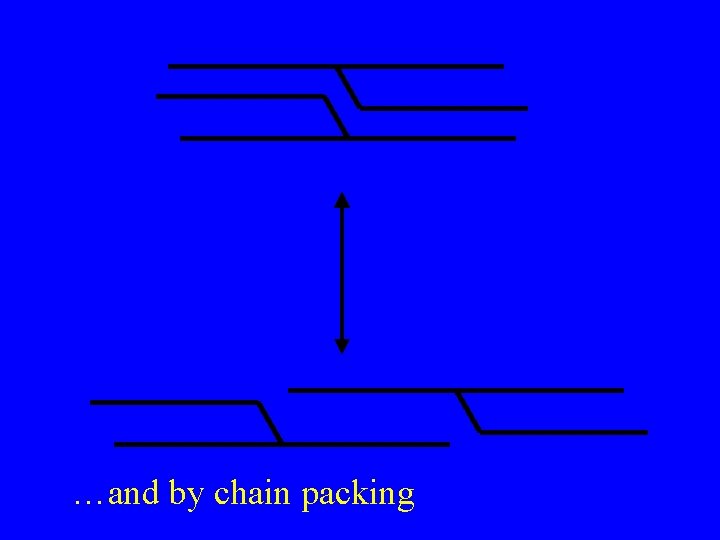

…and by chain packing

Consequently there are several types of triglyceride crystal More dense Higher MP More desirable

Key Facts • • • Desirable forms have a high melting point The higher melting point, the more stable More stable fats are more dense More stable forms are slow to form Like crystals will grow from like Cocoa butter can convert from a less to more stable form

• As the oil cools the fat molecules slow down • Eventually try to “stop” in contact with another molecule (crystal lattice) • It takes time to get into optimal position (most dense) • Pre-existing nuclei can help form a template

Rapid cooling leads to a less well ordered structure!

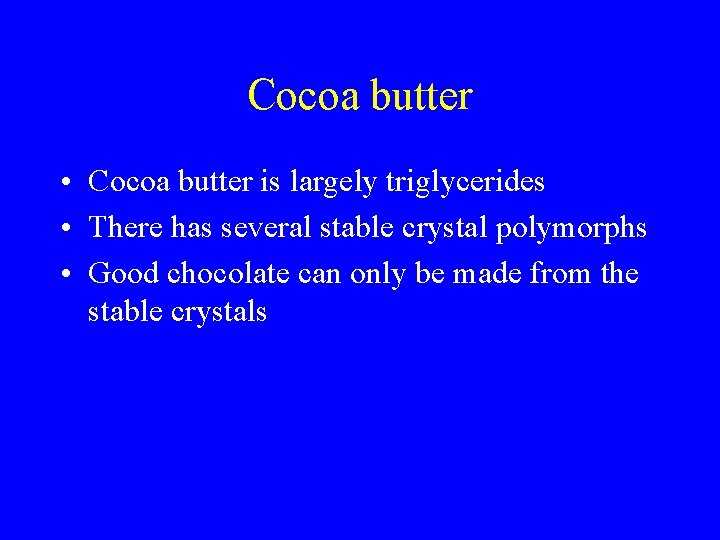

Cocoa butter • Cocoa butter is largely triglycerides • There has several stable crystal polymorphs • Good chocolate can only be made from the stable crystals

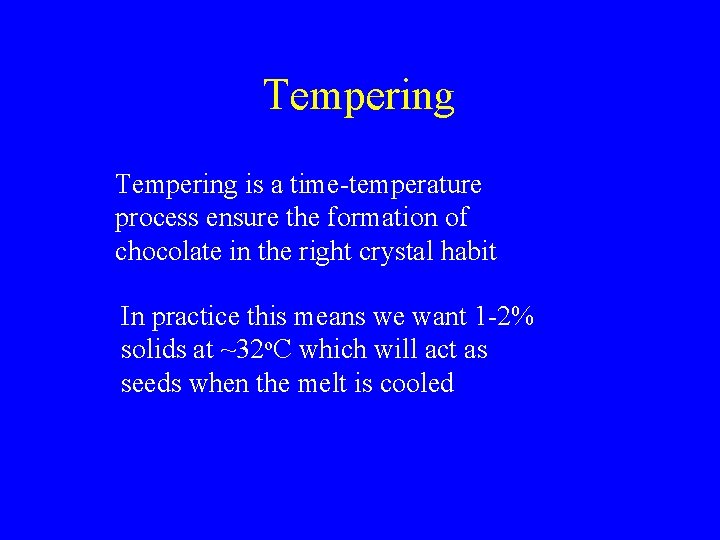

Tempering is a time-temperature process ensure the formation of chocolate in the right crystal habit In practice this means we want 1 -2% solids at ~32 o. C which will act as seeds when the melt is cooled

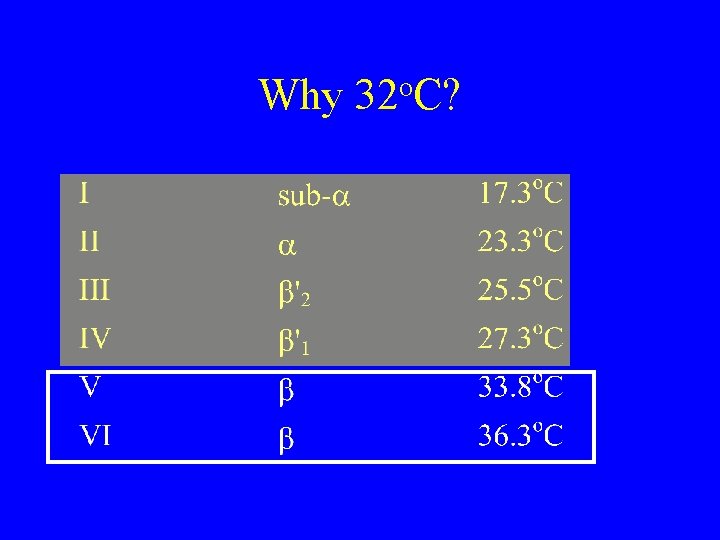

Why o 32 C?

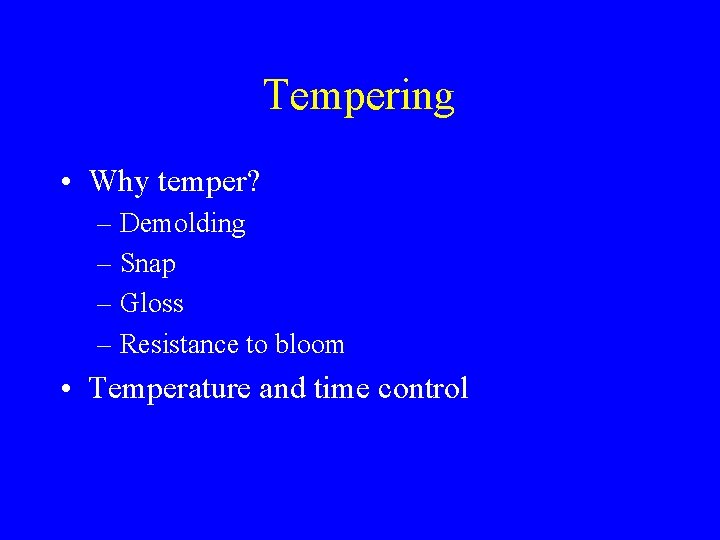

Tempering • Why temper? – Demolding – Snap – Gloss – Resistance to bloom • Temperature and time control

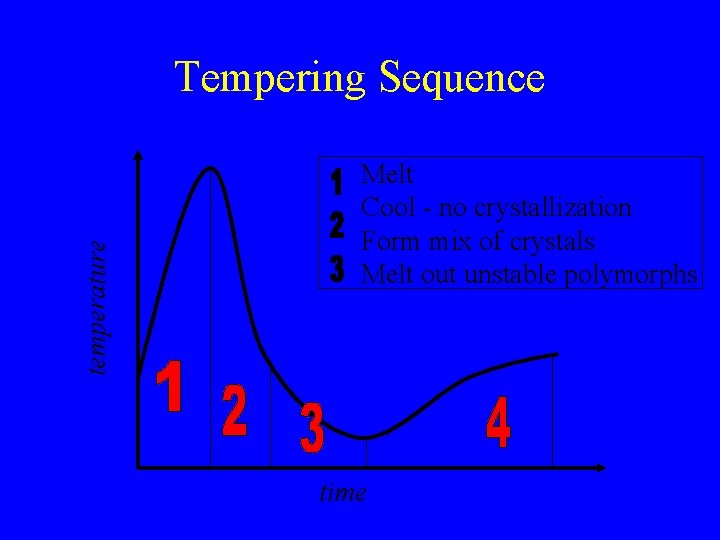

Tempering Sequence temperature 50 o. C Melt Cool - no crystallization Form mix of crystals Melt out unstable polymorphs 32 o. C 30 -32 o. C 27 o. C time

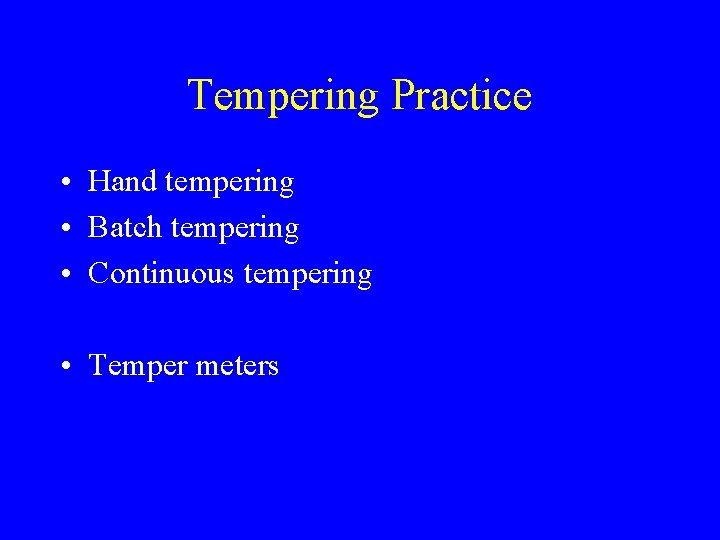

Tempering Practice • Hand tempering • Batch tempering • Continuous tempering • Temper meters

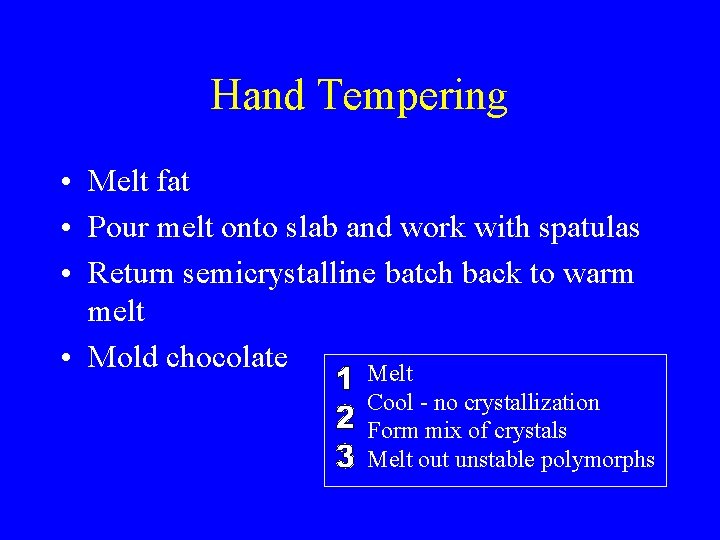

Hand Tempering • Melt fat • Pour melt onto slab and work with spatulas • Return semicrystalline batch back to warm melt • Mold chocolate Melt Cool - no crystallization Form mix of crystals Melt out unstable polymorphs

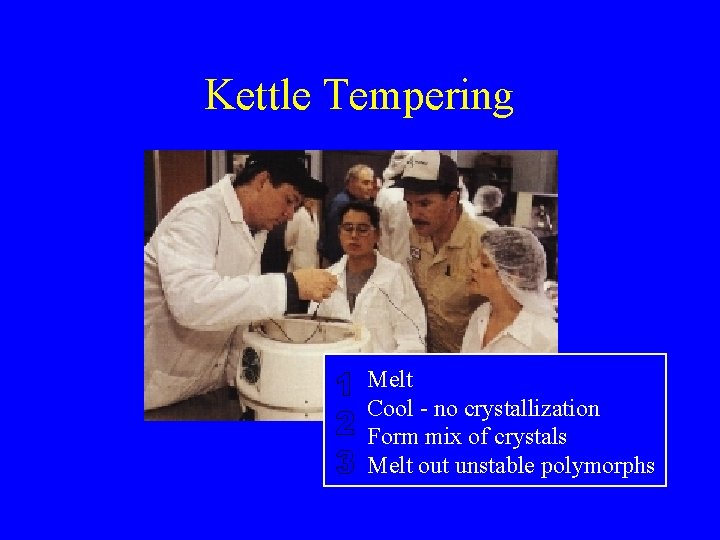

Kettle Tempering Melt Cool - no crystallization Form mix of crystals Melt out unstable polymorphs

3 -stage Tempering Machine

Tempering • Tempering is a process to ensure the formation of stable crystals • Tempering is a time-temperature process • Tempering can be done as a batch or continuous process • Degree of temper can be measured from a cooling curve

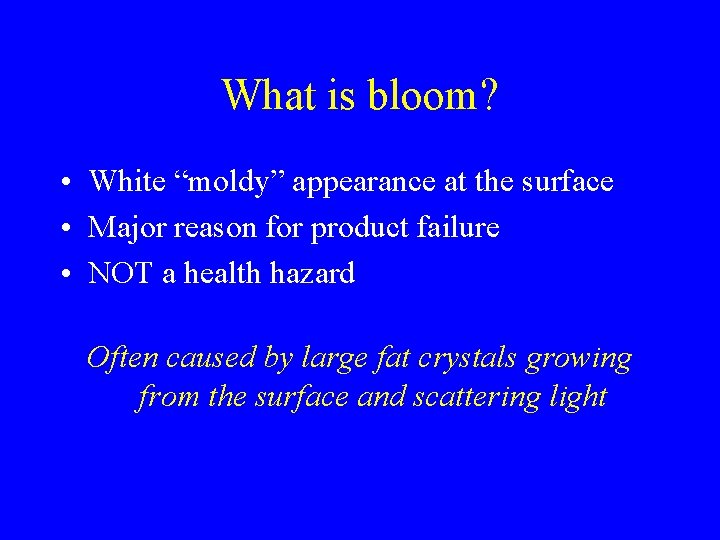

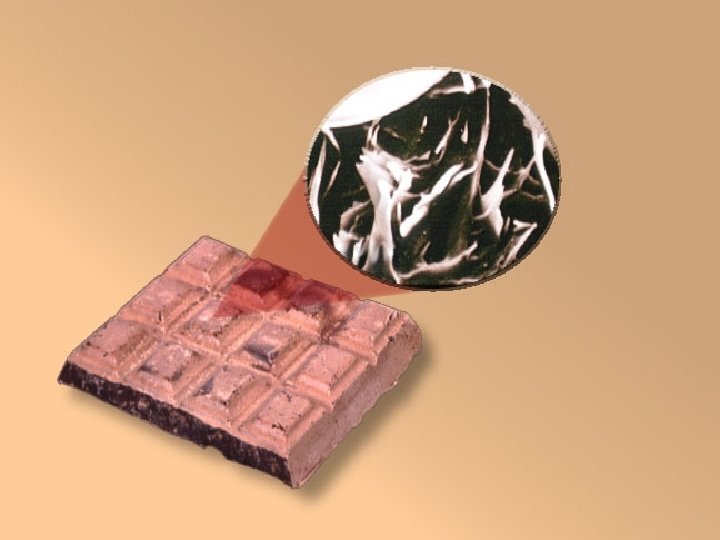

What is bloom? • White “moldy” appearance at the surface • Major reason for product failure • NOT a health hazard Often caused by large fat crystals growing from the surface and scattering light

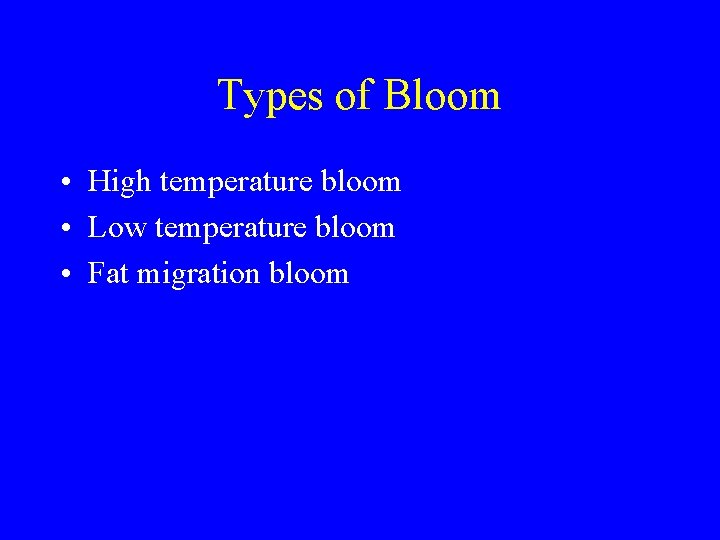

Types of Bloom • High temperature bloom • Low temperature bloom • Fat migration bloom

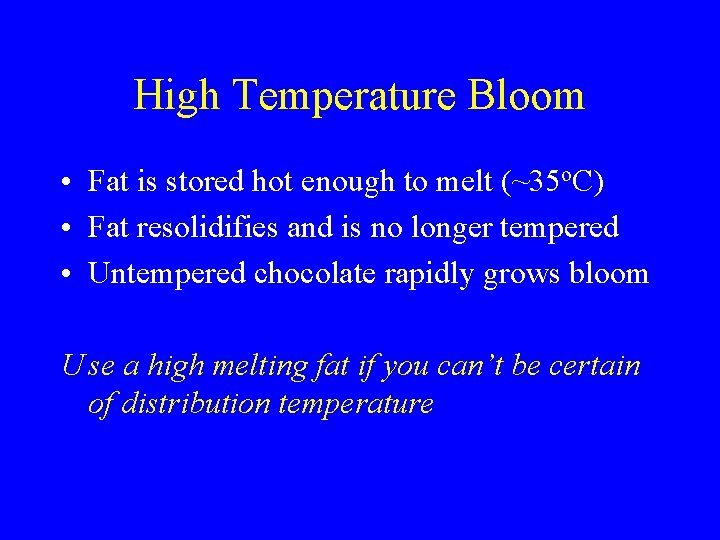

High Temperature Bloom • Fat is stored hot enough to melt (~35 o. C) • Fat resolidifies and is no longer tempered • Untempered chocolate rapidly grows bloom U se a high melting fat if you can’t be certain of distribution temperature

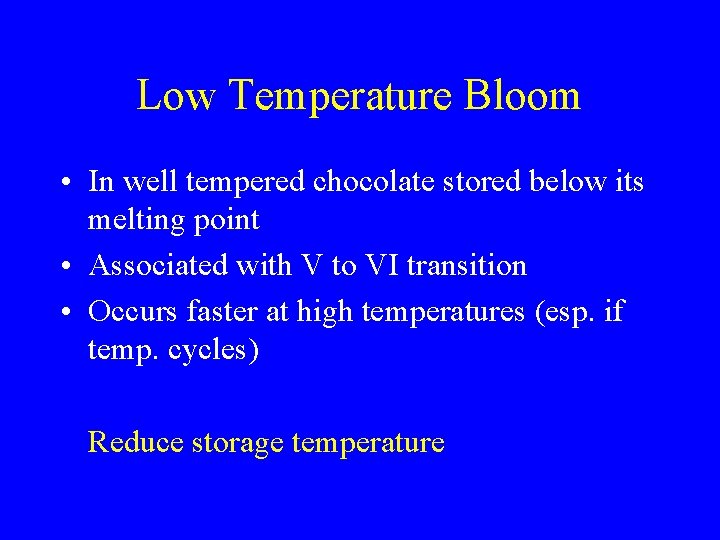

Low Temperature Bloom • In well tempered chocolate stored below its melting point • Associated with V to VI transition • Occurs faster at high temperatures (esp. if temp. cycles) Reduce storage temperature

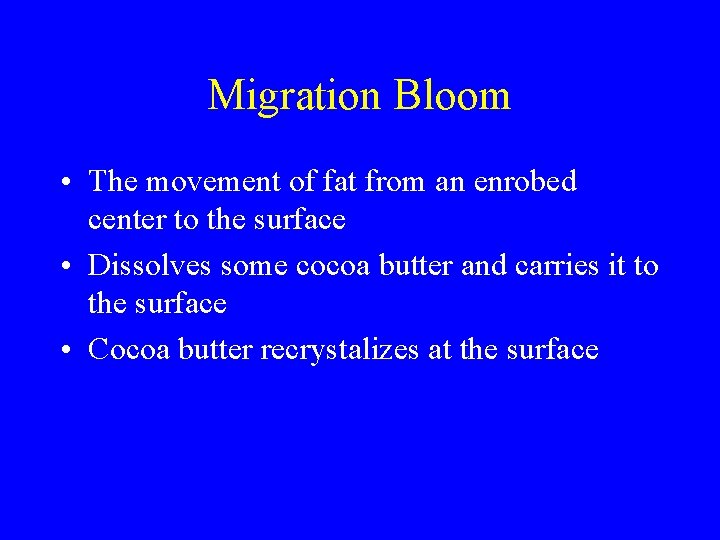

Migration Bloom • The movement of fat from an enrobed center to the surface • Dissolves some cocoa butter and carries it to the surface • Cocoa butter recrystalizes at the surface

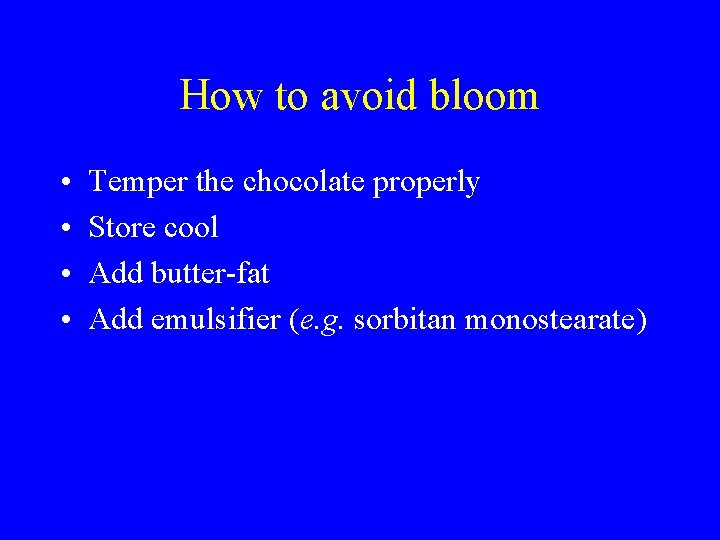

How to avoid bloom • • Temper the chocolate properly Store cool Add butter-fat Add emulsifier (e. g. sorbitan monostearate)

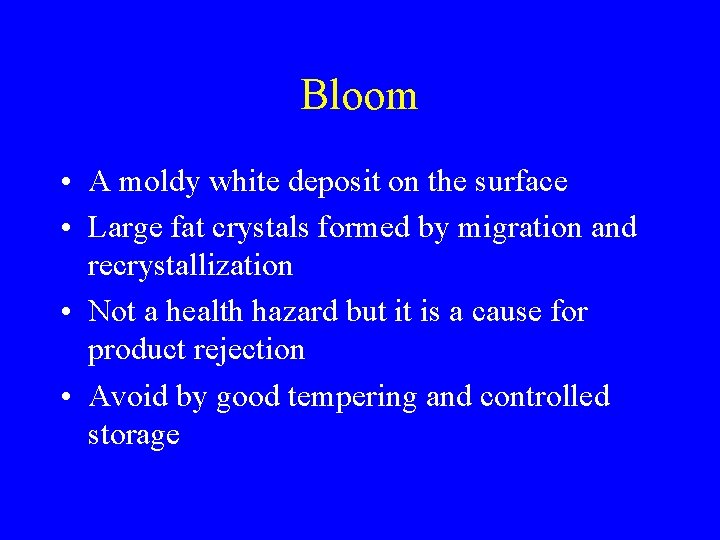

Bloom • A moldy white deposit on the surface • Large fat crystals formed by migration and recrystallization • Not a health hazard but it is a cause for product rejection • Avoid by good tempering and controlled storage
