Cochlea Hearing spiral chambers coils around a bony

Cochlea Hearing

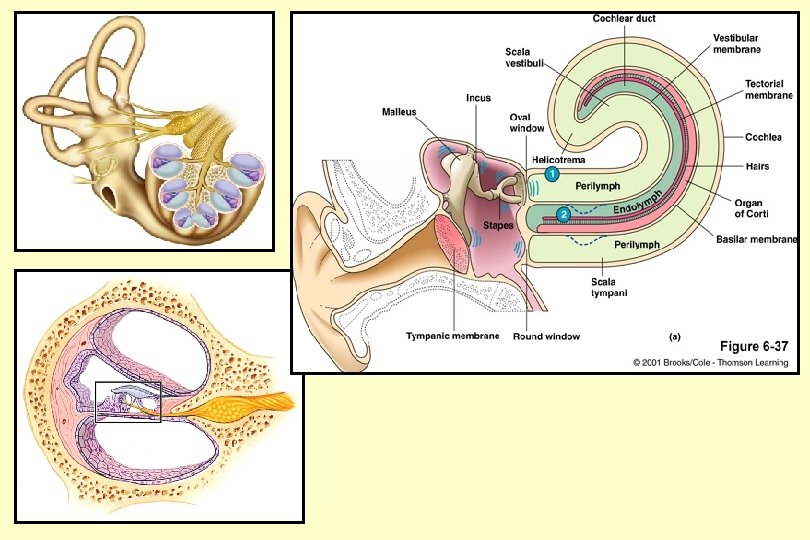

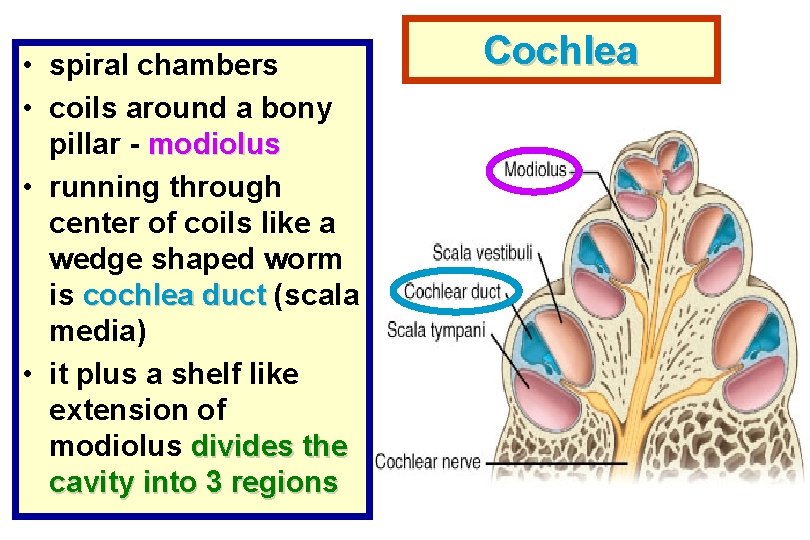

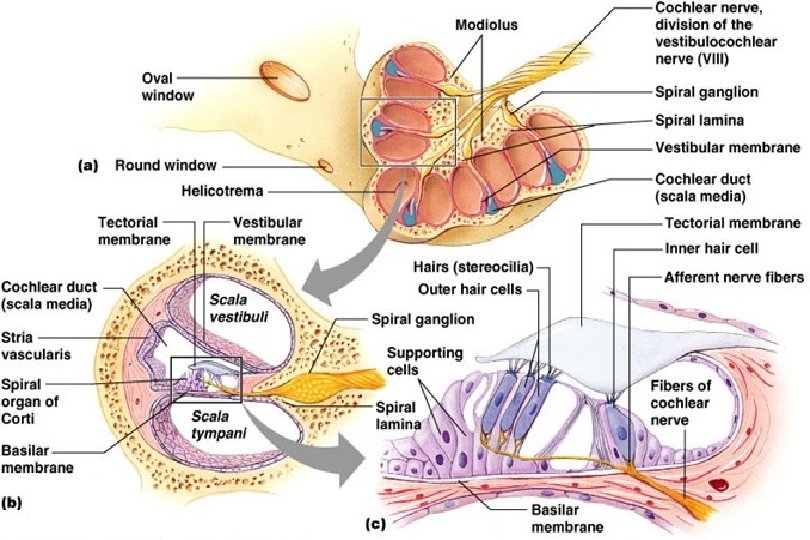

• spiral chambers • coils around a bony pillar - modiolus • running through center of coils like a wedge shaped worm is cochlea duct (scala media) • it plus a shelf like extension of modiolus divides the cavity into 3 regions Cochlea

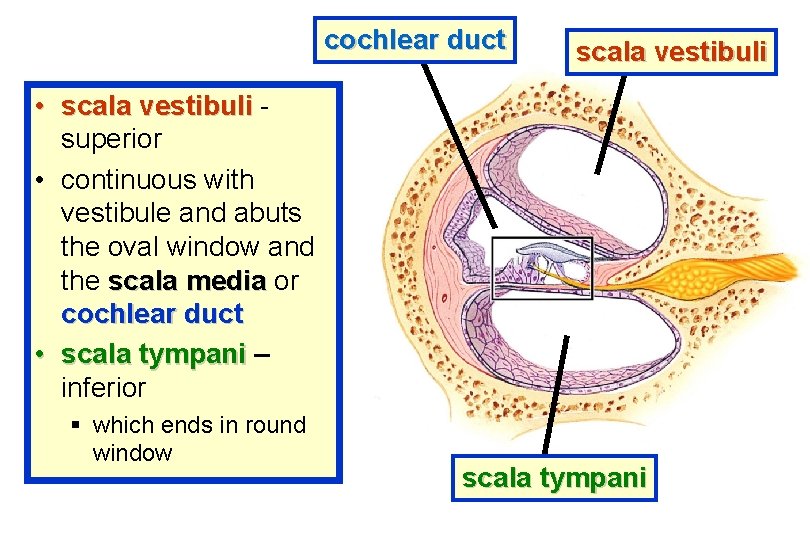

cochlear duct scala vestibuli • scala vestibuli superior • continuous with vestibule and abuts the oval window and the scala media or cochlear duct • scala tympani – inferior § which ends in round window scala tympani

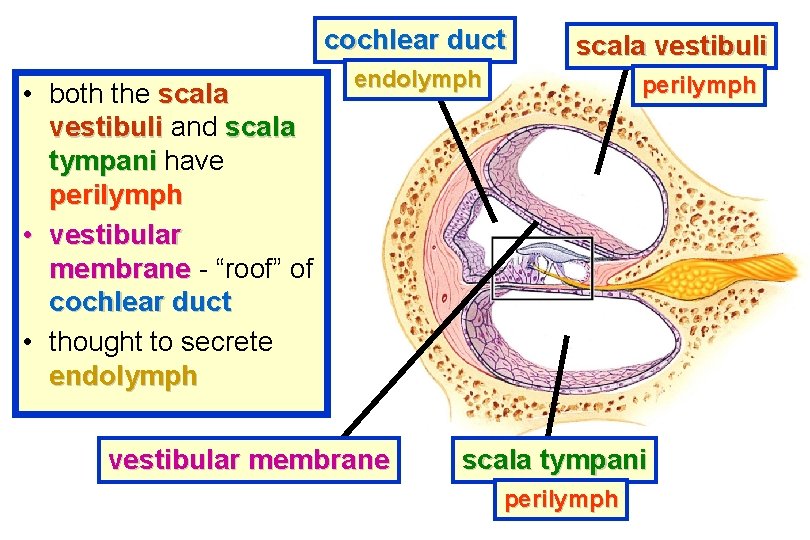

cochlear duct • both the scala vestibuli and scala tympani have perilymph • vestibular membrane - “roof” of cochlear duct • thought to secrete endolymph scala vestibuli endolymph vestibular membrane perilymph scala tympani perilymph

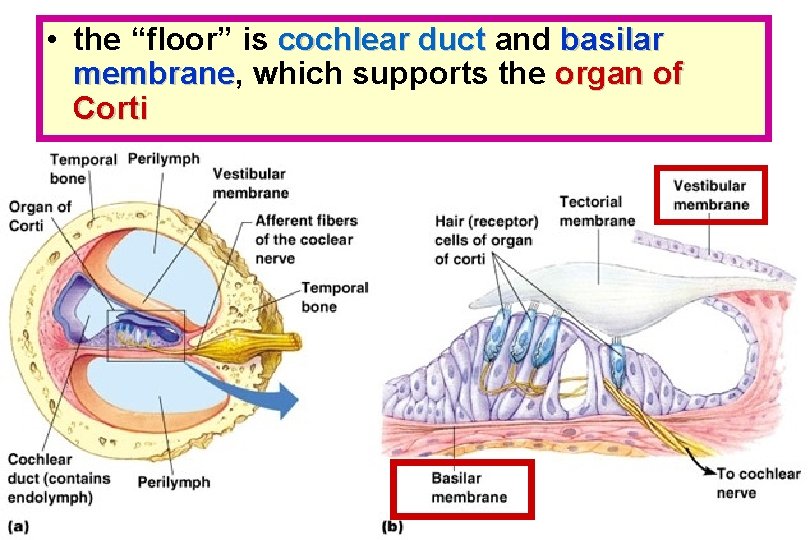

• the “floor” is cochlear duct and basilar membrane, membrane which supports the organ of Corti

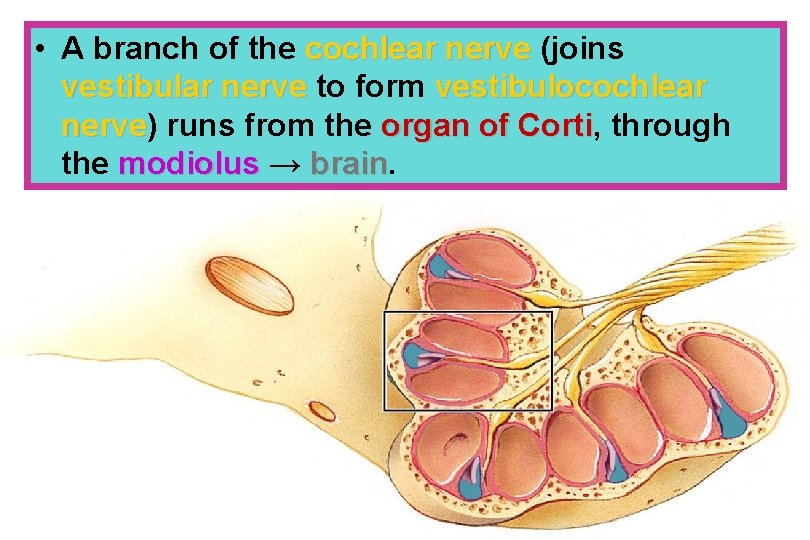

• A branch of the cochlear nerve (joins vestibular nerve to form vestibulocochlear nerve) nerve runs from the organ of Corti, Corti through the modiolus → brain

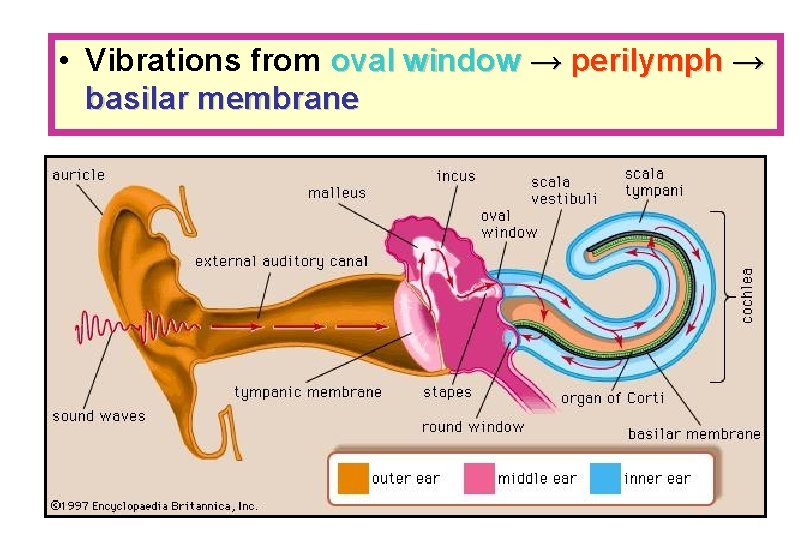

• Vibrations from oval window → perilymph → basilar membrane

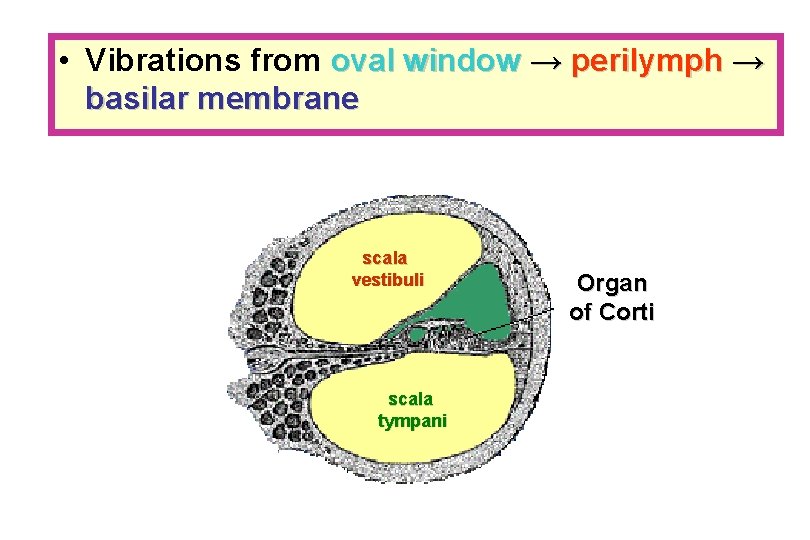

• Vibrations from oval window → perilymph → basilar membrane scala vestibuli scala tympani Organ of Corti

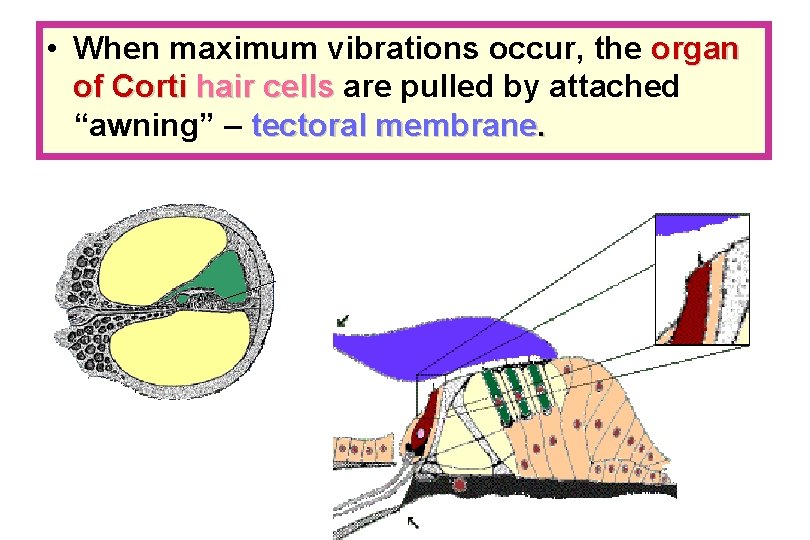

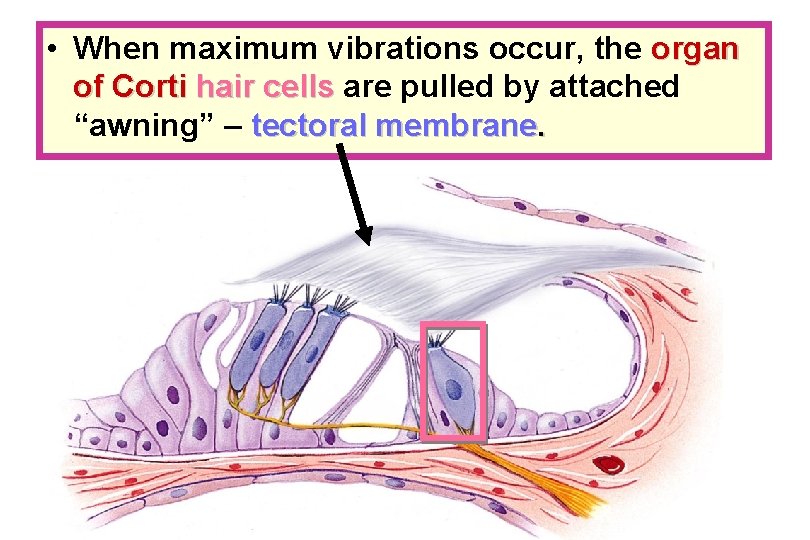

• When maximum vibrations occur, the organ of Corti hair cells are pulled by attached “awning” – tectoral membrane.

• When maximum vibrations occur, the organ of Corti hair cells are pulled by attached “awning” – tectoral membrane.

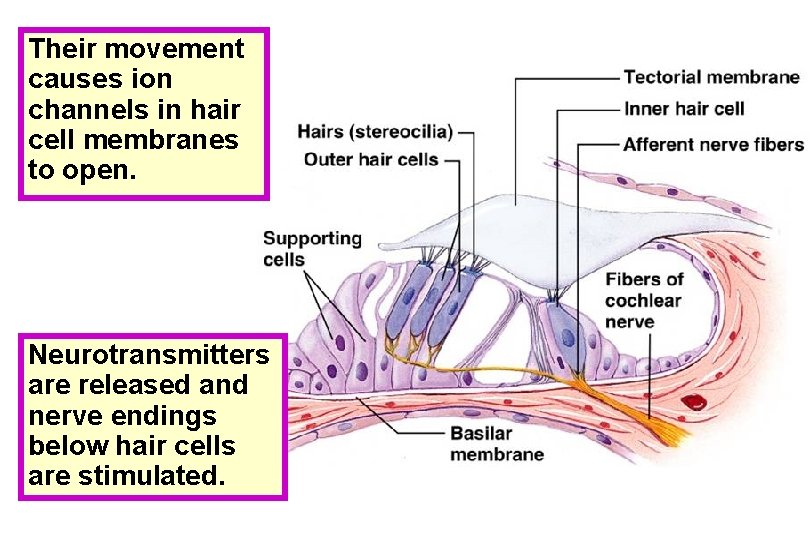

Their movement causes ion channels in hair cell membranes to open. Neurotransmitters are released and nerve endings below hair cells are stimulated.

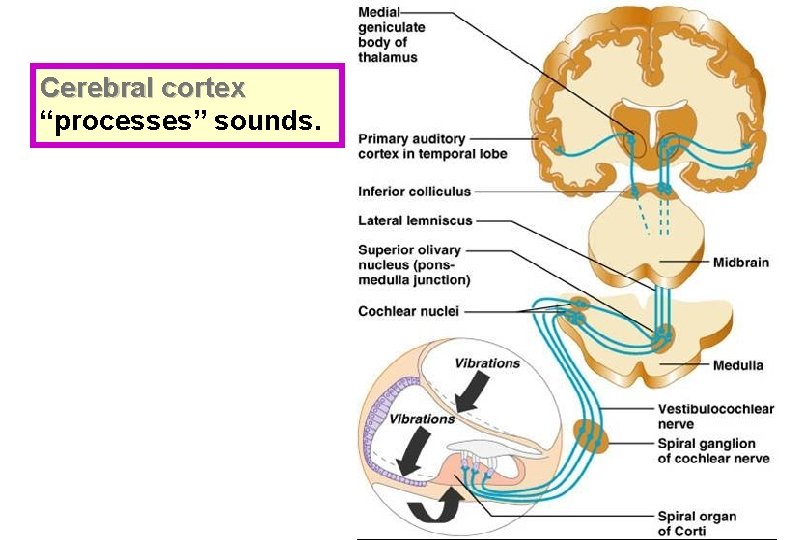

Cerebral cortex “processes” sounds.

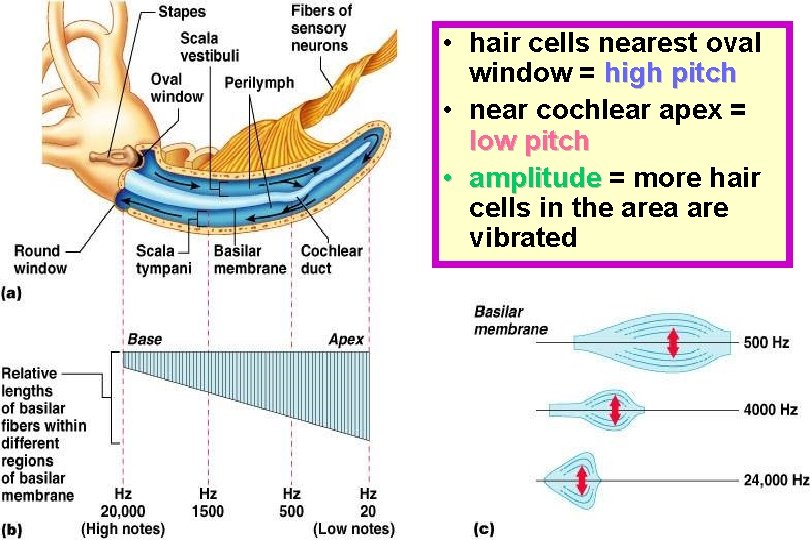

• hair cells nearest oval window = high pitch • near cochlear apex = low pitch • amplitude = more hair cells in the area are vibrated

Sound Pathway

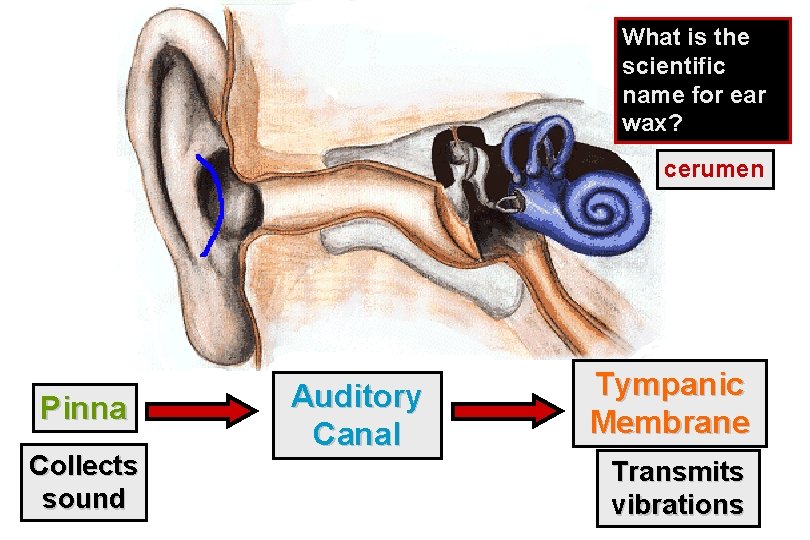

What is the scientific name for ear wax? cerumen Pinna Collects sound Auditory Canal Tympanic Membrane Transmits vibrations

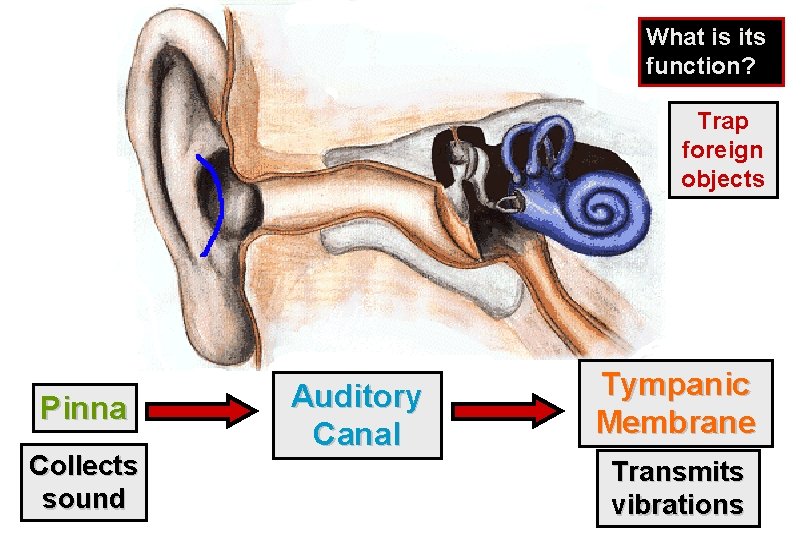

What is its function? Trap foreign objects Pinna Collects sound Auditory Canal Tympanic Membrane Transmits vibrations

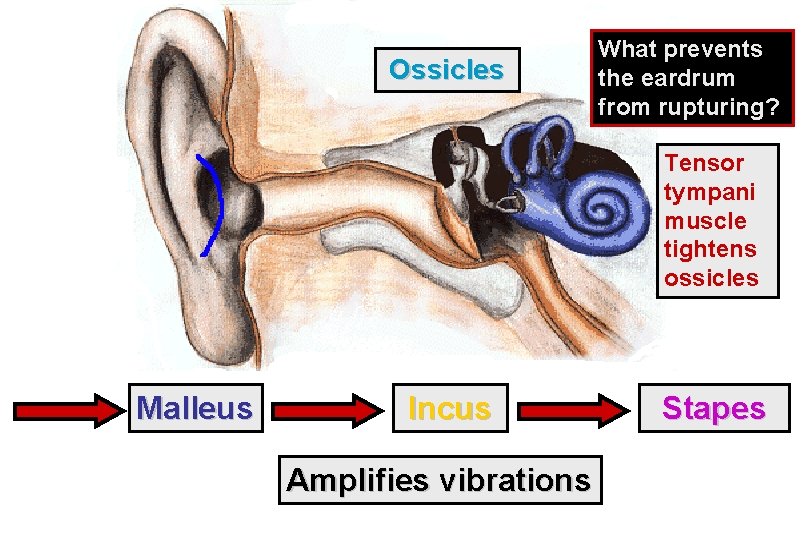

Ossicles What prevents the eardrum from rupturing? Tensor tympani muscle tightens ossicles Malleus Incus Amplifies vibrations Stapes

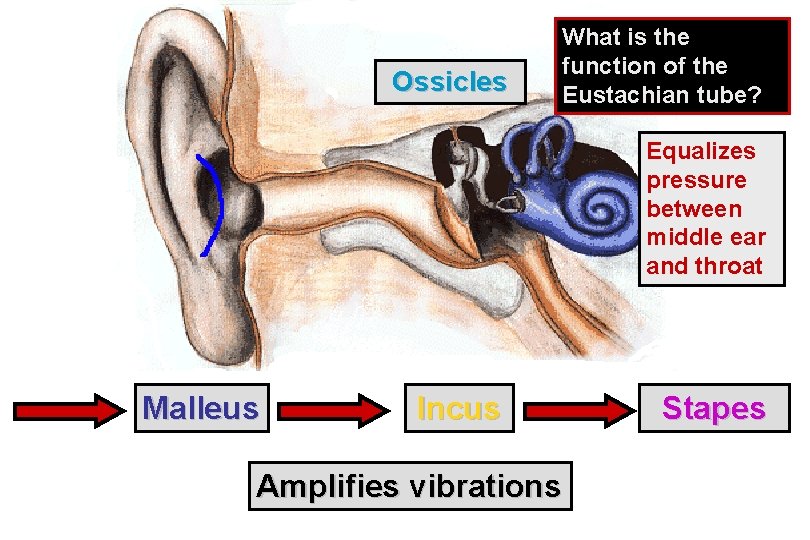

Ossicles What is the function of the Eustachian tube? Equalizes pressure between middle ear and throat Malleus Incus Amplifies vibrations Stapes

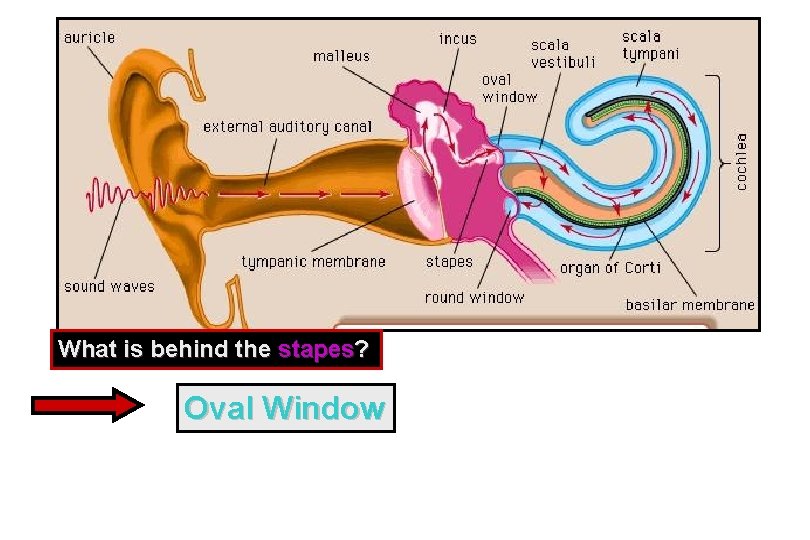

What is behind the stapes? Oval Window

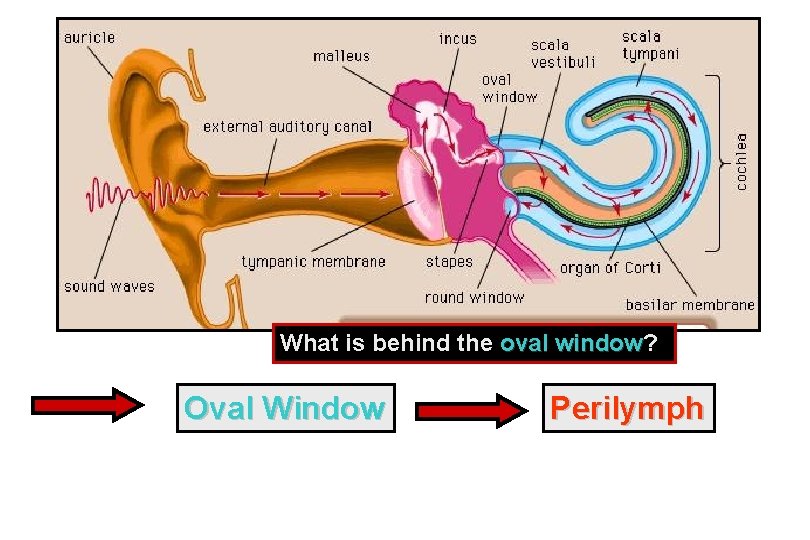

What is behind the oval window? window Oval Window Perilymph

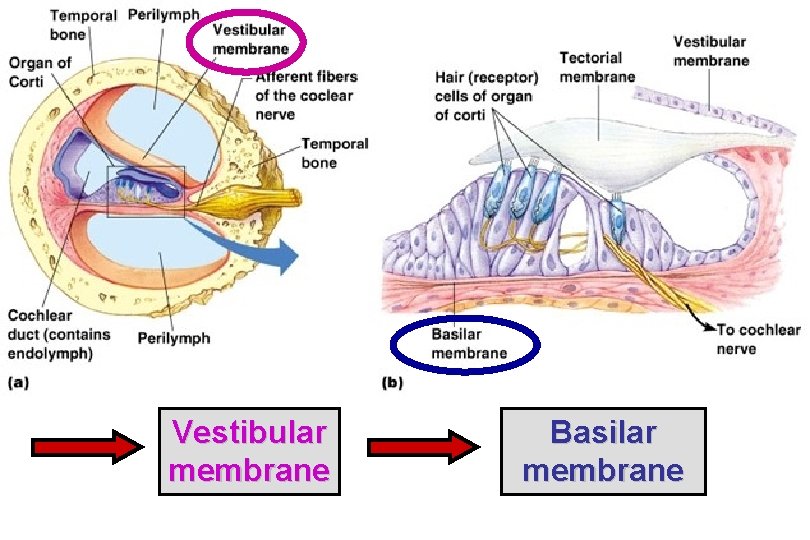

Vestibular membrane Basilar membrane

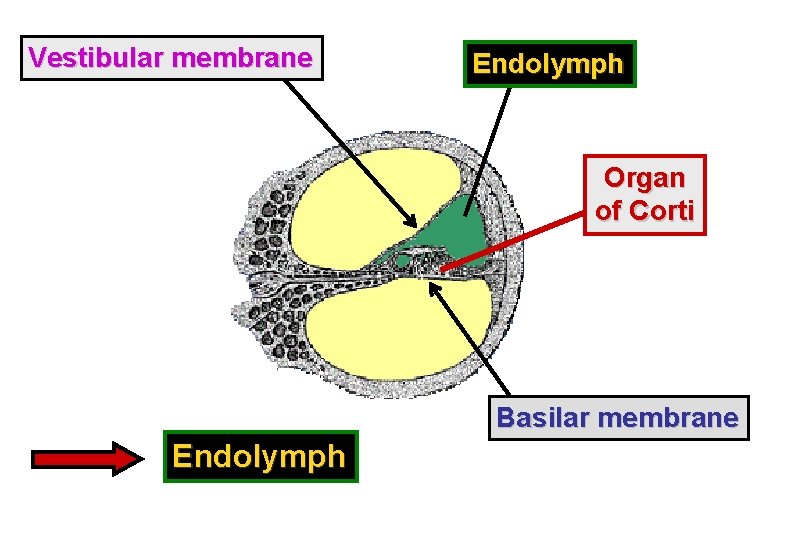

Vestibular membrane Endolymph Organ of Corti Basilar membrane Endolymph

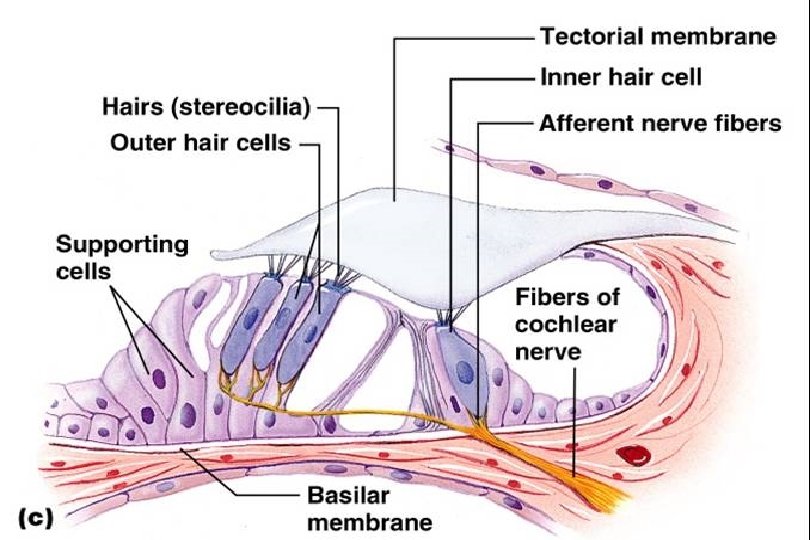

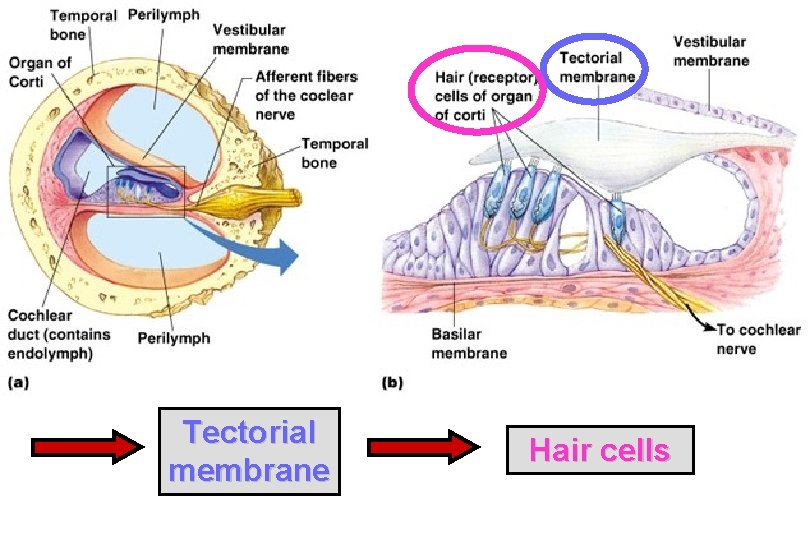

Tectorial membrane Hair cells

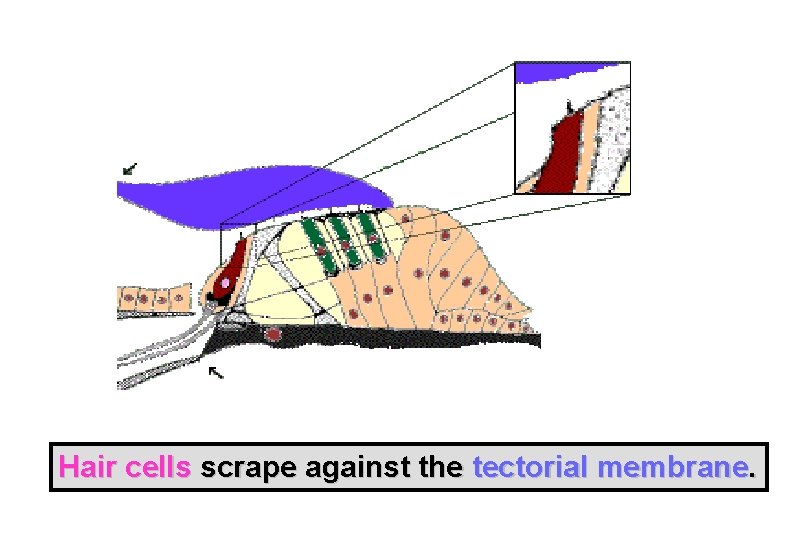

Hair cells scrape against the tectorial membrane.

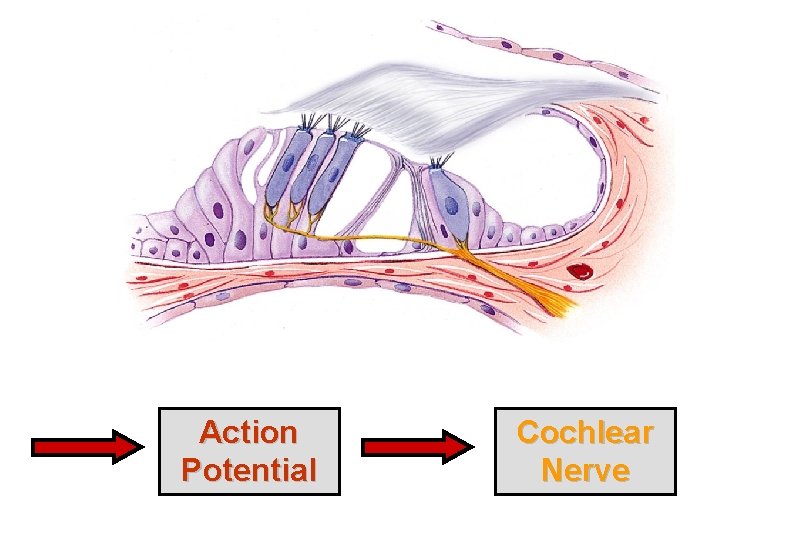

Action Potential Cochlear Nerve

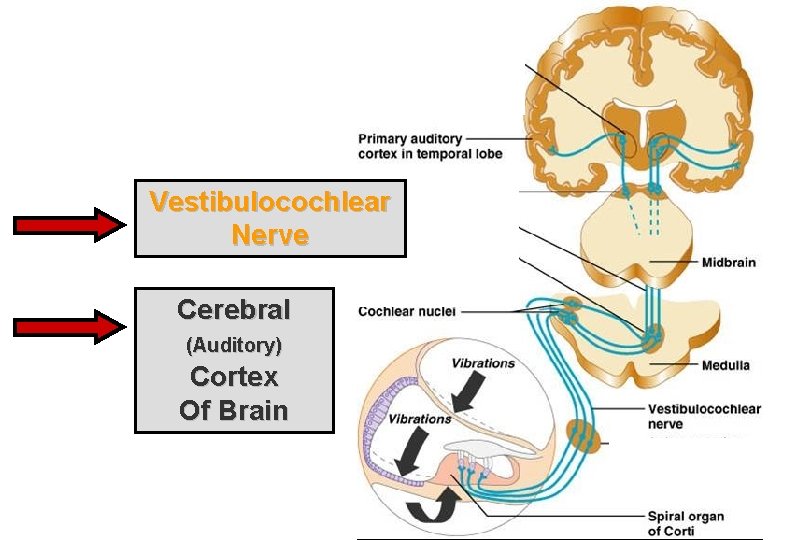

Vestibulocochlear Nerve Cerebral (Auditory) Cortex Of Brain
