Cobra Net network connections Slide 1 Cobra Net
Cobra. Net network connections Slide 1
Cobra. Net network connections Cobra. Net & Praesideo on one network CST NCO NCO Amp Amp CIN CIN PC CST HP Pro. Curve 2512 è CST Glass fiber HP Pro. Curve 2512 One single Ethernet network Cobra. Net data might interfere with Praesideo data Slide 2
Cobra. Net network connections Cobra. Net & Praesideo on (one) network CST NCO Amp Amp CIN CIN PC CST Glass fiber HP Pro. Curve 2512 è Glass fiber HP Pro. Curve 2512 Two separate Ethernet networks No interference between Cobra. Net data and Praesideo data possible Double number of switches and glass fiber Unmanaged switches Slide 3

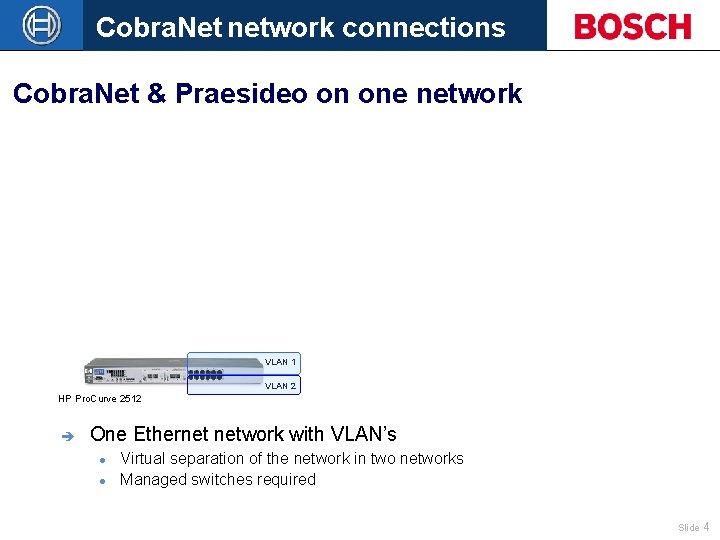

Cobra. Net network connections Cobra. Net & Praesideo on one network VLAN 1 VLAN 2 HP Pro. Curve 2512 è One Ethernet network with VLAN’s Virtual separation of the network in two networks Managed switches required Slide 4

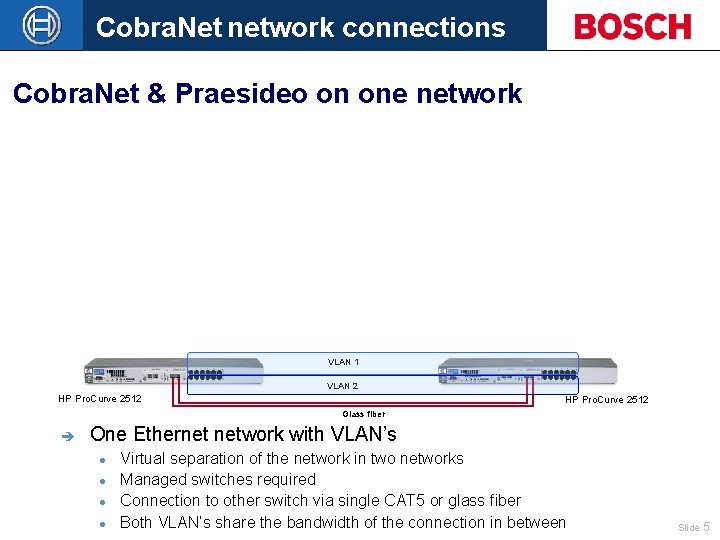

Cobra. Net network connections Cobra. Net & Praesideo on one network VLAN 1 VLAN 2 HP Pro. Curve 2512 Glass fiber è One Ethernet network with VLAN’s Virtual separation of the network in two networks Managed switches required Connection to other switch via single CAT 5 or glass fiber Both VLAN’s share the bandwidth of the connection in between Slide 5
Cobra. Net network connections Cobra. Net & Praesideo on one network CST NCO Amp Amp CIN CIN PC CST VLAN 1 VLAN 2 HP Pro. Curve 2512 Glass fiber è One Ethernet network with VLAN’s Virtual separation of the network in two networks Managed switches required Connection to other switch via single CAT 5 or glass fiber Both VLAN’s share the bandwidth of the connection in between Slide 6
Cobra. Net network connections Slide 7
