Cobalt Based Alloys Resistance Welding Lesson Objectives When
Cobalt Based Alloys
Resistance Welding Lesson Objectives When you finish this lesson you will understand: • Keywords Learning Activities 1. View Slides; 2. Read Notes, 3. Listen to lecture 4. Do on-line workbook

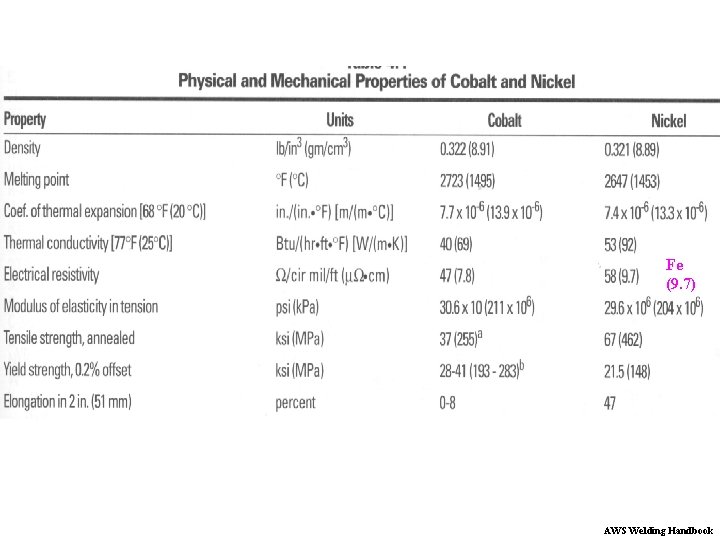

Fe (9. 7) AWS Welding Handbook

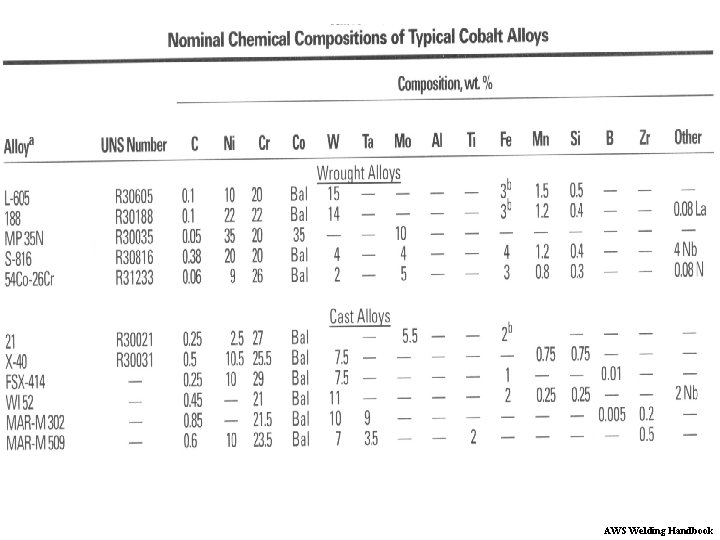

AWS Welding Handbook

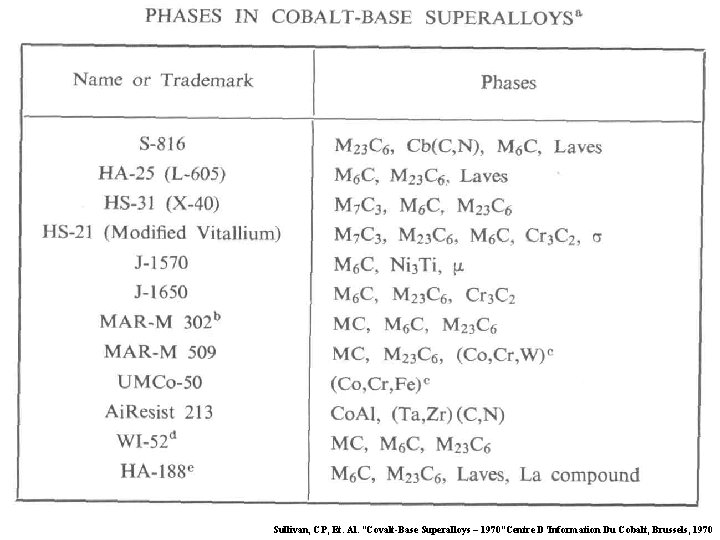

Sullivan, CP, Et. Al. “Covalt-Base Superalloys – 1970”Centre D’Information Du Cobalt, Brussels, 1970

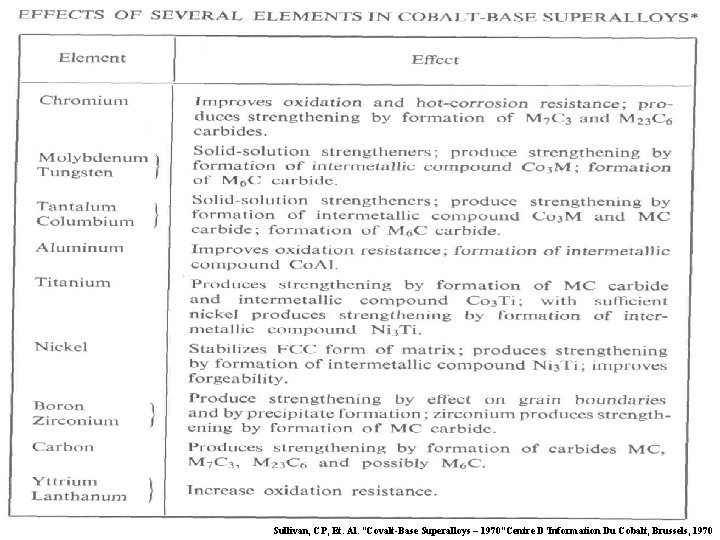

Sullivan, CP, Et. Al. “Covalt-Base Superalloys – 1970”Centre D’Information Du Cobalt, Brussels, 1970
Sullivan, CP, Et. Al. “Covalt-Base Superalloys – 1970”Centre D’Information Du Cobalt, Brussels, 1970
M 23 C 6 M 6 C Eutectic MC Example: Cast MAR-M 302 Sullivan, CP, Et. Al. “Covalt-Base Superalloys – 1970”Centre D’Information Du Cobalt, Brussels, 1970
Applications • First Stage Turbine Blades & Lower Temp • Sheet applications such as exhaust case & Burner liners • Medical Implants
Resistance Welding The resistance welding manual says: Cobalt alloys can be spot, seam and flash welding with conditions similar to that of Nickel. But they also say data is limited. RWMA concludes: current requirements will be no more than for SS, but slightly higher welding forces will be required. Welding time should also be about the same.
Manufacture of a Non-Migrating Vascular Prosthesis Mesh & Anchor Hooks Resistance Welded Zig-Zag Wire Spring Blood Vessel Liner and Spring Made From MP 35 N Wire Compressed & Inserted In Artery Placement in Artery Mc. Namara, E, & Weiser, M, “Non-migrating Vascular Prosthesis and minimally invasive Placement System Therefore”, US Patent 6, 004, 347 Dec 21, 1999
