CO LAB ALUMINIUM TECTONICS School of Architecture Group

CO: LAB ALUMINIUM TECTONICS School of Architecture Group 3 Alvin Amito Amani Ahmed Aqsa Mahmood Mah Kin. Yew 2/23/2021 figure: ashandlacy. com, 2012

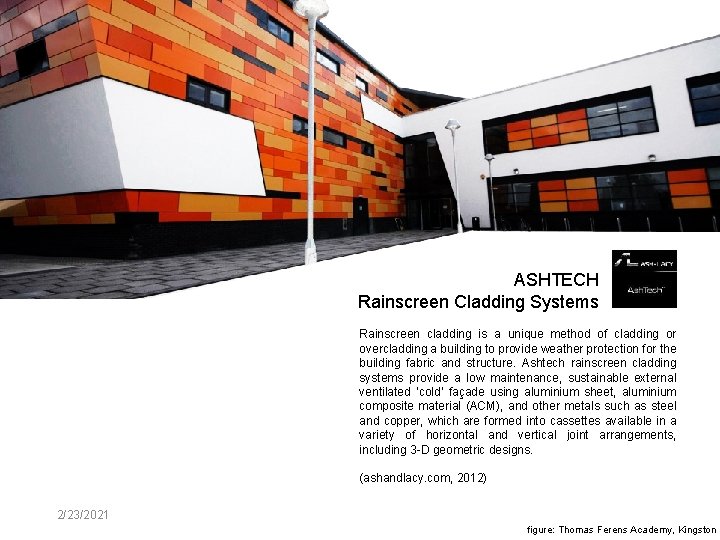

ASHTECH Rainscreen Cladding Systems Rainscreen cladding is a unique method of cladding or overcladding a building to provide weather protection for the building fabric and structure. Ashtech rainscreen cladding systems provide a low maintenance, sustainable external ventilated ‘cold’ façade using aluminium sheet, aluminium composite material (ACM), and other metals such as steel and copper, which are formed into cassettes available in a variety of horizontal and vertical joint arrangements, including 3 -D geometric designs. (ashandlacy. com, 2012) 2/23/2021 figure: Thomas Ferens Academy, Kingston

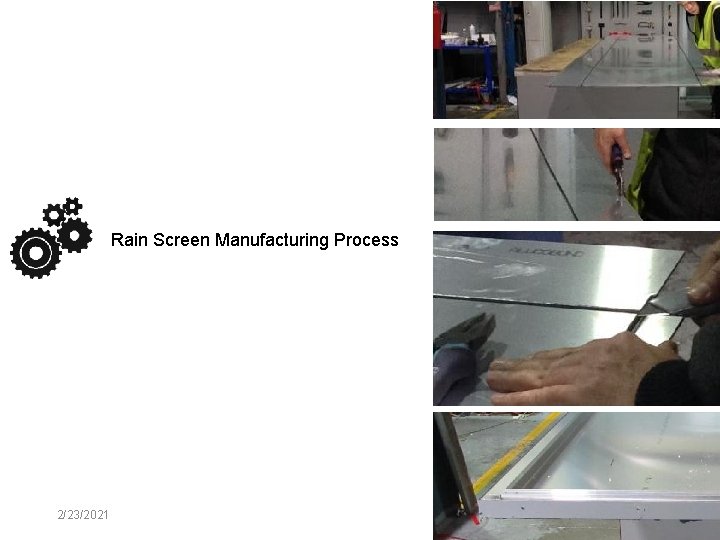

Rain Screen Manufacturing Process 2/23/2021

Three Key Stages Rain Screen Manufacturing Process Design office rain screen shop drawing design and layout in office CNC Cutting ACM cut to size according design using CNC machine at factory Folding and Assembly Finished product packed and deliver to site for installation 2/23/2021 ACM folded into box form and secured it with rivet or rubber glue

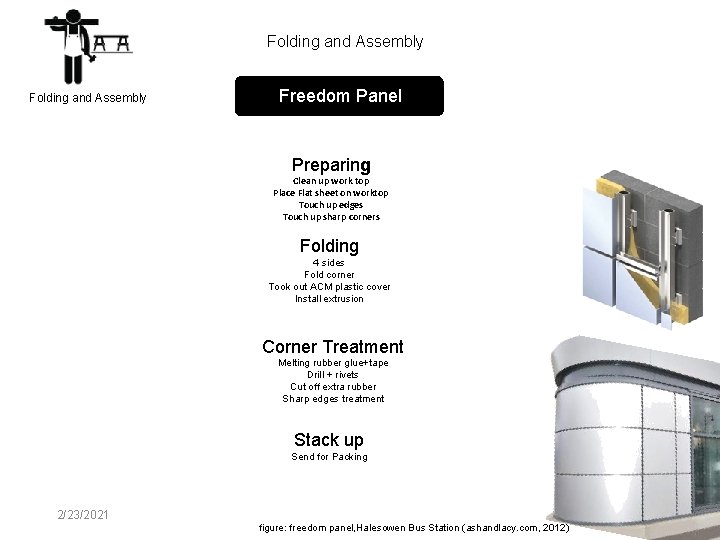

Folding and Assembly Freedom Panel Preparing Clean up work top Place Flat sheet on worktop Touch up edges Touch up sharp corners Folding 4 sides Fold corner Took out ACM plastic cover Install extrusion Corner Treatment Melting rubber glue+tape Drill + rivets Cut off extra rubber Sharp edges treatment Stack up Send for Packing 2/23/2021 figure: freedom panel, Halesowen Bus Station (ashandlacy. com, 2012)

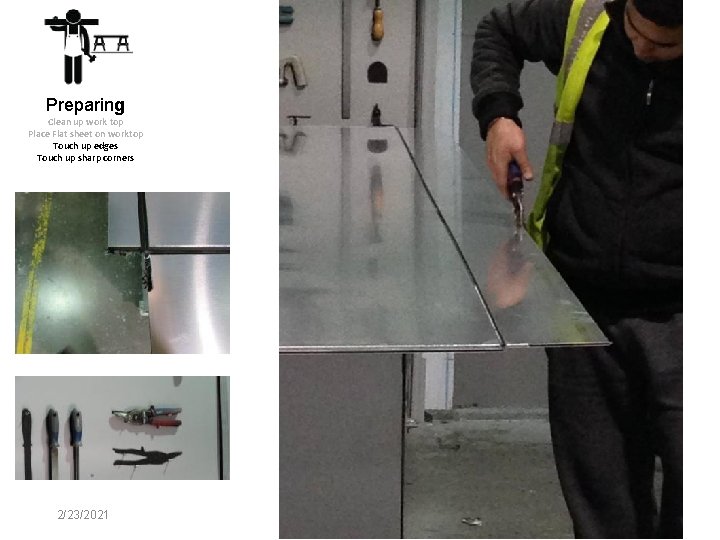

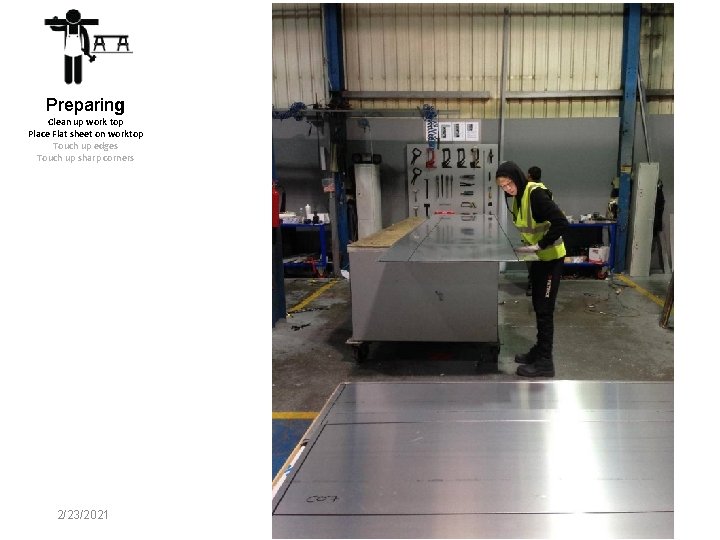

Preparing Clean up work top Place Flat sheet on worktop Touch up edges Touch up sharp corners 2/23/2021

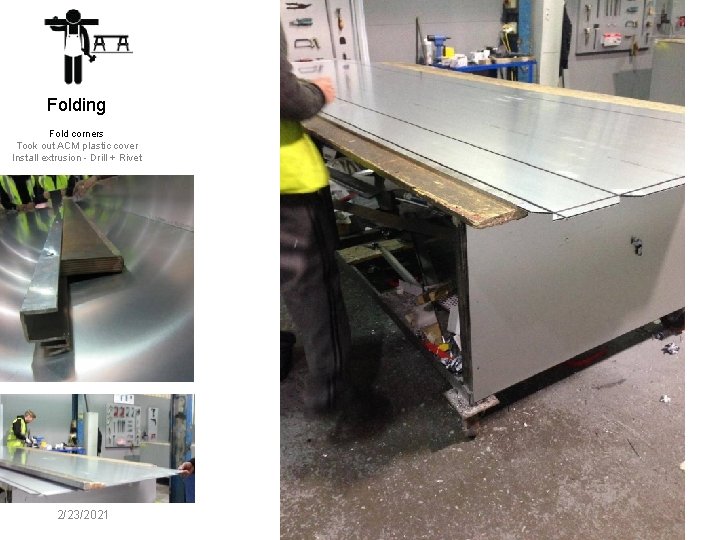

Folding Fold corners Took out ACM plastic cover Install extrusion - Drill + Rivet 2/23/2021

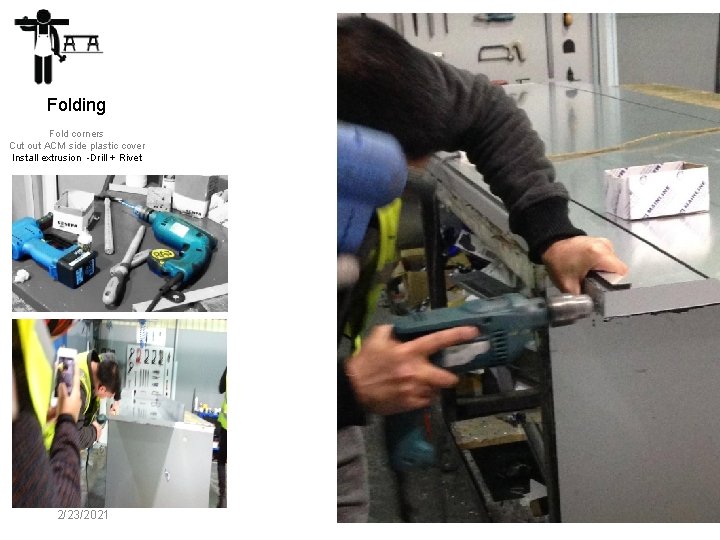

Folding Fold corners Cut out ACM side plastic cover Install extrusion - Drill + Rivet 2/23/2021

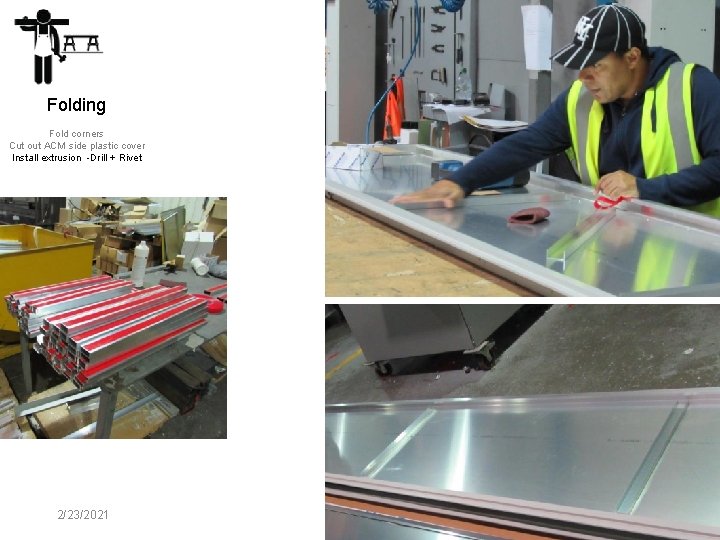

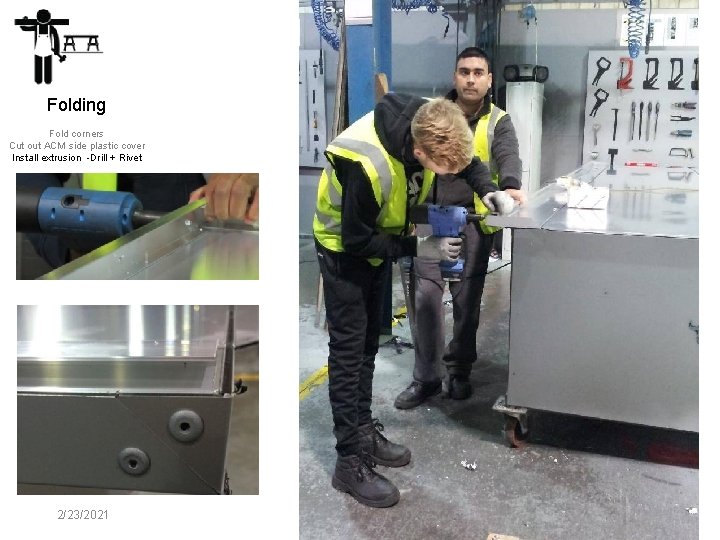

Folding Fold corners Cut out ACM side plastic cover Install extrusion -Drill + Rivet 2/23/2021

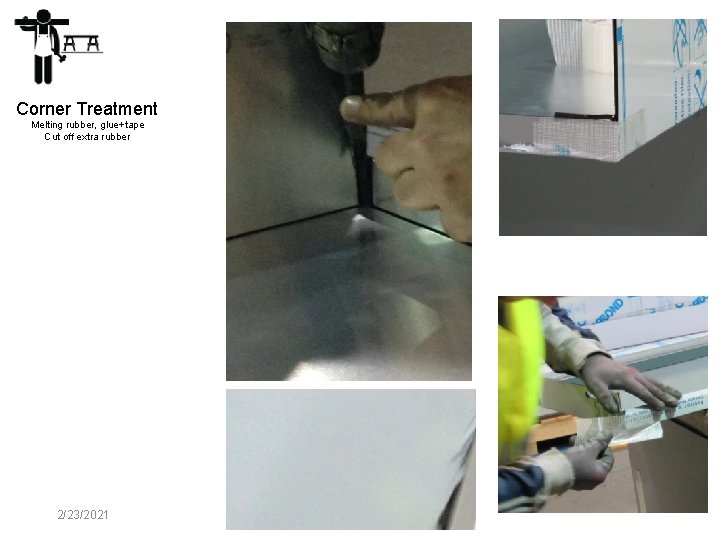

Corner Treatment Melting rubber, glue+tape Cut off extra rubber 2/23/2021

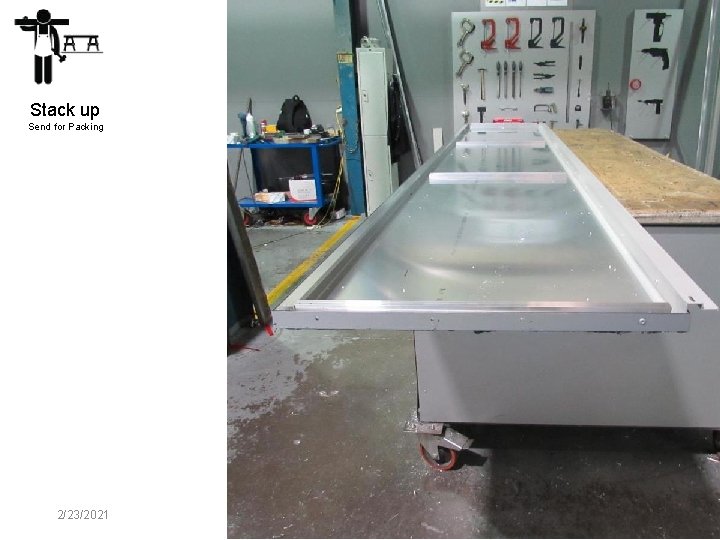

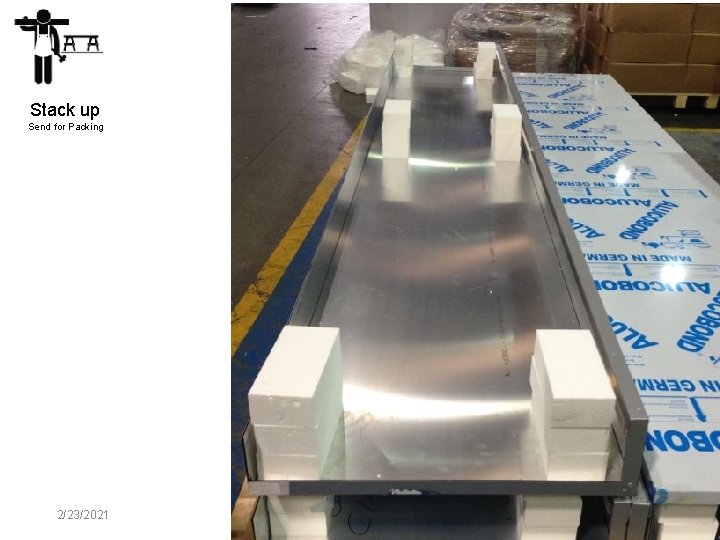

Stack up Send for Packing 2/23/2021

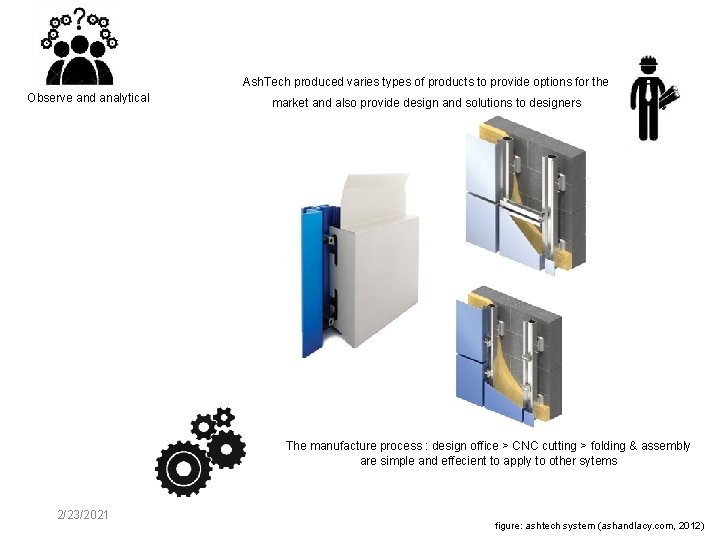

Ash. Tech produced varies types of products to provide options for the Observe and analytical market and also provide design and solutions to designers The manufacture process : design office > CNC cutting > folding & assembly are simple and effecient to apply to other sytems 2/23/2021 figure: ashtech system (ashandlacy. com, 2012)

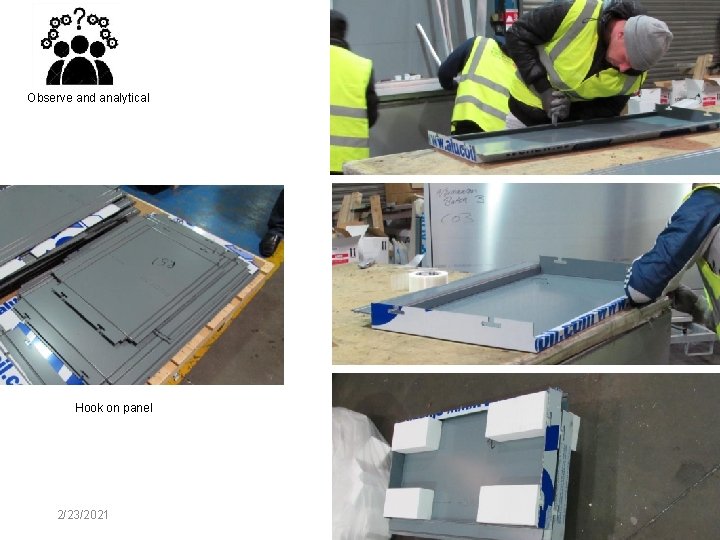

Observe and analytical Hook on panel 2/23/2021

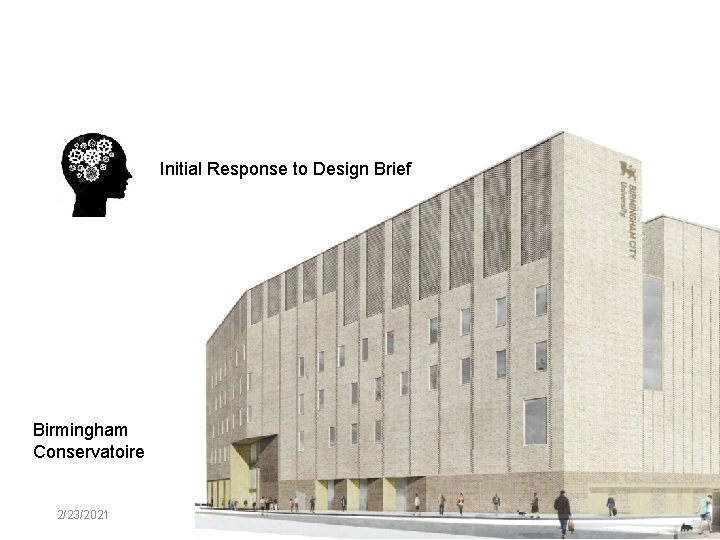

Initial Response to Design Brief Birmingham Conservatoire 2/23/2021

Conservatoire Initial Response to Design Brief Live performance Space Daylight Quality Experimental Music Dynamic 2/23/2021

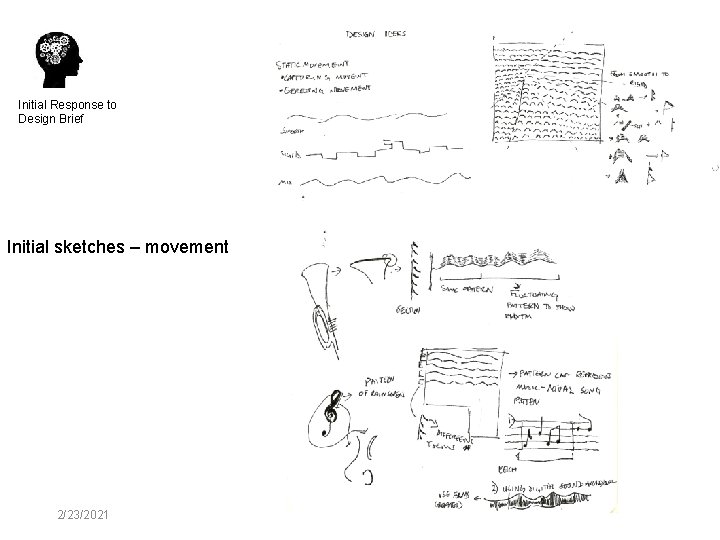

Initial Response to Design Brief Initial sketches – movement 2/23/2021

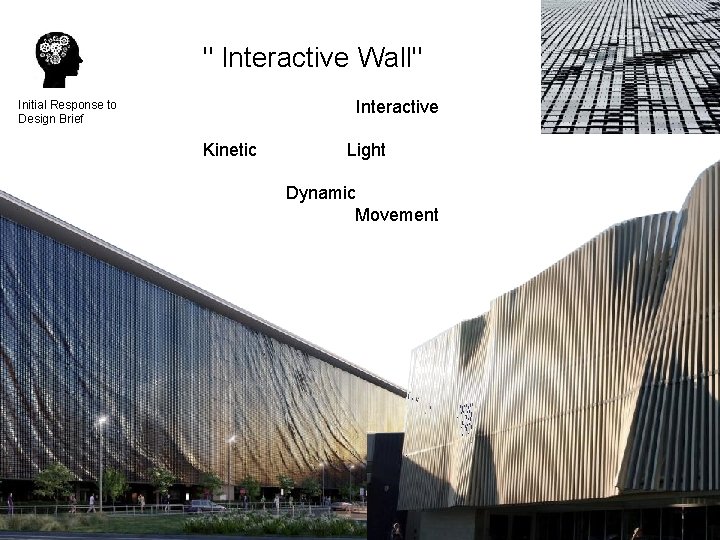

" Interactive Wall" Interactive Initial Response to Design Brief Kinetic Light Dynamic Movement 2/23/2021

End 2/23/2021
