CO 2 Laser Fusion Splicing Between PBGF and SMF Dana Cristea Bridgewater College / KSU Physics Research 2006 Other members of LUMOS lab: Kristan Corwin, Rajesh Thapa, Kevin Knabe, Andrew Jones

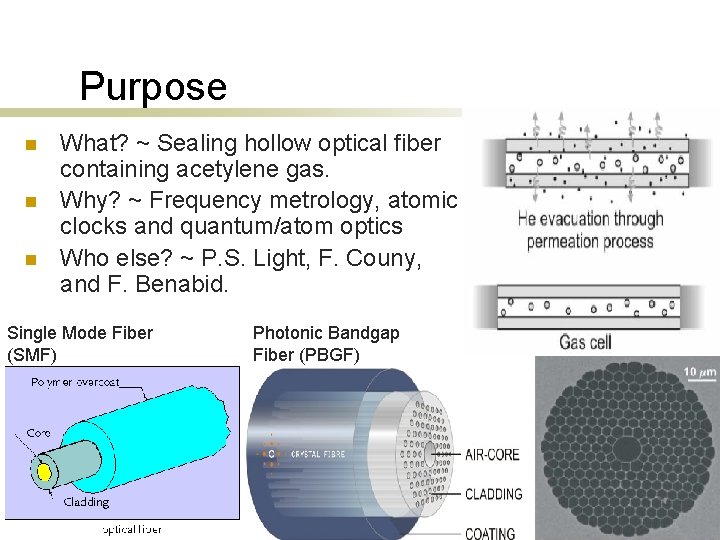

Purpose n n n What? ~ Sealing hollow optical fiber containing acetylene gas. Why? ~ Frequency metrology, atomic clocks and quantum/atom optics Who else? ~ P. S. Light, F. Couny, and F. Benabid. Single Mode Fiber (SMF) Photonic Bandgap Fiber (PBGF)

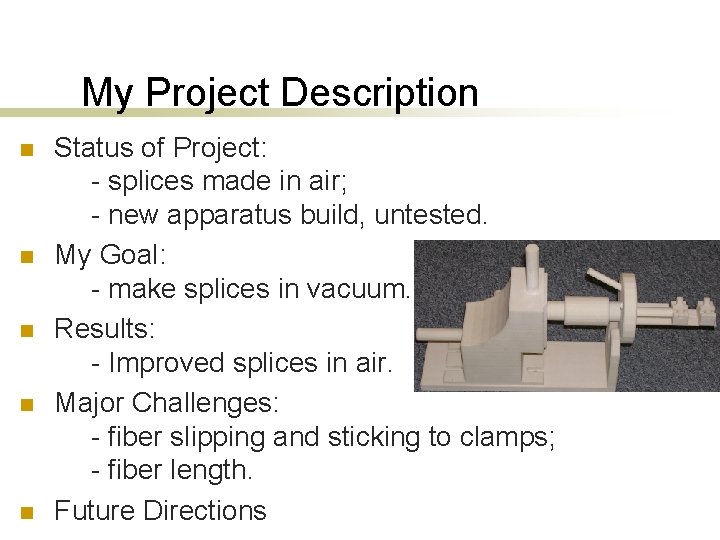

My Project Description n n Status of Project: - splices made in air; - new apparatus build, untested. My Goal: - make splices in vacuum. Results: - Improved splices in air. Major Challenges: - fiber slipping and sticking to clamps; - fiber length. Future Directions

Project Set-up

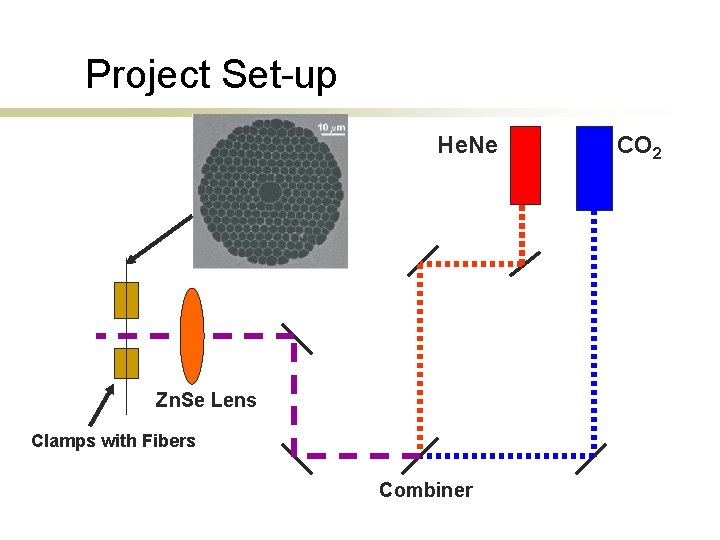

Project Set-up He. Ne Zn. Se Lens Clamps with Fibers Combiner CO 2

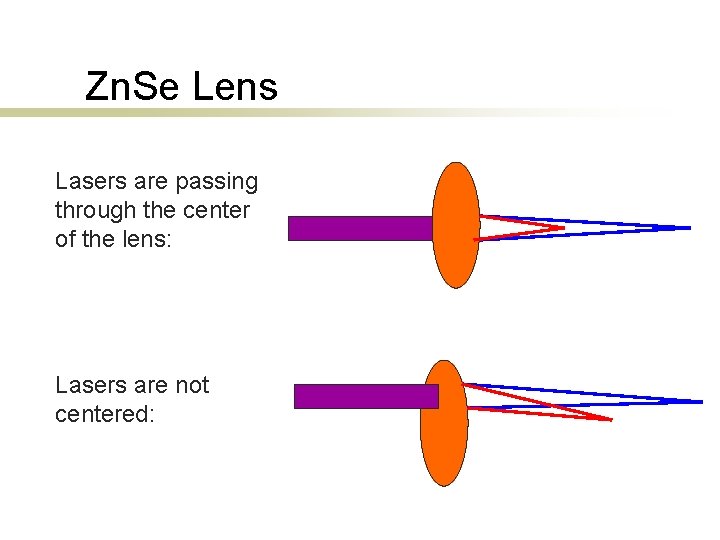

Zn. Se Lens Lasers are passing through the center of the lens: Lasers are not centered:

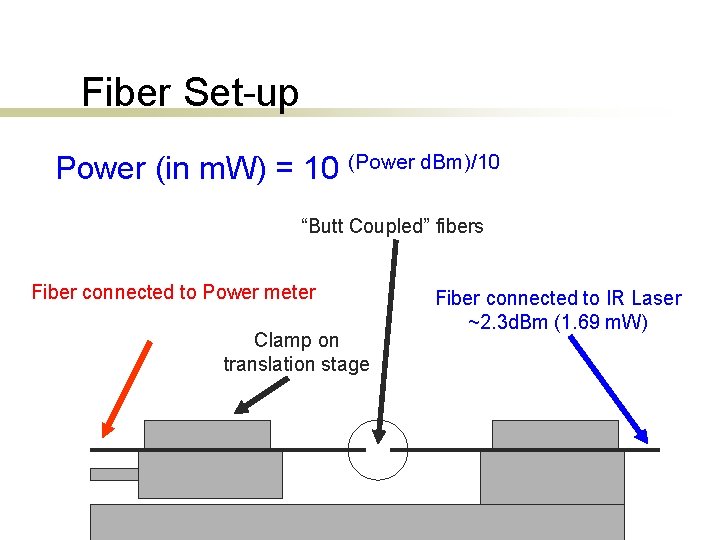

Fiber Set-up Power (in m. W) = 10 (Power d. Bm)/10 “Butt Coupled” fibers Fiber connected to Power meter Clamp on translation stage Fiber connected to IR Laser ~2. 3 d. Bm (1. 69 m. W)

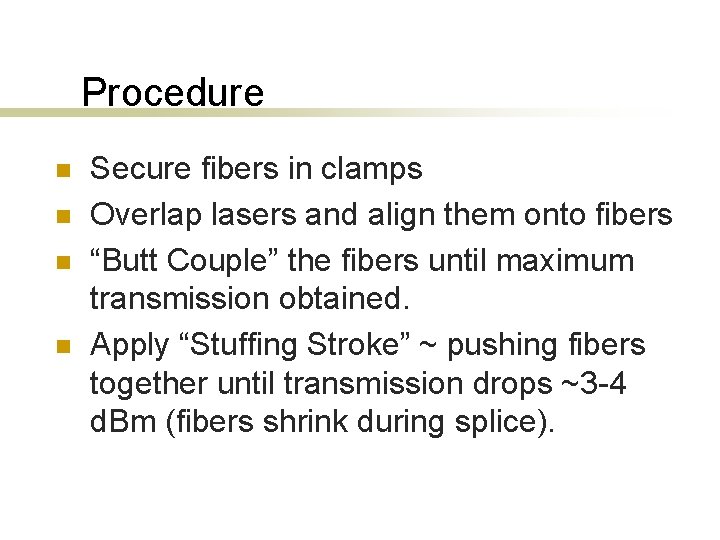

Procedure n n Secure fibers in clamps Overlap lasers and align them onto fibers “Butt Couple” the fibers until maximum transmission obtained. Apply “Stuffing Stroke” ~ pushing fibers together until transmission drops ~3 -4 d. Bm (fibers shrink during splice).

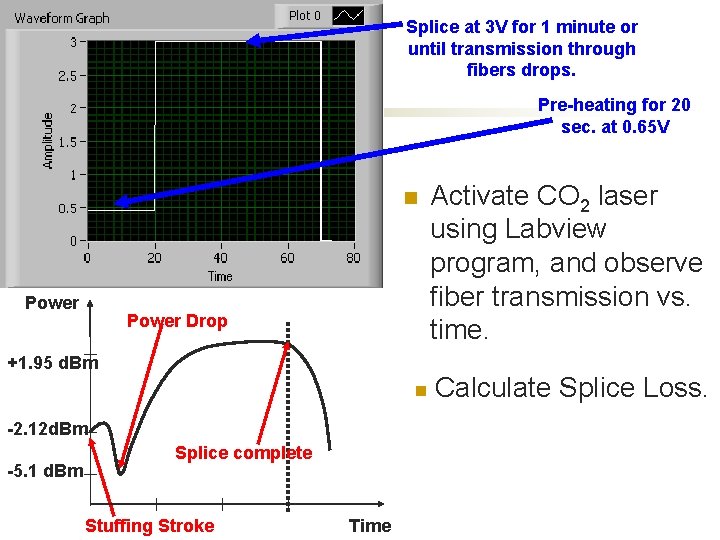

Splice at 3 V for 1 minute or until transmission through fibers drops. Pre-heating for 20 sec. at 0. 65 V n Power Drop +1. 95 d. Bm n -2. 12 d. Bm -5. 1 d. Bm Splice complete Stuffing Stroke Time Activate CO 2 laser using Labview program, and observe fiber transmission vs. time. Calculate Splice Loss.

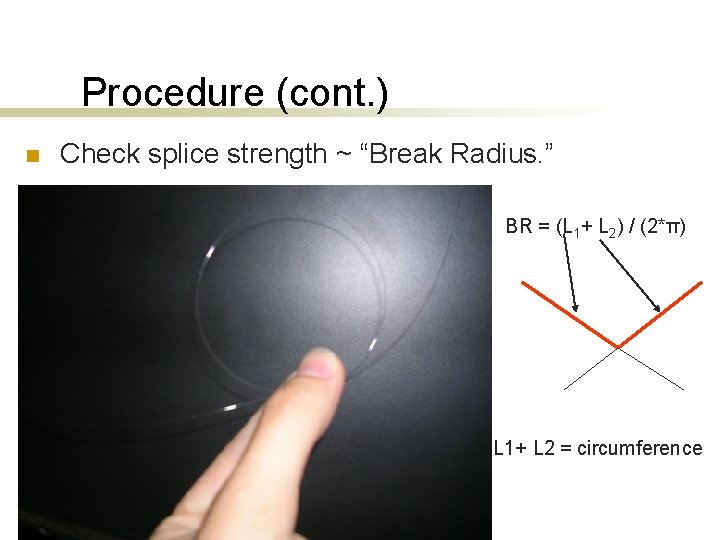

Procedure (cont. ) n Check splice strength ~ “Break Radius. ” BR = (L 1+ L 2) / (2*π) L 1+ L 2 = circumference

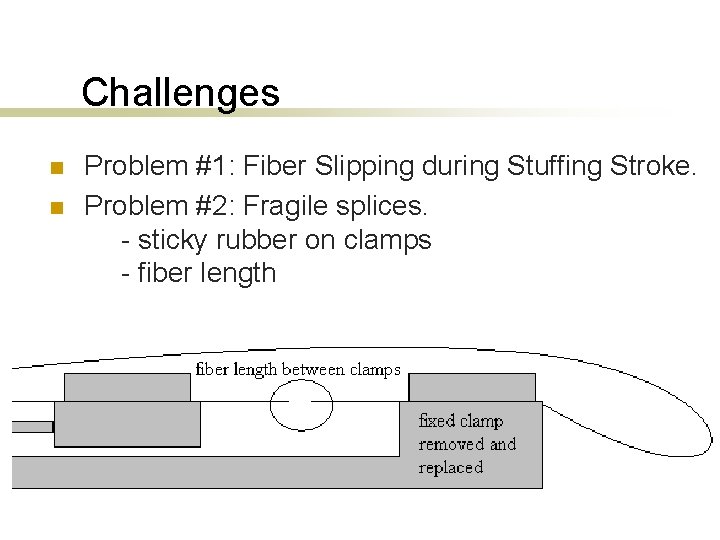

Challenges n n Problem #1: Fiber Slipping during Stuffing Stroke. Problem #2: Fragile splices. - sticky rubber on clamps - fiber length

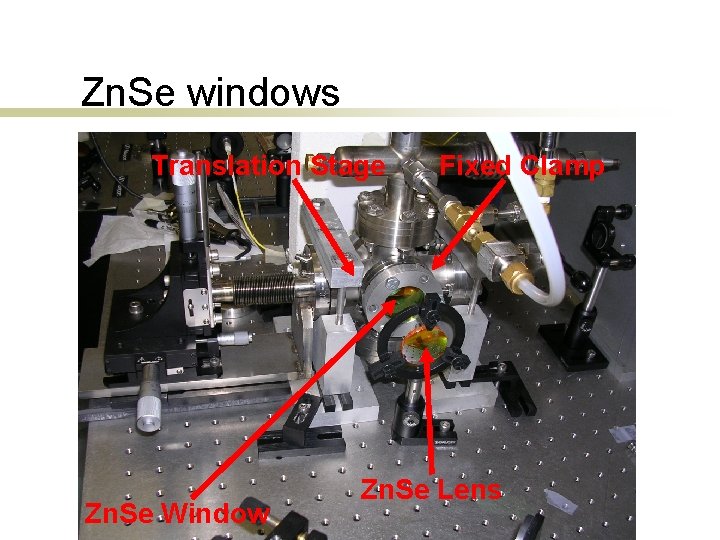

Zn. Se windows Translation Stage Zn. Se Window Fixed Clamp Zn. Se Lens

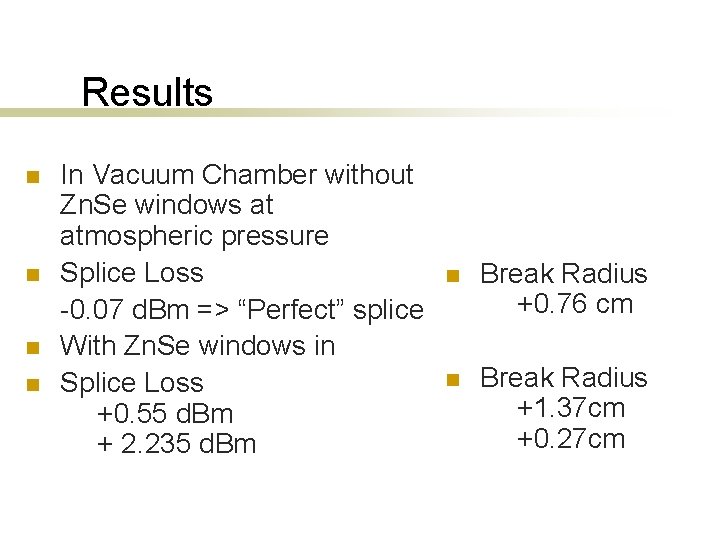

Results n n In Vacuum Chamber without Zn. Se windows at atmospheric pressure Splice Loss -0. 07 d. Bm => “Perfect” splice With Zn. Se windows in Splice Loss +0. 55 d. Bm + 2. 235 d. Bm n Break Radius +0. 76 cm n Break Radius +1. 37 cm +0. 27 cm

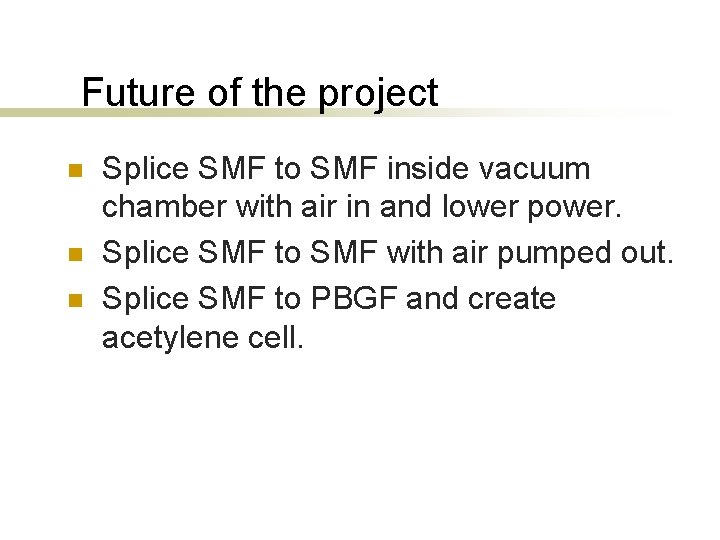

Future of the project n n n Splice SMF to SMF inside vacuum chamber with air in and lower power. Splice SMF to SMF with air pumped out. Splice SMF to PBGF and create acetylene cell.
