CNG Compressed Natural Gas Dr Slamet Pengolahan Gas

CNG (Compressed Natural Gas) Dr. Slamet

Pengolahan Gas Bhn Bakar C 1 Gas Bumi Separasi Gas Sweetening Gas Drying Hg-removal Pendinginan & Pencairan LNG Kompresi CNG Gas Piping Fraksinasi C 2+ üLPG üRefrigerant üKondensat Syn. Gas Fischer Trops GTL

Volume Reduction • LNG volume reduction: 600 times (all liquids at atmospheric pressure and – 256 F) • CNG volumes reduction: function of pressure and temperatures • Higher pressure and lower temperature lead to higher volume reduction • CNG volume reduction examples: Ø P = 2850 psig 206 times at 100 F & 280 times at 32 F Ø P = 1400 psig 103 times at 100 F & 133 times at 32 F

CNG Volume Reduction

Pengaruh impurities pada CNG

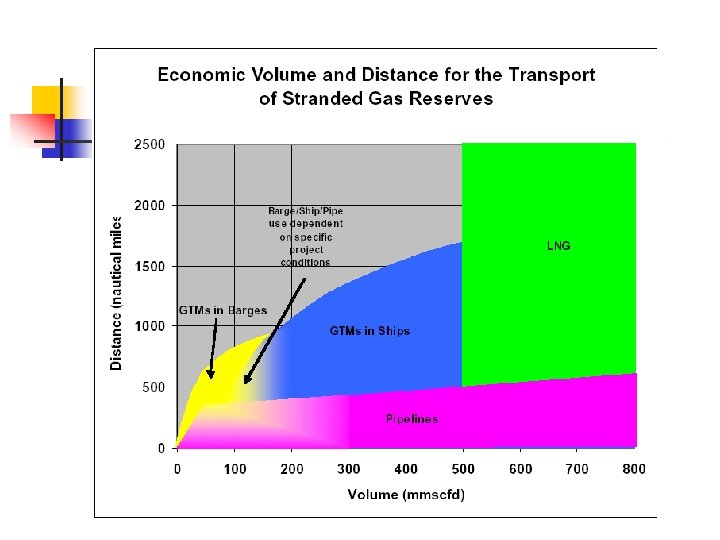

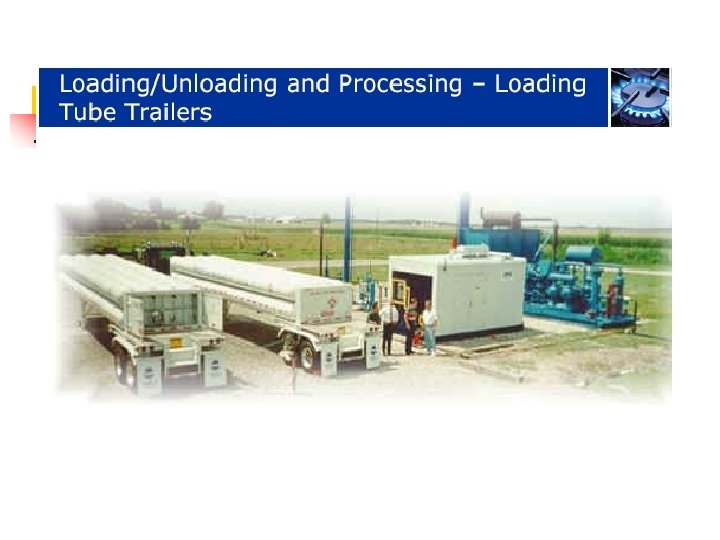

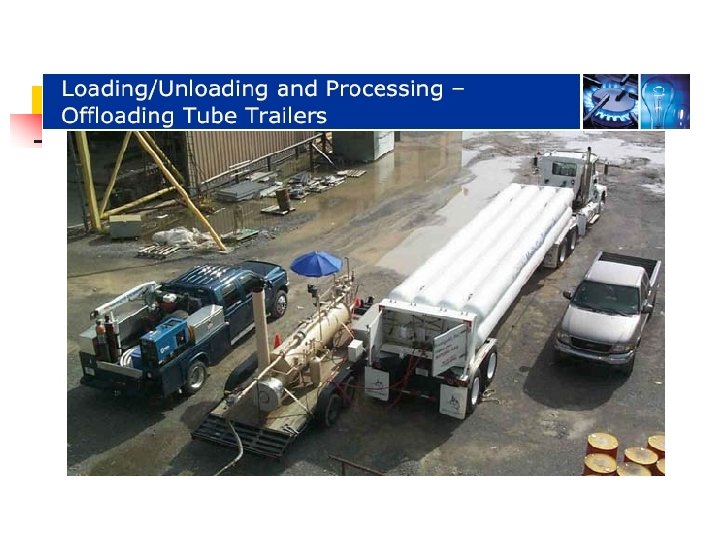

Terrestrial CNG Technology: Trans. Canada

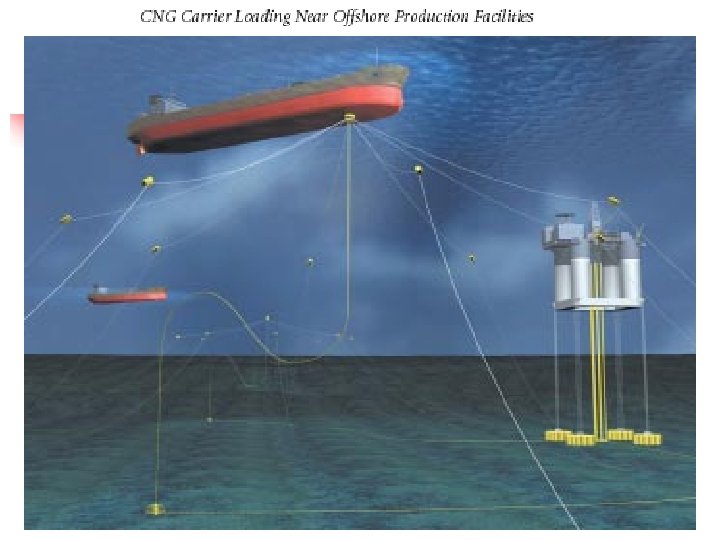

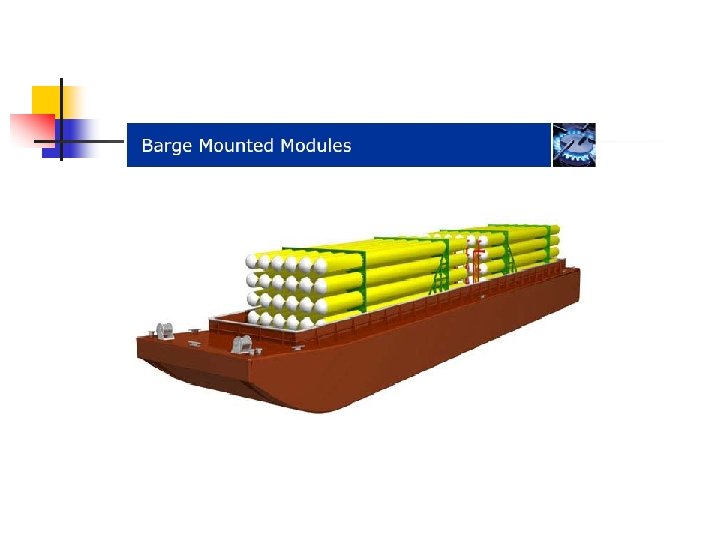

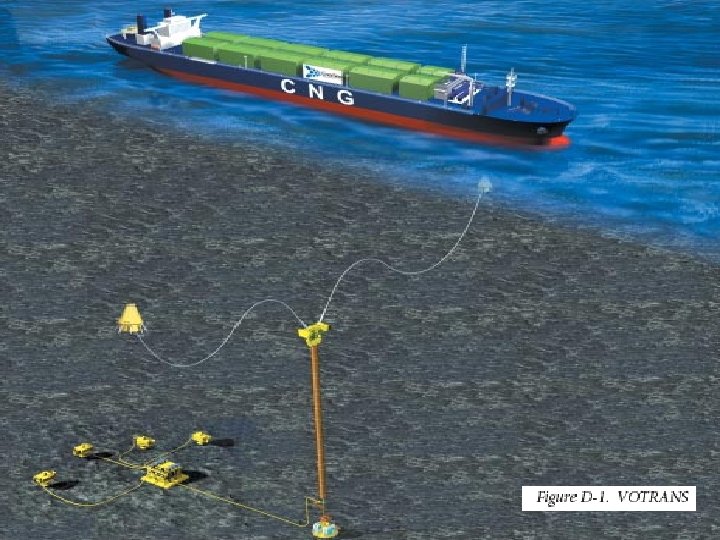

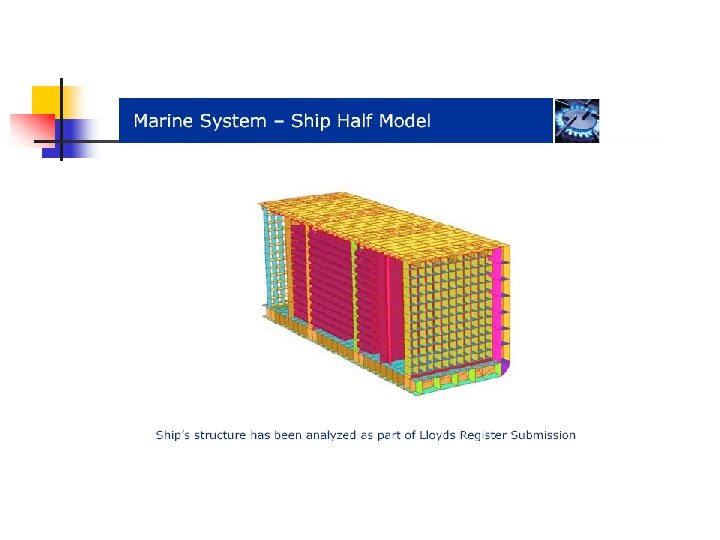

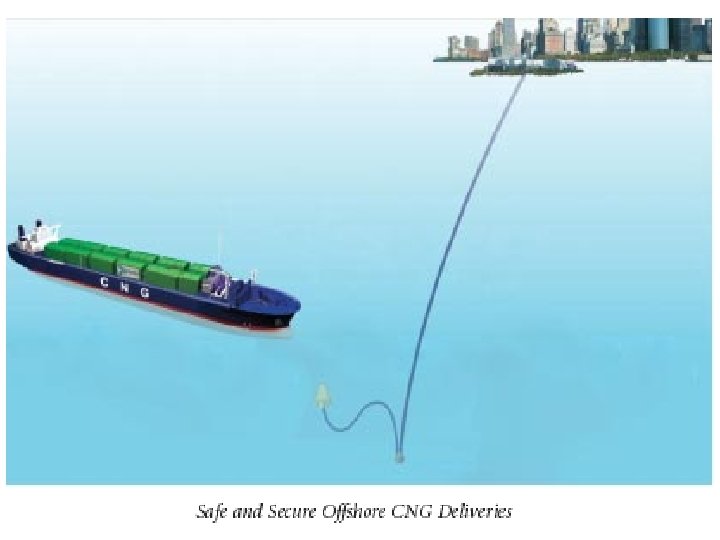

Marine CNG Technology: VOTRANS (Ener. Sea) Using bundles of steel pipes containing the gas under optimized Pressure & Temperature

Marine CNG Technology: Coselle (Williams) Incorporating spools of coiled tubing

CNG gas quality standard California C 1 C 2 C 3 and higher HC C 6 and higher HC Hydrogen CO Oxygen CO 2+N 2 Sulphur 88. 0 % min 6. 0 % max 3. 0 % max 0. 2 % max 0. 1 % max 1. 0 % max 1. 5 – 4. 5 % 16 ppmv (max)

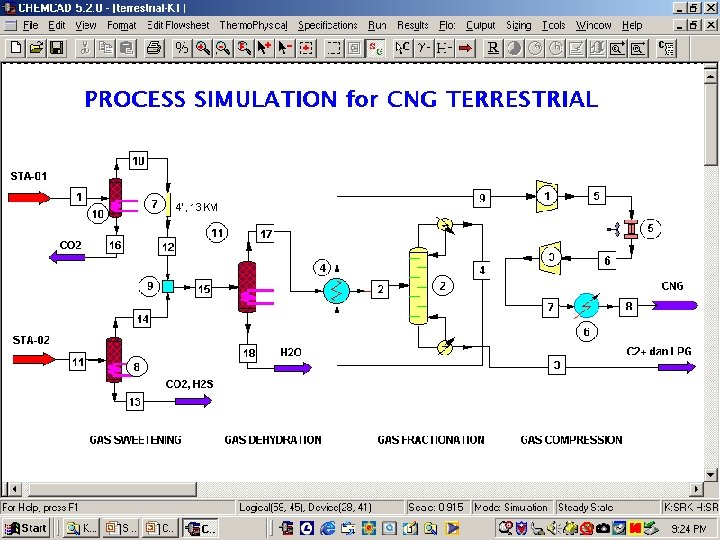

BFD utk CNG Terrestrial

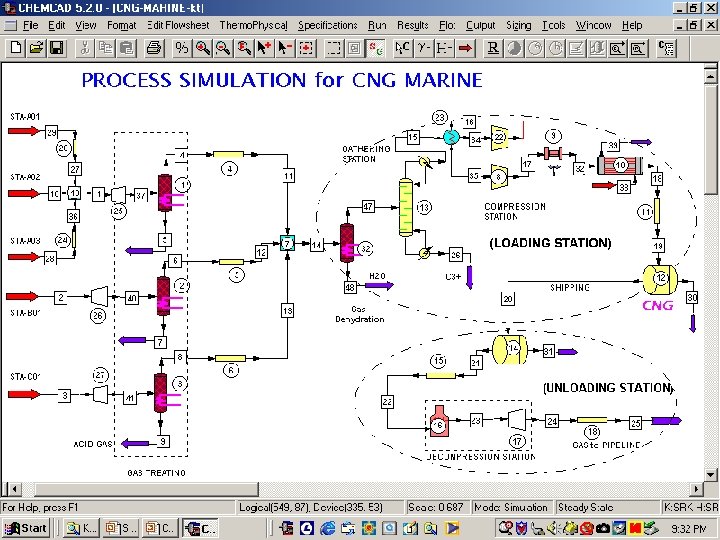

BFD utk CNG Marine

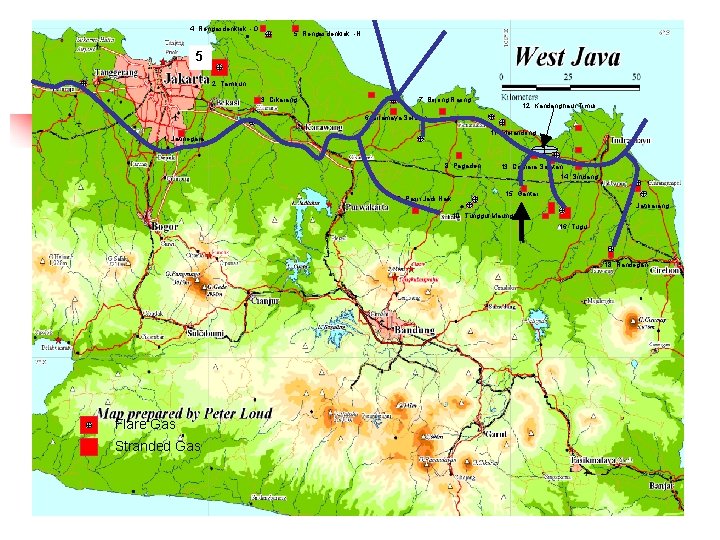

4. Rengasdenklok -O 5. Rengasdenklok -N 5 2. Tambun 3. Cikarang 7. Bojong Raong 12. Kandanghaur Timur 6. Cilamaya Selatan 11. Melandong 1. Jatinegara 8. Pagaden 9. Pasir Jadi Naik 13. Cemara Selatan 14. Sindang 15. Gantar 17. Jatibarang 10. Tunggul Maung 16. Tugu 18. Randegan Flare Gas Stranded Gas
