CMSC 341 Lecture 21 Graphs Introduction Prof Neary
- Slides: 27
CMSC 341 Lecture 21 Graphs (Introduction) Prof. Neary Based on slides from previous iterations of this course (Dr. Katherine Gibson)
Basic Graph Definitions § A graph G = (V, E) consists of a finite set of vertices, V, and a finite set of edges, E. § Each edge is a pair (v, w) where v, w V q q q V and E are sets, so each vertex v V is unique, and each edge e E is unique. Edges are sometimes called arcs or lines Vertices are sometimes called nodes or points UMBC CMSC 341 Graphs (Introduction) 2
Graph Example § A vertex represents an airport and stores the three-letter airport code § An edge represents a flight route between two airports and stores the mileage of the route 337 HNL 2555 LAX 3 4 7 1 1233 849 ORD 802 SFO 1843 DFW PVD 42 1 7 138 LGA 1120 UMBC CMSC 341 Graphs (Introduction) 10 99 MIA 3
Graph Applications § Graphs can be used to model a wide range of applications including q q q Intersections and streets within a city Roads/trains/airline routes connecting cities/countries Computer networks Electronic circuits What else? UMBC CMSC 341 Graphs (Introduction) 4
Edge Types § Directed edge q q Ordered pair of vertices (u, v) First vertex u is the origin ORD Second vertex v is the destination (e. g. , a flight) § Undirected edge q q ORD flight AA 1206 PVD 849 miles PVD Unordered pair of vertices (u, v) (e. g. , a flight route) UMBC CMSC 341 Graphs (Introduction) 5
Graph Types § Directed graph q q q All the edges are directed (edges are ordered pairs) (e. g. , route network) Sometimes called a digraph § Undirected graph q q All the edges are undirected (unordered pairs) (e. g. , flight network) § Sparse and dense graphs q “Few” and “many” edges, respectively UMBC CMSC 341 Graphs (Introduction) 6
Example: Undirected Graph 2 3 5 4 1 § § All edges are two-way Edges are unordered pairs V = { 1, 2, 3, 4, 5 } E = { (1, 2), (2, 3), (3, 4), (2, 4), (4, 5), (5, 1) } UMBC CMSC 341 Graphs (Introduction) 7

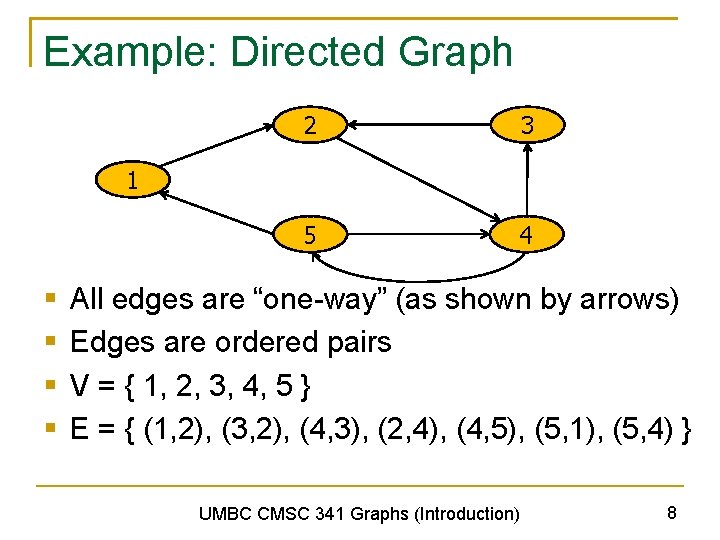

Example: Directed Graph 2 3 5 4 1 § § All edges are “one-way” (as shown by arrows) Edges are ordered pairs V = { 1, 2, 3, 4, 5 } E = { (1, 2), (3, 2), (4, 3), (2, 4), (4, 5), (5, 1), (5, 4) } UMBC CMSC 341 Graphs (Introduction) 8
Graph Terminology and Vocabulary
Terminology § End vertices (or endpoints) of an edge q U and V are the endpoints of a § Edges incident on a vertex q § Adjacent vertices q U and V are adjacent § Parallel edges q h and i are parallel edges § Self-loop q a a, d, and b are incident on V j is a self-loop U V b h X d c e j Z i W g f Y UMBC CMSC 341 Graphs (Introduction) 10
More Terminology § Path Sequence of alternating vertices and edges q Begins with a vertex V q Ends with a vertex b a P 1 q Each edge is preceded and d followed by its endpoints U X P 2 § Simple path c e q Path such that all its vertices W g and edges are distinct f § Examples Y q P 1=(V, X, Z) is a simple path q P 2=(U, W, X, Y, W, V) is a path that is not simple q UMBC CMSC 341 Graphs (Introduction) Z h 11
More Terminology § Cycle q q q Circular sequence of alternating vertices and edges Each edge is preceded and followed by its endpoints Acyclic: without a cycle § Simple cycle q Cycle such that all its vertices and edges are distinct a U c V b d C 2 X e § Examples q q C 1 g W f h Z Y C 1=(V, X, Y, W, U, V) is simple C 2=(U, W, X, Y, W, V, U) is a cycle that is not simple UMBC CMSC 341 Graphs (Introduction) 12
Vocabulary § Vertex w is adjacent to vertex v if and only if (v, w) E. § For undirected graphs, with edge (v, w), and hence also (w, v), w is adjacent to v and v is adjacent to w. § An edge may also have: q q Weight or cost -- an associated value Label -- a unique name § The degree of a vertex, v, is the number of vertices adjacent to v. Degree is also called valence. UMBC CMSC 341 Graphs (Introduction) 13
Degrees § For directed graphs vertex w is adjacent to vertex v if and only if (v, w) E § In-degree of a vertex w is the number of edges (v, w) q X has in-degree 3 § Out-degree of a vertex w is the number of edges(w, v) q X has out-degree 2 a U V b h X d c e W j Z i g f UMBC CMSC 341 Graphs (Introduction) Y 14
Connectedness § An undirected graph is connected if there is a path from every vertex to every other vertex § A directed graph is strongly connected if there is a path from every vertex to every other vertex § A directed graph is weakly connected if there would be a path from every vertex to every other vertex, disregarding the direction of the edges § A complete graph is one in which there is an edge between every pair of vertices § A connected component of a graph is any maximal connected subgraph. Connected components are sometimes simply called components UMBC CMSC 341 Graphs (Introduction) 15

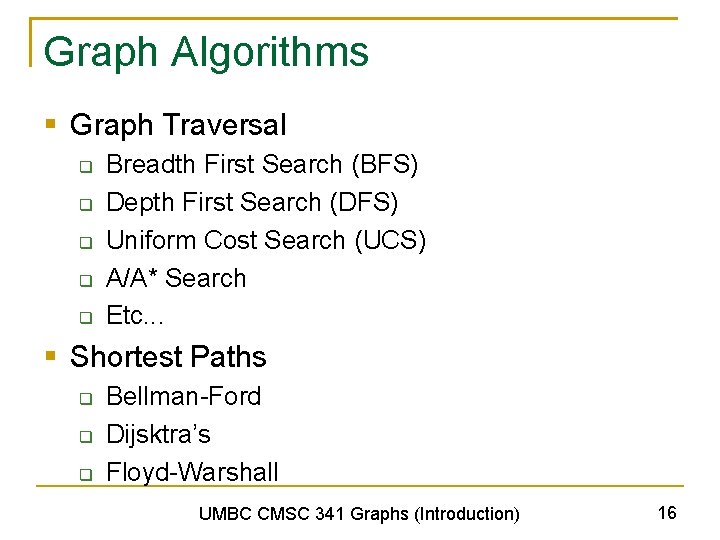

Graph Algorithms § Graph Traversal q q q Breadth First Search (BFS) Depth First Search (DFS) Uniform Cost Search (UCS) A/A* Search Etc. . . § Shortest Paths q q q Bellman-Ford Dijsktra’s Floyd-Warshall UMBC CMSC 341 Graphs (Introduction) 16

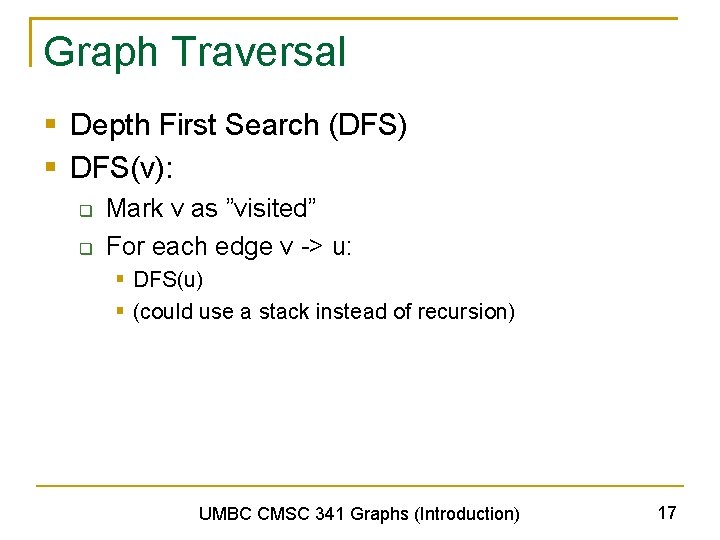

Graph Traversal § Depth First Search (DFS) § DFS(v): q q Mark v as ”visited” For each edge v -> u: § DFS(u) § (could use a stack instead of recursion) UMBC CMSC 341 Graphs (Introduction) 17

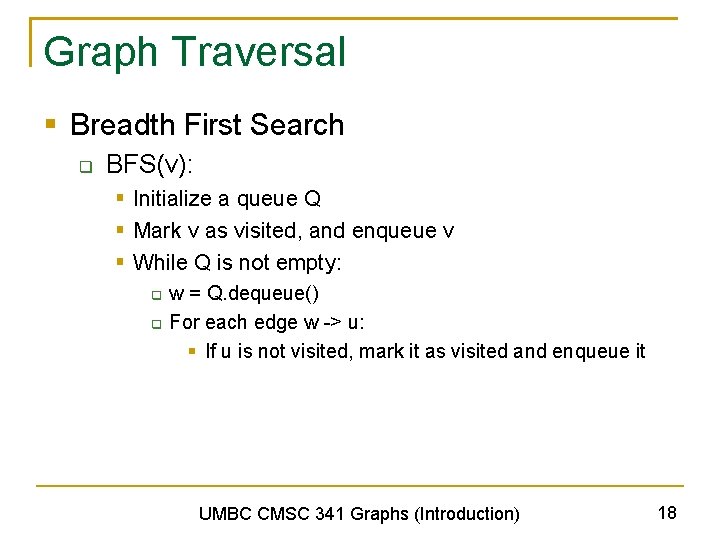

Graph Traversal § Breadth First Search q BFS(v): § Initialize a queue Q § Mark v as visited, and enqueue v § While Q is not empty: q q w = Q. dequeue() For each edge w -> u: § If u is not visited, mark it as visited and enqueue it UMBC CMSC 341 Graphs (Introduction) 18
A Graph ADT § Has some data elements q Vertices and Edges § Has some operations q q q get. Degree( u ) -- Returns the degree of vertex u (outdegree of vertex u in directed graph) get. Adjacent( u ) -- Returns a list of the vertices adjacent to vertex u (list of vertices that u points to for a directed graph) is. Adjacent. To( u, v ) -- Returns TRUE if vertex v is adjacent to vertex u, FALSE otherwise. § Has some associated algorithms to be discussed. 8/3/2007 UMBC CMSC 341 Graphs 19
Adjacency Matrix Implementation § Uses array of size |V| where each entry (i , j) is boolean q TRUE if there is an edge from vertex i to vertex j q FALSE otherwise q store weights when edges are weighted § Very simple, but large space requirement = O(|V|2) § Appropriate if the graph is dense. § Otherwise, most of the entries in the table are FALSE. § For example, if a graph is used to represent a street map like Manhattan in which most streets run E/W or N/S, each intersection is attached to only 4 streets and |E| < 4*|V|. If there are 3000 intersections, the table has 9, 000 entries of which only 12, 000 are TRUE. 8/3/2007 UMBC CMSC 341 Graphs 20

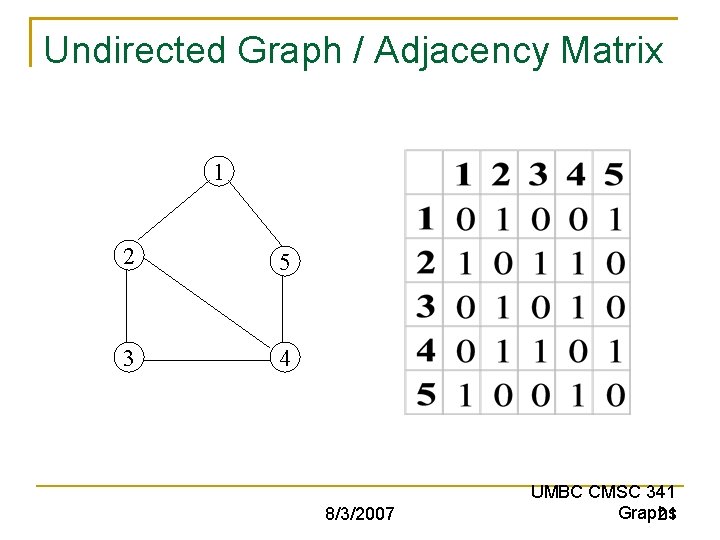

Undirected Graph / Adjacency Matrix 1 2 5 3 4 8/3/2007 UMBC CMSC 341 Graphs 21
Directed Graph / Adjacency Matrix 1 2 5 3 4 8/3/2007 UMBC CMSC 341 Graphs 22

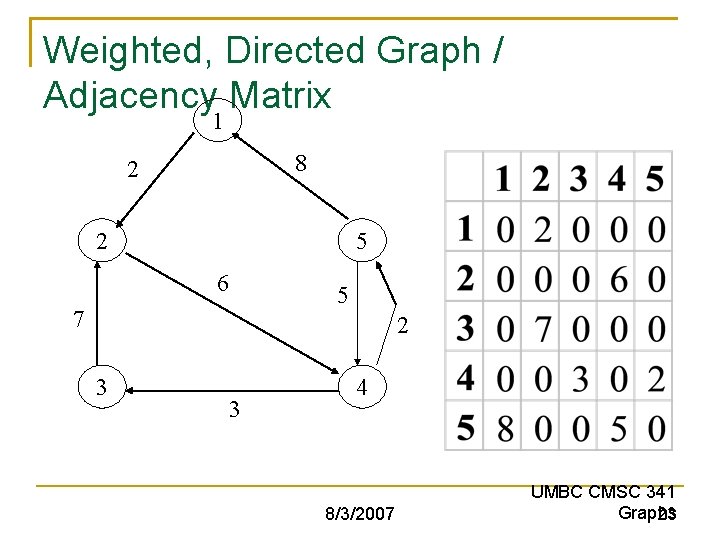

Weighted, Directed Graph / Adjacency Matrix 1 8 2 2 5 6 5 7 2 3 3 4 8/3/2007 UMBC CMSC 341 Graphs 23
Adjacency Matrix Performance Storage requirement: O(|V|2 ) Performance: get. Degree ( u ) O(|V|) is. Adjacent. To( u, v ) O(1) get. Adjacent( u ) O(|V|) 8/3/2007 UMBC CMSC 341 Graphs 24
Adjacency List Implementation § If the graph is sparse, then keeping a list of adjacent vertices for each vertex saves space. Adjacency Lists are the commonly used representation. The lists may be stored in a data structure or in the Vertex object itself. q Vector of lists: A vector of lists of vertices. The ith element of the vector is a list, Li, of the vertices adjacent to vi. § If the graph is sparse, then the space requirement is O( |E| + |V| ), “linear in the size of the graph” § If the graph is dense, then the space requirement is O( |V|2 ) 8/3/2007 UMBC CMSC 341 Graphs 25
Vector of Lists 1 2 8 2 7 3 1 2 3 4 5 5 6 3 5 4 2 3 1 5 4 2 8/3/2007 UMBC CMSC 341 Graphs 26
Adjacency List Performance Storage requirement: O(|V| + |E|) Performance: O get. Degree( u ) is. Adjacent. To( u, v ) get. Adjacent( u ) 8/3/2007 UMBC CMSC 341 Graphs 27
