CMSC 341 Binary Search Trees 832007 CMSC 341

CMSC 341 Binary Search Trees 8/3/2007 CMSC 341 BST

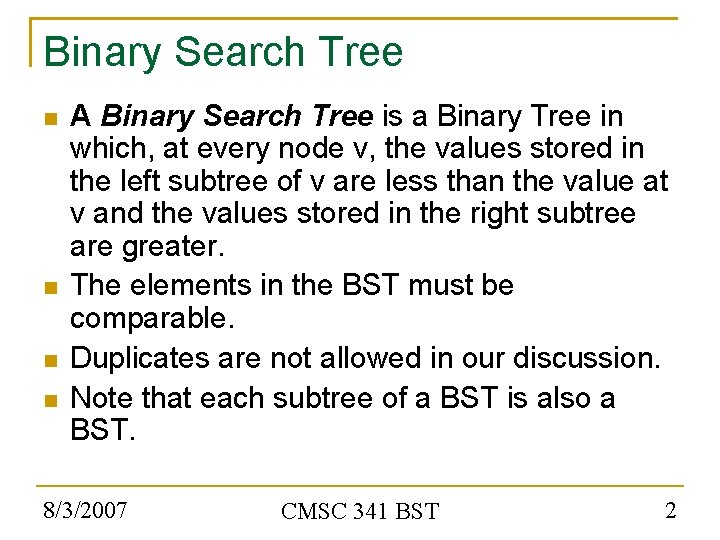

Binary Search Tree A Binary Search Tree is a Binary Tree in which, at every node v, the values stored in the left subtree of v are less than the value at v and the values stored in the right subtree are greater. The elements in the BST must be comparable. Duplicates are not allowed in our discussion. Note that each subtree of a BST is also a BST. 8/3/2007 CMSC 341 BST 2

A BST of integers 42 50 20 A 27 25 60 32 99 35 B C D Describe the values which might appear in the subtrees labeled A, B, C, and D 8/3/2007 CMSC 341 BST 3

Search. Tree ADT The Search. Tree ADT A search tree is a binary search tree which stores homogeneous elements with no duplicates. It is dynamic. The elements are ordered in the following ways inorder -- as dictated by compare. To( ) preorder, postorder, levelorder -- as dictated by the structure of the tree 8/3/2007 CMSC 341 BST 4

BST Implementation public class Binary. Search. Tree<Any. Type extends Comparable<? super Any. Type>> { private static class Binary. Node<Any. Type> { // Constructors Binary. Node( Any. Type the. Element ) { this( the. Element, null ); } Binary. Node( Any. Type the. Element, Binary. Node<Any. Type> lt, Binary. Node<Any. Type> rt ) { element = the. Element; left = lt; right = rt; } Any. Type element; Binary. Node<Any. Type> left; Binary. Node<Any. Type> right; // The data in the node // Left child reference // Right child reference } 8/3/2007 CMSC 341 BST 5

BST Implementation (2) private Binary. Node<Any. Type> root; public Binary. Search. Tree( ) { root = null; } public void make. Empty( ) { root = null; } public boolean is. Empty( ) { return root == null; } 8/3/2007 CMSC 341 BST 6

BST “contains” Method public boolean contains( Any. Type x ) { return contains( x, root ); } private boolean contains( Any. Type x, Binary. Node<Any. Type> t ) { if( t == null ) return false; int compare. Result = x. compare. To( t. element ); if( compare. Result < 0 ) return contains( x, t. left ); else if( compare. Result > 0 ) return contains( x, t. right ); else return true; // Match } 8/3/2007 CMSC 341 BST 7

Performance of “contains” Searching in randomly built BST is O(lg n) on average but generally, a BST is not randomly built Asymptotic performance is O(height) in all cases 8/3/2007 CMSC 341 BST 8

Implementation of print. Tree public void print. Tree() { print. Tree(root); } private void print. Tree( Binary. Node<Any. Type> t ) { if( t != null ) { print. Tree( t. left ); System. out. println( t. element ); print. Tree( t. right ); } } 8/3/2007 CMSC 341 BST 9

BST Implementation (3) public Any. Type find. Min( ) { if( is. Empty( ) ) throw new Underflow. Exception( ); return find. Min( root ). element; } public Any. Type find. Max( ) { if( is. Empty( ) ) throw new Underflow. Exception( ); return find. Max( root ). element; } public void insert( Any. Type x ) { root = insert( x, root ); } public void remove( Any. Type x ) { root = remove( x, root ); } 8/3/2007 CMSC 341 BST 10

The insert Operation private Binary. Node<Any. Type> insert( Any. Type x, Binary. Node<Any. Type> t ) { if( t == null ) return new Binary. Node<Any. Type>( x, null ); int compare. Result = x. compare. To( t. element ); if( compare. Result < 0 ) t. left = insert( x, t. left ); else if( compare. Result > 0 ) t. right = insert( x, t. right ); else ; // Duplicate; do nothing return t; } 8/3/2007 CMSC 341 BST 11

The remove Operation private Binary. Node<Any. Type> remove( Any. Type x, Binary. Node<Any. Type> t ) { if( t == null ) return t; // Item not found; do nothing int compare. Result = x. compare. To( t. element ); if( compare. Result < 0 ) t. left = remove( x, t. left ); else if( compare. Result > 0 ) t. right = remove( x, t. right ); else if( t. left != null && t. right != null ){ // 2 children t. element = find. Min( t. right ). element; t. right = remove( t. element, t. right ); } else // one child or leaf t = ( t. left != null ) ? t. left : t. right; return t; } 8/3/2007 CMSC 341 BST 12

Implementations of find Max and Min private Binary. Node<Any. Type> find. Min( Binary. Node<Any. Type> t ) { if( t == null ) return null; else if( t. left == null ) return t; return find. Min( t. left ); } private Binary. Node<Any. Type> find. Max( Binary. Node<Any. Type> t ) { if( t != null ) while( t. right != null ) t = t. right; return t; } 8/3/2007 CMSC 341 BST 13

Performance of BST methods What is the asymptotic performance of each of the BST methods? Best Case Worst Case Average Case contains insert remove find. Min/ Max make. Empty 8/3/2007 CMSC 341 BST 14

Building a BST Given an array of elements, what is the performance (best/worst/average) of building a BST from scratch? 8/3/2007 CMSC 341 BST 15

Predecessor in BST Predecessor of a node v in a BST is the node that holds the data value that immediately precedes the data at v in order. Finding predecessor v has a left subtree then predecessor must be the largest value in the left subtree (the rightmost node in the left subtree) v does not have a left subtree predecessor is the first node on path back to root that does not have v in its left subtree 8/3/2007 CMSC 341 BST 16

Successor in BST Successor of a node v in a BST is the node that holds the data value that immediately follows the data at v in order. Finding Successor v has right subtree successor is smallest value in right subtree (the leftmost node in the right subtree) v does not have right subtree successor is first node on path back to root that does not have v in its right subtree 8/3/2007 CMSC 341 BST 17

Tree Iterators As we know there are several ways to traverse through a BST. For the user to do so, we must supply different kind of iterators. The iterator type defines how the elements are traversed. In. Order. Iterator<T> Pre. Order. Iterator<T> Post. Order. Iterator<T> Level. Order. Iterator<T> 8/3/2007 in. Order. Iterator(); pre. Order. Iterator(); post. Order. Iterator(); level. Order. Iterator(); CMSC 341 BST 18

Using Tree Iterator public static void main (String args[] ) { Binary. Search. Tree<Integer> tree = new Binary. Search. Tree<Integer>(); // store some ints into the tree In. Order. Iterator<Integer> itr = tree. in. Order. Iterator( ); while ( itr. has. Next( ) ) { Object x = itr. next(); // do something with x } } 8/3/2007 CMSC 341 BST 19

The In. Order. Iterator is a Disguised List Iterator // An In. Order. Iterator that uses a list to store // the complete in-order traversal import java. util. *; class In. Order. Iterator<T> { Iterator<T> _list. Iter; List<T> _the. List; T next() { /*TBD*/ } boolean has. Next() { /*TBD*/ } In. Order. Iterator(Binary. Search. Tree. Binary. Node<T> root) { /*TBD*/ } } 8/3/2007 CMSC 341 BST 20

List-Based In. Order. Iterator //constructor Methods In. Order. Iterator( Binary. Search. Tree. Binary. Node<T> root ) { fill. List. Inorder( _the. List, root ); _list. Iter = _the. List. iterator( ); } // constructor helper function void fill. List. Inorder (List<T> list, Binary. Search. Tree. Binary. Node<T> node) { if (node == null) return; fill. List. Inorder( list, node. left ); list. add( node. element ); fill. List. Inorder( list, node. right ); } 8/3/2007 CMSC 341 BST 21

List-based In. Order. Iterator Methods T next() Call List Iterator Methods { return _list. Iter. next(); } boolean has. Next() { return _list. Iter. has. Next(); } 8/3/2007 CMSC 341 BST 22

In. Order. Iterator Class with a Stack // An In. Order. Iterator that uses a stack to mimic recursive traversal class In. Order. Iterator { Stack<Binary. Search. Tree. Binary. Node<T>> _the. Stack; //constructor In. Order. Iterator(Binary. Search. Tree. Binary. Node<T> root){ _the. Stack = new Stack(); fill. Stack( root ); } // constructor helper function void fill. Stack(Binary. Search. Tree. Binary. Node<T> node){ while(node != null){ _the. Stack. push(node); node = node. left; } } 8/3/2007 CMSC 341 BST 23

Stack-Based In. Order. Iterator T next(){ Binary. Search. Tree. Binary. Node<T> top. Node = null; try { top. Node = _the. Stack. pop(); }catch (Empty. Stack. Exception e) { return null; } if(top. Node. right != null){ fill. Stack(top. Node. right); } return top. Node. element; } boolean has. Next(){ return !_the. Stack. empty(); } } 8/3/2007 CMSC 341 BST 24

More Recursive BST Methods static <T> bool is. BST ( Binary. Node<T> t ) returns true if the Binary tree is a BST static <T> T find. Min( Binary. Node<T> t ) returns the minimum value in a BST static <T> int count. Full. Nodes ( Binary. Node<T> t ) returns the number of full nodes (those with 2 children) in a binary tree static <T> int count. Leaves( Binary. Node<T> t ) counts the number of leaves in a Binary Tree 8/3/2007 CMSC 341 BST 25
