CMS B Physics Reach V Ciulli INFN Firenze

CMS – B Physics Reach V. Ciulli INFN Firenze on behalf of CMS collaboration IV INTERNATIONAL SYMPOSIUM ON LHC PHYSICS AND DETECTORS FERMILAB, MAY 1 -3 2003

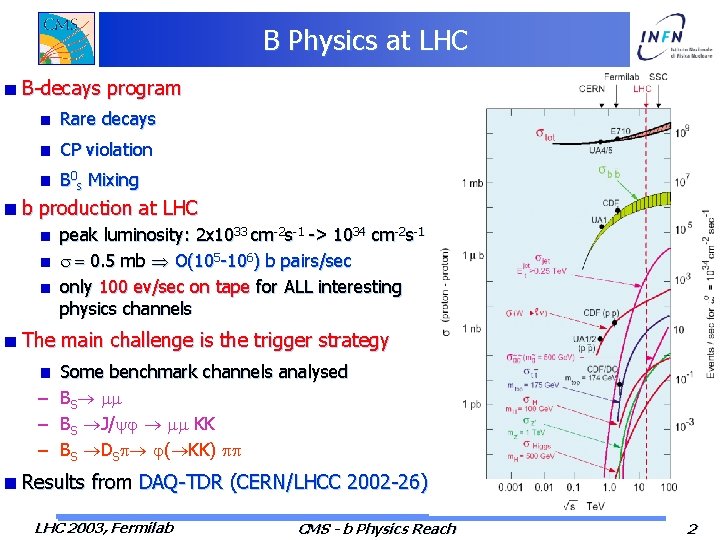

B Physics at LHC B-decays program Rare decays CP violation B 0 s Mixing b production at LHC peak luminosity: 2 x 1033 cm-2 s-1 -> 1034 cm-2 s-1 s = 0. 5 mb O(105 -106) b pairs/sec only 100 ev/sec on tape for ALL interesting physics channels The main challenge is the trigger strategy Some benchmark channels analysed – BS J/ KK – BS DS ( KK) Results from DAQ-TDR (CERN/LHCC 2002 -26) LHC 2003, Fermilab CMS - b Physics Reach 2

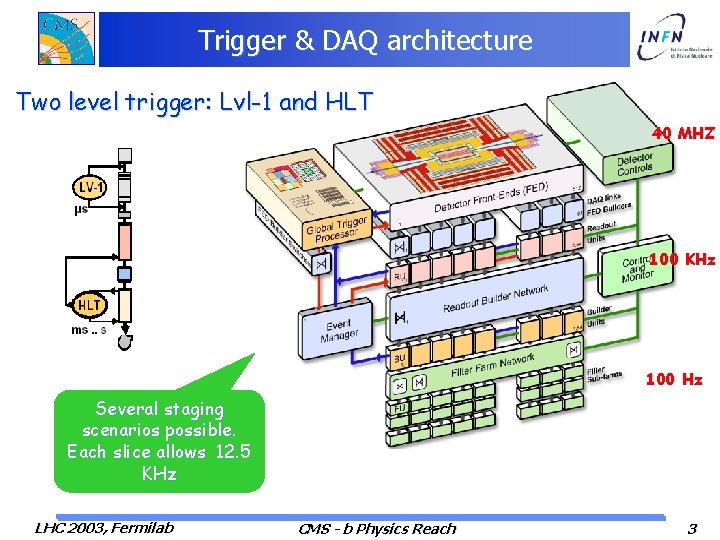

Trigger & DAQ architecture Two level trigger: Lvl-1 and HLT 40 MHZ 100 KHz 100 Hz Several staging scenarios possible. Each slice allows 12. 5 KHz LHC 2003, Fermilab CMS - b Physics Reach 3

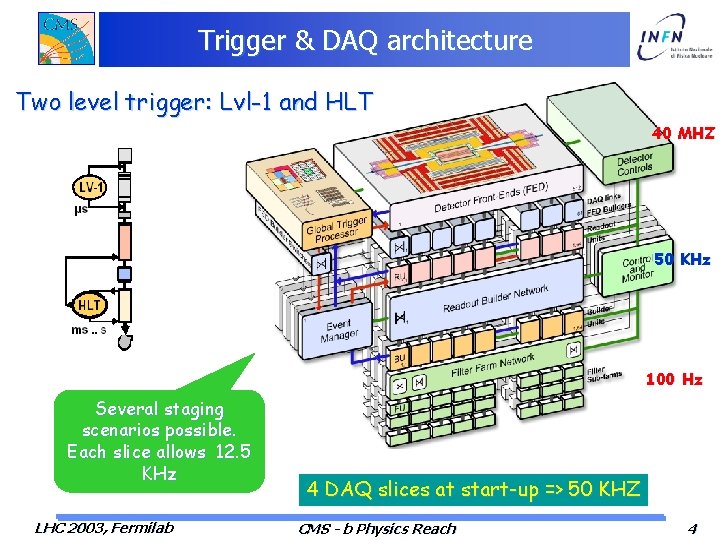

Trigger & DAQ architecture Two level trigger: Lvl-1 and HLT 40 MHZ 50 KHz 100 Hz Several staging scenarios possible. Each slice allows 12. 5 KHz LHC 2003, Fermilab 4 DAQ slices at start-up => 50 KHZ CMS - b Physics Reach 4

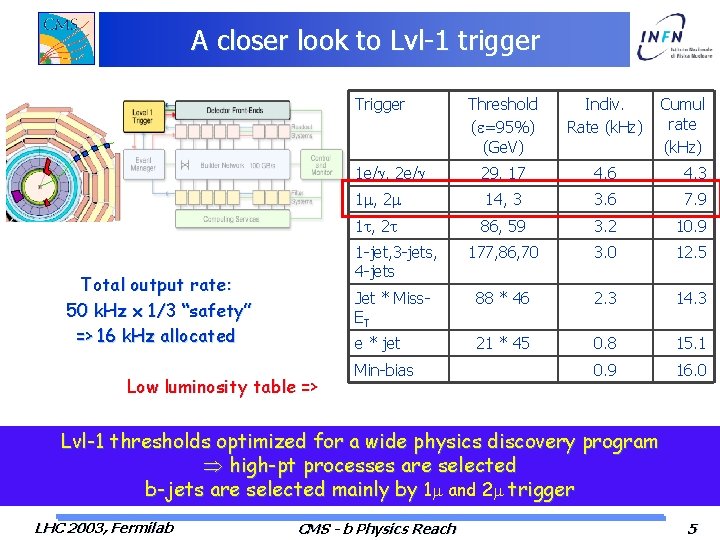

A closer look to Lvl-1 trigger Total output rate: 50 k. Hz x 1/3 “safety” => 16 k. Hz allocated Low luminosity table => Threshold ( =95%) (Ge. V) Indiv. Rate (k. Hz) 1 e/g, 2 e/g 29, 17 4. 6 4. 3 1 , 2 14, 3 3. 6 7. 9 1 t, 2 t 86, 59 3. 2 10. 9 1 -jet, 3 -jets, 4 -jets 177, 86, 70 3. 0 12. 5 Jet * Miss. ET 88 * 46 2. 3 14. 3 e * jet 21 * 45 0. 8 15. 1 0. 9 16. 0 Min-bias Cumul rate (k. Hz) Lvl-1 thresholds optimized for a wide physics discovery program high-pt processes are selected b-jets are selected mainly by 1 and 2 trigger LHC 2003, Fermilab CMS - b Physics Reach 5

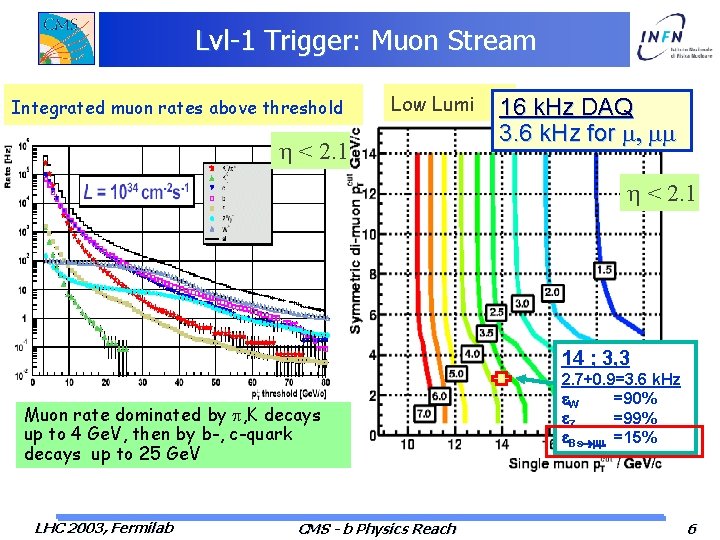

Lvl-1 Trigger: Muon Stream Integrated muon rates above threshold Low Lumi < 2. 1 16 k. Hz DAQ 3. 6 k. Hz for , < 2. 1 14 ; 3, 3 Muon rate dominated by , K decays up to 4 Ge. V, then by b-, c-quark decays up to 25 Ge. V LHC 2003, Fermilab CMS - b Physics Reach 2. 7+0. 9=3. 6 k. Hz e. W =90% e. Z =99% e. Bs mm =15% 6

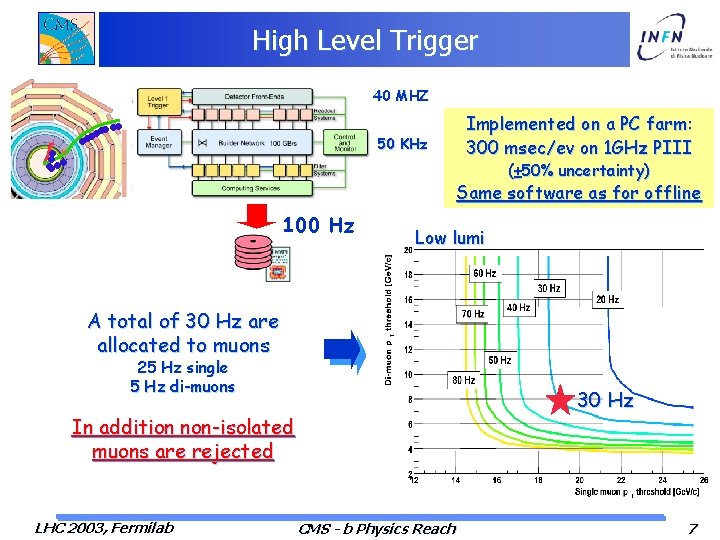

High Level Trigger 40 MHZ • • • • • 50 KHz Implemented on a PC farm: 300 msec/ev on 1 GHz PIII (± 50% uncertainty) Same software as for offline 100 Hz Low lumi A total of 30 Hz are allocated to muons 25 Hz single 5 Hz di-muons 30 Hz In addition non-isolated muons are rejected LHC 2003, Fermilab CMS - b Physics Reach 7

HLT single muon stream content W 25 Hz b/c Only ~5 Hz are b/c events: 1 Hz -> 107 ev/year at low lumi Not enough for decays with BR<10 -4 and selection efficiency <10% LHC 2003, Fermilab CMS - b Physics Reach 8

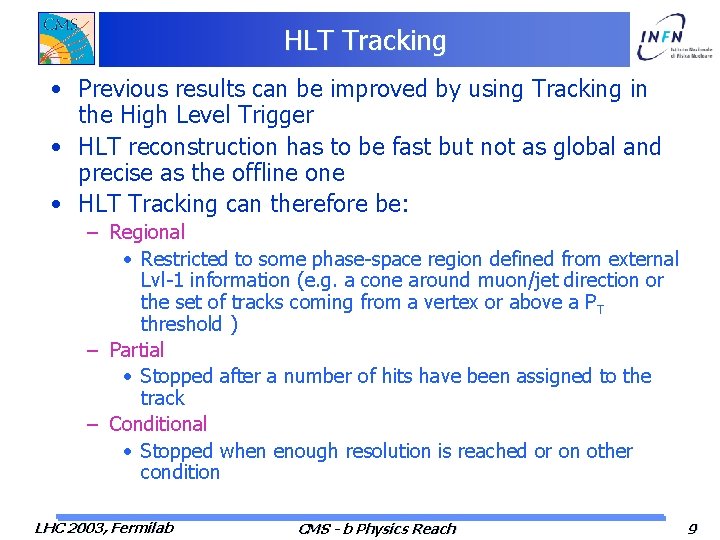

HLT Tracking • Previous results can be improved by using Tracking in the High Level Trigger • HLT reconstruction has to be fast but not as global and precise as the offline one • HLT Tracking can therefore be: – Regional • Restricted to some phase-space region defined from external Lvl-1 information (e. g. a cone around muon/jet direction or the set of tracks coming from a vertex or above a PT threshold ) – Partial • Stopped after a number of hits have been assigned to the track – Conditional • Stopped when enough resolution is reached or on other condition LHC 2003, Fermilab CMS - b Physics Reach 9

Primary vertex reconstruction y y 10 -30 s = 26 m 7 cm 4 cm x z 0 z • Hit pairing with a straight line in rz – IP 1 mm – PT>1 Ge. V • Matching with 3 rd layer track candidate • PV candidate if 3 track cross z-axis • Signal vertex from PT and Ntracks Average time: 50 msec/1 GHz LHC 2003, Fermilab PV efficiency >95% in high luminosity events Track candidates pointing to the PV used in the following reconstruction CMS - b Physics Reach 10

Partial reconstruction Good track parameters resolution with 4 -5 hits half the time for full reconstruction needed IP Time vs hits in 100 Ge. V b-jets Pt Full tracker performance LHC 2003, Fermilab CMS - b Physics Reach 11

Benchmark channels Di-muons Lvl-1 Trigger: • BS J/ KK Single muon Lvl-1 Trigger (second B +X) • BS DS ( KK) LHC 2003, Fermilab CMS - b Physics Reach 12

Bs FCNC b->s or b->d only at loop-level in SM => BR(Bs mm)=(3. 5± 1. 0)x 10 -9 • Lvl-1: 2 PT>3 Ge. V, =15. 2% • HLT strategy: – Select pixel seeds with PT > 4 Ge. V in - region around trigger ’s – Conditional tracking: - stop if pt<4 Ge. V/c @ 5σ or Nhit=6 or σ(pt)/pt<0. 02 1. Bs reconstruction if only 2 track candidates with opposite charge in 150 Me. V window 2. Vertex: c 2 < 20 and dr > 150 m Average CPU Time = 240 msec / 1 GHz CPU LHC 2003, Fermilab CMS - b Physics Reach 13

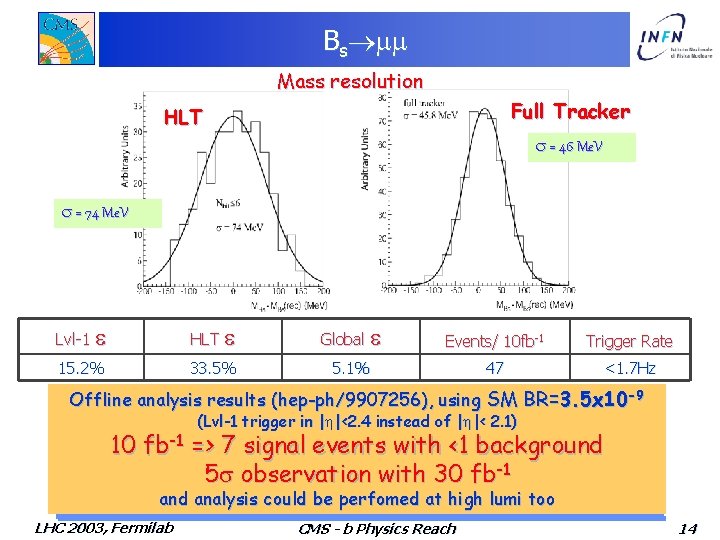

Bs Mass resolution Full Tracker HLT s = 46 Me. V s = 74 Me. V Lvl-1 HLT Global Events/ 10 fb-1 Trigger Rate 15. 2% 33. 5% 5. 1% 47 <1. 7 Hz Offline analysis results (hep-ph/9907256), using SM BR=3. 5 x 10 -9 (Lvl-1 trigger in | |<2. 4 instead of | |< 2. 1) 10 fb-1 => 7 signal events with <1 background 5 s observation with 30 fb-1 and analysis could be perfomed at high lumi too LHC 2003, Fermilab CMS - b Physics Reach 14

Bs J/ BR(Bs J/ )=(9. 3± 3. 3)x 10 -4 J/ ℓ+ℓ- (BR≈6%) K+K- (BR≈49%) CP violation weak phase s= 2 dg= 2 2 SM predicts s ~O(0. 03) HLT strategy: • Lvl-2: reconstruct muons as for Bs q 100 Me. V window around J/ mass, c 2 < 20 and dr > 200 m • Rate = 15 Hz, <t>~260 ms 90% of Lvl-2 J/ are from b’s Lvl-3: reconstruct and Bs • Regional tracking around J/ direction • <t>~800 ms LHC 2003, Fermilab CMS - b Physics Reach 15

Bs J/ Lvl-1 Lvl-2 Rate Lvl-3 Rate Events/ 10 fb-1 16. 5% 13. 7% 14. 5 Hz 8. 7% <1. 7 Hz 83800 HLT mass resolutions s = 46. 5 Me. V LHC 2003, Fermilab J/ s = 2. 2 Me. V CMS - b Physics Reach s = 22. 4 Me. V Bs 16

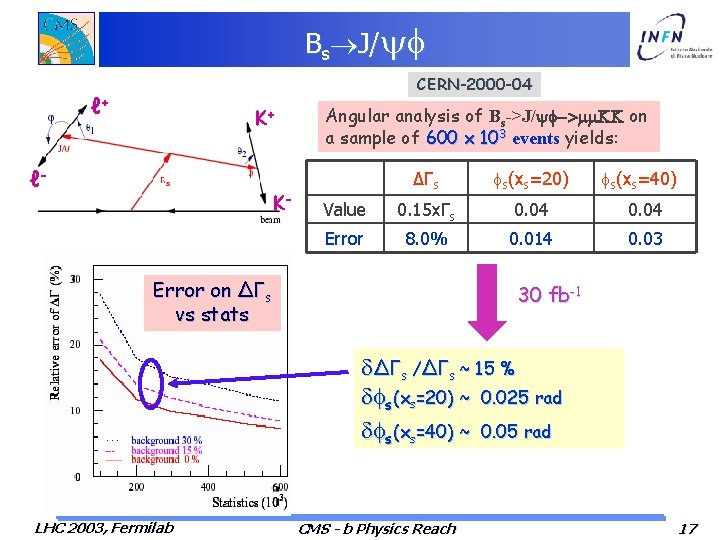

Bs J/ CERN-2000 -04 ℓ+ K+ ℓ- K- Angular analysis of Bs->J/yf->mm. KK on a sample of 600 x 103 events yields: ΔΓs s(xs=20) Value 0. 15 xΓs 0. 04 Error 8. 0% 0. 014 0. 03 Error on ΔΓs vs stats s(xs=40) 30 fb-1 dΔΓs /ΔΓs ~ 15 % d s(xs=20) ~ 0. 025 rad d s(xs=40) ~ 0. 05 rad LHC 2003, Fermilab CMS - b Physics Reach 17

Bs Ds ( KK) BS-BS mixing: Dm. S 14. 4 ps-1 @95%CL P(b Bs) x Br(Bs DS K K ) ~ 5 x 10 -5 • • L 1 1 trigger: PT>14 Ge. V, R=3. 2 KHz HLT strategy: - - pixel seeds in full acceptance and Primary Vertex - Partial tracking: 2 pixel and 1 strip hits - Topological cuts: DR(KK)<0. 3, DR( )<1. 2, DR(DS )<2. 0, D (BS, )>0. 6 - Kinematical cuts: PT( )>2 Ge. V, PT(DS)>4 Ge. V, PT(BS)>5 Ge. V - Mass reconstruction: DM <15 Me. V, DMDs<75 Me. V, DMBs<270 Me. V HLT efficiency 9% - <t> = 640 msec LHC 2003, Fermilab CMS - b Physics Reach 18

Bs Ds ( KK) Mass resolutions (only 3 hits are used) Ds s = 5 Me. V s = 25 Me. V Bs s = 95 Me. V 1 year low luminosity (20 fb-1): Lvl-1 1 KHz HLT 5 Hz 300 -400 signal events => Dm. S up to 20 ps-1 1000 events are needed to test allowed SM range: Dm. S 26 ps-1 @99%CL Can not be run on full Lvl-1 2. 7 KHz because of large output rate: still room to improve LHC 2003, Fermilab CMS - b Physics Reach 19

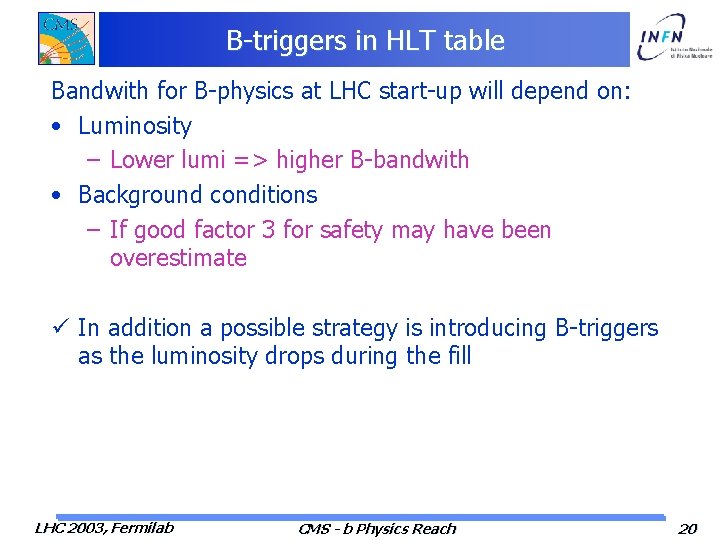

B-triggers in HLT table Bandwith for B-physics at LHC start-up will depend on: • Luminosity – Lower lumi => higher B-bandwith • Background conditions – If good factor 3 for safety may have been overestimate ü In addition a possible strategy is introducing B-triggers as the luminosity drops during the fill LHC 2003, Fermilab CMS - b Physics Reach 20

Conclusions 1. CMS is a competitive detector for B-physics, even if it is not designed specifically for it 2. A key point is B-decay selection in the High Level Trigger thanks to fast tracking 3. A proof of concept has been given on few benchmark channels in the DAQ TDR 4. Much will depend on LHC starting conditions: Low lumi for a while lot of B physics 5. Computing and Physics TDR’s will address in more details the CMS B-physics potential LHC 2003, Fermilab CMS - b Physics Reach 21
