CMPE 150 Winter 2009 Lecture 1 January 5

CMPE 150 – Winter 2009 Lecture 1 January 5, 2009 P. E. Mantey

CMPE 150 -- Introduction to Computer Networks n n n Instructor: Patrick Mantey mantey@soe. ucsc. edu http: //www. soe. ucsc. edu/~mantey/ Office: Engr. 2 Room 595 J Office hours: Tuesday 3 -5 PM TA: Anselm Kia Web site: http: //www. soe. ucsc. edu/classes/cmpe 150/Winter 09/ Text: Tannenbaum: Computer Networks (4 th edition – available in bookstore, etc. )

Text Tannenbaum: Computer Networks (Prentice-Hall) 4 th edition

Reference Stallings: Data and Computer Communications (Prentice Hall)

Other Networking Courses n n n CE 151 CE 152 CE 156 CE 107 EE 103 CE 154 CE 153 EE 151 CE 108 CE 163 CS 111 CE 80 N Network Administration Protocols Network Programming Stochastic System Analysis Signals and Systems Data Communication Digital Signal Processing Communications Systems Data Compression Multimedia Operating Systems General Education on Networks

Syllabus

Grading n n Midterms 40% (20% each) Class quizzes 25% * Final Exam 35 % Problem Assignments 0 to -10 % ** * Plan for four (unannounced) 15 minute in-class quizzes. Lowest score will be dropped. No makeup for missed quizzes. In class quizzes will aggregate to count 25% of grade – thus a bit more than another mid-term. ** Problem assignments to be turned in – and only those on time will be credited. Students will start with full credit for problem assignments – but if not completed with good performance up to 10 % deduction will be made from total exam score. n No credit for work that is not your own.

Academic Integrity n http: //www. ucsc. edu/academics/academic_integrity/index. html n http: //www. cse. ucsc. edu/advising/undergraduate/pdf/soehandbook 0203. pdf n n "All members of the UCSC community have an explicit responsibility to foster an environment of trust, honesty, fairness, respect, and responsibility. All members of the university community are expected to present as their original work only that which is truly their own. All members of the community are expected to report observed instances of cheating, plagiarism, and other forms of academic dishonesty in order to ensure that the integrity of scholarship is valued as preserved at UCSC. In the event a student is found in violation of the UCSC Academic Integrity policy, he or she may face both academic sanctions imposed by the instructor of the course and disciplinary sanctions imposed either by the provost of his or her college or by the Academic Tribunal convened to hear the case. Violations of the Academic Integrity policy can result in expulsion from the university and a permanent notation on the student's transcript. ” n Source: The Navigator http: //reg. ucsc. edu/navigator/chapter 1. html

Some Current Topics n Digital TV http: //www. spectrum. ieee. org/oct 05/1911 n Ultra Wideband Wi. Media Standard IEEE Signal Processing September 2008, pp. 115 -118 n New Cisco Edge Router http: //www. eetimes. com/news/latest/show. Article. jhtml? article. ID=206902487 n n n HD videoconferencing Cloud Computing / Networked Attached Storage Home Media Center (Windows Vista, etc. )

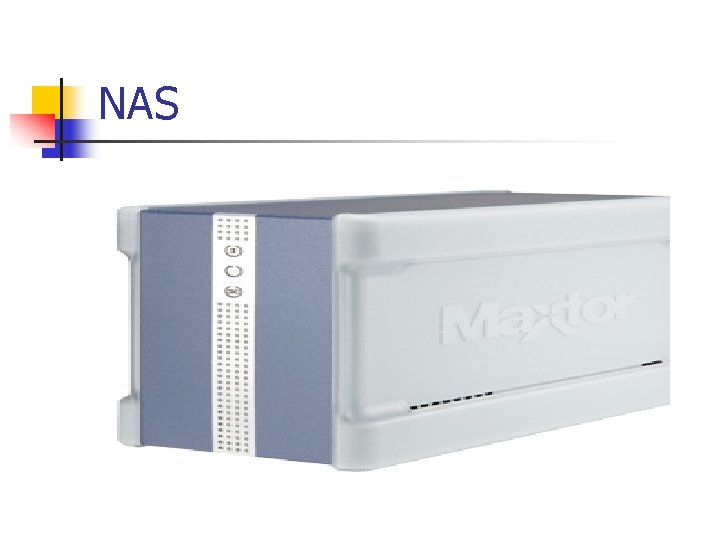

NAS

Network Attached Storage

Computer Networking n Computer to peripheral n n Serial (RS 232, USB, …) Parallel

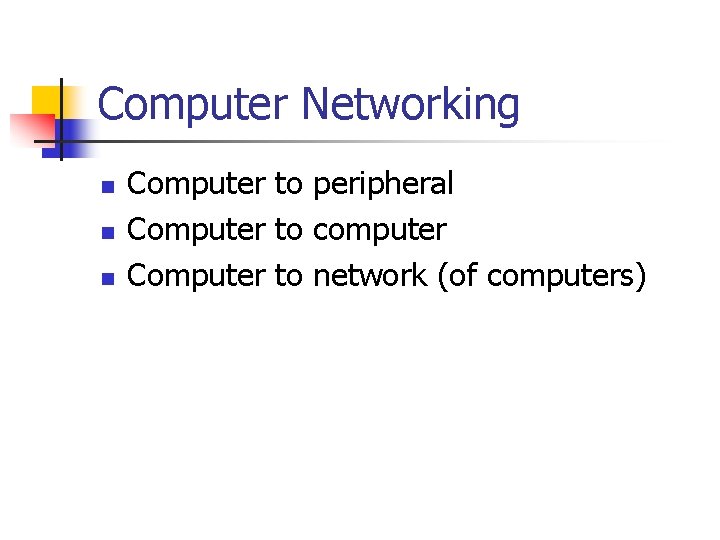

Computer Networking n n n Computer to peripheral Computer to computer Computer to network (of computers)

Computer Networking n Computer to peripheral n n Serial (RS 232, USB, …) Parallel

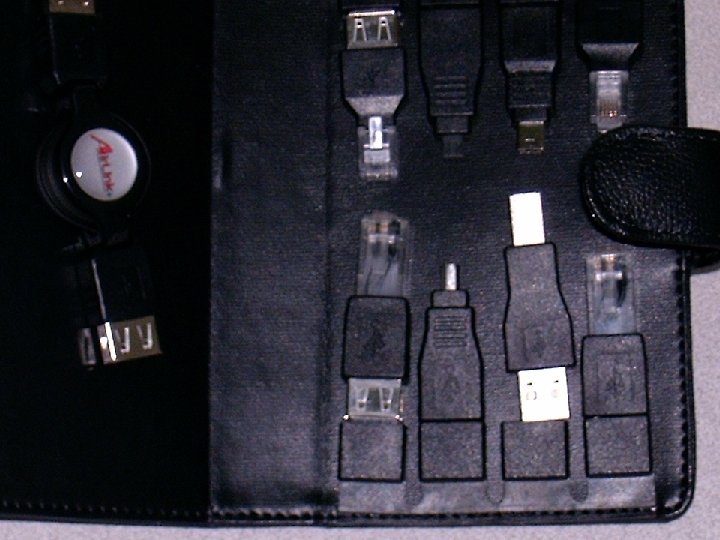

Computer Networking n Computer to peripheral n Serial n n n RS 232 USB bluetooth infrared Parallel

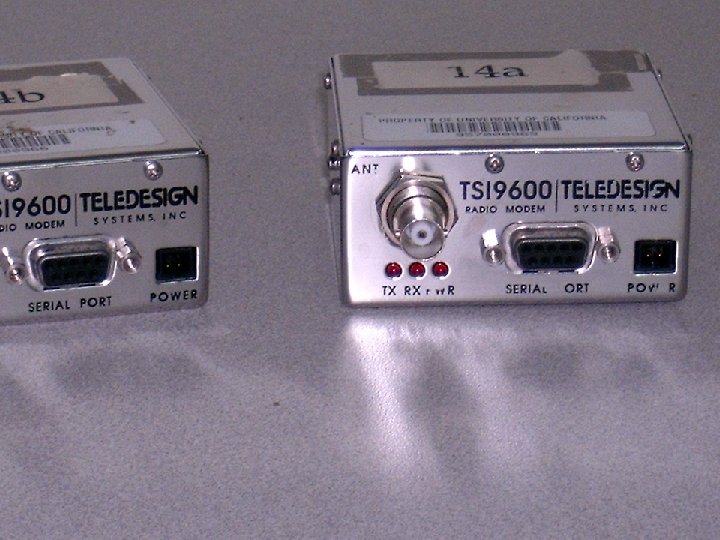

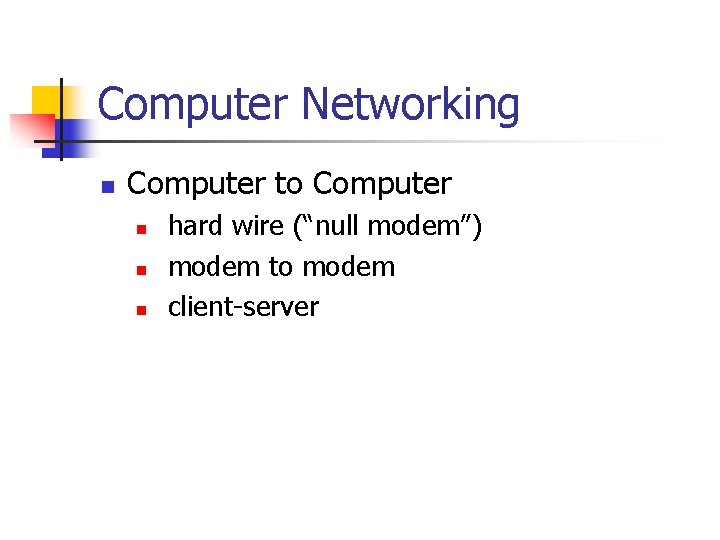

Computer Networking n Computer to Computer n n n hard wire (“null modem”) modem to modem client-server

Computer Networking n Computer to Network (of computers) n n n Ethernet 802. 11 Internet (TCP/IP)

Local Area Networks n Smaller scope n n n Building or small campus Usually owned by same organization as attached devices Data rates much higher Early days – “broadcast” systems Now switched

Local Area Networks n n Ethernet Token-ring FDDI Fiber Channel

PC Network View n n n n Ethernet 802. 11 (a, b, g, n) Bluetooth Infrared Serial Parallel USB Modem

My PC

USB Network

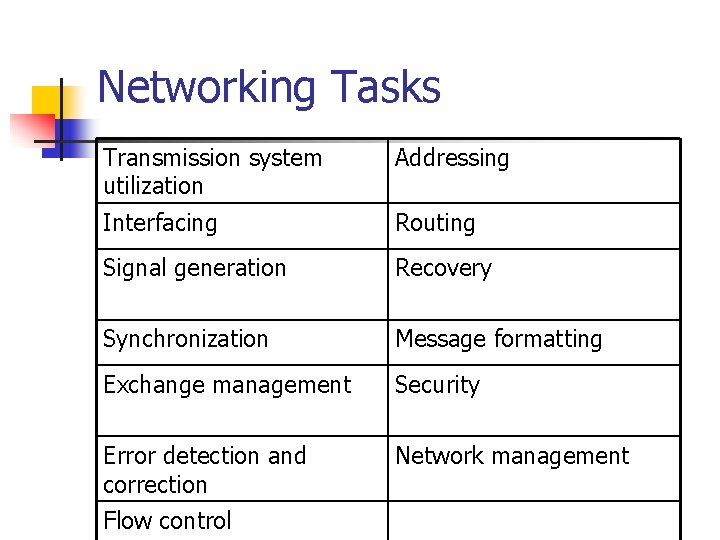

Networking Tasks Transmission system utilization Addressing Interfacing Routing Signal generation Recovery Synchronization Message formatting Exchange management Security Error detection and correction Network management Flow control

A Communications Model n n n Source n generates data to be transmitted Transmitter n Converts data into transmittable signals Transmission System n Carries data Receiver n Converts received signal into data Destination n Takes incoming data

Simplified Communications Model - Diagram Stallings, Fig. 1. 1

Key Tasks n n n Transmission System Utilization Interfacing Signal Generation Synchronization Exchange Management Error detection and correction Addressing and routing Recovery Message formatting Security Network Management

Simplified Data Communications Model Stallings, Fig. 1. 2

Networking n Point to point communication not usually practical n n n Devices are too far apart Large set of devices would need impractical number of connections Solution is a communications network n n Local Area Network (LAN) Wide Area Network (WAN)

Simplified Network Model From Stallings –Ch. 1 6 th ed.

Wide Area Networks n n Large geographical area Crossing public rights of way Rely in part on common carrier circuits Alternative technologies n n Circuit switching Packet switching Frame relay Asynchronous Transfer Mode (ATM)

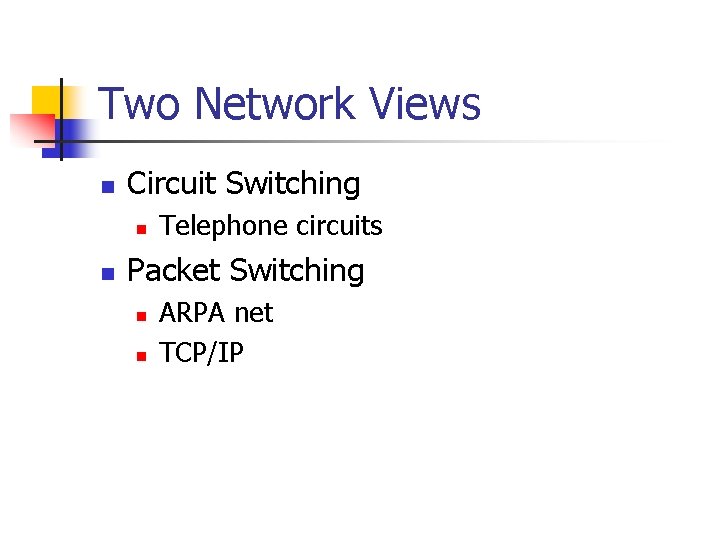

Two Network Views n Circuit Switching n n Telephone circuits Packet Switching n n ARPA net TCP/IP

Circuit Switching n Dedicated communications path established for the duration of the conversation

Packet Switching n n Data sent out of sequence Small chunks (packets) of data at a time Packets passed from node to node between source and destination Used for terminal to computer and computer to computer communications

Integrated Services Digital Network n n ISDN Designed to replace public telecom system Wide variety of services Entirely digital domain

DSL n Digital Subscriber Line n n Uses POTS to “Central Office” Assymetric DSL (ADSL) n n Different “up” and “down” speeds e. g. 3000/500 Kbps

Frame Relay n n Packet switching systems have large overheads to compensate for errors Modern systems are more reliable Errors can be caught in end system Most overhead for error control is stripped out

Asynchronous Transfer Mode n n n ATM Evolution of frame relay Little overhead for error control Fixed packet (called cell) length Anything from 10 Mbps to Gbps Constant data rate using packet switching technique
