CMOS1 AdvacedBios Chipset Features 1 BIOSCMOS n Advacned
CMOS-1 ( Advaced-Bios, Chipset) Features 종원일 1
진행 계획 BIOS(CMOS)? n Advacned Bios Features n Advacned Chipset Features n 실습 n 2

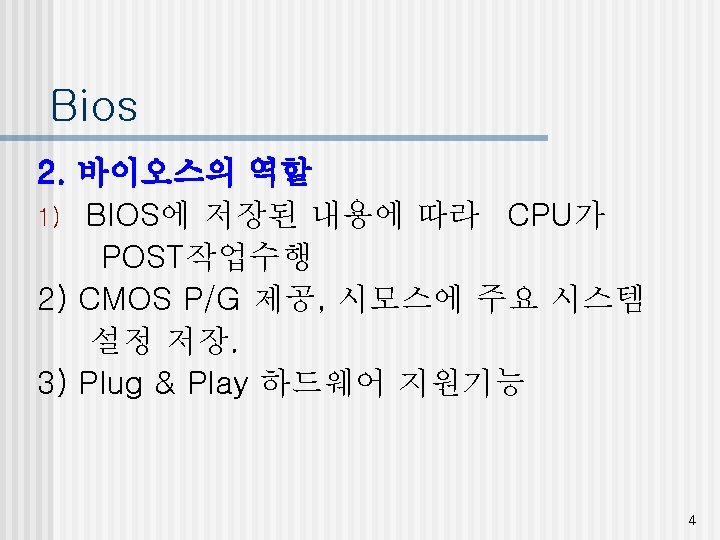

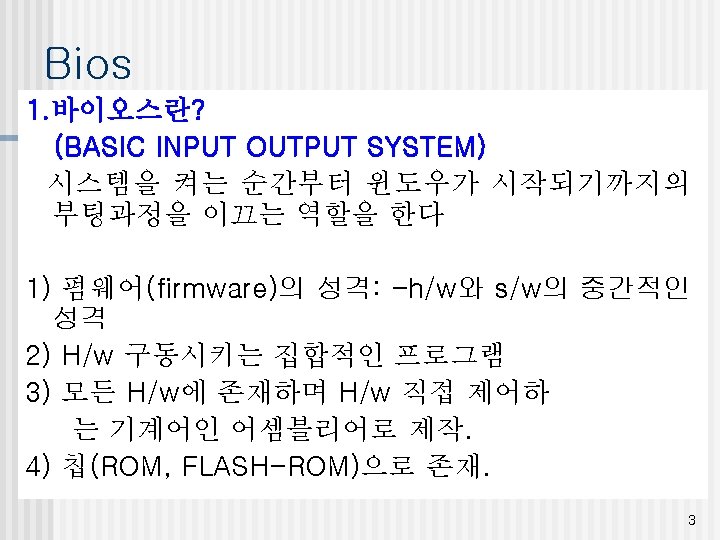

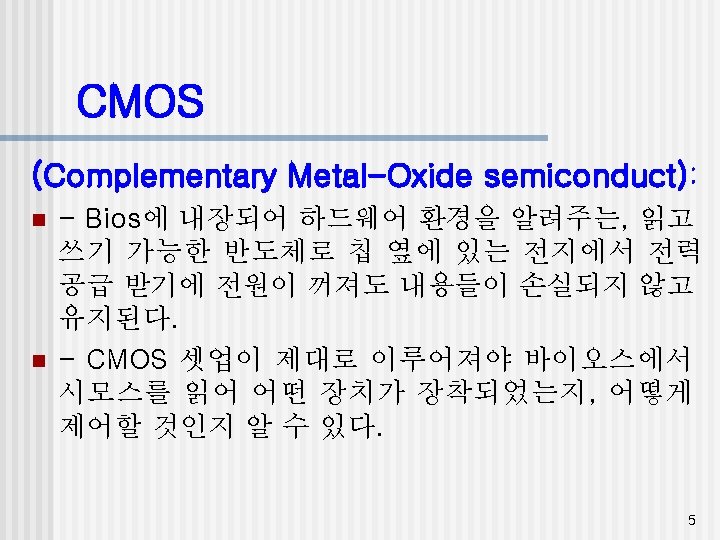

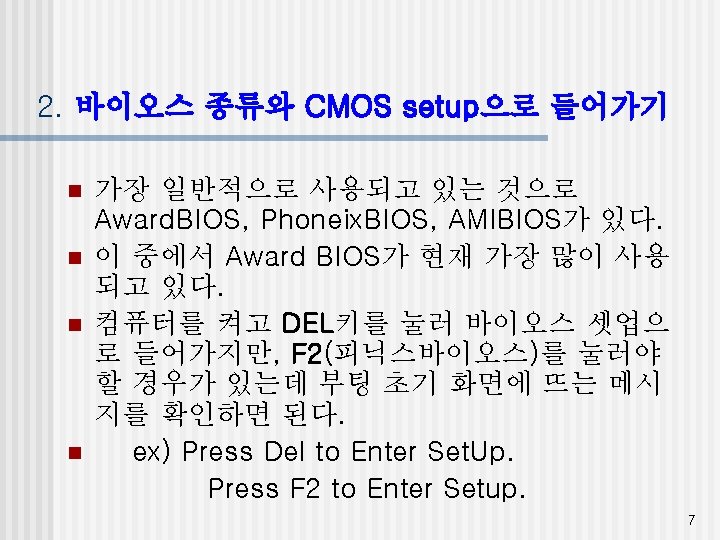

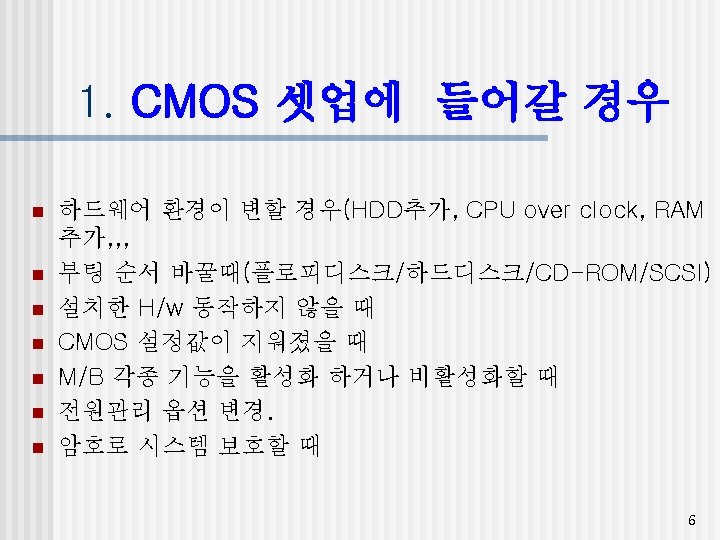

2. Advanced Bios Features 8
1) Virus Warning(Virus Protection) ! WARNING ! Disk boot sector is to be modified Type "Y" to accept write or "N" to abort write Award Software, Inc. 하드 디스크 부트 섹터에 쓰기가 되지 않도록 설정하는 곳이다. 자세한 정보는. . . 9
2)CPU Internal Cache 빠른 신호처리를 위해 Enabled로 설정한다 10

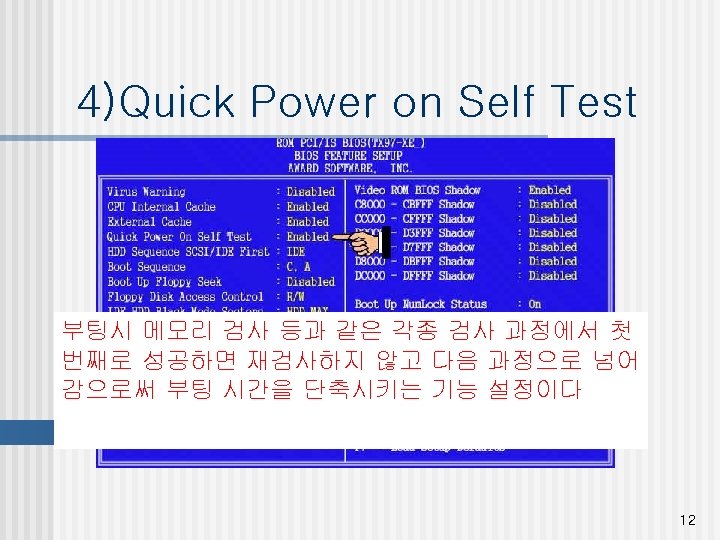

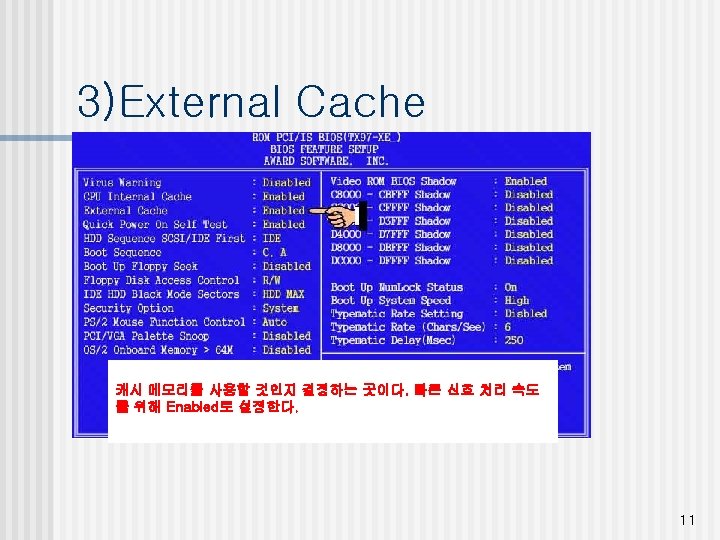

5)Boot Sequence "Not invalid system diskette" " Non-System disk or disk error Replace and press any key when ready" "Missing operating System Replace and press any key when ready" 원인: 부팅에 필요한 HDD의 시스템 영역이 손상 -> Win 98: Io. sys, Msdos. sys, Command. com을 복 구(Sys c: ) XP: NTLDR, Ntdetect. com, Boot. ini 복구. 자세한 정보는. . . 자세한 스케줄(또는 기타 관련 내용) 위치 또는 담당자를 나열합니다. 13

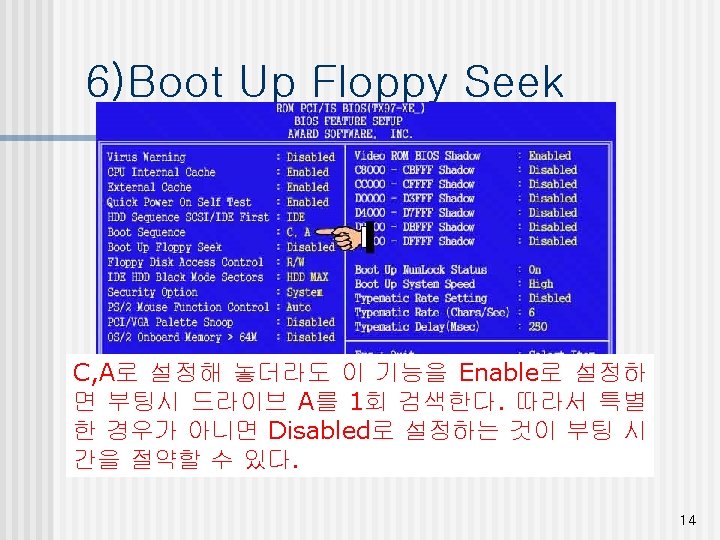

7)Floppy Disk Access Control 플로피 디스크에 대한 사용조건을 설정하는 으로 읽고 쓸 수 있는 R/W 로 설정한다 "Drive Not ready Error insert boot diskette in A: Please any key when ready" "Invalid stystem disk Replace the disk, and then Press any key" 원인: 부팅 디스켓이 아니거나 손상된 플로피디스크가 있는 15 경우

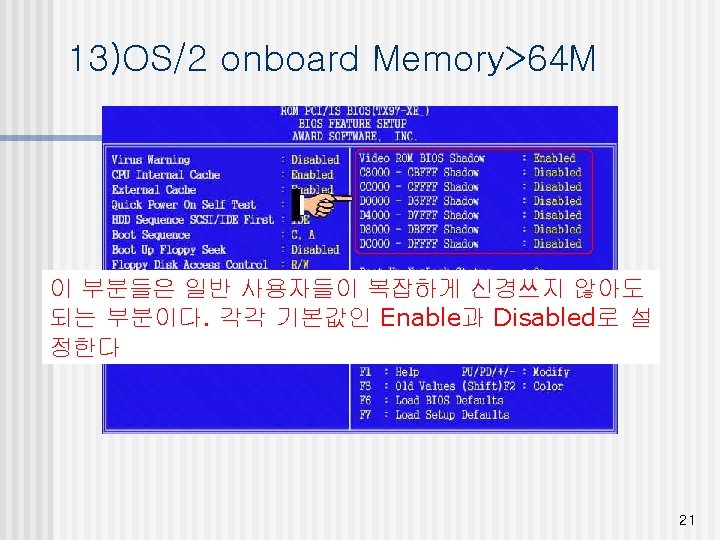

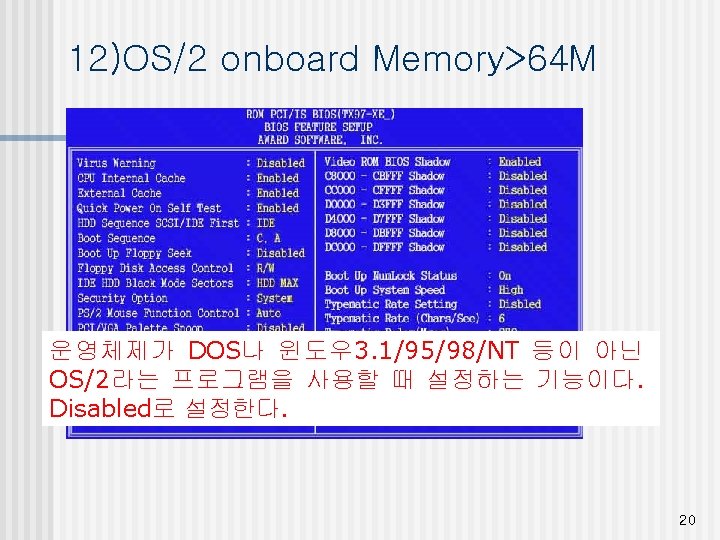

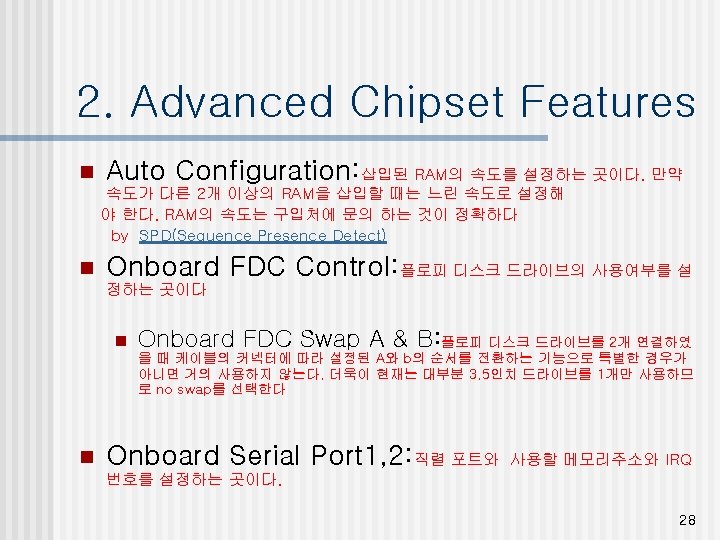

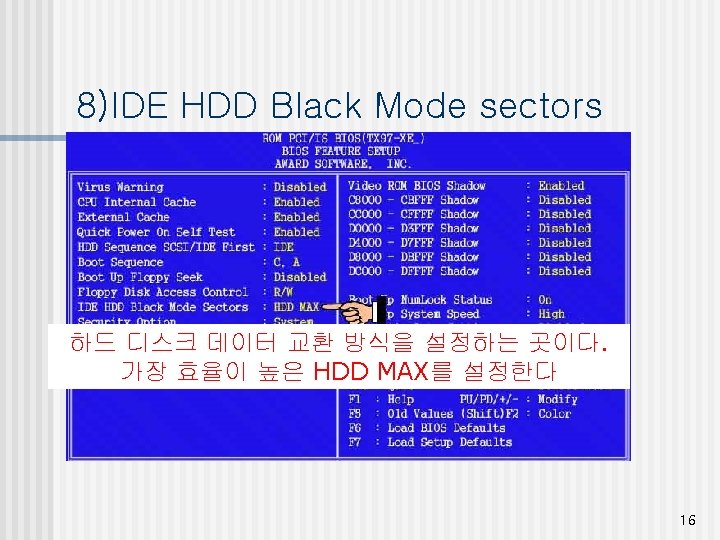

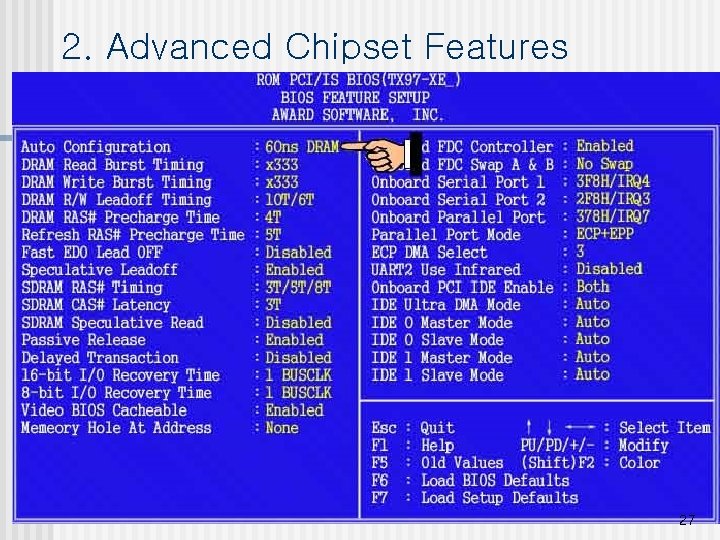

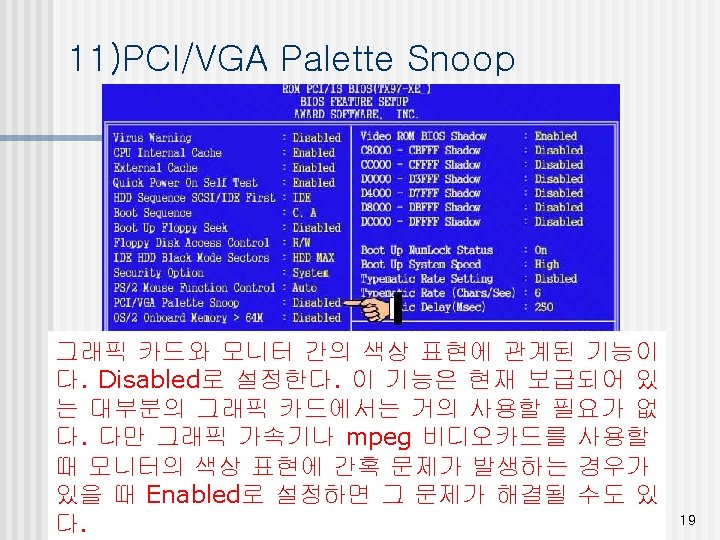

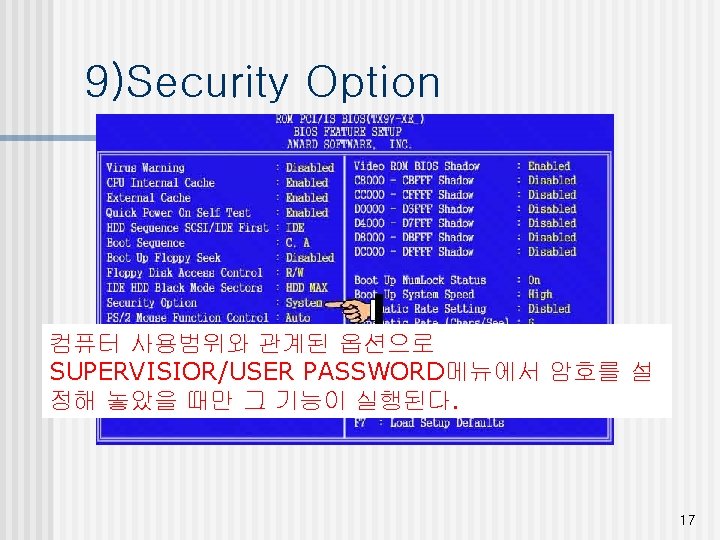

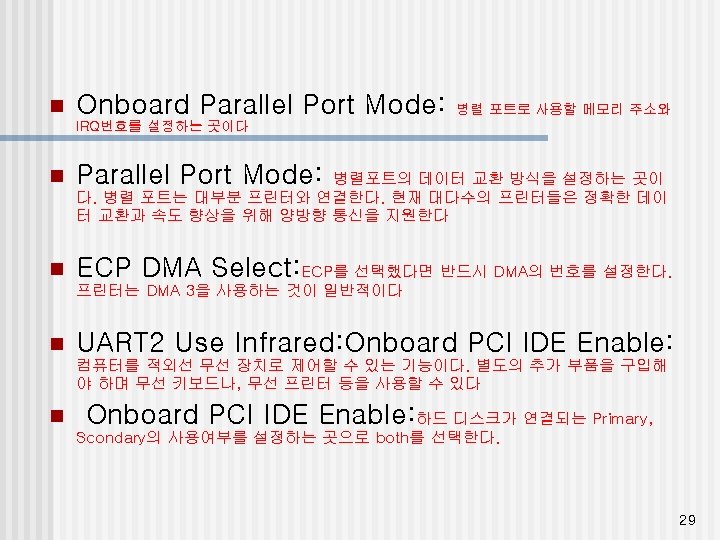

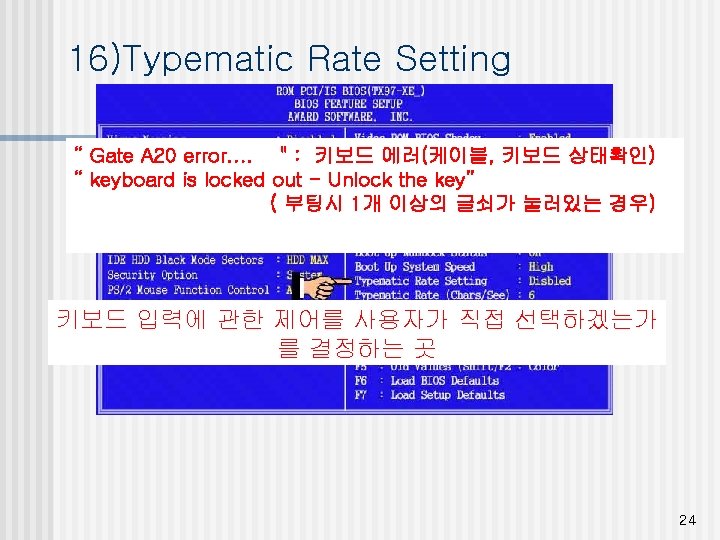

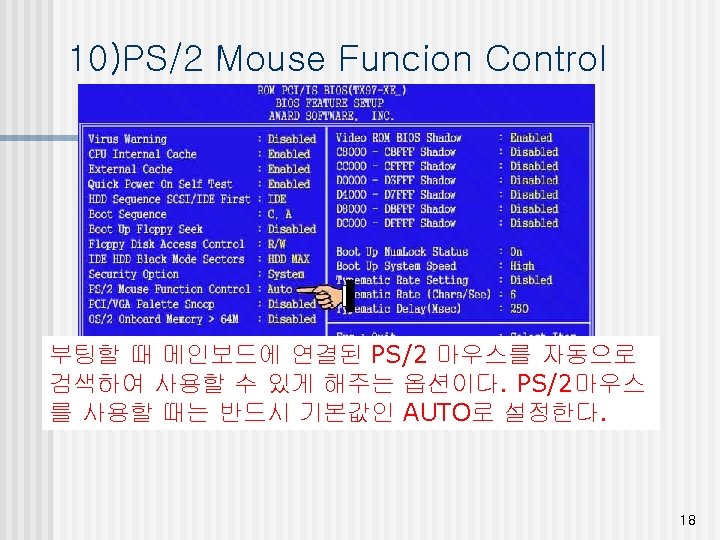

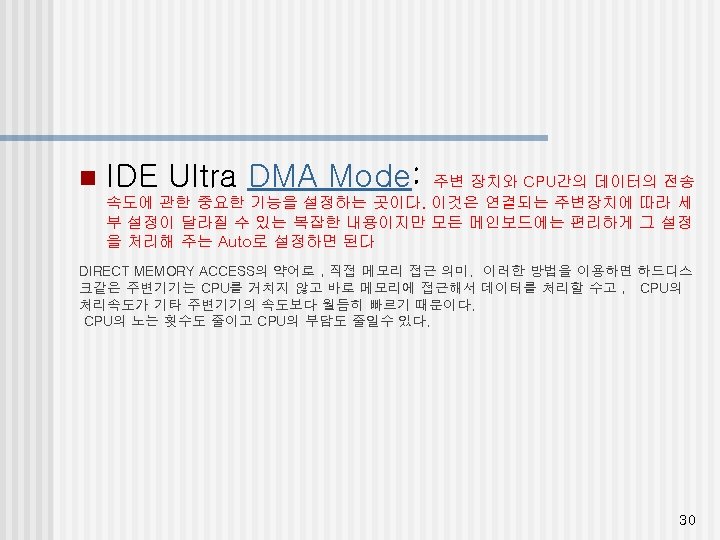

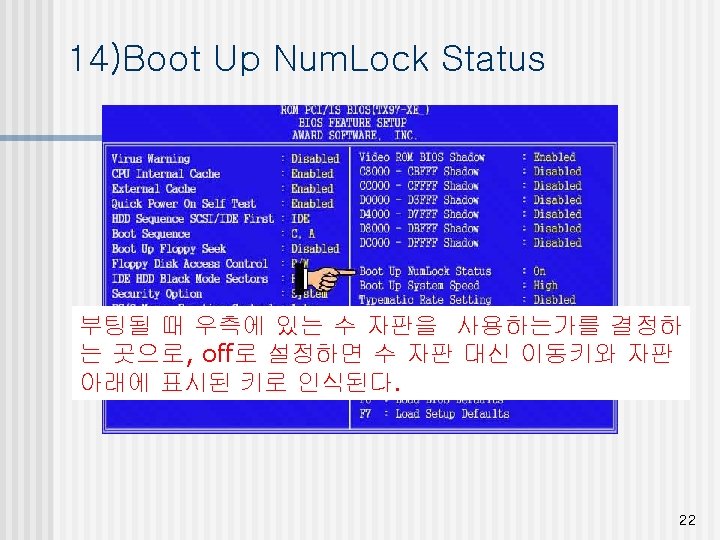

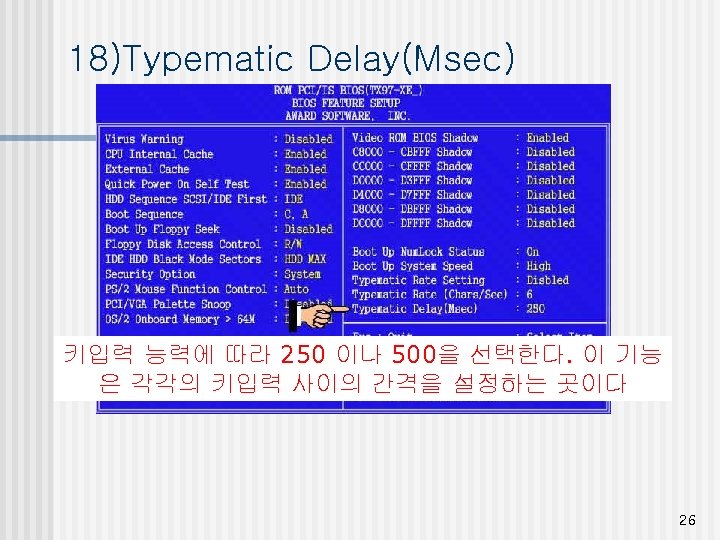

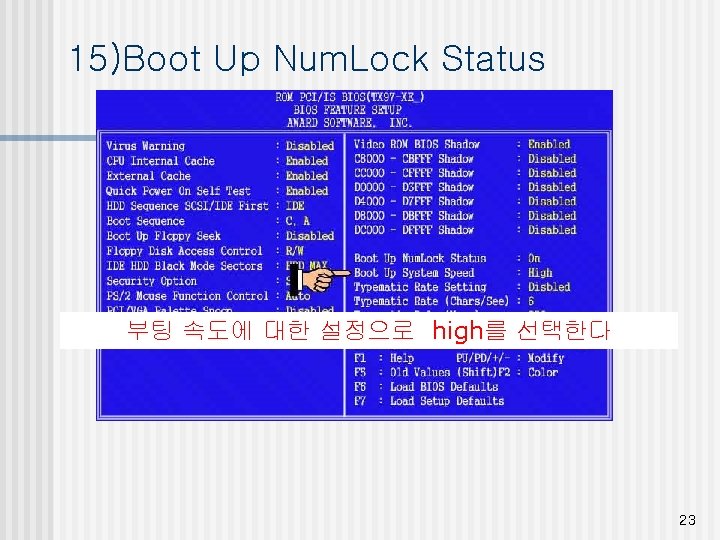

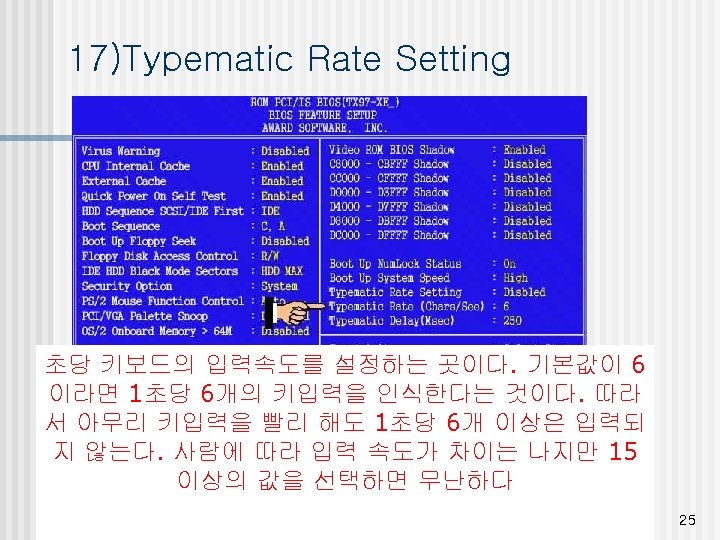

◦Power supply : Vdd: 2. 5 V ± 0. 2 V, Vddq: 2. 5 V ± 0. 2 V ◦Double-data-rate architecture; two data transfers per clock cycle ◦Bidirectional data strobe [DQ] (x 4, x 8) & [L(U)DQS] (x 16) ◦Differential clock inputs(CK and CK) ◦DLL aligns DQ and DQS transition with CK transition PC 2100 DDR ◦Programmable Read latency 2, 2. 5 (clock) ◦Programmable Burst length (2, 4, 8) ◦Programmable Burst type (sequential & interleave) ◦Edge aligned data output, center aligned data input ◦Auto & Self refresh, 7. 8 us refresh interval(8 K/64 ms refresh) ◦Serial presence detect with EEPROM ◦PCB : Height 1, 250 (mil) & double (1 GB) sided SSTL_2 Interface SPD 31
