CMG 2004 MXG Update 1 IFAs aka z

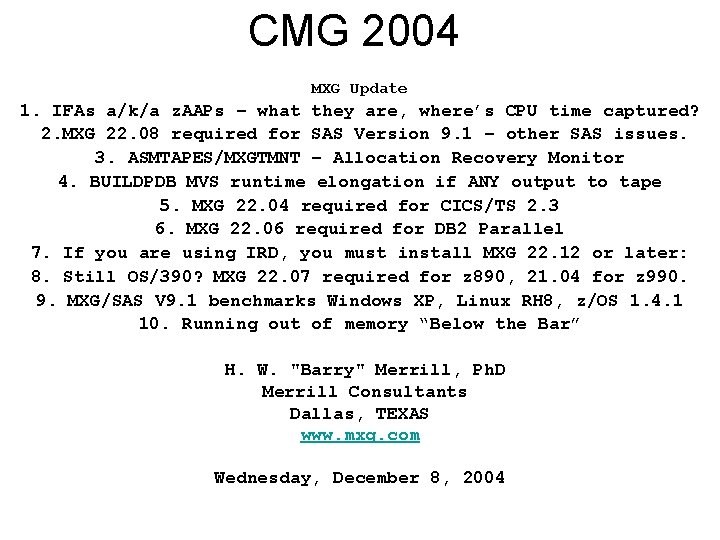

CMG 2004 MXG Update 1. IFAs a/k/a z. AAPs – what they are, where’s CPU time captured? 2. MXG 22. 08 required for SAS Version 9. 1 – other SAS issues. 3. ASMTAPES/MXGTMNT – Allocation Recovery Monitor 4. BUILDPDB MVS runtime elongation if ANY output to tape 5. MXG 22. 04 required for CICS/TS 2. 3 6. MXG 22. 06 required for DB 2 Parallel 7. If you are using IRD, you must install MXG 22. 12 or later: 8. Still OS/390? MXG 22. 07 required for z 890, 21. 04 for z 990. 9. MXG/SAS V 9. 1 benchmarks Windows XP, Linux RH 8, z/OS 1. 4. 1 10. Running out of memory “Below the Bar” H. W. "Barry" Merrill, Ph. D Merrill Consultants Dallas, TEXAS www. mxg. com Wednesday, December 8, 2004

1. What are IFA's, a/k/a z. AAPs? For z/os on z 890 s and z 990 s, IFA was the internal name of z. AAPs: z. AAPs -z. OS Attached Assist Processors all of the RMF/SMF field names use IFA z. AAP is the marketing name for these engines. IFAs are engines that execute only Java code are not included in MSU capacity can add new Java applications, or offload current Java to IFAs can increase hardware capacity without increase software costs. can force all Java workload to execute only on IFA engines maximizing the offload of work from your CP engines, or can let Java work execute on CPs when they are not busy: can let it run at the priority of the Service Class, or can be run even lower than discretionary. keywords of IFACROSSOVER and IFAHONORPRIORITY let you choose

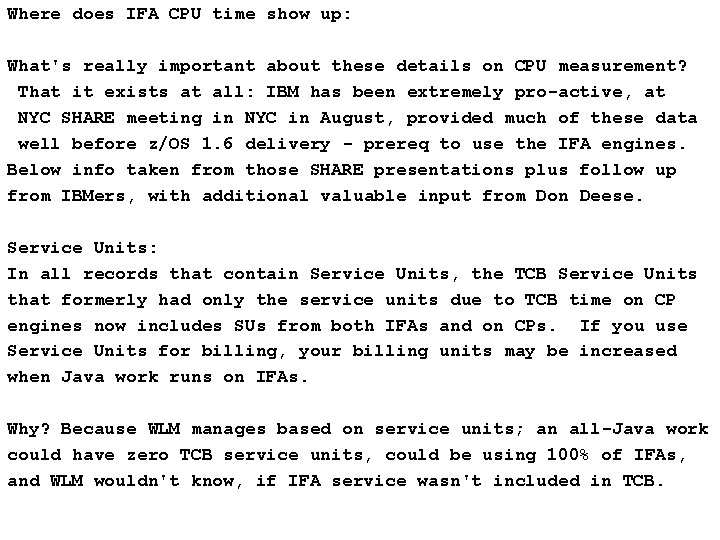

Where does IFA CPU time show up: What's really important about these details on CPU measurement? That it exists at all: IBM has been extremely pro-active, at NYC SHARE meeting in NYC in August, provided much of these data well before z/OS 1. 6 delivery - prereq to use the IFA engines. Below info taken from those SHARE presentations plus follow up from IBMers, with additional valuable input from Don Deese. Service Units: In all records that contain Service Units, the TCB Service Units that formerly had only the service units due to TCB time on CP engines now includes SUs from both IFAs and on CPs. If you use Service Units for billing, your billing units may be increased when Java work runs on IFAs. Why? Because WLM manages based on service units; an all-Java work could have zero TCB service units, could be using 100% of IFAs, and WLM wouldn't know, if IFA service wasn't included in TCB.

SMF 30. Existing CPUTCBTM TCB CPU time does NOT include IFA CPU time. existing billing based on TCB CPU time will not change (but CPU time on IFAs will not be recovered until you change your billing code). New CPUIFATM is the CPU time on IFAs you can charge IFA CPU time at different rate than CP CPU time or could add the CPUIFATM to the total CP CPU time in CPUTM and charge both CPU times at the same rate. On z 990 s the CPs and IFAs run at the same speed On z 890 s the IFAs run at full speed (365 MIPS) while the CPs run at 28 different "speeds", as low as 27 MIPS: IFA CPU time are normalized back to CP speed of z 890 model. MXG will NOT add the CPUIFATM into the existing CPUTM variable.

New variable CPUIFETM (‘eligible') contains the CP CPU time that was executed on a CP, but that was elibible to run on IFA. (CPUIFETM is included in CPUTCBTM). With z/OS 1. 6 and Java SDK V 1. 4 CPUIFETM measures exactly the Java CP CPU time that could be offloaded to an IFA. The z. AAP Projection Tool (WSC White Paper WP 100431) can be used now on z/OS 1. 4+ to estimate current CP CPU time for Java apps. Bad news: While IFA CPU time is available in the SMF 30 record, CPUCOEFF, SU_SEC, and R 723 NFFI (normalization) factors were NOT, so without a table lookup, you can't back out IFA Service Units from the total IFA+CP Service Units in CPUUNITS in type 30 s, new APAR OA 09118 adds those and MXG supports. Maybe bad news: There are concerns as to the repeatability of CPU metrics, especially since Java work can run on either IFAs or on CPs when IFACROSSOVER=YES is specified. Additional concerns for the repeatability of the normalization factors on z 890 s. But data from real sites running real Java work will answer the magnitude of these concerns. The good news: since so few sites are actually running any Java on their current z/OS systems, future concerns won't impact the current chargeback, and you can benchmark and measure your work repeatability before IFAs are placed in production!

SMF 70. TYPE 70 MVS System data flags each LCPU, new IFATYPnn variable indicates whether an engine is a CP or an IFA. PCTCPUBY calculation and related capacity metrics still based ONLY on the CP engines, as has always been the case. PCTIFABY calculation and new IFA capacity metrics are added to TYPE 70 dataset so IFA capacity can be separately tracked. IBM RMF CPU Activity report has separate lines for CPs and IFAs TYPE 70 PR PR/SM LPAR data still has only 'ICF' in SMF 70 CIN for ICFs, IFLs (Linux) or for IFA engines. But RMF development has acknowledged that true identification of each engine type is an urgent requirement. But for now, can only count how many CPs and how many "others" engines are available for each LPAR in the PR/SM dataset.

SMF 72. R 723 CCPU/CPUUNITS will contain sum of IFA and CP Service Units! CPUTCBTM is calculated from R 723 CCPU and SU_SEC and CPUCOEFF. BUT: MXG variable CPUTCBTM will still contain ONLY the CP CPU so existing CP capacity measurements, capture ratio unchanged by subtracting new R 73 IFAT/CPUIFATM variable (IFA CPU time) from R 723 CCPU/CPUUNITS when creating MXG's CPUTCBTM. R 723 IFCT/CPUIFETM contains CP CPU time that was IFA-eligible. The bad news: The RMF Workload Report shows sum of CP+IFA time in "TCB" line, which will no longer match the CPUTCBTM in MXG. The RMF report does have a new line with "IFA" CPU time with CPUIFATM, and new APPL% CP, APPL% IFACP, and APPL% IFA values. The R 723 IFAT and R 723 IFCT times are actually converted from IFA service units using the new R 723 NFFI normalization factor.

SDSF display. JOB-level data for CPU% includes both CP and IFA CPU percent but a new IFA CPU column will eventually be added. The Bad News: The CPU percent busy field in the top line of the display DOES (incorrectly? ) include IFAs in the denominator: a two-CP one-IFA system with 100% in both CPs and 0% in IFA displays CPU Busy of 66% on SDSF, because the capacity was based on three total engines, not the two CP engines. Unrelated: it was just observed that the JOB %CPU in SDFS includes "Initiator" CPU time (CPITCBTM/CPISRBTH see ADOC 30), CPU time before your program actually starts executing, so can see CPU time while watching a job that ultimately never records any CPU time in the IEF 374 I messages!

IEF 374 I step end and IEF 376 I job end joblog messages contain sum of CP and IFA CPU time, but IBM intends to add a IFA value, or more likely create a new IEFnnn. I message with IFA CPU time. CICS TASCPUTM already includes J 9 Java TCB's CPU time, available separately in the J 9 CPUTTM variable, but that is the total Java CPU time for the transaction. Won't tell how much was CP versus how much was IFA time. You will have the SMF 30 s for each CICS region, and interval records, to measure how much time is CP, IFA, and IFA eligible at least at the region level. May have to use those percentages in your chargeback code. IMS Message CPU time - unconfirmed, but it is expected that the IMS 07 log record contains both TCB and IFA CPU time.

2. Support for SAS Version 9. 1 MXG has been tested under SAS Version 9. 1 TSM 0 on z/OS 1. 4, Windows 2000, Windows XP, and Red Hat Linux, with no significant errors nor any real problems. Most importantly, there are no data incompatibilities between V 8 and V 9. Data libraries and catalogs built with V 8 can be read and written with SAS V 9, and libraries and catalogs built with V 9 can be read and written with SAS V 8. Remove MEMSIZE=64 M from your CONFIG member (use MXG CONFIGV 8 or CONFIGV 9 member); REGION=0 M or 80 M controls SAS virtual storage in V 8+: Use SAS member (BATCH) instead of (BATCHXA) in your //CONFIG concatenation in your JCL, V 9+ Use ENTRY=SAS instead of ENTRY=SASHOST (or use MXGSASV 8 or MXGSASV 9 JCL procedure example).

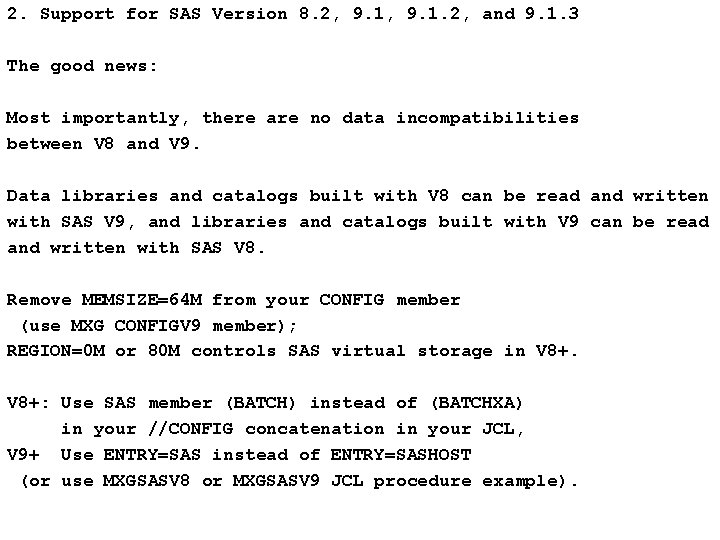

2. Support for SAS Version 8. 2, 9. 1. 2, and 9. 1. 3 The good news: Most importantly, there are no data incompatibilities between V 8 and V 9. Data libraries and catalogs built with V 8 can be read and written with SAS V 9, and libraries and catalogs built with V 9 can be read and written with SAS V 8. Remove MEMSIZE=64 M from your CONFIG member (use MXG CONFIGV 9 member); REGION=0 M or 80 M controls SAS virtual storage in V 8+: Use SAS member (BATCH) instead of (BATCHXA) in your //CONFIG concatenation in your JCL, V 9+ Use ENTRY=SAS instead of ENTRY=SASHOST (or use MXGSASV 8 or MXGSASV 9 JCL procedure example).

The bad news: MXG 22. 08 required for safe execution with SAS V 9. 1. 2 or V 9. 1. 3. While MXG 22. 07 had critical revisions for SAS 9. 1. 2, more design changes were discovered in V 9. 1. 2 that required more MXG changes. Plus, errors in SAS Tool. Kit used to update Syncsort's add-on product PROC SYNCSORT for V 9, corrupts INFORMATs, caused fatal errors in BUILDPDB: I removed all MXG INFORMAT statements faster than they could examine their error, so you can use PROC SYNCSORT with MXG even though they have not fixed their error. Errors are in PROC SYNCSORT add-on (prints "PROC SYNCSORT" on SAS log - no errors with the Syncsort SORT product itself. Critical actions for you to run MXG with SAS V 9. 1+: Install MXG 22. 08, use MXGSASV 9 and CONFIGV 9 from 22. 08, and Run UTILS 2 ER utility against all of your SAS programs to see if any lines conflict with S 2=72 option that replaced S 2=0 option set by MXG previously.

Specific Changes related to SAS V 9. 1. 2 and MXG execution: CONFIGV 9: NOTHREADS required for SAS V 9. 1. 2, fixed in 9. 1. 3. Change 22. 207. SAS Note SN-12943 reports incorrect results, no error message: PROC MEANS, SUMMARY, REPORT, TABULATE Only on "MVS", only if threading is used. V 9 default is THREADS While fixed in 9. 1. 3, I chose to force NOTHREADS in CONFIGV 9. Can use OPTIONS=THREADS with 9. 1. 3 on // EXEC to change. CONFIGV 9: NLSCOMPATMODE required: SAS V 9 changed default to NONLSCOMPATMODE Only on "MVS" (thus far!), doesn't fail if LOCALE is ENGLISH/blank But with LOCALE=GERMAN_GERMANY or other non-blank, or non. ENGLISH every @ symbol causes an error at compile time. Extensive discussion in text of Change 22. 129 for NLS and LOCALE.

CONFIGV 9: S 2=0 option now required; MXG previously used S 2=72 in CONFIGxx. Only on "MVS". Extensive discussion in Change 22. 123. S 2 sets line size of source read by %INCLUDE or AUTOCALL. V 9 MVS SASMACRO library was changed from RECFM=FB to RECFM=VB -no standard for line size of SAS-provided %macro text -new macros were written by ASCII folks, line length 255 -Rather than make the authors correct, RECFM changed to VB. BUT: RECFM VB has entirely different meaning for S 2 than FB. S 2=72 FB ==> read only first 72. VB: ==> START IN 72!!!! MXG had always specified S 2=72 to protect you from line numbers S 2=0 ==> look at last 8 columns to see if line numbers exist All MXG code is only 72 positions, so S 2=0 is no-risk to MXG. BUT: If you have SAS code with mixed blanks and numbers S 2=0 will cause your code to syntax error. So: New UTILS 2 ER utility will read all of your source libraries and identify any exposures in your SAS programs.

CONFIGV 9: V 6 SEQ may still be required with SAS V 9. 1, V 9. 1. 2 Only on "MVS". SN-012437 and Change 22. 108 discuss. SAS V 9. 1 and V 9. 1. 2 create corrupted and unreadable datasets with no error at create time, and data is unrecoverable, if V 7 SEQ, V 8 SEQ, or V 9 SEQ are used. SAS Hot Fix in SN-012437 does correct the error for V 9. 1/9. 1. 2 BUT: I can't guarantee you have that hot-fix installed, so MXG SEQENGINE default was again set back to V 6 SEQ in 22. 05. But: V 6 SEQ failed with long-length variables, so Change 22. 108 shortened all from-MVS variables. MXG has had numerous iterations on SEQENGINE. Mostly because unnecessary compress was done.

MXGSASV 9: MVS JCL Example has new symbolics for NLS/LOCALE options. XX='EN' - Default Language Value (ENGLISH) YY='W 0' - Default Encode Value (USA) 'DEW 3' is for most GERMAN, but 'DEWB' is for SWIZTERLAND. You must look at the SAS JCL proc built by your SAS installer to find the correct XX and YY values, and then set them as your MXGSASV 9 JCL Procedure defaults. //CONFIG //SASAUTOS //SASHELP // //SASMSG // DD DD DD DSN= DSN= . . . CNTL(BAT&YY. ). . . &YY. . AUTOLIB. . . &XX. &YY. . SASHELP. . . EN&YY. . SASHELP. . . &XX. &YY. . SASMSG. . . EN&YY. . SASMSG New DD statements for TRNSHLP, ENCDHLP and TMKVSENV were added.

ASCII-execution code change: EBCDIC character variables INPUT with $VARYING had hex zeros where they should have had blanks because of a SAS V 9 Design Change in $VARYING informat. $VARYING always has returned a "raw" $CHAR string that must be converted if the string is EBCDIC text, using: INPUT VARIABLE $VARYINGnn. LENTEXT @; VARIABLE=INPUT(VARIABLE, $EBCDICnn. ); but when LENTEXT was less than nn, the "pad" of '80'x was found on SAS ASCII platforms, so the statement VARIABLE=TRANSLATE(VARIABLE, ' ', '80'x); was added to translate the unexpected/undocumented '80'x. Now, also undocumented, in V 9, the "pad" of '00'x is returned! So an additional VARIABLE=TRANSLATE(VARIABLE, ' ', '00'x); had to be added 511 times in 55 members.

3. ASMTAPES/MXGTMNT ML-29 - ALLOCATION RECOVERY MONITOR Brand new in MXG 21. 04 dated Aug 25, 2003, enhanced ASMTAPES at ML-29: new SMF subtype created by MXGTMNT new MXG dataset automatically created PDB. TYPETARC each Allocation Recovery: Job, How Long Delayed, etc. a job must wait because there is no tape drive applies to real and virtual tapes

4. BUILDPDB MVS runtime elongation if ANY output to tape - like CICSTRAN or DB 2 ACCT - or even if output is sequential format on DASD. - introduced in MXG 19. 19, %VGETENG added for RMFINTRV to test if a //SPIN DD existed. - no elongation if no tape or sequential format output - PROC SQL with FROM DICTIONARY. MEMBERS in VGETENG to get ENGINE of //SPIN, but no WHERE LIBNAME=SPIN clause used; it read all LIBNAMEs to populate DICTIONARY. MEMBERS - If CICSTRAN and DB 2 ACCT both multi-vol on tape, log has: hh: mm-hh: mm SMF Opened, read started 14: 25 CICSTRAN Mount-Dismount 5 vols 14: 24 -16: 06 DB 2 ACCT Mount-Dismount 2 vols 14: 24 -15: 25 SMF Closed, read completed 16: 12 VGETENG-remount/read 2 DB 2 ACCT vols 16: 17 -16: 30 VGETENG-remount/read 5 CICSTRAN vols 16: 40 -17: 09 Total Elapsed time: 164 minutes with re-read. VGETENG: wasted 52 minutes mounting and rereading - And PROC SQL prints NO messages about CICSTRAN/DB 2 ACCT - Only clue to elongation are those extra tape mounts. - Fixed in MXG 22. 01+, can circumvent with FREE=CLOSE

5. MXG 22. 04 is required to support CICS/TS 2. 3 SMF records MXG 21. 04 supported UTILEXCL to read CICS/TS 2. 3 SMF 110 s. If you used UTILEXCL to read your CICS/TS 2. 3 Dictionary to create IMACEXCL, the IMACEXCL correctly read SMF 110 data. You MUST use UTILEXCL if there were EXCLUDEd fields. You SHOULD use UTILEXCL always as it only outputs the variables that exist in your current release(s) of CICS. But if you read SMF 110 records with MXG 21. 04 thru 22. 03, and all fields were present, the TASCPUTM and many other variables were completely wrong, and there were no error messages. All my CICS/TS 2. 3 test data had EXCLUDEd fields!

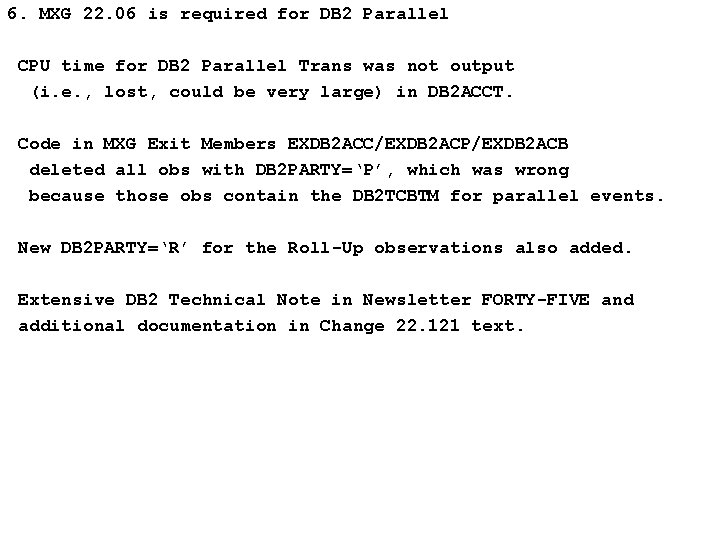

6. MXG 22. 06 is required for DB 2 Parallel CPU time for DB 2 Parallel Trans was not output (i. e. , lost, could be very large) in DB 2 ACCT. Code in MXG Exit Members EXDB 2 ACC/EXDB 2 ACP/EXDB 2 ACB deleted all obs with DB 2 PARTY=‘P’, which was wrong because those obs contain the DB 2 TCBTM for parallel events. New DB 2 PARTY=‘R’ for the Roll-Up observations also added. Extensive DB 2 Technical Note in Newsletter FORTY-FIVE and additional documentation in Change 22. 121 text.

7. If you are using IRD, you must install MXG 22. 12 or later: Full Support for IRD (Intelligent Resource Director) in all CPU-related datasets. IRD support was incremental in MXG: Datasets When MXG Version Change ASUM 70 PR/ASUMCEC Sep 22, 2003 21. 05 21. 170 TYPE 70 PR Mar 11, 2004 22. 011 TYPE 70, RMFINTRV Dec 2, 2002 22. 12 22. 305 PCTCPUBY in TYPE 70 and RMFINTRV were wrong in any interval when IRD varied CPUs offline. I'm embarrassed, since PCTCPUBY is the second most important variable in all of MXG (CPUTM for billing is the most important); This is the first PCTCPUBY error in MXG's TWENTY-YEAR history! When all engines remained online, however, there was no error.

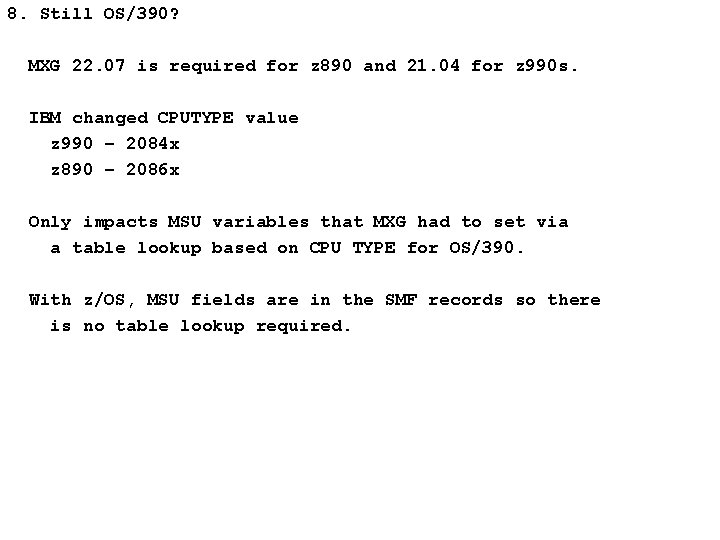

8. Still OS/390? MXG 22. 07 is required for z 890 and 21. 04 for z 990 s. IBM changed CPUTYPE value z 990 – 2084 x z 890 – 2086 x Only impacts MSU variables that MXG had to set via a table lookup based on CPU TYPE for OS/390. With z/OS, MSU fields are in the SMF records so there is no table lookup required.

9. MXG/SAS V 9. 1 benchmarks Windows XP, Linux RH 8, z/OS 1. 4: -Linux and Windows runs on same AMD 1400 1. 5 GHz, 500 MB ram -z/OS runs on IBM 2064 -210. An 842 MB SMF file was used: -TYPE 30 DATA step cost, and PROC SORT TYPE 30 D (3. 4 GB): Data Step Elapsed Time CPU time LINUX 4: 27. 70 3: 59. 46 WINDOWS 7: 40. 02 3: 57. 64 z/OS 11: 03. 36 5: 56. 70 PROC SORTSIZE DEFAULT 48 MB Elapsed 15: 39. 82 User CPU 5: 01. 43 64 MB 28: 19. 89 4: 02. 93 MAX 12: 28. 98 5: 23. 16 SORTSIZE Elapsed User CPU 200 MB 15: 26. 10 5: 01. 02 200 MB 28: 19. 89 4: 02. 93 SORTSIZE Elapsed User CPU 400 MB 19: 12. 40 5: 02. 79 400 MB 35: 05. 38 4: 15. 81

Benchmark observations: - SAS V 9. 1 under LINUX significantly outperforms Windows XP in both the DATA step and in the SORTS. - SAS V 9. 1 under z/OS is significantly slower than either LINUX or Windows, for the DATA step, but PROC SORT on z/OS, which used SYNCSORT, is better than Windows or Linux. - but: SYNCSORT on Windows product tests with SAS V 9. 0 was significantly better than the V 9. 0 SAS Internal SORT. (See Newsletter FORTY benchmarks). - SYNCSORT on Windows was not available for these runs. - SORTSIZE on ASCII does impact elapsed time - elongation occurs if SORTSIZE is too large or too small - SAS V 9. 1 defaults were increased from old 2 MB default and seem fine for this 3. 5 GB sort.

Benchmark conclusions: - Real message: the repeatability and reliability of SAS: - 5 -10 minutes to read 1 GB SMF file to create a PDB lib - 15 minutes to sort a 4 GB dataset NO MATTER WHAT PLATFORM YOU CHOOSE FOR SAS. BUT: this is NOT a capacity comparison of these platforms - running MXG on ASCII requires dedicated hardware at least during the creation of PDB libraries neither Windows nor Linux/unix have Workload Manager BUILDPDB blocks out other users on shared unix platform - Gives you confidence that MXG and SAS will continue to measure computer systems, no matter where SAS runs, - Your MXG and SAS skills are transferable across platforms - You can keep your job!

10. Running out of storage "Below the bar" is catastrophic: - Failing system had to be removed from the SYSPLEX - SYSPLEX recovery took 3 minutes, halting all systems - Caused by twenty parallel sorts with SYNCSORT HIPER APAR OA 03577 from IBM for RSM/SRM plus fix from SYNCSORT for z/OS 1. 1 release if you have lots of sorts with DSM enabled. - Sort jobs fixed 99% of page frames 16 MB ==> 2 GB "Bar" RSM failed to detect the page shortage "below the bar", so SRM did not take any action. APAR addresses RSM problem so that SRM takes action SYNCSORT fix limits storage that it fixes. Only occur with SYNCSORT's global DSM option enabled - Turning off DSM limits job to the VSCORET parm - Turning off DSM helps overall system, but can elongate run times for large sorts.
