Clutches To apply or not to apply that
- Slides: 19
Clutches To apply or not to apply, that is the question.
Which is/has a clutch? 1. 2. 3. 4. 5. 6. 7. Fan A/C compressor Supercharger Manual trans Starter motor All of the above None of the above
Got Clutch? 2 X bonus points Image from Google Images
When the clutch pedal is up the clutch is: 1. 2. 3. 4. Engaged Disengaged Just friends Married
Clutch Components
Flywheel
Flywheel • Provides rotational mass (inertia) – Necessary to keep engine spinning at low rpm • Solid mounting for clutch assembly (heavy) • One half of the clutch friction surface
Clutch Components • Pressure plate – Bolted to the engine flywheel – Holds and releases clutch disc – Other friction surface
Clutch Components • Clutch disc – Is splined to the transmission input shaft – Transfers motion from the engine flywheel, through the pressure plate, to the transmission
Clutch Components • Release bearing – Presses against the pressure plate fingers when the driver depresses the clutch pedal
Cable Clutch
Hydraulic Clutch

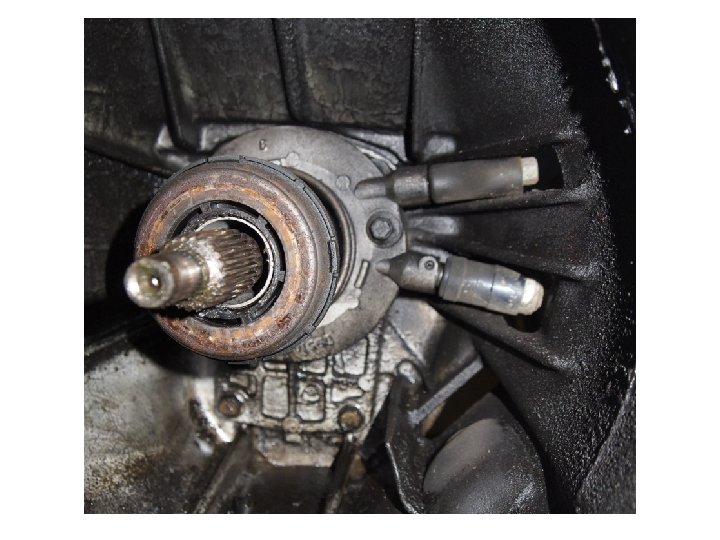

Concentric Slave Cylinder
Clutch Service • Cable – freeplay, cable adjustment • Hydraulic – check for leaks • Clutch component wear – Slipping – Chatter or pulsation – Noise – Failure to disengage
Which can cause the clutch to not disengage? 1. Faulty clutch cable 2. Leaking slave cylinder 3. Broken pressure plate 4. All of the above 5. None of the above
Which component is most likely to cause noise when failing? 1. 2. 3. 4. 5. 6. Pressure plate Disc Release bearing Clutch fork All of the above None of the above will make noise
