Clustering on Highways: Study “Clustering” of Traffic on Highways By Dr. Mohammad Almalag Dr.

Clustering on Highways: Study “Clustering” of Traffic on Highways By Dr. Mohammad Almalag Dr. Samy El-Tawab Department of Informatics Indiana University Kokomo, IN Department of Integrated Science & Technology James Madison University Harrisonburg, VA ODU-NSF-Drive. Sense 2014 Oct 2014

Outline q q q Introduction Motivation and background Objectives and goals Research Directions Concluding

Outline q q q Introduction Motivation and background Objectives and goals Research Directions Concluding Remarks ODU-NSF-Drive. Sense 2014 Oct 2014 2

Where to start! • • FRIEND and Cluster-Based MAC Protocol Highways vs. Cities Harrisonburg

Where to start! • • FRIEND and Cluster-Based MAC Protocol Highways vs. Cities Harrisonburg I 81 Carmel to Kokomo, US 31 Picture Source: http: //www. thefloridastandard. com/ ODU-NSF-Drive. Sense 2014 Oct 2014 3

ODU-NSF-Drive. Sense 2014 Oct 2014 4

ODU-NSF-Drive. Sense 2014 Oct 2014 4

Introduction • Clustering: – Many people built their research on the idea that vehicles

Introduction • Clustering: – Many people built their research on the idea that vehicles drive in clusters on highway. – The focus in the research was more toward the cluster head or center, size of the cluster, use of cluster…etc – To study clustering we need to return back to traffic patterns. http: //media. nowpublic. net ODU-NSF-Drive. Sense 2014 Oct 2014 5

ODU-NSF-Drive. Sense 2014 Oct 2014 6

ODU-NSF-Drive. Sense 2014 Oct 2014 6

Motivation • There are several Pattern Flow(s) on Highways • In a congested highways:

Motivation • There are several Pattern Flow(s) on Highways • In a congested highways: clusters are very stable and can stay together for long period of time. • In a normal traffic on a highway: patterns can vary • In a very sparse traffic on a highway: very few patterns exists ODU-NSF-Drive. Sense 2014 Oct 2014 7

Patterns on Highways - Congested Highways • It is clear that many vehicles will

Patterns on Highways - Congested Highways • It is clear that many vehicles will stay together for a long period of time. ** http: //media. nowpublic. net 8

Patterns on Highways - Normal Traffic • A vehicle X can speed up and

Patterns on Highways - Normal Traffic • A vehicle X can speed up and pass another vehicle Y • For some vehicle(s) Y can re-accelerate after a certain time and pass X again • This is the pattern we wish to identify **http: //media. nowpublic. net 9

Anyone studied Clustering on highways before? – in brief – not all • 2013

Anyone studied Clustering on highways before? – in brief – not all • 2013 [Selvan and Mary]: A cluster-based Highway Vehicle Communication in VANET. • 2012 [Lakshmi Devi and Maria]: A Cluster Based Authentic Vehicular Environment for Simple Highway Communication • 2011 [ Li and Chen]: Highway Road Accident Analysis Based on Clustering Ensemble • 2005 [Weijermars and Berkum]: Analyzing highway flow patterns using cluster analysis ODU-NSF-Drive. Sense 2014 Oct 2014 10

Anyone studied Clustering on highways before? – 2013 [Selvan and Mary] • 2013 [Selvan

Anyone studied Clustering on highways before? – 2013 [Selvan and Mary] • 2013 [Selvan and Mary]: A cluster-based Highway Vehicle Communication in VANET. • Focus: – Cluster formation – Cluster head ODU-NSF-Drive. Sense 2014 Oct 2014 11

Any studied Clustering on highways before? – 2012 [Lakshmi Devi and Maria] • 2012

Any studied Clustering on highways before? – 2012 [Lakshmi Devi and Maria] • 2012 [Lakshmi Devi and Maria]: A Cluster Based Authentic Vehicular Environment for Simple Highway Communication: • Focus: performance with /without Clusters! ODU-NSF-Drive. Sense 2014 Oct 2014 12

Anyone studied Clustering on highways before? – 2011 [ Li and Chen] • 2011

Anyone studied Clustering on highways before? – 2011 [ Li and Chen] • 2011 [ Li and Chen]: Highway Road Accident Analysis Based on Clustering Ensemble • Focus: – Using of clusters to avoid accidents ODU-NSF-Drive. Sense 2014 Oct 2014 13

Anyone studied Clustering on highways before? – 2005 [Weijermars and Berkum] • 2005 [Weijermars

Anyone studied Clustering on highways before? – 2005 [Weijermars and Berkum] • 2005 [Weijermars and Berkum]: Analyzing highway flow patterns using cluster analysis • Cluster formation on a base of 15 mins traffic flow ODU-NSF-Drive. Sense 2014 Oct 2014 14

Problem definition We noticed that on a highway vehicles can join a group of

Problem definition We noticed that on a highway vehicles can join a group of vehicles forming what called Clusters and disconnect then reconnect and so on. . we call this for now: Regrouping or Family Reunion What is the challenge!? • If I know that we will meet again and again on the highway: I don’t need to keep you in the cluster for a long time! You are coming back!! Regrouping or Family Reunion!! • What Benefits: many jobs (tasks) can be done in a discrete fashion: – You can share some media files ODU-NSF-Drive. Sense 2014 Oct 2014 15

ODU-NSF-Drive. Sense 2014 Oct 2014 16

ODU-NSF-Drive. Sense 2014 Oct 2014 16

Our Idea If a vehicle driving on a highway such as NY/NJ Turnpike and

Our Idea If a vehicle driving on a highway such as NY/NJ Turnpike and stayed in touch ( in range of communication) with another vehicle for a certain time Tv-v: the chances that they have a Family Reunion ( they will meet again and again) is very high! ODU-NSF-Drive. Sense 2014 Oct 2014 17

Simulation? • Aorta Traffic Simulator • Map: I-95 (part of highway) • Map generated

Simulation? • Aorta Traffic Simulator • Map: I-95 (part of highway) • Map generated by: http: //www. openstreetmap. org/ • Analyze the location of vehicles with randomly acceleration/deacceleration ODU-NSF-Drive. Sense 2014 Oct 2014 18

Research Challenge in it? • How will you calculate the % of success Regrouping

Research Challenge in it? • How will you calculate the % of success Regrouping / Family Reunion: – Location at several times – Map it to a node map – Identify the re-union cases ODU-NSF-Drive. Sense 2014 Oct 2014 19

Concluding remarks • We are trying to make use of intelligent transportation in a

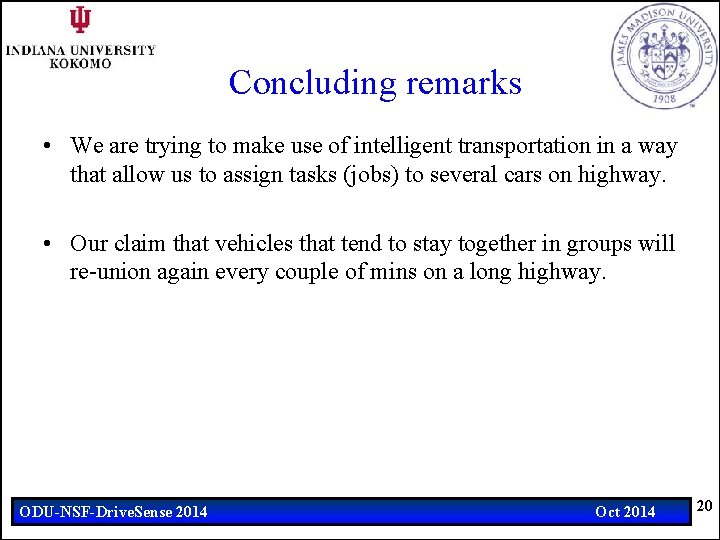

Concluding remarks • We are trying to make use of intelligent transportation in a way that allow us to assign tasks (jobs) to several cars on highway. • Our claim that vehicles that tend to stay together in groups will re-union again every couple of mins on a long highway. ODU-NSF-Drive. Sense 2014 Oct 2014 20

Thank You - Questions

Thank You - Questions
