CLUSTER FOR ENERGY GENERATION IN MEGA- AND NANO- SCALE prof. Halina Kruczek Head of steering committee E-mail: hkruczek@pwr. wroc. pl Tel/fax: +48 71 320 39 42 POLTEGOR – MEMEBER OF Cluster Presentation: BARBARA ROGOSZ Ph. D Janusz Lichota German-Polish Workshop Cluster Secretary Wrocław 20 IV 2009 Lichota@pwr. wroc. pl

Content • The organization structure • The fields of potential cooperation • Green energy production in power plant – co-firing liquid and solid biofuel in boiler of energy sector comparison

Cluster- current topics Current working groups 1. 2. 3. 4. Biomass, agrobiomass, RES, multifuels boiler Power Production, reliability and improving of efficiency Ecological effects of energy production „group carbon”, clean coal technology, conversion of brown coal, analysis of new resources (field Legnica) 5. Group for law in field of environment and energy. 6. Group: Numerical calculation support during theoretical analyses of thermal – flow systems and designing (ANSYS Software)

The fields of potential cooperation • Alternative energy sources : geothermal, photovoltaic, biomass, waste biomass e. g. WASTE BIOMASS →→CLEAN GAS FUEL: Waste biomass pyrolysis gasification to H 2 production • Combustion of biomass in small and medium size boiler- optimization of burnout and emission, certification • Co-combustion of biomass in existing Power &Heat Plants – with high share of biomass • Micro CHP • Lignite pretreatment: UC gasification, Lignite predrying etc. • Clean coal technology: • Gasification of coal for hydrogen production • Zero-emission technologies – oxy- fuel, capture technology of CO 2 sequestration and storage CO 2 hydrates • Waste management • Audits, intelligent management of heat energy demand supply • Ceramic fuel cell

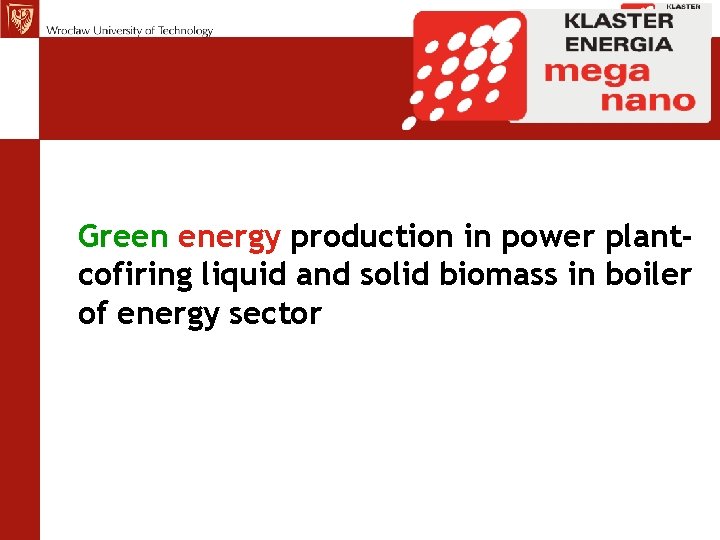

Green energy production in power plantcofiring liquid and solid biomass in boiler of energy sector

Installed Power of RES Generating Electricity (2000 - 690, 65 MW ; 2015 - 2500 MW) Biomass is the most suitable in our conditions to increase RES share in power production 1. 5 28. 8 hydro biogas biomass % 1. 5 wind 68. 2

Polish environment law

Sources of Biomass in Poland Forests Pl [th. ha] Straw [th. ton] Date statystyczne GUS, za rok 2002 Gradziuk P. „Słoma energetyczne paliwo”, W-wa 2001 Uncultivated lands [th. ha] Date statystyczne GUS, za rok 2005 Complexes of usefulness of agricultural soils Instytut Upraw Nawożenia i Gleboznawstwa, Puławy

Biomass co-firing for 200 MWe power plant as an example

Solid biomass co-firing in 200 MWe power plant General assumptions: Biomass is combusted along with basic fuel in power plant unit 200 MW, Nr 1 -8 Predicted biomass flow – 100. 000 t/year Maximal biomass share in mass fuel flow is 10% • Predicted biomass weight 0, 25÷ 0, 60 t/m 3 * Installation was commissioned in september 2007

Solid biomass co-firing in 200 MWe power plant Pellets Saw dust Future: Wood-chips Agro-Pellets

Solid biomass co-firing in 200 MWe power plant with high share of the biomass- goal Concept

Concept of liquid biomass co-firing in 200 MWe and 500 MWe power plant Scheme of installation K 1 Coal storage K 2 Oil container K 3 K 4 Coal storage OIL heater Flue gases

Concept of liquid biomass co-firing in 200 MWe and 500 MWe power plant Complete installation of biomass co-firing on all power plants units is 300 000 t/year. Heat share of liquid biomass in co-firing is 12%24% depending on type of bio-oil.

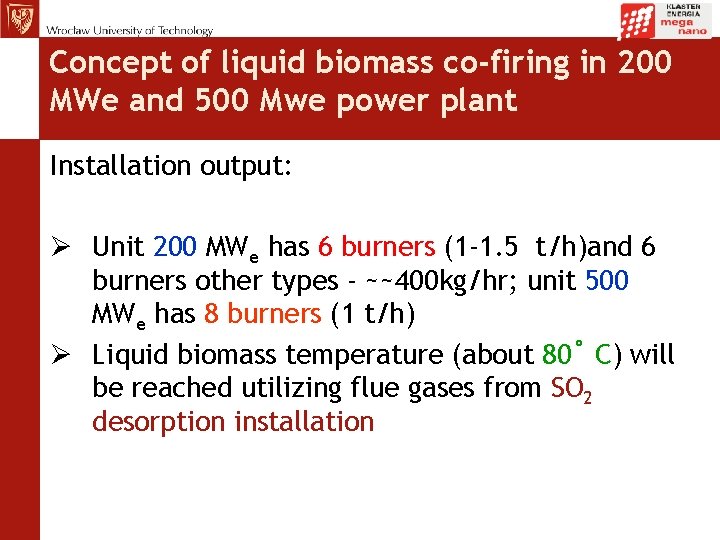

Concept of liquid biomass co-firing in 200 MWe and 500 Mwe power plant Installation output: Unit 200 MWe has 6 burners (1 -1. 5 t/h)and 6 burners other types - ~~400 kg/hr; unit 500 MWe has 8 burners (1 t/h) Liquid biomass temperature (about 80˚ C) will be reached utilizing flue gases from SO 2 desorption installation

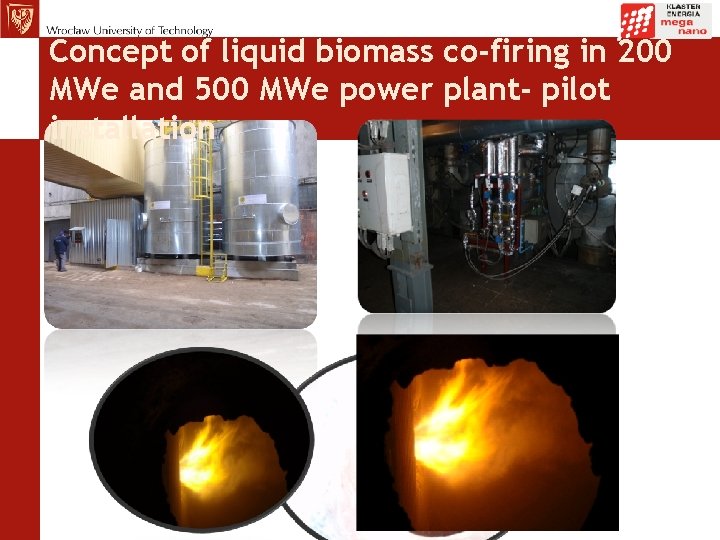

Concept of liquid biomass co-firing in 200 MWe and 500 MWe power plant- pilot installation

Plans_New units for biomass combustion Unit consists of grate boiler adopted to straw combustion and condensate turbine: steam flow - 64 t/h steam temperature - 525 C pressure - 93 bar generator power output - 16, 5 MWe

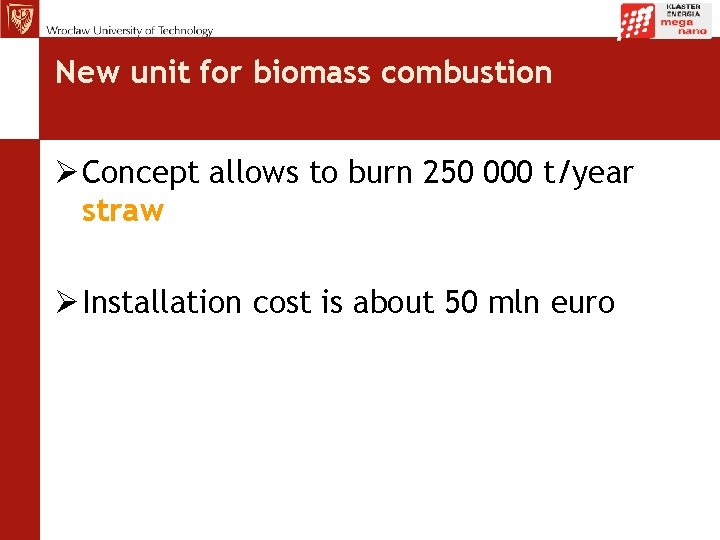

New unit for biomass combustion Concept allows to burn 250 000 t/year straw Installation cost is about 50 mln euro

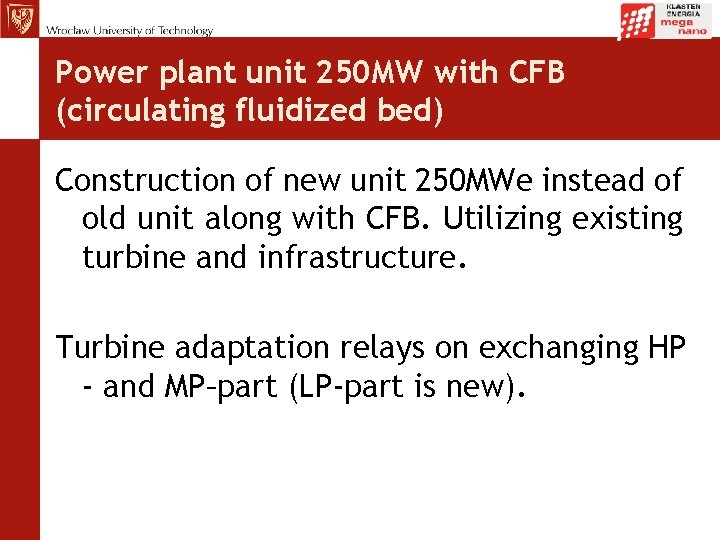

Power plant unit 250 MW with CFB (circulating fluidized bed) Construction of new unit 250 MWe instead of old unit along with CFB. Utilizing existing turbine and infrastructure. Turbine adaptation relays on exchanging HP - and MP–part (LP-part is new).
