Cloud Storage All your data belongs to us

Cloud Storage: All your data belongs to us! Theo Benson This slide includes images from the Megastore and the Cassandra papers/conference slides

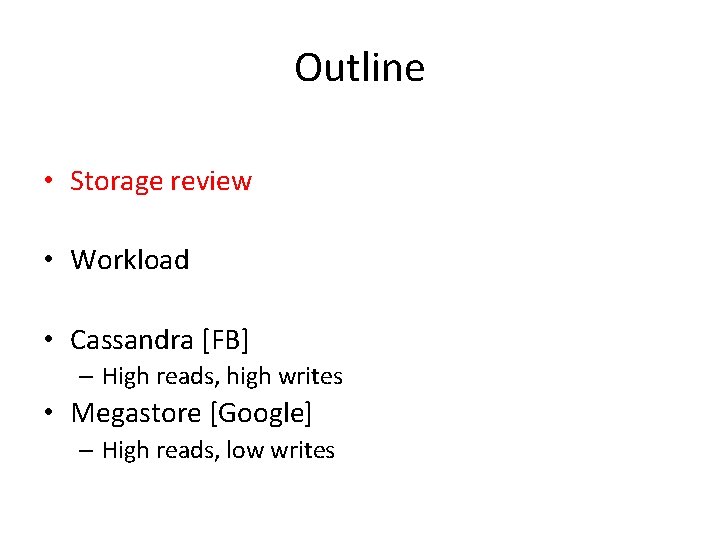

Outline • Storage review • Workload • Cassandra [FB] – High reads, high writes • Megastore [Google] – High reads, low writes

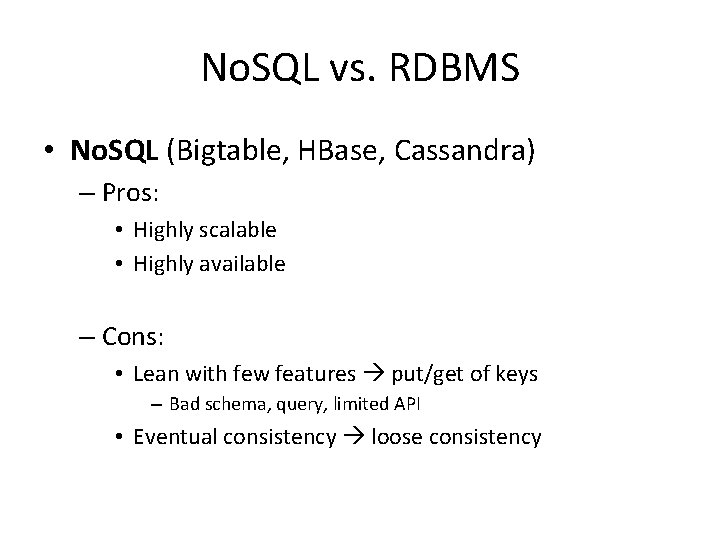

No. SQL vs. RDBMS • No. SQL (Bigtable, HBase, Cassandra) – Pros: • Highly scalable • Highly available – Cons: • Lean with few features put/get of keys – Bad schema, query, limited API • Eventual consistency loose consistency

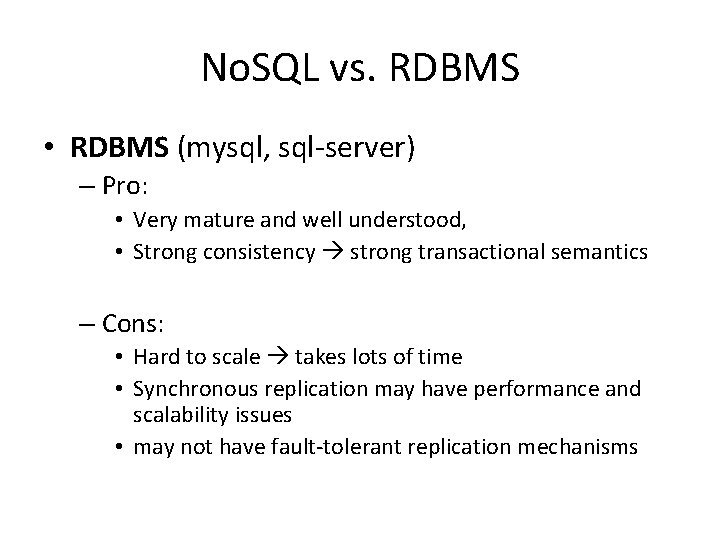

No. SQL vs. RDBMS • RDBMS (mysql, sql‐server) – Pro: • Very mature and well understood, • Strong consistency strong transactional semantics – Cons: • Hard to scale takes lots of time • Synchronous replication may have performance and scalability issues • may not have fault‐tolerant replication mechanisms

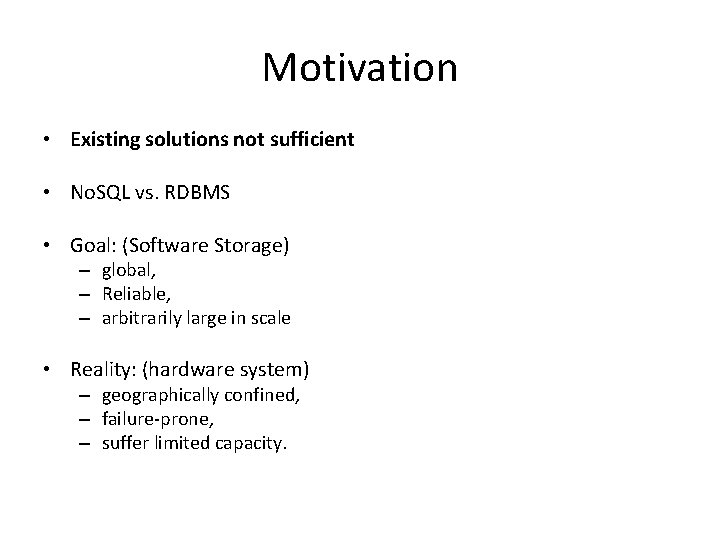

Motivation • Existing solutions not sufficient • No. SQL vs. RDBMS • Goal: (Software Storage) – global, – Reliable, – arbitrarily large in scale • Reality: (hardware system) – geographically confined, – failure‐prone, – suffer limited capacity.

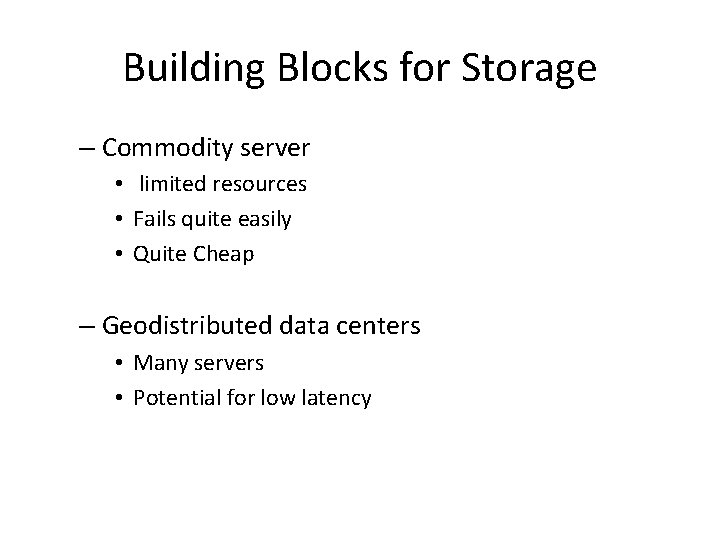

Building Blocks for Storage – Commodity server • limited resources • Fails quite easily • Quite Cheap – Geodistributed data centers • Many servers • Potential for low latency

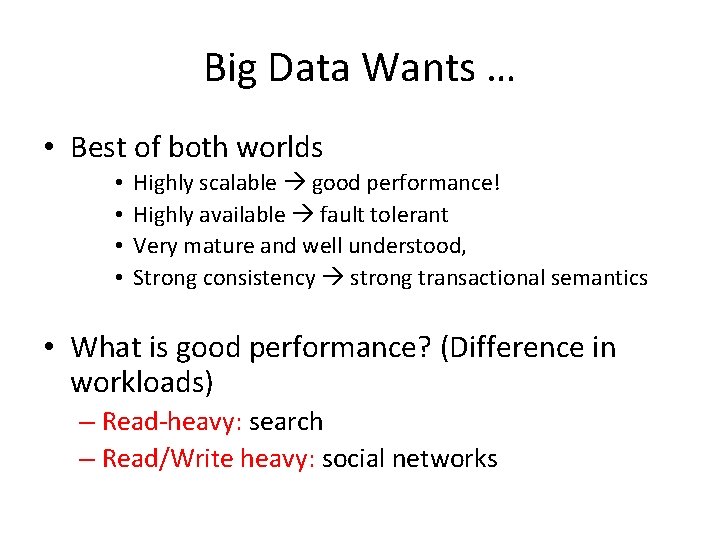

Big Data Wants … • Best of both worlds • • Highly scalable good performance! Highly available fault tolerant Very mature and well understood, Strong consistency strong transactional semantics • What is good performance? (Difference in workloads) – Read‐heavy: search – Read/Write heavy: social networks

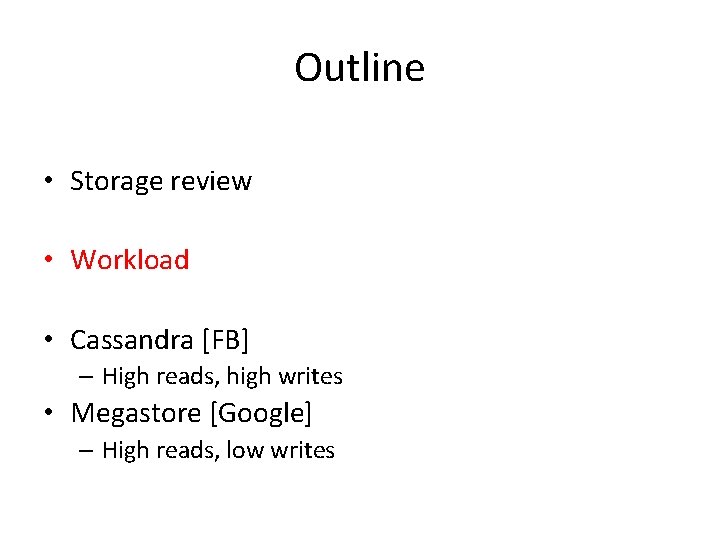

Outline • Storage review • Workload • Cassandra [FB] – High reads, high writes • Megastore [Google] – High reads, low writes

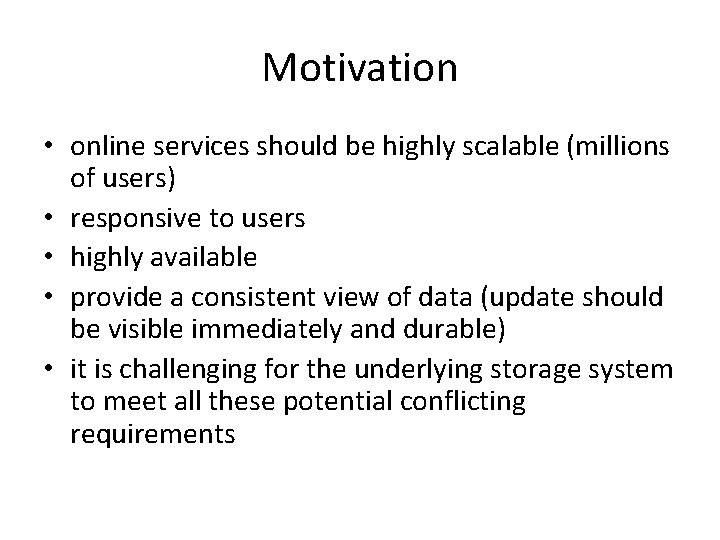

Motivation • online services should be highly scalable (millions of users) • responsive to users • highly available • provide a consistent view of data (update should be visible immediately and durable) • it is challenging for the underlying storage system to meet all these potential conflicting requirements

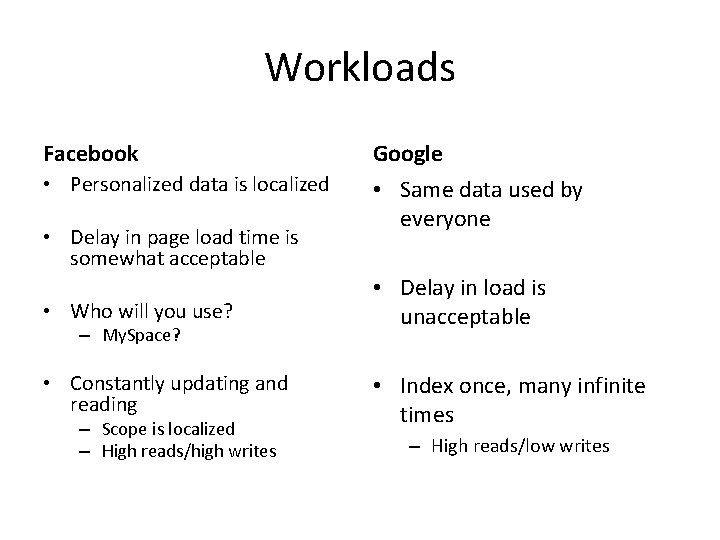

Workloads Facebook Google • Personalized data is localized • Same data used by everyone • Delay in page load time is somewhat acceptable • Who will you use? • Delay in load is unacceptable • Constantly updating and reading • Index once, many infinite times – My. Space? – Scope is localized – High reads/high writes – High reads/low writes

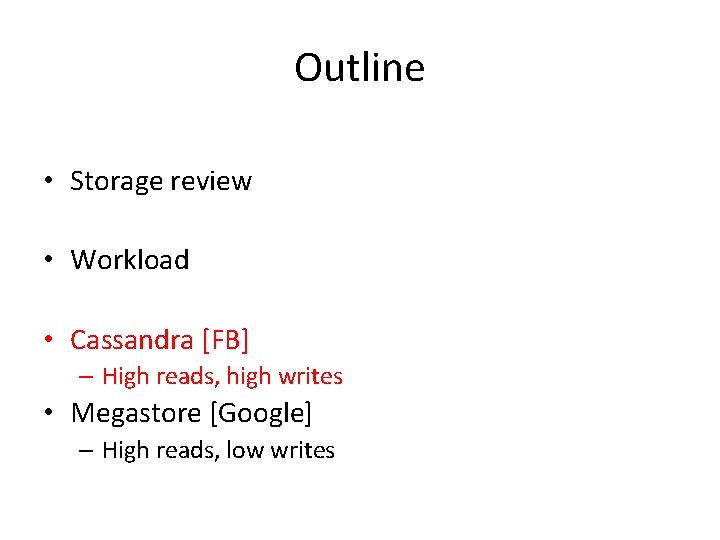

Outline • Storage review • Workload • Cassandra [FB] – High reads, high writes • Megastore [Google] – High reads, low writes

System Architecture • Partitioning: provides high throughput – How data is partitioned across nodes? • Load balancing • Overcome failures • Replication: overcome failure How data is duplicated across nodes

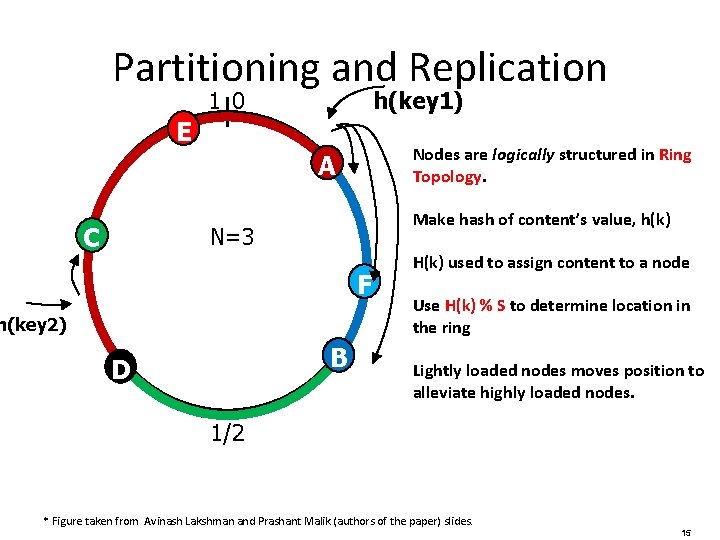

Partitioning and Replication h(key 1) 1 0 E Nodes are logically structured in Ring Topology. A C Make hash of content’s value, h(k) N=3 F h(key 2) B D H(k) used to assign content to a node Use H(k) % S to determine location in the ring Lightly loaded nodes moves position to alleviate highly loaded nodes. 1/2 * Figure taken from Avinash Lakshman and Prashant Malik (authors of the paper) slides. 15

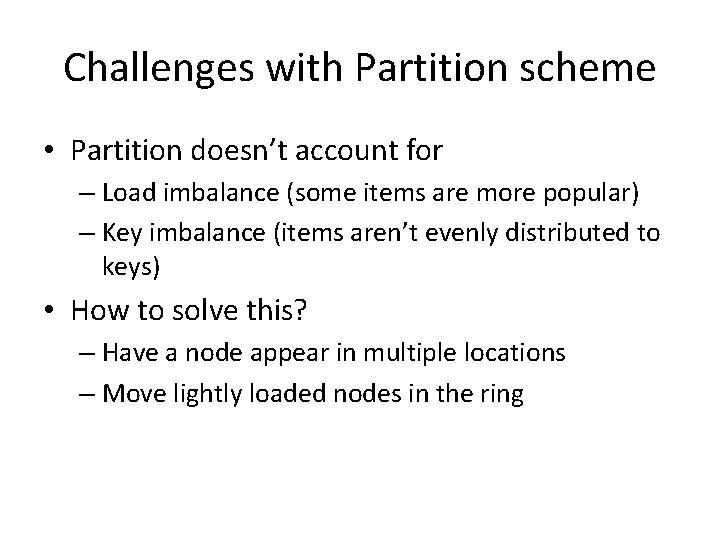

Challenges with Partition scheme • Partition doesn’t account for – Load imbalance (some items are more popular) – Key imbalance (items aren’t evenly distributed to keys) • How to solve this? – Have a node appear in multiple locations – Move lightly loaded nodes in the ring

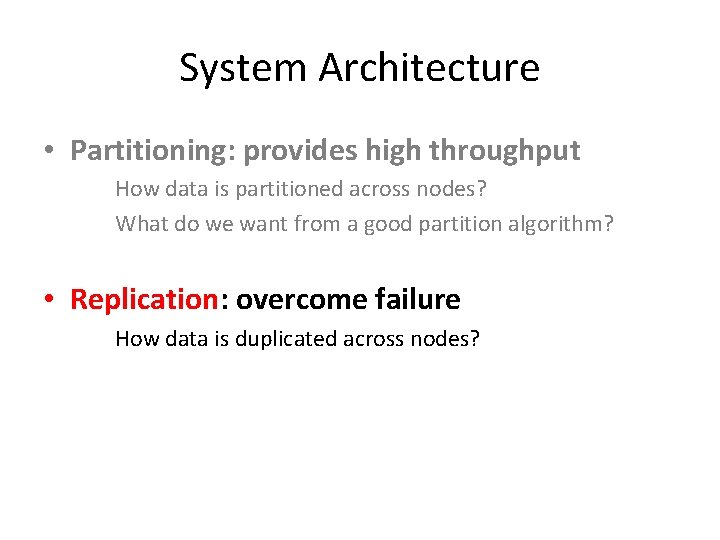

System Architecture • Partitioning: provides high throughput How data is partitioned across nodes? What do we want from a good partition algorithm? • Replication: overcome failure How data is duplicated across nodes?

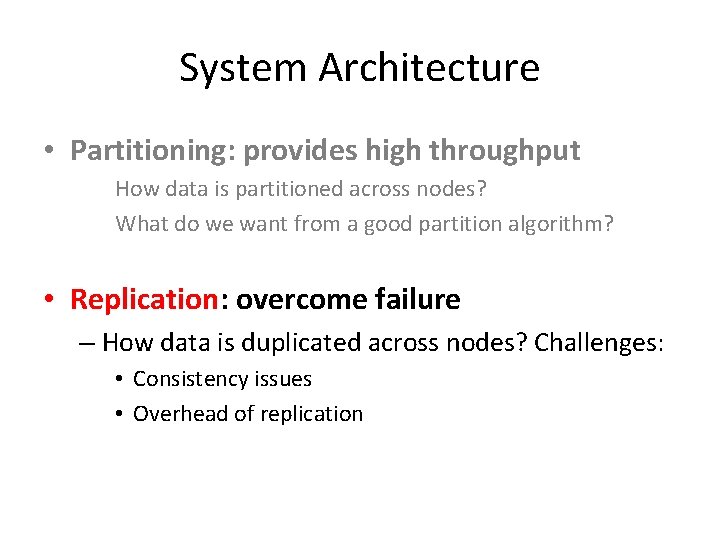

System Architecture • Partitioning: provides high throughput How data is partitioned across nodes? What do we want from a good partition algorithm? • Replication: overcome failure – How data is duplicated across nodes? Challenges: • Consistency issues • Overhead of replication

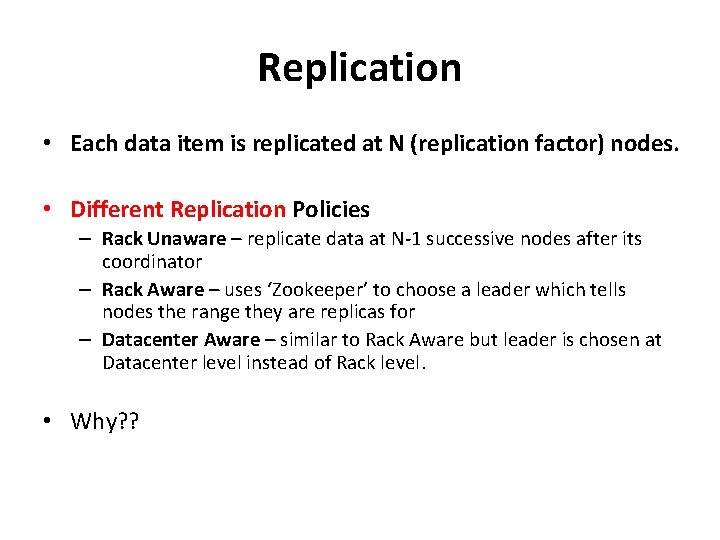

Replication • Each data item is replicated at N (replication factor) nodes. • Different Replication Policies – Rack Unaware – replicate data at N‐ 1 successive nodes after its coordinator – Rack Aware – uses ‘Zookeeper’ to choose a leader which tells nodes the range they are replicas for – Datacenter Aware – similar to Rack Aware but leader is chosen at Datacenter level instead of Rack level. • Why? ?

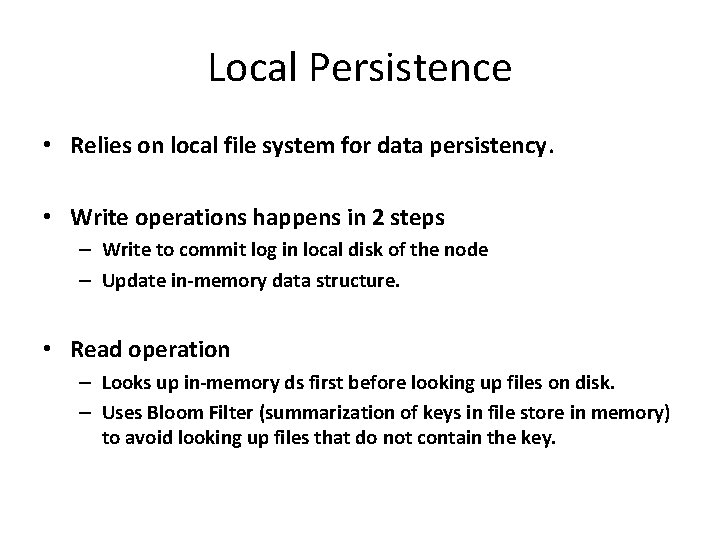

Local Persistence • Relies on local file system for data persistency. • Write operations happens in 2 steps – Write to commit log in local disk of the node – Update in-memory data structure. • Read operation – Looks up in-memory ds first before looking up files on disk. – Uses Bloom Filter (summarization of keys in file store in memory) to avoid looking up files that do not contain the key.

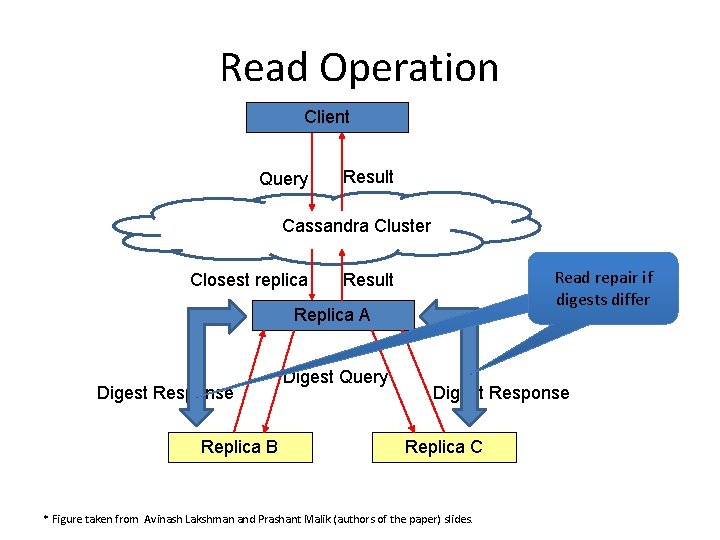

Read Operation Client Query Result Cassandra Cluster Closest replica Read repair if digests differ Result Replica A Digest Response Replica B Digest Query Digest Response Replica C * Figure taken from Avinash Lakshman and Prashant Malik (authors of the paper) slides.

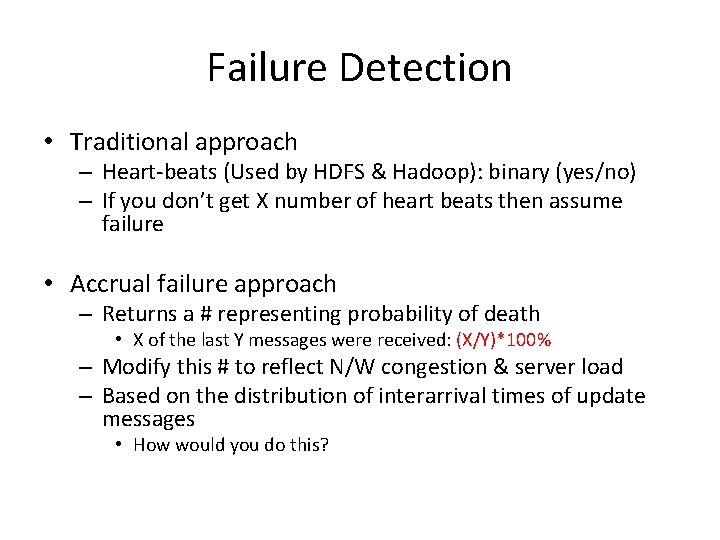

Failure Detection • Traditional approach – Heart‐beats (Used by HDFS & Hadoop): binary (yes/no) – If you don’t get X number of heart beats then assume failure • Accrual failure approach – Returns a # representing probability of death • X of the last Y messages were received: (X/Y)*100% – Modify this # to reflect N/W congestion & server load – Based on the distribution of interarrival times of update messages • How would you do this?

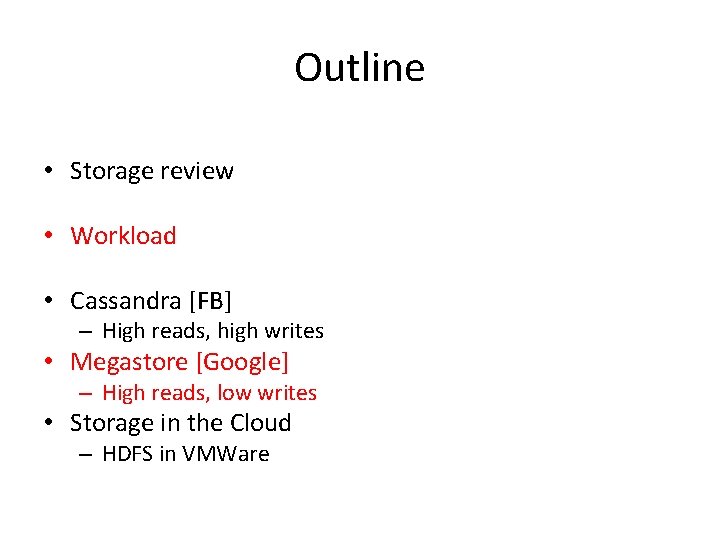

Outline • Storage review • Workload • Cassandra [FB] – High reads, high writes • Megastore [Google] – High reads, low writes • Storage in the Cloud – HDFS in VMWare

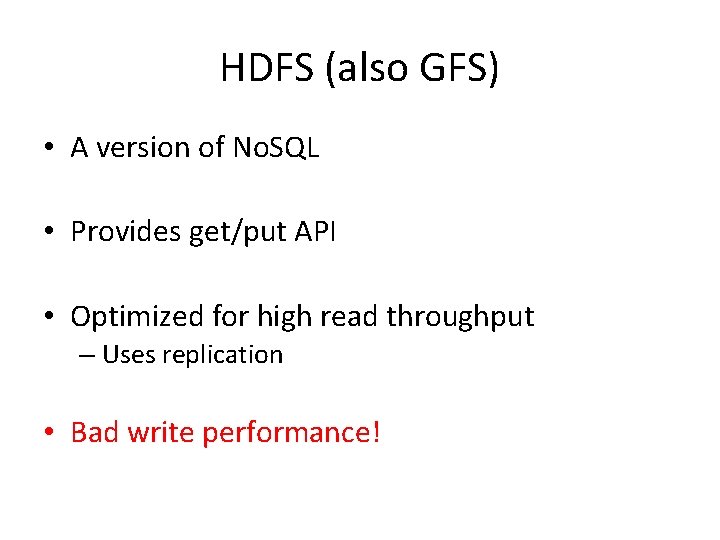

HDFS (also GFS) • A version of No. SQL • Provides get/put API • Optimized for high read throughput – Uses replication • Bad write performance!

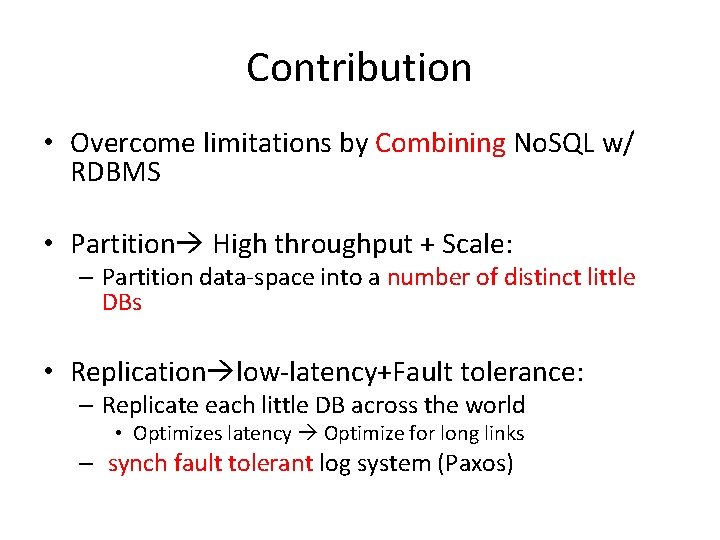

Contribution • Overcome limitations by Combining No. SQL w/ RDBMS • Partition High throughput + Scale: – Partition data‐space into a number of distinct little DBs • Replication low‐latency+Fault tolerance: – Replicate each little DB across the world • Optimizes latency Optimize for long links – synch fault tolerant log system (Paxos)

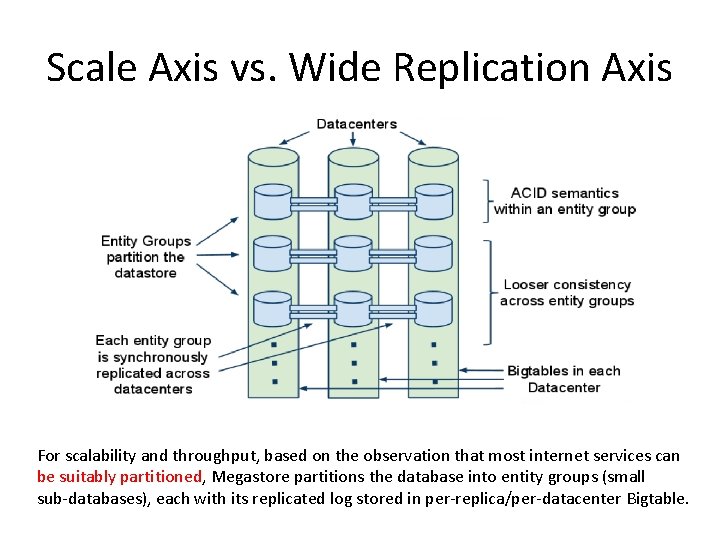

Scale Axis vs. Wide Replication Axis For scalability and throughput, based on the observation that most internet services can be suitably partitioned, Megastore partitions the database into entity groups (small sub‐databases), each with its replicated log stored in per‐replica/per‐datacenter Bigtable.

More Features • Enriches traditional GFS/HDFS – Adds rich primitives: e. g. ACID transactions, consistency – Simplifies application development • Biggest challenge is consistency across replicas

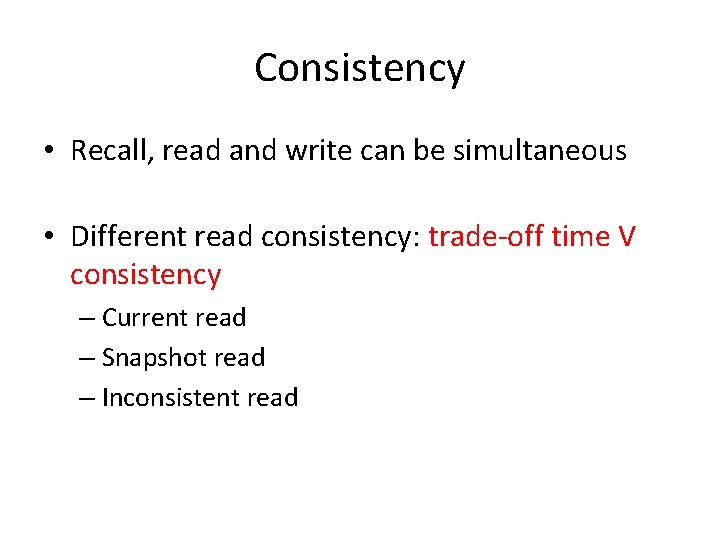

Consistency • Recall, read and write can be simultaneous • Different read consistency: trade‐off time V consistency – Current read – Snapshot read – Inconsistent read

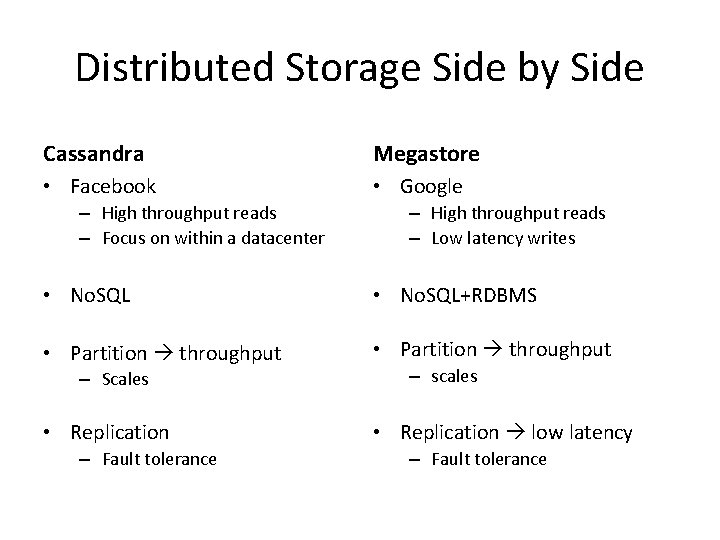

Distributed Storage Side by Side Cassandra Megastore • Facebook • Google – High throughput reads – Focus on within a datacenter – High throughput reads – Low latency writes • No. SQL+RDBMS • Partition throughput – Scales • Replication – Fault tolerance – scales • Replication low latency – Fault tolerance

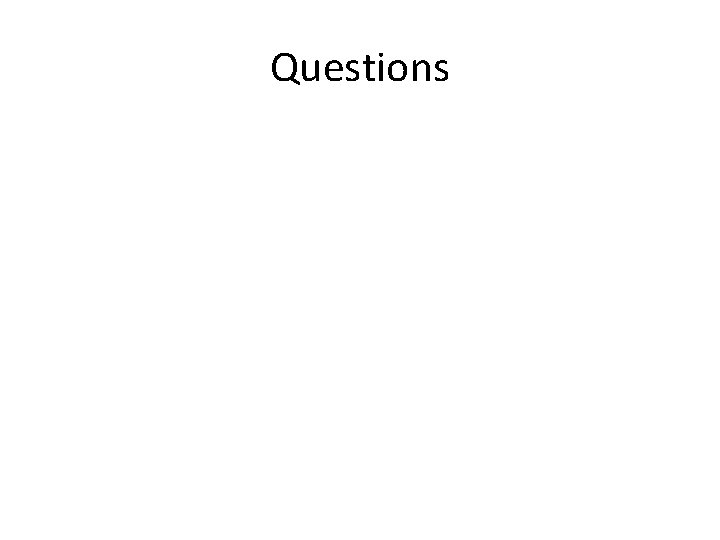

Questions
