Cloud computing Basic concepts and cloud infrastructure Dan

Cloud computing Basic concepts and cloud infrastructure Dan C. Marinescu Computer Science Division, EECS Department University of Central Florida Email: dcm@cs. ucf. edu

Contents n Basic concepts Ethical issues in cloud computing ¨ Cloud diversity and vendor lock in ¨ Cloud computing paradigms and services ¨ n Cloud infrastructure and applications ¨ ¨ ¨ n AWS - the Amazon Web Services Open-source platforms for cloud computing How to use the AWS Case study 1 - a cloud service for trust management in cognitive radio networks Case study 2 - adaptive data streaming from a cloud This lecture is available online at http: //www. cs. ucf. edu/~dcm/Chile 2012/Chile. Index. html 6/12/2021 UTFSM - May-June 2012 2

The main features of cloud computing n n n Uses Internet technologies to offer scalable and elastic services; the term ``elastic computing'' refers to the ability of dynamically acquiring computing resources and supporting a variable workload. The resources used for these services can be metered and the users can be charged only for the resources they used. The maintenance and security are ensured by service providers. The service providers can operate more efficiently due to specialization and centralization. Cloud computing is cost-effective because of the multiplexing of resources; lower costs for the service provider are past to the cloud users. The application data is stored closer to the site where it is used in a device and in a location-independent manner; potentially, this data storage strategy increases reliability, as well as security and lowers communication costs. 6/12/2021 UTFSM - May-June 2012 3

Types of clouds n n Private Cloud the infrastructure is operated solely for an organization; it may be managed by the organization or a third party. Community Cloud the infrastructure is shared by several organizations and supports a specific community that has shared concerns (e. g. , mission, security requirements, policy, and compliance considerations). Public Cloud the infrastructure is made available to the general public or a large industry group and is owned by an organization selling cloud services, e. g. , AWS – Amazon Web Services Hybrid Cloud the infrastructure is a composition of two or more clouds (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability. 6/12/2021 UTFSM - May-June 2012 4

Ethical issues in cloud computing n Cloud computing is based on a paradigm shift with profound implications on computing ethics. The main elements of this shift are: the control is relinquished to third party services; 2. the data is stored on multiple sites administered by several organizations; and 3. multiple services interoperate across the network. 1. n n Systems can span the boundaries of multiple organizations and cross the security borders; not only the border of the organizations IT infrastructure blurs, also the border of the accountability becomes less clear. The complex structure of cloud services can make it difficult to determine who is responsible in case something undesirable happens. In a complex chain of events or systems, many entities contribute to an action with undesirable consequences, some of them have the opportunity to prevent these consequences, and therefore no one can be held responsible 6/12/2021 UTFSM - May-June 2012 5

Vendor lock-in n When a large organization relies solely on a single cloud provider there are several risks involved. Cloud services may be unavailable for a short, or even for an extended period of time; such an interruption of service is likely to impact negatively the organization and possibly diminish, or cancel completely, the benefits of utility computing for that organization. ¨ The potential for permanent data loss in case of a catastrophic system failure poses an equally greater danger. ¨ The single vendor may decide to increase the prices for service and charge more for computing cycles, memory, storage space, and network bandwidth than other cloud service providers. The alternative in this case is switching to another provider; unfortunately, this solution could be very costly due to the large volume of data to be transferred from the old to the new provider. Transferring tera or possibly peta bytes of data over the network takes a fairly long time, it incurs substantial charges for the bandwidth used and requires substantial manpower. ¨ n Solution: replicate the data to multiple cloud service providers. 6/12/2021 UTFSM - May-June 2012 6

A (3, 4) RAID-5, configuration where individual blocks are stripped over three disks and a parity block is added; the parity block is constructed by XOR-ing the data blocks, e. g. , a. P = a 1 XOR a 2 XOR a 3. The parity blocks are distributed among the 4 disks, a. P is on disk 4, b. P on disk 3, c. P on disk 2, and d. P on disk 1. A system which strips data across four clouds; the proxy provides transparent access to data 6/12/2021 UTFSM - May-June 2012 7

6/12/2021 UTFSM - May-June 2012 8

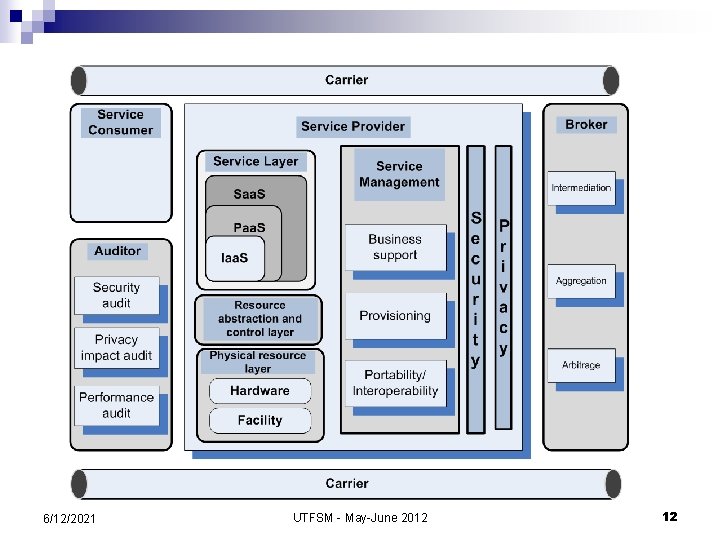

Software as a Service - Saa. S n n Applications supplied by the service provider in a cloud infrastructure. Accessible through a thin client interface e. g. , a browser. The user does not manage or control the underlying cloud infrastructure including network, servers, operating systems, storage, or even individual application capabilities. Examples of Saa. S services offered by Google: ¨ ¨ ¨ Gmail Email stored on a Google cloud Google Calendar a browser-based scheduler Google Groups host discussion forums; create messages online or via email. Google Co-op create customized search engines based on a set of facets or categories. Google Base load structured data from different sources to a central repository; each item follows a simple schema: (item type, attribute) Google Drive an online service for data storage available since April 2012 6/12/2021 UTFSM - May-June 2012 9

Platform as a Service (Paa. S) n n Provides facilities to deploy consumer-created or acquired applications using programming languages and tools supported by the provider. The consumer does not manage or control the underlying cloud infrastructure including network, servers, operating systems, or storage, but has control over the deployed applications and, possibly, application hosting environment configurations. Such services include: session management, device integration, sandboxes, instrumentation and testing, contents management, knowledge management. Major application areas are in software development when multiple developers and users collaborate and the deployment and testing services should be automated. Paa. S not particularly useful when the application must be portable, ¨ proprietary programming languages are used, ¨ the underlying hardware and software must be customized to improve the performance of the application. ¨ 6/12/2021 UTFSM - May-June 2012 10

Infrastructure as a Service (Iaa. S) n n Provides processing, storage, networks, and other fundamental computing resources; the consumer is able to deploy and run arbitrary software, which can include operating systems and applications. The consumer does not manage or control the underlying cloud infrastructure but has control over operating systems, storage, deployed applications, and possibly limited control of select networking components (e. g. , host firewalls). Services offered by this paradigm include: server hosting, web servers, storage, computing hardware, operating systems, virtual instances, load balancing, Internet access, and bandwidth provisioning. Examples: AWS – Amazon Web Services including EC 2 – Elastic Cloud Computing ¨ S 3 – Simple Storage System ¨ 6/12/2021 UTFSM - May-June 2012 11

6/12/2021 UTFSM - May-June 2012 12

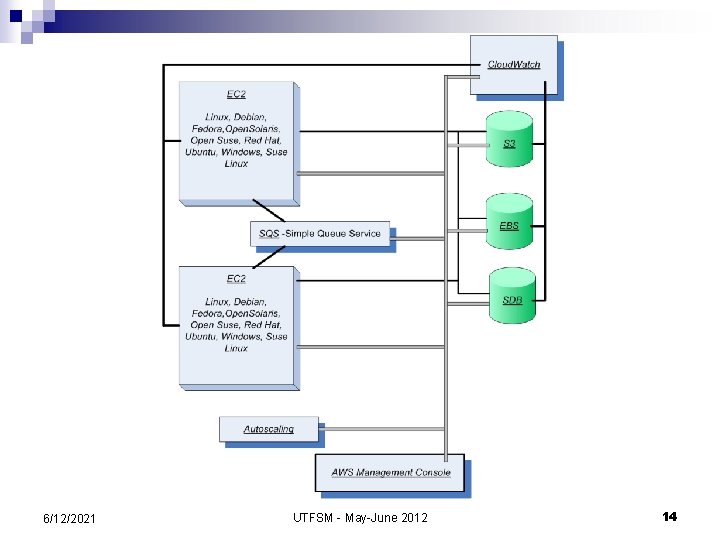

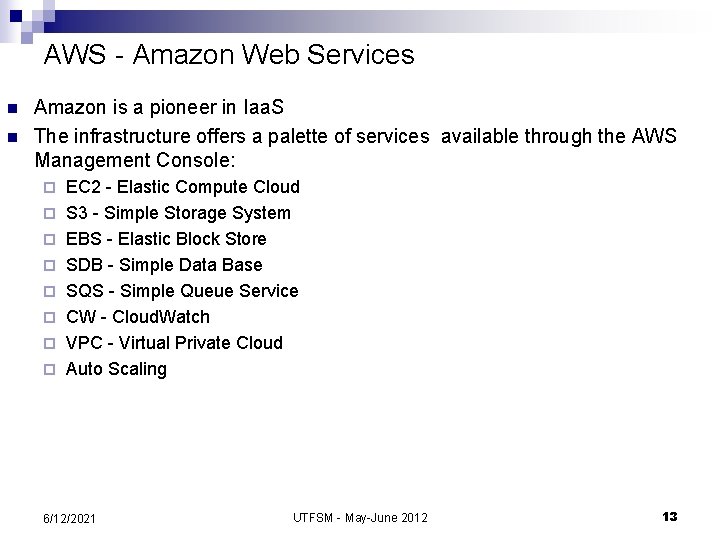

AWS - Amazon Web Services n n Amazon is a pioneer in Iaa. S The infrastructure offers a palette of services available through the AWS Management Console: ¨ ¨ ¨ ¨ EC 2 - Elastic Compute Cloud S 3 - Simple Storage System EBS - Elastic Block Store SDB - Simple Data Base SQS - Simple Queue Service CW - Cloud. Watch VPC - Virtual Private Cloud Auto Scaling 6/12/2021 UTFSM - May-June 2012 13

6/12/2021 UTFSM - May-June 2012 14

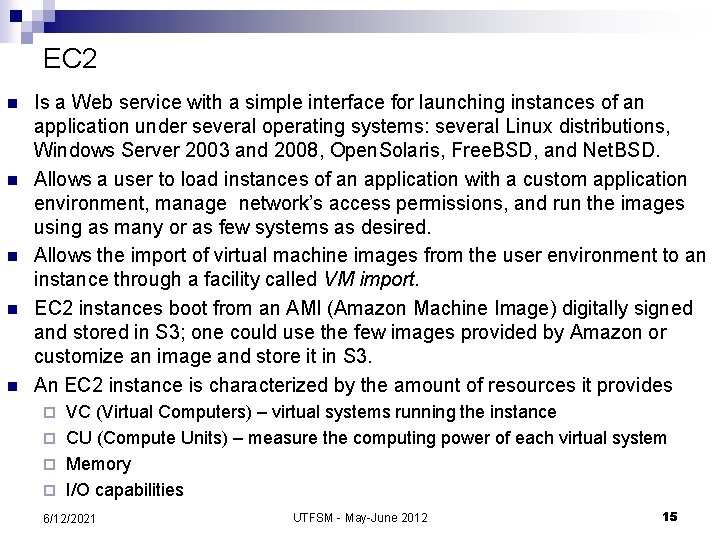

EC 2 n n n Is a Web service with a simple interface for launching instances of an application under several operating systems: several Linux distributions, Windows Server 2003 and 2008, Open. Solaris, Free. BSD, and Net. BSD. Allows a user to load instances of an application with a custom application environment, manage network’s access permissions, and run the images using as many or as few systems as desired. Allows the import of virtual machine images from the user environment to an instance through a facility called VM import. EC 2 instances boot from an AMI (Amazon Machine Image) digitally signed and stored in S 3; one could use the few images provided by Amazon or customize an image and store it in S 3. An EC 2 instance is characterized by the amount of resources it provides VC (Virtual Computers) – virtual systems running the instance ¨ CU (Compute Units) – measure the computing power of each virtual system ¨ Memory ¨ I/O capabilities ¨ 6/12/2021 UTFSM - May-June 2012 15

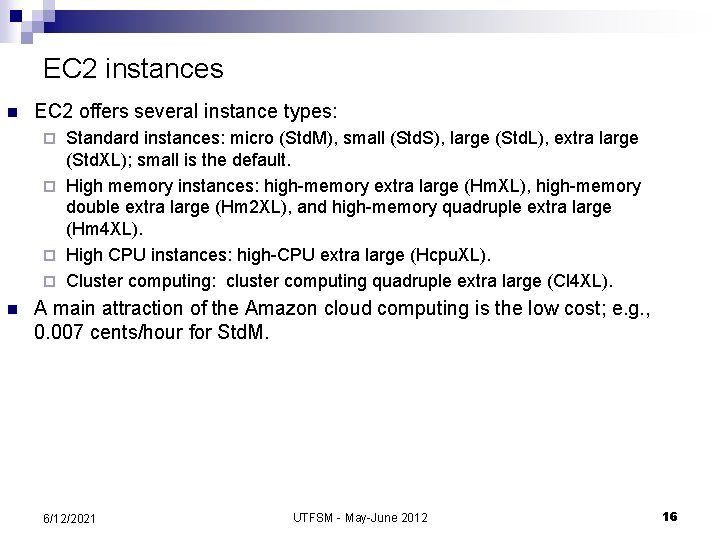

EC 2 instances n EC 2 offers several instance types: Standard instances: micro (Std. M), small (Std. S), large (Std. L), extra large (Std. XL); small is the default. ¨ High memory instances: high-memory extra large (Hm. XL), high-memory double extra large (Hm 2 XL), and high-memory quadruple extra large (Hm 4 XL). ¨ High CPU instances: high-CPU extra large (Hcpu. XL). ¨ Cluster computing: cluster computing quadruple extra large (Cl 4 XL). ¨ n A main attraction of the Amazon cloud computing is the low cost; e. g. , 0. 007 cents/hour for Std. M. 6/12/2021 UTFSM - May-June 2012 16

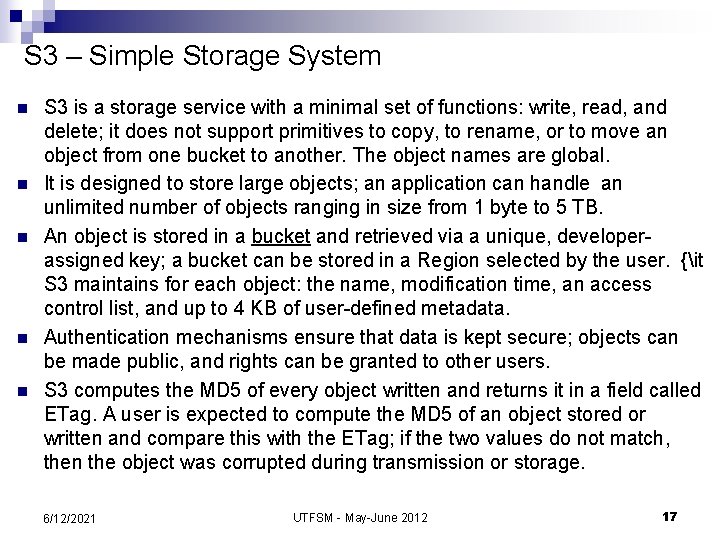

S 3 – Simple Storage System n n n S 3 is a storage service with a minimal set of functions: write, read, and delete; it does not support primitives to copy, to rename, or to move an object from one bucket to another. The object names are global. It is designed to store large objects; an application can handle an unlimited number of objects ranging in size from 1 byte to 5 TB. An object is stored in a bucket and retrieved via a unique, developerassigned key; a bucket can be stored in a Region selected by the user. {it S 3 maintains for each object: the name, modification time, an access control list, and up to 4 KB of user-defined metadata. Authentication mechanisms ensure that data is kept secure; objects can be made public, and rights can be granted to other users. S 3 computes the MD 5 of every object written and returns it in a field called ETag. A user is expected to compute the MD 5 of an object stored or written and compare this with the ETag; if the two values do not match, then the object was corrupted during transmission or storage. 6/12/2021 UTFSM - May-June 2012 17

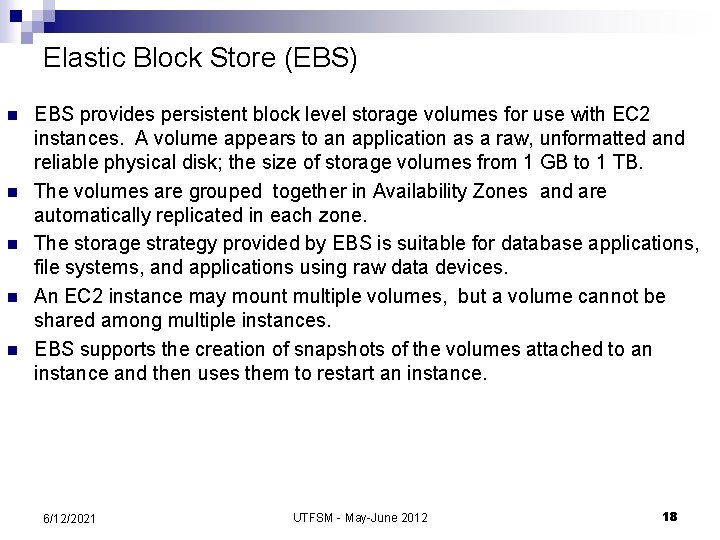

Elastic Block Store (EBS) n n n EBS provides persistent block level storage volumes for use with EC 2 instances. A volume appears to an application as a raw, unformatted and reliable physical disk; the size of storage volumes from 1 GB to 1 TB. The volumes are grouped together in Availability Zones and are automatically replicated in each zone. The storage strategy provided by EBS is suitable for database applications, file systems, and applications using raw data devices. An EC 2 instance may mount multiple volumes, but a volume cannot be shared among multiple instances. EBS supports the creation of snapshots of the volumes attached to an instance and then uses them to restart an instance. 6/12/2021 UTFSM - May-June 2012 18

Simple. DB n n n Simple. DB is a non-relational data store that allows developers to store and query data items via Web services requests. It supports store and query functions traditionally provided only by relational databases. It creates multiple geographically distributed copies of each data item. It supports high performance Web applications. It manages automatically the infrastructure provisioning, ¨ hardware and software maintenance, ¨ replication and indexing of data items, and ¨ performance tuning. ¨ 6/12/2021 UTFSM - May-June 2012 19

Simple Queue Service (SQS) n n n SQS is a hosted message queue; it supports automated workflows. Multiple Amazon EC 2 instances can coordinate their activities by sending and receiving SQS messages. Any computer connected to the Internet can add or read messages without any installed software or special firewall configurations. Applications using SQS can run independently and asynchronously, and do not need to be developed with the same technologies. A received message is ``locked'' during processing; if processing fails, the lock expires and the message is available again. Developers can access SQS through standards-based SOAP and Query interfaces. Queues can be shared with other AWS accounts and Anonymously; queue sharing can also be restricted by IP address and time-of-day. 6/12/2021 UTFSM - May-June 2012 20

Cloud. Watch n n n Cloud. Watch is a monitoring infrastructure used by application developers, users, and system administrators to collect and track metrics important for optimizing the performance of applications and for increasing the efficiency of resource utilization. Without installing any software a user can monitor either seven or eight pre-selected metrics and then view graphs and statistics for these metrics. When launching an Amazon Machine Image (AMI) the user can start the Cloud. Watch and specify the type of monitoring: Basic Monitoring is free of charge and collects data at five-minute intervals for up to seven metrics, ¨ Detailed Monitoring is subject to a charge and collects data at one minute interval. This service can also be used to monitor the latency of access to EBS volumes, the available storage space for RDS DB instances, the number of messages in SQS, and other parameters of interest for applications. ¨ 6/12/2021 UTFSM - May-June 2012 21

Application development using AWS n n n To access AWS one must first create an account at http: //aws. amazon. com/. Once the account is created the Amazon Management Console (AWC) allows the user to select one of the service, e. g. , EC 2, S 3, and so on. Several operating systems are supported including: Amazon Linux, Cent OS, Debian, Fedora, Open Solaris, Open Suse, Red Hat, Ubuntu, Windows, and SUSE Linux. Then create an AMI (Amazon Machine Image) on one of the platforms supported by AWS and start an instance using the Run. Instance API. An AMI is a unit of deployment, it is an environment including all information necessary to set up and boot an instance. The local instance store persists only for the duration of an instance; the data will persist if an instance is started using the Amazon EBS (Elastic Block Storage) and then the instance can be restated at a later time. 6/12/2021 UTFSM - May-June 2012 22

Instance management n Once an instance was created the user can perform several actions: connect to the instance, ¨ launch more instances identical to the current one, or ¨ create an EBS AMI; ¨ terminate, reboot, or stop the instance. ¨ n The Network & Security panel allows the creation of Security Groups, Elastic IP addresses, Placement Groups, Load Balancers and Key Pairs while the EBS panel allows the specification of volumes and the creation of snapshots. 6/12/2021 UTFSM - May-June 2012 23

Connecting clients and server through firewalls n n Typically, the local area network (LAN) of an organization is connected to the Internet via a router. A router firewall often hides the true address of hosts in the local network using the network address translation (NAT) mechanism. The hosts behind a firewall are assigned addresses in a ''private address range'' and the router uses the NAT tables to filter the incoming traffic and translate external IP addresses to private ones. The mapping between the pair (external address, external port) and the (internal address, internal port) tuple carried by the network address translation function of the router firewall is also called a pinhole. If one tests a client-server application with the client and the server in the same local area network the packets do not cross a router; once a client from a different LAN attempts to use the service, the packets may be discarded by the firewall of the router. The application may no longer work if the router is not properly configured. 6/12/2021 UTFSM - May-June 2012 24

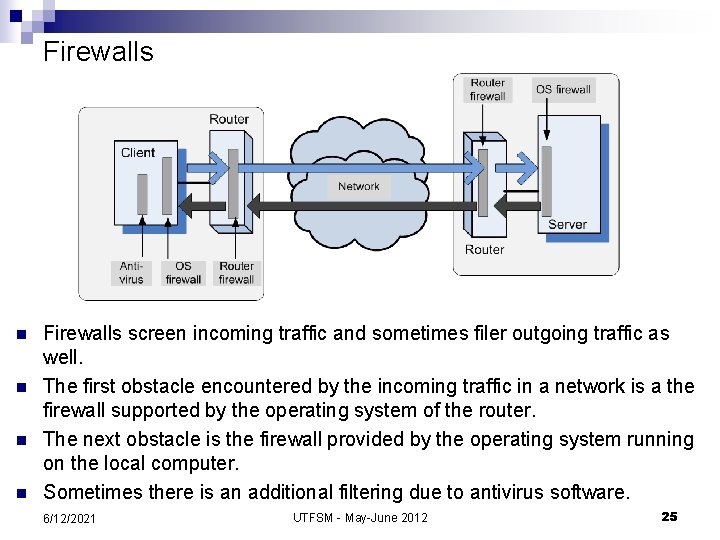

Firewalls n n Firewalls screen incoming traffic and sometimes filer outgoing traffic as well. The first obstacle encountered by the incoming traffic in a network is a the firewall supported by the operating system of the router. The next obstacle is the firewall provided by the operating system running on the local computer. Sometimes there is an additional filtering due to antivirus software. 6/12/2021 UTFSM - May-June 2012 25

A virtual machine running under EC 2 has several IP addresses EC 2 Private IP Address the internal address of an instance only used for routing within the EC 2 Cloud. ¨ Public IP Address used by network traffic originating outside the EC 2 network. The public IP address is translated using the Network Address Translation (NAT) to the private IP address when an instance is launched and it is valid until the instance is terminated. Traffic to the public address is forwarded to the private IP address of the instance. ¨ Elastic IP Address the IP address allocated to an EC 2 account and used by traffic originated outside the cloud. NAT maps an elastic IP address to the private IP address. Elastic IP addresses allow the cloud user to mask instance or availability zone failures by programmatically re-mapping a public IP addresses to any instance associated with the user's account. This allows fast recovery after a system failure; for example, rather than waiting for a cloud maintenance team to reconfigure or replace the failing host, or waiting for DNS to propagate the new public IP to all of the customers of a Web service hosted by EC 2, the Web service provider can re-map the elastic IP address to a replacement instance. ¨ 6/12/2021 UTFSM - May-June 2012 26

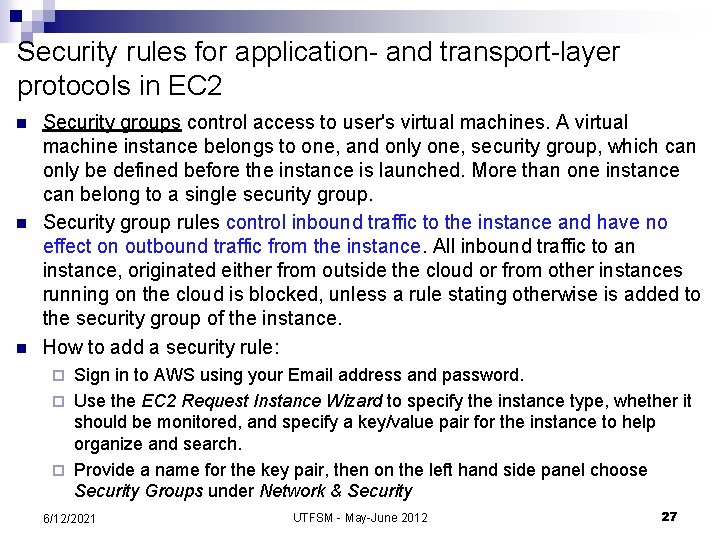

Security rules for application- and transport-layer protocols in EC 2 n n n Security groups control access to user's virtual machines. A virtual machine instance belongs to one, and only one, security group, which can only be defined before the instance is launched. More than one instance can belong to a single security group. Security group rules control inbound traffic to the instance and have no effect on outbound traffic from the instance. All inbound traffic to an instance, originated either from outside the cloud or from other instances running on the cloud is blocked, unless a rule stating otherwise is added to the security group of the instance. How to add a security rule: Sign in to AWS using your Email address and password. ¨ Use the EC 2 Request Instance Wizard to specify the instance type, whether it should be monitored, and specify a key/value pair for the instance to help organize and search. ¨ Provide a name for the key pair, then on the left hand side panel choose Security Groups under Network & Security ¨ 6/12/2021 UTFSM - May-June 2012 27

Next lecture – Thursday May 31, 12 AM n Open-source platforms for cloud computing Eucaliptus 2. Nebula 3. Nimbus 1. n Cloud applications ¨ ¨ ¨ ¨ 6/12/2021 Challenges Existing and new applications Coordination and the Zookeeper The Map-Reduce programming model The Grep. The. Web application Clouds in science and engineering Benchmarks UTFSM - May-June 2012 28
