Cloud Cap Technologies Brandon Witte Shaoqian Wang Piccolo
Cloud Cap Technologies Brandon Witte Shaoqian Wang

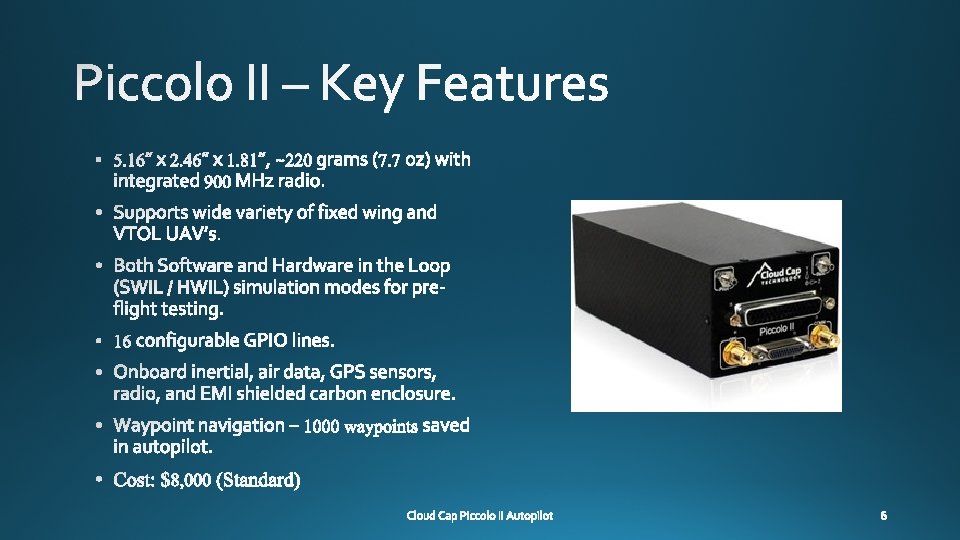

Piccolo Nano Piccolo SL Piccolo II Designed to meet the requirements of the smallest UAVs where the vehicle structure provides the enclosure and the autopilot components need to be distributed within the airframe’s available space. With its thin form factor and flexible I/O capability (14 configurable GPIO lines) is ideal for small fixed wing and VTOL platforms. Adds functionality and flexibility for advanced UAS including additional I/O for support (16 configurable GPIO lines) for payload intensive applications.
Attributes Size (in) / weight (g) Piccolo Nano (L/R/S) Piccolo SL Piccolo II 1. 8 x 5. 4 x 0. 5 / 22 w. o. radio 5. 1 x 2. 24 x. 075 /110 w. radio 5. 59 x 1. 81 x 2. 46 / 220 w. radio GPIO Ports 6/14/14 14 (configurable) 16 (configurable) Price ~ $1, 000 $6, 500 $8, 000 Enclosure Unenclosed EMI Shielded aluminum EMI Shielded Carbon SWIL/HWIL No/Yes Yes Limited/Yes Yes N/A 195 kts (224 mph) 155 kts (178 mph) Peripheral support Max IAS Design Philosophy Maximum installation flexibility, minimum weight and smaller size than its counterparts Ease of use with small UAVs. Complete/reliable integrated Flexible I/O capability and smaller avionics system, additional I/O than the Piccolo II support for payload intensive app.

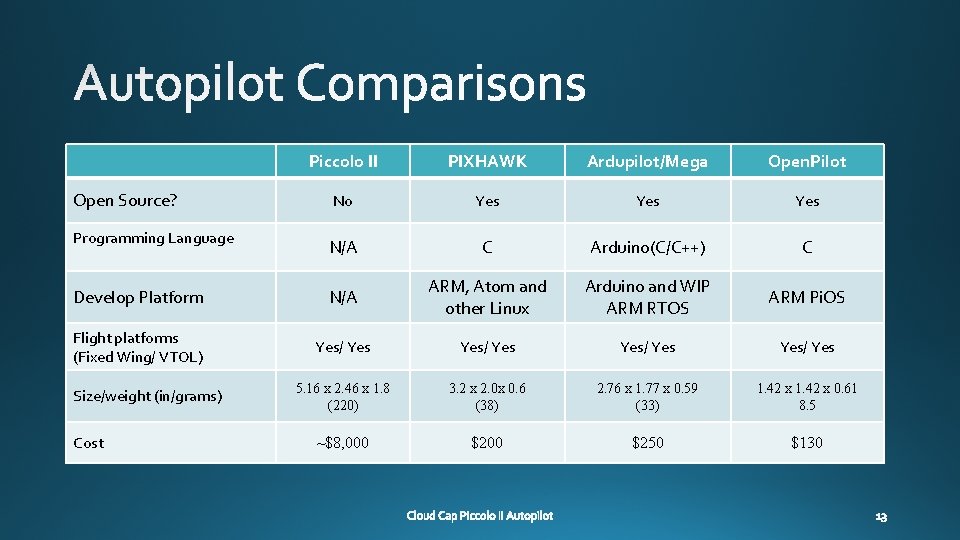

Piccolo II PIXHAWK Ardupilot/Mega Open. Pilot No Yes Yes N/A C Arduino(C/C++) C Develop Platform N/A ARM, Atom and other Linux Arduino and WIP ARM RTOS ARM Pi. OS Flight platforms (Fixed Wing/ VTOL) Yes/ Yes 5. 16 x 2. 46 x 1. 8 (220) 3. 2 x 2. 0 x 0. 6 (38) 2. 76 x 1. 77 x 0. 59 (33) 1. 42 x 0. 61 8. 5 ~$8, 000 $250 $130 Open Source? Programming Language Size/weight (in/grams) Cost
