Cloud CampusAgile ControllerCampus Datasheet Product Overview The Cloud

Cloud. Campus@Agile Controller-Campus Datasheet Product Overview The Cloud. Campus@Agile Controller-Campus Solution Description is a next-generation campus and branch With the rapid development of enterprise services and comprehensive digital transformation of network controller developed by Huawei. As campus networks, campus networks are rapidly developing towards wireless, cloudification, and the core component of Huawei Cloud. Campus intelligence. In this trend, a large number of innovative services such as BYOD, Io. T, cloud UC, Solution, Agile Controller-Campus adopts office, storage, VR, AR, and live TV are emerging, massive terminals are accessing the cloud computing, software-defined networking network, the network scale is growing exponentially, and various digital services frequently go (SDN), and big data analytics to improve online or are adjusted. However, the number of network administrators does not increase. If the automatic network management capabilities administrators still manage networks using CLIs and scripts, networks will inevitably become a and provide various innovative solutions such bottleneck for rapid service innovation and an obstacle for enterprise digitization. As the as automatic deployment of campus and multi automatic management center of campus and branch networks, Agile Controller-Campus is -branch networks and SD-WAN convergent faced with multiple opportunities and challenges: how to accelerate network service management, helping enterprises reduce the deployment, how to provide reliable Service Level Agreement (SLA) guarantee, and finally how operating expense (OPEX) and implementing to improve user experience and service agility. more convenient and intelligent network O&M. In campus and branch network scenarios, Agile Controller-Campus uses cloud computing, SDN, and big data analytics to implement automatic and centralized underlay & overlay management, provide data collection and analysis capabilities beyond traditional solutions, perform centralized Huawei Cloud. Campus@Agile Controller- control over access rights, Qo. S, bandwidth, application, and security policies of campus users, Campus is the core component of Huawei and enable service-driven virtual service provisioning in a simplified, rapid, and intelligent Cloud. Campus solution. This document manner, transforming the network from an obstacle into an assistant for services. describes the functions of the Agile Controller. Campus in the Cloud. Campus solution. About This Publication This publication is for reference only and does not constitute any commitments or guarantees. All trademarks, pictures, logos, and brands mentioned in this document are the property of Huawei Technologies Co. , Ltd. or a third party. Copyright © 2019 Huawei Technologies Co. , Ltd. All rights reserved. 1

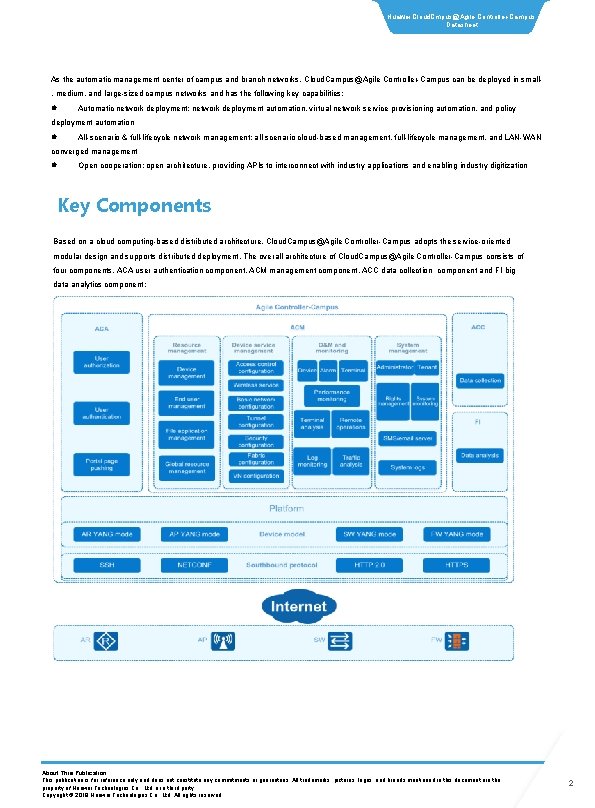

Huawei Cloud. Cmpus@Agile Controller-Campus Datasheet As the automatic management center of campus and branch networks, Cloud. Campus@Agile Controller-Campus can be deployed in small, medium, and large-sized campus networks and has the following key capabilities: Automatic network deployment: network deployment automation, virtual network service provisioning automation, and policy deployment automation All-scenario & full-lifecycle network management: all-scenario cloud-based management, full-lifecycle management, and LAN-WAN converged management Open cooperation: open architecture, providing APIs to interconnect with industry applications and enabling industry digitization Key Components Based on a cloud computing-based distributed architecture, Cloud. Campus@Agile Controller-Campus adopts the service-oriented modular design and supports distributed deployment. The overall architecture of Cloud. Campus@Agile Controller-Campus consists of four components, ACA user authentication component, ACM management component, ACC data collection component and FI big data analytics component: About This Publication This publication is for reference only and does not constitute any commitments or guarantees. All trademarks, pictures, logos, and brands mentioned in this document are the property of Huawei Technologies Co. , Ltd. or a third party. Copyright © 2019 Huawei Technologies Co. , Ltd. All rights reserved. 2

Huawei Cloud. Cmpus@Agile Controller-Campus Datasheet Benefits Network Automation Network deployment automation: Cloud. Campus@Agile Controller-Campus supports template-based design and device plug and play (Pn. P), significantly reducing network deployment OPEX. Virtual network service provisioning automation: Cloud. Campus@Agile Controller-Campus supports model abstraction, one network for multiple purposes, and VXLAN service provisioning in minutes. Policy deployment automation: Cloud. Campus@Agile Controller-Campus supports centralized configuration and real-time adjustment of network access, Qo. S, bandwidth, applications, and security policies, guaranteeing network access experience of users. All-scenario & Full-lifecycle Management All-scenario cloud-based management: Cloud. Campus@Agile Controller-Campus in Huawei public cloud and on-premises scenarios can be deployed on large- and medium-sized campus and multi-branch networks, providing flexible business models. Full-lifecycle management: Cloud. Campus@Agile Controller-Campus integrates network design, service deployment, maintenance, and optimization, providing one-stop full-process management. LAN-WAN convergence: Cloud. Campus@Agile Controller-Campus supports E 2 E unified network deployment and unified policy configuration for enterprise LANs and WANs, implementing in-depth LAN-WAN convergence and reducing O&M costs. Open Cooperation Open architecture: Cloud. Campus@Agile Controller-Campus provides four types of 170+ standard RESTful APIs in the northbound direction to interconnect with 30+ industry applications and adapt to 30+ partners, enabling industry digitization. About This Publication This publication is for reference only and does not constitute any commitments or guarantees. All trademarks, pictures, logos, and brands mentioned in this document are the property of Huawei Technologies Co. , Ltd. or a third party. Copyright © 2019 Huawei Technologies Co. , Ltd. All rights reserved. 3

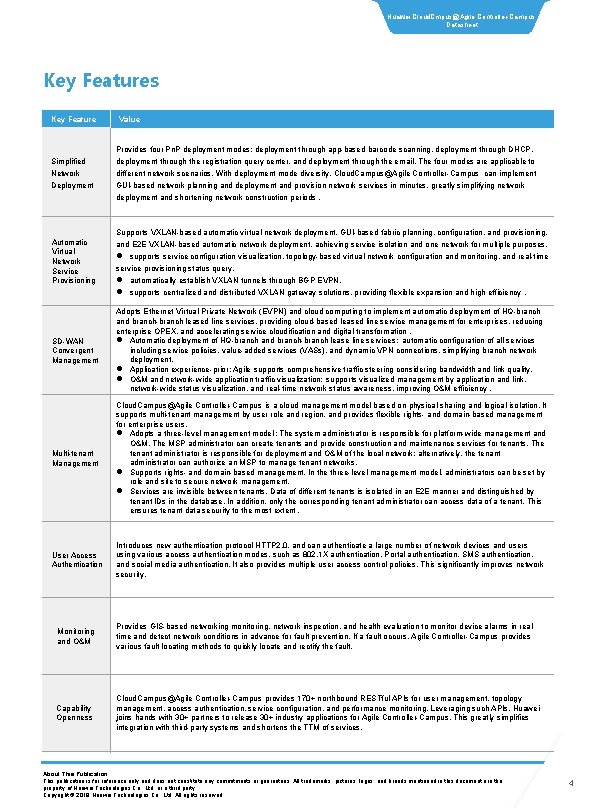

Huawei Cloud. Cmpus@Agile Controller-Campus Datasheet Key Features Key Feature Simplified Network Deployment Automatic Virtual Network Service Provisioning Value Provides four Pn. P deployment modes: deployment through app-based barcode scanning, deployment through DHCP, deployment through the registration query center, and deployment through the email. The four modes are applicable to different network scenarios. With deployment mode diversity, Cloud. Campus@Agile Controller-Campus can implement GUI-based network planning and deployment and provision network services in minutes, greatly simplifying network deployment and shortening network construction periods. Supports VXLAN-based automatic virtual network deployment, GUI-based fabric planning, configuration, and provisioning, and E 2 E VXLAN-based automatic network deployment, achieving service isolation and one network for multiple purposes. supports service configuration visualization, topology-based virtual network configuration and monitoring, and real-time service provisioning status query. automatically establish VXLAN tunnels through BGP EVPN. supports centralized and distributed VXLAN gateway solutions, providing flexible expansion and high efficiency. SD-WAN Convergent Management Adopts Ethernet Virtual Private Network (EVPN) and cloud computing to implement automatic deployment of HQ-branch and branch-branch leased line services, providing cloud-based leased line service management for enterprises, reducing enterprise OPEX, and accelerating service cloudification and digital transformation. Automatic deployment of HQ-branch and branch-branch lease line services: automatic configuration of all services including service policies, value-added services (VASs), and dynamic VPN connections, simplifying branch network deployment. Application experience-prior: Agile supports comprehensive traffic steering considering bandwidth and link quality. O&M and network-wide application traffic visualization: supports visualized management by application and link, network-wide status visualization, and real-time network status awareness, improving O&M efficiency. Multi-tenant Management Cloud. Campus@Agile Controller-Campus is a cloud management model based on physical sharing and logical isolation. It supports multi-tenant management by user role and region, and provides flexible rights- and domain-based management for enterprise users. Adopts a three-level management model: The system administrator is responsible for platform-wide management and O&M. The MSP administrator can create tenants and provide construction and maintenance services for tenants. The tenant administrator is responsible for deployment and O&M of the local network; alternatively, the tenant administrator can authorize an MSP to manage tenant networks. Supports rights- and domain-based management. In the three-level management model, administrators can be set by role and site to secure network management. Services are invisible between tenants. Data of different tenants is isolated in an E 2 E manner and distinguished by tenant IDs in the database. In addition, only the corresponding tenant administrator can access data of a tenant. This ensures tenant data security to the most extent. User Access Authentication Introduces new authentication protocol HTTP 2. 0, and can authenticate a large number of network devices and users using various access authentication modes, such as 802. 1 X authentication, Portal authentication, SMS authentication, and social media authentication. It also provides multiple user access control policies. This significantly improves network security. Monitoring and O&M Provides GIS-based networking monitoring, network inspection, and health evaluation to monitor device alarms in real time and detect network conditions in advance for fault prevention. If a fault occurs, Agile Controller-Campus provides various fault locating methods to quickly locate and rectify the fault. Capability Openness Cloud. Campus@Agile Controller-Campus provides 170+ northbound RESTful APIs for user management, topology management, access authentication, service configuration, and performance monitoring. Leveraging such APIs, Huawei joins hands with 30+ partners to release 30+ industry applications for Agile Controller-Campus. This greatly simplifies integration with third-party systems and shortens the TTM of services. About This Publication This publication is for reference only and does not constitute any commitments or guarantees. All trademarks, pictures, logos, and brands mentioned in this document are the property of Huawei Technologies Co. , Ltd. or a third party. Copyright © 2019 Huawei Technologies Co. , Ltd. All rights reserved. 4
