Cloud Adoption Framework Cloud Adoption Framework 2 2017

Cloud Adoption Framework

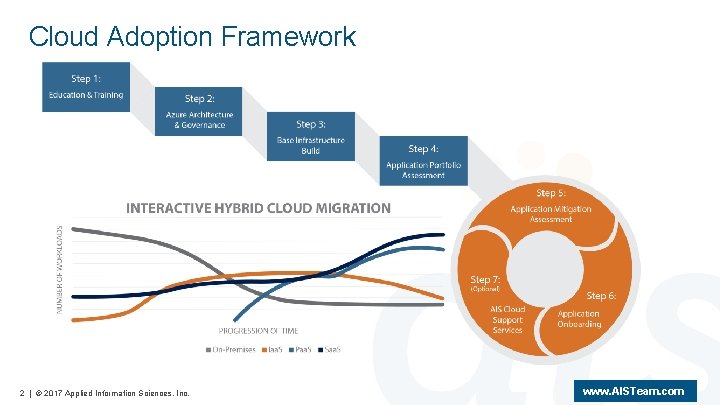

Cloud Adoption Framework 2 | © 2017 Applied Information Sciences, Inc. www. AISTeam. com

Step 1: Education & Training • Know why you are moving to the cloud • Starting with a deeper understanding of the benefits of the cloud (Iaa. S, Paa. S, Saa. S) • Agility, cost, time to value, data growth, capacity, security • Deep dive training Sample agenda 3 | © 2017 Applied Information Sciences, Inc. Day 1 Day 2 Day 3 Day 4 Azure Platform Overview (Iaa. S, Paa. S, Saa. S) “Azure Networking Deep Dive” Azure AD Topology Introduction to Azure Iaa. S w/ key concepts Endpoints and Endpoint based ACLs AD Federation Subscription Management VNET, Subnets AD Security protocols Network design VNET - V 2 Stor. Simple Automation strategy NSG RBAC Egress HA/ DR – Site Recovery Azure Portal Compute and Storage Licensing, Pricing VMs (available images) VHDs, Disks and Images Virtual Networks (VNET) Availability Sets Express Route Power Shell / REST API / Cross-plat CLI Site to Site / Point to Site VPN Azure Automation Service Forced Tunneling (VMs, storage) Security Appliances VM Extensions VIPs DIPs Monitoring ILB Resource Groups & ARM Floating IP Address www. AISTeam. com

Step 2: Azure Architecture & Governance Develop a cloud architecture and governance strategy • Network & Network Security • Firewalls, Load Balancing, NSGs, User Defined Routing • Subscription Topology • Azure Regions, Security Zoning, Billing and Chargeback, Naming Conventions • Automation • Templates, Process, Scripts, Resource Catalog • System Health • Monitoring, Logging, Auditing • Access & Resources • RBAC, Resource Manager Policies, Resource Locking, Resource Management Roles and Responsibilities • Security Monitoring, Health Detection • Support, Escalation and Incident Management 4 | © 2017 Applied Information Sciences, Inc. www. AISTeam. com

Step 3: Base Infrastructure Build • Express Route • VNet Setup • Configure Edge Firewall • Set up Peering (Public/Private) • Configure Load Balancing • Setup RBAC • Automate Build • Deploy Subscription Topology • Documentation 5 | © 2017 Applied Information Sciences, Inc. www. AISTeam. com

Step 4: Application Portfolio Assessment Conduct an Application Portfolio Assessment • Which applications make sense to move to the cloud? • Develop a long term roadmap that is aligned with the cloud provider’s roadmap • Start with a small app • Startup /agile mindset 6 | © 2017 Applied Information Sciences, Inc. www. AISTeam. com

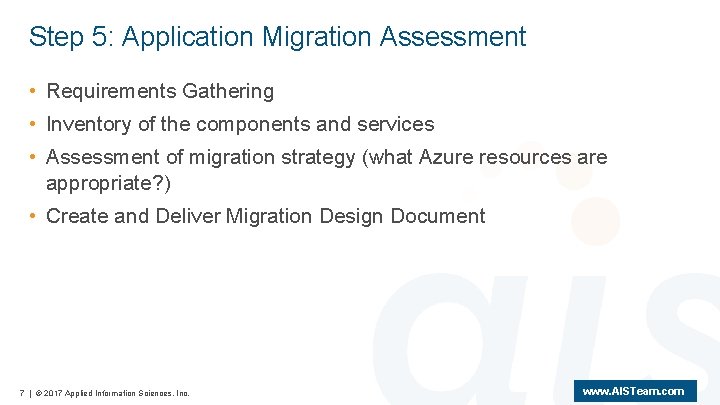

Step 5: Application Migration Assessment • Requirements Gathering • Inventory of the components and services • Assessment of migration strategy (what Azure resources are appropriate? ) • Create and Deliver Migration Design Document 7 | © 2017 Applied Information Sciences, Inc. www. AISTeam. com

Step 6: Application Onboarding • Involvement from multiple teams • Project to migrate each application • Initiate / Plan / Execute / Close • Cloud Service Provisioning team executes requirements to migrate application Client AIS Key Stakeholders Cloud Service Provisioning Team Application Support Team Operations and Support Team Cyber Security Team Core Cloud Infrastructure and Network Team • Redesign and rebuild as necessary • Performance, scalability, security • Perform migration and optimize for cloud • Operations & Support Handoff • Provide documentation, training, monitoring metrics to Operations & Support Team • Support Staffing adjusted as needed 8 | © 2017 Applied Information Sciences, Inc. www. AISTeam. com

Step 7: AIS Cloud Support Services Cloud Support Teams • Operations and Maintenance • Monitor system health and performance • Respond to incident requests Application Migration • Core Cloud Infrastructure and Networking • Infrastructure build-out and support • Networking architecture • Cloud Service Provisioning Team • Migrate applications • Manage Service Catalog 9 | © 2017 Applied Information Sciences, Inc. Infrastructure and Networking Monitoring and Support www. AISTeam. com

Step 7: AIS Cloud Support Services (continued) Support Process Team becomes aware of needed support • Two options for support: • Business Hours + On Call • 365 x 24 hr • SLA – defined priority and response time Acknowledge and triage Escalate and handoff to appropriate support team(s) Metrics tracking and reporting • Team size and makeup based on need; scales up or down accordingly 10 | © 2017 Applied Information Sciences, Inc. Continuous process improvement L 2 Support L 3 Support Core Cloud Infrastructure and Network Team L 2 Support L 3 Support Cloud Service Provisioning Team Operations and Maintenance Team www. AISTeam. com
