Clinometers A MAKE AND TAKE BY LINDA TISDALE

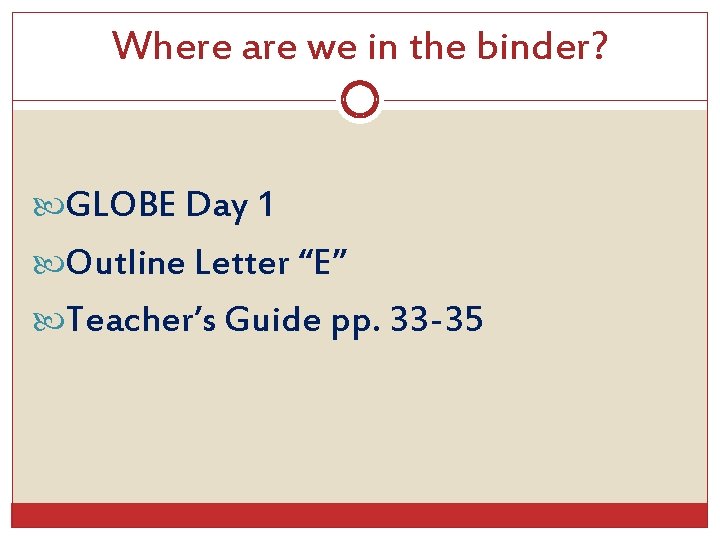

Where are we in the binder? GLOBE Day 1 Outline Letter “E” Teacher’s Guide pp. 33 -35

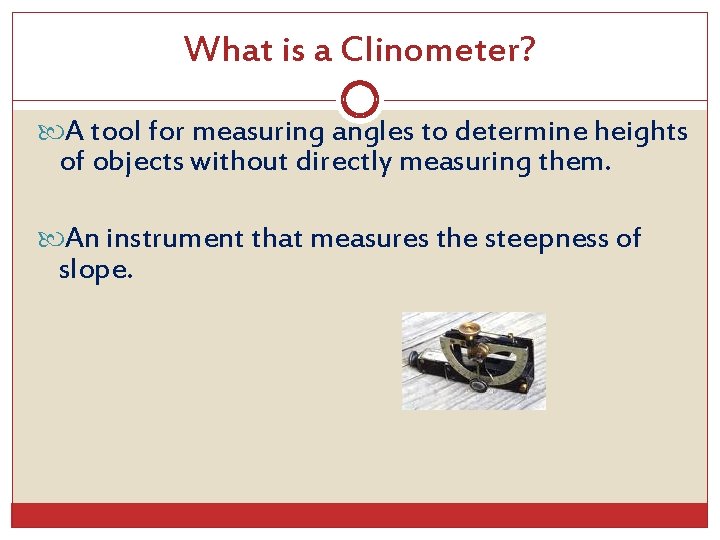

What is a Clinometer? A tool for measuring angles to determine heights of objects without directly measuring them. An instrument that measures the steepness of slope.

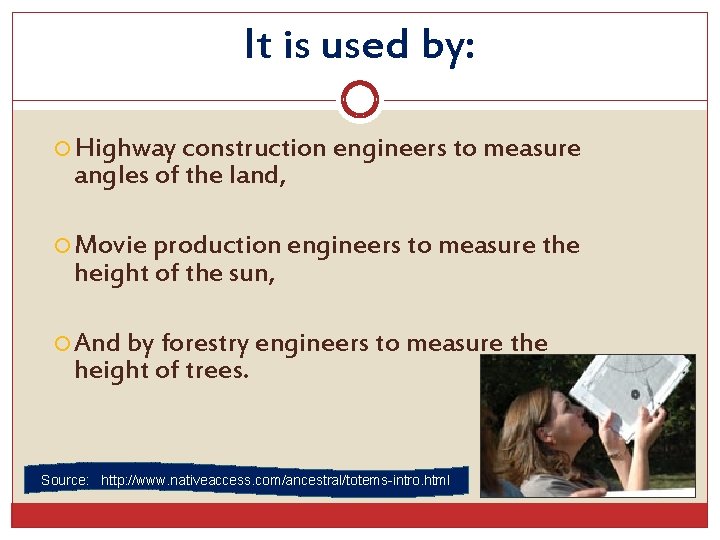

It is used by: Highway construction engineers to measure angles of the land, Movie production engineers to measure the height of the sun, And by forestry engineers to measure the height of trees. Source: http: //www. nativeaccess. com/ancestral/totems-intro. html

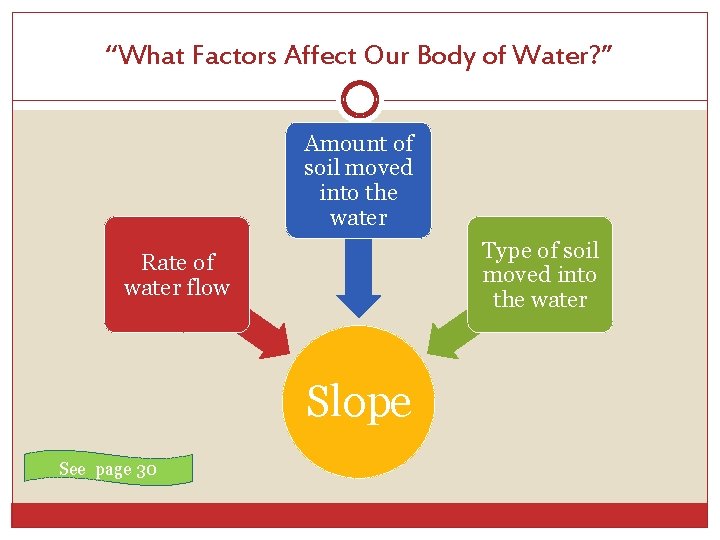

“What Factors Affect Our Body of Water? ” Amount of soil moved into the water Type of soil moved into the water Rate of water flow Slope See page 30

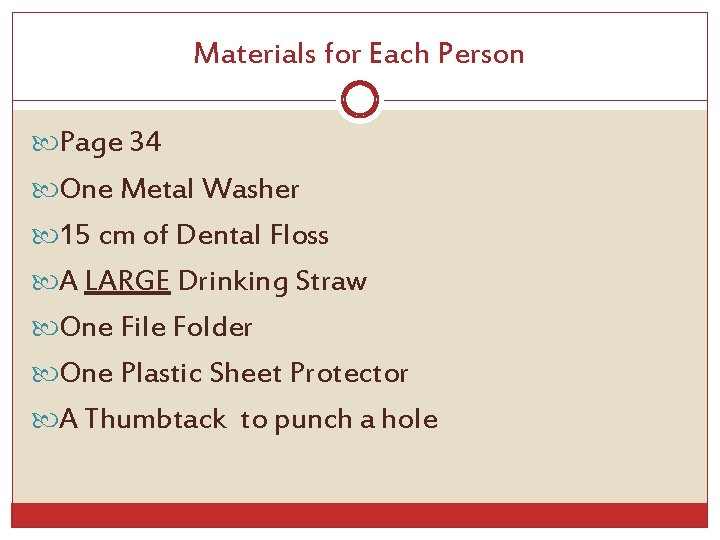

Materials for Each Person Page 34 One Metal Washer 15 cm of Dental Floss A LARGE Drinking Straw One File Folder One Plastic Sheet Protector A Thumbtack to punch a hole

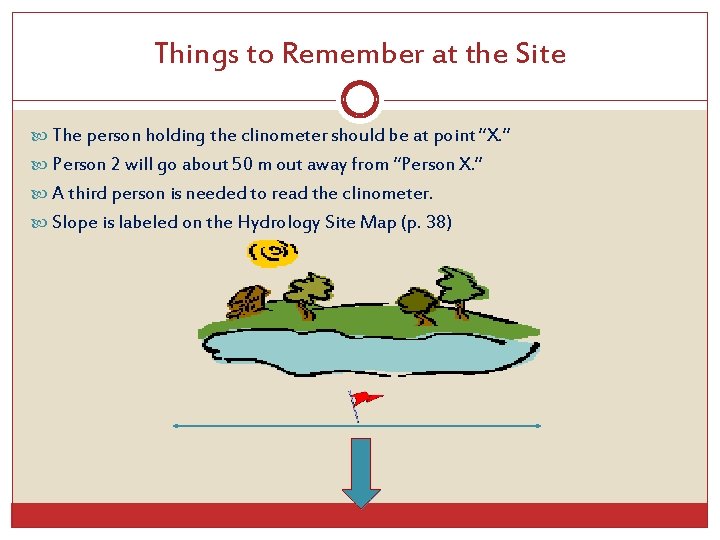

Things to Remember at the Site The person holding the clinometer should be at point “X. ” Person 2 will go about 50 m out away from “Person X. ” A third person is needed to read the clinometer. Slope is labeled on the Hydrology Site Map (p. 38)

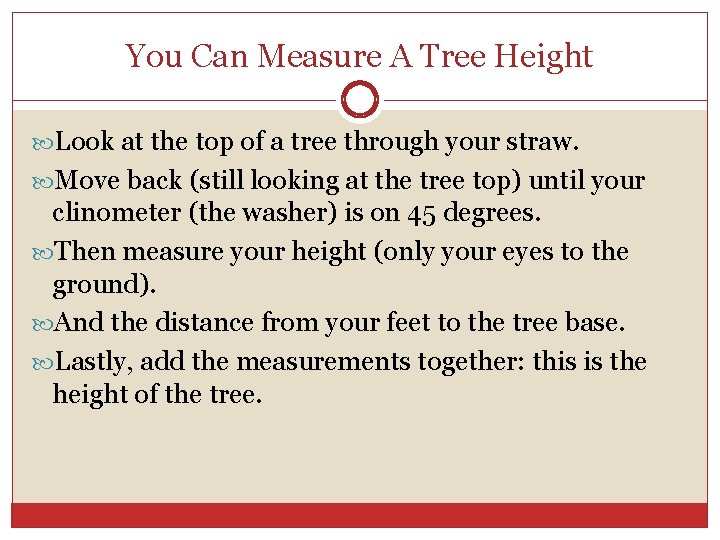

You Can Measure A Tree Height Look at the top of a tree through your straw. Move back (still looking at the tree top) until your clinometer (the washer) is on 45 degrees. Then measure your height (only your eyes to the ground). And the distance from your feet to the tree base. Lastly, add the measurements together: this is the height of the tree.

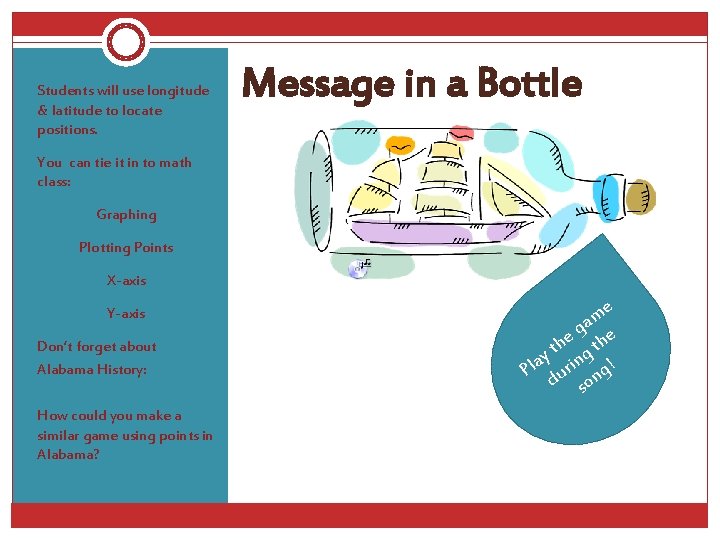

Students will use longitude & latitude to locate positions. Message in a Bottle You can tie it in to math class: Graphing Plotting Points X-axis Y-axis Don’t forget about Alabama History: How could you make a similar game using points in Alabama? e m ga e e h th t y ing ! a l P dur ng so
