Client Iowa State ThorlandOster Vicky Advisors Dr Jacobson

Client: Iowa State (Thorland-Oster, Vicky) Advisors: Dr. Jacobson, Douglas W Team: Moran, Alex S Kang, June K You, Seung H

All equipment shall be capable of operating without degradation between 10⁰C and 52⁰C All equipment shall be capable of operating without degradation over a humidity range of 0 -60% (standard indoor humidity) All equipment shall be capable of operating without degradation by means of a standard wall outlet. All equipment that does not require 120 VAC shall be capable of operating with limited risk (cost) involved. All equipment shall be encased in such a way as to minimize risk of breaking by human interaction. All equipment shall be protected and wired so that no electric shock risk is present.

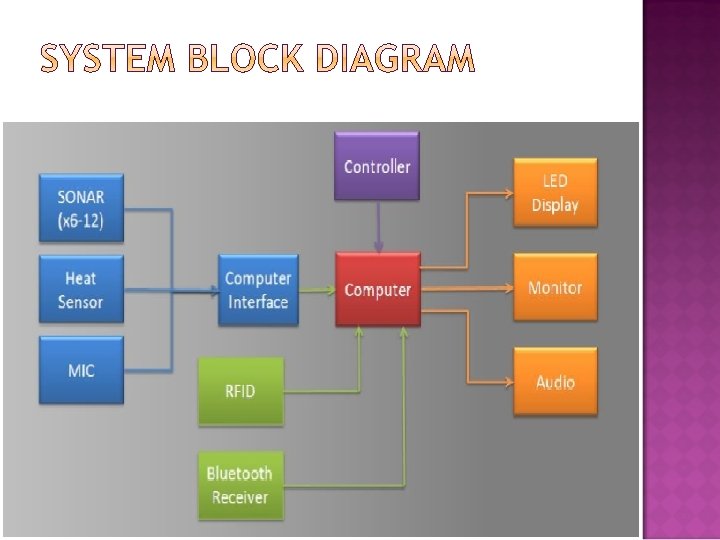

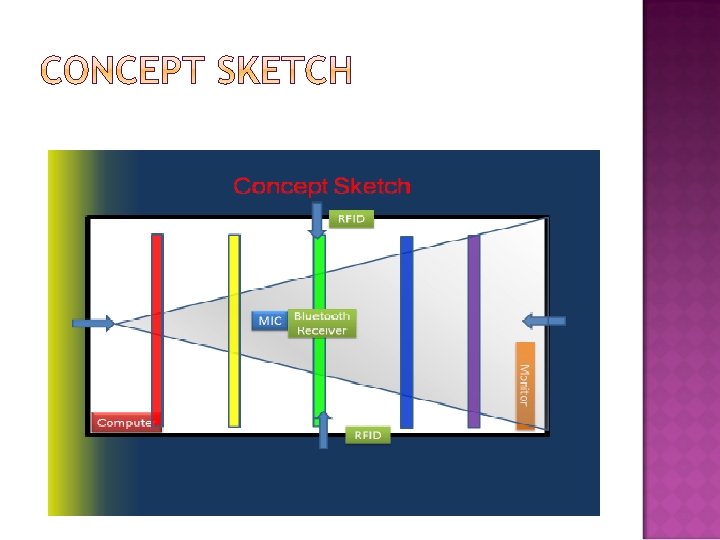

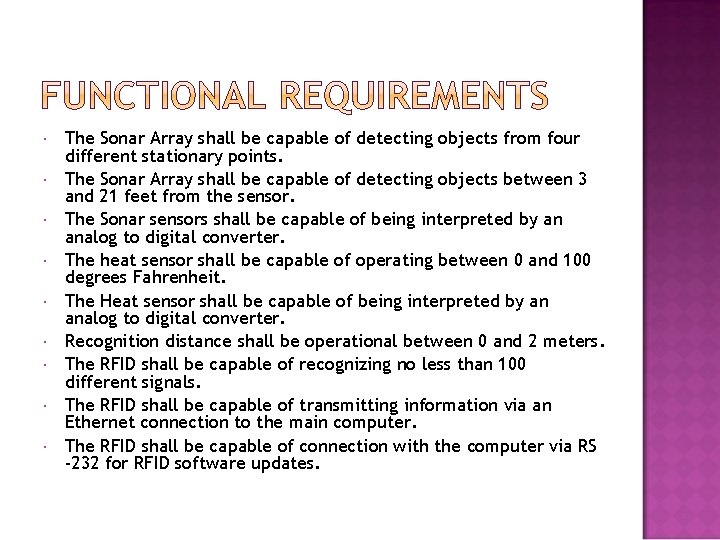

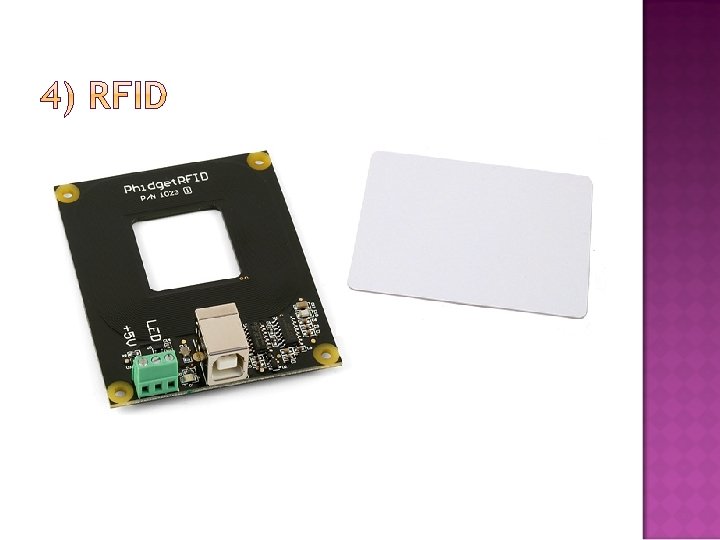

The Sonar Array shall be capable of detecting objects from four different stationary points. The Sonar Array shall be capable of detecting objects between 3 and 21 feet from the sensor. The Sonar sensors shall be capable of being interpreted by an analog to digital converter. The heat sensor shall be capable of operating between 0 and 100 degrees Fahrenheit. The Heat sensor shall be capable of being interpreted by an analog to digital converter. Recognition distance shall be operational between 0 and 2 meters. The RFID shall be capable of recognizing no less than 100 different signals. The RFID shall be capable of transmitting information via an Ethernet connection to the main computer. The RFID shall be capable of connection with the computer via RS -232 for RFID software updates.

The RFID shall be capable of writing tags at a distance of at least 6 inches. The LED display shall be capable of transitioning between different intensity values. The LED intensities will be individually dependant on the inputs from the chosen input signal. The LED display shall have independent control for each light bar. The monitor shall be able to output RFID identification The monitor shall be capable of displaying the current thermistor heat value. The monitor shall be capable of displaying the Bluetooth information The monitor shall be capable of being read in ambient light. The Controller shall be capable of switching between at least 3 different devices.

The The The The The ISSC shall contain 4 sonar sensors. Sonar sensor shall be capable of operation between 3. 5 and 5. 5 Volts ISSC shall contain 2 heat sensors. heat sensor shall be capable of outputting between 0 and 5 volts. ISSC shall contain 1 RFID reader shall operate at a range of 860 MHz to 906 MHz RFID shall utilize a built in antenna. RFID shall operate off of a 120 V power supply ISSC shall contain 5 different LED color bars. ISSC LEDs shall not be degraded by operation at maximum radiance. ISSC LEDs shall operate off of a 12 volt power supply. monitor shall be viewable from any point in the room monitor shall be color monitor shall be able to output RFID identification monitor shall be capable of displaying the current thermistor heat value. monitor shall be capable of displaying the Bluetooth information ISSC shall include a Bluetooth antenna. controller will be encased in such a way as to protect from damage.

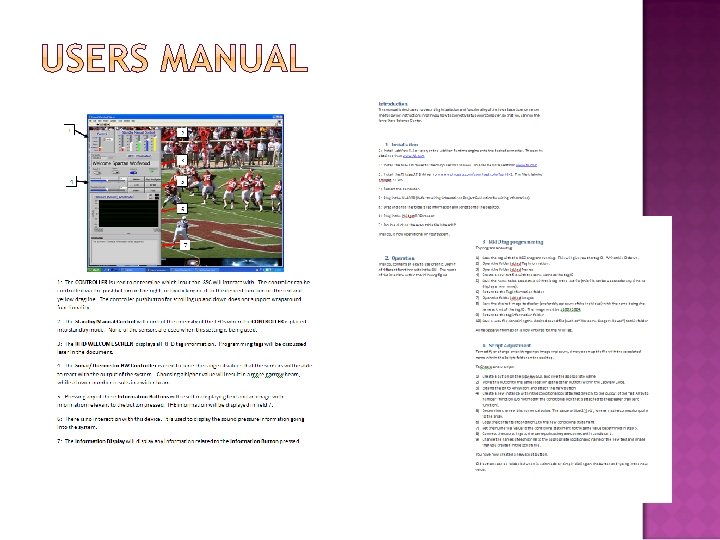

Project Evaluation User Manual Scripts Test Results

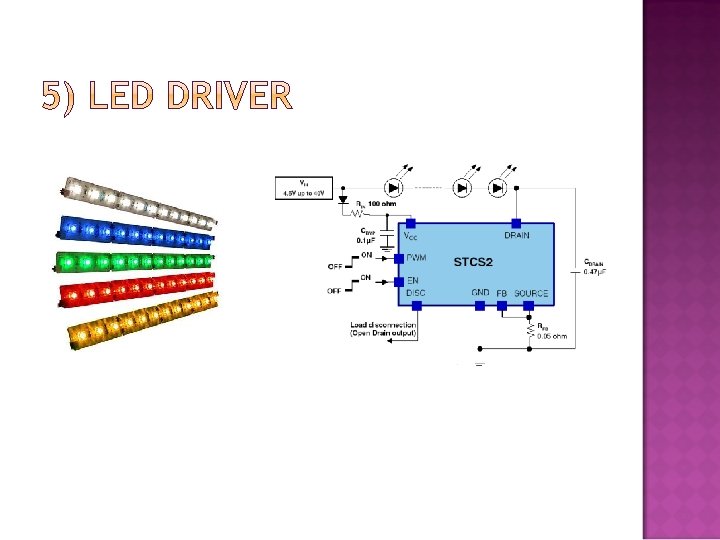

Item Description LED Driver Therm. Driver Sonar LED (RED) LED (Blue) LED (White) LED (Green) LED (Amber) LED Total DAC Thermistor Part STC 2 INA 330 Maxbotix LV-EZ 1 N/A N/A N/A Part # 49706560 -1 -ND 296 -13861 -1 -ND SEN-00639 N/A N/A N/A NI USB-6008 (Unknown) N/A (Unknown) Cost Per Unit Total Units Total Cost ($5. 07) 8 ($40. 56) ($3. 83) 2 ($7. 66) ($24. 95) 4 ($99. 80) ($10. 45) 3 ($31. 35) ($14. 99) 2 ($29. 98) ($19. 99) 2 ($39. 98) ($15. 99) 2 ($31. 98) ($10. 45) 3 ($31. 35) ($71. 87) $12. 00 ($164. 64) $0 1 $0. 00 $0 2 $0. 00 TOTAL Difference Item DAC LED Driver Sonar Thermistor Driver Website www. ni. com www. cconcept. com www. digikey. com http: //sparkfun. com/commerce/product_info. php? products_id=639 Unknown - Product donated by Ahern Heating and Plumbing www. digikey. com 41 ($312. 66) ($162. 66) Total Cost LED Driver Therm. Driver Sonar LED Total

Task Total Hours Desired Software Development Hardware Development Testing Documentation Actual Effort Budgeted (In Hours) Cost Budget Actual Cost Difference Hours) 270 340 $3, 240. 00 $4, 080. 00 ($840. 00) 120 $1, 440. 00 $0. 00 45 114 $540. 00 $1, 368. 00 ($828. 00) 70 66 $840. 00 $792. 00 $48. 00 35 40 $420. 00 $480. 00 ($60. 00) Totals 270 Team Member: Total Hours Desired Software Development Hardware Development Testing Documentation Total Hours Team Member: Total Hours Desired Software Development Hardware Development Testing Documentation Total Hours 340 $3, 240. 00 $4, 080. 00 ($840. 00) Alex Moran 90 78 18 29 24 149 $936. 00 $216. 00 $348. 00 $288. 00 $1, 788. 00 22 48 18 7 95 $264. 00 $576. 00 $216. 00 $84. 00 $1, 140. 00 20 48 19 9 96 $240. 00 $576. 00 $228. 00 $108. 00 $1, 152. 00 Work Effort June Koo Kang 90 Seung Han You 90 Alex Moran June Koo Kang Seung Han You

§ Timing limitation with DAQ. § § § Several Solutions have been attempted, No practical solutions with available hardware given functional requirments Still waiting for dedicated computer. PCB has not arrived in time.

PWM – Linear to discrete Stages Reason: Limitations of the DAQ-6008 Sound-LED interaction Reason: Timing issues between DAQ and sound acquisition. Sound Output Reason: Computer limitations. Software exists, however drivers were unable to install due to internet problems with the current computer (untested).

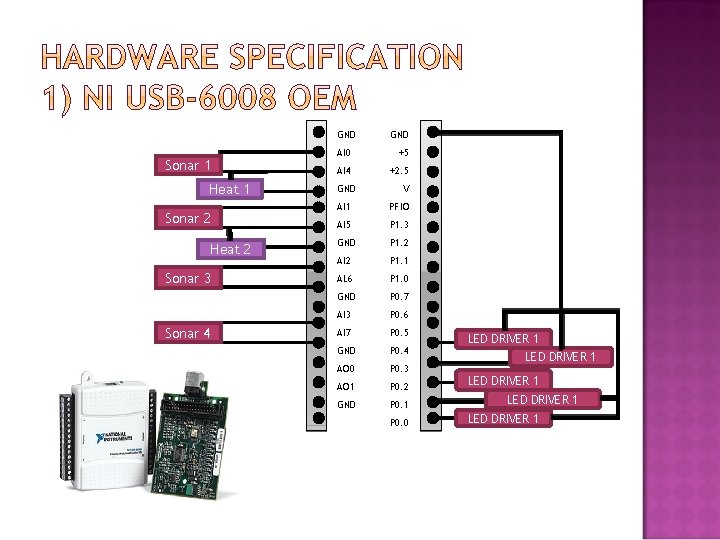

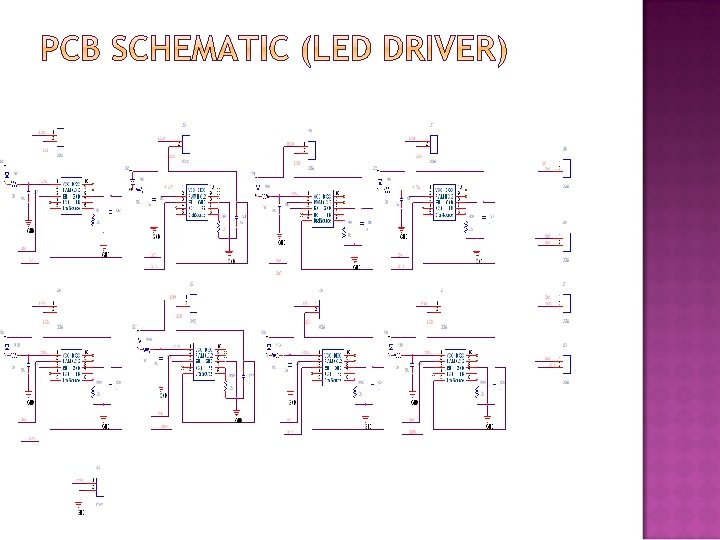

GND Sonar 1 Heat 1 Sonar 2 Heat 2 Sonar 3 Sonar 4 GND AI 0 +5 AI 4 +2. 5 GND V AI 1 PFIO AI 5 P 1. 3 GND P 1. 2 AI 2 P 1. 1 AL 6 P 1. 0 GND P 0. 7 AI 3 P 0. 6 AI 7 P 0. 5 GND P 0. 4 AO 0 P 0. 3 AO 1 P 0. 2 GND P 0. 1 P 0. 0 LED DRIVER 1 LED DRIVER 1

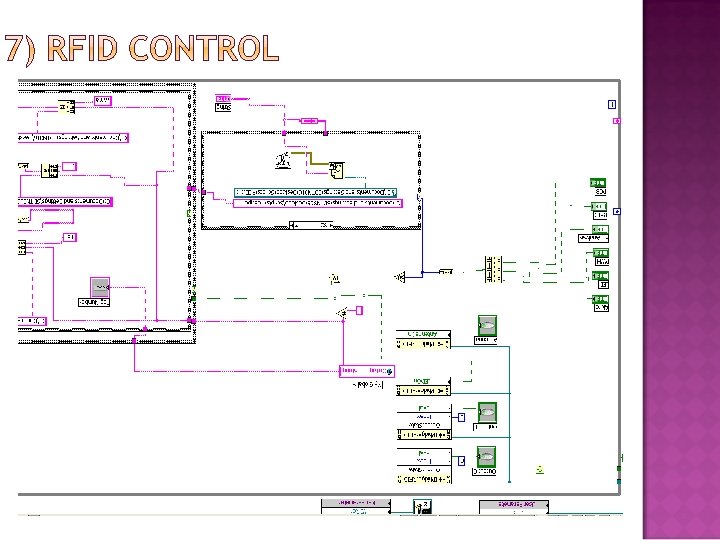

o Lab. View VI hierarchy shows the software hierarchy for the system.

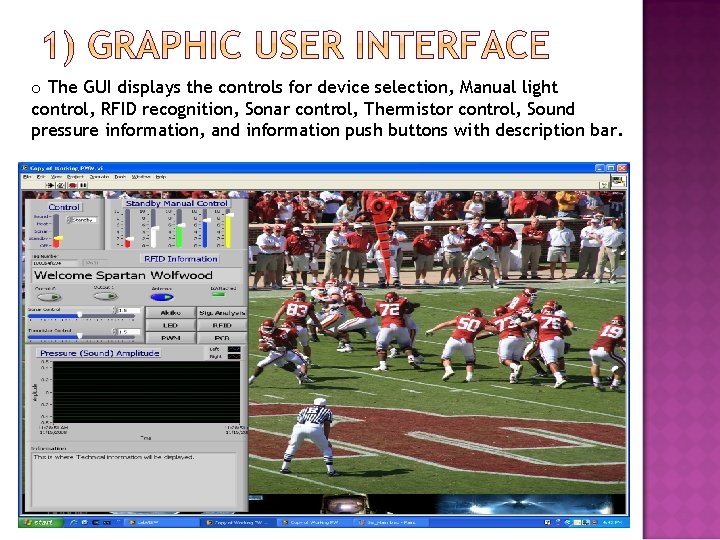

o The GUI displays the controls for device selection, Manual light control, RFID recognition, Sonar control, Thermistor control, Sound pressure information, and information push buttons with description bar.

o. The Control within the GUI selects how the system will be operating.

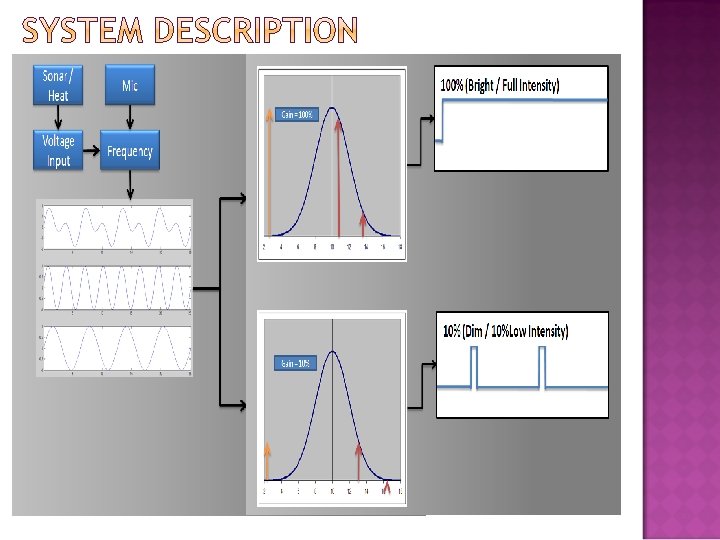

DAC SIGNAL ADDITION DAC PWM VALUE

o. The sound input has a different functionality than the other inputs. OBTAINING A SOUND SAMPLE

o Allows the user to customize the rooms color scheme to their desired preferences.

o Although the functionality of the PWM changes between the sound input, manual control and the DAC inputs, the logic is identical for all instances.

Sonar Sensors Range and functionality are verified. Noise levels are determined for different ranges of each sensor High Noise: Continuous changes in voltage read Medium Noise: Takes some time to find distance Low Noise: Distance is found quickly, with little to no signal distortion. Led Light Bars Current and functionality has been verified for each unit. All LED light bars will be operating at 12. 5 volts, driving roughly 2. 5 to 3 amperes of current when on. Average power is dependant on the duty cycle. LED Driver The Driver has been tested using a signal generator functionality. 5 different test points were chosen, and it was verified that noticeable light control occurred. Testing is still in progress for integration. Lights are blinking (computer limitations). Thermistor Resistivity, and functionality has been verified for both thermistors. Temperatures were checked and verified between the two devices in different ambient temperatures, and with applied heat. DAQ-6008 Input functionality has been verified. Resolving output capability. Sound input capability has been verified. Sound output is in progress for the RFID. A redesign is necessary for the functionality of the sound to light functionality.

While this project was set out to originally be a smaller scope than other projects (due to the small group size), there were definitely some challenges which needed to be overcome in order to successfully complete the Iowa State Science Center, including the need to completely learn several programs from the ground up, with no prior experience. Despite some small bugs within the system, our group believes that the project was, overall, successful. The only implementation which was not included is expected to be included with the next senior design team, and should be ready for demo by its intended date at Veisha. This project has been good experience for the future workforce. The information applied in developing the system, from the technical aspects, to the documentation, even the teamwork, will be beneficial in all of our future jobs, no matter where they may be.
