Objective Graph reflections on a coordinate plane

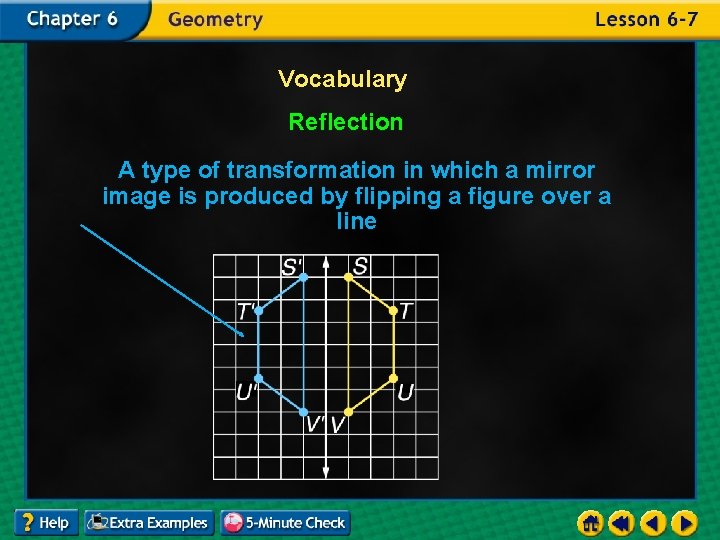

Vocabulary Reflection A type of transformation in which a mirror image is produced by flipping a figure over a line
Vocabulary Line of reflection The line a figure is flipped over in a reflection y-axis
Vocabulary Transformation A mapping of a geometric figure
Example 1 Draw a Reflection Example 2 Reflect a Figure over the x-axis Example 3 Reflect a Figure over the y-axis

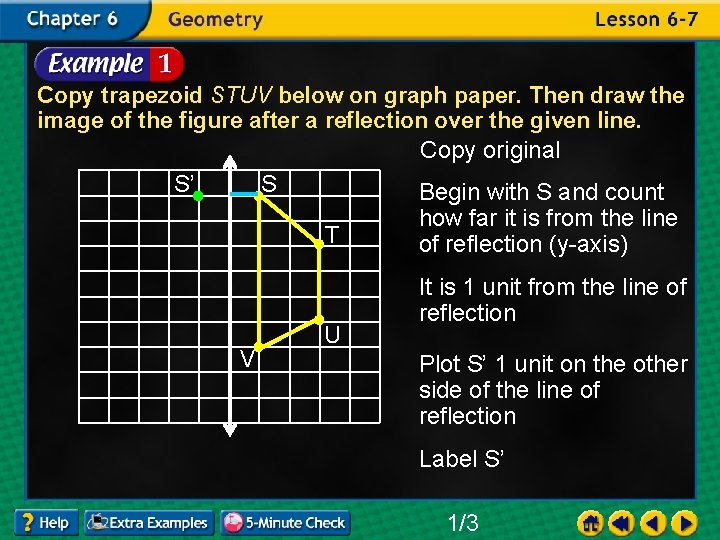

Copy trapezoid STUV below on graph paper. Then draw the image of the figure after a reflection over the given line. Copy original S’ S Begin with S and count how far it is from the line T of reflection (y-axis) V U It is 1 unit from the line of reflection Plot S’ 1 unit on the other side of the line of reflection Label S’ 1/3
Copy trapezoid STUV below on graph paper. Then draw the image of the figure after a reflection over the given line. S’ S T’ V T U Start at T and count how far it is from the line of reflection (y-axis) It is 3 units from the line of reflection Plot T’ 3 units on the other side of the line of reflection Label T’ 1/3

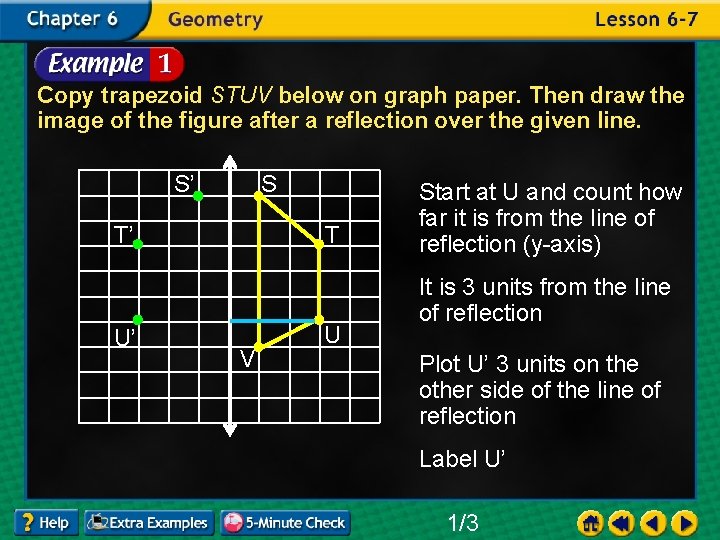

Copy trapezoid STUV below on graph paper. Then draw the image of the figure after a reflection over the given line. S’ S T’ U’ V T U Start at U and count how far it is from the line of reflection (y-axis) It is 3 units from the line of reflection Plot U’ 3 units on the other side of the line of reflection Label U’ 1/3
Copy trapezoid STUV below on graph paper. Then draw the image of the figure after a reflection over the given line. S’ S T’ U’ V’ V T U Start at V and count how far it is from the line of reflection (y-axis) It is 1 unit from the line of reflection Plot V’ 1 unit on the other side of the line of reflection Label V’ 1/3
Copy trapezoid STUV below on graph paper. Then draw the image of the figure after a reflection over the given line. Answer: S’ S T’ U’ V’ V T U Connect the new lines 1/3
Graph quadrilateral EFGH with vertices E(– 4, 4), F(3, 3), G(4, 2) and H(– 2, 1). Then graph the image of EFGH after a reflection over the x–axis and write the coordinates of its vertices. Plot the 4 coordinates E E(-4, 4) Label E F(3, 3) Label F G G(4, 2) Label G H H(-2, 1) Label H Connect the dots in order that was plotted 2/3
Graph quadrilateral EFGH with vertices E(– 4, 4), F(3, 3), G(4, 2) and H(– 2, 1). Then graph the image of EFGH after a reflection over the x–axis and write the coordinates of its vertices. Identify the line of E reflection F H G x-axis 2/3
Graph quadrilateral EFGH with vertices E(– 4, 4), F(3, 3), G(4, 2) and H(– 2, 1). Then graph the image of EFGH after a reflection over the x–axis and write the coordinates of its vertices. Copy reflection E Begin with E and count F how far it is from the line of reflection (x-axis) G It is 4 units from the line H of reflection E’ Plot E’ 4 units on the other side of the line of reflection Label E’ 2/3
Graph quadrilateral EFGH with vertices E(– 4, 4), F(3, 3), G(4, 2) and H(– 2, 1). Then graph the image of EFGH after a reflection over the x–axis and write the coordinates of its vertices. Begin with F and count how far it is from the line E of reflection (x-axis) F H E’ F’ G It is 3 units from the line of reflection Plot F’ 4 units on the other side of the line of reflection Label F’ 2/3
Graph quadrilateral EFGH with vertices E(– 4, 4), F(3, 3), G(4, 2) and H(– 2, 1). Then graph the image of EFGH after a reflection over the x–axis and write the coordinates of its vertices. Begin with G and count how far it is from the line E of reflection (x-axis) F H E’ F’ G G’ It is 2 units from the line of reflection Plot G’ 2 units on the other side of the line of reflection Label G’ 2/3
Graph quadrilateral EFGH with vertices E(– 4, 4), F(3, 3), G(4, 2) and H(– 2, 1). Then graph the image of EFGH after a reflection over the x–axis and write the coordinates of its vertices. Begin with H and count how far it is from the line E of reflection (x-axis) F H H’ E’ F’ G G’ It is 1 unit from the line of reflection Plot H’ 1 unit on the other side of the line of reflection Label H’ 2/3
Graph quadrilateral EFGH with vertices E(– 4, 4), F(3, 3), G(4, 2) and H(– 2, 1). Then graph the image of EFGH after a reflection over the x–axis and write the coordinates of its vertices. Connect the new lines in order E F H H’ E’ F’ G G’ 2/3
Graph quadrilateral EFGH with vertices E(– 4, 4), F(3, 3), G(4, 2) and H(– 2, 1). Then graph the image of EFGH after a reflection over the x–axis and write the coordinates of its vertices. E’(-4, -4) E F F’(3, -3) H H’ G’ G E’ F’ G’(4, -2) H’(-2, -1) Answer: Must have the graph AND the coordinates 2/3
Graph quadrilateral QUAD with vertices Q(2, 4), U(4, 1), A(– 1, 1), and D(– 3, 3). Then graph the image of QUAD after a reflection over the x–axis, and write the coordinates of its vertices. Answer: Q'(2, – 4), U'(4, – 1), A'(– 1, – 1), and D'(– 3, – 3). 2/3
Graph trapezoid ABCD with vertices A(1, 3), B(4, 0), C(3, – 4), and D(1, – 2). Then graph the image of ABCD after a reflection over the y–axis, and write the coordinates of its vertices. Plot the 4 coordinates D C A B A(1, 3) Label A B(4, 0) Label B C(3, -4) Label C D(1, -2) Label D Connect the dots in order that was plotted 3/3
Graph trapezoid ABCD with vertices A(1, 3), B(4, 0), C(3, – 4), and D(1, – 2). Then graph the image of ABCD after a reflection over the y–axis, and write the coordinates of its vertices. Identify the line of reflection A D C y-axis B 3/3
Graph trapezoid ABCD with vertices A(1, 3), B(4, 0), C(3, – 4), and D(1, – 2). Then graph the image of ABCD after a reflection over the y–axis, and write the coordinates of its vertices. Copy reflection A’ D C A B Begin with A and count how far it is from the line of reflection (y-axis) It is 1 unit from the line of reflection Plot A’ 1 unit on the other side of the line of reflection Label A’ 3/3
Graph trapezoid ABCD with vertices A(1, 3), B(4, 0), C(3, – 4), and D(1, – 2). Then graph the image of ABCD after a reflection over the y–axis, and write the coordinates of its vertices. Begin with B and count how far it is from the line A’ A of reflection (y-axis) B’ D C B It is 4 units from the line of reflection Plot B’ 4 units on the other side of the line of reflection Label B’ 3/3
Graph trapezoid ABCD with vertices A(1, 3), B(4, 0), C(3, – 4), and D(1, – 2). Then graph the image of ABCD after a reflection over the y–axis, and write the coordinates of its vertices. Begin with C and count how far it is from the line A’ A of reflection (y-axis) B’ D C C’ B It is 3 units from the line of reflection Plot C’ 3 units on the other side of the line of reflection Label C’ 3/3
Graph trapezoid ABCD with vertices A(1, 3), B(4, 0), C(3, – 4), and D(1, – 2). Then graph the image of ABCD after a reflection over the y–axis, and write the coordinates of its vertices. Begin with D and count how far it is from the line A’ A of reflection (y-axis) B’ D’ D C C’ B It is 1 unit from the line of reflection Plot D’ 1 units on the other side of the line of reflection Label D’ 3/3
Graph trapezoid ABCD with vertices A(1, 3), B(4, 0), C(3, – 4), and D(1, – 2). Then graph the image of ABCD after a reflection over the y–axis, and write the coordinates of its vertices. A’ B’ D’ D C C’ A Connect the new lines in order B 3/3

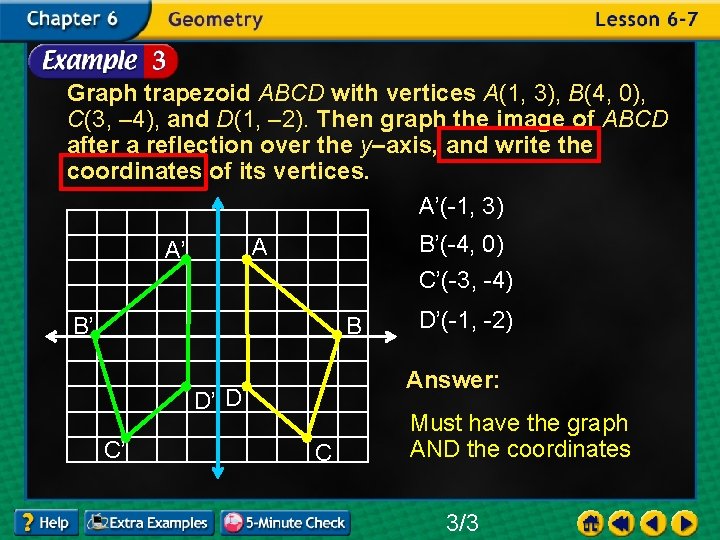

Graph trapezoid ABCD with vertices A(1, 3), B(4, 0), C(3, – 4), and D(1, – 2). Then graph the image of ABCD after a reflection over the y–axis, and write the coordinates of its vertices. A’(-1, 3) A’ B’ D’ D C C’ A B’(-4, 0) C’(-3, -4) B D’(-1, -2) Answer: Must have the graph AND the coordinates 3/3
Graph quadrilateral ABCD with vertices A(2, 2), B(5, 0), C(4, – 2), and D(2, – 1). Then graph the image of ABCD after a reflection over the y–axis, and write the coordinates of its vertices. Answer: A'(– 2, 2), B'(– 5, 0), C'(– 4, – 2), and D'(– 2, – 1). 3/3
Assignment Lesson 6: 7 Reflections 4 - 24 All
ARCHITECTURE Copy and complete the office floor plan shown below so that the completed office has a horizontal line of symmetry. You can reflect the half of the office floor plan shown over the indicated horizontal line. Find the distance from each vertex on the figure to the line of reflection. Then plot a point the same distance away on the opposite side of the line. Connect vertices as appropriate. Answer: 4/4
* GAMES Copy and complete the game board shown below so that the completed game board has a vertical line of symmetry. Answer: 4/4
