Clemson ECE Laboratories ECE 311 – Electronics Lab I Pre-labs for ECE 311 Created by Steven Chambers in Fall 2012 Last Updated: 12/20/2012 1

Clemson ECE Laboratories LABORATORY 0 – LABORATORY DEMONSTRATION 2

Clemson ECE Laboratories Introduction to Laboratory 0 • Curve Tracer – Plots I-V curve for two and three terminal devices – Can plot a family of curves for different bias conditions – Used in this lab to give characteristics of diodes and transistors – Current/Voltage/Power limitations used to prevent destruction of device under test (DUT) 3

Clemson ECE Laboratories Background Information • Bipolar Junction Transistor (BJT) – Three terminal device (Emitter, Base, Collector) – Base current controls Collector-Emitter current – I-V curve • Y-axis: IC • X-axis: VCE • Family of curves represents different IB values • As IB increases, IC increases for the same VCE value 4

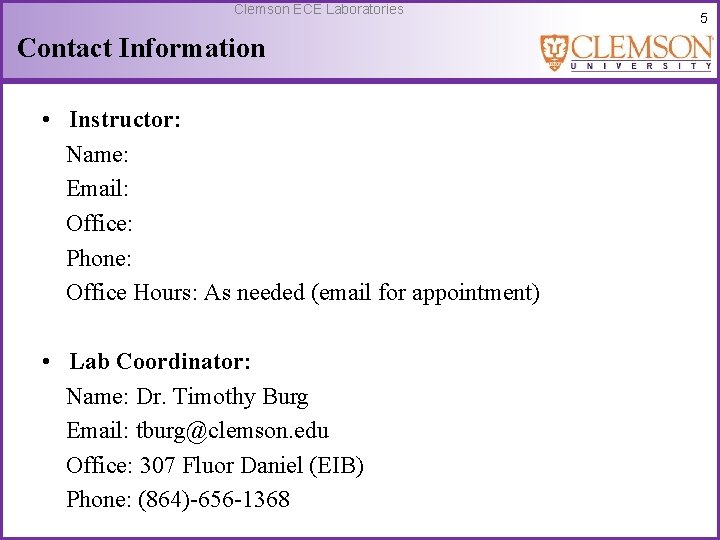

Clemson ECE Laboratories Contact Information • Instructor: Name: Email: Office: Phone: Office Hours: As needed (email for appointment) • Lab Coordinator: Name: Dr. Timothy Burg Email: tburg@clemson. edu Office: 307 Fluor Daniel (EIB) Phone: (864)-656 -1368 5

Clemson ECE Laboratories Mandatory Safety Video 6

Clemson ECE Laboratories Preparations for Next Week • B 2 SPICE – Circuit simulation software – Uses computer models to predict circuit behavior – All parts used are considered ideal • Observed value will differ from simulated value, but still good estimation – Tests most often used in this lab are DC Sweep, Transient testing, and frequency sweep – DC Sweep used for both simulations of next weeks lab 7

Clemson ECE Laboratories Preparations for Next Week • For Part 2: Click Sweeps tab under DC Sweep • Then click Set up Sweeps The dialogue to the right will appear. Use these settings to properly sweep the R from 100 to 10 k ohms. 8

Clemson ECE Laboratories LABORATORY 1 – DIODE CHARACTERISTIC 9

Clemson ECE Laboratories 10 Introduction to Lab 1 • Diode – Allows current to flow in one direction under forward bias • rd – dynamic forward resistance rd = ΔVD/ ΔID (reciprocal of I-V slope) • RD – static forward resistance RD = VD/ID • Vγ – cut-in voltage point where appreciable current conduction begins • n – ideality factor dependent upon physical characteristics of diodes • VBR – breakdown voltage • IS – reverse saturation current that flows under reverse bias • VT – thermal voltage = 0. 0285 V at room temperature - VD + ID

Clemson ECE Laboratories Diode Characteristic • Part 1 A will replicate forward bias on curve tracer • Part 1 B will replicate reverse bias on a Zener diode – Zener diodes have a lower VBR because they are designed to keep a constant voltage drop across it 11

Clemson ECE Laboratories Ideality Factor • “The ideality factor, n, depends on the type of semiconductor material used in the diode, the manufacturing process, the forward voltage, and the temperature. ” • Its value generally varies between 1 and 2. For voltages less than about 0. 5 V, n ~ 2; for higher voltages, n ~ 1. (experiment shows values typically 1. 15 ≤ n ≤ 1. 2) • The ideality factor, n, can readily be found by plotting the diode forward current on a logarithmic axis vs. the diode voltage on a linear axis. 12

Clemson ECE Laboratories Finding Ideality factor, n 13

Clemson ECE Laboratories Cut-in Voltage Vγ: 0. 4 V to 0. 7 V for silicon 0. 2 V to 0. 4 V for germanium “If the applied voltage exceeds Vγ, the diode current increases rapidly. ” 14

Diode Resistance Clemson ECE Laboratories Three diode resistances are commonly calculated: • DC or Static forward resistance, RF or RD • AC or Dynamic forward resistance, rf or rd Applying the diode equation and differentiating • Reverse resistance, rr – the reciprocal of the slope of the reverse characteristic, prior to breakdown 15

Clemson ECE Laboratories Junction Capacitance of Diode ( Cj ) 16

Clemson ECE Laboratories Experiment: Measurement of diode characteristics • Forward I-V Characteristic – Use the curve tracer to obtain the forward characteristics of the silicon 1 N 4004 diode. – follow the steps mentioned in lab manual for selecting Vmax =2 V, Imax = 2 m. A and Pmax =0. 4 W – Fill out table 1. 1 and perform calculations to find RF and rd 17

Clemson ECE Laboratories Reverse I-V Characteristic • Use Zener diode (this one looks transparent) – Note the reverse breakdown voltage (around -14. 6 V) 18

Clemson ECE Laboratories SIMPLE DIODE CIRCUIT Build the circuit Measure the output voltage, V 0 Vary the Vin from 0 V to 5 V for R= 100Ω change R = 1 k Ω and 10 k Ω Fill out table 1. 2 19

Clemson ECE Laboratories Preparations for Next Lab • Post Lab 1 – All questions under Lab Report section (Part 1 and Part 2) should be answered • Pre Lab 2 – Figures 2. 3 and 2. 5 will be simulated – Use a sinusoidal voltage source set to 60 Hz and 4 volt amplitude (8 V peak to peak) – Run transient test for 4 periods (f = 60 Hz T = 1/f start time = 0) 20

Clemson ECE Laboratories LABORATORY 2 – POWER SUPPLY OPERATION 21

Clemson ECE Laboratories Half-wave Rectifier • Diode forward biased for Vin > Vγ • Diode reverse biased for Vin < Vγ • Allows current to conduct for roughly half of AC cycle • Vm = V p - Vγ 22

Clemson ECE Laboratories Full-wave Rectifier • • • D 2 and D 3 forward biased when Vin > 2 Vγ D 1 and D 4 forward biased when Vin < 2 Vγ Vm = Vp – 2 Vγ Output frequency is twice that of input Output does not share common ground with input 23

Clemson ECE Laboratories Filtering • Adding a capacitor in parallel with load resistor creates a filter • Capacitor will charge up on first half of cycle then discharge slowly based on capacitance • This creates a voltage source with ripple • Vr = Vm – Vmin 24

Clemson ECE Laboratories Preparations for Next Lab • Post Lab 2 – 3 questions under Lab Report • Pre Lab 3 – First Design Lab – I will split the class. Half the class will come for the first hour. Other half will come for the second. – Bring your design calculations with you to lab – Please print ECE 311 – Lab 3 Lab Summary page from lab manual and bring with you to next lab. This will be turned in as your post lab prior to leaving lab next week. 25

Clemson ECE Laboratories LABORATORY 3 – POWER SUPPLY DESIGN 26

Clemson ECE Laboratories Power Supply Design Calculations • This lab is to be completed individually • Remember Vin is measured after the source resistor Rs • Fill out Lab Summary sheet and turn in before your leave 27

Clemson ECE Laboratories Preparations for Next Lab • Pre Lab 4 – Simulate circuits 4. 5(a) (Vb = 0 and 2 V), 4. 6(a) (Vb = 0 and 2 V), 4. 7, and 4. 8 – There is an error in the prelab statement. DO NOT SIMULATE FIGURE 4. 4(a). • Lab Report: You are to complete a formal lab report on your choice of Lab 1 -3. You have 2 weeks to complete the report. It is to be submitted electronically before 5 PM on 10/9. – Follow report format in the lab manual and look to the rubric uploaded on blackboard to see how it will be graded 28

Clemson ECE Laboratories LABORATORY 4 – DIODE CLIPPERS AND CLAMPERS 29

Clemson ECE Laboratories Clipper • Circuit that limits the output voltage to either an upper or lower limit (or both) through the use of diodes and voltage sources • Diode begins conducting and holds output to a desired level (V + Vγ in the configuration seen below) • Diode and battery orientation determine whether circuit is positive or negative clipper 30

Clemson ECE Laboratories Clamper • Circuit that shifts the DC value of an input voltage through the use of a diode and capacitor • Diode conducts on negative half cycle to allow capacitor to charge • Once charged, capacitor passes AC signal shifted by the charge built on C • Diode polarity determines positive or negative clamping (positive pictured below) • RC time constant must be much larger than input signal period 31

Clemson ECE Laboratories 32 Note on circuit connection • The NI-Elvis VPS is internally grounded • This means no physical wire connection on your board is required to ground the voltage source Connection already made within NI-Elvis board • For Vb = 0, connect diode straight to ground • For non-zero Vb, connect diode to VPS supply + or supply -

Clemson ECE Laboratories Preparations for Next Lab • Post Lab 4 – 3 questions under Lab Report • Pre Lab 5 – Be familiar with BJT transistor operation and read through lab • I do not require you to bring in graph paper • Remember: Lab report due next week 33

Clemson ECE Laboratories LABORATORY 5 – BIPOLAR JUNCTION TRANSISTOR CHARACTERISTICS 34

Clemson ECE Laboratories 35 Bipolar Junction Transistor • Three terminal device: Collector, Emitter, Base • Collect-Emitter current controlled by B-E current • Four regions of operation {NPN (PNP)}: – Cutoff – Both P-N Junctions reverse biased – Saturation – Both P-N Junctions forward biased – Forward Active – B-E (B-C) forward biased, B-C (B-E) reverse biased – Inverse Active – B-E (B-C) reverse biased, B-C (B-E) P N N P N forward biased P

Clemson ECE Laboratories 36 Output Characteristic Forward Active Saturation Cutoff

Clemson ECE Laboratories Transistor Parameters • • h. FE = IC/IB = β – dc current gain hfe = ΔIC/ΔIB = βo – small signal (ac) current gain hie = ΔVBE/ΔIB = rπ – input resistance hoe = ΔIC/ΔVCE – output conductance hre = ΔVBE/ΔVCE – voltage feedback ratio hie can be approximated from βVT/ICQ VA – Early Voltage 37

Clemson ECE Laboratories Preparations for Next Lab • Post Lab 5 – 6 questions under Lab Report • Pre Lab 6 – Figure 6. 2 DC Sweep to find Q point – Figure 6. 1 Transient analysis for various R – Use transient setup given in pre lab • Remember: Electronic copy of lab report due tonight by 5 pm 38

Clemson ECE Laboratories LABORATORY 6 – BJT COMMON-EMITTER CIRCUIT BIAS 39

Clemson ECE Laboratories Common Emitter Bias Circuit • Emitter is used as a reference point for both input and output • R 1 and R 2 form a bias network to set a desired base current • RC used to set output voltage levels • RE helps reduce circuit variation with β but also reduces AC voltage gain 40

Clemson ECE Laboratories Q-Point • Bias circuit is used to select an operating (Q) point • Q point should be well into the forward active region to get a properly behaving amplifier circuit • When adding a small signal AC voltage, the output voltage will shift with the AC input based on gain • If the Q point is too close to saturation or cutoff, output waveform will distort and circuit will not behave as a proper amplifier 41

Clemson ECE Laboratories Common Emitter Amplifier • AC input signal can be added to base terminal (C 1 used to filter out any DC component) • VO is takes from collector terminal to ground (C 2 once again used to remove DC component) • CE added to increase AC gain; Emitter is shorted to ground for AC – We will explore this more next week in Lab 7 42

Clemson ECE Laboratories Preparations for Next Lab • Post Lab 6 – 4 questions under Lab Report • Pre Lab 7 – Simulate circuit 7. 1 for the 10 different configurations given in the lab manual 43

Clemson ECE Laboratories LABORATORY 7 – BJT COMMON-EMITTER CIRCUIT VOLTAGE GAIN 44

Clemson ECE Laboratories Common Emitter Amplifier • Once Q point is established, small AC signal can be added to base • This signal is amplified and seen at the collector terminal 45

Clemson ECE Laboratories Hybrid-π Equivalent Circuit • • Used to model BJT response to small signal AC input gm = ICQ/VT Ro = VA/ICQ Rπ = β/gm • When applied to overall circuit, can provide small signal voltage gain from input vs output transfer function 46

Clemson ECE Laboratories Effect of Emitter Capacitor • With CE: • Without CE: • With CE, two sides of circuit only share a common ground; without CE, RE adds a feedback loop which produces a voltage divider, reducing Vπ and the gain 47

Clemson ECE Laboratories Frequency Response • Capacitors in this circuit have been selected so they essentially provide 0 impedance at circuit operating frequency. • As frequency is changed, the capacitors start to produce an appreciable impedance; thus, lowering the gain of the circuit. 48

Clemson ECE Laboratories Preparations for Next Lab • Post Lab 7 – 4 Questions under Lab Report • Pre Lab 8 – 2 Hour group design lab – Each student should read through and do design calculations individually and perform simulations • Lab Report 2: Due 11/13 by 5: 00 PM, electronic submission – Pick from Labs 4 -7 49

Clemson ECE Laboratories LABORATORY 8 – BJT COMMON EMITTER DESIGN I 50

Clemson ECE Laboratories 51 Equivalent Circuit • RO ignored • Mesh analysis provides Av • Design Calculations: – – – hib + RE = 235 Ω Rac = 2. 585 k Ω Rdc = 4. 935 k Ω ICQ = 1. 33 m. A VCEQ = 3. 438 V VBB = 1. 014 V – – – – β = 200 IBQ = 6. 649 µA hie = 3. 91 k Ω hib = 19. 55 Ω RE = 215 Ω R 2 = 4. 785 k Ω R 1 = 42. 386 k Ω

Clemson ECE Laboratories Preparations for Next Lab • Post Lab 8: 2 Questions under Lab Report – Do not do a full report for question 1. Simply provide me the design calculations, results, and comparison. • Pre Lab 9: Individual Design Lab – Bring calculations with you to next lab – Print Lab Summary to turn in as Post Lab 9 52

Clemson ECE Laboratories LABORATORY 9 – BJT COMMON EMITTER DESIGN II 53

Clemson ECE Laboratories Equivalent Circuit • Ro ignored • Mesh analysis • • • Vπ = V s Vo = -(RC//RL)gm. Vπ Av = -(RC//RL)gm gm = ICQ/VT When RC = RL, Av = -RCICQ/2 VT 54

Clemson ECE Laboratories Design Calculations • • • Rac = 2. 35 k Ω ICQ = 1. 277 m. A VCEQ = 3 V VBB = 1. 014 V β = 200 IBQ = 6. 649 A hie = 4. 073 k Ω hib = 20. 37 Ω Rdc = 5. 797 k Ω RE = 1. 097 k Ω • R 2 = 28. 26 k Ω • R 1 = 97. 92 k Ω 55

Clemson ECE Laboratories Preparations for Next Lab • Post Lab 9 is to be turned in before you leave today • Pre Lab 10 – Read through the lab and be familiar with FET operation 56

Clemson ECE Laboratories LABORATORY 10 – FIELD EFFECT TRANSISTORS 57

Clemson ECE Laboratories 58 JFET Operation • N-Channel JFET – P-type gates – N-type channel with ohmic contacts at both ends – P-Channel switches doping type positions • Current flow is controlled by gate bias – VGS = 0 – Depletion regions exist between reverse biased p-n junctions, but a channel of n-type material allows current flow from drain to source – VGS << 0 – Depletion region extends completely across n-type region cutting off current flow gate

Clemson ECE Laboratories JFET Equations • Linear Region – IDS = Kn [2(VGS – VP) VDS – VDS 2] – Where Kn = IDSS/VP 2 – IDSS – 0 Voltage current VP – pinchoff voltage • Saturation Region – IDS = Kn(VGS(Sat))2 59

Clemson ECE Laboratories Preparations for Next Lab • Post Lab 10 – 3 questions under Lab Report • Pre Lab 11 – Simulate Figure 11. 6 60

Clemson ECE Laboratories LABORATORY 11 – FET BIAS AND AMPLIFICATION 61

Clemson ECE Laboratories 62 JFET Amplifier • Similar circuit layout to BJT amplifier circuits – Common-drain analogous to Common-emitter – Common-source analogous to Common-collector • Voltage controlled device with negligible current draw into gate – Only reverse saturation current of p-n junctions will flow Common-source Common-drain

Clemson ECE Laboratories JFET Small Signal AC Model • gm = ΔID/ΔVGS • rd = d. VDS/d. ID • Amplification – μ = g m rd • When applied to common-drain circuit: • If RS = 0 or bypassed – Av = gm(rd||RD) 63

Clemson ECE Laboratories Preparations for Next Lab • Post Lab 11 – 3 questions under Lab Report • Pre Lab 12 – Be familiar with logic gate operation – Simulate both CMOS inverter and NAND gate 64

Clemson ECE Laboratories LABORATORY 12 – BASIC LOGIC CIRCUITS 65

Clemson ECE Laboratories CMOS Logic • Complementary Metal Oxide Semiconductor (CMOS) – Utilizes both p. MOS and n. MOS transistors • Currently the most widely used technology for logic gates • CMOS has helped push speeds faster and sizes smaller due to the ever improving transistor technology that allows lower voltage operation and smaller gate sizes 66

Clemson ECE Laboratories CMOS Inverter • p. MOS transistor source tied to VCC • n. MOS transistor source tied to GND • Both gates tied together and used as input • Both drains tied together and used as output • When In = 5 V: p. MOS off, n. MOS on, Out grounded • When In = 0 V: p. MOS on, n. MOS off, Out tied to +5 67

Clemson ECE Laboratories Slew Rate • Slew rate refers to the rate at which signals rise and fall • Rise and fall times determine how fast a circuit can operate (maximum operating frequency) • Real signals do not instantaneously switch from high to low • Transition times can lead to circuit glitches or missed data 68
