Clear Way RX Therapeutic Perfusion Catheter Clear Way

Clear. Way™ RX Therapeutic Perfusion Catheter

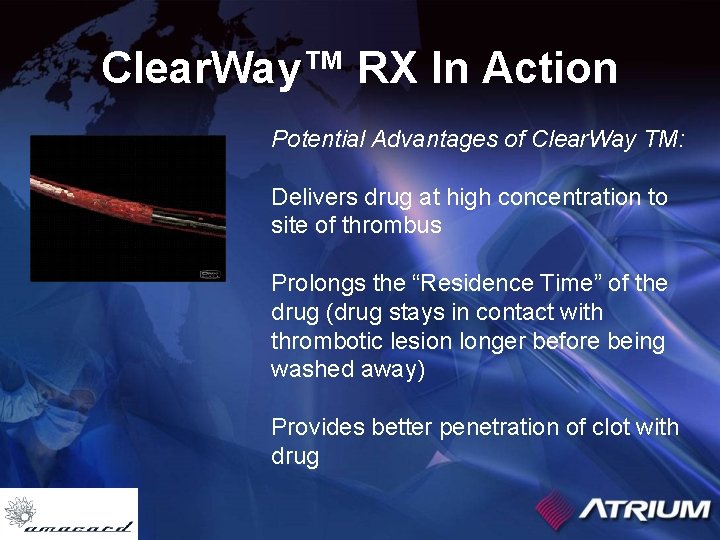

Clear. Way™ RX In Action Potential Advantages of Clear. Way TM: Delivers drug at high concentration to site of thrombus Prolongs the “Residence Time” of the drug (drug stays in contact with thrombotic lesion longer before being washed away) Provides better penetration of clot with drug

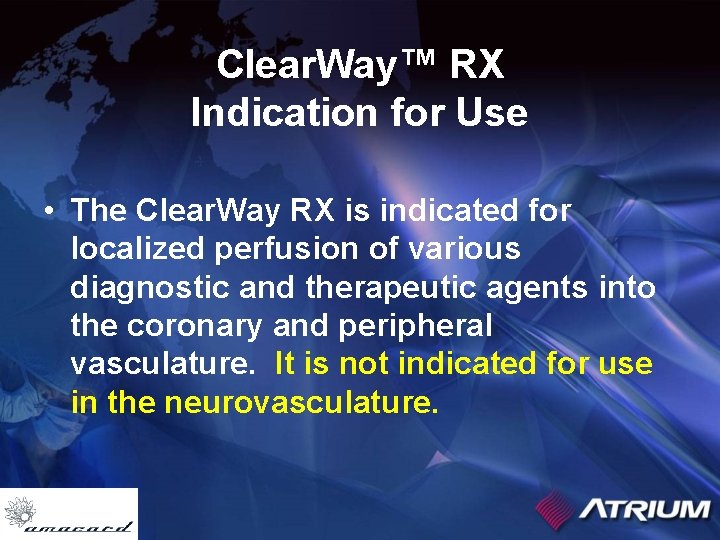

Clear. Way™ RX Indication for Use • The Clear. Way RX is indicated for localized perfusion of various diagnostic and therapeutic agents into the coronary and peripheral vasculature. It is not indicated for use in the neurovasculature.

OCI Therapeutics Occlusion ● Compression ● Infusion • Occlusion – Occlusion of the lumen during inflation of the atraumatic Clear. Way RX balloon allows for maximized drug penetration without dilution by blood flow. • Compression – Compression of thrombus at the treatment site improves permeability of drug into the target zone. • Infusion – Infusion throughout the entire length of the balloon provides localized delivery of the drug for enhanced therapeutic effect.

Clear. Way RX Therapeutic Perfusion Catheter • • • 134 cm Catheter Working Length. 014” Guidewire Compatible 6 & 7 Fr Guide Catheter Compatible 4 & 5 Fr Introducer Sheath Compatible 1 -4 atm Infusion Pressure 5 -7 ml/min Infusion Rate

Clear. Way RX Sizes Balloon Diameters • 1. 0 mm* • 1. 5 mm* • 2. 0 mm* • 2. 5 mm* • 3. 0 mm* • 3. 5 mm • 4. 0 mm * Sizes Currently Available Balloon Lengths • 10 mm • 15 mm • 20 mm* • 30 mm • 40 mm • 50 mm

Clear. Way™ RX Therapeutic Perfusion Catheter amacord Gmb. H www. amacord. at
