Clear Way Clear Way ECONOMICAL ROAD LED LUMINAIRE

Clear. Way

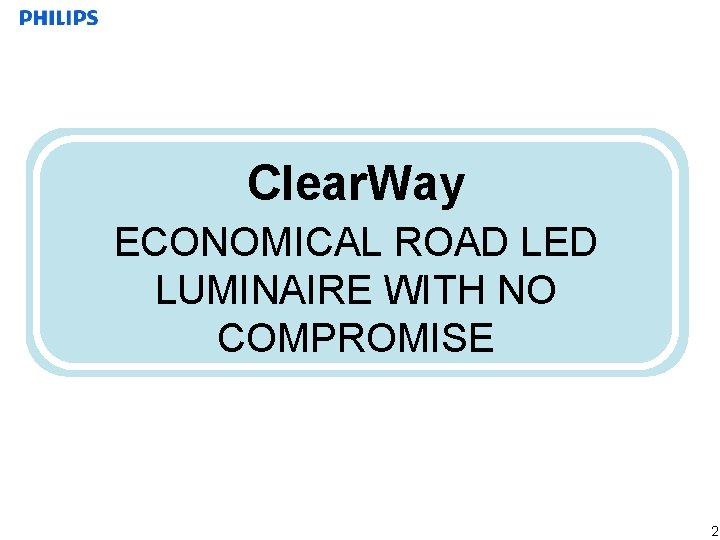

Clear. Way ECONOMICAL ROAD LED LUMINAIRE WITH NO COMPROMISE 2

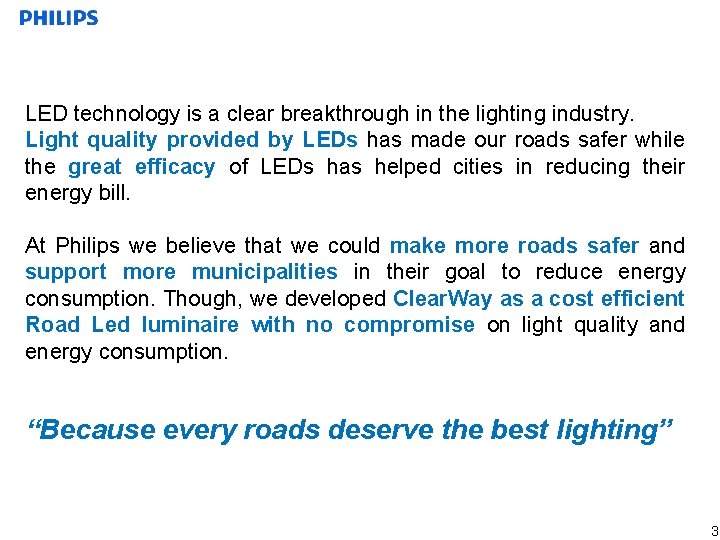

LED technology is a clear breakthrough in the lighting industry. Light quality provided by LEDs has made our roads safer while the great efficacy of LEDs has helped cities in reducing their energy bill. At Philips we believe that we could make more roads safer and support more municipalities in their goal to reduce energy consumption. Though, we developed Clear. Way as a cost efficient Road Led luminaire with no compromise on light quality and energy consumption. “Because every roads deserve the best lighting” 3

Clear. Way has been developed around 3 simple principles BALANCE RELIABILITY SIMPLICITY 4

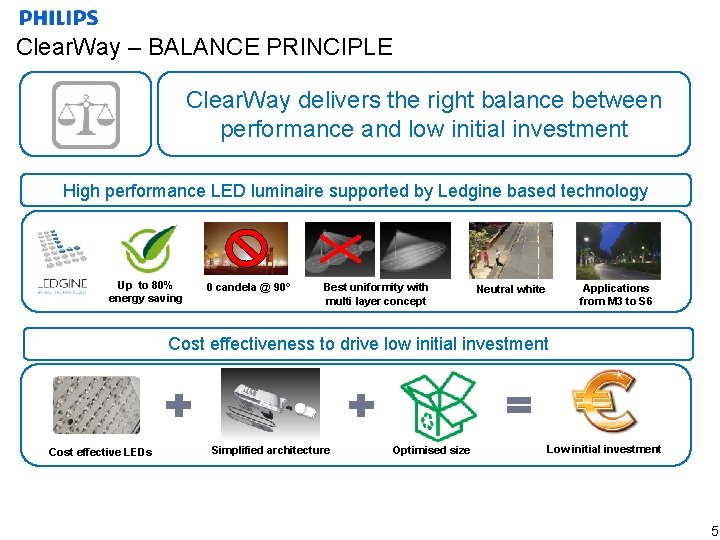

Clear. Way – BALANCE PRINCIPLE Clear. Way delivers the right balance between performance and low initial investment High performance LED luminaire supported by Ledgine based technology Up to 80% energy saving 0 candela @ 90° Best uniformity with multi layer concept Applications from M 3 to S 6 Neutral white Cost effectiveness to drive low initial investment Cost effective LEDs Simplified architecture Optimised size Low initial investment 5

Clear. Way – RELIABILITY PRINCIPLE Clear. Way is a reliable luminaire supplied by a trustworthy brand IN HOUSE DEVELOPMENT PRODUCED IN EUROPE MEET PHILIPS QUALITY STANDARDS PHILIPS WARRANTY PROGRAM RELIABILITY TRUST • Full control of luminaire development • Leveraging from Philips 100 years of experience • Flexibility in delivery • Quick reaction to market demand • No compromise on quality • Clear. Way pass all Philips drastic tests • As any other product, Clear. Way is eligible to Philips warranty program 6

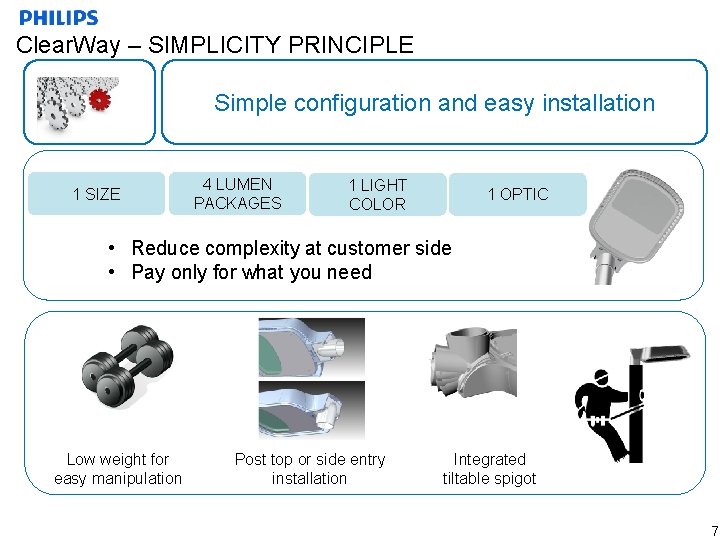

Clear. Way – SIMPLICITY PRINCIPLE Simple configuration and easy installation 1 SIZE 4 LUMEN PACKAGES 1 LIGHT COLOR 1 OPTIC • Reduce complexity at customer side • Pay only for what you need Low weight for easy manipulation Post top or side entry installation Integrated tiltable spigot 7

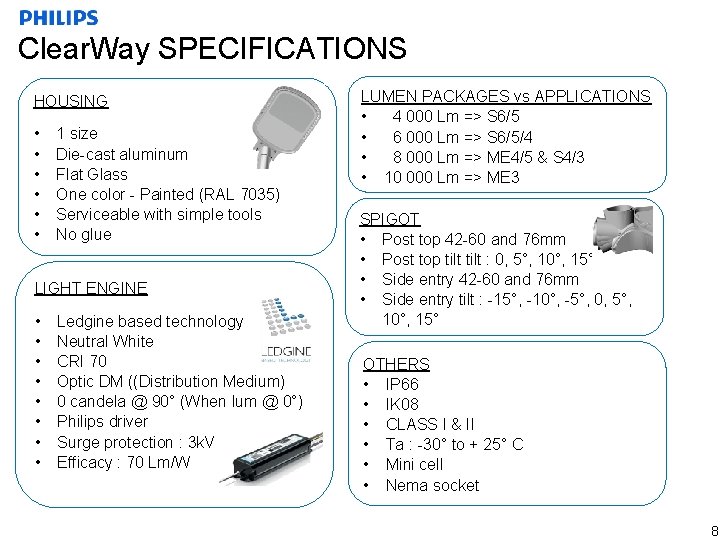

Clear. Way SPECIFICATIONS HOUSING • • • 1 size Die-cast aluminum Flat Glass One color - Painted (RAL 7035) Serviceable with simple tools No glue LIGHT ENGINE • • Ledgine based technology Neutral White CRI 70 Optic DM ((Distribution Medium) 0 candela @ 90° (When lum @ 0°) Philips driver Surge protection : 3 k. V Efficacy : 70 Lm/W LUMEN PACKAGES vs APPLICATIONS • 4 000 Lm => S 6/5 • 6 000 Lm => S 6/5/4 • 8 000 Lm => ME 4/5 & S 4/3 • 10 000 Lm => ME 3 SPIGOT • Post top 42 -60 and 76 mm • Post top tilt : 0, 5°, 10°, 15° • Side entry 42 -60 and 76 mm • Side entry tilt : -15°, -10°, -5°, 0, 5°, 10°, 15° OTHERS • IP 66 • IK 08 • CLASS I & II • Ta : -30° to + 25° C • Mini cell • Nema socket 8

9

10
