Clean Room Lab equipment Gowning Racks 24 width
Clean. Room /Lab equipment
Gowning Racks – 24˝ width, 48˝ to 84˝ length � Designed for efficient storage of garments � Available in stainless steel or electropolished finish – stainless steel construction offers a non-contaminating surface that eliminates particle shedding –electroplolished models feature electrochemically passivated surfaces for the most demanding requirements. single double cantilevered Note: Racks pictured with optional hangers.
Gowning Racks with Wire Shelving components – 14˝ and 24˝ width, 48˝ to 72˝ length, 86˝ height � Incorporates standard wire shelving components with specially designed gown storage options. � An economical rack option in less demanding environments. hooks on 1½˝ centers on all four shelf sides � Available in chrome-plated steel and electropolished stainless steel finish. � Options include shelf markers and casters. hanger slots on 2½˝ centers Note: Racks pictured with optional hangers. 1˝-diameter tubular bar mounted underneath wire shelf
Wall-Mounted Racks with Hanger Slots – “Space Management Solutions” � Racks with Hanger Slots - available in lengths of 48˝ [15 hangers], 60˝ [19 hangers], or 72˝ [23 hangers]. -24˝ width. -Includes open wire top shelf for laminar flow. -Available in electopolished stainless steel or chrome finish � Hangers are optional.

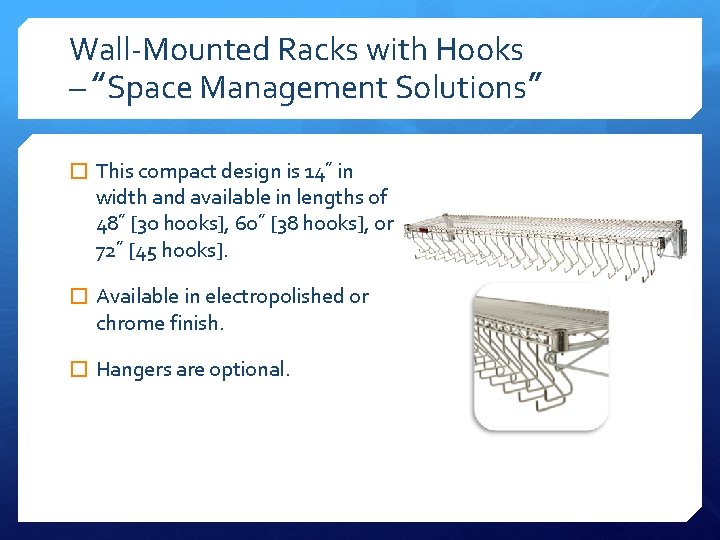

Wall-Mounted Racks with Hooks – “Space Management Solutions” � This compact design is 14˝ in width and available in lengths of 48˝ [30 hooks], 6 o˝ [38 hooks], or 72˝ [45 hooks]. � Available in electropolished or chrome finish. � Hangers are optional.

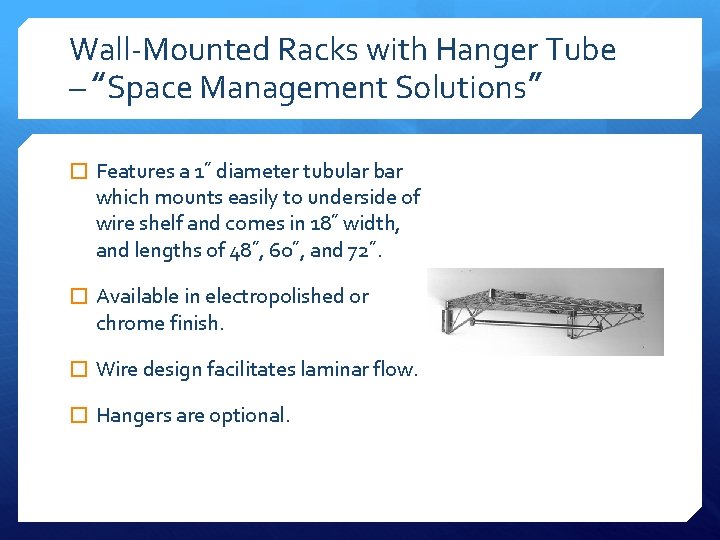

Wall-Mounted Racks with Hanger Tube – “Space Management Solutions” � Features a 1˝ diameter tubular bar which mounts easily to underside of wire shelf and comes in 18˝ width, and lengths of 48˝, 60˝, and 72˝. � Available in electropolished or chrome finish. � Wire design facilitates laminar flow. � Hangers are optional.
Hangers - Chrome, brush finish, or electropolished stainless steel. � Open loop hangers -Works on all gowning racks. � Two piece Hangers -Use with non-removable hanger gowning racks. -Top component is affixed to the gowning rack, while the bottom component is removable. � Closed Loop Hangers -Use with tubular gowning rack, and are not removable from the rack. even our hangers are made right here at our plant in Delaware, USA

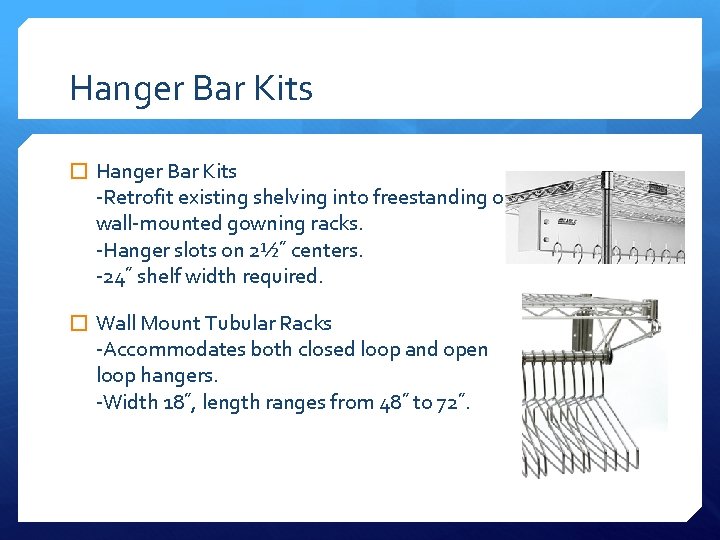

Hanger Bar Kits � Hanger Bar Kits -Retrofit existing shelving into freestanding or wall-mounted gowning racks. -Hanger slots on 2½˝ centers. -24˝ shelf width required. � Wall Mount Tubular Racks -Accommodates both closed loop and open loop hangers. -Width 18˝, length ranges from 48˝ to 72˝.

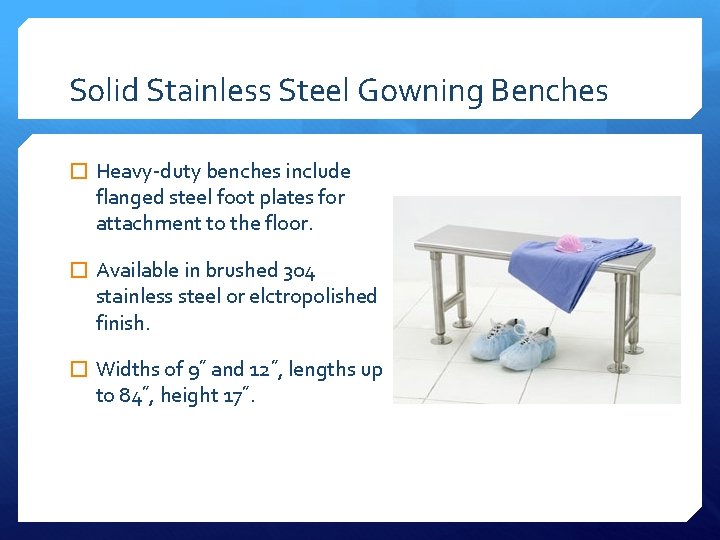

Solid Stainless Steel Gowning Benches � Heavy-duty benches include flanged steel foot plates for attachment to the floor. � Available in brushed 304 stainless steel or elctropolished finish. � Widths of 9˝ and 12˝, lengths up to 84˝, height 17˝.

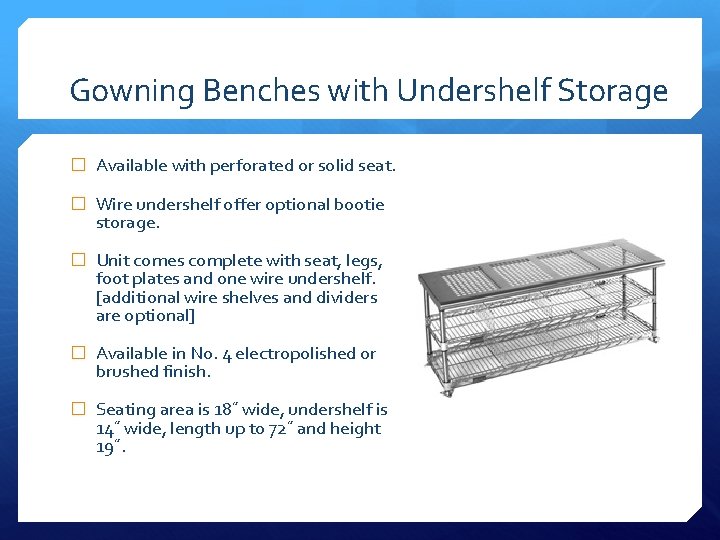

Gowning Benches with Undershelf Storage � Available with perforated or solid seat. � Wire undershelf offer optional bootie storage. � Unit comes complete with seat, legs, foot plates and one wire undershelf. [additional wire shelves and dividers are optional] � Available in No. 4 electropolished or brushed finish. � Seating area is 18˝ wide, undershelf is 14˝ wide, length up to 72˝ and height 19˝.
Wire Gowning Benches � Economical gowning bench with wire shelving components, offers 62% laminar flow. � Perfect for less demanding environments or for use during construction as the room is brought into clean. � Units feature four 18˝ legs with foot plates, one 3 -sided channel frame, and one wire shelf. � Available in 14˝ width, 18˝ height and up to 72˝ lengths.
Wire Shelving � Quad-Truss® Wire Shelving -Patented Quad-Truss® system makes shelves up to 25% stronger -Provides a retaining ledge for increased strength and product retension. � Quad-Adjust® Wire Shelving -Special interlocking corners fit in slots of collars mounted to split sleeves. -Allows the addition or removal of a shelf without disassembling the entire unit. -Features the same strong Quad-Truss® design.

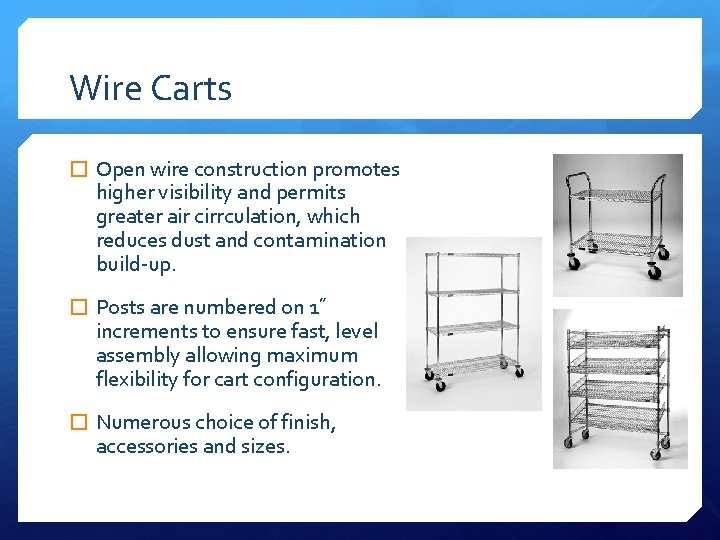

Wire Carts � Open wire construction promotes higher visibility and permits greater air cirrculation, which reduces dust and contamination build-up. � Posts are numbered on 1˝ increments to ensure fast, level assembly allowing maximum flexibility for cart configuration. � Numerous choice of finish, accessories and sizes.
Security Units � Full size and half size models available. � Features Quad-Truss® wire shelving for strength and durability. � Numerous finishes and accessories to choose from. � Stationary or mobile option. � Our Spec. FAB® department can customize any cart to fit your unique environment needs. Custom built for Abbott Labs

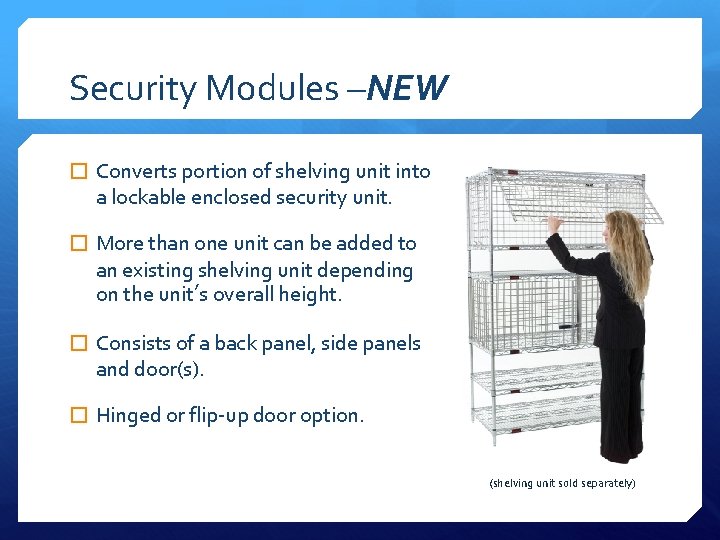

Security Modules –NEW � Converts portion of shelving unit into a lockable enclosed security unit. � More than one unit can be added to an existing shelving unit depending on the unit’s overall height. � Consists of a back panel, side panels and door(s). � Hinged or flip-up door option. (shelving unit sold separately)
Adjustable Post Wire Wall Mount System � The adjustable wall mount provides wall storage and facilitates laminar flow. � Use with standard wire shelves (sold separately). � Designed to hold up to four tiers. � Shelf width from 14˝ to 24˝ and post height from 14˝ to 63˝. � Available in chrome and stainless steel.
adjus. Table® Work Surface System � Create a work surface system in the configuration of your choice by adding overshelves, undeshelves and accessories. � Surfaces are available with solid or perforated tops, brushed or electropolished finish. � Table base available in chrome or stainless steel. � Available sizes are 24˝ 0 r 30˝ width and 36˝ or 60˝ length.

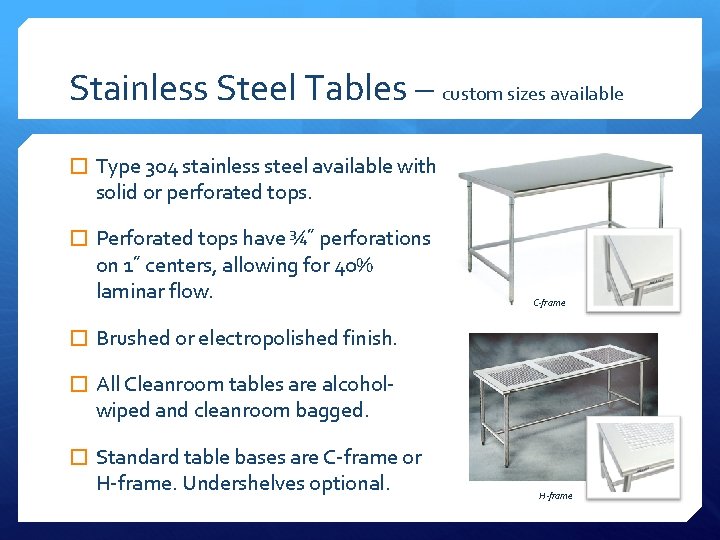

Stainless Steel Tables – custom sizes available � Type 304 stainless steel available with solid or perforated tops. � Perforated tops have ¾˝ perforations on 1˝ centers, allowing for 40% laminar flow. C-frame � Brushed or electropolished finish. � All Cleanroom tables are alcohol- wiped and cleanroom bagged. � Standard table bases are C-frame or H-frame. Undershelves optional. H-frame
Spec-Master® Lab Worktables � 14 or 16 gauge stainless steel top. � Available with an adjustable undershelf or tubular base frame. � Right and left ends are turned down 90˚ providing a flat edge so tables can be placed end to end. � Sound deadening insulation tape runs between hat channel and table top. � Feature our patented uni-lok® system which provides greater strength and a bullnose edge on front and rear (without backsplash) shown with optional drawer and casters
Stainless Steel Wall Mounted Tables � Available in 16 or 14 gauge stainless steel. � Integral sink bowls, drawers, and end splashes available. � Optional Latex sound deadening. � Facilitates small rolling cabinets which can be moved in and out easily. NEW

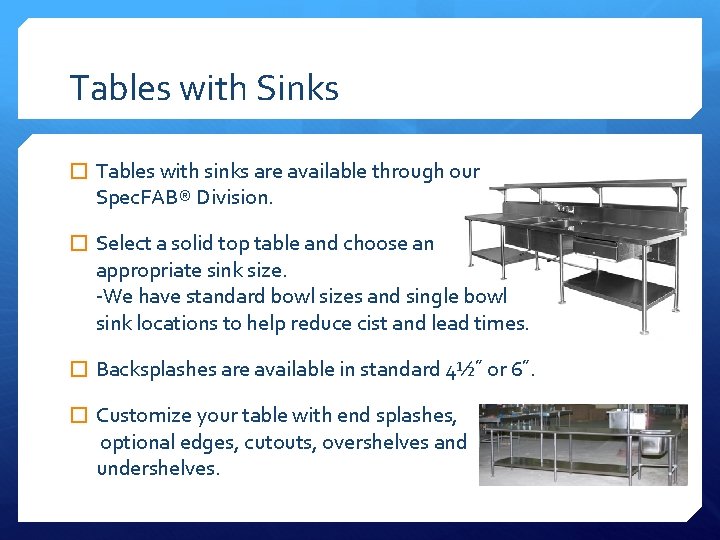

Tables with Sinks � Tables with sinks are available through our Spec. FAB® Division. � Select a solid top table and choose an appropriate sink size. -We have standard bowl sizes and single bowl sink locations to help reduce cist and lead times. � Backsplashes are available in standard 4½˝ or 6˝. � Customize your table with end splashes, optional edges, cutouts, overshelves and undershelves.
Workstations � Open wire workstations offer 62% laminar flow. � Shelves feature Eagle’s patented Quad. Truss® design for superior strength and durability. Mobile Workstation � Mobile Computer Workstations Come standard with keyboard drawer with optional mouse shelf and casters available. Chrome or stainless steel finish. � Stationary Workstations available in electropolished stainless steel or chrome finish. Optional keyboard drawer available. Stationary Workstations feature a C-frame table base

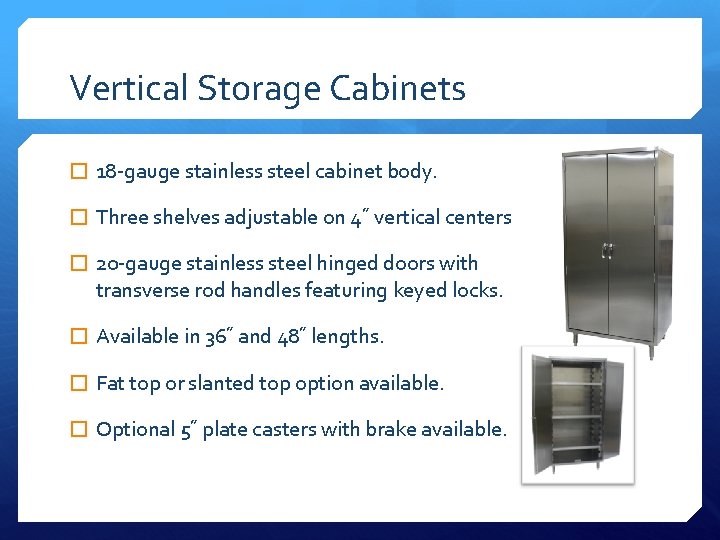

Vertical Storage Cabinets � 18 -gauge stainless steel cabinet body. � Three shelves adjustable on 4˝ vertical centers � 20 -gauge stainless steel hinged doors with transverse rod handles featuring keyed locks. � Available in 36˝ and 48˝ lengths. � Fat top or slanted top option available. � Optional 5˝ plate casters with brake available.
Roll Bag Dispensers – custom sizes also available � An effective means of dispensing rolls of bags or film. � Establish protocol by color of cleanroom waste, avoiding inadvertent mixing of non-compatible items. � Standard unit consists of two 14˝ x 48˝ wire shelves, one 3 -sided channel frame, eight removable dispensing bars and four 74˝ posts with 30˝ outrigger feet for stability � Dispensing bars are adjustable on 1˝ increments. � Available in stainless steel or chrome finish.
Shoe Racks � Wire shelves offer the optimum combination of laminar flow and ventilation for the storage of cleanroom shoes. � Rods and tabs run through the shelves to create cubbies for each pair of shoes. � Optional snap-on plastic shelf markers are available for identification of each storage unit. � Available in electropolished stainless steel and chrome finish. � Footplates are included for fastening the unit to the floor.
Lab Sinks � FN Series Sinks -14 gauge stainless steel. All bowls are 14˝ deep and have 5/8˝ radius corners, both verticle and FN-1 compartment without drainboards horizontal. Legs crossbraced front-to-back and side-to-side for increased stability. One, two, three, or four compartments, with or without FN-1 compartment drainboards. with double drainboards � 314 Series Sinks -Deep drawn sinks have a generous radius and are rectangular for maximum capacity. Legs are galvanized, 1⅝˝ diameter and welded adjacent to sink bowl for maximum stability and support. 314 -3 compartment with double drainboards
Counter Drop-In Self Rim Sinks � 304 series stainless steel. � Come standard with mounting hardware, swivel faucet and 1½˝ basket drain. � Available in one, two, or three compartment. � Faucet holes are punched on 4˝ centers. � Numerous bowl sizes available.
Hand Sinks – “The Clean Leader” � Type 304 stainless steel all-welded construction. � Deep-drawn, one-piece seamless bowls. � Models vary from the traditional hand sink w/faucet to the electronic hand sink with soap and towel dispenser and hot water heater. � Available in wall-mount or pedestal style with foot/knee valves. � Most bowls allow for optional MICROGARD® antimicrobial protection which retards the growth of a broad range of bacteria.
Stainless Steel Countertops � 16 or 14 gauge, type 304 or 316 stainless steel. -Other gauges available to meet the function and chemical resistant demands of highly specialized labs. � Standard front edge square or box marine, unless otherwise specified. � Back and end splashes are manufactured per specification. � Fabricated sink bowls available in most any size and depth with single or multiple compartments. � Both L-shaped and U-shaped tops are available per your drawings.

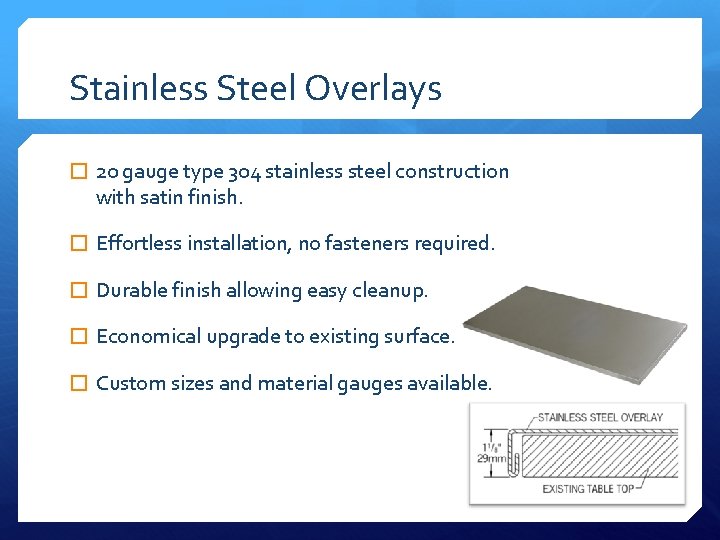

Stainless Steel Overlays � 20 gauge type 304 stainless steel construction with satin finish. � Effortless installation, no fasteners required. � Durable finish allowing easy cleanup. � Economical upgrade to existing surface. � Custom sizes and material gauges available.
