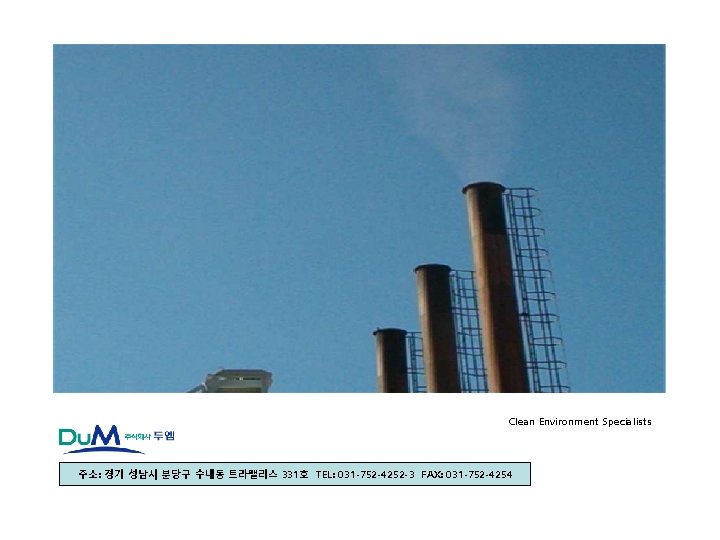

Clean Environment Specialists 331 TEL 031 752 4252

Clean Environment Specialists 주소: 경기 성남시 분당구 수내동 트라팰리스 331호 TEL: 031 -752 -4252 -3 FAX: 031 -752 -4254

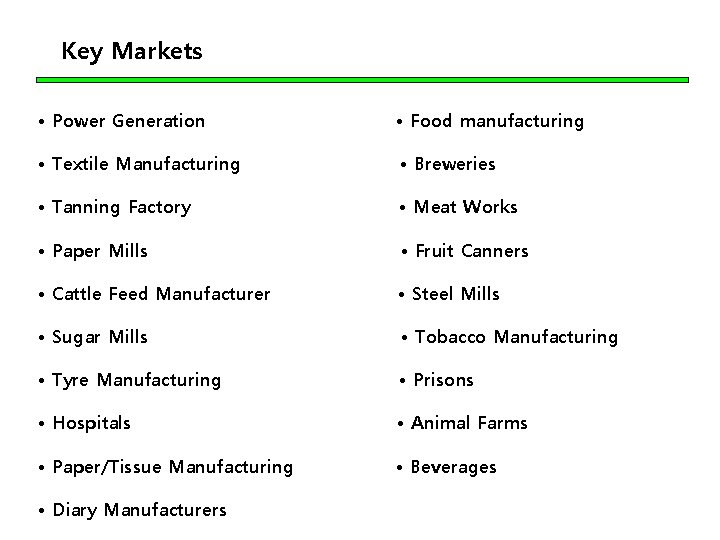

Key Markets • Power Generation • Food manufacturing • Textile Manufacturing • Breweries • Tanning Factory • Meat Works • Paper Mills • Fruit Canners • Cattle Feed Manufacturer • Steel Mills • Sugar Mills • Tobacco Manufacturing • Tyre Manufacturing • Prisons • Hospitals • Animal Farms • Paper/Tissue Manufacturing • Beverages • Diary Manufacturers

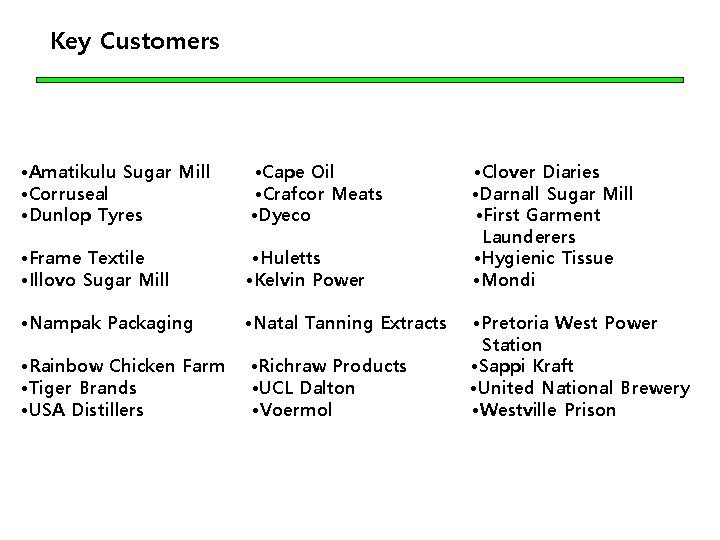

Key Customers • Amatikulu Sugar Mill • Corruseal • Dunlop Tyres • Cape Oil • Crafcor Meats • Dyeco • Frame Textile • Illovo Sugar Mill • Huletts • Kelvin Power • Nampak Packaging • Natal Tanning Extracts • Rainbow Chicken Farm • Tiger Brands • USA Distillers • Richraw Products • UCL Dalton • Voermol • Clover Diaries • Darnall Sugar Mill • First Garment Launderers • Hygienic Tissue • Mondi • Pretoria West Power Station • Sappi Kraft • United National Brewery • Westville Prison

The Catalyst (the product)

Catalyst Fireside Treatment (CFT) Catalyst to Clean Coal, Clean Environment What is a Catalyst ? • A catalyst is a substance which can speed up a reaction • To increase the rate of a reaction you need to increase the number of successful collisions. One possible way of doing this is to provide an alternative way for the reaction to happen which has a lower activation energy. • A catalyst provides an alternative way/route for the reaction with a lower activation energy • You can change the position of the activation energy by adding a catalyst to the reaction • Our product (CFT-303) is a catalyst to clean coal and a clean environment • Maxwell-Boltzmann Distribution best explains the function of a catalyst

Maxwell-Boltzmann Distribution Energy Activation without Catalyst

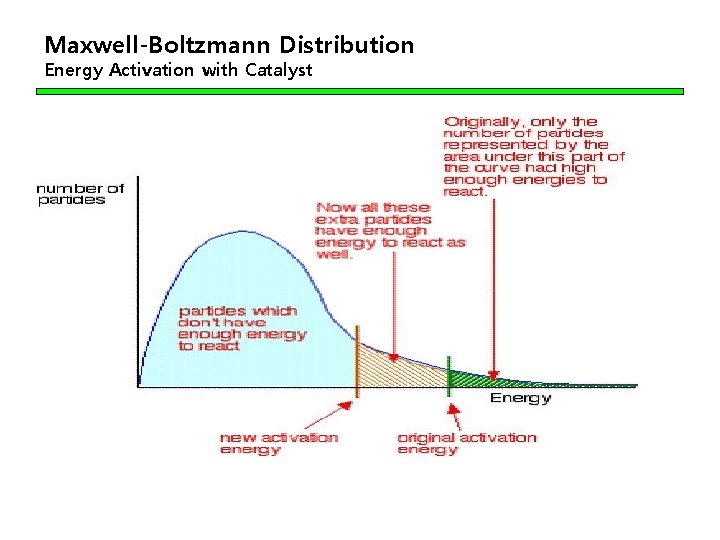

Maxwell-Boltzmann Distribution Energy Activation with Catalyst

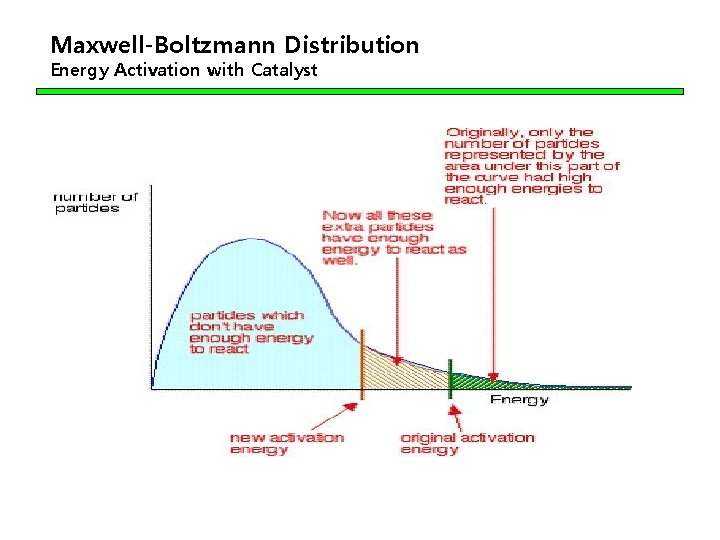

Maxwell-Boltzmann Distribution Energy Activation with Catalyst

Benefits of the Catalyst Clean coal to clean environment and savings • • • Pollutants reduction 40 -75% decrease in Sulphur Dioxide emissions More than 40% decrease in Nitrogen Oxides emissions Reduce residual Carbon content in slag by 7 -13% Reduce Carbon through reduction in coal consumption Carbon in ash is dramatically reduced • Increase coal combustion • 10 -25% reduction in coal consumption • • Improve boiler output Increase thermal efficiency of boilers by 7 -10% Reduce corrosion of coal burners Extend service life of coal burners • • Cost Savings Reduced coal consumption (10 -25%) Reduced maintenance downtime & frequency Reduced maintenance costs

Benefits of the Catalyst Clean coal to clean environment and savings • Reduces or eliminates emission (Sulphur Dioxide and Nitrogen Oxide) • Reduces Carbon Dioxide through less coal consumption • Reduces Carbon in Ash • Improves fuel combustion (coal, wood-bark, bagasse) • Increases efficiency in combustion units, boilers, furnaces, incinerators • Increases efficiency of electrostatic precipitators • Reduces metal corrosion of the combustion units • Reduces or prevents wastes, hard slag build-up, clinkers, black smoke, iron & sulphur in the fly ash, back corona • Non-toxic and non-explosive catalyst

Application of the Catalyst

Various Boilers Water Tube Boilers

Various Boilers Fire Tube Boilers

Various Boilers Travelling Grate Boilers

Pretoria West Power Station Clean white smokes (stacks without precipitators)

Pretoria West Power Station Reduction in Carbon in Ash Test

Illovo Gledhow Sugar Mill Clean Air – black smoke dramatically eliminated

Huletts Sugar Mill Super Tube Boilers (Clinker Reduced / Eliminated)

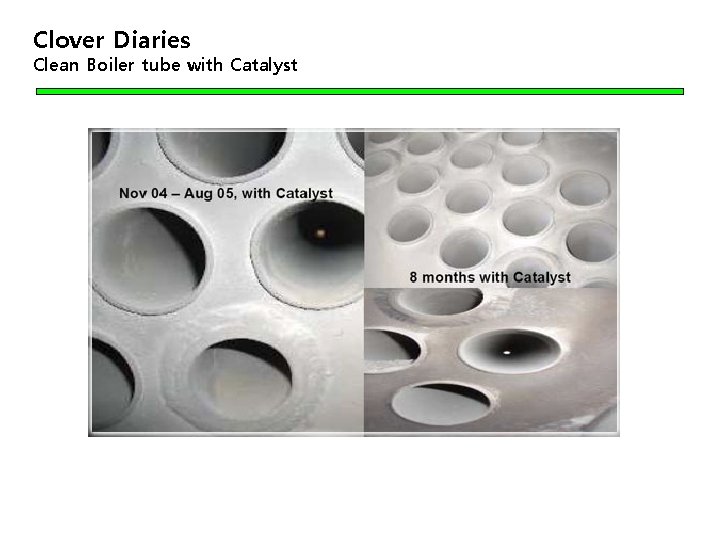

Clover Diaries Clean Boiler tube with Catalyst

Illovo Glendale Sugar Mill Boiler Tubes After 6 weeks of Catalyst treatment

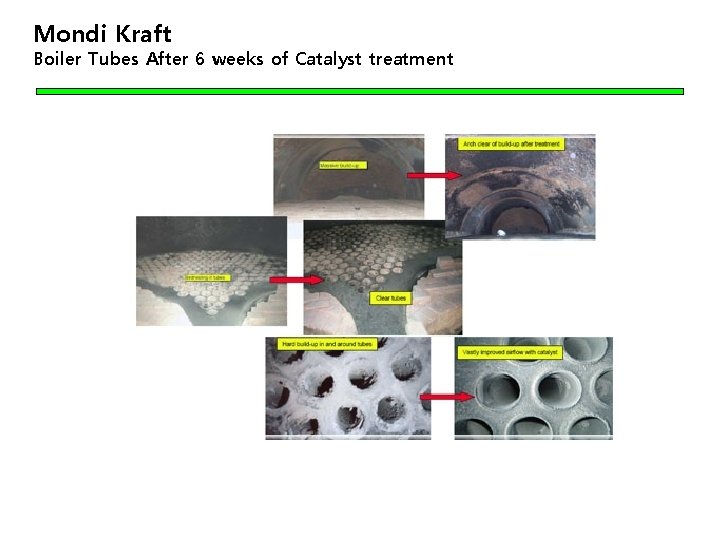

Mondi Kraft Boiler Tubes After 6 weeks of Catalyst treatment

USA Distillers Clean Boiler Tubes After 11 months of Catalyst

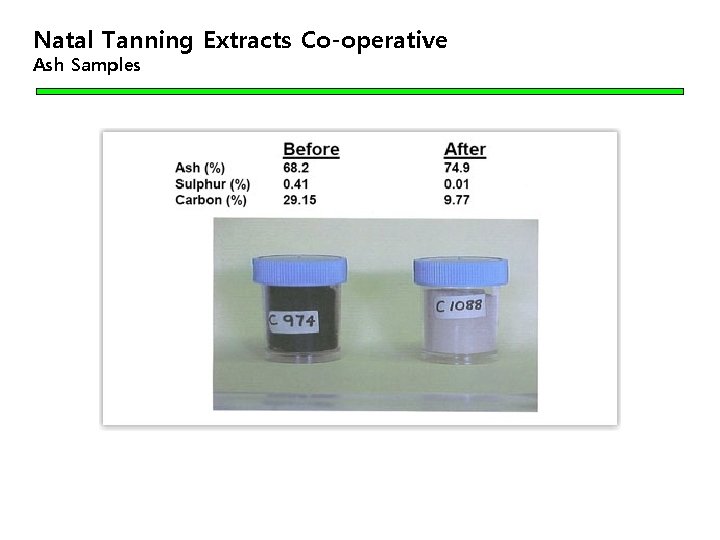

Natal Tanning Extracts Co-operative Ash Samples

First Garment Manufacturing Carbon in Ash Test

Sappi Stanger Superheater tubes

Voermol Bottom Ash Problem

Westville Prison Clean white smoke (without precipitators)

Darnall Sugar Mill Ash Differences

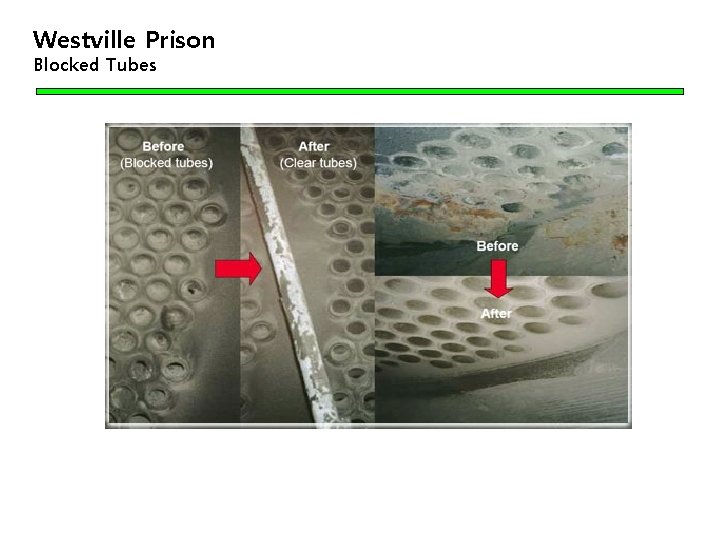

Westville Prison Blocked Tubes

Cape Oil & Margarine Testimonial
