Classification between normal and adventitious lung sounds using deep neural network Lin Li 1, Wenhao Xu 1, Qingyang Hong 1, Feng Tong 2, Jinzhun Wu 3 1 School of Information Science and Technology, Xiamen University, China 2 Key Lab of Underwater Acoustic Communication and Marine Information Technology of MOE, Xiamen University, China 3 The First Affiliated Hospital of Xiamen University, China 1 Acoustic Signal and Speech Processing Lab: http: //speech. xmu. edu. cn 2020/9/17
Outline 1、 Background 2、 Proposed Methods 3、 The Lung Sound Database 4、 Results and Analysis 5、 Conclusion 2 2020/9/17
Background (1) 3 2020/9/17
Background (1) The European Respiratory Society 4 & Computerized Respiratory Sound Analysis (CORSA) Wardship Aim Doctors practice 2020/9/17
Background (2) Ø GMM [Jin 2011] Ø HMM [Matsutake 2013] Ø ANN [Abbas 2010] Ø Wavelet Transform [Pesu 1998] Ø SVM [Abbasi 2013] [Jin 2011] F Jin, S Krishnan, F Sattar. Adventitious sounds identification and extraction using temporal-spectral dominance-based features [J]. Biomedical Engineering, IEEE Transactions on 58(11): 3078 -3087, 2011. [Matsutake 2013] S Matsutake, M Yamashita, S Matsunaga. Discrimination between healthy subjects and patients using lung sounds from multiple auscultation points [C]. Acoustics, Speech and Signal Processing (ICASSP), 1296 -1300, 2013. [Abbas 2010] A Abbas, A Fahim. An automated computerized auscultation and diagnostic system for pulmonary diseases [J]. Journal of medical systems, 34(6): 1149 -1155, 2010. [Pesu 1998] Pesu, L. , et al. "Classification of respiratory sounds based on wavelet packet decomposition and learning vector quantization. " Technology and Health Care 6. 1, 65 -74, 1998. [Abbasi 2013] Abbasi, Samira, et al. "Classification of normal and abnormal lung sounds using neural network and support vector machines. " Proceedings of the 21 st Iranian Conference on Electrical Engineering, May. 2013. 5 2020/9/17
The Proposed Method Automatic Lung Sound Recognition Figure 1: The flowchart of the proposed DNN-HMM system 6 2020/9/17
ANC [Harrison 1986 ] Clean lung sounds Collected lung sounds Enhanced lung sounds Noise Figure 2: The structure of ANC 7 [Harrison 1986] W. Harrison, J. S. Lim, and E. Singer, “A new application of adaptive noise cancellation, ” IEEE Transactions on Acoustics Speech & Signal Processing, vol. 34, no. 1, pp. 21– 27, 1986. 2020/9/17
GMM-HMM Figure 3: The structure of GMM-HMM 8 2020/9/17
DNN-HMM 9 atoms 2 hidden layers (500 atoms/each layer) 216 atoms 9 frames MFCC connection 9 Figure 4: The structure of DNN-HMM system 2020/9/17
The Lung Sound Database Table 1: The number of the lung sounds train and test sets Train Figure 5: The lung sounds auscultation points u u u 10 u Test Normal Adventitious 140 93 77 43 Sampled at 25 seconds. Collected from the hospital. Labeled by professional doctors. Enhanced by ANC, MFCC was extracted. 2020/9/17
Results –ANC (1) 11 Figure 6: The spectrum of lung sound samples 2020/9/17

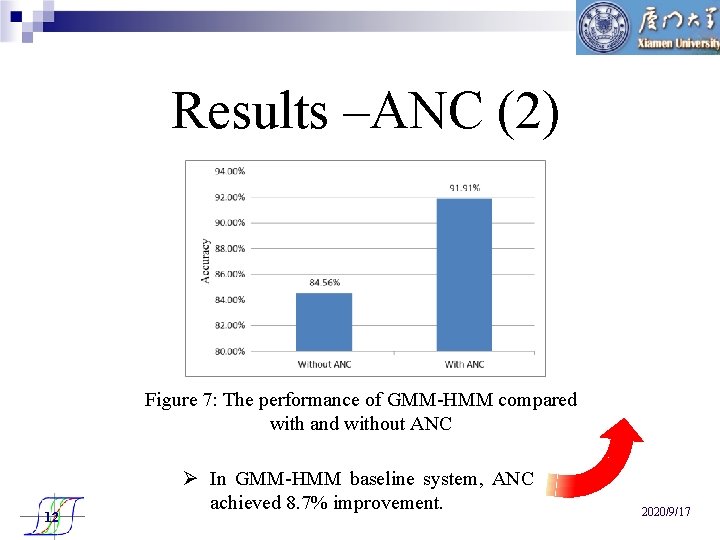

Results –ANC (2) Figure 7: The performance of GMM-HMM compared with and without ANC 12 Ø In GMM-HMM baseline system, ANC achieved 8. 7% improvement. 2020/9/17

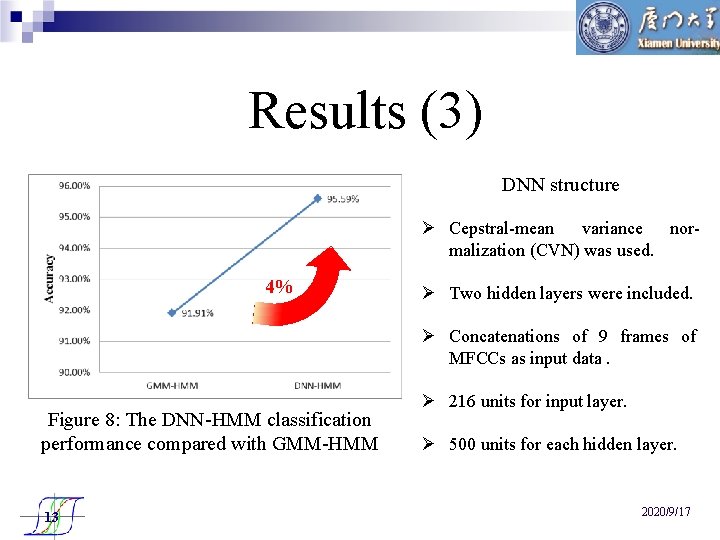

Results (3) DNN structure Ø Cepstral-mean variance normalization (CVN) was used. 4% Ø Two hidden layers were included. Ø Concatenations of 9 frames of MFCCs as input data. Figure 8: The DNN-HMM classification performance compared with GMM-HMM 13 Ø 216 units for input layer. Ø 500 units for each hidden layer. 2020/9/17
Results (4) Table 2: The classification performances on DNN architecture with different input frames and hidden atoms No. of Input Frames No. of Hidden Atoms Accuracy Rate% 3 2* 72 =144 87. 50 5 2*120=240 85. 29 7 2*168=336 94. 12 9 2*216=432 91. 91 11 2*264=528 90. 44 Ø The DNN-HMM structure was comparable with GMM-HMM when the input frames were more than 7 frames. 14 2020/9/17

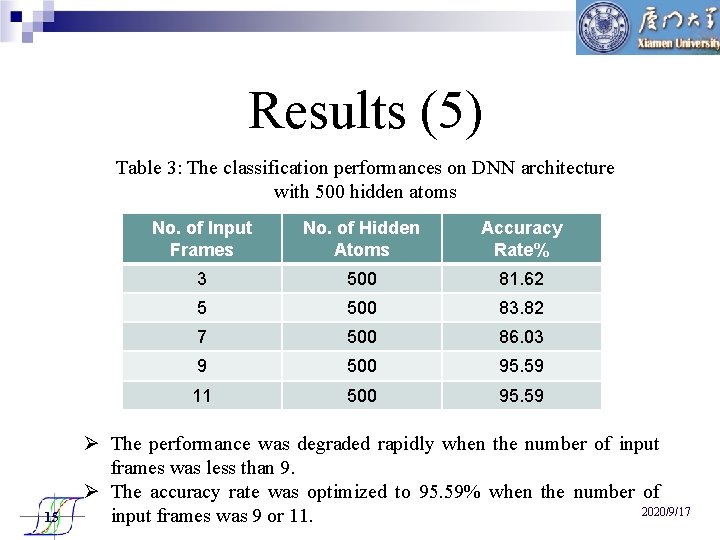

Results (5) Table 3: The classification performances on DNN architecture with 500 hidden atoms 15 No. of Input Frames No. of Hidden Atoms Accuracy Rate% 3 500 81. 62 5 500 83. 82 7 500 86. 03 9 500 95. 59 11 500 95. 59 Ø The performance was degraded rapidly when the number of input frames was less than 9. Ø The accuracy rate was optimized to 95. 59% when the number of 2020/9/17 input frames was 9 or 11.

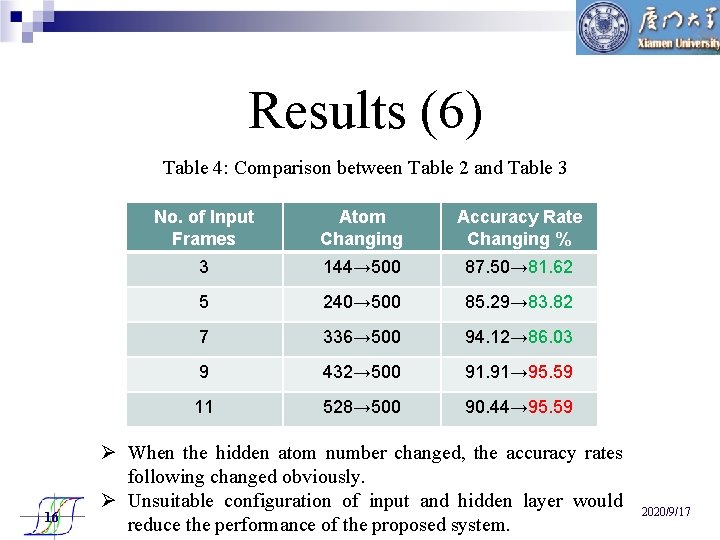

Results (6) Table 4: Comparison between Table 2 and Table 3 16 No. of Input Frames Atom Changing Accuracy Rate Changing % 3 144→ 500 87. 50→ 81. 62 5 240→ 500 85. 29→ 83. 82 7 336→ 500 94. 12→ 86. 03 9 432→ 500 91. 91→ 95. 59 11 528→ 500 90. 44→ 95. 59 Ø When the hidden atom number changed, the accuracy rates following changed obviously. Ø Unsuitable configuration of input and hidden layer would reduce the performance of the proposed system. 2020/9/17

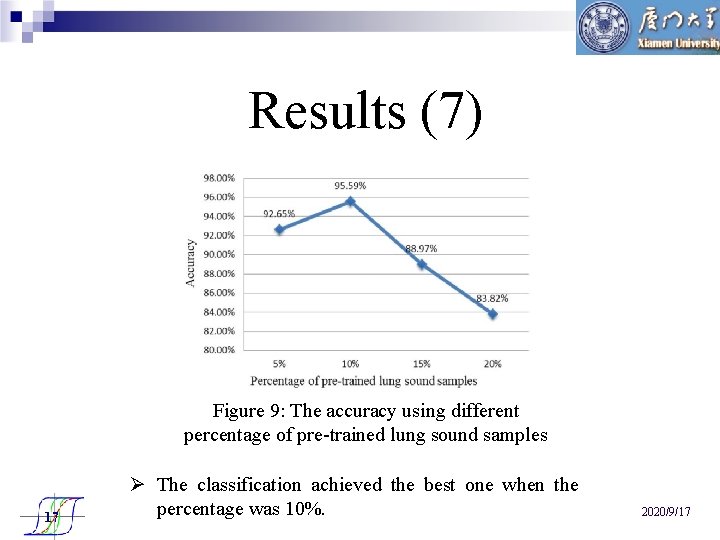

Results (7) Figure 9: The accuracy using different percentage of pre-trained lung sound samples 17 Ø The classification achieved the best one when the percentage was 10%. 2020/9/17
Conclusion Ø A new strategy to discriminate between normal and adventitious lung sounds for automatic classification in practical environment. Ø ANC based enhancement at the signal pre-processing stage. Ø GMM-HMM (baseline) V. S. DNN-HMM(proposed) Ø The proposed DNN-HMM method outperformed the GMM-HMM baseline system and achieved the accuracy of 95. 59%. 18 2020/9/17
Prospect Ø Multi classification in adventitious lung sounds. Ø Optimized the DNN-HMM system parameters. Ø Increase the lung sound database. 19 2020/9/17
