Classification and Feature Selection Algorithms for Multiclass CGH

Classification and Feature Selection Algorithms for Multi-class CGH data Jun Liu, Sanjay Ranka, Tamer Kahveci http: //www. cise. ufl. edu 1

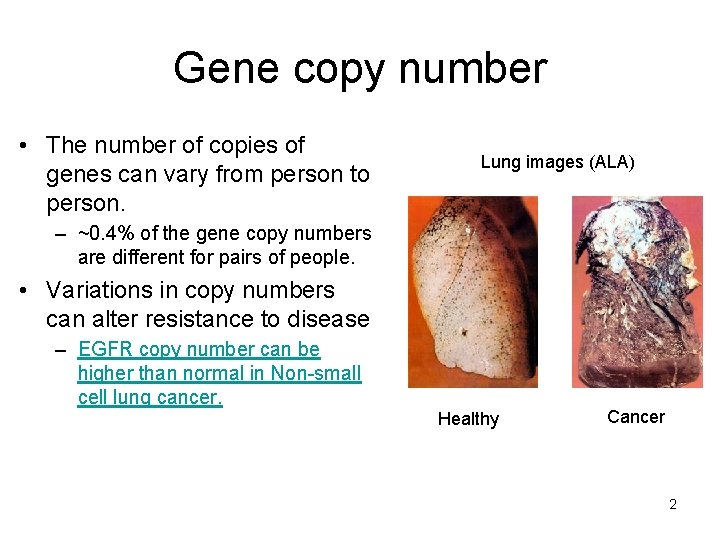

Gene copy number • The number of copies of genes can vary from person to person. Lung images (ALA) – ~0. 4% of the gene copy numbers are different for pairs of people. • Variations in copy numbers can alter resistance to disease – EGFR copy number can be higher than normal in Non-small cell lung cancer. Healthy Cancer 2

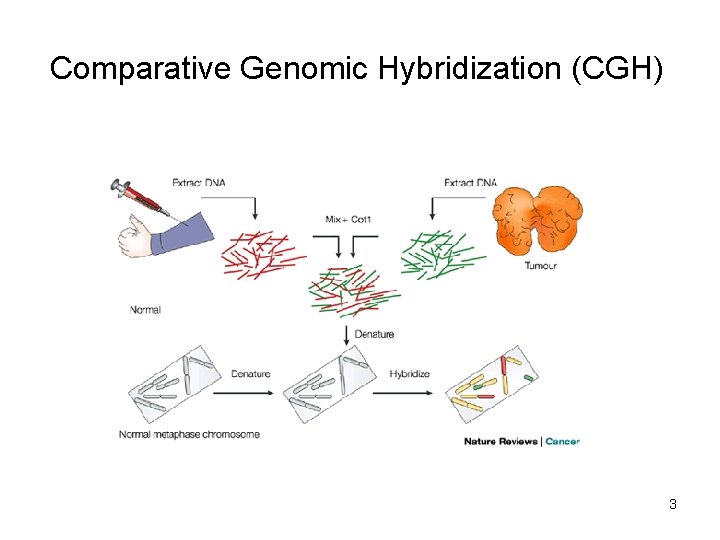

Comparative Genomic Hybridization (CGH) 3

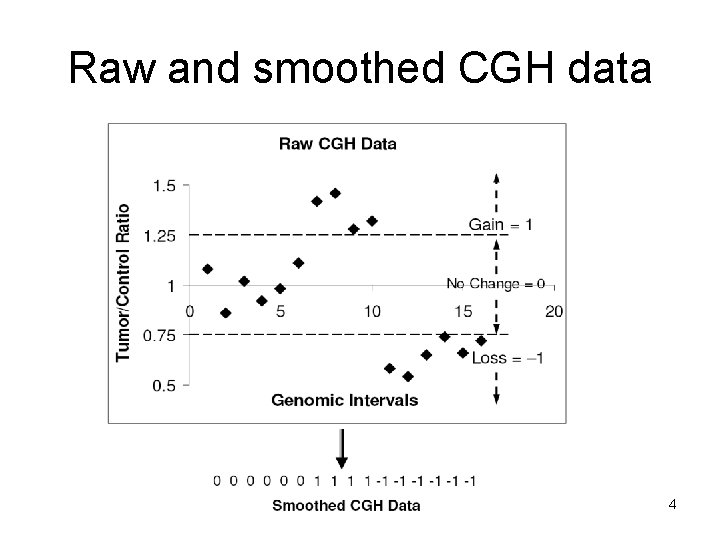

Raw and smoothed CGH data 4

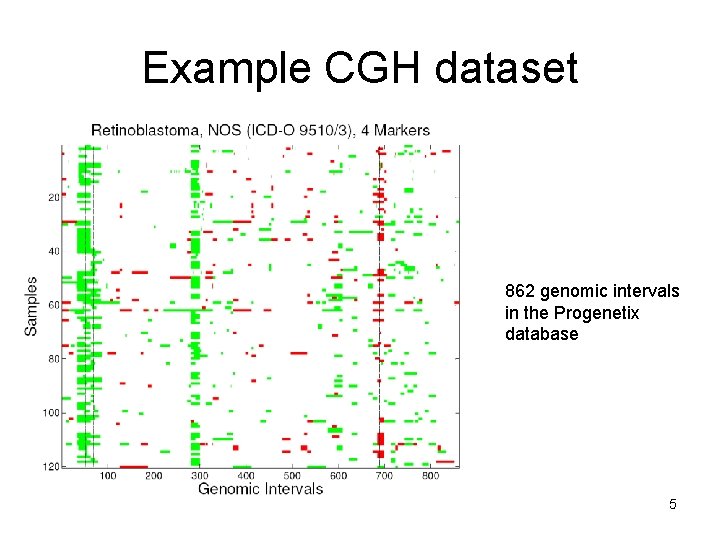

Example CGH dataset 862 genomic intervals in the Progenetix database 5

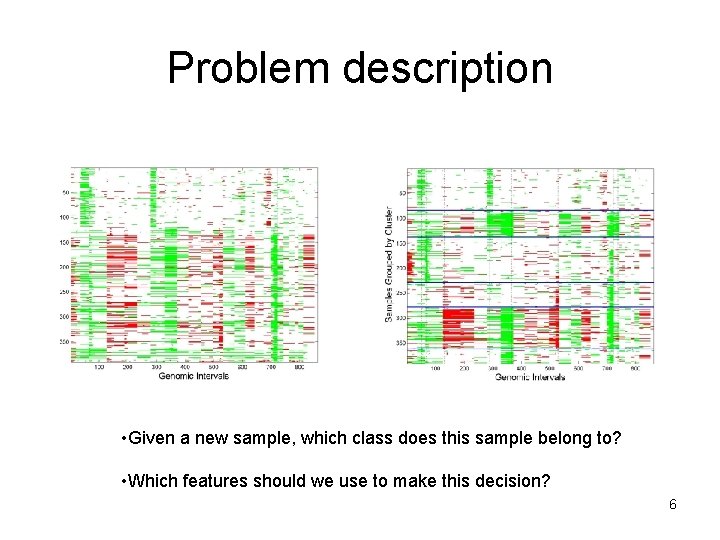

Problem description • Given a new sample, which class does this sample belong to? • Which features should we use to make this decision? 6

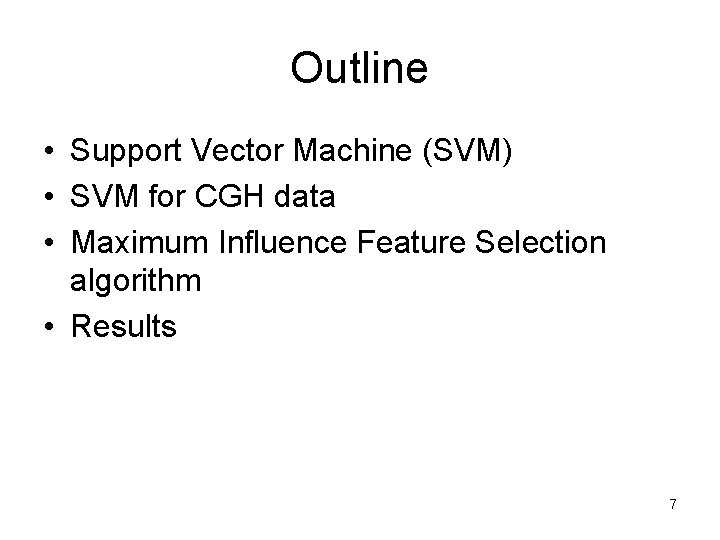

Outline • Support Vector Machine (SVM) • SVM for CGH data • Maximum Influence Feature Selection algorithm • Results 7

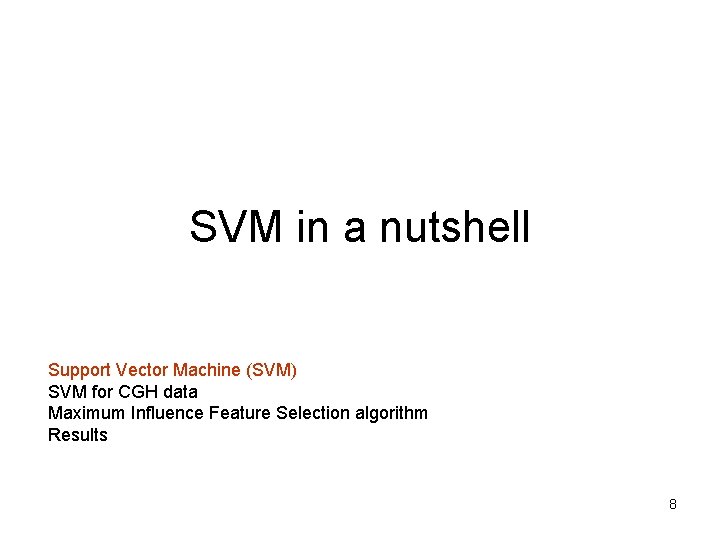

SVM in a nutshell Support Vector Machine (SVM) SVM for CGH data Maximum Influence Feature Selection algorithm Results 8

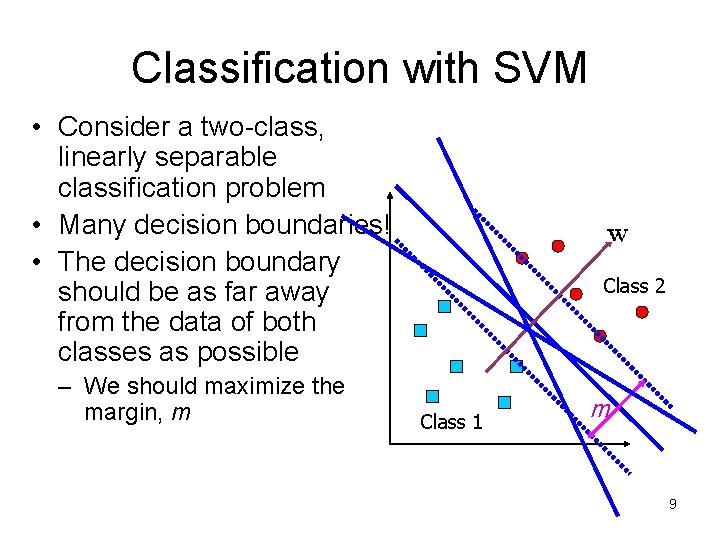

Classification with SVM • Consider a two-class, linearly separable classification problem • Many decision boundaries! • The decision boundary should be as far away from the data of both classes as possible – We should maximize the margin, m Class 2 Class 1 m 9

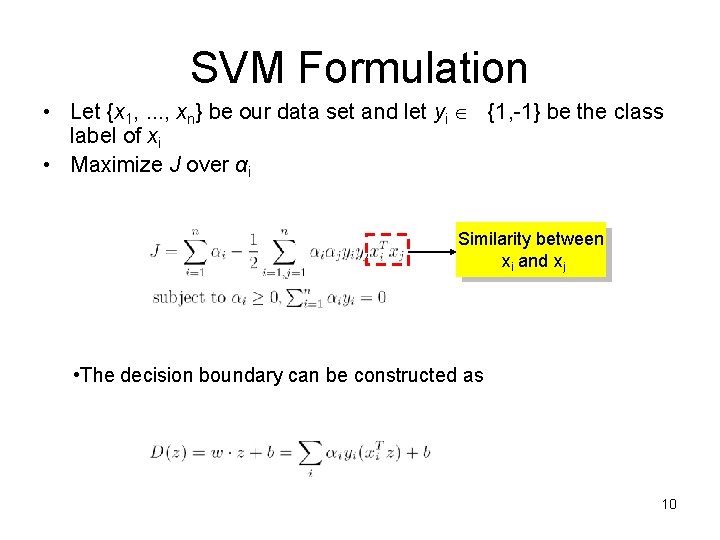

SVM Formulation • Let {x 1, . . . , xn} be our data set and let yi {1, -1} be the class label of xi • Maximize J over αi Similarity between xi and xj • The decision boundary can be constructed as 10

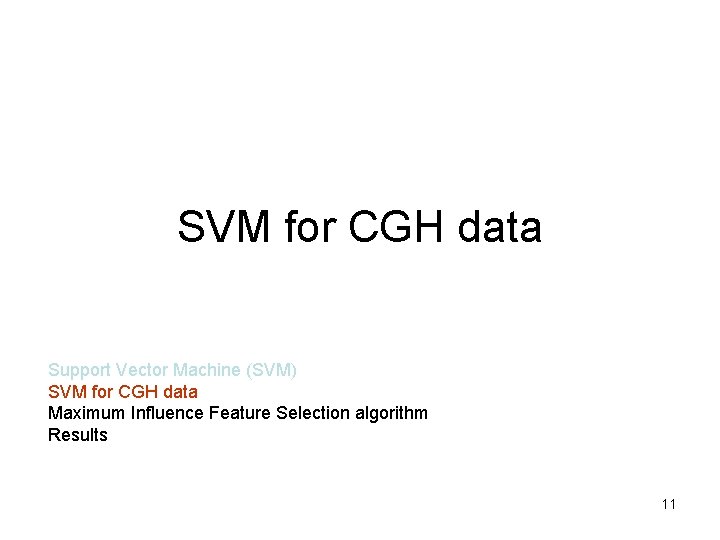

SVM for CGH data Support Vector Machine (SVM) SVM for CGH data Maximum Influence Feature Selection algorithm Results 11

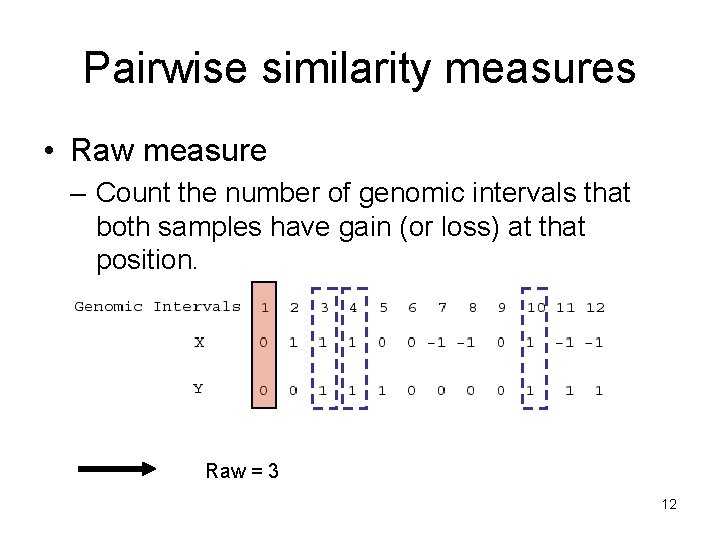

Pairwise similarity measures • Raw measure – Count the number of genomic intervals that both samples have gain (or loss) at that position. Raw = 3 12

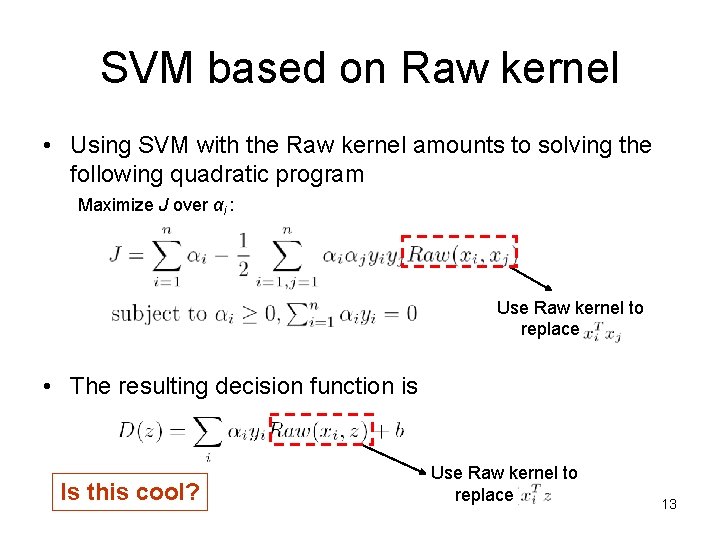

SVM based on Raw kernel • Using SVM with the Raw kernel amounts to solving the following quadratic program Maximize J over αi : Use Raw kernel to replace • The resulting decision function is Is this cool? Use Raw kernel to replace 13

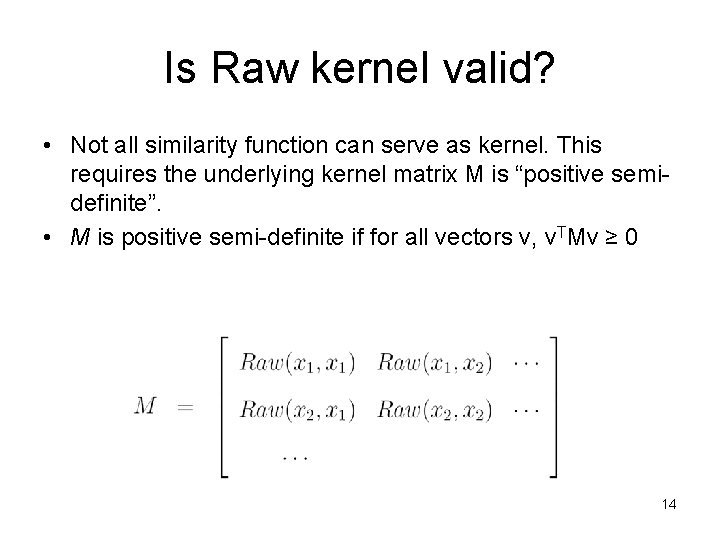

Is Raw kernel valid? • Not all similarity function can serve as kernel. This requires the underlying kernel matrix M is “positive semidefinite”. • M is positive semi-definite if for all vectors v, v. TMv ≥ 0 14

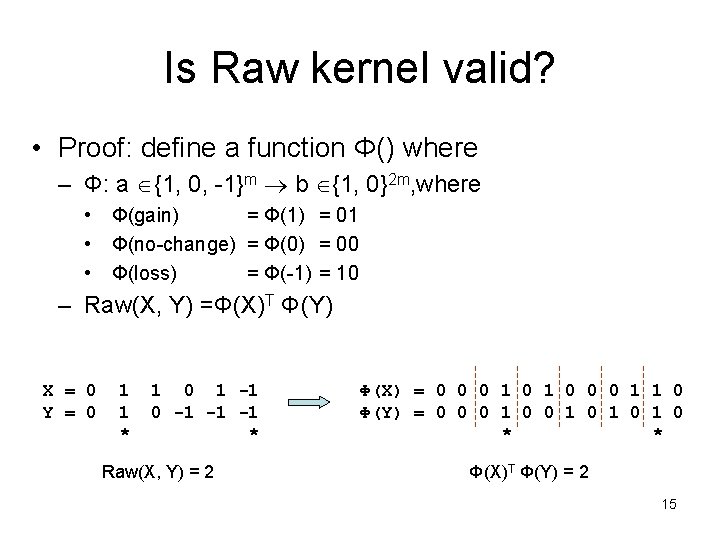

Is Raw kernel valid? • Proof: define a function Φ() where – Φ: a {1, 0, -1}m b {1, 0}2 m, where • Φ(gain) = Φ(1) = 01 • Φ(no-change) = Φ(0) = 00 • Φ(loss) = Φ(-1) = 10 – Raw(X, Y) =Φ(X)T Φ(Y) X = 0 Y = 0 1 1 * 1 0 1 -1 0 -1 -1 -1 * Raw(X, Y) = 2 Φ(X) = 0 0 0 1 1 0 Φ(Y) = 0 0 0 1 0 1 0 * * Φ(X)T Φ(Y) = 2 15

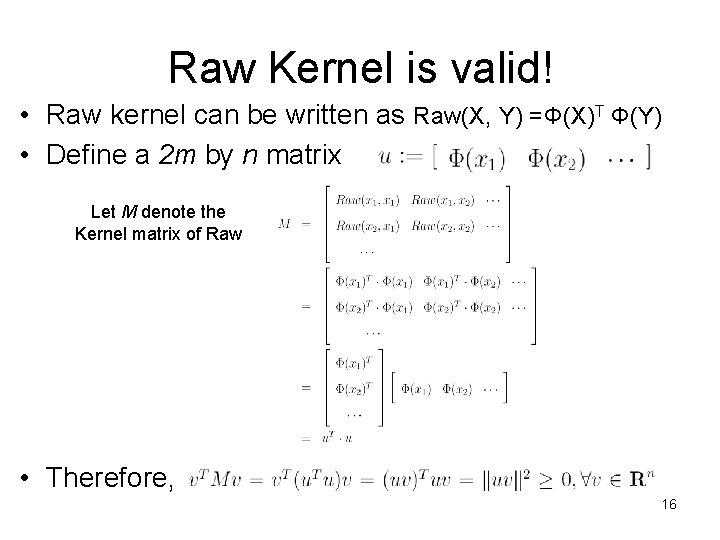

Raw Kernel is valid! • Raw kernel can be written as Raw(X, Y) =Φ(X)T Φ(Y) • Define a 2 m by n matrix Let M denote the Kernel matrix of Raw • Therefore, 16

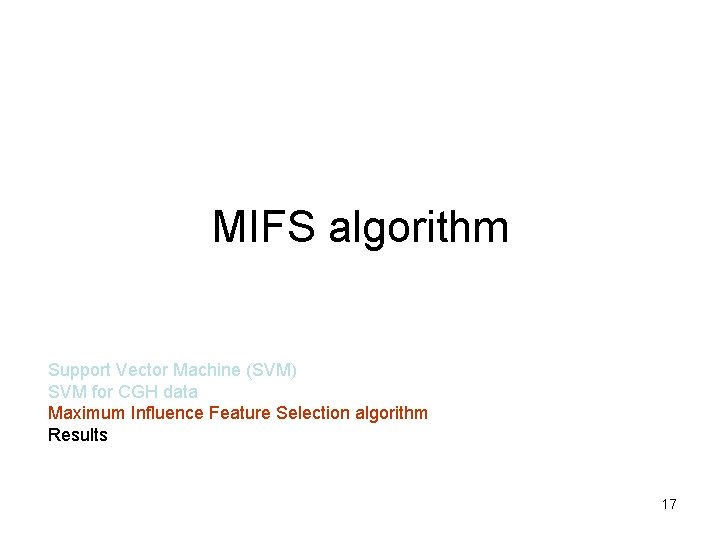

MIFS algorithm Support Vector Machine (SVM) SVM for CGH data Maximum Influence Feature Selection algorithm Results 17

MIFS for multi-class data One-versus-all SVM Contribution High 1. Feature 8 Feature 2 Feature 1 2. Feature 4 [8, 1, 3. 3] Feature Ranks of features [5, 915, 8] 4. Feature 33 5. Feature 2 Sort ranks of features [1, 3, 8] [5, 8, 15] 6. Feature 48 7. Feature 27 8. Feature 1 [1, 2, 31] … [1, 3, 8] Sort features Low Feature 3 Feature 4 [12, 4, 3] [2, 31, 1] [3, 4, 12] [1, 2, 31] [3, 4, 12] [5, 8, 15] Most promising feature. Insert Feature 4 into feature set 18

Results Support Vector Machine (SVM) SVM for CGH data Maximum Influence Feature Selection algorithm Results 19

Dataset Details Data taken from Progenetix database 20

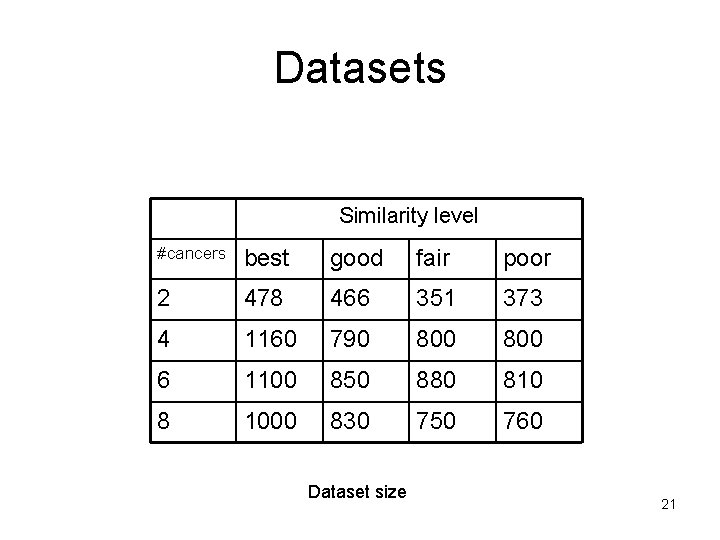

Datasets Similarity level #cancers best good fair poor 2 478 466 351 373 4 1160 790 800 6 1100 850 880 810 8 1000 830 750 760 Dataset size 21

Experimental results • Comparison of linear and Raw kernel On average, Raw kernel improves the predictive accuracy by 6. 4% over sixteen datasets compared to linear kernel. 22

Accuracy Experimental results Using 80 40 features results in in accuracy that is comparable or better than using that is comparable to using all features Number of Features (Ding and Peng, 2005) (Fu and Fu-Liu, 2005) 23

Using MIFS for feature selection • Result to test the hypothesis that 40 features are enough and 80 features are better 24

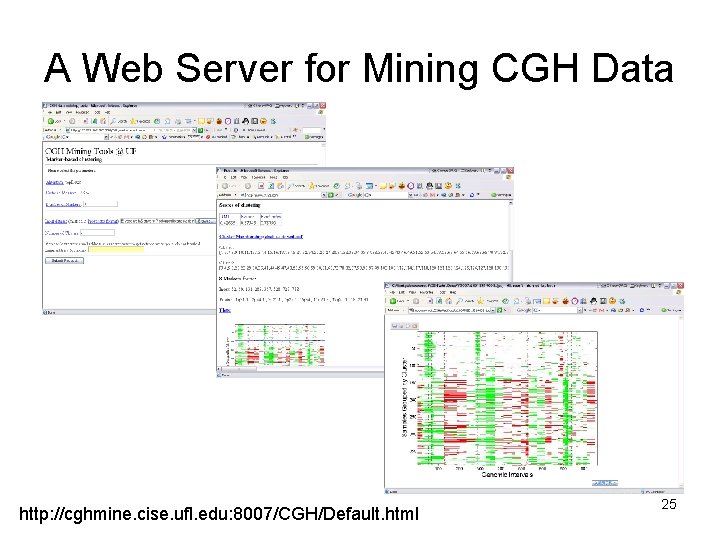

A Web Server for Mining CGH Data http: //cghmine. cise. ufl. edu: 8007/CGH/Default. html 25

Thank you 26

Appendix 27

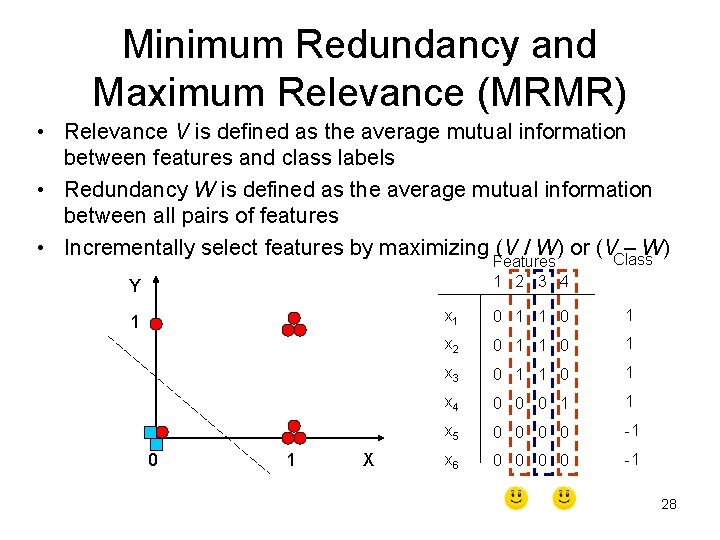

Minimum Redundancy and Maximum Relevance (MRMR) • Relevance V is defined as the average mutual information between features and class labels • Redundancy W is defined as the average mutual information between all pairs of features • Incrementally select features by maximizing (V / W) or (VClass – W) Features 1 2 3 4 Y 1 0 1 X x 1 0 1 x 2 0 1 1 0 1 x 3 0 1 1 0 1 x 4 0 0 0 1 1 x 5 0 0 -1 x 6 0 0 -1 28

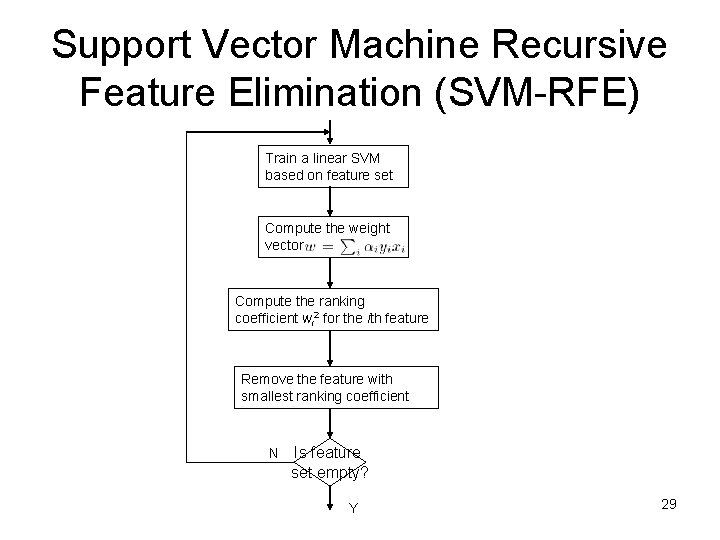

Support Vector Machine Recursive Feature Elimination (SVM-RFE) Train a linear SVM based on feature set Compute the weight vector Compute the ranking coefficient wi 2 for the ith feature Remove the feature with smallest ranking coefficient Is feature set empty? Y 29 N

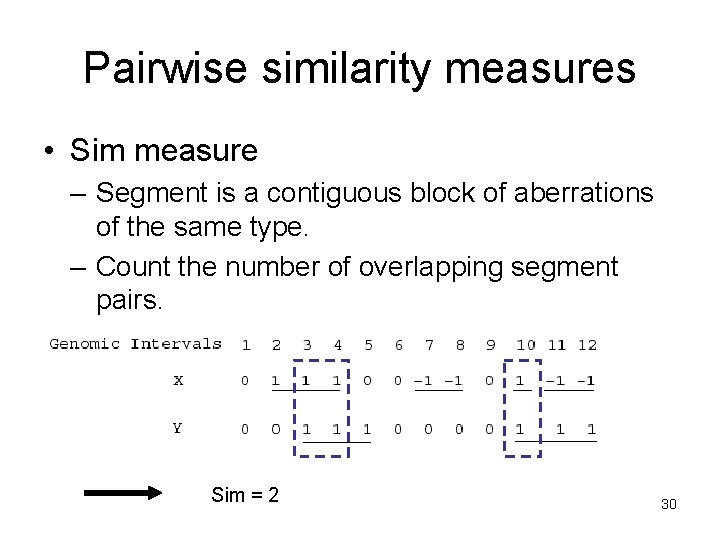

Pairwise similarity measures • Sim measure – Segment is a contiguous block of aberrations of the same type. – Count the number of overlapping segment pairs. Sim = 2 30

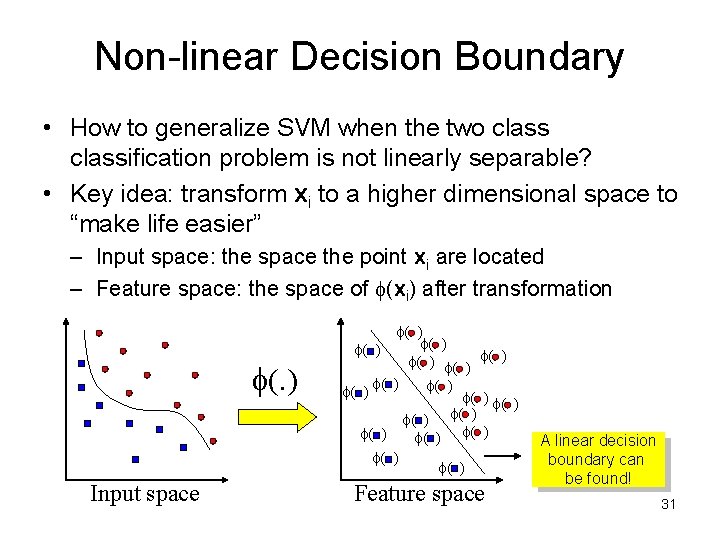

Non-linear Decision Boundary • How to generalize SVM when the two classification problem is not linearly separable? • Key idea: transform xi to a higher dimensional space to “make life easier” – Input space: the space the point xi are located – Feature space: the space of f(xi) after transformation f(. ) Input space f( ) f( ) f( ) f( ) f( ) Feature space A linear decision boundary can be found! 31
