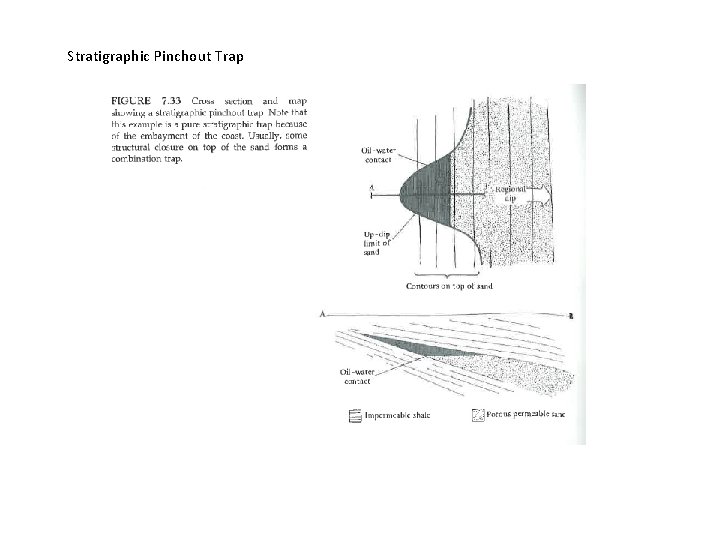

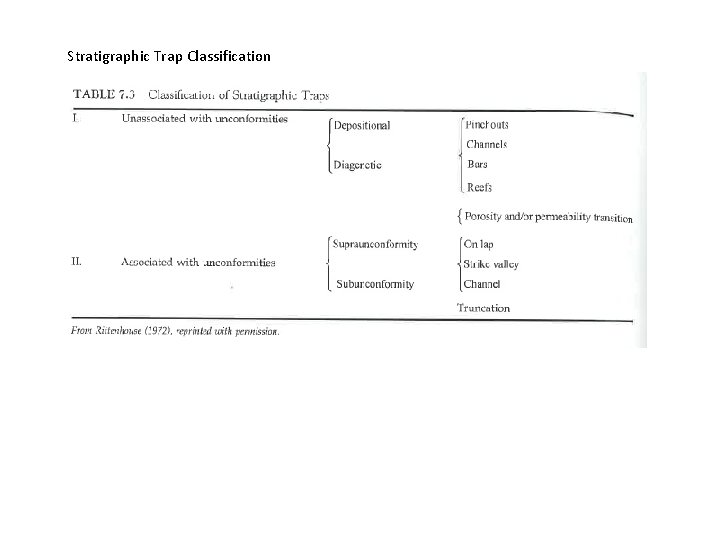

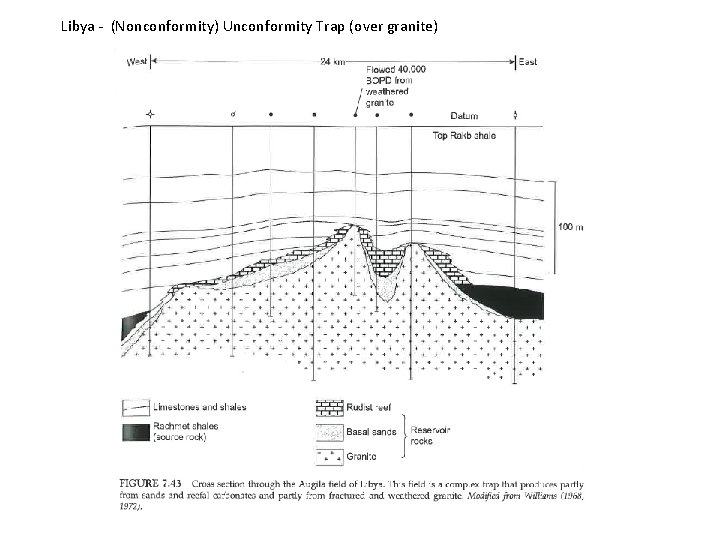

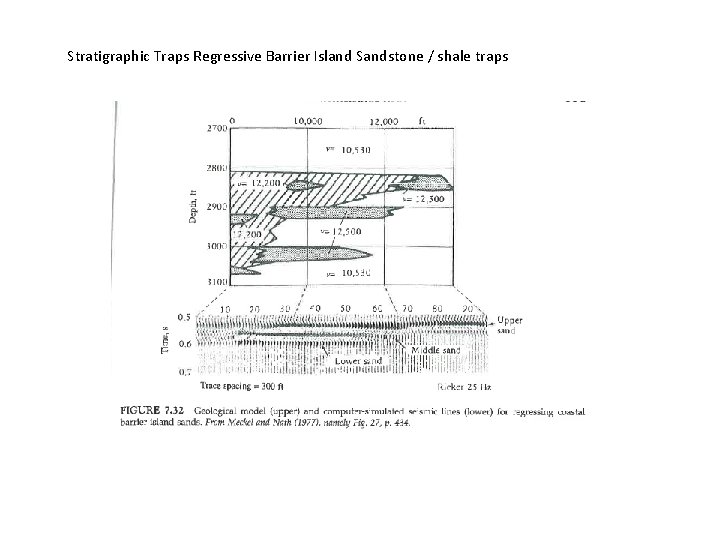

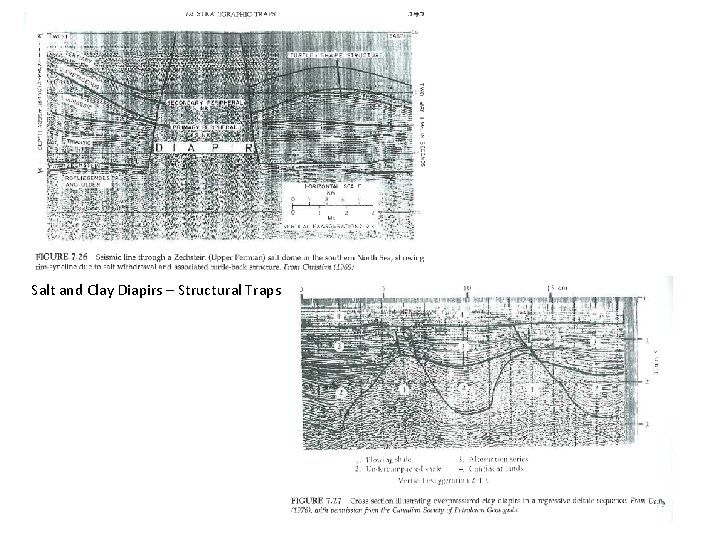

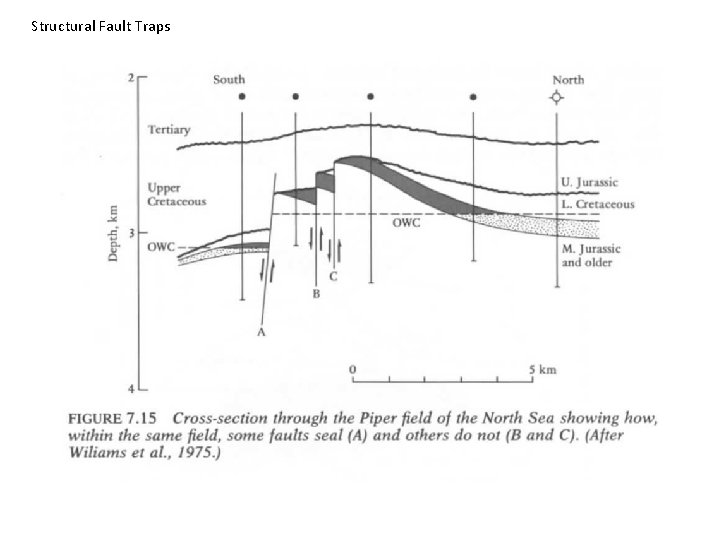

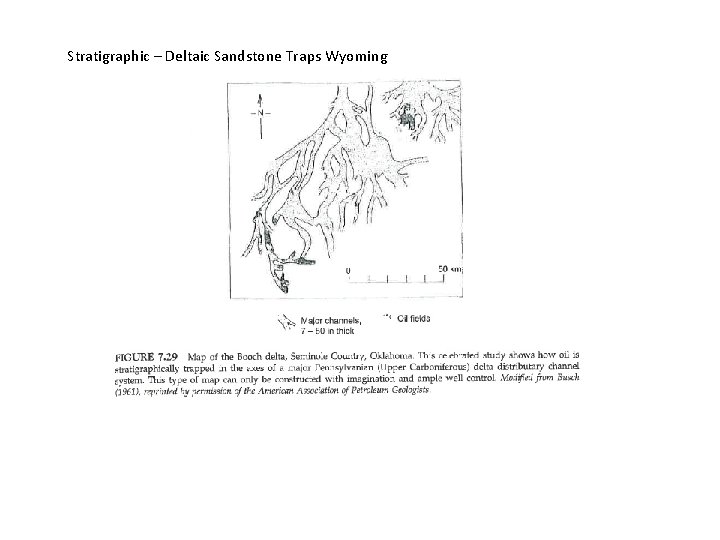

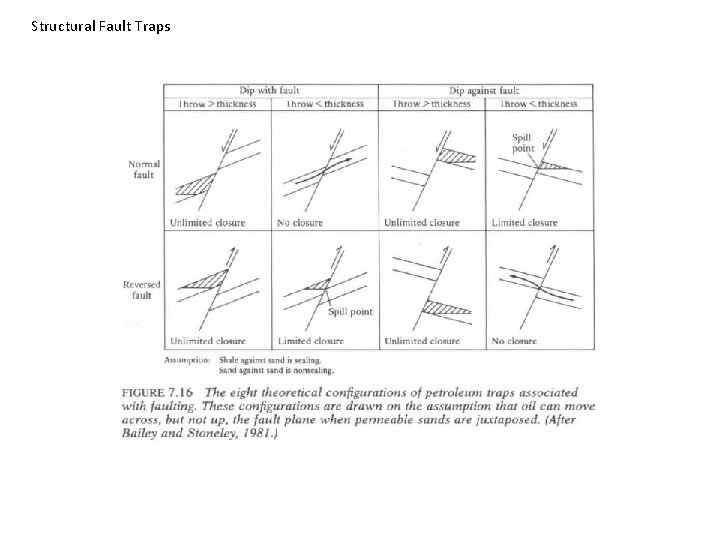

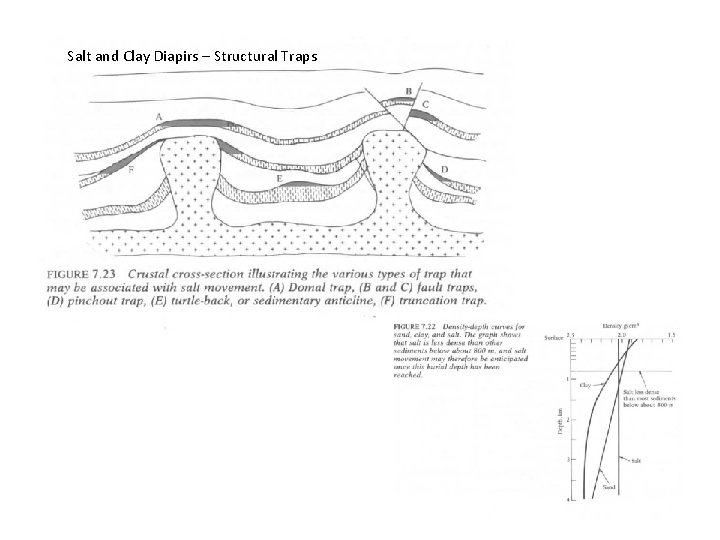

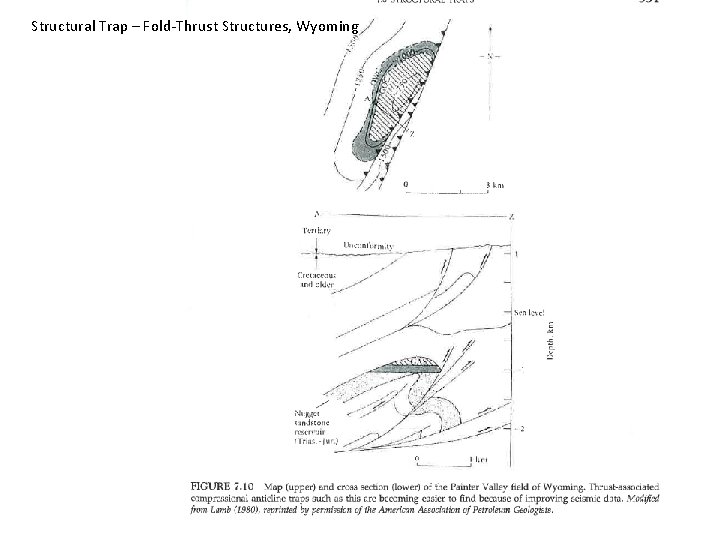

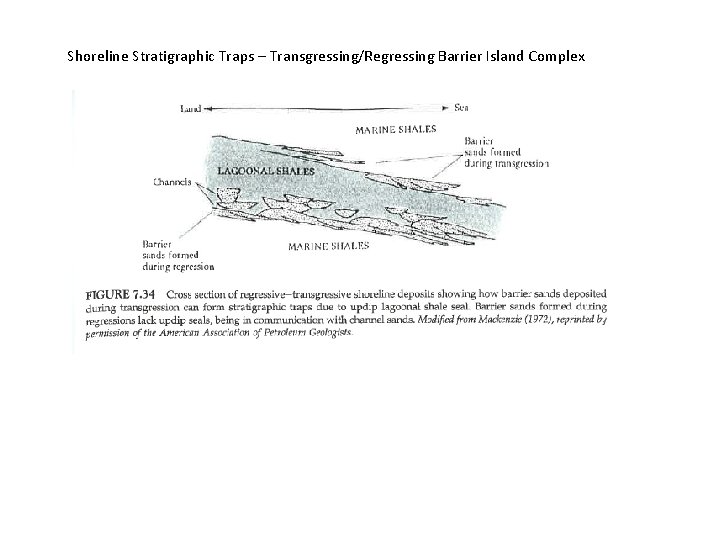

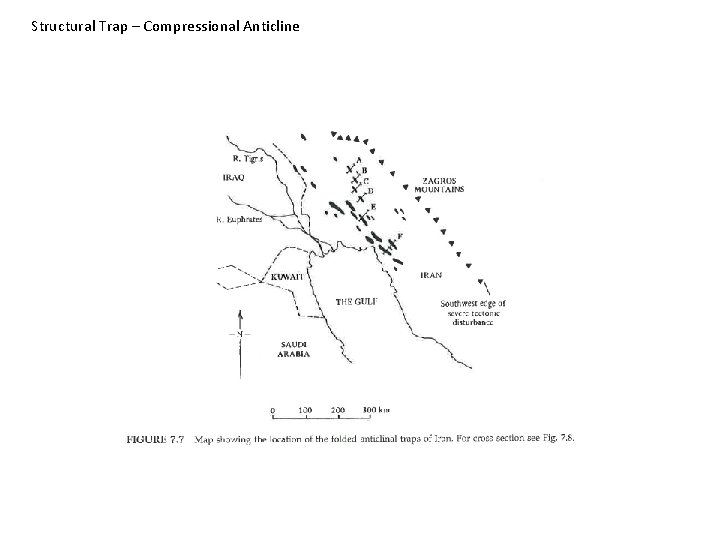

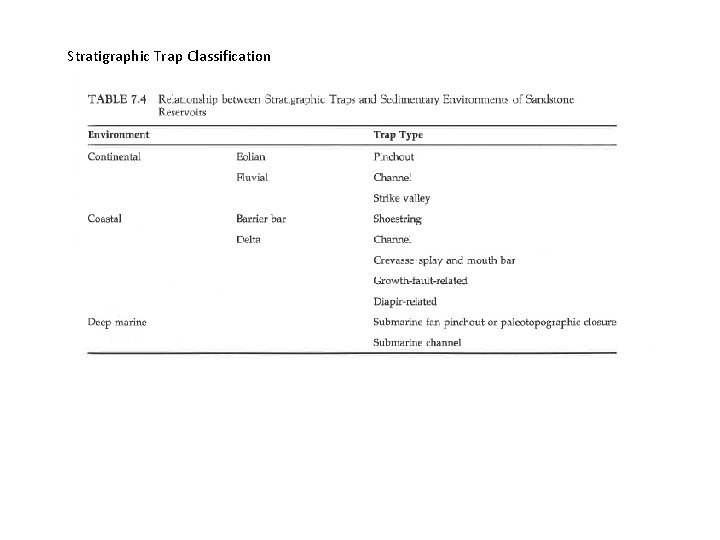

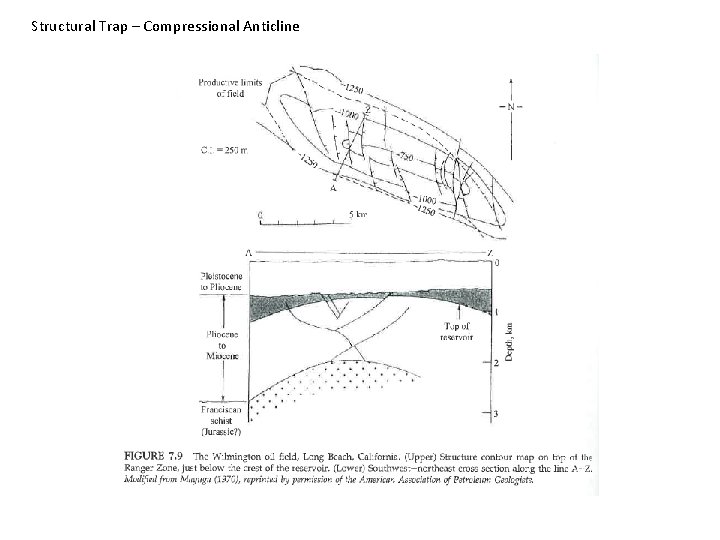

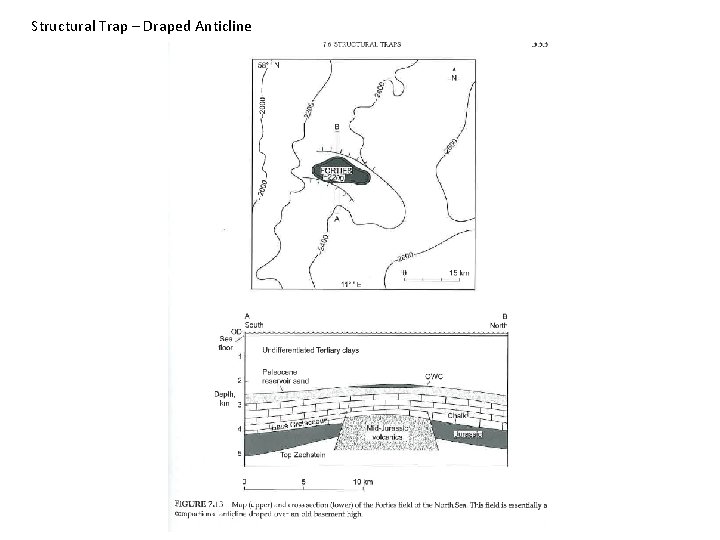

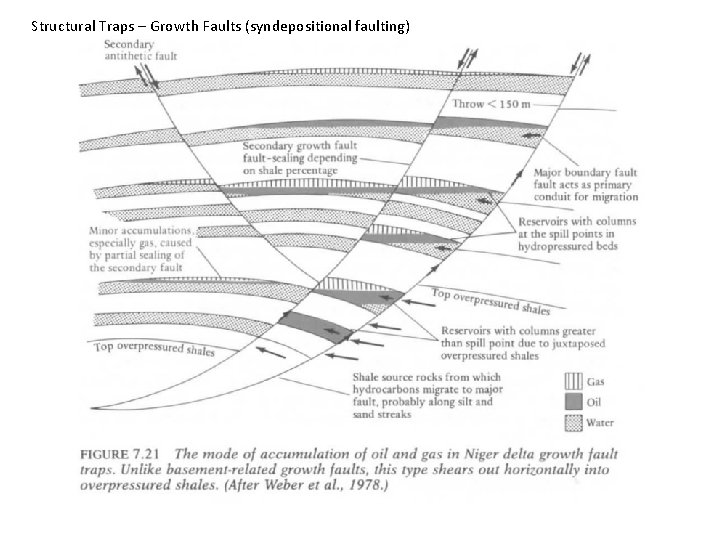

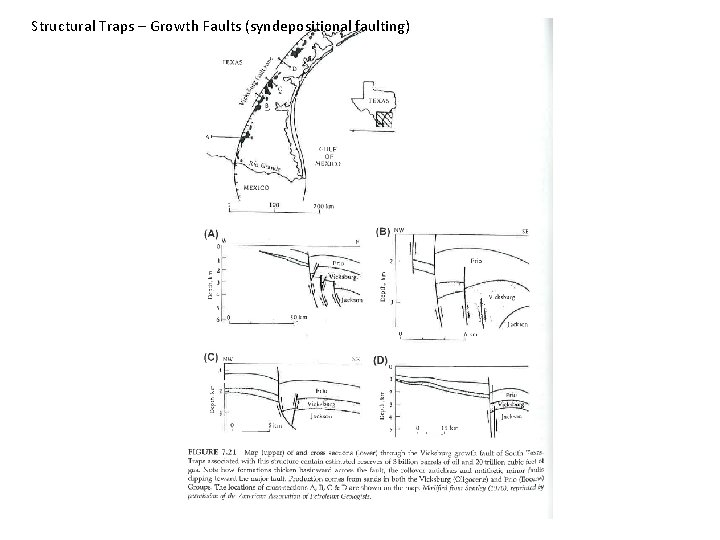

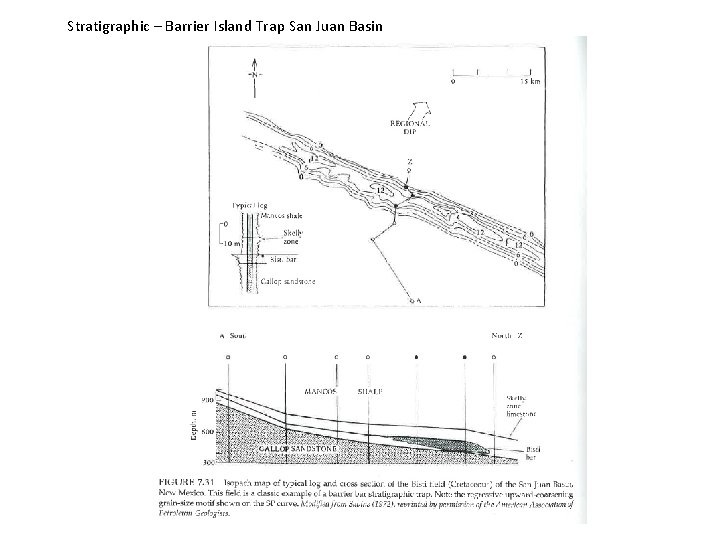

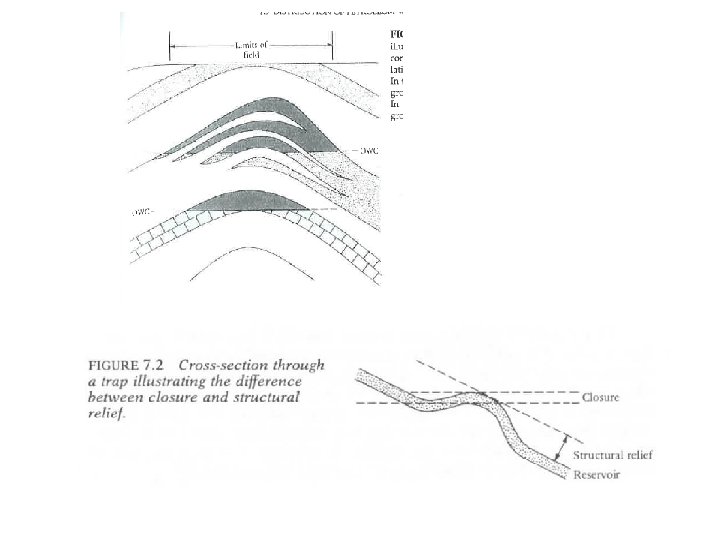

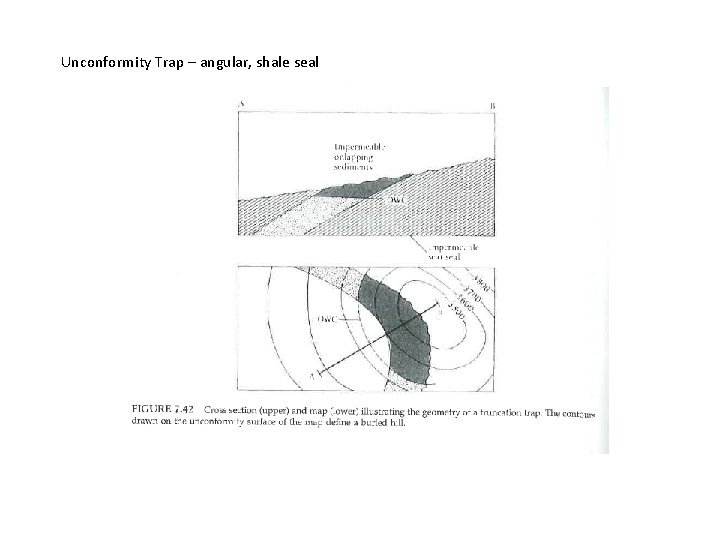

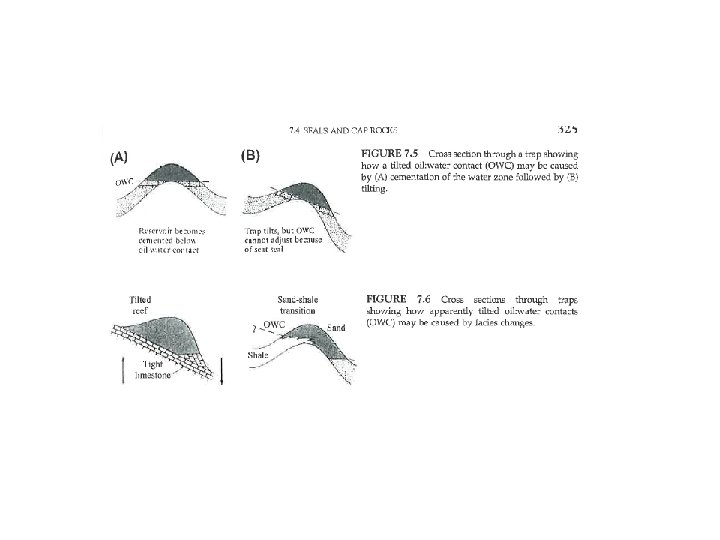

Classic Anticlinal Trap Model Structural Trap Compressional Anticline Slides: 34 Download presentation Classic Anticlinal Trap Model Structural Trap – Compressional Anticline Structural Trap – Compressional Anticline Structural Trap – Fold-Thrust Structures, Wyoming Structural Trap – Compaction Anticline Structural Trap – Draped Anticline Structural Trap Classification Structural Fault Traps Structural Fault Traps Structural Fault Traps Structural Wrench Fault Traps (strike slip / transtensional faults) Structural Fault Traps Structural Traps – Growth Faults (syndepositional faulting) Structural Traps – Growth Faults (syndepositional faulting) Salt and Clay Diapirs – Structural Traps Salt and Clay Diapirs – Structural Traps Stratigraphic Trap Classification Stratigraphic Trap Classification Stratigraphic – Meandering Fluvial Sandstone Traps Wyoming Stratigraphic – Deltaic Sandstone Traps Wyoming Stratigraphic – Barrier Island Trap San Juan Basin Stratigraphic Pinchout Trap Stratigraphic Traps Regressive Barrier Island Sandstone / shale traps Shoreline Stratigraphic Traps – Transgressing/Regressing Barrier Island Complex Stratigraphic – Fluvial Sandstone Traps Wyoming Reef Reservoirs and Trapping Mechanisms (complex facies / permeability relations) Diagenetic Traps – altered high/low permeability zones in reservoir; self sealing Unconformity Trap – angular, shale seal Libya - (Nonconformity) Unconformity Trap (over granite) East Texas Unconformity Trap Prudhoe Bay, AK Combination Fold-Fault-Unconformity Trap AnticlineGeo 281Whats a compressional waveIsoclinal foldMountain beltCompressional stressParts of the waveTypes of waves quad clustersTrip trap trip trap over my bridgeWhat is the function of stems?Stone plantsPlunging anticlineGeological faultPlunging anticlineSynformal anticlineSynformal anticlineMt everestCompare and contrast anticline and synclineAn anticlineBasin and rangeAnticline and syncline foldsFaultIncremental life cycle modelEmbedded product development companyThe model is founded in classic economic preceptsThe model is founded in classic economic preceptsInternational structural stages modelFlop fashion cycle examplesClassic ethernet mac sublayer protocolAvrKelly kasteelSpace mouse classicFour classic marketing activities of crmWww.myprotective.comRamy yanetz
