Class operators

Class operators

class polynomial { protected: int n; double *a; public: polynomial(){}; …. . ; //

class polynomial { protected: int n; double *a; public: polynomial(){}; …. . ; // constructor ~polynomial(); // destructor //member functions. . . double f (const double) const; // polynomial value // friend functions and operators friend polynomial operator+ (const polynomial, const polynomial); friend polynomial operator- (const polynomial, const polynomial); friend polynomial operator* (const double, const polynomial); }; // end of class definition

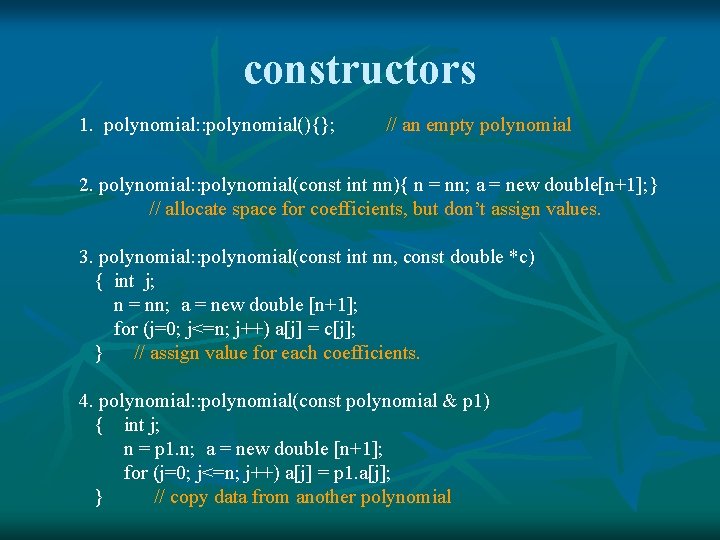

constructors 1. polynomial: : polynomial(){}; // an empty polynomial 2. polynomial: : polynomial(const int

constructors 1. polynomial: : polynomial(){}; // an empty polynomial 2. polynomial: : polynomial(const int nn){ n = nn; a = new double[n+1]; } // allocate space for coefficients, but don’t assign values. 3. polynomial: : polynomial(const int nn, const double *c) { int j; n = nn; a = new double [n+1]; for (j=0; j<=n; j++) a[j] = c[j]; } // assign value for each coefficients. 4. polynomial: : polynomial(const polynomial & p 1) { int j; n = p 1. n; a = new double [n+1]; for (j=0; j<=n; j++) a[j] = p 1. a[j]; } // copy data from another polynomial

Constructor n n n Allow multiple constructors, same principle as function overload. Function name

Constructor n n n Allow multiple constructors, same principle as function overload. Function name of constructor: polynomial: : polynomial( arguments) {…; …; …; } No function type, no return variables.

Dynamic allocation in c++ #include <stdlib. h> pointer variable = malloc(total_memory_size); or pointer varibale

Dynamic allocation in c++ #include <stdlib. h> pointer variable = malloc(total_memory_size); or pointer varibale = calloc(dim, size_of_each_varible); In C: 釋放記憶: void free(void *ptr); In C++: double pointer = new double [dimension]; 釋放記憶: delete [] pointer;

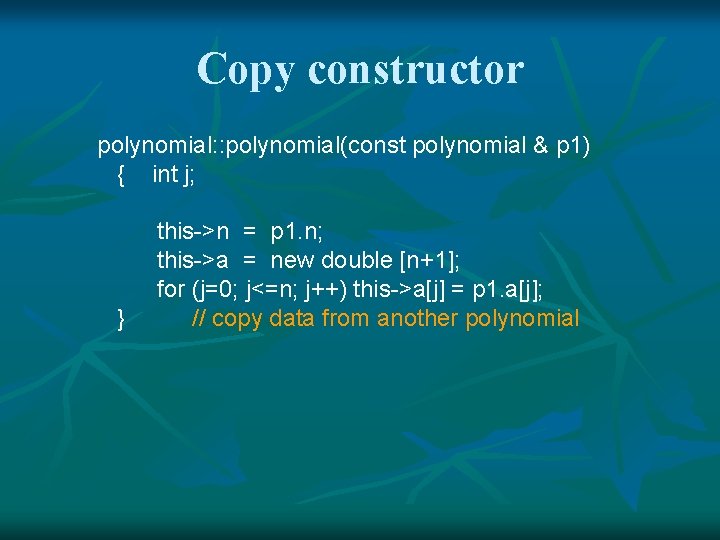

Copy constructor polynomial: : polynomial(const polynomial & p 1) { int j; } this->n

Copy constructor polynomial: : polynomial(const polynomial & p 1) { int j; } this->n = p 1. n; this->a = new double [n+1]; for (j=0; j<=n; j++) this->a[j] = p 1. a[j]; // copy data from another polynomial

Pass by reference Pass by value: Call: double ssqq(double a) { a = 2.

Pass by reference Pass by value: Call: double ssqq(double a) { a = 2. 0 * a; return(a*a); } double aa = ssqq(a); // a 不變 Pass by address: double ssqq(double *a) { *a = 2. 0 * (*a); return((*a)*(*a)); } Call: double aa = ssqq(&ra); // ra 2(ra) Pass by reference: Call: double ssqq(double &a) { a = 2. 0 * a; return(a*a); } double aa = ssqq(a); // a 2 a

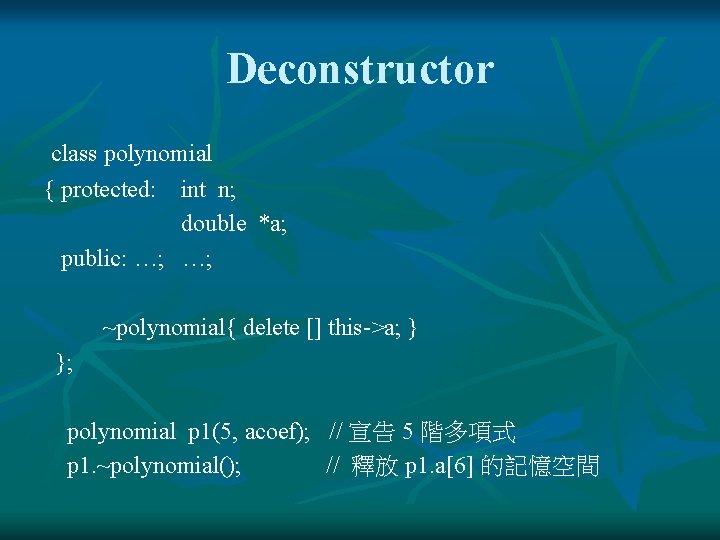

Deconstructor class polynomial { protected: int n; double *a; public: …; …; ~polynomial{ delete

Deconstructor class polynomial { protected: int n; double *a; public: …; …; ~polynomial{ delete [] this->a; } }; polynomial p 1(5, acoef); // 宣告 5 階多項式 p 1. ~polynomial(); // 釋放 p 1. a[6] 的記憶空間

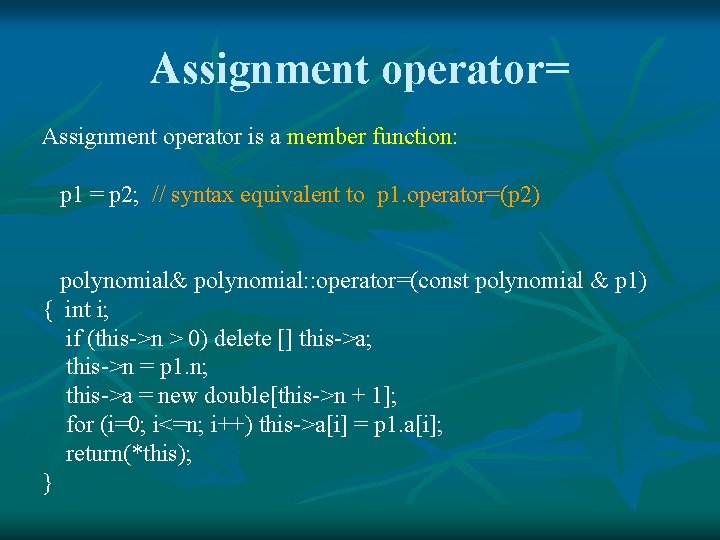

Assignment operator= Assignment operator is a member function: p 1 = p 2; //

Assignment operator= Assignment operator is a member function: p 1 = p 2; // syntax equivalent to p 1. operator=(p 2) polynomial& polynomial: : operator=(const polynomial & p 1) { int i; if (this->n > 0) delete [] this->a; this->n = p 1. n; this->a = new double[this->n + 1]; for (i=0; i<=n; i++) this->a[i] = p 1. a[i]; return(*this); }

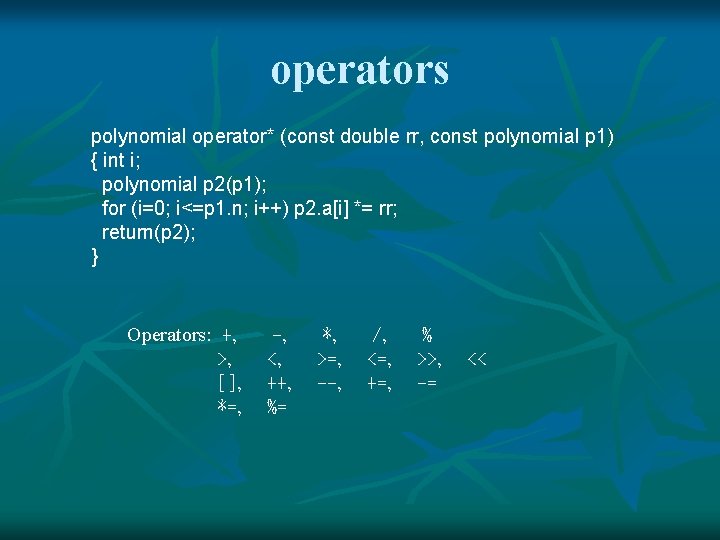

operators polynomial operator* (const double rr, const polynomial p 1) { int i; polynomial

operators polynomial operator* (const double rr, const polynomial p 1) { int i; polynomial p 2(p 1); for (i=0; i<=p 1. n; i++) p 2. a[i] *= rr; return(p 2); } Operators: +, >, [], *=, -, <, ++, %= *, >=, --, /, <=, +=, % >>, -= <<

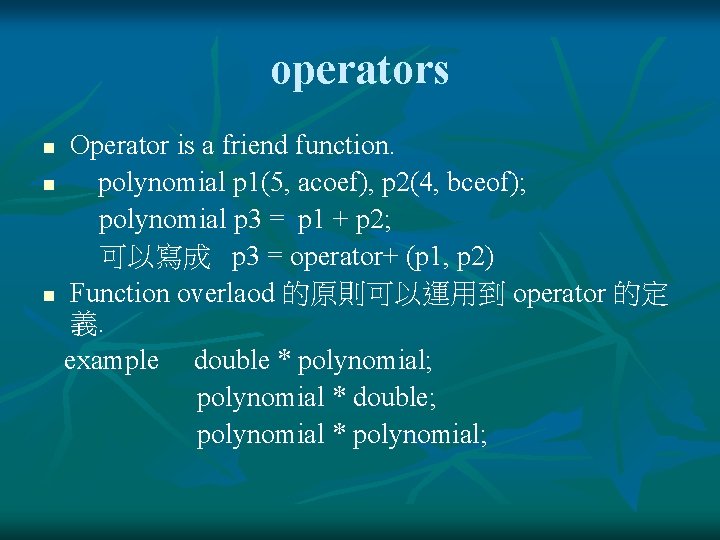

operators Operator is a friend function. n polynomial p 1(5, acoef), p 2(4, bceof);

operators Operator is a friend function. n polynomial p 1(5, acoef), p 2(4, bceof); polynomial p 3 = p 1 + p 2; 可以寫成 p 3 = operator+ (p 1, p 2) n Function overlaod 的原則可以運用到 operator 的定 義. example double * polynomial; polynomial * double; polynomial * polynomial; n

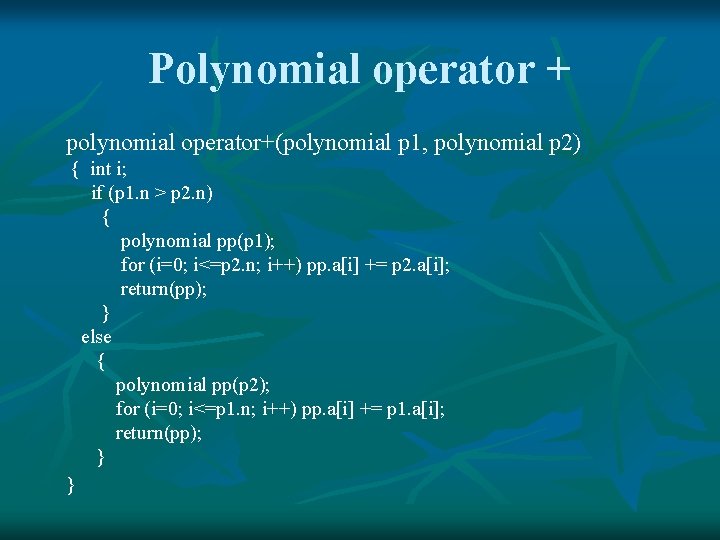

Polynomial operator + polynomial operator+(polynomial p 1, polynomial p 2) { int i; if

Polynomial operator + polynomial operator+(polynomial p 1, polynomial p 2) { int i; if (p 1. n > p 2. n) { polynomial pp(p 1); for (i=0; i<=p 2. n; i++) pp. a[i] += p 2. a[i]; return(pp); } else { polynomial pp(p 2); for (i=0; i<=p 1. n; i++) pp. a[i] += p 1. a[i]; return(pp); } }

polynomial operator if (p 1. n > p 2. n) { polynomial pp(p 1);

polynomial operator if (p 1. n > p 2. n) { polynomial pp(p 1); for (i=0; i<=p 2. n; i++) pp. a[i] -= p 2. a[i]; return(pp); } else { polynomial pp(p 2); pp = (-1. 0) * pp; for (i=0; i<=p 1. n; i++) pp. a[i] += p 1. a[i]; return(pp); }

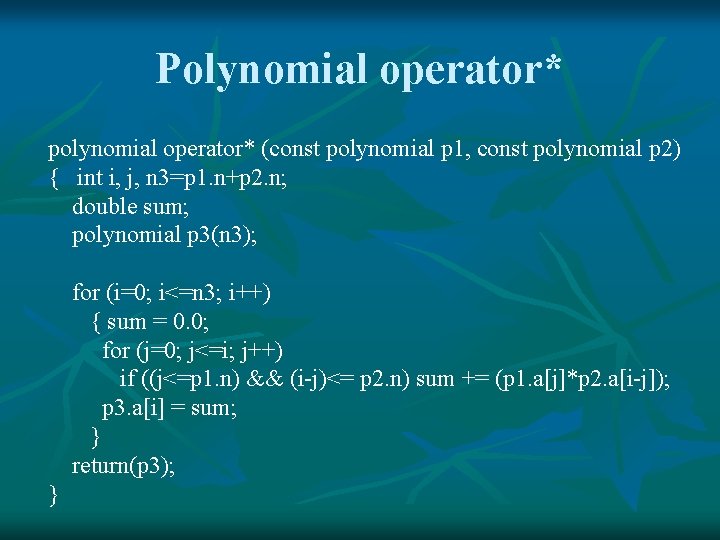

Polynomial operator* polynomial operator* (const polynomial p 1, const polynomial p 2) { int

Polynomial operator* polynomial operator* (const polynomial p 1, const polynomial p 2) { int i, j, n 3=p 1. n+p 2. n; double sum; polynomial p 3(n 3); for (i=0; i<=n 3; i++) { sum = 0. 0; for (j=0; j<=i; j++) if ((j<=p 1. n) && (i-j)<= p 2. n) sum += (p 1. a[j]*p 2. a[i-j]); p 3. a[i] = sum; } return(p 3); }

Polynomial operator/ n 3 = p 1. n – p 2. n; if (n

Polynomial operator/ n 3 = p 1. n – p 2. n; if (n 3 < 0) { n 3 = 0; polynomial p 3(n 3); p 3. a[0] = 0. 0; return(p 3); } else { polynomial p 3(n 3); polynomial pp(p 1); for (i=n 3; i>=0; i--) { ncur = pp. n - n 3 + i; att = pp. a[ncur] / p 2. a[p 2. n]; p 3. a[i] = att; for (j=0; j<=p 2. n; j++) pp. a[pp. n-n 3+i-p 2. n+j] -= att*p 2. a[j]; } return(p 3); }

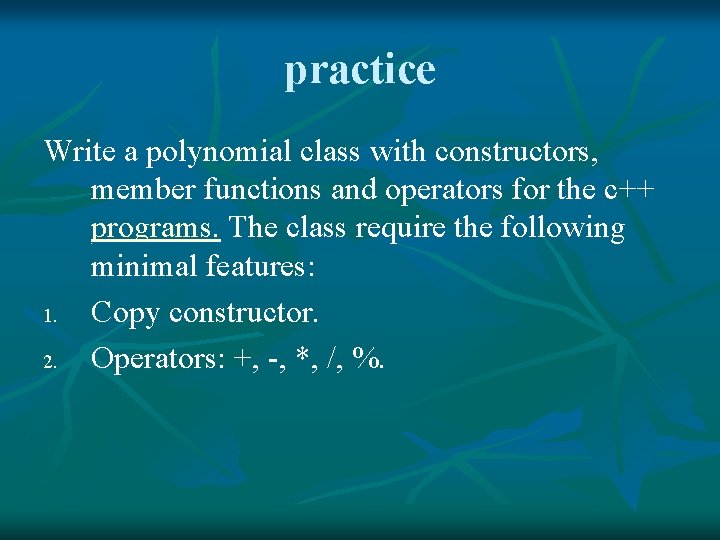

practice Write a polynomial class with constructors, member functions and operators for the c++

practice Write a polynomial class with constructors, member functions and operators for the c++ programs. The class require the following minimal features: 1. Copy constructor. 2. Operators: +, -, *, /, %.

Class Matrix class Matrix { protected: int nrow, ncol; double *xpt; public: constructors; member_functions;

Class Matrix class Matrix { protected: int nrow, ncol; double *xpt; public: constructors; member_functions; friend_operators; }; nrow: number of rows ncol: number of columns xpt : pointer for memory reallocation for matrix elements Example

Plan for construction of Matrix class Square matrix Column vector Row vector Derived class

Plan for construction of Matrix class Square matrix Column vector Row vector Derived class Template with double and complex General matirx (n x m) Base class

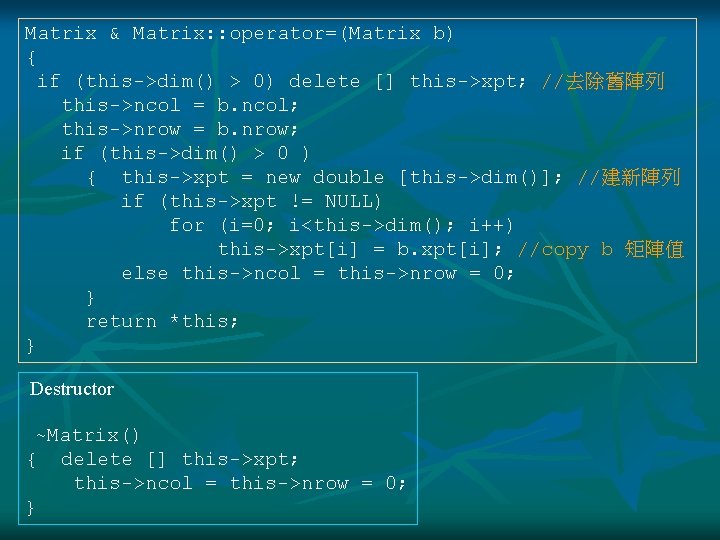

Matrix & Matrix: : operator=(Matrix b) { if (this->dim() > 0) delete [] this->xpt;

Matrix & Matrix: : operator=(Matrix b) { if (this->dim() > 0) delete [] this->xpt; //去除舊陣列 this->ncol = b. ncol; this->nrow = b. nrow; if (this->dim() > 0 ) { this->xpt = new double [this->dim()]; //建新陣列 if (this->xpt != NULL) for (i=0; i<this->dim(); i++) this->xpt[i] = b. xpt[i]; //copy b 矩陣值 else this->ncol = this->nrow = 0; } return *this; } Destructor ~Matrix() { delete [] this->xpt; this->ncol = this->nrow = 0; }
