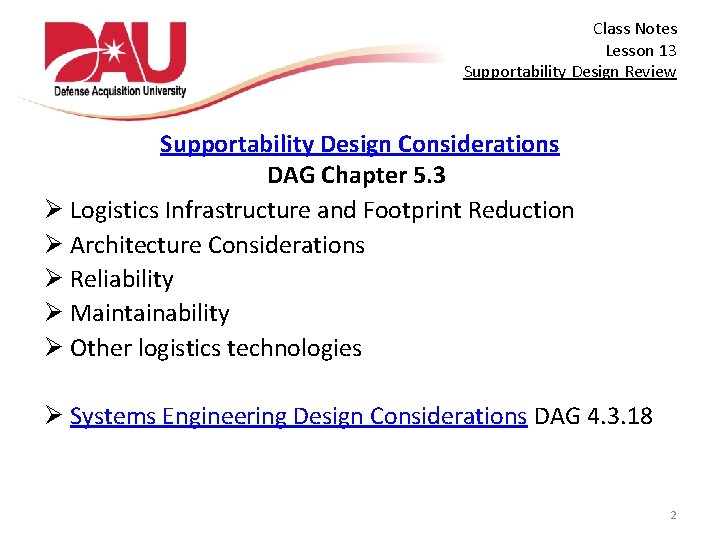

Class Notes Lesson 13 Supportability Design Review Supportability Design Considerations DAG Chapter 5. 3 Ø Logistics Infrastructure and Footprint Reduction Ø Architecture Considerations Ø Reliability Ø Maintainability Ø Other logistics technologies Ø Systems Engineering Design Considerations DAG 4. 3. 18 2

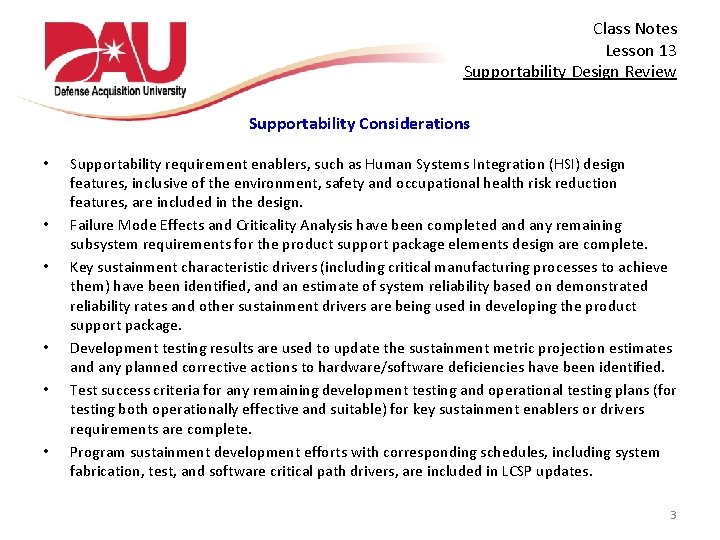

Class Notes Lesson 13 Supportability Design Review Supportability Considerations • • • Supportability requirement enablers, such as Human Systems Integration (HSI) design features, inclusive of the environment, safety and occupational health risk reduction features, are included in the design. Failure Mode Effects and Criticality Analysis have been completed any remaining subsystem requirements for the product support package elements design are complete. Key sustainment characteristic drivers (including critical manufacturing processes to achieve them) have been identified, and an estimate of system reliability based on demonstrated reliability rates and other sustainment drivers are being used in developing the product support package. Development testing results are used to update the sustainment metric projection estimates and any planned corrective actions to hardware/software deficiencies have been identified. Test success criteria for any remaining development testing and operational testing plans (for testing both operationally effective and suitable) for key sustainment enablers or drivers requirements are complete. Program sustainment development efforts with corresponding schedules, including system fabrication, test, and software critical path drivers, are included in LCSP updates. 3

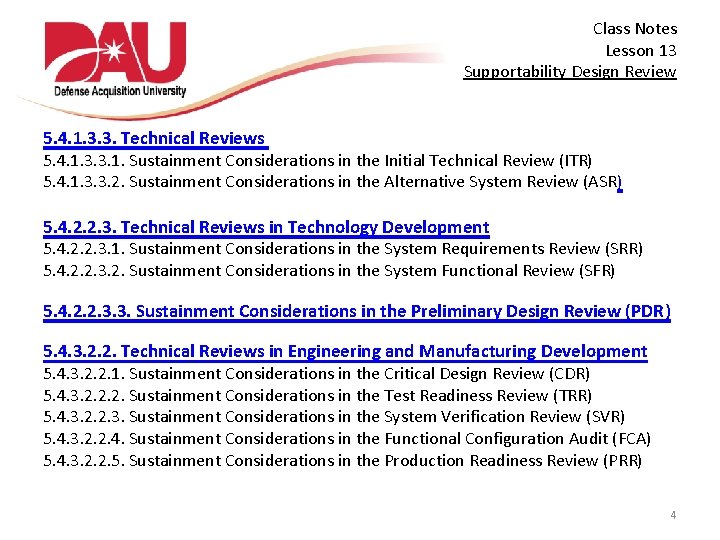

Class Notes Lesson 13 Supportability Design Review 5. 4. 1. 3. 3. Technical Reviews 5. 4. 1. 3. 3. 1. Sustainment Considerations in the Initial Technical Review (ITR) 5. 4. 1. 3. 3. 2. Sustainment Considerations in the Alternative System Review (ASR) 5. 4. 2. 2. 3. Technical Reviews in Technology Development 5. 4. 2. 2. 3. 1. Sustainment Considerations in the System Requirements Review (SRR) 5. 4. 2. 2. 3. 2. Sustainment Considerations in the System Functional Review (SFR) 5. 4. 2. 2. 3. 3. Sustainment Considerations in the Preliminary Design Review (PDR) 5. 4. 3. 2. 2. Technical Reviews in Engineering and Manufacturing Development 5. 4. 3. 2. 2. 1. Sustainment Considerations in the Critical Design Review (CDR) 5. 4. 3. 2. 2. 2. Sustainment Considerations in the Test Readiness Review (TRR) 5. 4. 3. 2. 2. 3. Sustainment Considerations in the System Verification Review (SVR) 5. 4. 3. 2. 2. 4. Sustainment Considerations in the Functional Configuration Audit (FCA) 5. 4. 3. 2. 2. 5. Sustainment Considerations in the Production Readiness Review (PRR) 4

Class Notes Lesson 13 Supportability Design Review 5. 4. 2. 2. 3. Technical Reviews in Technology Development 5. 4. 2. 2. 3. 1. Sustainment Considerations in the System Requirements Review (SRR) • An approved system performance specification with achievable system, supportability, human systems integration, and sustainment enabler requirements which satisfy and are traceable to the ICD or draft CDD and support concept. • A preliminary allocation of system requirements to hardware, human, and software subsystems. The system sustainment requirements should be sufficiently detailed and understood to enable system functional definition and functional decomposition. • Demonstration that critical sustainment system and support element enabler technologies required to implement the support strategy and achieve the needed materiel availability are sufficiently mature to enable low risk entry into development. • Approved support and sustainment concepts with the corresponding metrics. • A preliminary Cost Analysis Requirements Description consistent with the approved system performance specification and sustainment concept. 5

Class Notes Lesson 13 Supportability Design Review Do. D SSE “DAPS Methodology” http: //www. acq. osd. mil/se/docs/DAPS_V 2. 0_Methodology. pdf The Systems and Software Engineering (SSE) Assessments and Support directorate uses the DAPS Methodology as a part of its review process. DASD Materiel Readiness participates in these reviews as a part of the SE team. Areas addressed include: 4. 0 Technical Process Sub-Area 4. 1 Design Considerations 4. 1. 6 Sustainment as a Design Consideration p 236 Sub-Area 4. 7 Supportability Planning 4. 7. 1 Acquisition Logistics 4. 7. 2 Performance-Based Logistics 4. 7. 3 Sustainment 5. 0 Performance Sub-Area 5. 2 Suitability 5. 2. 1 Reliability Assessment 5. 2. 2 Availability Assessment 5. 2. 3 Maintainability Assessment 6

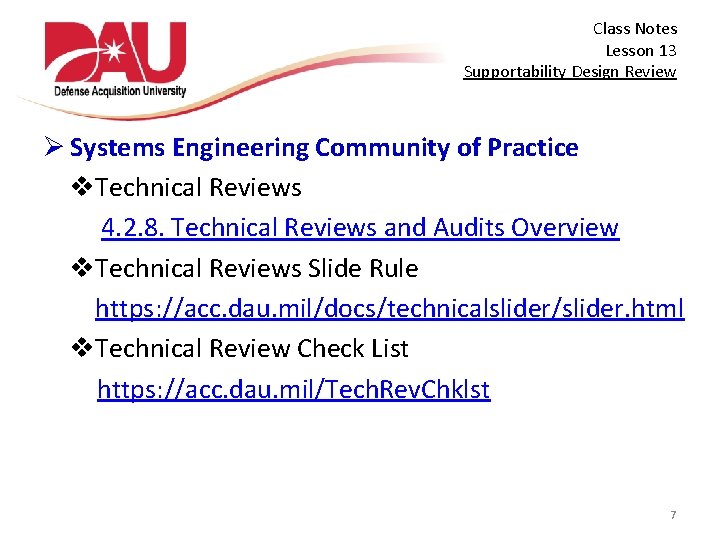

Class Notes Lesson 13 Supportability Design Review Ø Systems Engineering Community of Practice v. Technical Reviews 4. 2. 8. Technical Reviews and Audits Overview v. Technical Reviews Slide Rule https: //acc. dau. mil/docs/technicalslider/slider. html v. Technical Review Check List https: //acc. dau. mil/Tech. Rev. Chklst 7

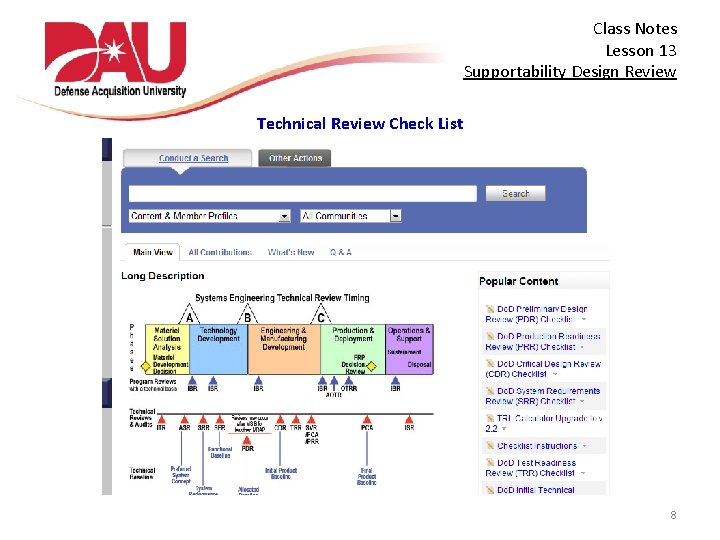

Class Notes Lesson 13 Supportability Design Review Technical Review Check List 8

Class Notes Lesson 13 Supportability Design Review 5. 4. 4. 2. 5. Pre-Initial Operational Capability Supportability Review • This review and its associated analysis should be performed at the Do. D Component level in conjunction with the OTRR to: • Confirm design maturity and configuration of the system • Determine status of correction of any deficiencies identified • Confirm configuration control • Certify product support integrator/providers plan to meet user requirements • Verify product support integrator/provider agreements/contracts and funding are in place 9

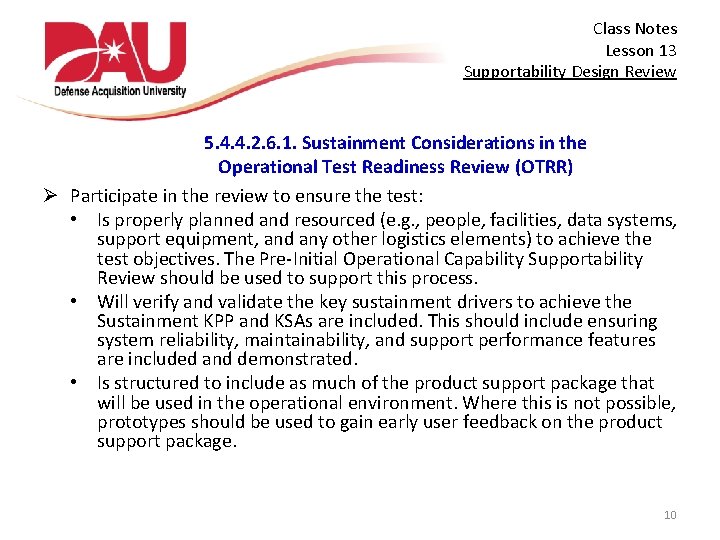

Class Notes Lesson 13 Supportability Design Review 5. 4. 4. 2. 6. 1. Sustainment Considerations in the Operational Test Readiness Review (OTRR) Ø Participate in the review to ensure the test: • Is properly planned and resourced (e. g. , people, facilities, data systems, support equipment, and any other logistics elements) to achieve the test objectives. The Pre-Initial Operational Capability Supportability Review should be used to support this process. • Will verify and validate the key sustainment drivers to achieve the Sustainment KPP and KSAs are included. This should include ensuring system reliability, maintainability, and support performance features are included and demonstrated. • Is structured to include as much of the product support package that will be used in the operational environment. Where this is not possible, prototypes should be used to gain early user feedback on the product support package. 10
