Class 4 Partially Observable MDPs Partially Observable Markov

Class 4 • Partially Observable MDPs

Partially Observable Markov Decision Processes (POMDPs) • • • Set S = s 1, …, sn of possible states Set A = a 1, …, am of possible actions Set O = o 1, …, ol of possible observations Reward model R: same as before Transition model Ta: same as before Observation model P(o | s) – function from S to probability distributions over O • Initial model P 0(s) – probability distribution over initial state of world

Interaction Model 1. 2. 3. 4. 5. 6. 7. 8. 9. etc. Environment starts in state i with probability P 0(i) Agent receives observation o with probability P(o | i) Agent chooses action a Agent receives reward R(i, a) State transitions to j according to Tai Agent receives observation o’ with probability P(o’ | j) Agent chooses action b Agent receives reward R(j, b) State transitions to k according to Tbj

Example 1: Miniature POMDP • • States S 1, S 2 Actions A 1, A 2 Observations O 1, O 2 Reward function: State Action Reward S 1 A 1 1 S 1 A 2 0 S 2 A 1 -1 S 2 A 2 0

Miniature POMDP: Transition Models

Miniature POMDP: Observation and Initial Models State P(O 1 | S) P(O 2 | S) S 1 0. 8 0. 2 S 2 0. 8 P 0(S 1) = 0. 3, P 0(S 2) = 0. 7

Example 2: Robot Navigation With Doors • • • Robot needs to get to goal and avoid stairwell There are doors between some locations Doors open and close stochastically Robot can only see doors at its location Robot does not know its location and heading

Specification of POMDP • State must specify – Location of robot – Heading of robot – For each door, whether it is open or closed • Transition and reward models same as before • What are the observations?

Specification of POMDP • State must specify – Location of robot – Heading of robot – For each door, whether it is open or closed • Transition and reward models same as before • What are the observations? – <door in front, door left, door right, door behind>

Specification of POMDP • State must specify – Location of robot – Heading of robot – For each door, whether it is open or closed • Transition and reward models same as before • What are the observations? – <door in front, door left, door right, door behind> • Observation model: projects all doors onto current location

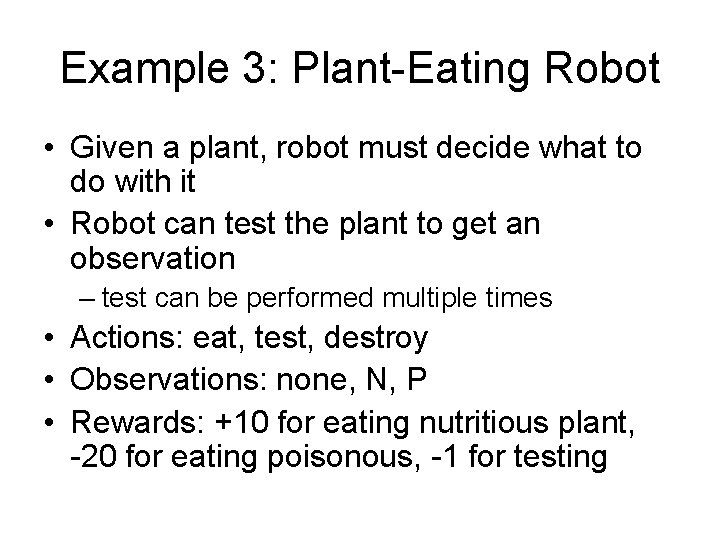

Example 3: Plant-Eating Robot • Given a plant, robot must decide what to do with it • Robot can test the plant to get an observation – test can be performed multiple times • Actions: eat, test, destroy • Observations: none, N, P • Rewards: +10 for eating nutritious plant, -20 for eating poisonous, -1 for testing

Visualization of Model

POMDPs are Hard! Why? • Optimal action depends on entire history of percepts and actions – size of policy exponential in length of history • Optimal action considers future beliefs, not just state – need information-gathering actions

Hardness • Finite horizon: exponential in horizon • Infinite horizon: undecidable • Dilemma: – POMDPs describe many real world domains – but getting optimal policies is too hard • in fact optimal policies are too large to describe • What can we do? – try to find a good, not necessarily optimal policy

Types of Policy: Finite Memory Policy 1. • Specifies what to do for each value of the last k percepts • E. g. : – ( ) = Test – (N) = Test – (P) = Test – (NP) = Test – (PN) = Test – (NN) = Eat – (PP) = Destroy

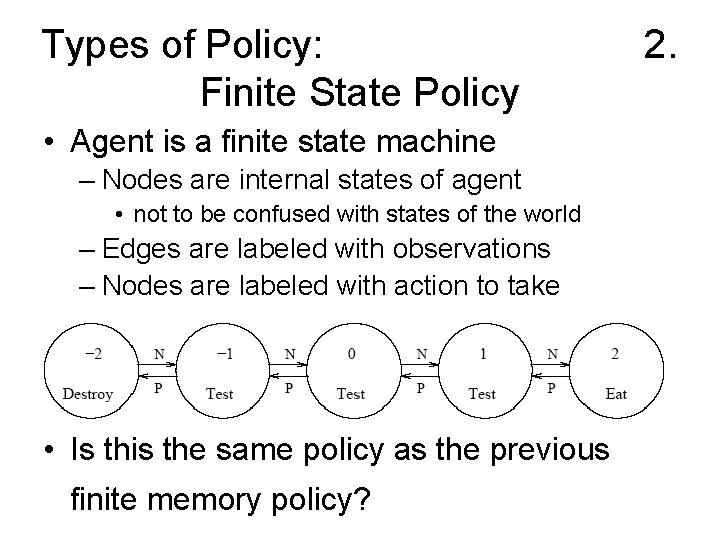

Types of Policy: Finite State Policy • Agent is a finite state machine – Nodes are internal states of agent • not to be confused with states of the world – Edges are labeled with observations – Nodes are labeled with action to take • Is this the same policy as the previous finite memory policy? 2.

Types of Policy: Belief State Policy 3. • A belief state is a probability distribution over the current state of the system, given a sequence of observations • Belief state policy: divide belief state into regions, and specify an action for each region, e. g. – if P(N | History) > 0. 9, Eat – if 0. 2 < P(N | History) 0. 9, Test – if P(N | History) 0. 2, Destroy

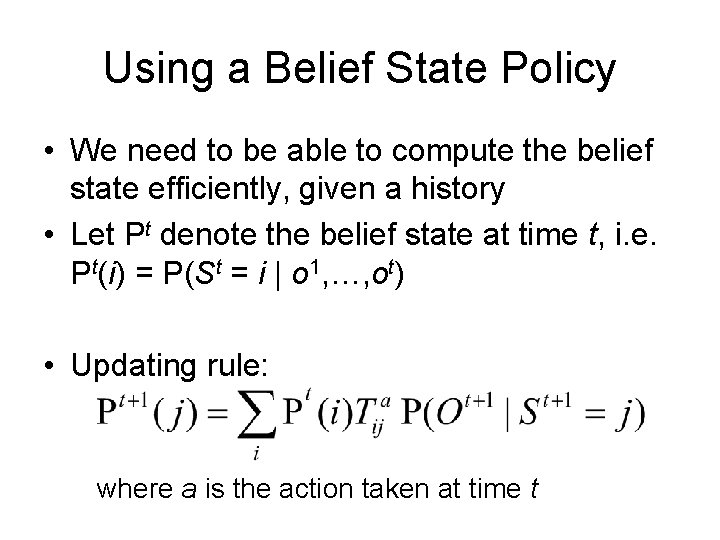

Using a Belief State Policy • We need to be able to compute the belief state efficiently, given a history • Let Pt denote the belief state at time t, i. e. Pt(i) = P(St = i | o 1, …, ot)

Using a Belief State Policy • We need to be able to compute the belief state efficiently, given a history • Let Pt denote the belief state at time t, i. e. Pt(i) = P(St = i | o 1, …, ot) • Updating rule: where a is the action taken at time t
