CIVIL DEFENCE APPROVAL THROUGH DMS BPCS SYSTEM EENGINEERING

CIVIL DEFENCE APPROVAL THROUGH DM’S BPCS SYSTEM E-ENGINEERING DRAWING SUBMISSIONS NOT COMPLYING TO FOLLOWING REQUIREMENTS SHALL BE REJECTED FROM SYSTEM IN EFFECT FROM 16 TH FEBRUARY 2014 ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

1. TYPE OF FILES ü All files shall be in DWF ü All files shall be in PDF Ø Ø Format for submissions through DM Format for direct submissions to DCD TECOM JLT SILICON OASIS JAFZA ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

2. NUMBER OF FILES The submission shall have only 5 attached files for the following 5 categories ü a. Architecture_Life Safety (With TITLE page) ü b. Fire Alarm_Emergency Lighting_Voice evacuation ü c. Fire Fighting ü d. Smoke Control ü e. LPG System, if any. DO NOT submit the following details/Files/attachments × Structural details × Drainage details × Electrical details × Flooring layouts × Ceiling layouts × Lighting × Telecommunication details × Plumbing ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

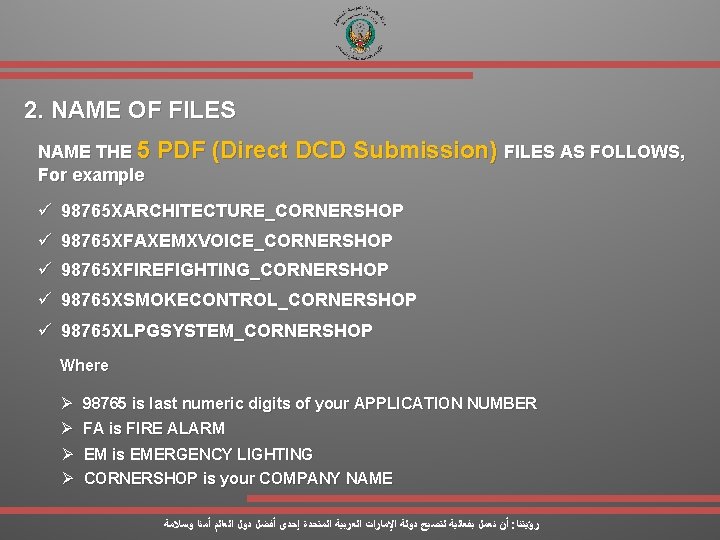

2. NAME OF FILES NAME THE 5 For example PDF (Direct DCD Submission) FILES AS FOLLOWS, ü 98765 XARCHITECTURE_CORNERSHOP ü 98765 XFAXEMXVOICE_CORNERSHOP ü 98765 XFIREFIGHTING_CORNERSHOP ü 98765 XSMOKECONTROL_CORNERSHOP ü 98765 XLPGSYSTEM_CORNERSHOP Where Ø 98765 is last numeric digits of your APPLICATION NUMBER Ø FA is FIRE ALARM Ø EM is EMERGENCY LIGHTING Ø CORNERSHOP is your COMPANY NAME ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

2. NAME OF FILES NAME THE 5 For example DWF (Through DM Submission) FILES AS FOLLOWS, ü 123 -456 XARCHITECTURE_CORNERSHOP ü 123 -456 XFAXEMXVOICE_CORNERSHOP ü 123 -456 XFIREFIGHTING_CORNERSHOP ü 123 -456 XSMOKECONTROL_CORNERSHOP ü 123 -456 XLPGSYSTEM_CORNERSHOP Where Ø 123 -456 is PARCEL NUMBER Ø FA is FIRE ALARM Ø EM is EMERGENCY LIGHTING Ø CORNERSHOP is your COMPANY NAME ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

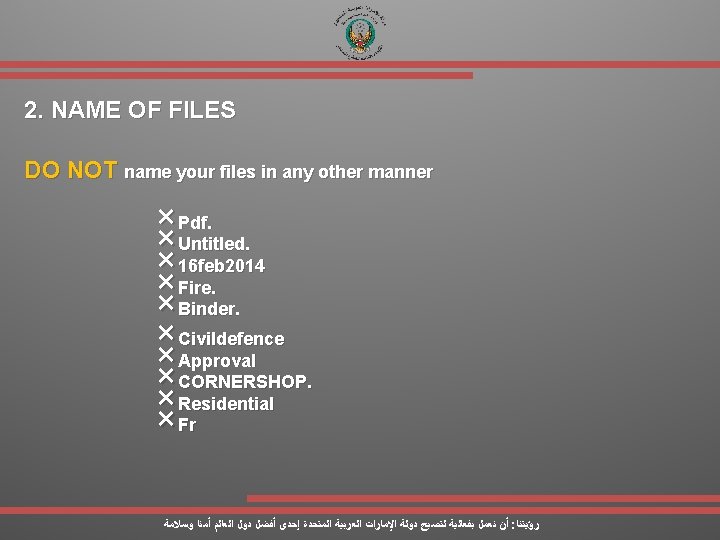

3. SIZE OF FILES 5 DWF (DM Submission) FILE sizes shall be as per DM requirements. 5 PDF (Direct DCD Submission) FILE sizes shall be as follows. ü Each attached file can be maximum of 50 Mb ü Total accumulated size of attached files can be maximum of 200 Mb ü If single file size exceeds 50 Mb, split your file into part 1, 2, 3, etc and name them, for example, Architecture file as Ø 98765 XARCHITECTURE_CORNERSHOP_part 1 Ø 98765 XARCHITECTURE_CORNERSHOP_part 2 Ø 98765 XARCHITECTURE_CORNERSHOP_part 3 ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

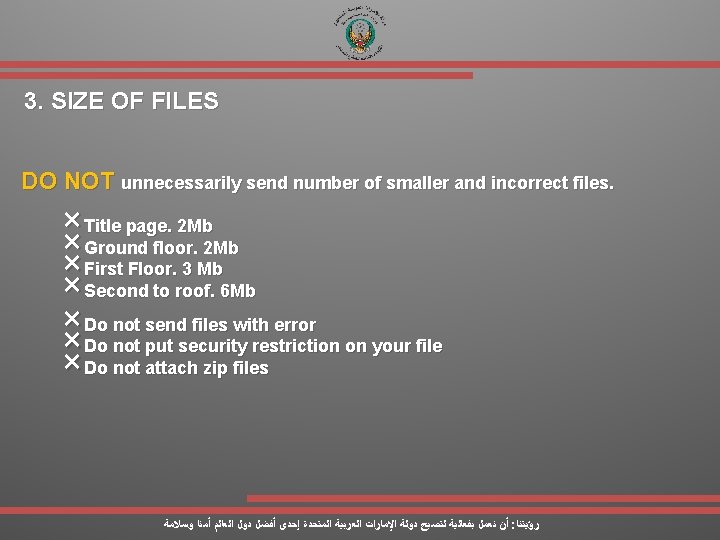

3. SIZE OF FILES DO NOT unnecessarily send number of smaller and incorrect files. × Title page. 2 Mb × Ground floor. 2 Mb × First Floor. 3 Mb × Second to roof. 6 Mb × Do not send files with error × Do not put security restriction on your file × Do not attach zip files ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

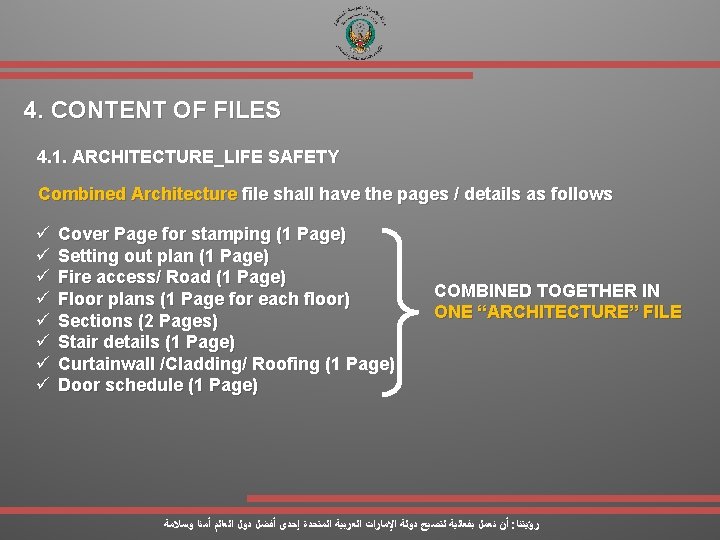

4. CONTENT OF FILES 4. 1. ARCHITECTURE_LIFE SAFETY Combined Architecture file shall have the pages / details as follows ü ü ü ü Cover Page for stamping (1 Page) Setting out plan (1 Page) Fire access/ Road (1 Page) Floor plans (1 Page for each floor) Sections (2 Pages) Stair details (1 Page) Curtainwall /Cladding/ Roofing (1 Page) Door schedule (1 Page) COMBINED TOGETHER IN ONE “ARCHITECTURE” FILE ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

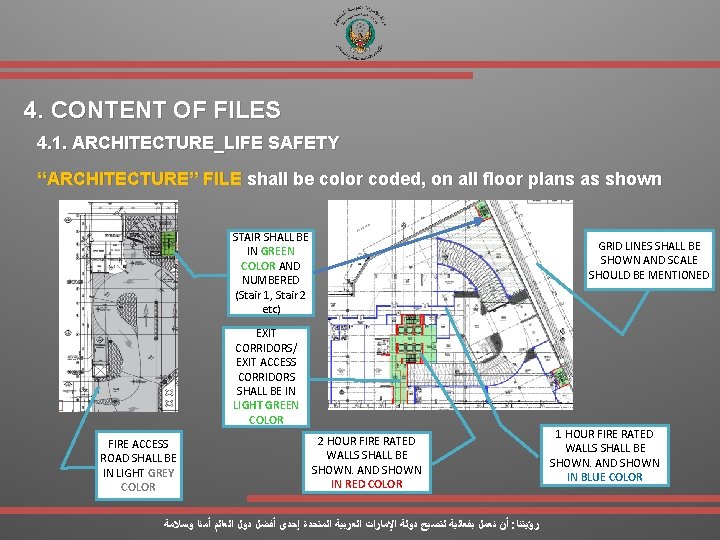

4. CONTENT OF FILES 4. 1. ARCHITECTURE_LIFE SAFETY “ARCHITECTURE” FILE shall be color coded, on all floor plans as shown STAIR SHALL BE IN GREEN COLOR AND NUMBERED (Stair 1, Stair 2 etc) GRID LINES SHALL BE SHOWN AND SCALE SHOULD BE MENTIONED EXIT CORRIDORS/ EXIT ACCESS CORRIDORS SHALL BE IN LIGHT GREEN COLOR FIRE ACCESS ROAD SHALL BE IN LIGHT GREY COLOR 2 HOUR FIRE RATED WALLS SHALL BE SHOWN. AND SHOWN IN RED COLOR ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ 1 HOUR FIRE RATED WALLS SHALL BE SHOWN. AND SHOWN IN BLUE COLOR

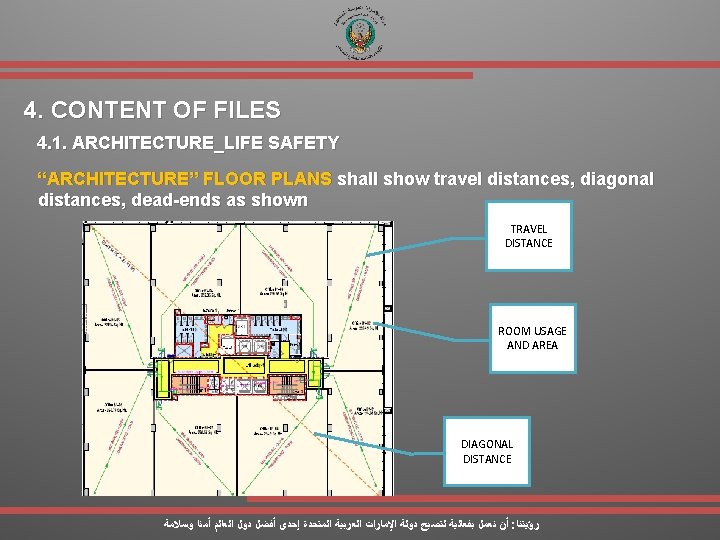

4. CONTENT OF FILES 4. 1. ARCHITECTURE_LIFE SAFETY “ARCHITECTURE” FLOOR PLANS shall show travel distances, diagonal distances, dead-ends as shown TRAVEL DISTANCE ROOM USAGE AND AREA DIAGONAL DISTANCE ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

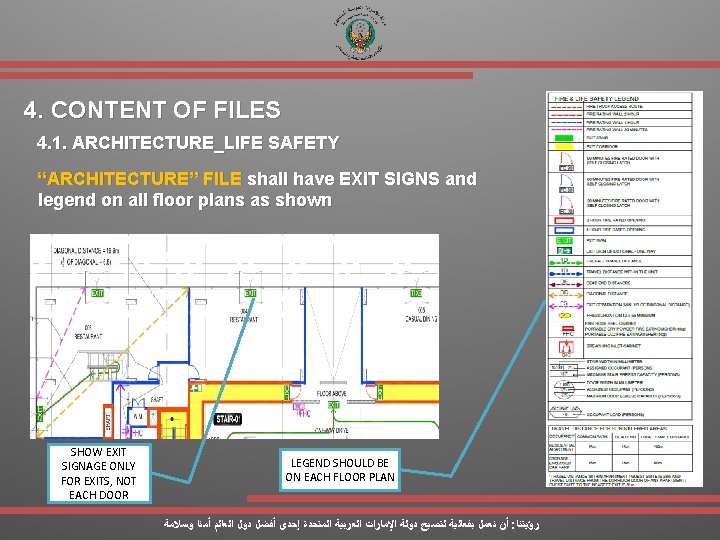

4. CONTENT OF FILES 4. 1. ARCHITECTURE_LIFE SAFETY “ARCHITECTURE” FILE shall have EXIT SIGNS and legend on all floor plans as shown SHOW EXIT SIGNAGE ONLY FOR EXITS, NOT EACH DOOR LEGEND SHOULD BE ON EACH FLOOR PLAN ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

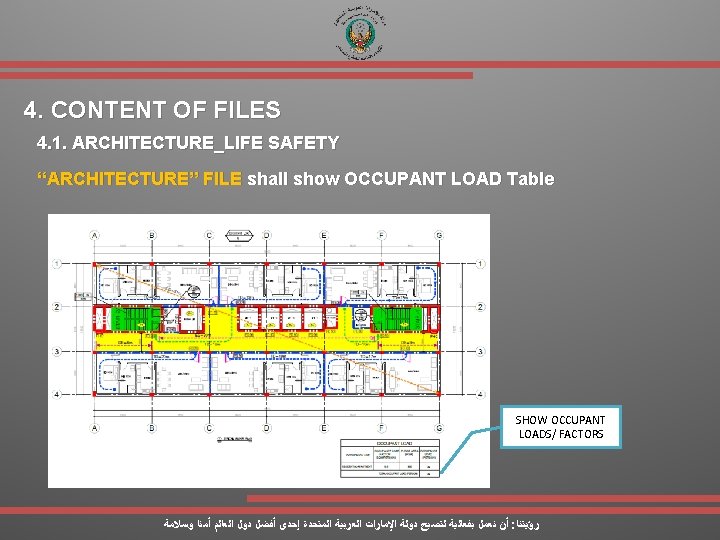

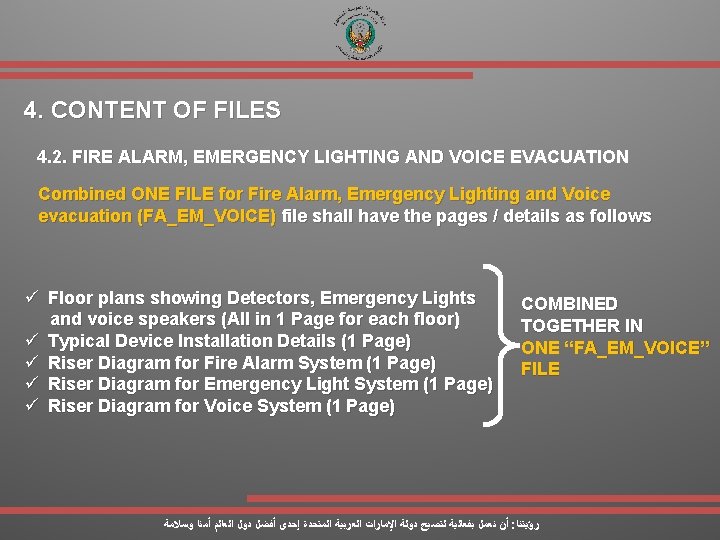

4. CONTENT OF FILES 4. 2. FIRE ALARM, EMERGENCY LIGHTING AND VOICE EVACUATION Combined ONE FILE for Fire Alarm, Emergency Lighting and Voice evacuation (FA_EM_VOICE) file shall have the pages / details as follows ü Floor plans showing Detectors, Emergency Lights and voice speakers (All in 1 Page for each floor) ü Typical Device Installation Details (1 Page) ü Riser Diagram for Fire Alarm System (1 Page) ü Riser Diagram for Emergency Light System (1 Page) ü Riser Diagram for Voice System (1 Page) COMBINED TOGETHER IN ONE “FA_EM_VOICE” FILE ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

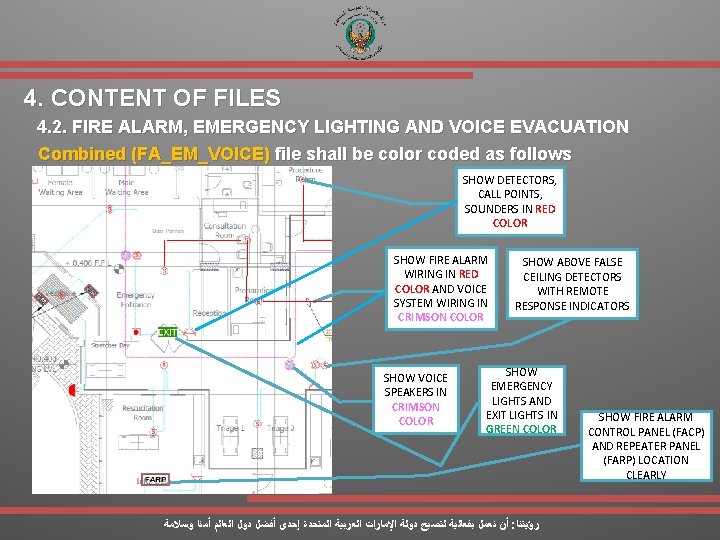

4. CONTENT OF FILES 4. 2. FIRE ALARM, EMERGENCY LIGHTING AND VOICE EVACUATION Combined (FA_EM_VOICE) file shall be color coded as follows SHOW DETECTORS, CALL POINTS, SOUNDERS IN RED COLOR SHOW FIRE ALARM WIRING IN RED COLOR AND VOICE SYSTEM WIRING IN CRIMSON COLOR SHOW VOICE SPEAKERS IN CRIMSON COLOR SHOW ABOVE FALSE CEILING DETECTORS WITH REMOTE RESPONSE INDICATORS SHOW EMERGENCY LIGHTS AND EXIT LIGHTS IN GREEN COLOR ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ SHOW FIRE ALARM CONTROL PANEL (FACP) AND REPEATER PANEL (FARP) LOCATION CLEARLY

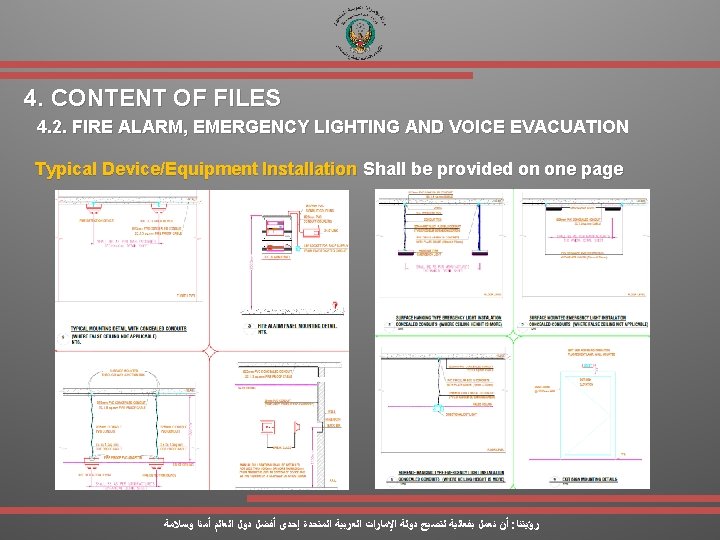

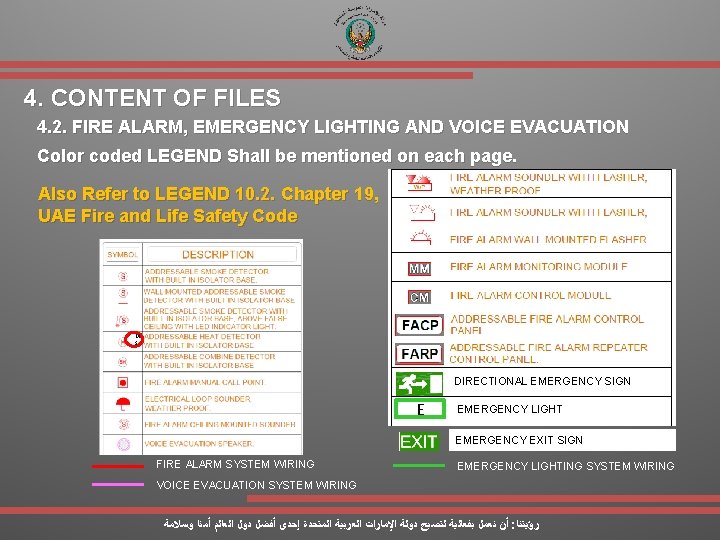

4. CONTENT OF FILES 4. 2. FIRE ALARM, EMERGENCY LIGHTING AND VOICE EVACUATION Color coded LEGEND Shall be mentioned on each page. Also Refer to LEGEND 10. 2. Chapter 19, UAE Fire and Life Safety Code M S DIRECTIONAL EMERGENCY SIGN E EMERGENCY LIGHT EMERGENCY EXIT SIGN FIRE ALARM SYSTEM WIRING EMERGENCY LIGHTING SYSTEM WIRING VOICE EVACUATION SYSTEM WIRING ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

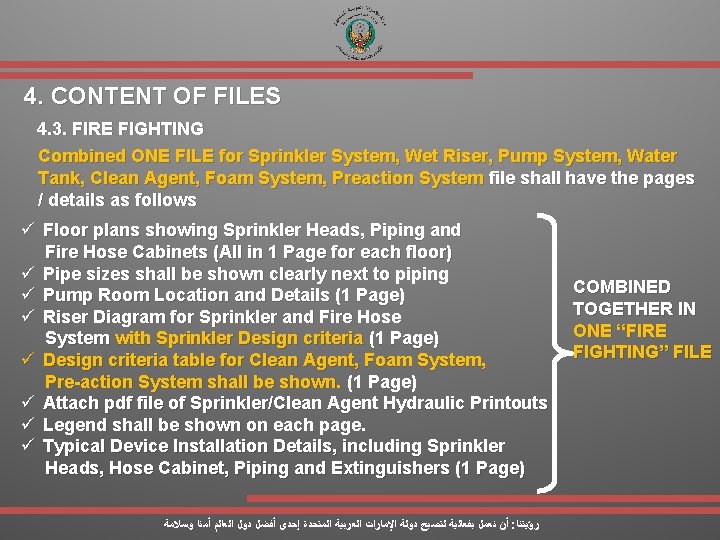

4. CONTENT OF FILES 4. 3. FIRE FIGHTING Combined ONE FILE for Sprinkler System, Wet Riser, Pump System, Water Tank, Clean Agent, Foam System, Preaction System file shall have the pages / details as follows ü Floor plans showing Sprinkler Heads, Piping and Fire Hose Cabinets (All in 1 Page for each floor) ü Pipe sizes shall be shown clearly next to piping ü Pump Room Location and Details (1 Page) ü Riser Diagram for Sprinkler and Fire Hose System with Sprinkler Design criteria (1 Page) ü Design criteria table for Clean Agent, Foam System, Pre-action System shall be shown. (1 Page) ü Attach pdf file of Sprinkler/Clean Agent Hydraulic Printouts ü Legend shall be shown on each page. ü Typical Device Installation Details, including Sprinkler Heads, Hose Cabinet, Piping and Extinguishers (1 Page) ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ COMBINED TOGETHER IN ONE “FIRE FIGHTING” FILE

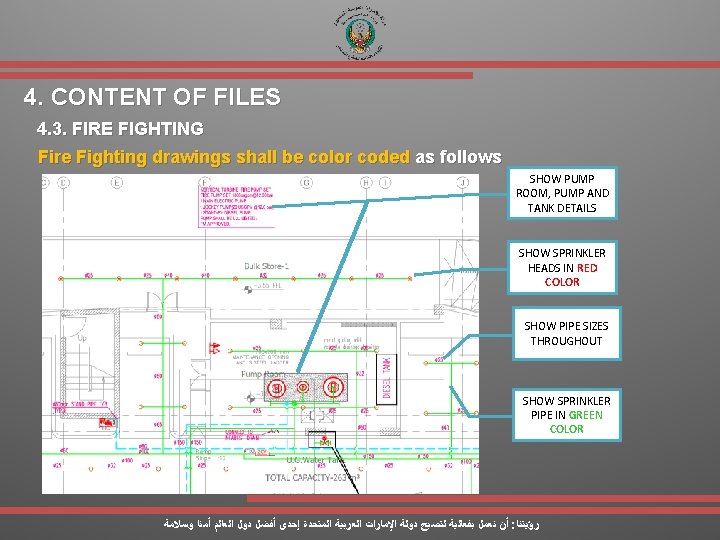

4. CONTENT OF FILES 4. 3. FIRE FIGHTING Fire Fighting drawings shall be color coded as follows SHOW PUMP ROOM, PUMP AND TANK DETAILS SHOW SPRINKLER HEADS IN RED COLOR SHOW PIPE SIZES THROUGHOUT SHOW SPRINKLER PIPE IN GREEN COLOR ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

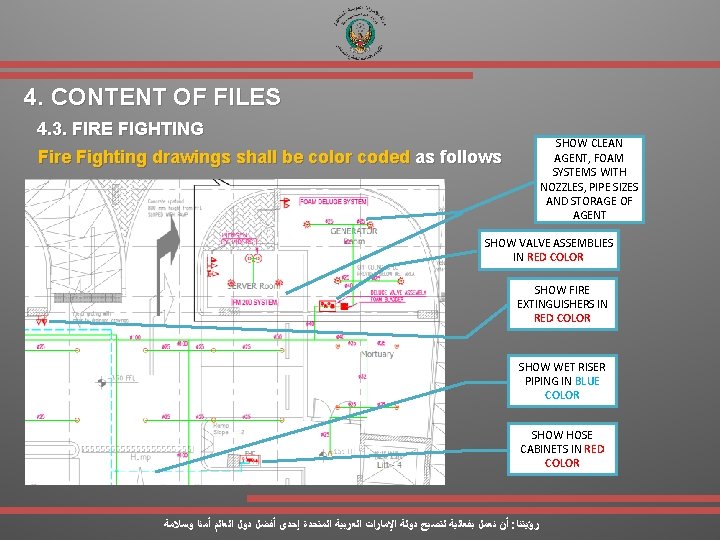

4. CONTENT OF FILES 4. 3. FIRE FIGHTING SHOW CLEAN AGENT, FOAM SYSTEMS WITH NOZZLES, PIPE SIZES AND STORAGE OF AGENT Fire Fighting drawings shall be color coded as follows SHOW VALVE ASSEMBLIES IN RED COLOR SHOW FIRE EXTINGUISHERS IN RED COLOR SHOW WET RISER PIPING IN BLUE COLOR SHOW HOSE CABINETS IN RED COLOR ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

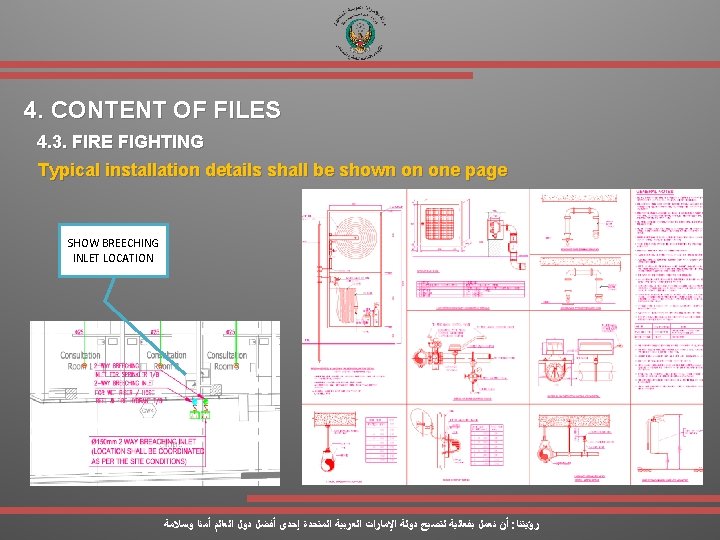

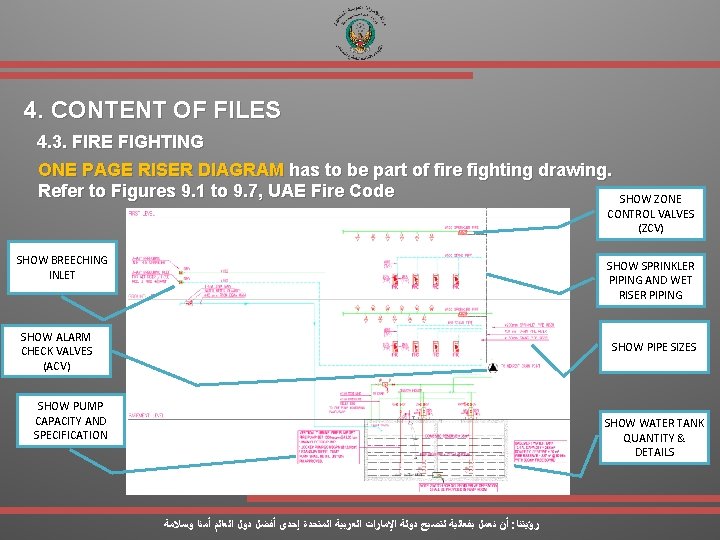

4. CONTENT OF FILES 4. 3. FIRE FIGHTING ONE PAGE RISER DIAGRAM has to be part of fire fighting drawing. Refer to Figures 9. 1 to 9. 7, UAE Fire Code SHOW ZONE CONTROL VALVES (ZCV) SHOW BREECHING INLET SHOW SPRINKLER PIPING AND WET RISER PIPING SHOW ALARM CHECK VALVES (ACV) SHOW PIPE SIZES SHOW PUMP CAPACITY AND SPECIFICATION SHOW WATER TANK QUANTITY & DETAILS ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

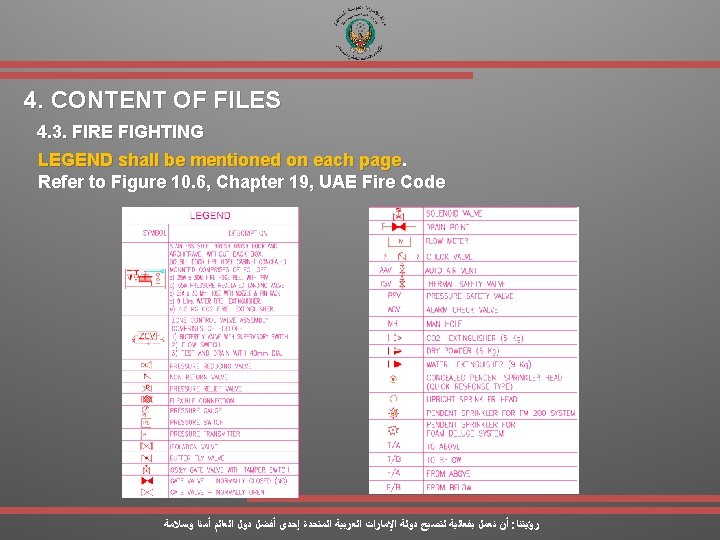

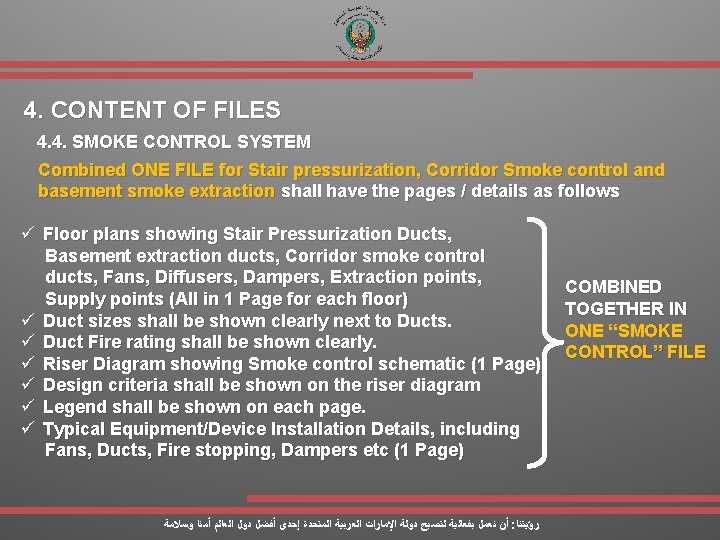

4. CONTENT OF FILES 4. 4. SMOKE CONTROL SYSTEM Combined ONE FILE for Stair pressurization, Corridor Smoke control and basement smoke extraction shall have the pages / details as follows ü Floor plans showing Stair Pressurization Ducts, Basement extraction ducts, Corridor smoke control ducts, Fans, Diffusers, Dampers, Extraction points, Supply points (All in 1 Page for each floor) ü Duct sizes shall be shown clearly next to Ducts. ü Duct Fire rating shall be shown clearly. ü Riser Diagram showing Smoke control schematic (1 Page) ü Design criteria shall be shown on the riser diagram ü Legend shall be shown on each page. ü Typical Equipment/Device Installation Details, including Fans, Ducts, Fire stopping, Dampers etc (1 Page) ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ COMBINED TOGETHER IN ONE “SMOKE CONTROL” FILE

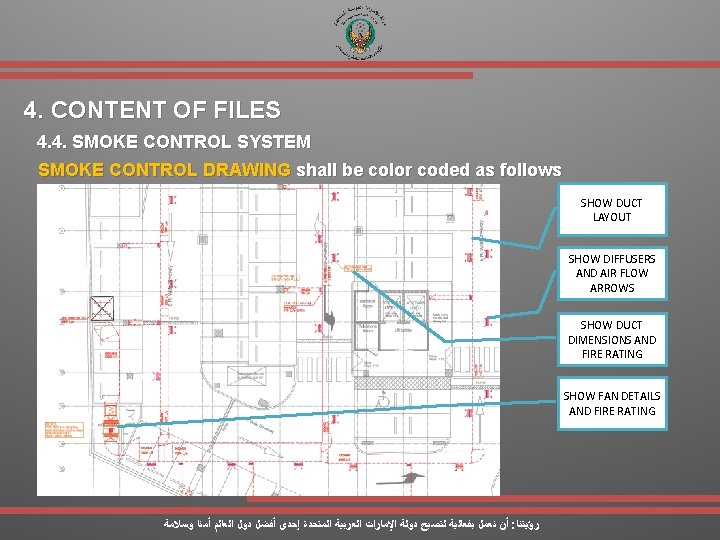

4. CONTENT OF FILES 4. 4. SMOKE CONTROL SYSTEM SMOKE CONTROL DRAWING shall be color coded as follows SHOW DUCT LAYOUT SHOW DIFFUSERS AND AIR FLOW ARROWS SHOW DUCT DIMENSIONS AND FIRE RATING SHOW FAN DETAILS AND FIRE RATING ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

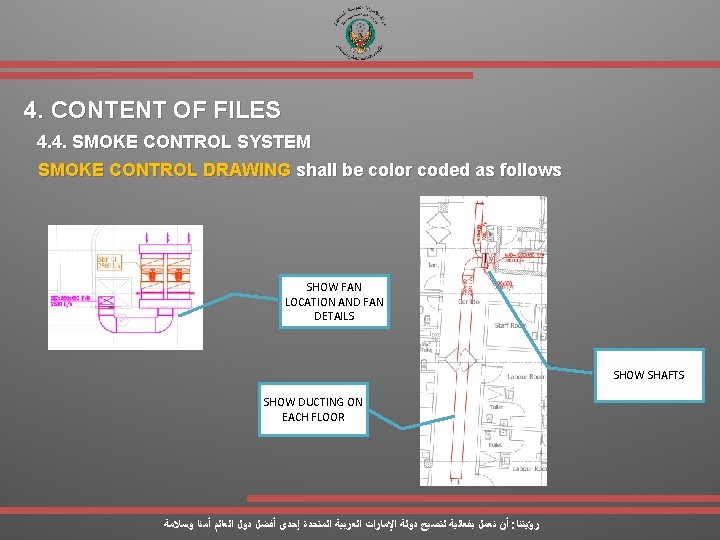

4. CONTENT OF FILES 4. 4. SMOKE CONTROL SYSTEM SMOKE CONTROL DRAWING shall be color coded as follows SHOW FAN LOCATION AND FAN DETAILS SHOW SHAFTS SHOW DUCTING ON EACH FLOOR ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

4. CONTENT OF FILES 4. 4. SMOKE CONTROL SYSTEM SMOKE CONTROL RISER Diagram shall be provided SHOW FAN DETAILS AND FIRE RATING SHOW FOR ALL FLOORS SHOW BASEMENT EXTRACTION WITH FAN DETAILS ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

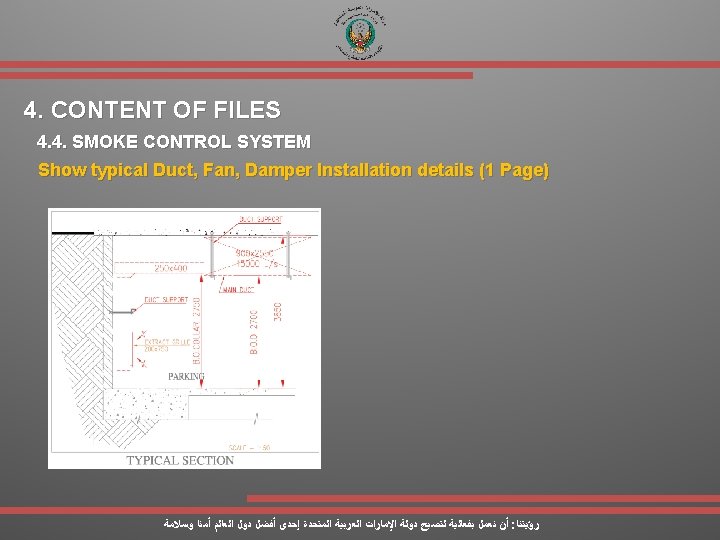

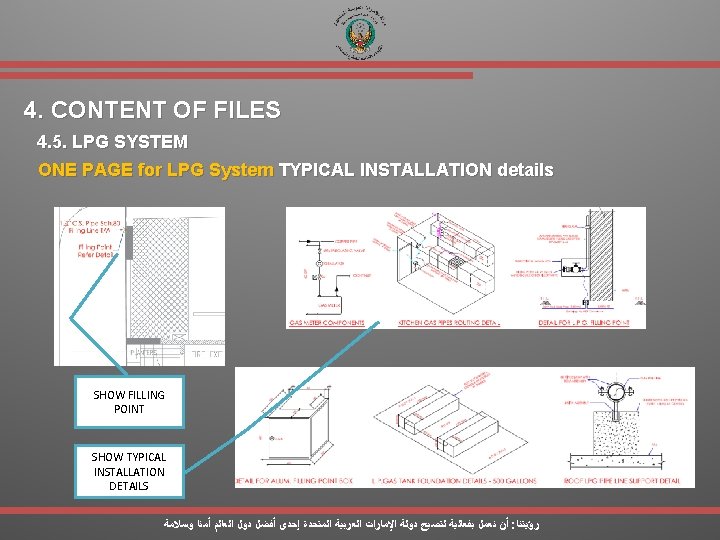

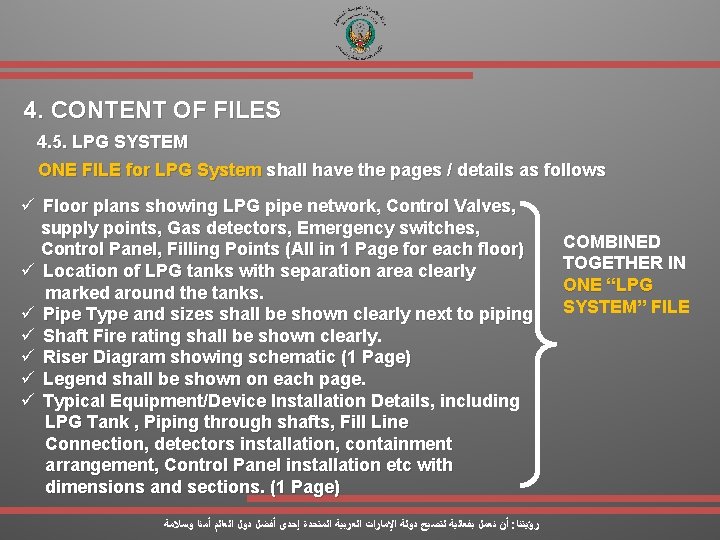

4. CONTENT OF FILES 4. 5. LPG SYSTEM ONE FILE for LPG System shall have the pages / details as follows ü Floor plans showing LPG pipe network, Control Valves, supply points, Gas detectors, Emergency switches, Control Panel, Filling Points (All in 1 Page for each floor) ü Location of LPG tanks with separation area clearly marked around the tanks. ü Pipe Type and sizes shall be shown clearly next to piping ü Shaft Fire rating shall be shown clearly. ü Riser Diagram showing schematic (1 Page) ü Legend shall be shown on each page. ü Typical Equipment/Device Installation Details, including LPG Tank , Piping through shafts, Fill Line Connection, detectors installation, containment arrangement, Control Panel installation etc with dimensions and sections. (1 Page) ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ COMBINED TOGETHER IN ONE “LPG SYSTEM” FILE

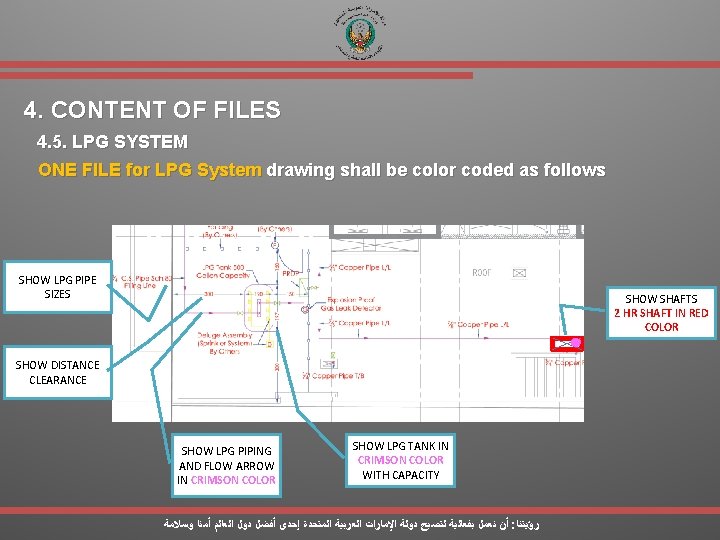

4. CONTENT OF FILES 4. 5. LPG SYSTEM ONE FILE for LPG System drawing shall be color coded as follows SHOW LPG PIPE SIZES SHOW SHAFTS 2 HR SHAFT IN RED COLOR SHOW DISTANCE CLEARANCE SHOW LPG PIPING AND FLOW ARROW IN CRIMSON COLOR SHOW LPG TANK IN CRIMSON COLOR WITH CAPACITY ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

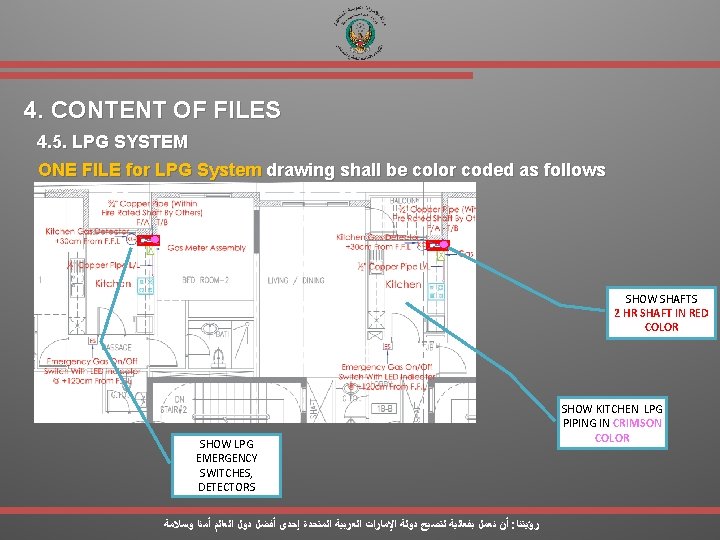

4. CONTENT OF FILES 4. 5. LPG SYSTEM ONE FILE for LPG System drawing shall be color coded as follows SHOW SHAFTS 2 HR SHAFT IN RED COLOR SHOW LPG EMERGENCY SWITCHES, DETECTORS ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ SHOW KITCHEN LPG PIPING IN CRIMSON COLOR

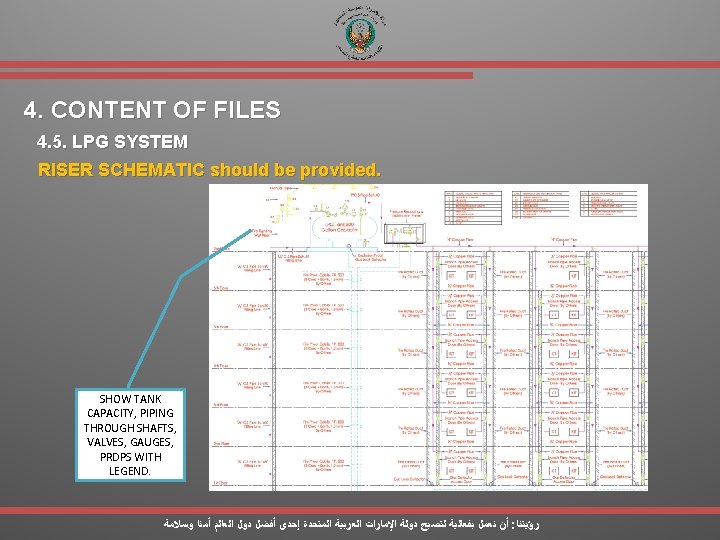

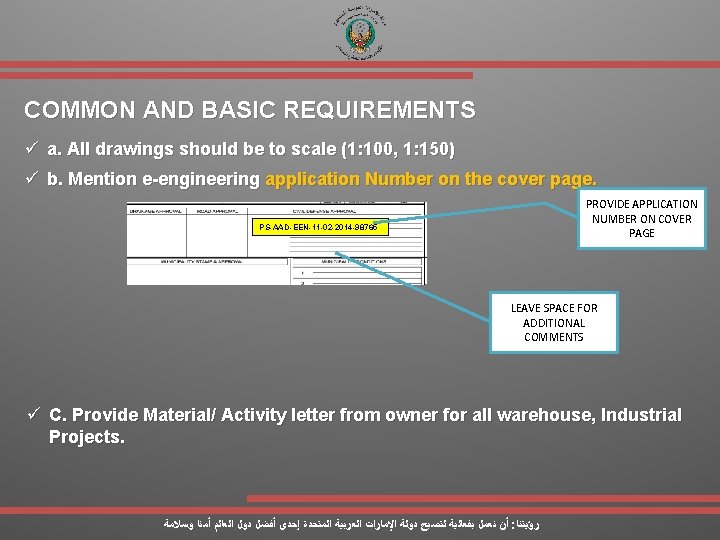

COMMON AND BASIC REQUIREMENTS ü a. All drawings should be to scale (1: 100, 1: 150) ü b. Mention e-engineering application Number on the cover page. PROVIDE APPLICATION NUMBER ON COVER PAGE PS-AAD-EEN-11 -02 -2014 -98765 LEAVE SPACE FOR ADDITIONAL COMMENTS ü C. Provide Material/ Activity letter from owner for all warehouse, Industrial Projects. ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

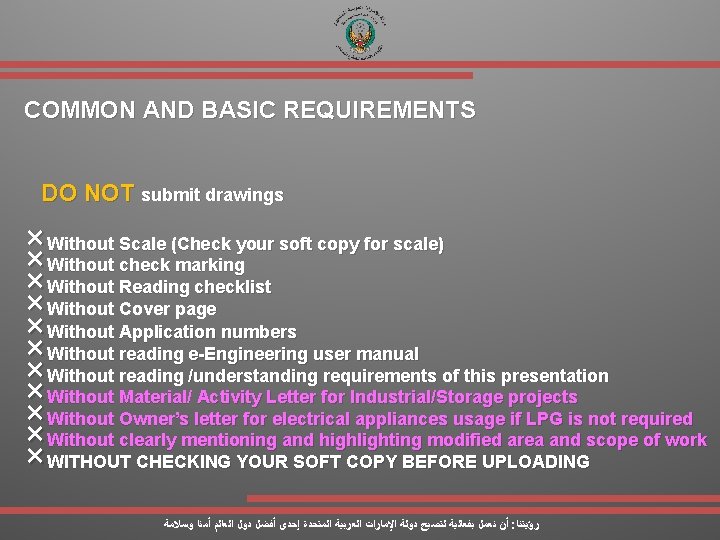

COMMON AND BASIC REQUIREMENTS DO NOT submit drawings × Without Scale (Check your soft copy for scale) × Without check marking × Without Reading checklist × Without Cover page × Without Application numbers × Without reading e-Engineering user manual × Without reading /understanding requirements of this presentation × Without Material/ Activity Letter for Industrial/Storage projects × Without Owner’s letter for electrical appliances usage if LPG is not required × Without clearly mentioning and highlighting modified area and scope of work × WITHOUT CHECKING YOUR SOFT COPY BEFORE UPLOADING ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ

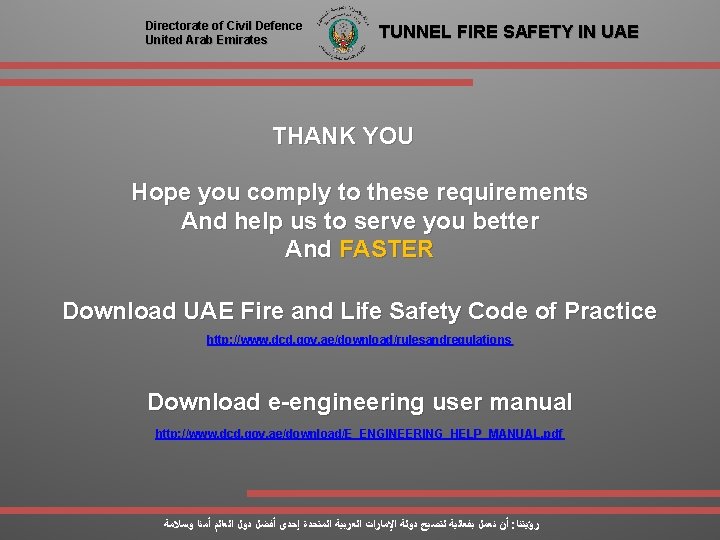

Directorate of Civil Defence United Arab Emirates TUNNEL FIRE SAFETY IN UAE THANK YOU Hope you comply to these requirements And help us to serve you better And FASTER Download UAE Fire and Life Safety Code of Practice http: //www. dcd. gov. ae/download/rulesandregulations Download e-engineering user manual http: //www. dcd. gov. ae/download/E_ENGINEERING_HELP_MANUAL. pdf ﺃﻦ ﻧﻌﻤﻞ ﺑﻔﻌﺎﻟﻴﺔ ﻟﺘﺼﺒﺢ ﺩﻭﻟﺔ ﺍﻹﻣﺎﺭﺍﺕ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻟﻤﺘﺤﺪﺓ ﺇﺣﺪﻯ ﺃﻔﻀﻞ ﺩﻭﻝ ﺍﻟﻌﺎﻟﻢ ﺃﻤﻨﺎ ﻭﺳﻼﻣﺔ : ﺭﺅﻴﺘﻨﺎ
