CISN Testing Center Shake. Alert Performance Summaries Event Summaries for M 4. 0+ California Shake. Map Events (23 Feb 2013 - 1 Oct 2012)

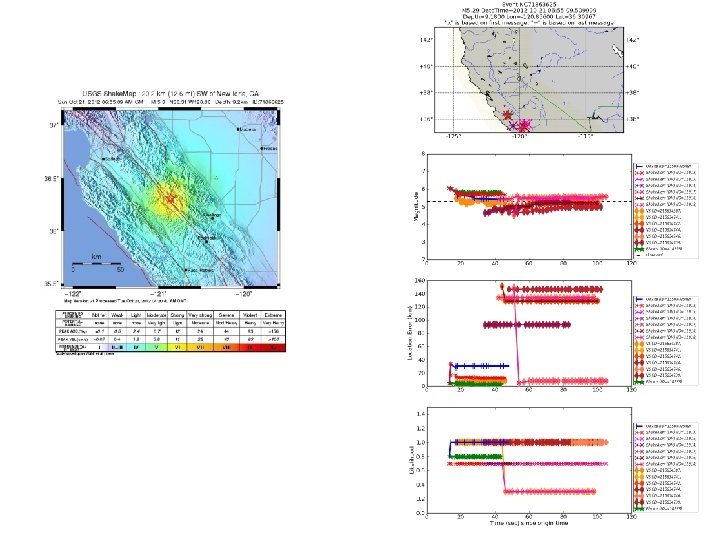

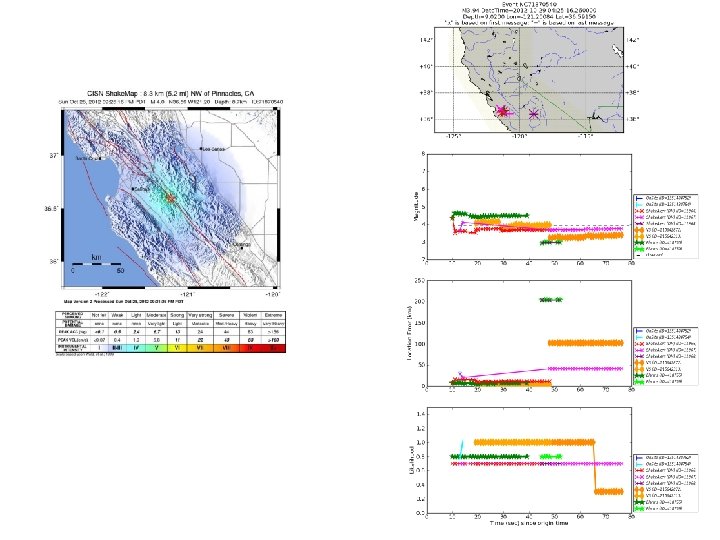

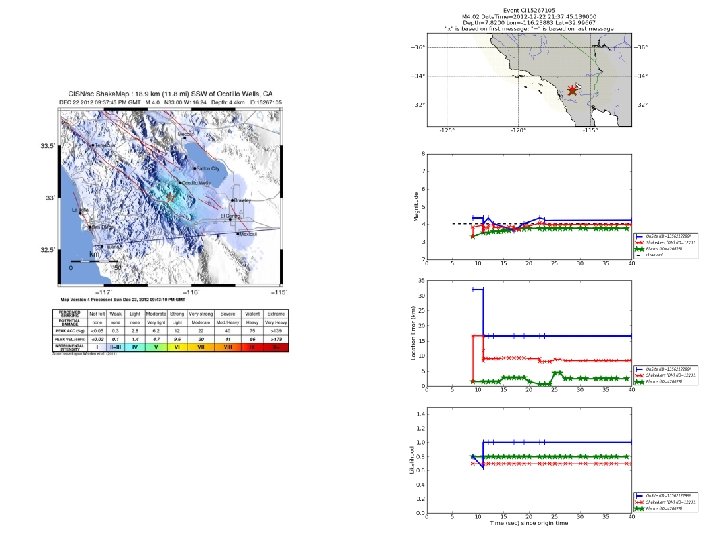

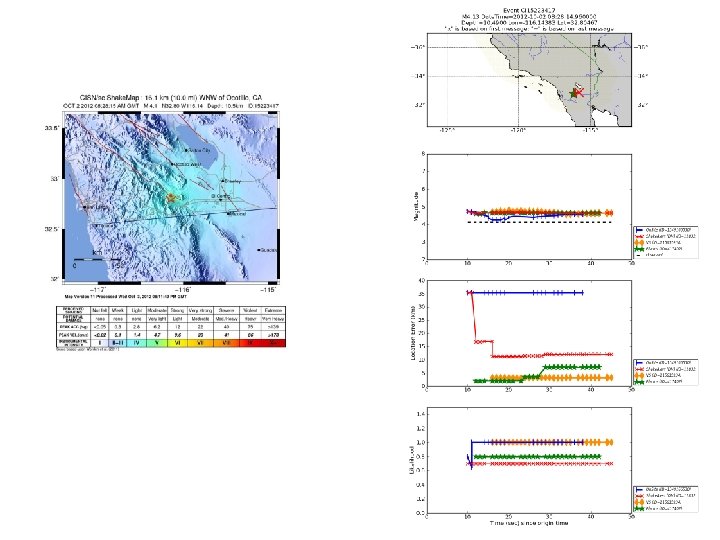

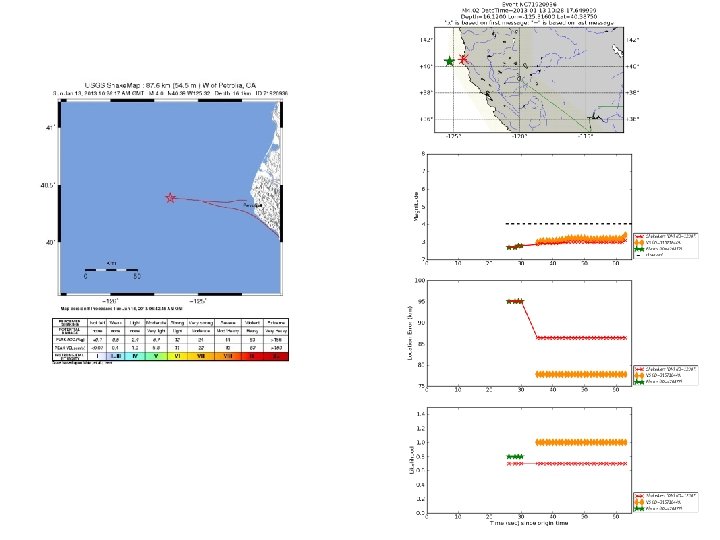

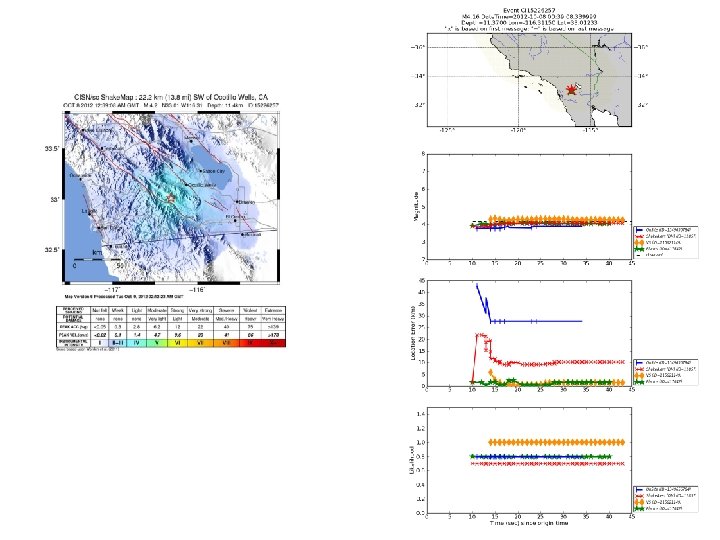

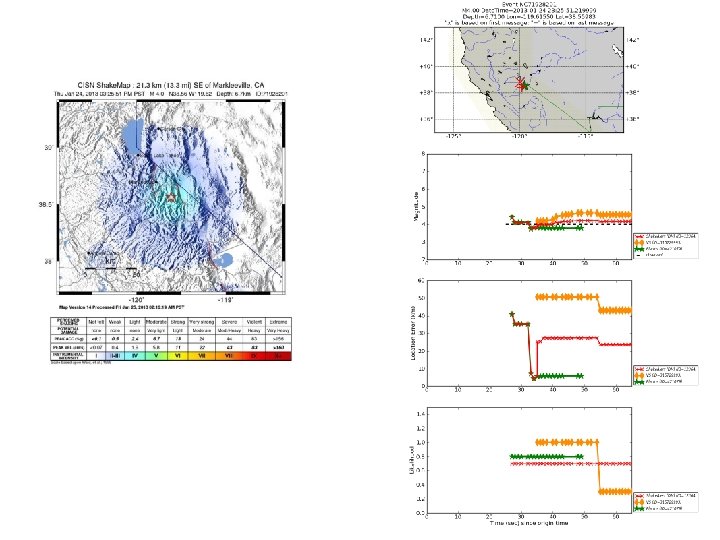

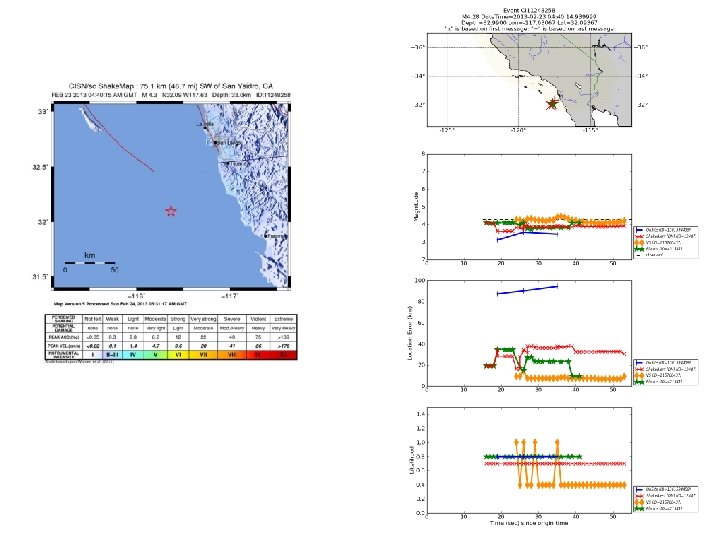

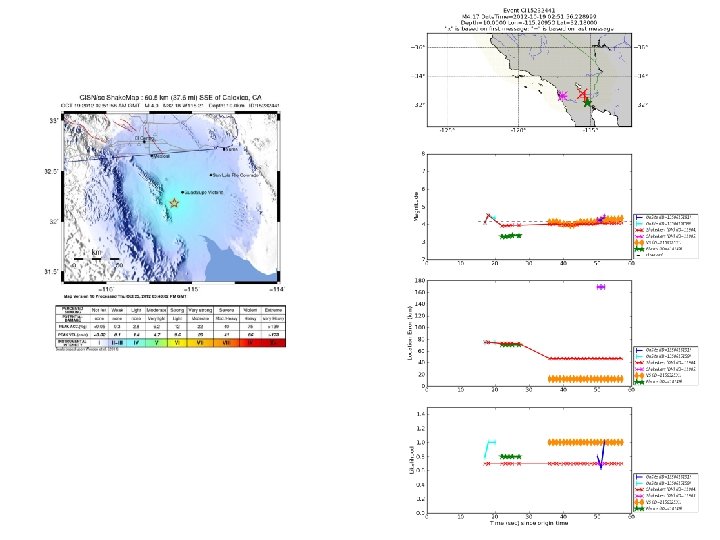

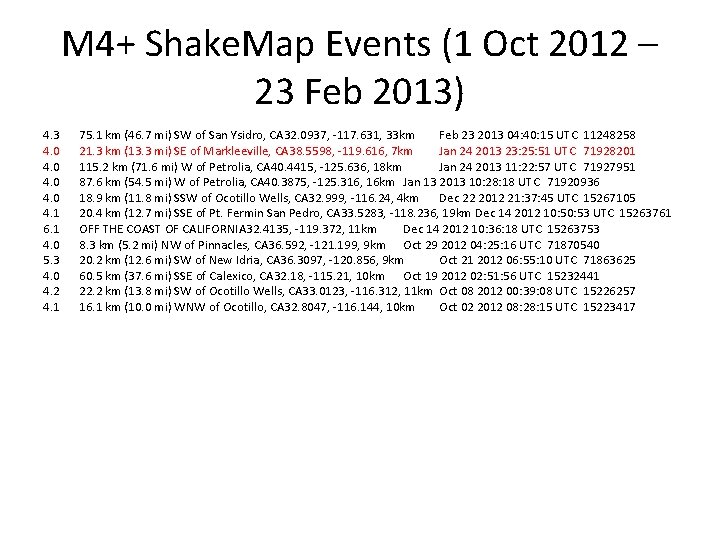

M 4+ Shake. Map Events (1 Oct 2012 – 23 Feb 2013) 4. 3 4. 0 4. 1 6. 1 4. 0 5. 3 4. 0 4. 2 4. 1 75. 1 km (46. 7 mi) SW of San Ysidro, CA 32. 0937, -117. 631, 33 km Feb 23 2013 04: 40: 15 UTC 11248258 21. 3 km (13. 3 mi) SE of Markleeville, CA 38. 5598, -119. 616, 7 km Jan 24 2013 23: 25: 51 UTC 71928201 115. 2 km (71. 6 mi) W of Petrolia, CA 40. 4415, -125. 636, 18 km Jan 24 2013 11: 22: 57 UTC 71927951 87. 6 km (54. 5 mi) W of Petrolia, CA 40. 3875, -125. 316, 16 km Jan 13 2013 10: 28: 18 UTC 71920936 18. 9 km (11. 8 mi) SSW of Ocotillo Wells, CA 32. 999, -116. 24, 4 km Dec 22 2012 21: 37: 45 UTC 15267105 20. 4 km (12. 7 mi) SSE of Pt. Fermin San Pedro, CA 33. 5283, -118. 236, 19 km Dec 14 2012 10: 53 UTC 15263761 OFF THE COAST OF CALIFORNIA 32. 4135, -119. 372, 11 km Dec 14 2012 10: 36: 18 UTC 15263753 8. 3 km (5. 2 mi) NW of Pinnacles, CA 36. 592, -121. 199, 9 km Oct 29 2012 04: 25: 16 UTC 71870540 20. 2 km (12. 6 mi) SW of New Idria, CA 36. 3097, -120. 856, 9 km Oct 21 2012 06: 55: 10 UTC 71863625 60. 5 km (37. 6 mi) SSE of Calexico, CA 32. 18, -115. 21, 10 km Oct 19 2012 02: 51: 56 UTC 15232441 22. 2 km (13. 8 mi) SW of Ocotillo Wells, CA 33. 0123, -116. 312, 11 km Oct 08 2012 00: 39: 08 UTC 15226257 16. 1 km (10. 0 mi) WNW of Ocotillo, CA 32. 8047, -116. 144, 10 km Oct 02 2012 08: 28: 15 UTC 15223417

No CTC Event Summary because event is outside Shake. Alert Testing Region

No CTC Event Summary because event is outside the Shake. Alert Testing Region. This Shake. Map location has been relocated and the ANSS epicenter is further offshore.

No CTC Event Summary because event is outside Shake. Alert Testing Region

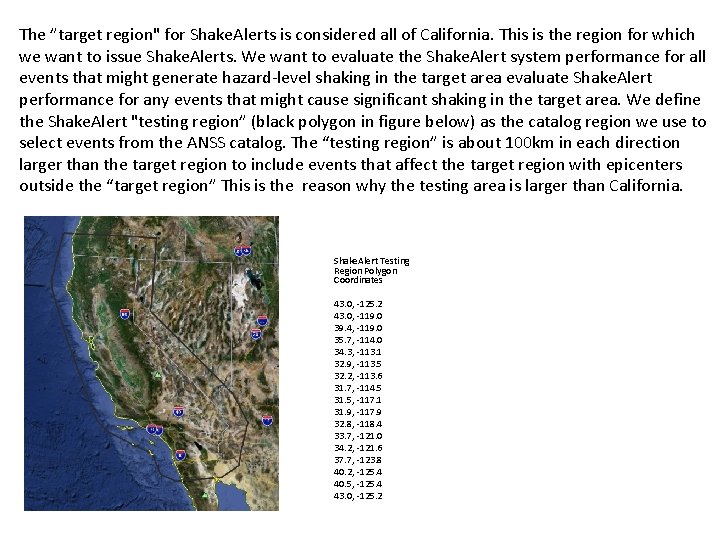

The ”target region" for Shake. Alerts is considered all of California. This is the region for which we want to issue Shake. Alerts. We want to evaluate the Shake. Alert system performance for all events that might generate hazard-level shaking in the target area evaluate Shake. Alert performance for any events that might cause significant shaking in the target area. We define the Shake. Alert "testing region” (black polygon in figure below) as the catalog region we use to select events from the ANSS catalog. The “testing region” is about 100 km in each direction larger than the target region to include events that affect the target region with epicenters outside the “target region” This is the reason why the testing area is larger than California. Shake. Alert Testing Region Polygon Coordinates 43. 0, -125. 2 43. 0, -119. 0 39. 4, -119. 0 35. 7, -114. 0 34. 3, -113. 1 32. 9, -113. 5 32. 2, -113. 6 31. 7, -114. 5 31. 5, -117. 1 31. 9, -117. 9 32. 8, -118. 4 33. 7, -121. 0 34. 2, -121. 6 37. 7, -123. 8 40. 2, -125. 4 40. 5, -125. 4 43. 0, -125. 2

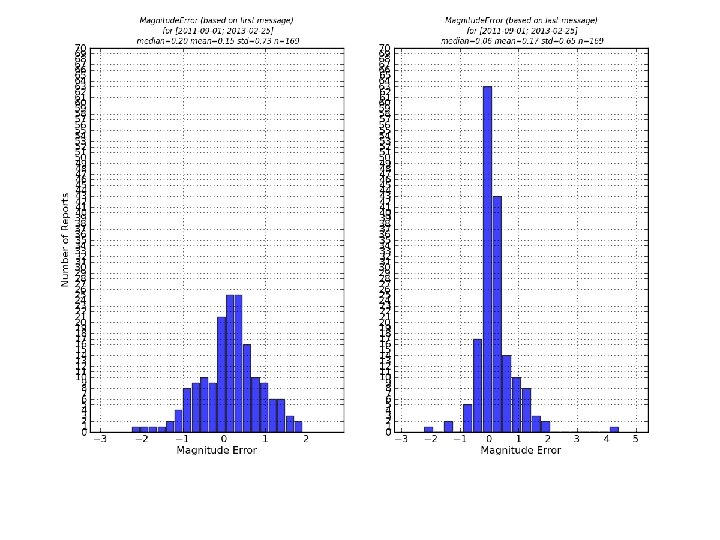

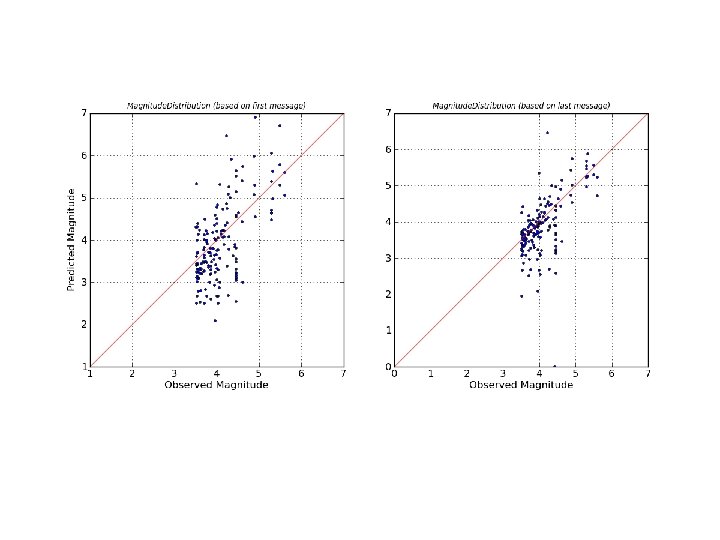

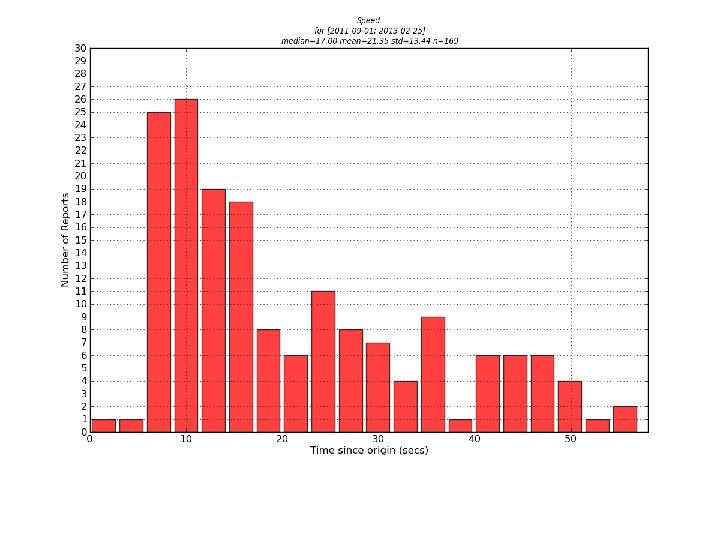

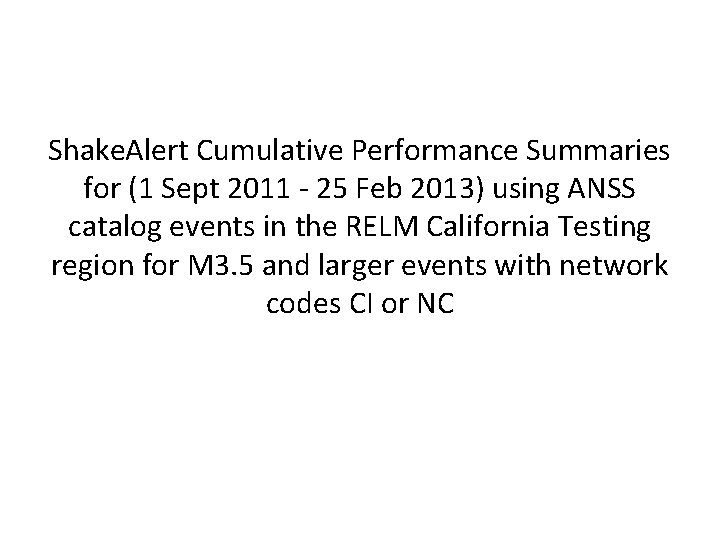

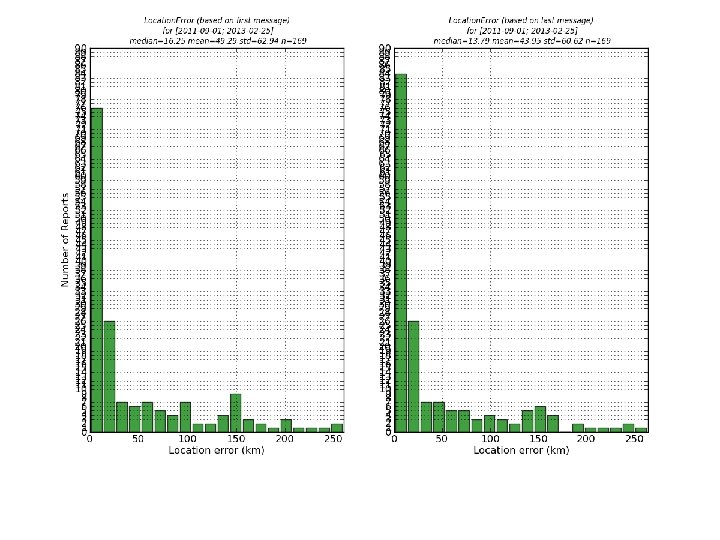

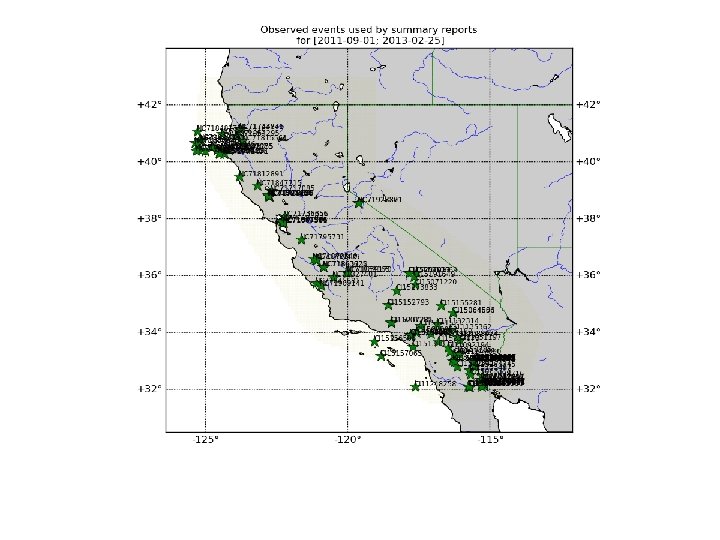

Shake. Alert Cumulative Performance Summaries for (1 Sept 2011 - 25 Feb 2013) using ANSS catalog events in the RELM California Testing region for M 3. 5 and larger events with network codes CI or NC
