New Features at a Glance Improved User Experience • Faster Installation • Intuitive Getting Started Wizard • Revamped GUI • Modern Standardized Style • Pragmatic • Intuitive • Mega. Menu • Consistent Navigation • Actionable Global Search • Quick Access to all the tools LMS 4. 0 Webinars Release Highlights • Work. Center • New Technology Life. Cycle Mgmt • New Feature Life. Cycle Mgmt • Parameterized Configuration Templates • Local Detailed RBAC • Basic 3 rd Party Support © 2010 Cisco and/or its affiliates. All rights reserved. Fine Tuned for Operational needs • Functionally Designed Mega. Menu for Operational Excellence • Auto Information Retrieval • Quick Access to all the tools • Auto-Monitoring • NAM Integration • Consolidated Event view • Dashboards • Enhanced Troubleshooting • Consolidated Reporting 4

Ciscoworks LMS 4. 0 An Improved User Experience LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 5

Cut install time in half from LMS 3. x üSingle DVD installation üInstallation down to 45 mins from 2 hours ü Installation includes database as well as the application ü New hardware options for Installation ü Cisco UCS – B and C Series Chassis ü Variety of OS supported for Installation ü Windows 2003, 2008 ü Solaris 10 ü Virtualization ― VMWare 4. x ― Solaris Zones LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 6

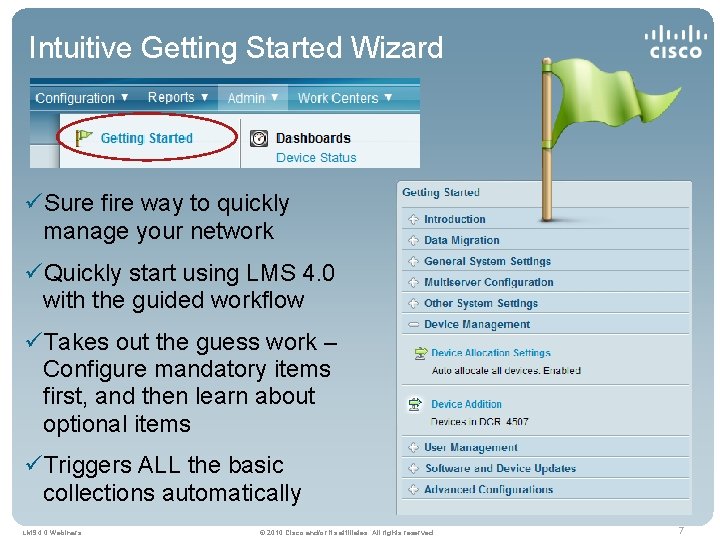

Intuitive Getting Started Wizard üSure fire way to quickly manage your network üQuickly start using LMS 4. 0 with the guided workflow üTakes out the guess work – Configure mandatory items first, and then learn about optional items üTriggers ALL the basic collections automatically LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 7

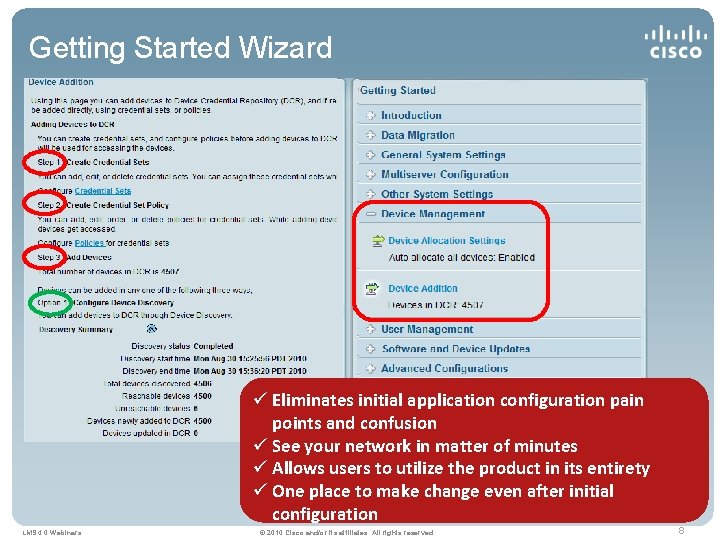

Getting Started Wizard ü Eliminates initial application configuration pain points and confusion ü See your network in matter of minutes ü Allows users to utilize the product in its entirety ü One place to make change even after initial configuration LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 8

Actionable Global Search ü Actionable Search ü Global Search field available on all LMS pages ü Ability to search on any IP or MAC Address ü If you are stuck, help is just a few words away Actionable Mouse-Overs for more contextual tools!! LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 9

Enhanced User Interface Consistent Global Menu Legacy Navigation Mega. Menu LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 10

Work. Center – Simplified Lifecycle Mgmt § Life-Cycle Management § Technology Energywise Identity § Feature Smart Install Auto Smart Ports LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 11

Work. Centers – Consistent Life. Cycle • Provision Identity-based Networking Services (IBNS) • IBNS - offers authentication, access control, and user policies to secure network resources and connectivity Identity • Energy. Wise enables you to measure, manage, and reduce the power consumption of network infrastructure and network-attached devices to increase cost savings • Energywise provides a set of management functionalities to simplify and automate the energy management lifecycle Workcenters • Auto Smartports (ASP) macros dynamically configure ports based on the device type detected on the port. • Smart Install – plug-and-play configuration and image management feature that provides zero-touch deployment for new switches. Smart. Install LMS 4. 0 Webinars Energywise Auto. Smart. Port © 2010 Cisco and/or its affiliates. All rights reserved. 12

Consistent Life-Cycle Workflow Components and e c n o is h t n Lear and apply latest isco upcoming C s and Technologie rtlessly o f f e s e r u t a Fe LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 13

Configuration Templates Manager – Fine Tuned for Operational Needs LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 14

Configuration Templates § Benefits • Operationally Simple • Error Free • CVD Certified • Turnkey Solution • Available out-of-the-box • Eases new device deployment § Easy Workflow • Import • Manage • Deploy LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 15

Config Templates – Import Workflow 1 2 3 Ways of importing device configuration From Existing LMS 4. 0 Template From Cisco Configuration Professional (CCP) Utility 3 Download more templates directly from cisco. com as they are made available. Raw Configurations from Cisco devices directly LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 16

Config Templates – Manage Default Values ü This template form is generated automatically. ü Edit Defaults allows user to enter in all the default values for a given template. ü This helps users to quickly select a template, make minor modifications, and push out the configurations to the cisco device. ü Ability to save this with the configuration and ability to clone the configuration allows users to create quick template for each Data Centers or Branches or any such use case. ü Assign users to a template for tighter control. LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 17

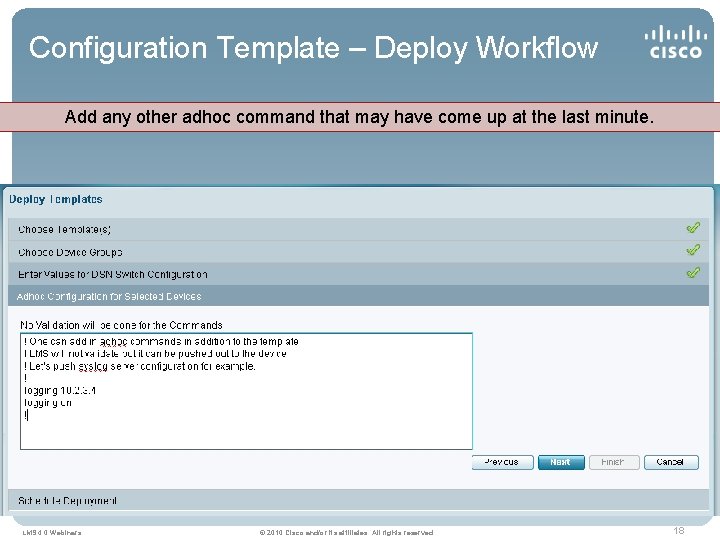

Configuration Template – Deploy Workflow Add any other adhoc command that may have come up at the last minute. LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 18

Configuration Template – Deploy Workflow As you can see our adhoc command that were added shows up as well. LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. Preview the CLI before pushing out the configuration changes. 19

NAM Integration LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 20

LMS Manages and Integrates with NAM 1. Add one of the 2 NAM Portlets 2. Select the data-source to see rich graphs instantly LMS can manage basic NAMs functions ü ü ü Monitoring for basic availability Inventory Management Config Template Supported for NAMs Reporting just like any other network device including PSIRT and Eo. L/Eo. S LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 21

Auto. Monitoring LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 22

Basic Monitoring Out-Of-The-Box Auto. Monitor parameters predefined for best practices for every monitoring category One place for making changes to existing pollers Monitoring Dashboard automatically populated once the data is available Web 2. 0 portal for portal customization LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 23

Troubleshooting LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 24

Troubleshooting Tools at your Finger-tips Get Quick Synopsis of your device: • Last Polled Inventory / Configuration • Type of Device • OS Type/Version • Location/Contact Basic Tools – 1 -Click away • Ping/Trace. Route • Telnet • Syslog/Events • 1 -Stop /Shop for T’Shooting LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 25

Troubleshooting – Contextual Mouseovers Instantly see the device information and start troubleshooting LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 26

Reporting LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 27

Reporting – ONE place ! ALL reports !! Neatly Organized LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. Easy to find 28

3 rd party support LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 29

Basic Support for Non-Cisco Devices & MORE LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 30

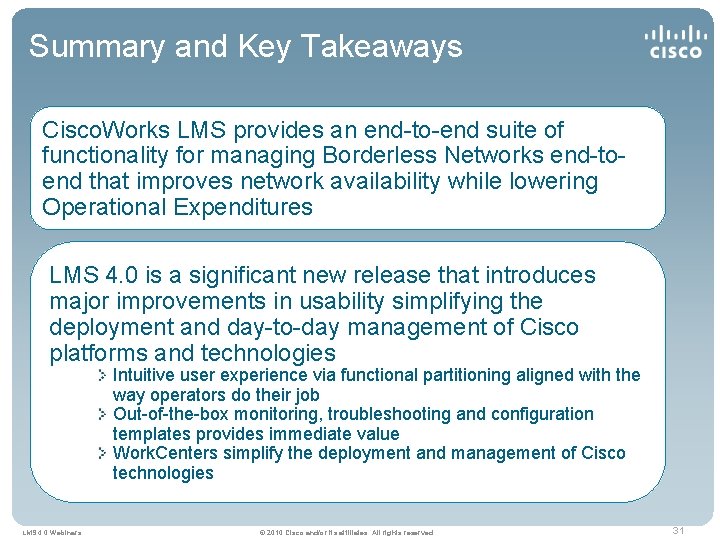

Summary and Key Takeaways Cisco. Works LMS provides an end-to-end suite of functionality for managing Borderless Networks end-toend that improves network availability while lowering Operational Expenditures LMS 4. 0 is a significant new release that introduces major improvements in usability simplifying the deployment and day-to-day management of Cisco platforms and technologies Intuitive user experience via functional partitioning aligned with the way operators do their job Out-of-the-box monitoring, troubleshooting and configuration templates provides immediate value Work. Centers simplify the deployment and management of Cisco technologies LMS 4. 0 Webinars © 2010 Cisco and/or its affiliates. All rights reserved. 31
