Cisco Small Business SPA 112 & SPA 122 Product Training Update August 2011 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1

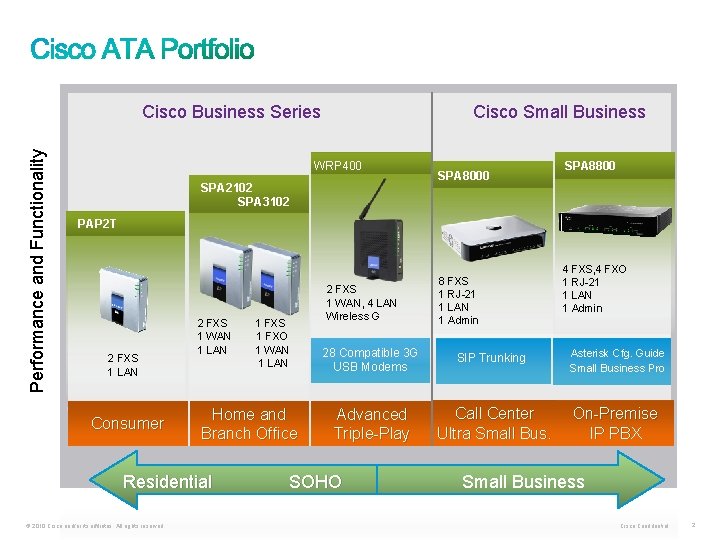

Performance and Functionality Cisco Business Series Cisco Small Business WRP 400 SPA 2102 SPA 3102 SPA 8000 SPA 8800 PAP 2 T 2 FXS 1 LAN Consumer 2 FXS 1 WAN 1 LAN Home and Branch Office Residential © 2010 Cisco and/or its affiliates. All rights reserved. 1 FXS 1 FXO 1 WAN 1 LAN 2 FXS 1 WAN, 4 LAN Wireless G 28 Compatible 3 G USB Modems Advanced Triple-Play SOHO 8 FXS 1 RJ-21 1 LAN 1 Admin SIP Trunking Call Center Ultra Small Bus. 4 FXS, 4 FXO 1 RJ-21 1 LAN 1 Admin Asterisk Cfg. Guide Small Business Pro On-Premise IP PBX Small Business Cisco Confidential 2
Consists of 3 ATA Models – SPA 112, replaces PAP 2 T - 2 Port Phone Adapter – SPA 122, replaces SPA 2102 - ATA with Router – SPA 232 D, replaces SPA 3102 - ATA with DECT Base (March 2012) § SPA 112 and SPA 122 addresses refreshing the “Low-End” ATA portfolio. § SPA 232 D is a business wireless solution offering cordless mobility for SOHO environments and Small Businesses. § Supports up to 4 active simultaneous calls § Can register up to 10 DECT Handsets § Launches with Project Rickshaw products in March 2012 § Adds mobility to existing SBTG products (UC 320, UC 500, SRP 500) § Move from Linksys to Cisco branded ATAs © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3
Expected Launch: March‘ 12 DEC T FXO FXS LANWAN SPA 232 D SPA 3102 List Price $97 FXS/FXOPort Configuration With DECT Base Station List Price $115 Launch: September 2011 FXS LAN WAN SPA 2102 List Price $84 SPA 122 2 FXS Port Configuration List Price $84 FXS WAN PAP 2 T List Price $69 © 2010 Cisco and/or its affiliates. All rights reserved. SPA 112 2 FXS Port Configuration List Price $69 Cisco Confidential 4

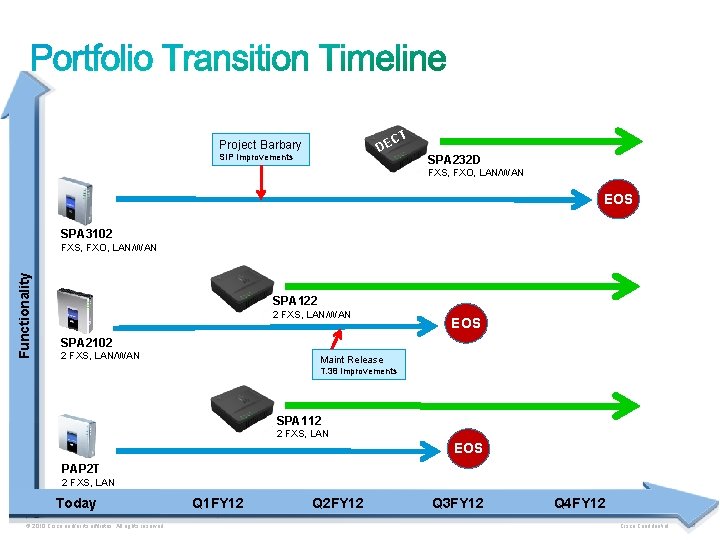

T C DE Project Barbary SIP Improvements SPA 232 D FXS, FXO, LAN/WAN EOS SPA 3102 Functionality FXS, FXO, LAN/WAN SPA 122 2 FXS, LAN/WAN EOS SPA 2102 2 FXS, LAN/WAN Maint Release T. 38 Improvements SPA 112 2 FXS, LAN EOS PAP 2 T 2 FXS, LAN Today © 2010 Cisco and/or its affiliates. All rights reserved. Q 1 FY 12 Q 2 FY 12 Q 3 FY 12 Q 4 FY 12 Cisco Confidential 5
§ T. 38 Improvements § G 3 Fax Support § TR 069 Provisioning § DHCP Options 66, 67, 159, 160 § VLAN Tagging § SDES Key Negotiation (RFC 4568) § SNMP § Multi-Level Password Access to Device UI § Password Protected Interactive Voice Response (IVR) Access § LAN and WAN Flow Control Settings § Bonjour Support § Resident Online Number (Skype Connect) § IPv 6 Ready © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6
§ Cisco Branded – Small Business Product Style § SPA 112 – 2 Port Phone Adapter; 2 FXS, WAN § SPA 122 – ATA with Router; 2 FXS, WAN, LAN § 3 “Global” SKUs – SPA 112, SPA 122 -RC © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7
SPA 122 Reset Button 2 FXS Ports LAN WAN Power SPA 112 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8
SPA 100 Series ATA User Interface Details August 2011 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 9
§ User Interface Derived from SRP 500 User Interface § Noticeable Change in Router Config from PAP 2 T/SPA 2102 § Configured in “Network Setup” § § Voice Configuration UI/Fields Identical to the SPA 2102 Administration Menu for Management, Logs, Diags, etc Status Menu for quick reference to Device Info Simplest Voice Parameters entered in “Quick Setup” § Proxy, Display Name, Password, and Dial Plan § ATAs are Voice/Fax Products with “Basic”Routing Functionality! © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10

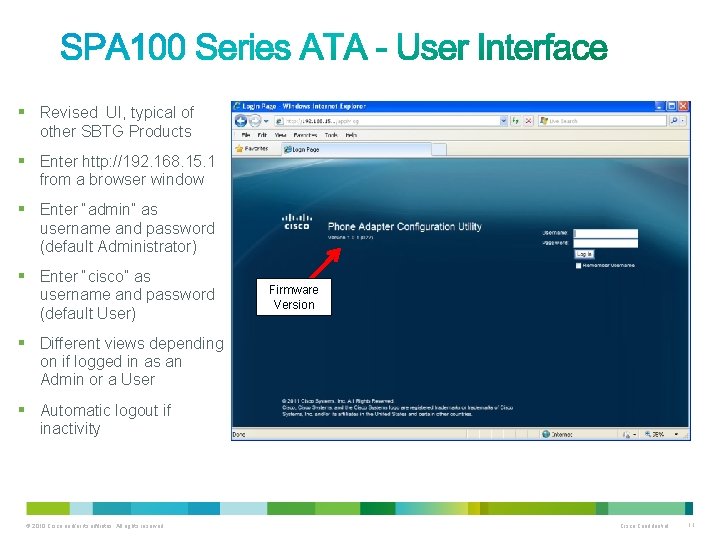

§ Revised UI, typical of other SBTG Products § Enter http: //192. 168. 15. 1 from a browser window § Enter “admin” as username and password (default Administrator) § Enter “cisco” as username and password (default User) Firmware Version § Different views depending on if logged in as an Admin or a User § Automatic logout if inactivity © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11
§ Default Menu Screen § Subscriber Vo. IP Credentials: Proxy, Display Name, User ID, Password, Dial Plan § Also, configurable in Voice Menu © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 12
§ SPA 112: No Router to Config © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13
§ SPA 122: Configure Router Parameters, familiar ATA fields presented differently © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 14

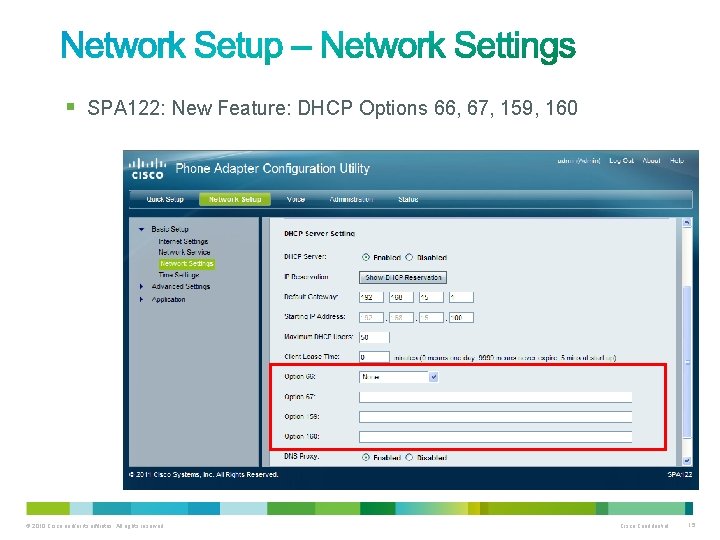

§ SPA 122: New Feature: DHCP Options 66, 67, 159, 160 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 15
§ Ability to define NTP Time (NTP ) is configured in the Network Setup Menu, not in the Voice Menu as before © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 16
§ Upstream Bandwidth Protection Qo. S for Upstream Bandwidth for Voice Packets © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 17

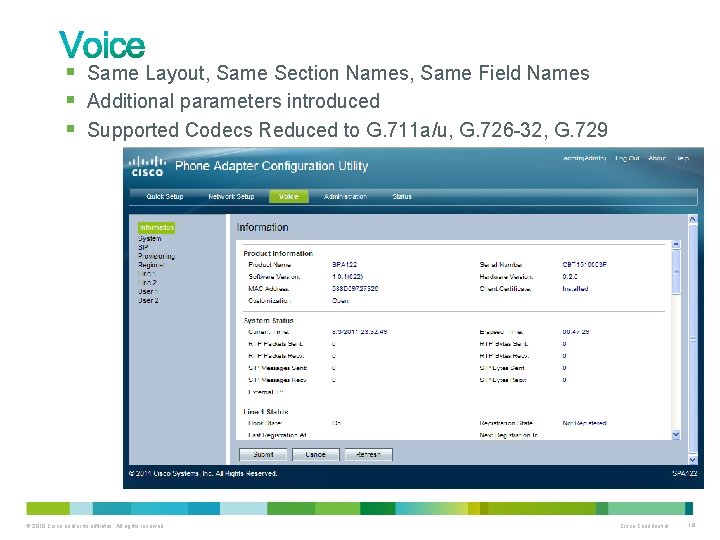

§ Same Layout, Same Section Names, Same Field Names § Additional parameters introduced § Supported Codecs Reduced to G. 711 a/u, G. 726 -32, G. 729 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 18
§ Set IVR access with numeric password protection § No Ability to change parameters via IVR if configured with Password § No IVR Password by default Numeric Password to Access “System” Settings via IVR © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 19
§ Functionality with Skype Connect § Supported by Vo. IP Service Provider § Localized Number Benefits Callers “Localized” number registered with SP © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 20
§ New Parameters for Advanced Features § Similar on both SPA 112 and SPA 122 (except Diagnostics) © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 21
§ Support for TR-069 Auto-Configuration Server (ACS) § Feature on both SPA 112 and SPA 122 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 22

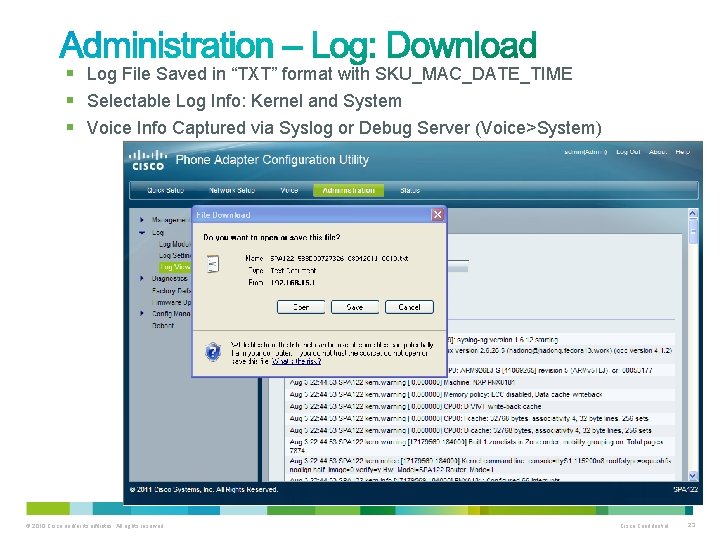

§ Log File Saved in “TXT” format with SKU_MAC_DATE_TIME § Selectable Log Info: Kernel and System § Voice Info Captured via Syslog or Debug Server (Voice>System) © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 23
§ System Information: HW/FW version, MAC Address, Serial Number § Interface Information: WAN/LAN Connection Details – No Voice Details § Internet Status: WAN Interface Details © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 24
§ Click on “About” in upper right corner § Pop-Up Window with Relevant System Information © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 25

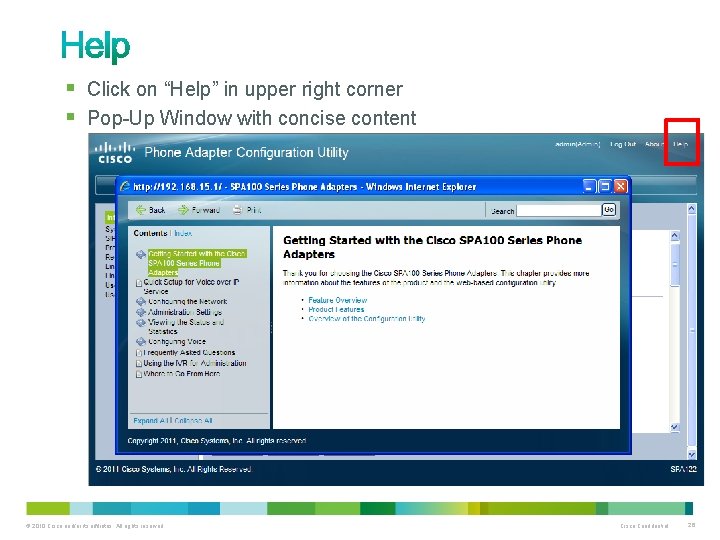

§ Click on “Help” in upper right corner § Pop-Up Window with concise content © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 26
Thank you.

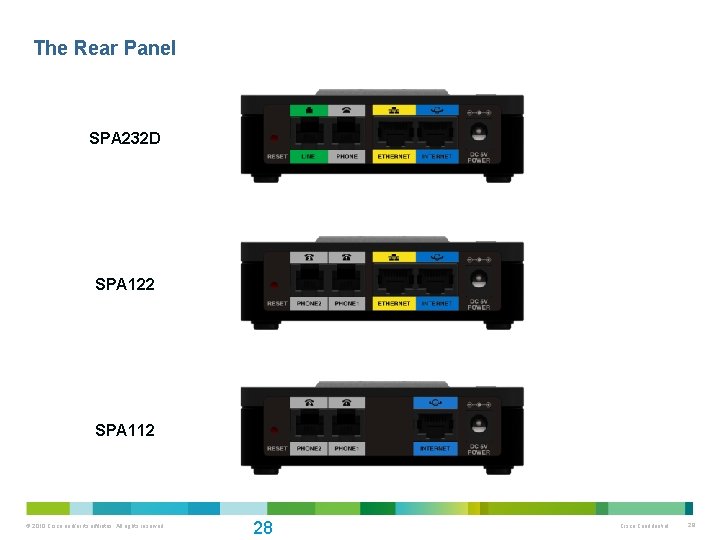

The Rear Panel SPA 232 D SPA 122 SPA 112 © 2010 Cisco and/or its affiliates. All rights reserved. 28 Cisco Confidential 28
§ Integrated DECT Base Station § 4 Simultaneous Active Calls § Phone Ports – 1 FXS, 1 FXO § 2 Port 10/100 Base. T Ethernet (LAN/WAN) § Router / Bridge § T. 38 FAX § Cisco Branded Page Button LEDs Power FXO © 2010 Cisco and/or its affiliates. All rights reserved. FXS LAN WAN Cisco Confidential 29

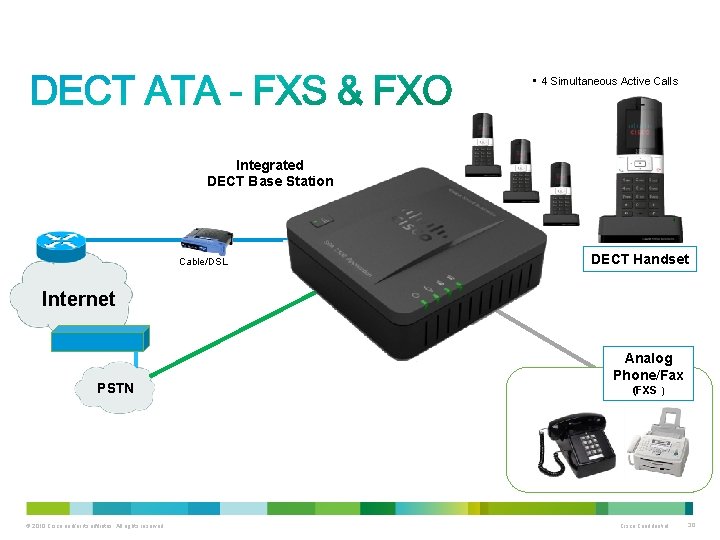

• 4 Simultaneous Active Calls Integrated DECT Base Station Cable/DSL DECT Handset Internet Vo. IP Provider PSTN © 2010 Cisco and/or its affiliates. All rights reserved. Analog Phone/Fax (FXS ) Cisco Confidential 30
