Cisco Provisioning Center Hema Ganapathy Senior Product Manager
- Slides: 45
Cisco Provisioning Center Hema Ganapathy Senior Product Manager - NSM BU hemag@cisco. com Copyright © 1999, Cisco Systems 1
Outline • • Trends in the market The challenge Introduction to CPC The walk away… CPC Architecture Roadmap Questions and Answers
The marketplace Competition, New technologies $$
“Right sizing” • Workforce cuts in the late 80 s and 90 s • Results: – skilled and experienced workers no longer available • Level of automation is still low • Service providers unable to fulfill demand for new services – High cost in time and staff – Quality loss during service activation
The challenge OSS OSS NMS/EMS NMS/EMS NMS/EMS
The Concept. . . A Single Provisioning Interface PVC DSL x. DSL IP ATM VPN FR L 2/L 3 Integration
The Solution… Cisco Provisioning Centre NMS/EMS . PVC DSL x. DSL IP ATM VPN FR L 2/L 3 Integration
The walk away Multi-domain Multi-technology Multi-vendor Multi
Multi technology CPC ATM DSL Frame IP Voice Cable
Multi domain CPC CWM CWM
Multi vendor CPC Cisco Newbridge Lucent
Service Management Layer Network Management Layer Provisioning Operations Performance Billing Provisioning Center Netsys VPN Solutions Center Net. Miner Cisco WAN Element Manager Layer Info Center Network Health Accounting Center EMF Gateways/Common APIs Cisco IP Cisco Access Manager Cisco Element Manager Management Framework • Configure IOS Devices • Dial Devices Other Dial DSL GSR Cable EMs Common Foundation Planning Topology, Object Model, GUI, Data Store, Directory CSM Products
Value Proposition Create and Activate Services Across Multiple Technologies And Multiple Products Automate Service Provisioning And Guarantee Network Integrity Instantaneous Associations Between Subscribers And Network Resources CPC is the Customer Facing Element of the Solution
End to end provisioning A B Service Definition Language Decompose to Service Primitives to Network Topology PVC Site A to Gateway A Validation of Service Allocation of Technology Elements CBR Gateway B to Site B C CBR Gateway A to Gateway B D TAG, WFQ, WRED, CAR Service Activation Transaction Technology Scheduler Layer 2 I/F Other I/F Wan Mgr Other EMS Layer 3 I/F Access Mgr. IP Services Site A Core ATM FR D A Gateway A C Site B ATM Gateway B B D (CPC) Gold VPN, Site. A, Site. B, CIR=1. 544 Mb Cisco Provisioning Center Service Order System
Mapping of Models P SL D TO IS ed N VP s ba S PL M ut e rc u o em d o M ol o P EB W s m ar F Telecommunication Services Model O IP FR ATM SONET B r. C r o do nd n n n e e V V V , V 1, 1, 2, 1 h h h X itc itc U M Sw Sw Sw r do A r do Technology Resource Model A Network Element Model
CPC Architecture Service Administration Service Creation Service Activation Inventory Reports Maintenance CNMS Flow-Through Interface and GUI IP DSL Transaction Manager ATM FR Database Resource Models TDM Equipment Modules Etc. . .
CPC Architecture GUI User Flow-Through Application Activator Service Pack Developer’s Kit Resource Models Equipment Module Developer’s Kit Service Objects Activation Engine Equipment Modules SNMP, Q 3, CORBA, proprietary Managed Equipment
CPC Transactions • Service Requests are encapsulated into transactions • Transactions are network wide • Transactions are atomic – Success: changes are committed in database – Failure: changes are rolled back
CPC Transaction Lifecycle New READY Schedule SCHEDULED Close CURRENT Open Prepare changes Apply Scheduled time arrives BUSY Success Failure ABANDONED APPLIED All changes were applied Abandon Delete All changes were reverted
Service provisioning FR UNI NNI Other vendor FR NNI FRATM FR UNI NNI FR-ATM IW PVC Other vendor ATM NNI FR UNI Other vendor FR NNI ATM PVC NNI FRATM FR UNI FRATM Cisco ATM (BPX) FRATM UNI NNI Cisco ATM (BPX) FR-ATM IW PVC FR UNI ATM UNI
Threading • Threaders are supplied with resource models • Generic threading algorithms – least cost, least number of hops – load leveling of NNIs • Specify threading policies

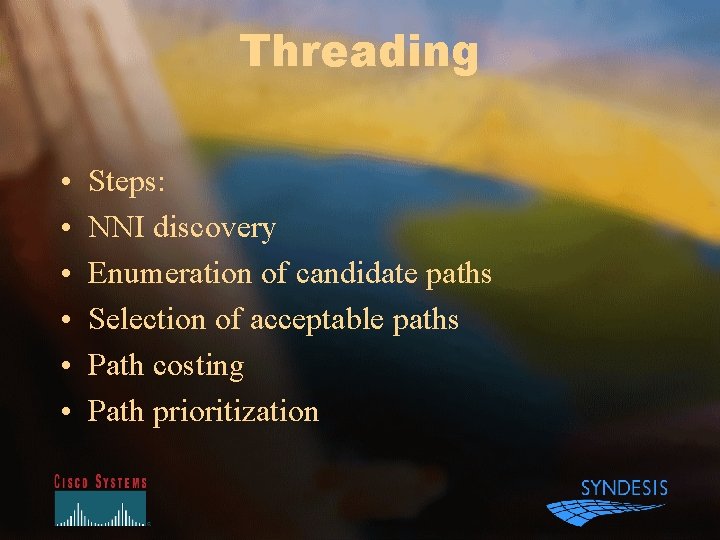

Threading • • • Steps: NNI discovery Enumeration of candidate paths Selection of acceptable paths Path costing Path prioritization
Threading • Inter-network connections are discovered – Both logical ports must be unlocked – Both logical ports must support the same protocol • Candidate paths – loopbacks are rejected
Threading • Select acceptable paths – ports that sufficient bandwidth, available connections – ports must be in the same VPN • Bandwidth calculation – based on Qo. S attributes – separate calculations for Frame Relay and ATM
Resource models Network Connection Service Fabric BG BG Node NE Node ATM Net Local NC CC BG PP EM 2 PVC LC LP L LP Node LP ATM nwk EM 1 CC LC L LP BG Node PP EM 2
Standard Resource Model Resource models CBR RM Cisco WAN EM FR RM Cisco DSL Manager ATM RM Cisco IP EM LAN RM IP RM Cisco 6400 EM DSL RM Other. . .
Resource models Network L 3 TP Node ATM Address Physical Port ATM PVC (NC) a_TP z_TP a_TP ATM Adaptation Function ATM Logical Port a_TP z_TP Link a_TP z_TP ATM Virtual Trunk ATM SPVC (NC) G ATM PVC CC (NC)
Scalability • Per CPC limits: 1 M objects • Increases can be supported via distributed architecture, nested CPCs – 1 M subscriber aggregation points – 1 M DSL provider ports per region • Managed nodes: 20, 000 • Concurrent sessions: 5
Scalability
Transaction rate
Transaction rate • Add DSL Subscriber – 10 secs per transaction – 6 transactions per minute
Graphical User Interface
Open and Flexible APIs CORBA CPC CORBA CEMF CMIP or other SNMP CWM Other EMS

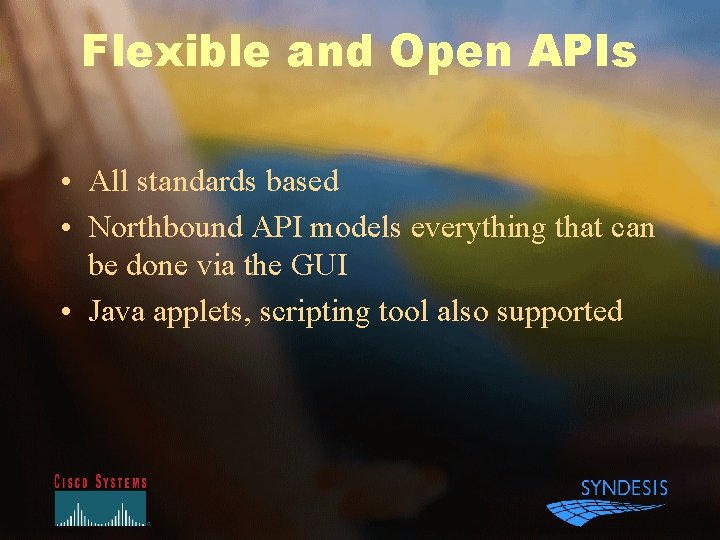

Flexible and Open APIs • All standards based • Northbound API models everything that can be done via the GUI • Java applets, scripting tool also supported
Partitioning East Voice West Data
Partitioning • VPN tags or Managed Domain tags can be added to CPC objects in the database (ie: nodes, cards, ports) • Access privileges can be assigned per operator: administrator, operator, observer • Each operator can be assigned to a managed domain or to a VPN that consists of specific objects
CPC Roadmap Access IP Network Frame Relay Core ATM Access Frame Relay IP Network CPC 1. x (Layer 2) CPC 2. 0 (Layer 2/3, DSL) CPC 3. 0 (Layer 2/3 and Access)
Roadmap CPC 1. 2 CPC 2. 0 CPC 2. 1 Functionality • CWM 9. 1. 08 and 9. 2. 04 support • IGX, MGX, 8850 and 8220 support • Circuit emulation and frame relay to ATM interworking support • Y 2 K compliant release • CORBA API Functionality • DSL support (6260 NI 2, 6130 NI 1, 6400) • Eureka/IP VPN support (R 1. 01) Functionality • DSL Phase II (CDM support, 6160, 6260 enhancements) • Eureka 1. 1 support • CWM 10. 1 support Status: FCS December 10/99 Q 4 CY 99 Status: CC Q 2 CY ’ 00 CPC 3. 0 Functionality • DSL Phase III (SCM 2. x support, 6400 SSG, 6100 NI 1) • AR integration • CIC integration • Wireless support Status: Planned Q 3 CY ’ 00 Q 4 CY ’ 00
Customer example Service Order System TIRKS Event Tracking System Cisco Provisioning Center SCM CWM CISCO 46020 Newbridge
Customer example Web or telephone order Service Order System TIRKS Event Tracking System Cisco Provisioning Center SCM CWM CISCO 46020 Newbridge
Customer example Insertion of circuit and tel # Service Order System TIRKS Event Tracking System Cisco Provisioning Center SCM CWM CISCO 46020 Newbridge
Customer example Service Order System TIRKS Event Tracking System Mapping of port assignments to physical resources Cisco Provisioning Center SCM CWM CISCO 46020 Newbridge
Customer example Service Order System TIRKS Event Tracking System Automated Service activation request Cisco Provisioning Center SCM CWM CISCO 46020 Newbridge
Customer example Service Order System TIRKS Event Tracking System Cisco Provisioning Center SCM CWM CISCO 46020 Newbridge Configuration request to EMSes
CPC Benefits • • • Flexible, fast service creation Unique end to end service profiles Service and subscriber view of resources Association of subscribers with resources One step activation Bulk provisioning
