Cisco Mobility Express ソリューション ご紹介 Cisco Systems G. K. 2/2016 Revision 1. 1

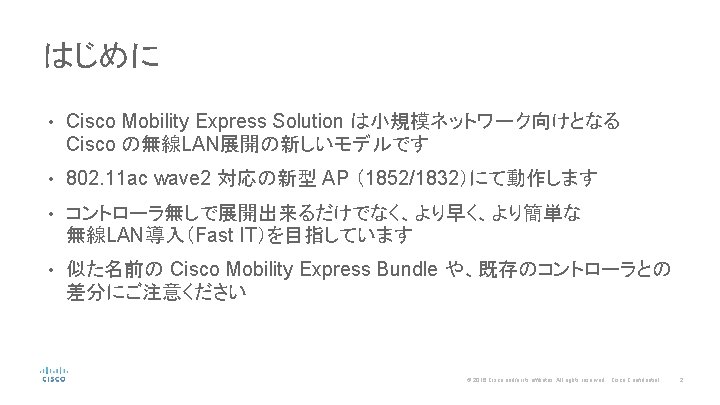

Agenda • 802. 11 ac Wave 2 対応:新アクセス ポイント紹介 • Cisco Mobility Express Solution 紹介 • 展開モデル • Cisco Mobility Express Solution セットアップ • Cisco Mobility Express Solution メニュー • 冗長機能 • Q&A © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3
Cisco AP 1852/1832のご紹 介 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4
Cisco Aironet 1800 802. 11 ac Wave 2 アクセス ポイント エンタープライズ クラス 1850 エンタープライズ クラス 1830 • 802. 11 ac Wave 2 • 870 Mbps • 3 x 3: 2 SS • Spectrum Analysis* • Tx ビーム フォーミング • 1 GE ポート, USB 2. 0 • 802. 11 ac Wave 2 • 1. 7 Gbps • 4 x 4: 4 SS • Spectrum Analysis* • Tx ビーム フォーミング • 2 GE ポート(LAG可), USB 2. 0 • Mobility Express をサポート エンタープライズ © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5
• • Cisco Aironet 1850 • デュアル ラジオ, 802. 11 ac Wave 2, 80 MHz 5 GHz: 4 x 4 サポート • 4 x 4: 3 SS MU-MIMO • 4 x 4: 4 SS SU-MIMO • 最大 1. 7 Gbps (5 GHz) 2. 4 GHz: 3 x 4: 3 SS, 289 Mbps PHY サポート 2 x Gb. E Auto LAG (WLC利用時のみ) USB 2. 0対応 内蔵型 & 外付け型アンテナ モデル AP モード: Centralized, Mobility Express , Sniffer, Flex. Connect*, Monitor*, Office. Extend*, Mesh* © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6
• 次世代 3 x 3 MIMO: 2 空間ストリーム (SS) Wave 2 802. 11 ac アクセス ポイント • デュアルラジオ, 802. 11 ac Wave 2, 80 MHz • 5 GHz: 3 x 3 サポート - 2 SS SU/MU-MIMO - 870 Mbps Max 5 -GHz PHY - 1 Gbps Max Aggregate PHY • 1 x Gigabit Ethernet and USB 2. 0 • アンテナ内蔵タイプ • AP モード: Centralized, Mobility Express , Sniffer, Flex. Connect*, Monitor*, Office. Extend*, Mesh* Cisco Aironet® 1830 Series Most Cost-effective Enterprise-Class Wave 2 AP in the Industry © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential * 将来対応 7
Cisco Aironet アクセス ポイント ポートフォリオ 802. 11 n 802. 11 ac wave 1 3700 3600 1. 3 Gbps 200 Clients/radio 3 x 4: 3 450 Mbps 200 Clients/radio 4 x 4: 3 対応アンテナ数 2600 1600 300 Mbps 128 Clients/radio 3 x 3: 2 450 Mbps 200 Clients/radio 3 x 4: 3 802. 11 ac wave 2 2700 1. 3 Gbps 200 Clients/radio 3 x 4: 3 867 Mbps 200 Clients/radio 3 x 3: 2 600 1. 3 Gbps 50 Clients/radio 3 x 3: 3 700 w&i 1. 7 Gbps 200 clients/radio 4 x 4: 3(MU-MIMO) 4 x 4: 4(SU-MIMO) 1 GEthx 2 1830 3600 + ac module 300 Mbps 15 Clients/radio 2 x 3: 2 1850 867 Mbps 200 clients/radio 3 x 3: 2 1 GEthx 1 Mobility Express サポート 300 Mbps 100 Clients/radio 2 x 2: 2 スループット、アンテナ数は 5 GHz を記載。 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8

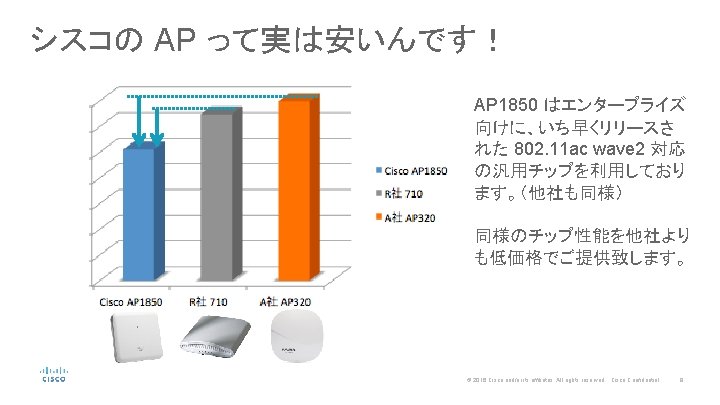

Cisco Mobility Express Solution © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10
2つの “Cisco Mobility Express” フェーズ 1 フェーズ 2 NEW Mobility Express Bundle コントローラ アプライアンスを含む バンドル型番 Cisco Aironet 1700/2700/3700 の 3タイプを用意 802. 11 ac Wave 1 ベース Mobility Express Solution コントローラ アプライアンスは不要 Aironet 1850/1830自身がコントローラ 機能を提供 802. 11 ac Wave 2 ベース Fast. IT: 数分でのネットワーク展開 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11

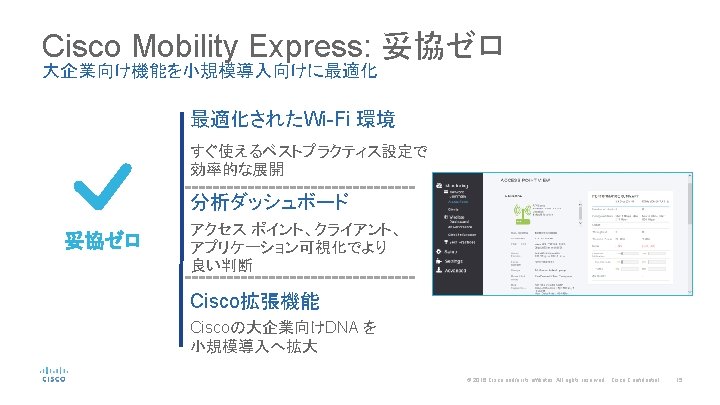

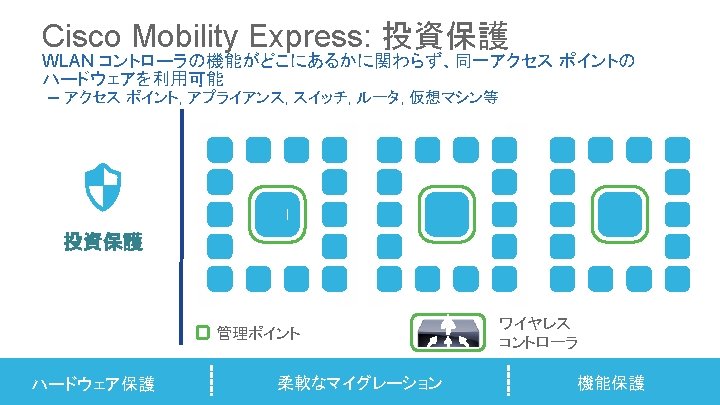

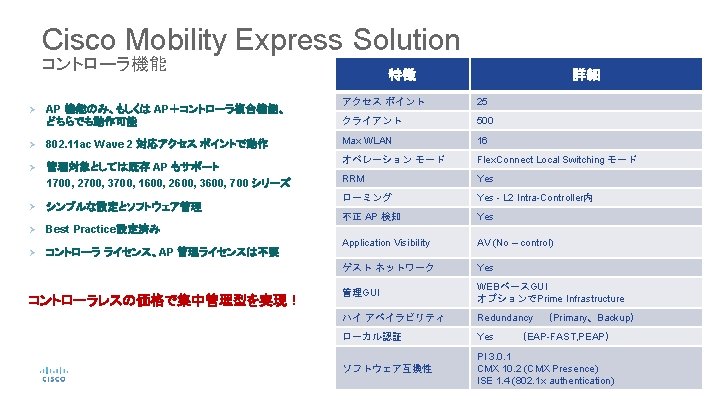

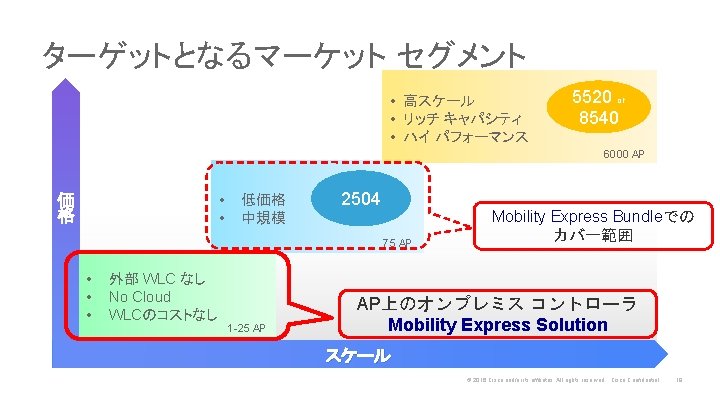

Cisco Mobility Express Solution 中小規模向け Wi-Fi 構築 最大 25 アクセス ポイントをアプライアンス コントローラなしに管理 (802. 11 n, 802. 11 ac Wave 1, 802. 11 ac Wave 2) 他社と比較して 28%50% 少ない Cap. Ex* Fast IT 機能に妥協なし 投資保護 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13 *Based on US List Price from Publically Available Data

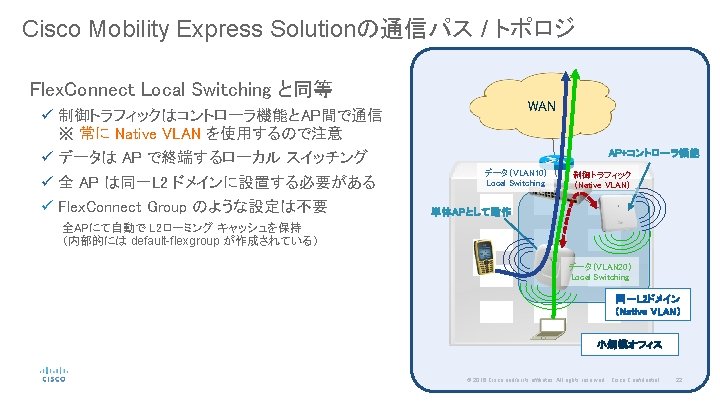

Cisco Mobility Express Solution 接続のイメージ Cisco Aironet 18 xx Master(WLC) ※APとしても動作 Cisco Aironet 18 xx 802. 11 ac Wave 2 アクセス ポイント AP Subordinate (接続AP) Cisco Aironet 2700 PW A C CAPWAP 接続できるアクセス ポイントのモデ ル CA PW AP Cisco 1850/1830 アクセス ポイントが 他のアクセス ポイント へ仮想コントローラ の機能を提供 700 W 700 i Cisco Aironet 3700 1830 無線クライアント 1600 2600 3600 1850 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1700 2700 3700 17

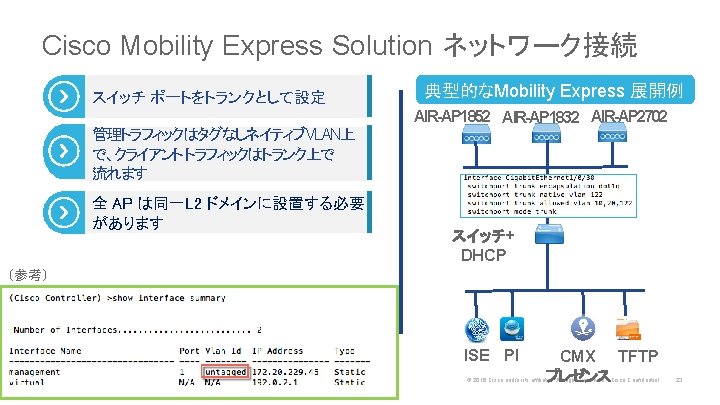

展開モデル © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 20

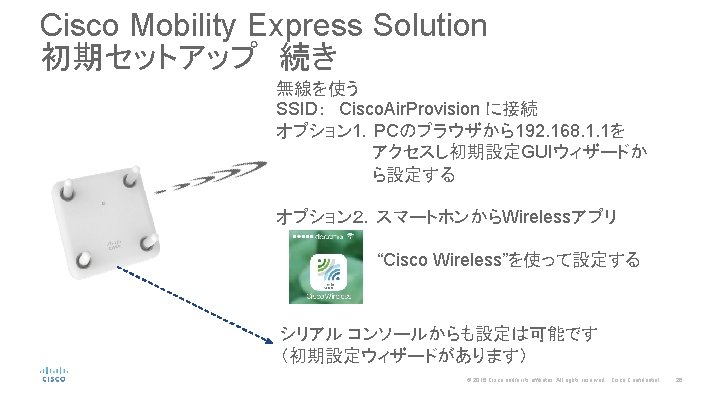

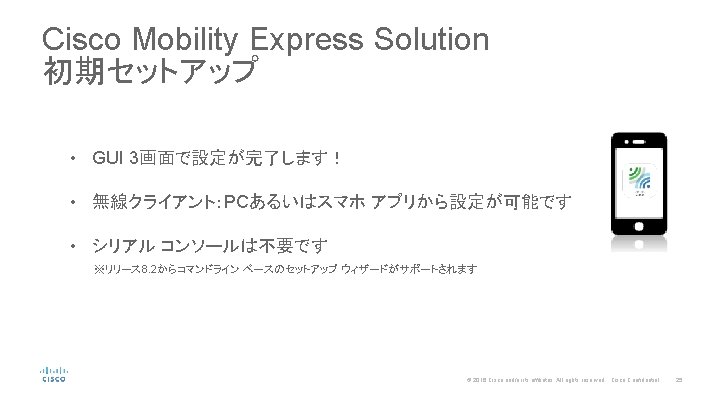

Cisco Mobility Express Solution 初期セットアップ © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 24
Over-the-Air WLAN Expressセットアップ Cisco. Air. Provisionに接続し、セットアップウィザードを開始 Cisco. Air. Provision SSIDに接続 パスワードとして passwordを入力 Cisco. Air. Provisionに 接続; IP アドレスが アサインされている セットアップ ウィザードを起動 http: //192. 168. 1. 1 に接続してadmin アカウントを生成 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 28
Cisoc Mobility Express Solution GUI © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 31

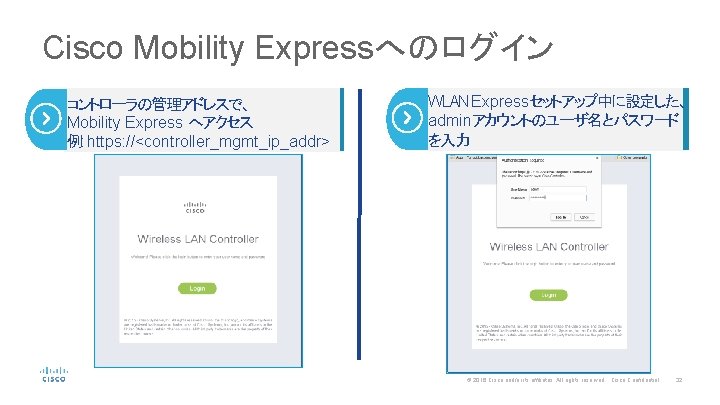

Cisco Mobility Expressへのログイン コントローラの管理アドレスで、 Mobility Express へアクセス 例: https: //<controller_mgmt_ip_addr> WLAN Expressセットアップ中に設定した、 adminアカウントのユーザ名とパスワード を入力 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 32

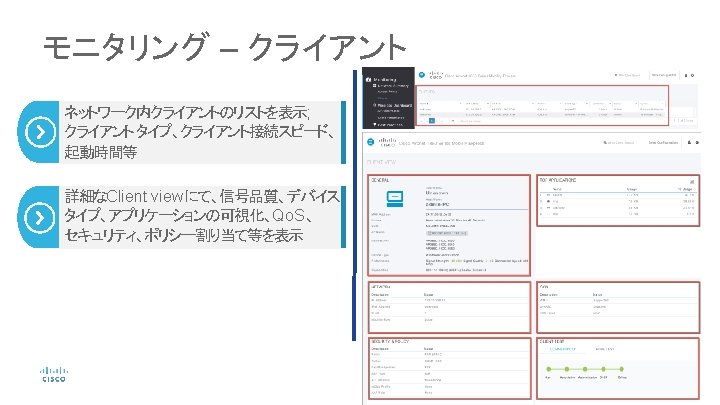

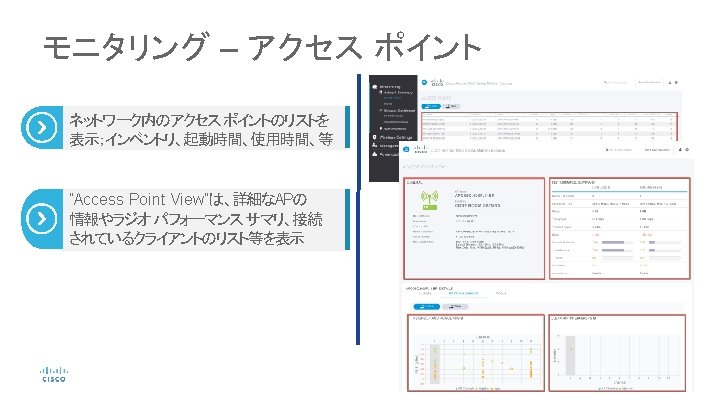

無線の設定- WLAN 最大WLAN数は 16 セキュリティ タイプ– Open, WPA 2 PSK, WPA 2 Enterprise, Guest WLAN to VLAN マッピング, ACLルール アプリケーションの可視化が各WLANで 有効 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 37
無線の設定– WLAN ユーザ 802. 1 x local authentication 用の WLANユーザを追加、変更、削除 ゲスト ユーザの追加、変更、削除 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 38
管理 – アクセス HTTP, HTTPS, Telnet, SSHv 2経由で サポート HTTPS, SSHv 2 はデフォルトで有効 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 40

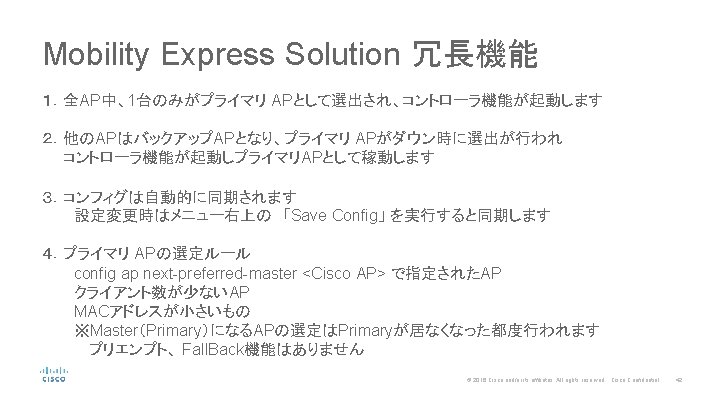

冗長機能 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 41
プライマリ APの選択 1800シリーズのアクセス ポイントだけが、 マスターの 選出に参加できます マスターの選出とクライアントの接続は、 1分以内で回復、ユーザ通信は落ちません AIR-AP 1832 I-Q-K 9 AIR-AP 1852 I-Q-K 9 AIR-AP 1832 I-Q-K 9 AIR-AP 1852 E-Q-K 9 AIR-AP 1832 I-Q-K 9 プライマリ AP SSO はサポートしません コンフィグは自動的に同期されます AIR-AP 3702 I-Q-K 9 AIR-AP 1832 I-Q-K 9 CAPWAP AIR-AP 1852 E-Q-K 9 NOT MOBILITY EXPRESS CAPABLE © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 43
プライマリ APの選択プロセス AIR-AP 1832 I-Q-K 9 AIR-AP 1852 I-Q-K 9 最もcapableなアクセス ポイント - 1850 vs. 1830 アソシエートしている クライアント数という 観点 で負荷の少ないAP 一番小さい MACアドレ ス AIR-AP 1832 I-Q-K 9 P P AIR-AP 1832 I-Q-K 9 AIR-AP 1852 E-Q-K 9 AIR-AP 1832 I-Q-K 9 プライマリ AP P AIR-AP 1852 E-Q-K 9 NOT MOBILITY EXPRESS CAPABLE AIR-AP 3702 I-Q-K 9 AIR-AP 1832 I-Q-K 9 CAPWAP © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 44
モバイル アプリケーション © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 45

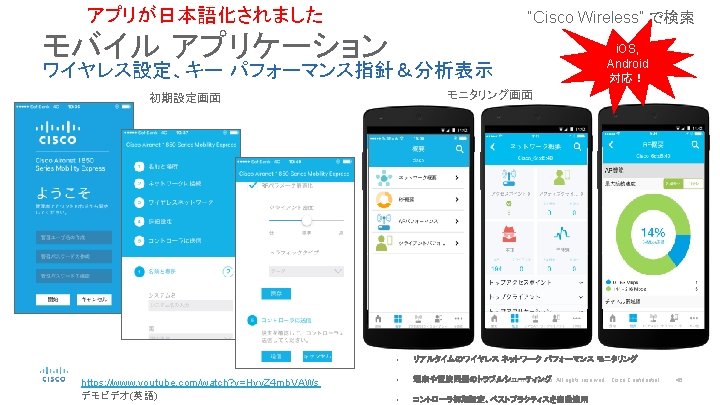

アプリが日本語化されました モバイル アプリケーション詳細 特徴 詳細 ソフトウェア i. OS 1. 0. 197 Android 1. 0. 228 サポート端末OS i. OS 7. 1 以降 Android 4. 1 以降 コントローラ WLC: Aire. OS 8. 1 以降 Mobility Express: Aire. OS 8. 1. 122 以降 “Cisco Wireless” で検索 i. OS, Android 対応! © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 47
Tips © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 48

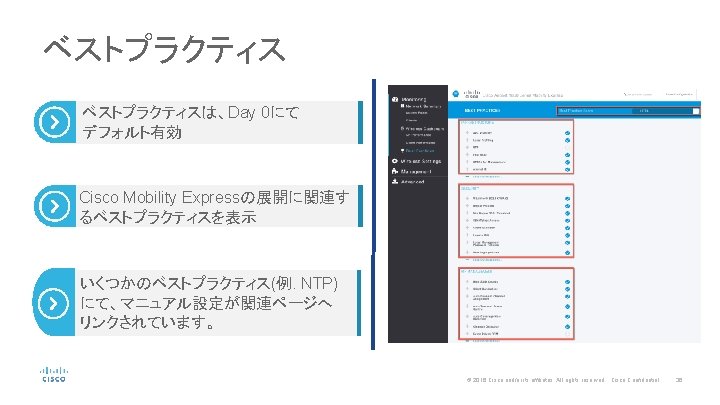

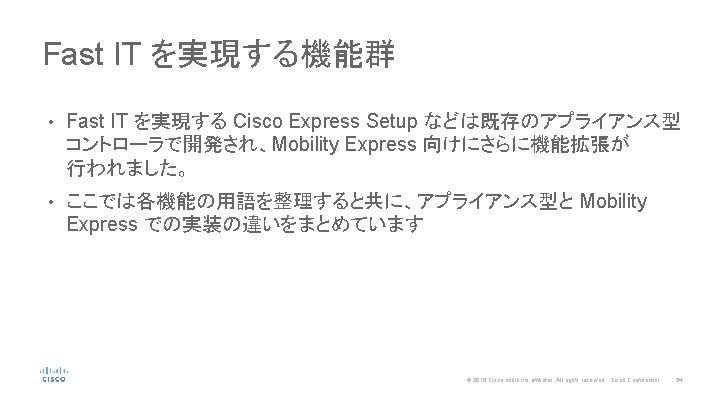

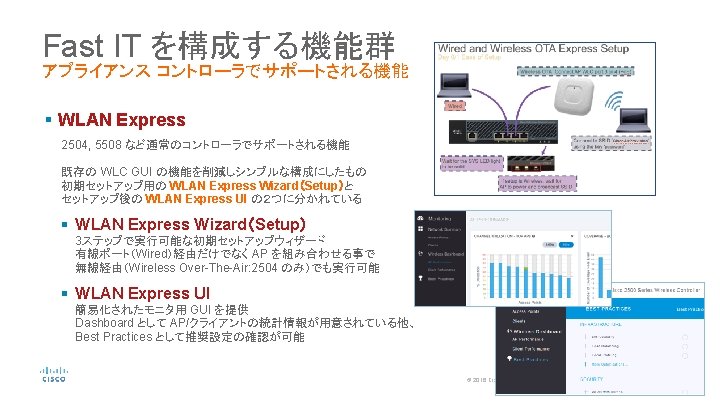

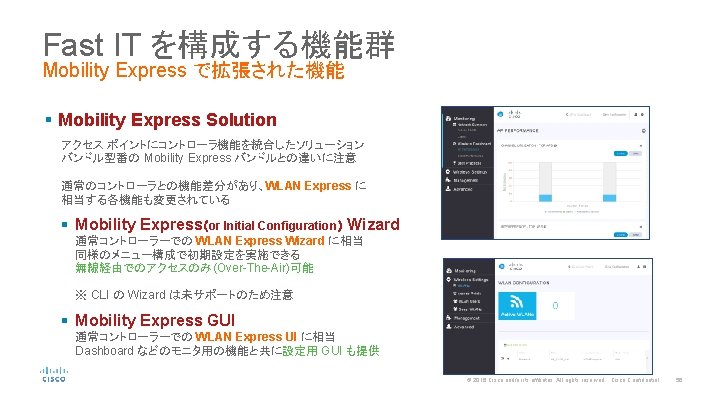

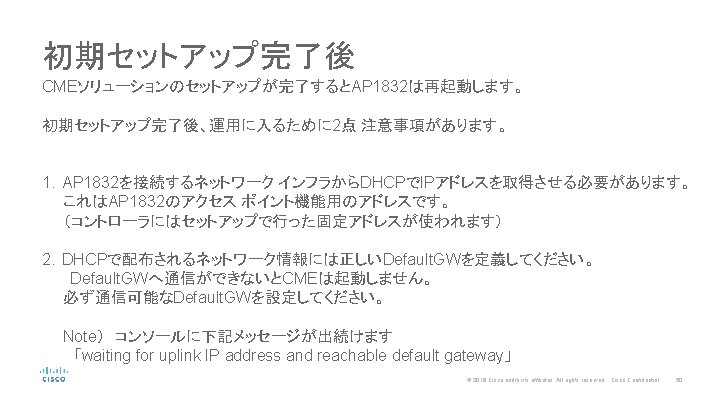

Appendix: Fast IT を実現する機能群 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 53
WLAN Express/Mobility Express 画面比較 Wizard画面 WLC: WLAN Express Wizard 画面はほとんど同じ AP 1800: Mobility Express © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 57
WLAN Express/Mobility Express 画面比較 メイン画面(UI) WLC: WLAN Express は Monitoring のみ AP 1800: Mobility Express © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 58
Appendix: 1850/1830オプション © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 59
Cisco Mobility Express Solution 型番 AIR-AP 185ⅹI-Q-K 9 C Cisco Mobility Express Solution型番 AIR-AP 185ⅹI-Q-K 9 CAPWAP 型番 必ずK 9 Cで発注をお願いします! © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 60
AP 18xx 用電源オプション AP 1832 電源オプション 802. 3 at, Enhanced Po. E, Po. E+ 性能 フル機能サポート Cisco Local Power Supply, AIR-PWR-C= フル機能サポート 802. 3 af Cisco Power Injector AIR-PWRINJ 5= (802. 3 af) 機能制限* 備考 • USB ポート無効 AP 1852 電源オプション 802. 3 at, Enhanced Po. E, Po. E+ 性能 フル機能サポート Cisco Power Injector AIR-PWRINJ 4= (30 W) フル機能サポート Cisco Local Power Supply, AIR-PWR-C= フル機能サポート 802. 3 af Cisco Power Injector AIR-PWRINJ 5= (802. 3 af) 機能制限* 備考 • 5 -GHz radio will shift to 3 x 3 • 2. 4 -GHz radio will shift to 2 x 2 • AUX & USB port © 2016 disabled Cisco and/or its affiliates. All rights reserved. Cisco Confidential 61
Appendix: 機能比較 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 62
機能比較: Mobility Express Solution vs アプライアンス コントローラ 機能 Mobility Express Solutionの 既存のアプライアンス コントローラ機能 スケール 25 AP 最大 6000 AP ローミング L 2 Intra-controller only L 2 and L 3 Intra and Inter-controller モード Flexconnect Local Switching AVC 価格 AV No QOS/Policy tie-in (No control) No Netflow Priceless/$0 Centralized (Local Mode) Flexconnect, Mesh, OEAP ユーザ/デバイス モデル ポリシー ベースの AVC Netflow export WIPS 不正 (Rogue) 検知 不正 + シグネチャ. WIPS + AWIPS Bonjour ゲートウェイ No Yes ハイ アベイラビリティ Redundancy N+1, SSO コントローラにより異なる © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 63
機能比較: Cisoco Mobility Express Solution vs Express Bundle(2504コン トローラ) 機能 Mobility Express Solution の Bundle 付属のコントローラ(2504) コントローラ機能 スケール 25 AP 最大 75 APサポート ローミング L 2 Intra-controller only L 2 and L 3 Intra and Inter-controller モード Flexconnect Local Switching Flexconnect, Mesh, OEAP, Centralized AVC ユーザ/デバイス モデル ポリシー ベースの AVC Netflow export 価格 AV No QOS/Policy tie-in (No control) No Netflow Priceless/$0 WIPS 不正 (Rogue) 検知 不正 + シグネチャ. WIPS + AWIPS Bonjour ゲートウェイ No Yes ハイ アベイラビリティ Redundancy N+1 25 APライセンス付属、それ以上は追加費用 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 64

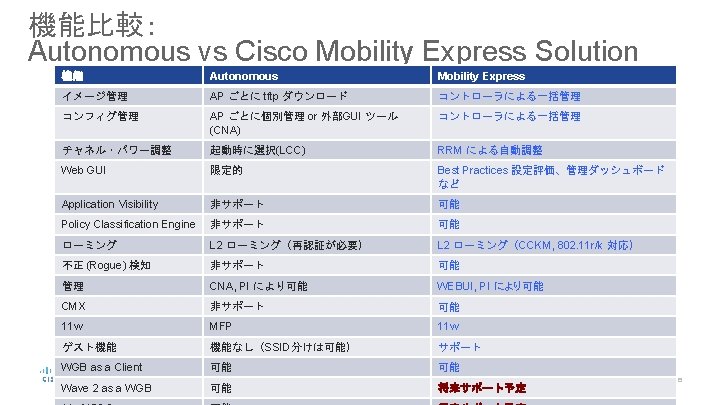

Cisco Aironet 802. 11 ac アクセス ポイント比較 屋内アクセス ポイント 最大データレート (5 GHz) RF デザイン (MU-MIMO) パフォーマンス / カバレッジ / 投資保護 APあたりのクライアント数 RRM High Density Experience (HDX) Cisco Clean. Air® ビーム フォーミング Band. Select Video. Stream 不正 AP 検知 Adaptive w. IPS アンテナ外付けオプション イーサネット ポート LAG サポート USB モジュールオプション エンタープライズ AP-1830 AP-1850 AP-2700 AP-3700 870 Mbps 3 x 3: 2, Dual SU-MIMO W 2 3 x 3: 2 Dual MU-MIMO W 2 1. 7 Gbps 4 x 4: 4, SU-MIMO W 2 4 x 4: 3, MU-MIMO W 2 1. 3 Gbps 3 x 4: 3, Dual SU-MIMO W 1 4 x 4: 3, Dual SU-MIMO W 1 uu uuu uuuu 400 400 ✓ Spectrum Analysis* Tx BF ✓ ✓ ✓ ✓ Cisco Client. Link 3. 0 ✓ ✓ ✓ ✓ ✓ 1 x GE n/a 2. 0 2 x GE ✓※ 2. 0 2 x GE n/a 1 x GE n/a Security, 3 G Small Cell, Hyperlocation* ※ アプライアンスWLCで利用時のみ © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 66 * Planning

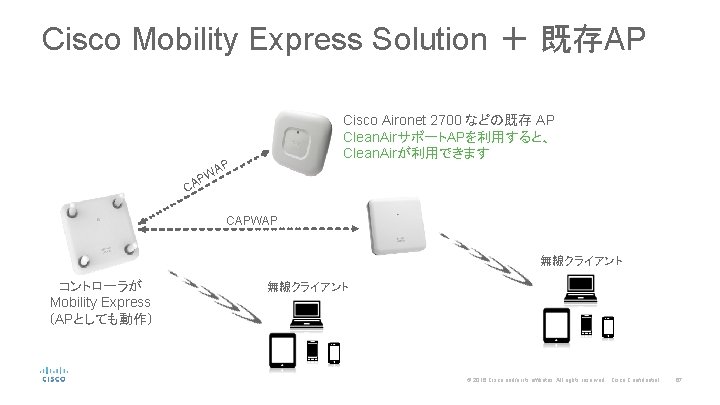

Cisco Mobility Express Solution + 既存AP Cisco Aironet 2700 などの既存 AP Clean. AirサポートAPを利用すると、 Clean. Airが利用できます AP W P CA CAPWAP 無線クライアント コントローラが Mobility Express (APとしても動作) 無線クライアント © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 67
アクセス ポイントのモード サポート No image 700 W 700 1600 2600 3600 1700 2700 3700 18 x 0 New Wave 2 Autonomous Cisco Mobility Express 700 Wは No Wired support WLC統合APへJoin可能 WLC統合AP © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 68
Appendix: UX AP Priming © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 69
Priming準備 GUIからWLANのUniversal Adminを有効にできません コマンドラインを使います ・config wlan disable all ・config wlan universal admin enable ・config wlan enable all セキュリティの観点からPrimingが終わったら無効にしましょう © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 70
