Cisco Intercloud Fabric Amazon AWS & Microsoft Azure – Cloud Access Keys John Mc. Donough (jomcdono@cisco. com) Technical Marketing Engineer January, 2015

Cloud Access Keys § Amazon – AWS § Microsoft – Azure © 2014 -2015

© 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco 3

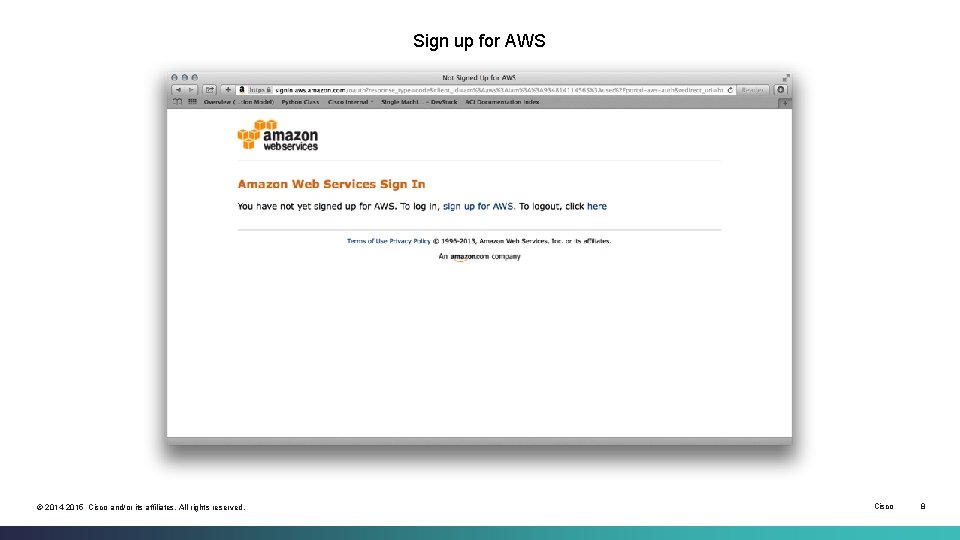

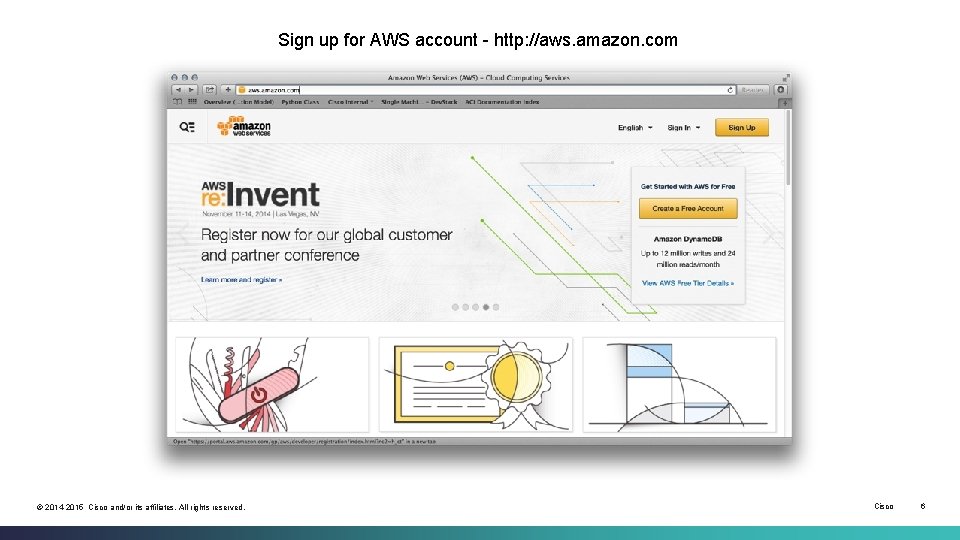

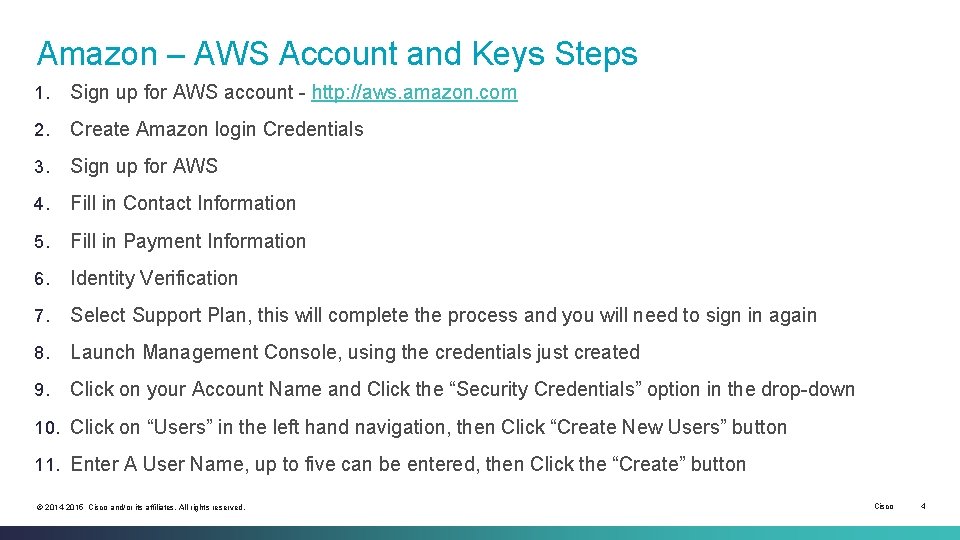

Amazon – AWS Account and Keys Steps 1. Sign up for AWS account - http: //aws. amazon. com 2. Create Amazon login Credentials 3. Sign up for AWS 4. Fill in Contact Information 5. Fill in Payment Information 6. Identity Verification 7. Select Support Plan, this will complete the process and you will need to sign in again 8. Launch Management Console, using the credentials just created 9. Click on your Account Name and Click the “Security Credentials” option in the drop-down 10. Click on “Users” in the left hand navigation, then Click “Create New Users” button 11. Enter A User Name, up to five can be entered, then Click the “Create” button © 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco 4

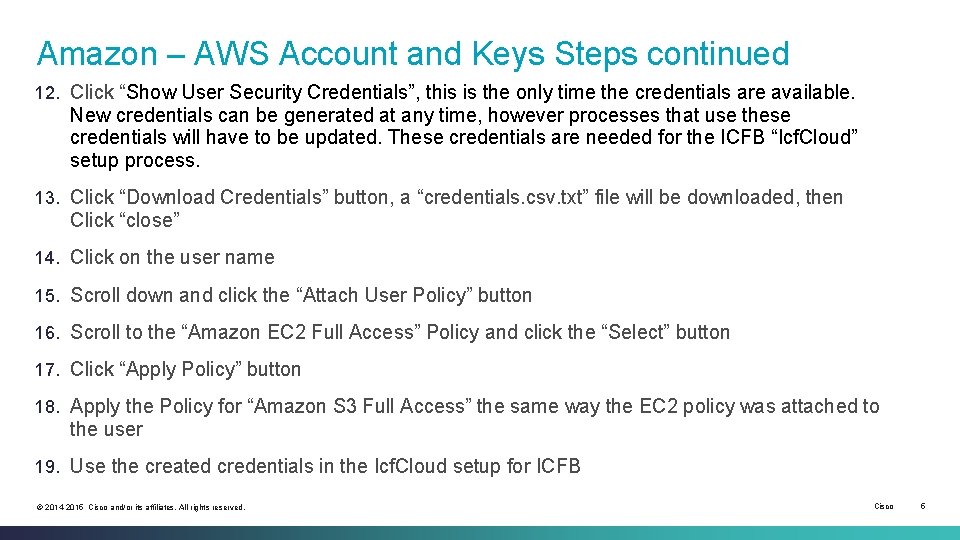

Amazon – AWS Account and Keys Steps continued 12. Click “Show User Security Credentials”, this is the only time the credentials are available. New credentials can be generated at any time, however processes that use these credentials will have to be updated. These credentials are needed for the ICFB “Icf. Cloud” setup process. 13. Click “Download Credentials” button, a “credentials. csv. txt” file will be downloaded, then Click “close” 14. Click on the user name 15. Scroll down and click the “Attach User Policy” button 16. Scroll to the “Amazon EC 2 Full Access” Policy and click the “Select” button 17. Click “Apply Policy” button 18. Apply the Policy for “Amazon S 3 Full Access” the same way the EC 2 policy was attached to the user 19. Use the created credentials in the Icf. Cloud setup for ICFB © 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco 5

Create Amazon login Credentials © 2014 -2015 Cisco and/or its affiliates. All rights reserved.

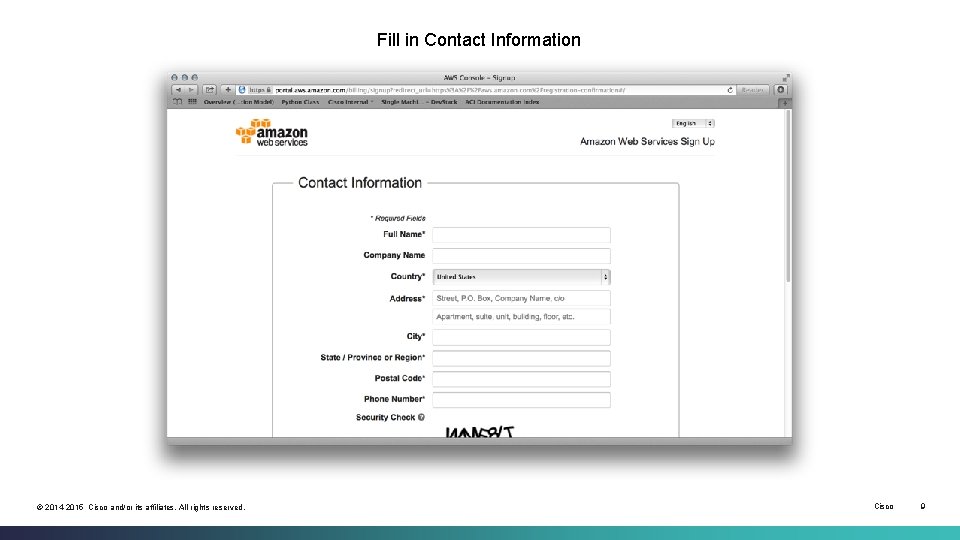

Fill in Contact Information © 2014 -2015 Cisco and/or its affiliates. All rights reserved.

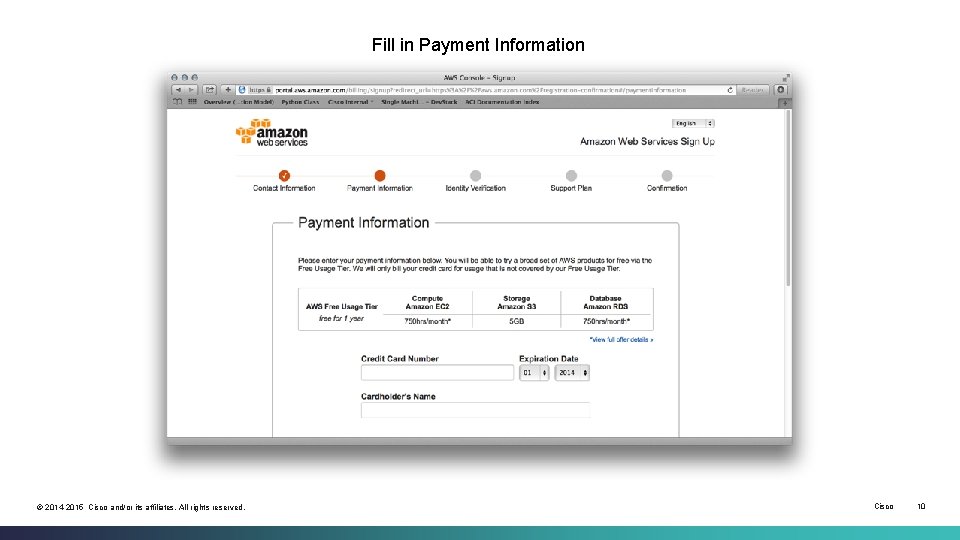

Fill in Payment Information © 2014 -2015 Cisco and/or its affiliates. All rights reserved.

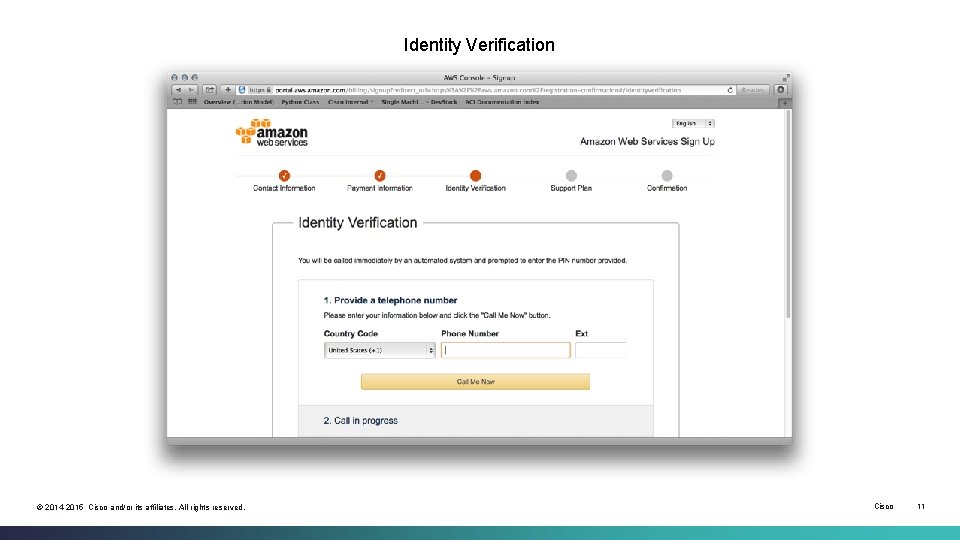

Identity Verification © 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco 11

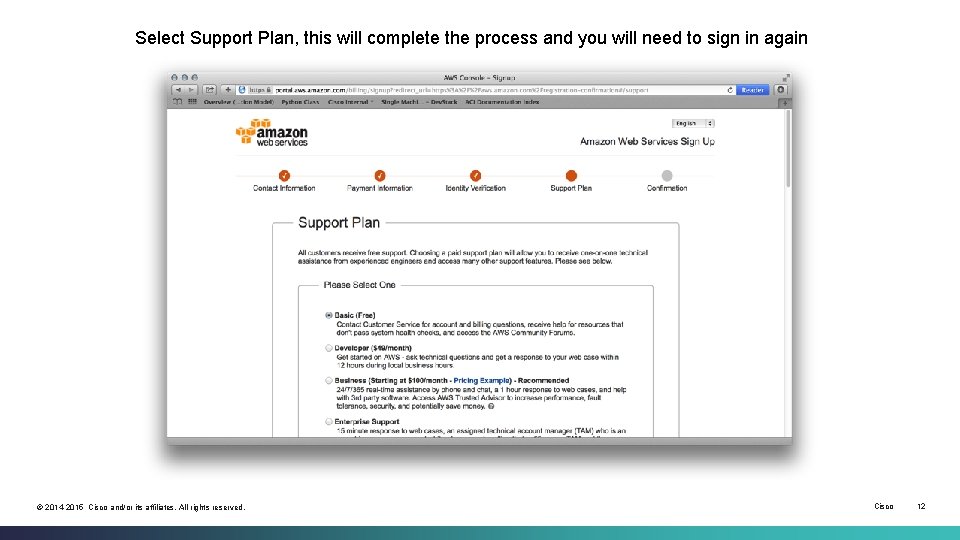

Select Support Plan, this will complete the process and you will need to sign

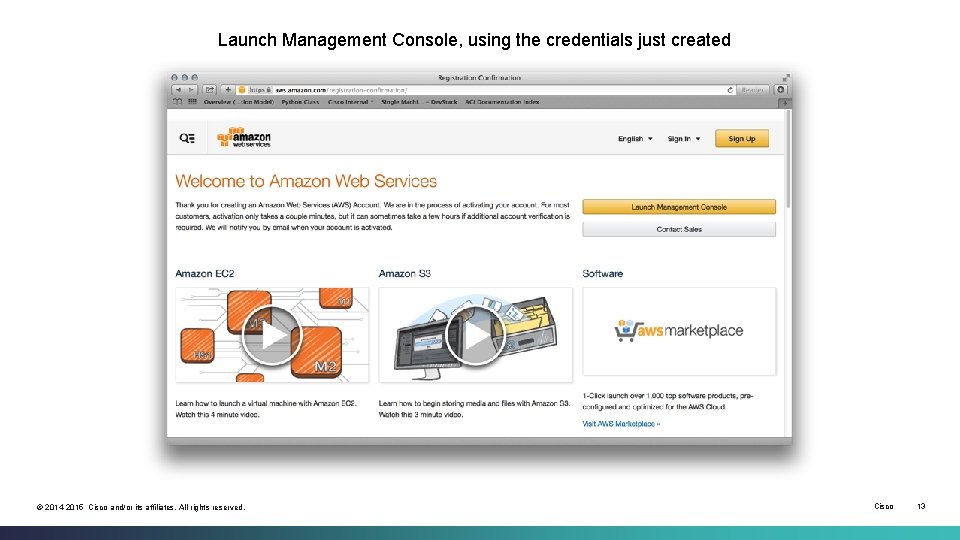

Launch Management Console, using the credentials just created © 2014 -2015 Cisco and/or its

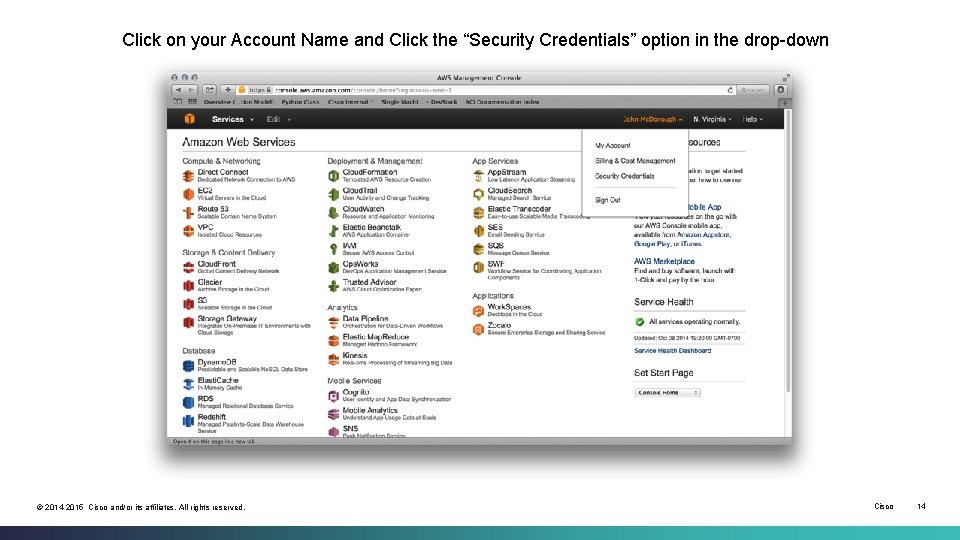

Click on your Account Name and Click the “Security Credentials” option in the drop-down

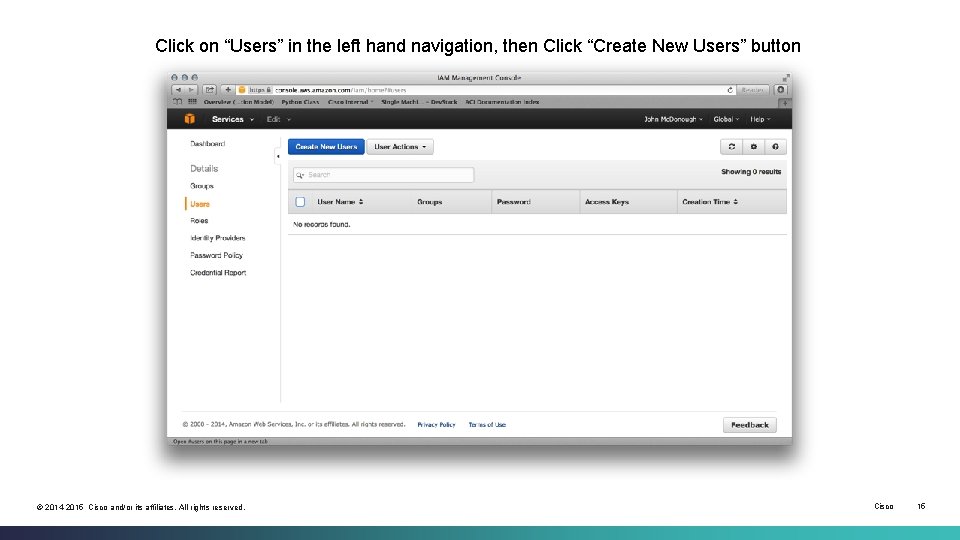

Click on “Users” in the left hand navigation, then Click “Create New Users” button

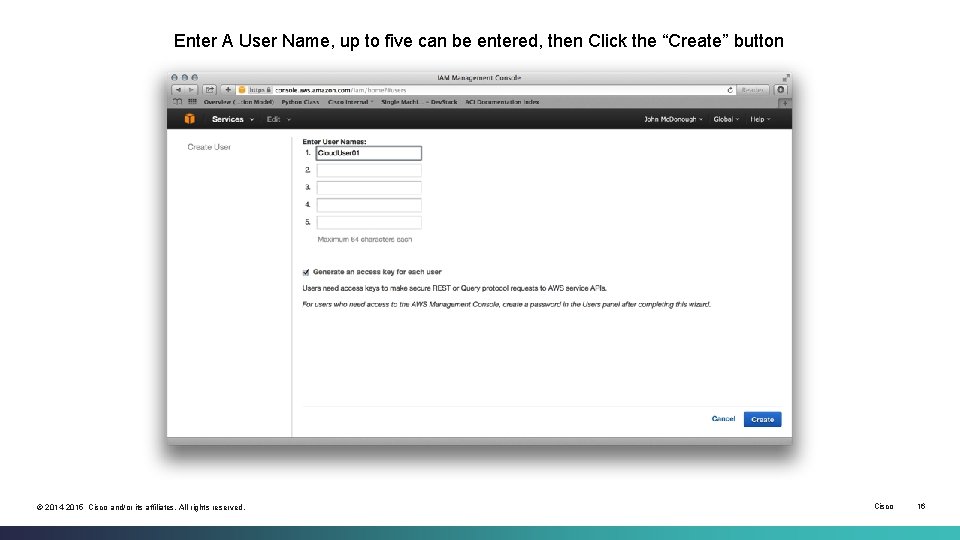

Enter A User Name, up to five can be entered, then Click the “Create”

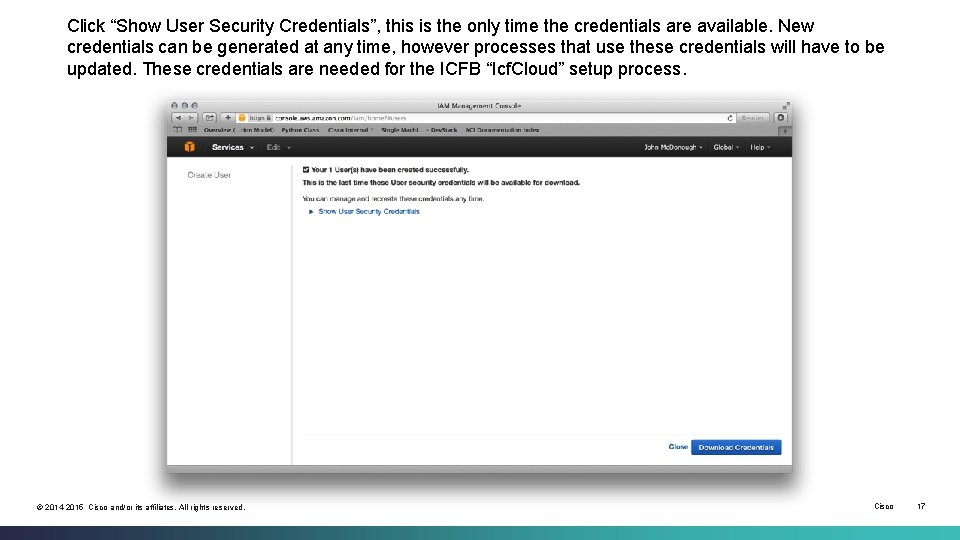

Click “Show User Security Credentials”, this is the only time the credentials are available. New credentials can be generated at any time, however processes that use these credentials will have to be updated. These credentials are needed for the ICFB “Icf. Cloud” setup process. © 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco 17

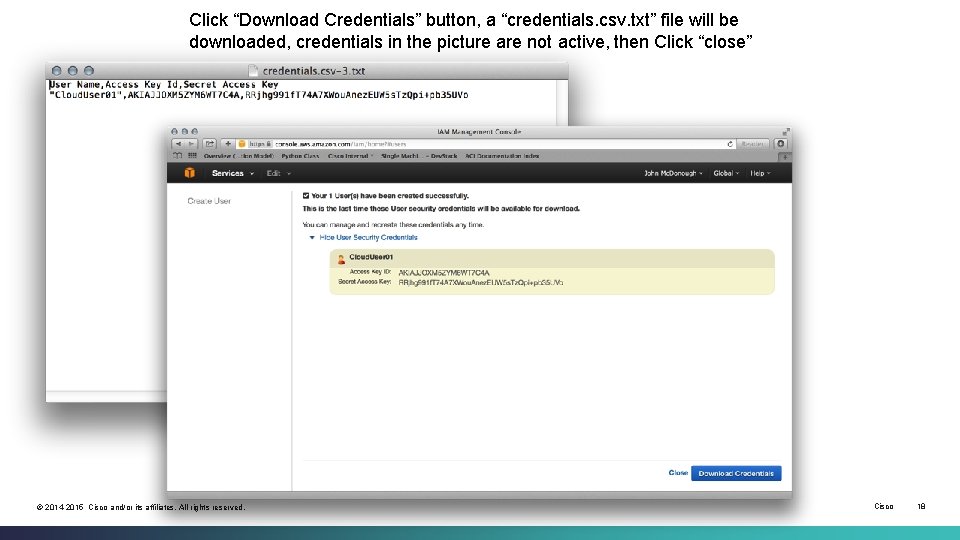

Click “Download Credentials” button, a “credentials. csv. txt” file will be downloaded, credentials in the picture are not active, then Click “close” © 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco 18

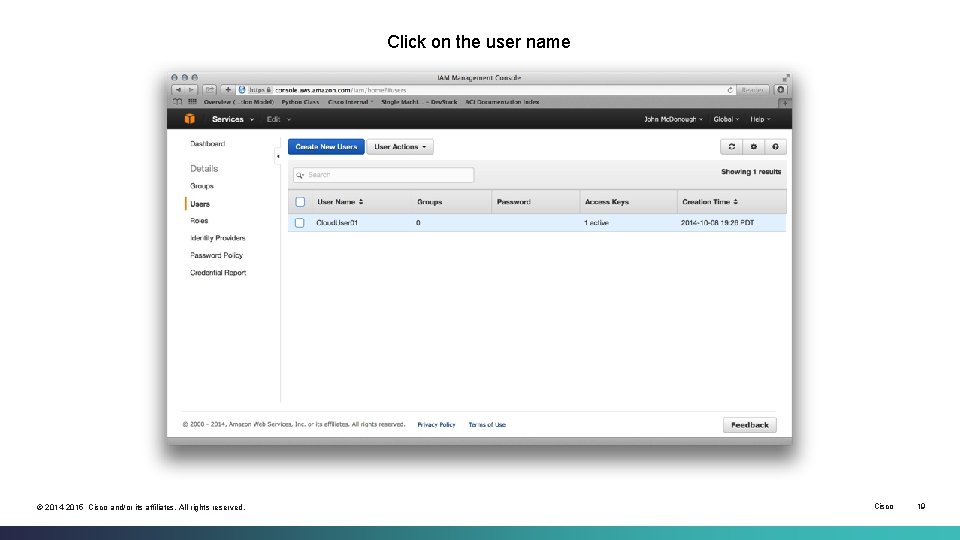

Click on the user name © 2014 -2015 Cisco and/or its affiliates. All rights

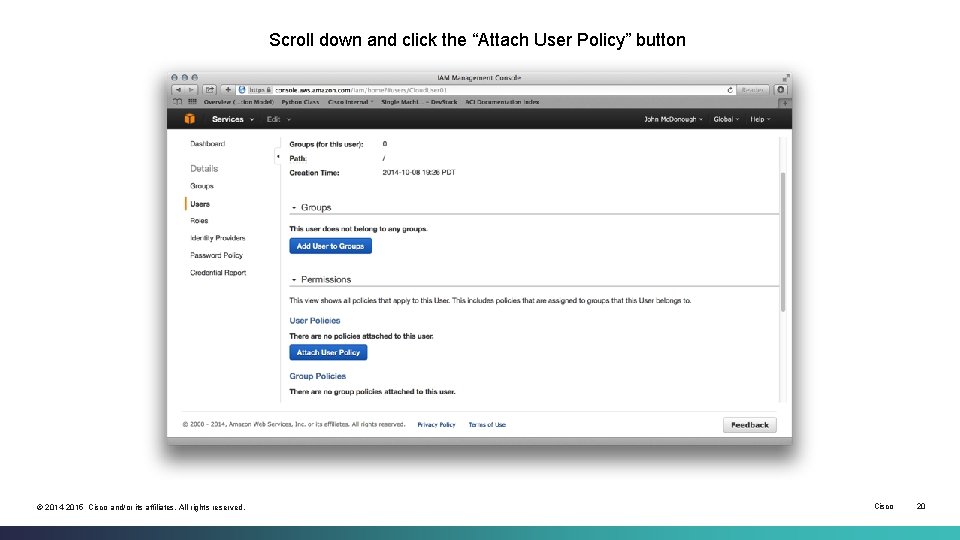

Scroll down and click the “Attach User Policy” button © 2014 -2015 Cisco and/or

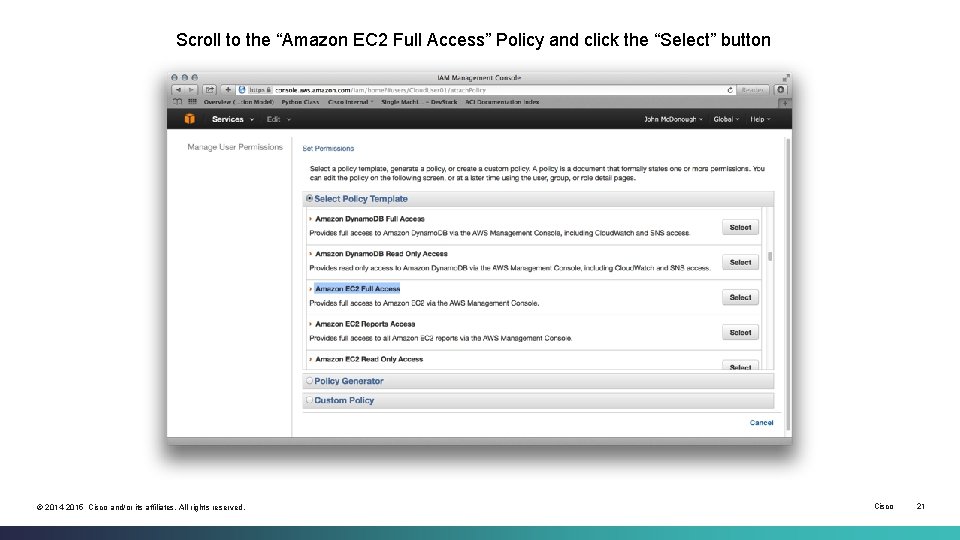

Scroll to the “Amazon EC 2 Full Access” Policy and click the “Select” button

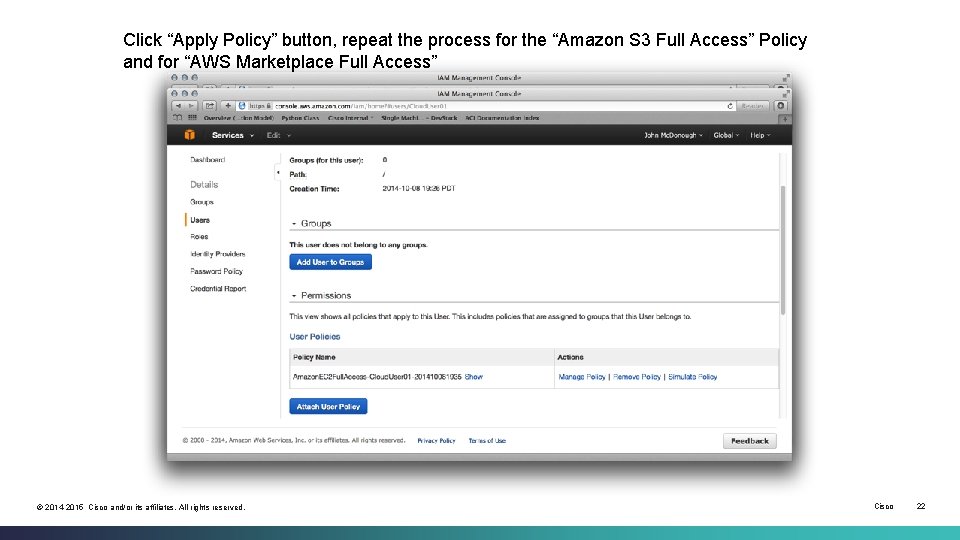

Click “Apply Policy” button, repeat the process for the “Amazon S 3 Full Access”

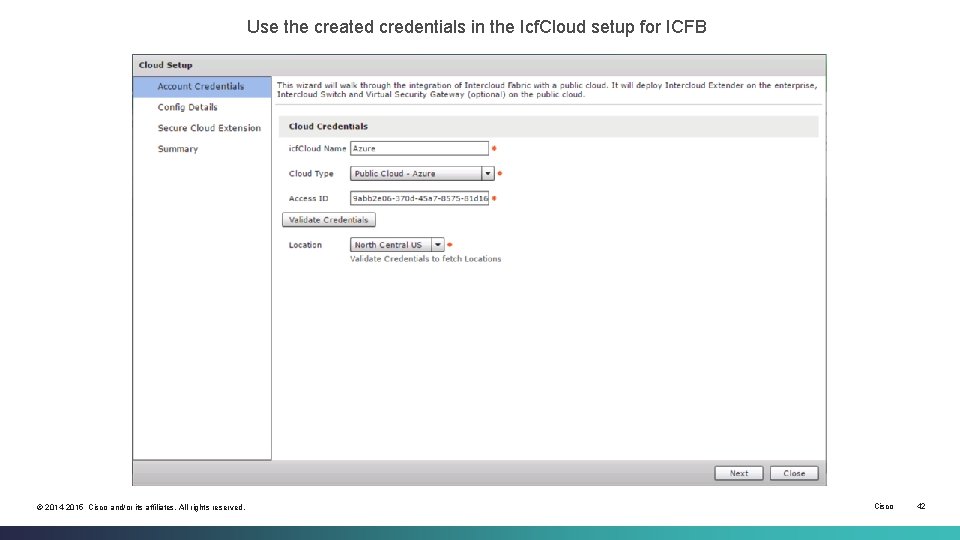

Use the created credentials in the Icf. Cloud setup for ICFB © 2014 -2015

© 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco 24

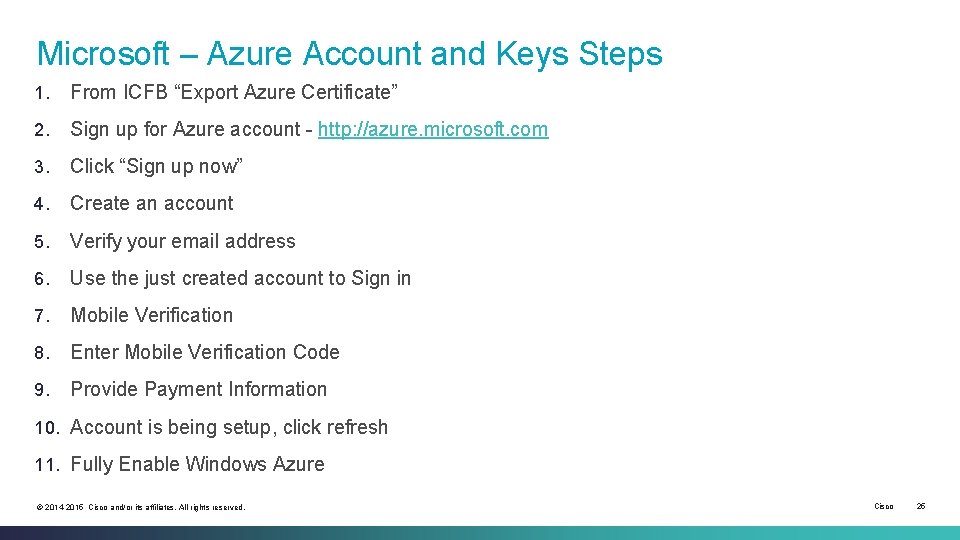

Microsoft – Azure Account and Keys Steps 1. From ICFB “Export Azure Certificate” 2. Sign up for Azure account - http: //azure. microsoft. com 3. Click “Sign up now” 4. Create an account 5. Verify your email address 6. Use the just created account to Sign in 7. Mobile Verification 8. Enter Mobile Verification Code 9. Provide Payment Information 10. Account is being setup, click refresh 11. Fully Enable Windows Azure © 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco 25

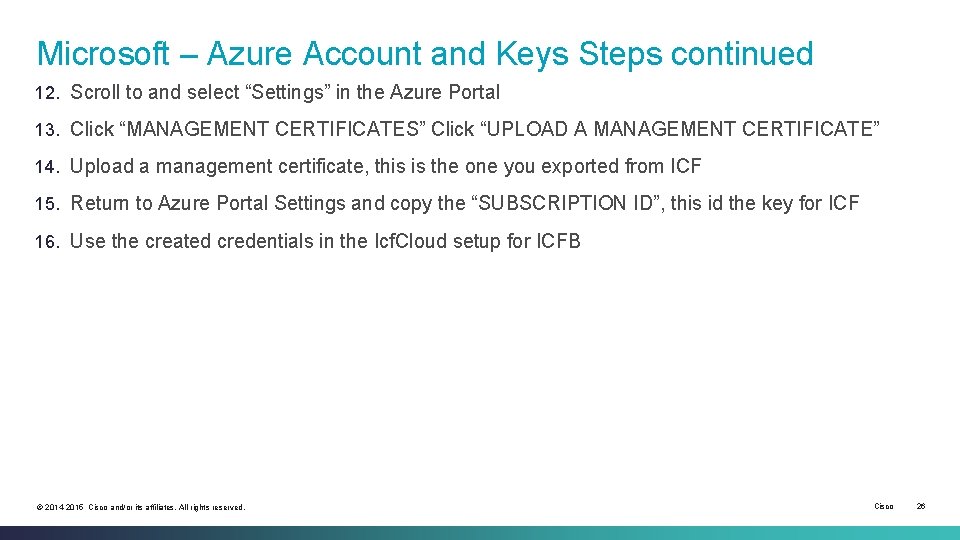

Microsoft – Azure Account and Keys Steps continued 12. Scroll to and select “Settings” in the Azure Portal 13. Click “MANAGEMENT CERTIFICATES” Click “UPLOAD A MANAGEMENT CERTIFICATE” 14. Upload a management certificate, this is the one you exported from ICF 15. Return to Azure Portal Settings and copy the “SUBSCRIPTION ID”, this id the key for ICF 16. Use the created credentials in the Icf. Cloud setup for ICFB © 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco 26

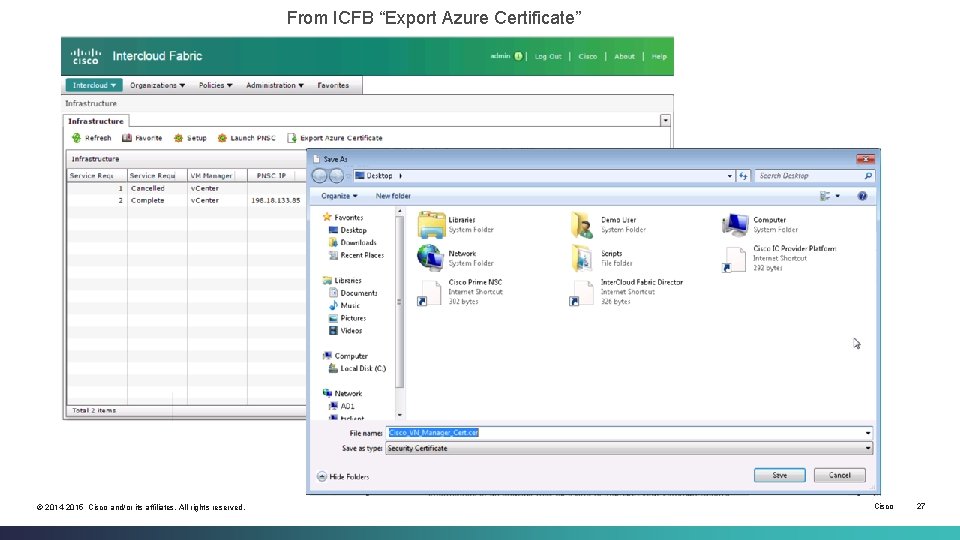

From ICFB “Export Azure Certificate” © 2014 -2015 Cisco and/or its affiliates. All rights

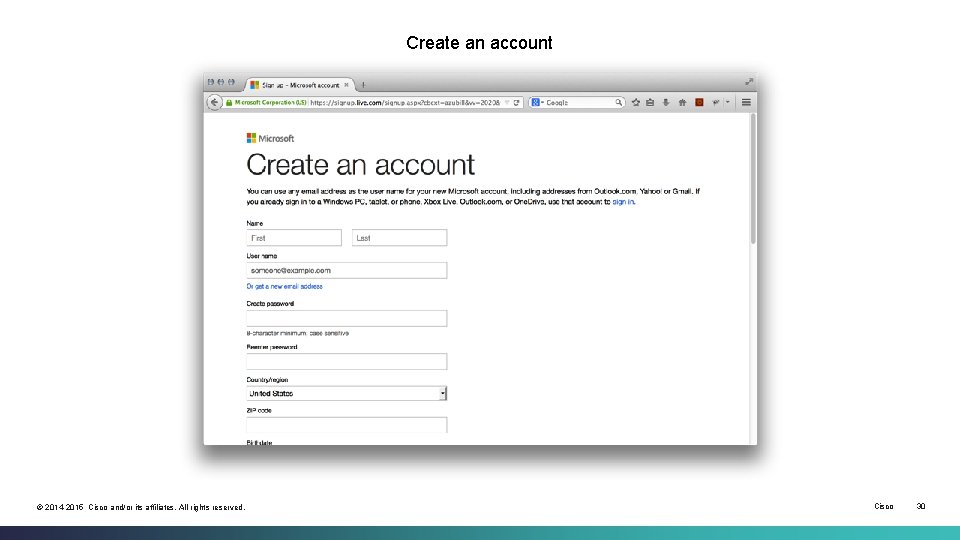

Create an account © 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco

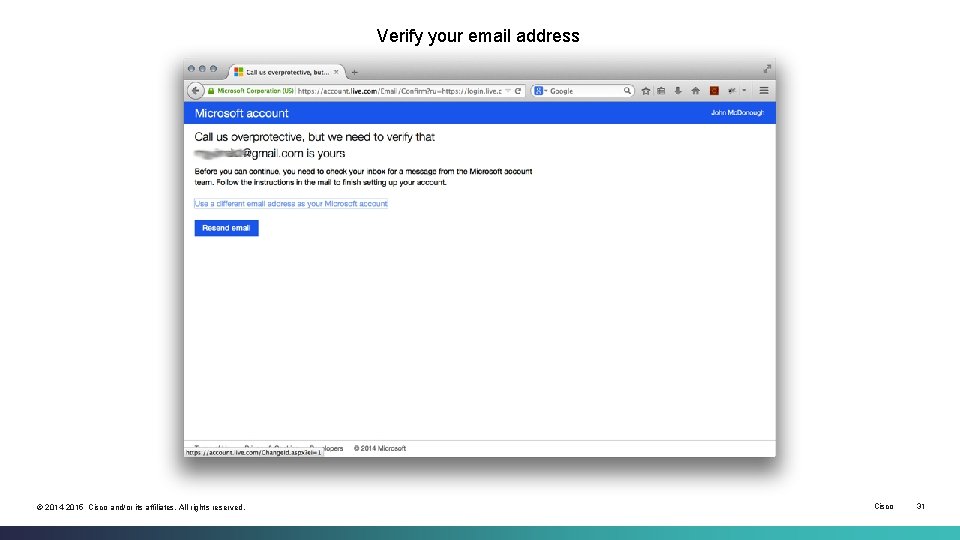

Verify your email address © 2014 -2015 Cisco and/or its affiliates. All rights reserved.

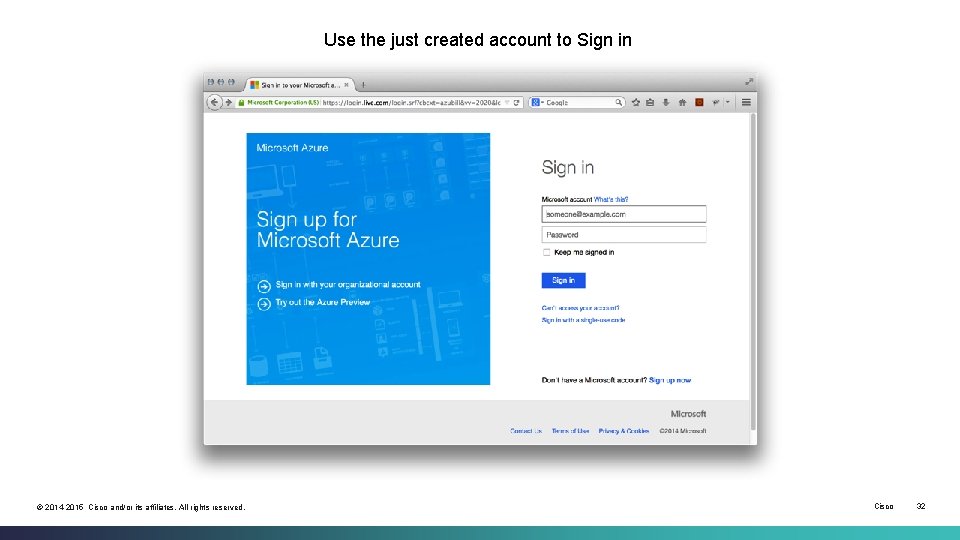

Use the just created account to Sign in © 2014 -2015 Cisco and/or its

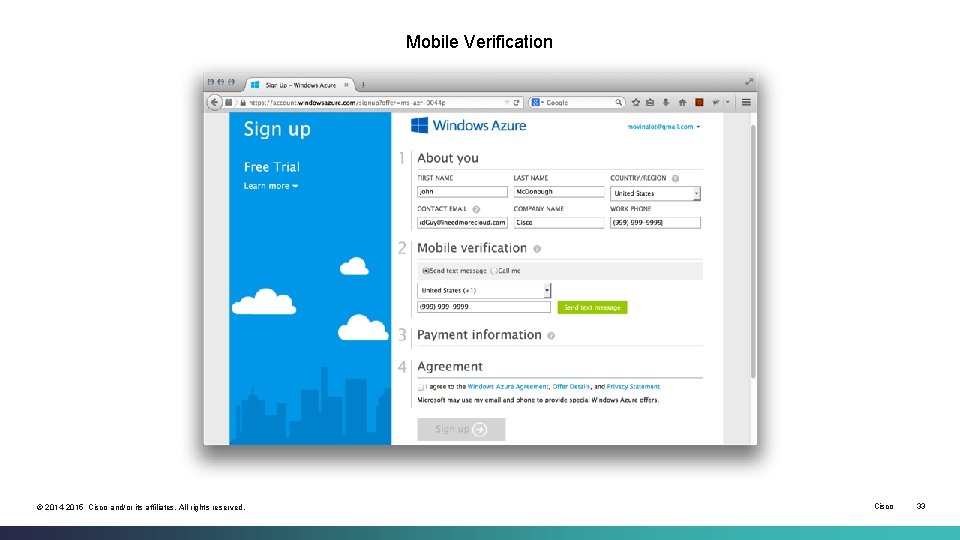

Mobile Verification © 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco 33

Enter Mobile Verification Code © 2014 -2015 Cisco and/or its affiliates. All rights reserved.

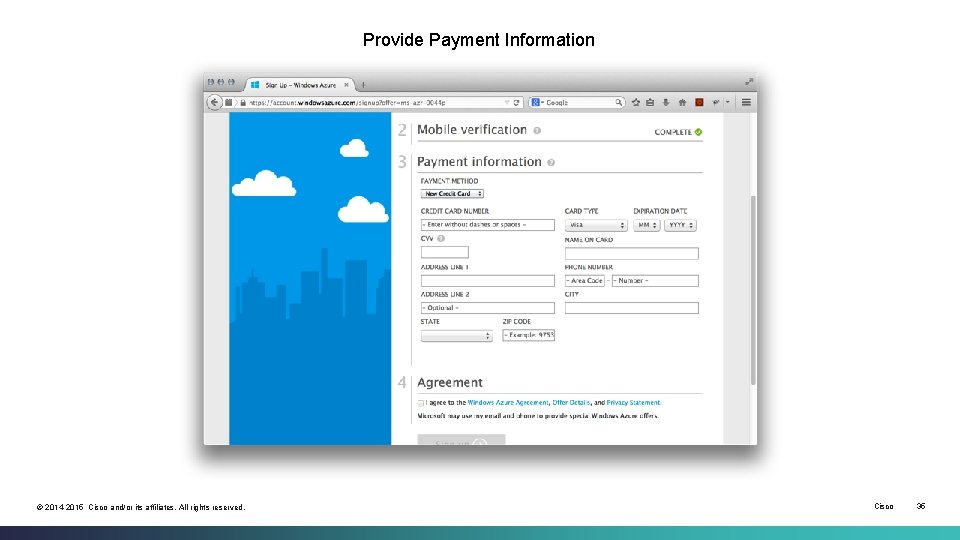

Provide Payment Information © 2014 -2015 Cisco and/or its affiliates. All rights reserved. Cisco

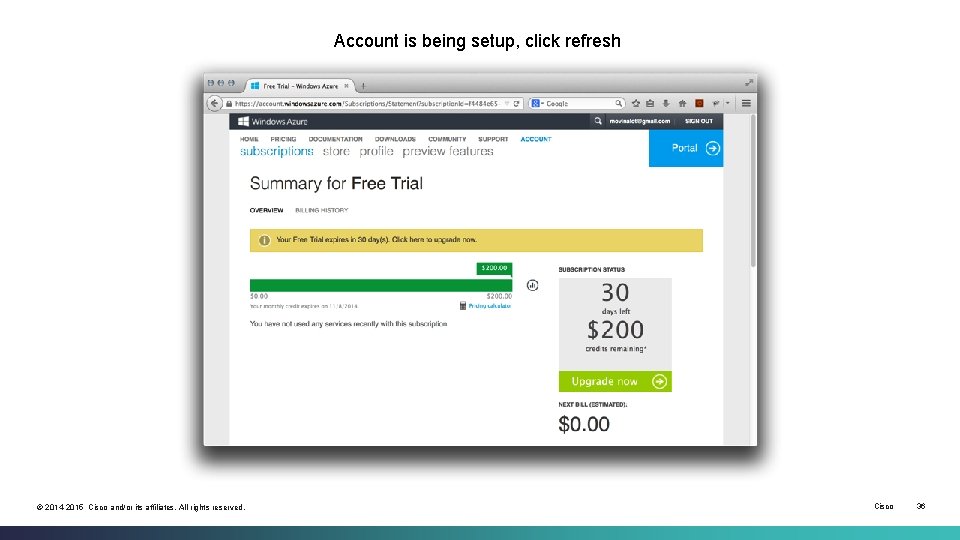

Account is being setup, click refresh © 2014 -2015 Cisco and/or its affiliates. All

Fully Enable Windows Azure © 2014 -2015 Cisco and/or its affiliates. All rights reserved.

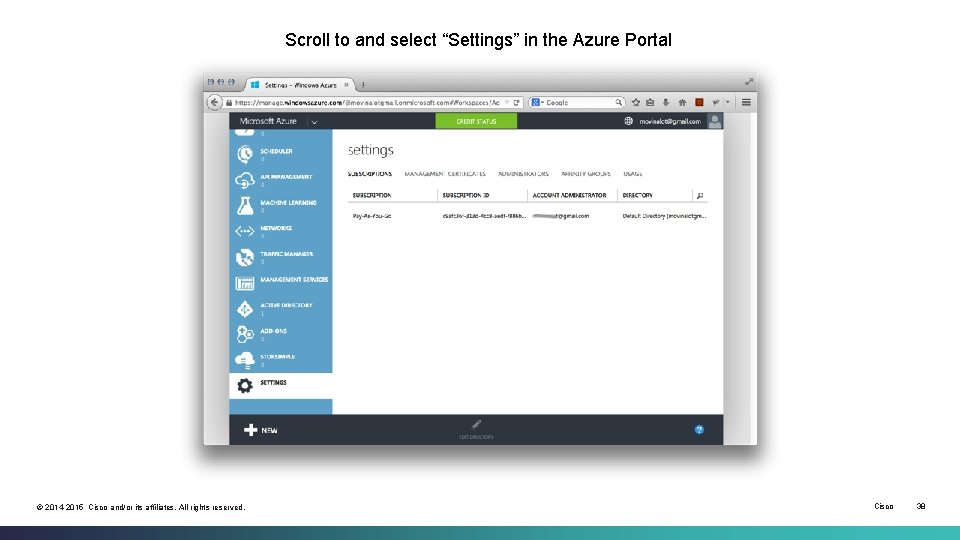

Scroll to and select “Settings” in the Azure Portal © 2014 -2015 Cisco and/or

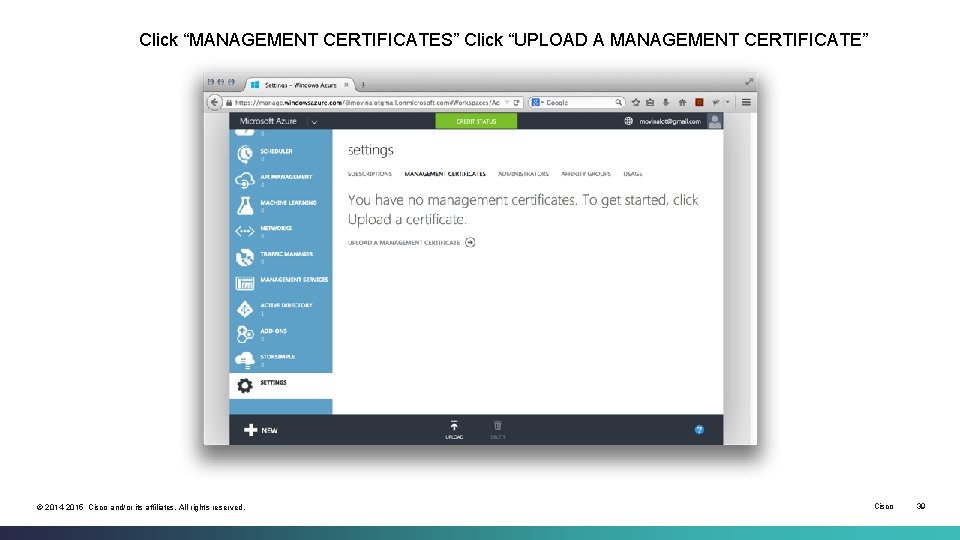

Click “MANAGEMENT CERTIFICATES” Click “UPLOAD A MANAGEMENT CERTIFICATE” © 2014 -2015 Cisco and/or its

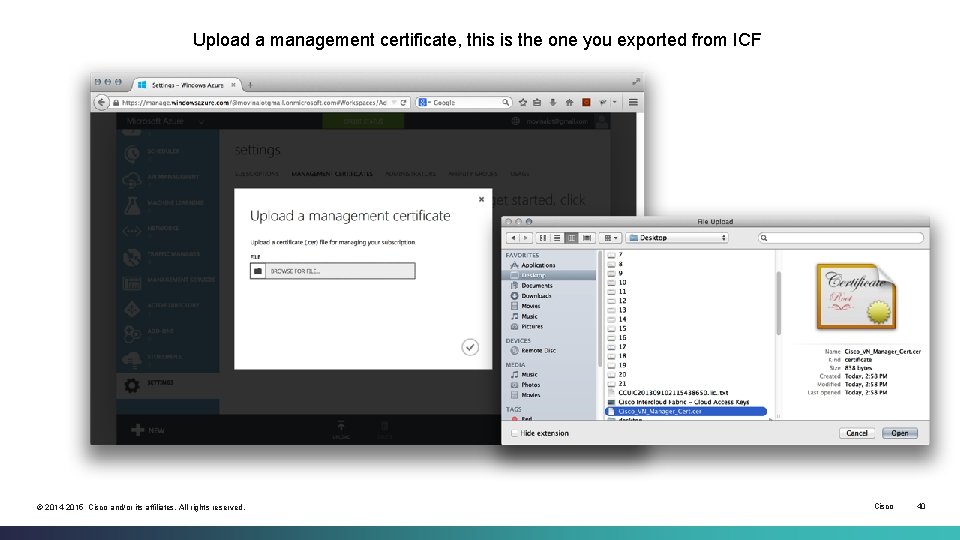

Upload a management certificate, this is the one you exported from ICF © 2014

Return to Azure Portal Settings and copy the “SUBSCRIPTION ID”, this id the key

Thank you.
