Cisco IE Cisco Systems October 20 th 2016
Cisco IEシリーズスイッチ Cisco Systems October 20 th, 2016

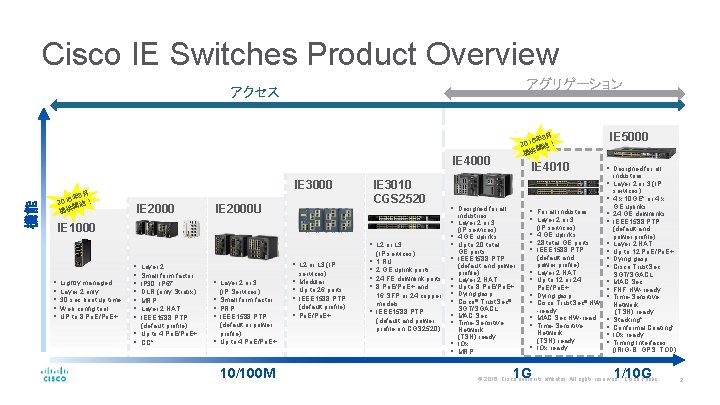

Cisco IE Switches Product Overview アグリゲーション アクセス IE 4000 IE 3000 機能 8月 6年 ! 201 開始 供 提 IE 2000 IE 3010 CGS 2520 IE 2000 U § L 2 or L 3 § § § Lightly managed Layer 2 only 30 sec boot up time Web config tool UP to 8 Po. E/Po. E+ § § § § Layer 2 Small form factor IP 30, IP 67 DLR (only Stratix) MRP Layer 2 NAT IEEE 1588 PTP (default profile) § Up to 4 Po. E/Po. E+ § CC* § L 2 or L 3 (IP § Layer 2 or 3 § § (IP Services) Small form factor PRP IEEE 1588 PTP (default or power profile) Up to 4 Po. E/Po. E+ 10/100 M § § services) Modular Up to 26 ports IEEE 1588 PTP (default profile) Po. E/Po. E+ § § § (IP services) 1 RU 2 GE uplink ports 24 FE downlink ports 8 Po. E/Po. E+ and 16 SFP or 24 copper models IEEE 1588 PTP (default and power profile on CGS 2520) IE 4010 § Designed for all industries § Layer 2 or 3 (IP services) § 4 x 10 GE* or 4 x § Designed for all § IE 1000 IE 5000 8月 6年 ! 201 始 開 提供 § § § industries Layer 2 or 3 (IP services) 4 GE uplinks Up to 20 total GE ports IEEE 1588 PTP (default and power profile) Layer 2 NAT Up to 8 Po. E/Po. E+ Dying gasp Cisco® Trust. Sec® SGT/SGACL MAC Sec Time-Sensitive Network (TSN) ready IOx MRP § For all industries § Layer 2 or 3 (IP services) § 4 GE uplinks § 28 total GE ports § IEEE 1588 PTP § § § § 1 G (default and power profile) Layer 2 NAT Up to 12 or 24 Po. E/Po. E+ Dying gasp Cisco Trust. Sec® HW -ready MAC Sec HW-read Time-Sensitive Network (TSN) ready IOx ready GE uplinks § 24 GE downlinks § IEEE 1588 PTP § § § (default and power profile) Layer 2 NAT Up to 12 Po. E/Po. E+ Dying gasp Cisco Trust. Sec SGT/SGACL MAC Sec FNF HW-ready Time-Sensitive Network (TSN) ready Stacking* Conformal Coating* IOx ready Timing Interfaces (IRIG-B, GPS, TOD) 1/10 G © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 2
Cisco IE 1000 製品概要 IE 1000 (Po. Eモデル) IE 1000( Po. Eモデル) 4× 10/100 (RJ 45) 6× 10/100 (RJ 45) 4× 10/100 (RJ 45 w/POE) 8× 10/100 (RJ 45 w/POE) (5 port) 1× 10/100 (RJ 45) (8 port) 2 10/100 (RJ 45) (copper and Fiber SFP) - Po. E/Po. E+ ポート 5 / 8 ポート 6 / 10 ポート 電源 平均24 VDC (9 – 36) 平均48/54 VDC (44 – 57) (5 port) W 3. 81 x H 12. 7 x D 11. 5 (8 port) W 4. 5 x H 12. 7 x D 11. 5 W 4. 5 x H 12. 7 x D 13. 3 No Yes -20 -60℃ -40 -70℃ 型番 ポート構成 アップリンクポート Po. E サイズ (cm) アラーム 入力/出力 動作温度範囲 2 Gig. E Fiber IP規格(防水・防塵保護) IP 30 ワランティ 5年 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 4
Cisco IE 1000 機能概要 IE 1000の主なサポート機能 IE 1000 vs. IE 2000の機能比較 IE 1000 主なサポート機能 IE 2000 LLDP (including LLDP-MED) Syslog ファイバーポート CDP (read only) Port security Po. E対応 ✓ ✓ MSTP http/https over IPv 4 簡単設定:GUI ✓ ✓ STP Portfast Etherchannel CLI ✓ Priority Port - Alarm 二重化機能 ✓ Default static IP DHCP Snooping セキュリティ ✓ Trust ingress DSCP, COS DHCP Server Qo. S ✓ SNMP v 2/v 3, SNMP Traps BPDU Guard ✓ ICMP RADIUS Client トラブルシューティン グ IGMP Port statistics ✓ © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 5
Cisco IE 1000 vs. IE 2000 ハードウェア比較 • 4. 5 cm ハードウェアサイズ IE 1000 IE 2000 IE-1000 -4 T 1 T-LM (5 ports) W 3. 81 x H 12. 7 x D 11. 5 IE-2000 -4 TS-L (6 ports) 8. 0 W x 13. 0 H x 11. 5 D (cm) IE-1000 -6 T 2 T-LM (8 ports) 4. 5 W x 12. 7 H x 11. 5 D (cm) IE-2000 -4 T-L (6 ports) 8. 0 W x 13. 0 H x 11. 5 D (cm) 8. 0 cm © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 6
Cisco IE 1000 シリーズ:型番情報 型番 製品概要 IE-1000 -4 T 1 T-LM GUI Based L 2 switch, 5× 10/100ポート IE-1000 -6 T 2 T-LM GUI based L 2 switch, 8× 10/100ポート IE-1000 -4 P 2 S-LM GUI based L 2 Po. E switch, 2 GE SFP ポート + 4 × 10/100ポート IE-1000 -8 P 2 S-LM GUI based L 2 Po. E switch, 2 GE SFP, 8 ポート× 10/100ポート © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 7
Cisco IE 4010 -16 S 12 P 前面 Alarm Contacts § FOUR Alarm Inputs § ONE Alarm Output 前面または背面でも設置可能 § 冗長化LEDにより前面・背面でも設置可 § System, Alarm and Port Status LEDs Swap Drive § SD Flash 12×ギガビットイーサネットポート 伝導冷却 § ファンなし § 高温環境でも動作可能 10/1000 M Fixed Copper Po. E+ 12 SFP×ギガビットイーサネットポート § 100/1000 M SFP 変電所でも利用可能な構造 4 SFPギガビットイーサネットポート フィールドでの電源交換が可能 § 100/1000 M SFP § High Voltage PS: 85– 265 VAC 88 -300 VDC § Low Voltage PS: 18 -75 VDC § Substation Compliant § IEC 61850 -3 and IEEE 1613 全ポート IEEE 1588 v 2/PTPサポート § Power Profile c 37. 238, Default Profile © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 9

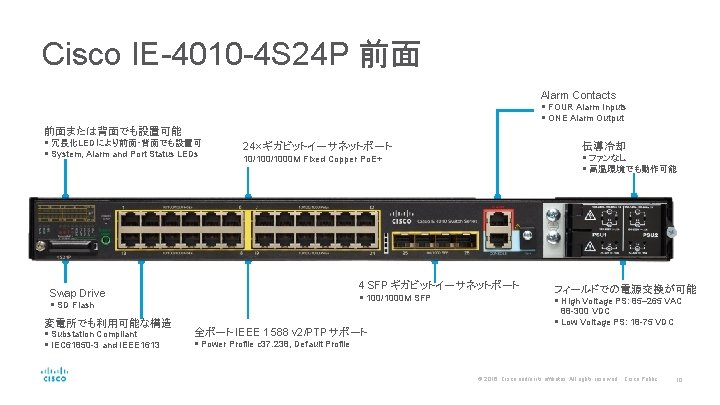

Cisco IE-4010 -4 S 24 P 前面 Alarm Contacts § FOUR Alarm Inputs § ONE Alarm Output 前面または背面でも設置可能 § 冗長化LEDにより前面・背面でも設置可 § System, Alarm and Port Status LEDs 24×ギガビットイーサネットポート 伝導冷却 10/1000 M Fixed Copper Po. E+ § ファンなし § 高温環境でも動作可能 4 SFPギガビットイーサネットポート Swap Drive § 100/1000 M SFP § SD Flash 変電所でも利用可能な構造 § Substation Compliant § IEC 61850 -3 and IEEE 1613 フィールドでの電源交換が可能 § High Voltage PS: 85– 265 VAC 88 -300 VDC 全ポート IEEE 1588 v 2/PTPサポート § Low Voltage PS: 18 -75 VDC § Power Profile c 37. 238, Default Profile © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 10
Cisco IE 4010 シリーズ サポート機能一覧 Common Platform Features Industrial Automation Features Utility Features License RTU package Static Routing Ethernet/IP (CIP)/PROFINET UNI and NNI interfaces Secure boot (FIPS 140 -2) RIP, EIGRP, BGP, OSPF, IS-IS IEEE 1588 PTP Default Profile IEEE 1588 PTP Power profile (P 2 P C 37. 238) Quack II and SUDI VTP Smartport Macro for Automation Utility Smartport Macro Po. E/Po. E+ with Port Priority VRF L 2 Network Address Translation Parallel Redundancy Protocol (PRP) Auto Smartport (for phone or camera) CEF Alarm input/output GOOSE messaging Smart Install and Cisco Energy. Wise ® 2. 8 DHCP Igmp querier/igmp snooping SCADA protocol classification MQC Qo. S and CPU Qo. S SXP Express Setup (use Web Interface) SCADA MODBUS TCP server Digital optical monitoring (DOM) Dying Gasp for loss of power Ethernet/IP (CIP)/PROFINET Ethernet OAM, CFM, and E-LMI IP device tracking Embedded Event Manager (EEM) Link detection (BFD, GOLD, and OBFL) 802. 1 x Web Device Manager Qin. Q tunneling STP, RSTP, MSTP, PVST HSRP and VRRP Private VLAN LLDP, CDP Boot Fast (~ 2 minutes) Redundancy Ethernet Protocol (REP) Configurable Alarms (4 In, 1 Out) © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 11
Cisco IE 4010 シリーズ スケーラビリティ Switch Specifications LAN Base IP Services VLANs supported 1005 4096 VLAN IDs Yes Spanning Tree Protocol instances 128 16, 000 IPv 4 indirect routes 16 (static) 8000 IPv 6 VRF instances - 26 Maximum Ether. Channel groups 10 10 Egress queues 4 4 Ingress policers per port 63 63 1000 4 4 MAC addresses IGMP groups SPAN monitors © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 12
Cisco IE スイッチシリーズ機能比較 Cisco® IE 2000 機能 Cisco IE 2000 U LAN Base (Layer 2) Enhanced LAN Base (Layer 2) IP Lite (Layer 3) Uplink Dual Redundant Rings - - - � Downlink Gigabit Ports - - - IPv 4 Indirect Routes 16 16 Qo. S MQC or MLS Po. E/Po. E+ Ports Number of SFP Uplinks Number of 10 GE Maximum MAC Addresses Maximum VLANs Cisco IE 5000 IP Services (Full Layer 3) � - - � � 800 0 2000 16 2000 1250 8000 MLS MLS MQC MQC MQC 4 4 4 8 8 12 12 8/12 or 24 2 GE 2 FE 2 GE 4 GE/10 GE 4 GE - - - - 4(10 GE Model) - - 8000 7500 8000 16, 000 255 1005 1005 1005 IP Services Cisco IE 2000 U Legend: �フルサポート LAN Base (Layer 2) Cisco IE 4000/IE 4010 LAN Base (Layer 2) Cisco IE 2000 LAN Base (Layer 2) Cisco IE 3000 �一部機能制限あり IP Services (Full Layer 3) Cisco IE 5000 LAN Base (Layer 2) IP Services (Full Layer 3) Cisco IE 4000/4010 - 未サポート © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 13
Cisco IE スイッチシリーズ機能比較 Cisco® IE 2000 Features LAN Base (Layer 2) Enhanced LAN Base (Layer 2) Cisco IE 2000 U IP Lite (Layer 3) LAN Base (Layer 2) Cisco IE 3000 IP Services LAN Base (Layer 2) Cisco IE 5000 IP Services (Full Layer 3) LAN Base (Layer 2) Cisco IE 4000/IE 4010 IP Services (Full Layer 3) LAN Base (Layer 2) IP Services (Full Layer 3) Layer 2 Features � � � IPv 6 � � � Security � � � Qo. S � � � Multicast � � � Manageability � � � Utility Enhancements - - - � � � � IE Enhancements � � � Layer 3 Features � � � Cisco IE 2000 U Legend: �フルサポート Cisco IE 3000 � 一部機能制限あり Cisco IE 5000 Cisco IE 4000/IE 4010 - 未サポート © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 14
IE 41010 シリーズ:型番情報 製品概要 価格表掲載 Orderability FCS日 IE-4010 -4 S 24 P 4× 1 G SFPポート, 24× 10/1000 GE Po. E ポート、 LAN Base 2016/8予定 済 2016/8予定 IE-4010 -16 S 12 P 16 x 1 G SFP and 12 x 10/1000 ポート 、LAN BASE 2016/8予定 2016/9予定 型番 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public 15
