CIS 725 Network Layer
Network Layer • This layer provides communication between any two nodes • Uniform addressing scheme independent of the network technology Network layer Data Link layer
Problems to be addressed • Routing • Congestion control
Routing • Processing nodes • Switches/routers • Communication links

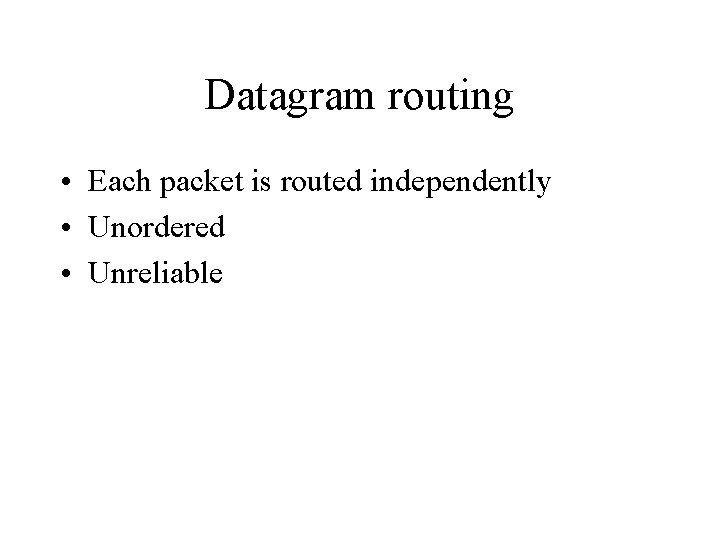

Datagram routing • Each packet is routed independently • Unordered • Unreliable
Virtual Circuit routing • • Set up a path for each connection All messages are sent over this path Ordered Reliable
Routing Table • Routing table contains the next hop information • At each node i, for each destination j, what is the next hop

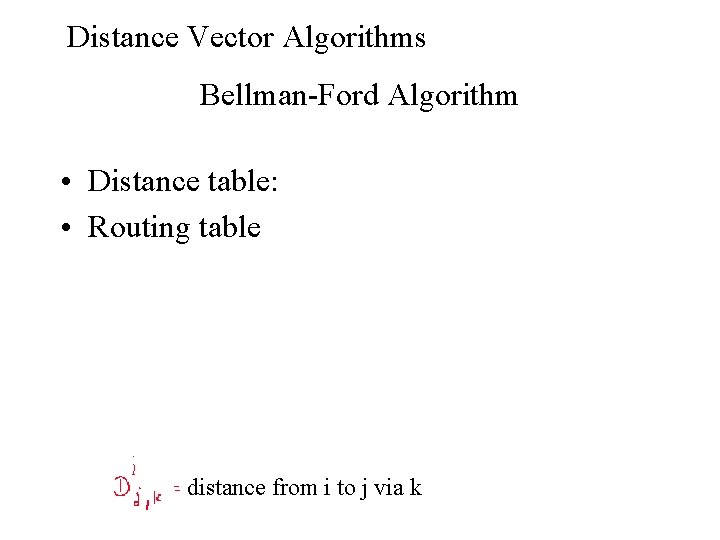

Distance Vector Algorithms Bellman-Ford Algorithm • Distance table: • Routing table distance from i to j via k
Routing table • Protocol at node i: On receiving routing table from k update column k of the distance table as follows For each destination j, if k reports its distance to j as d then update Dj, k = d + weight(i, k)
• Recompute the routing table as follows: For each destination k, update next hop to j, where Dj, k = min(Dx, k: for all x)
• Periodically or whenever the routing table changes, send routing table to all neighbors

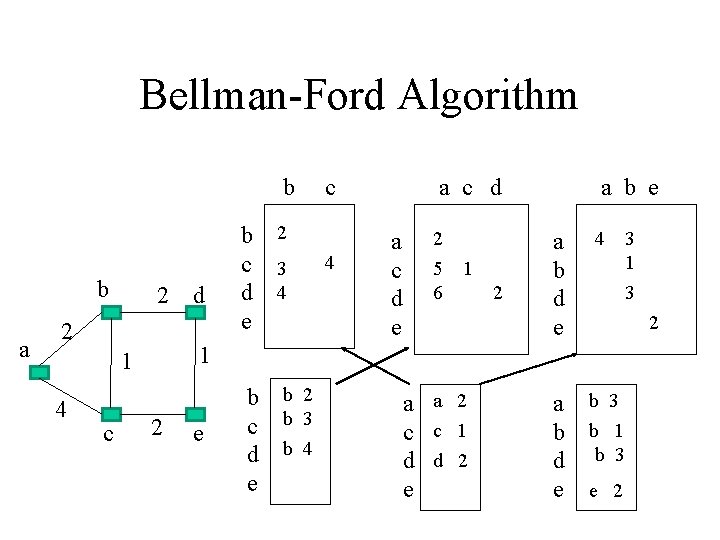

Bellman-Ford Algorithm b b a 2 2 c 2 b c d e b 2 c 4 4 a c d 2 a c d e 1 2 a b e a b d e 4 a b d e a 4 b 1 1 2 1 1 4 d b c d e c 2 e a a 2 c c 1 d d 2 e e 2
Bellman-Ford Algorithm b b a 2 2 c 2 b c d e b 2 b 3 b 4 3 4 4 a c d 2 5 6 a c d e 1 2 a b e a b d e 4 a b d e b 3 b 1 b 3 3 1 3 2 1 1 4 d b c d e c 2 e a a 2 c c 1 d d 2 e e 2
Bellman-Ford Algorithm • Distance vector algorithm – Best path criteria • Latency • Jitter • bandwidth

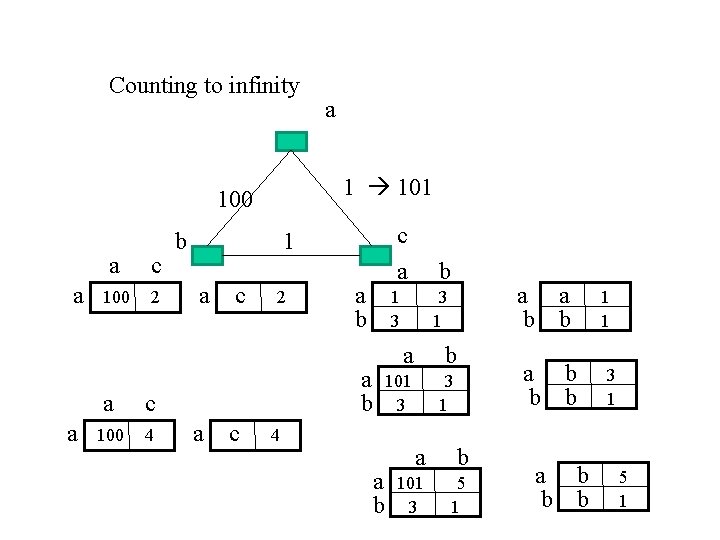

Counting to infinity 1 101 100 a a a c 100 2 a c 100 4 a b c a 1 a c 2 a b 1 3 c 3 1 a b 101 3 3 1 a b 4 a b 101 3 5 1 a b a b b b a b 1 1 3 1 b b 5 1
5 a 5 1 b 4 1 c 3 < a, b, c, d, e, f> 1 d 2 1 e 1 1 20 dest next dist path f
5 a 5 1 b 4 1 c 3 1 d 2 1 e 1 1 f b c d e dest next b b c b d b e b f b dist 1 2 3 4 5 Next to last hop a b c d e
Link State Routing • Each node maintains the state of every link • State of the link may contain several types of information
Learning local information • Exchange hello packets periodically • Measure the cost of adjacent links
Distributed link state information • Link state packet: * source id * cost of incident edges * sequence numbers

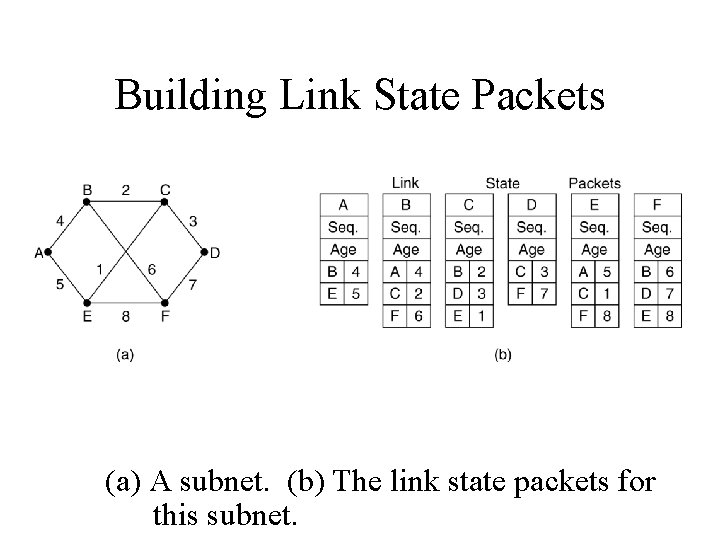

Building Link State Packets (a) A subnet. (b) The link state packets for this subnet.

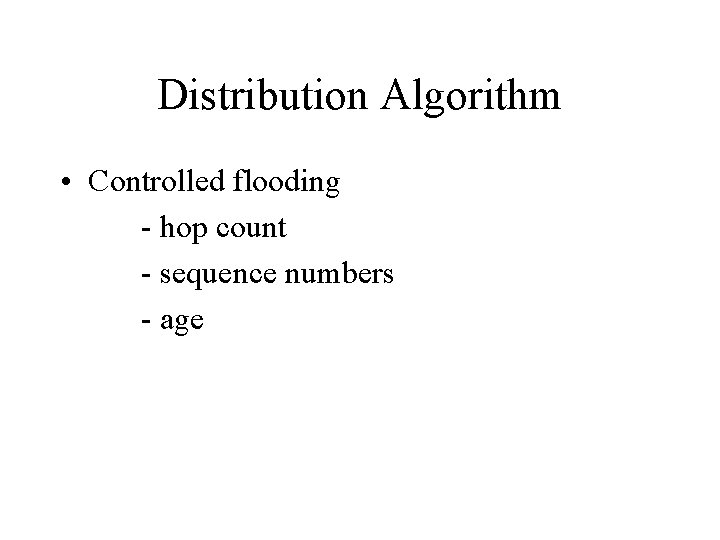

Distribution Algorithm • Controlled flooding - hop count - sequence numbers - age
• Receive LSP from nbr j - compare sequence numbers - update topology table - propagate LSP to all nbrs except j
Hierarchical Routing • Divide area into regions • Maintain accurate information about nodes in the same region
Hierarchical Routing Hierarchical routing.
Source-routing • Message contains the entire path • Routing table lookup is avoided at each node
Broadcasting/Multicasting • To send a message to all nodes: - make a separate message to each destination - route each message independently
Multi-destination routing • Include all destination address in message • Each node decides which links to forward so that it reaches all destinations
Multicast trees • Create a spanning tree • Prune the spanning tree: Steiner tree
