CIREN Backbone July 6, 2004 Kazunori Konishi July 6, 2004 APAN Cairns Meetings

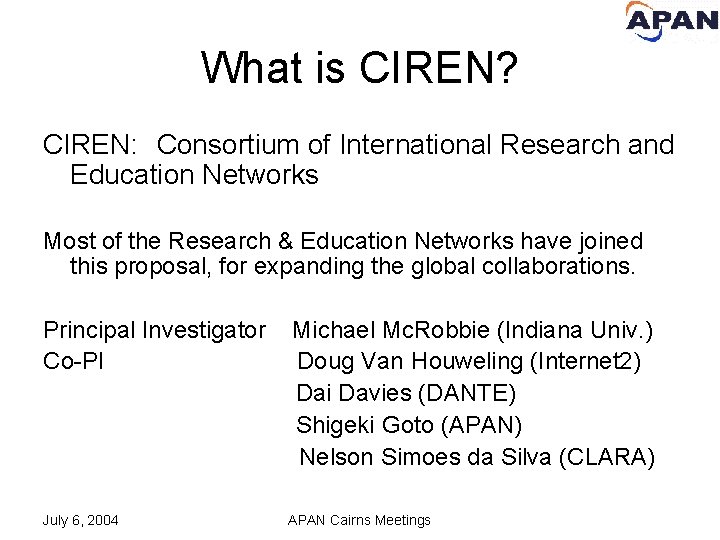

What is CIREN? CIREN: Consortium of International Research and Education Networks Most of the Research & Education Networks have joined this proposal, for expanding the global collaborations. Principal Investigator Co-PI Michael Mc. Robbie (Indiana Univ. ) Doug Van Houweling (Internet 2) Dai Davies (DANTE) Shigeki Goto (APAN) Nelson Simoes da Silva (CLARA) July 6, 2004 APAN Cairns Meetings

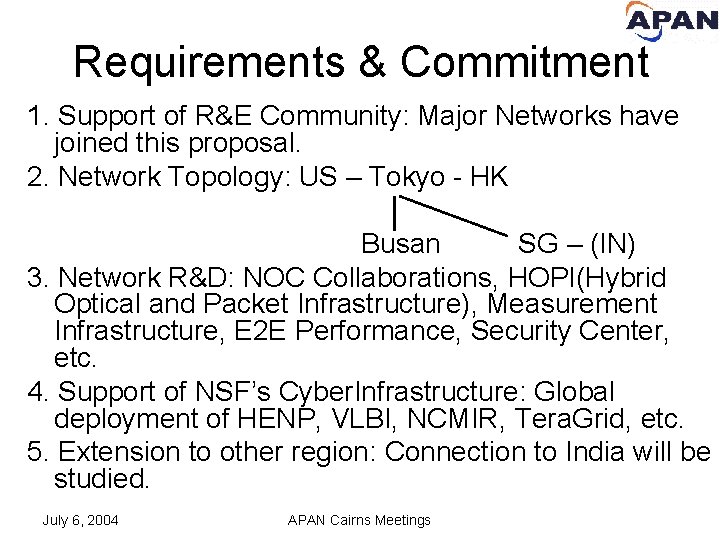

Requirements & Commitment 1. Support of R&E Community: Major Networks have joined this proposal. 2. Network Topology: US – Tokyo - HK Busan SG – (IN) 3. Network R&D: NOC Collaborations, HOPI(Hybrid Optical and Packet Infrastructure), Measurement Infrastructure, E 2 E Performance, Security Center, etc. 4. Support of NSF’s Cyber. Infrastructure: Global deployment of HENP, VLBI, NCMIR, Tera. Grid, etc. 5. Extension to other region: Connection to India will be studied. July 6, 2004 APAN Cairns Meetings

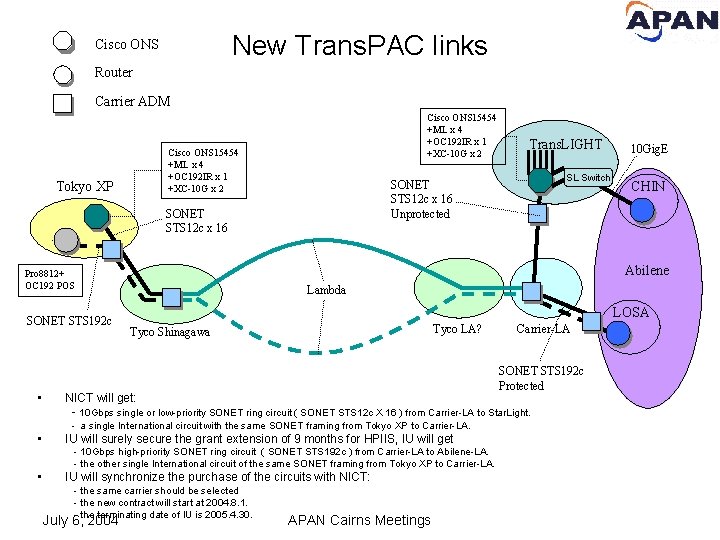

New Trans. PAC links Cisco ONS Router Carrier ADM Tokyo XP Cisco ONS 15454 +ML x 4 +OC 192 IR x 1 +XC-10 G x 2 SL Switch SONET STS 12 c x 16 Unprotected SONET STS 12 c x 16 LOSA Tyco LA? Tyco Shinagawa Carrier-LA SONET STS 192 c Protected NICT will get: - 10 Gbps single or low-priority SONET ring circuit ( SONET STS 12 c X 16 ) from Carrier-LA to Star. Light. • IU will surely secure the grant extension of 9 months for HPIIS, IU will get - a single International circuit with the same SONET framing from Tokyo XP to Carrier-LA. - 10 Gbps high-priority SONET ring circuit ( SONET STS 192 c ) from Carrier-LA to Abilene-LA. - the other single International circuit of the same SONET framing from Tokyo XP to Carrier-LA. IU will synchronize the purchase of the circuits with NICT: - the same carrier should be selected - the new contract will start at 2004. 8. 1. - the terminating date of IU is 2005. 4. 30. July 6, 2004 CHIN Lambda • • 10 Gig. E Abilene Pro 8812+ OC 192 POS SONET STS 192 c Trans. LIGHT APAN Cairns Meetings

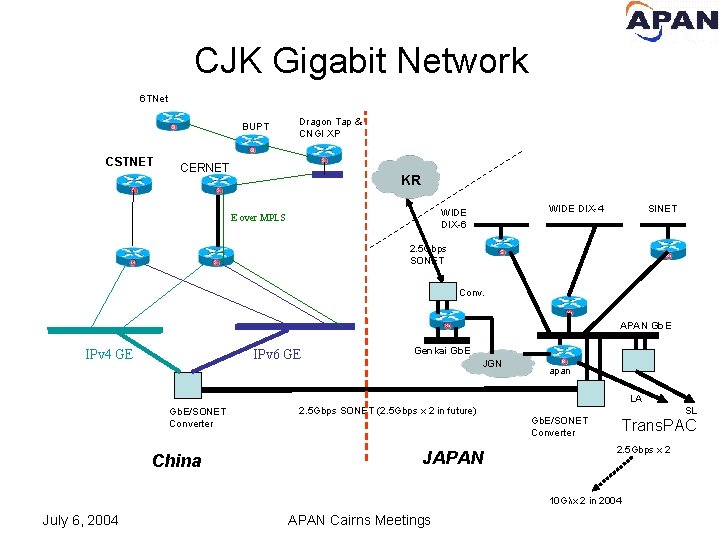

CJK Gigabit Network 6 TNet BUPT CSTNET Dragon Tap & CNGI XP CERNET KR WIDE DIX-4 WIDE DIX-6 E over MPLS SINET 2. 5 Gbps SONET Conv. APAN Gb. E IPv 4 GE IPv 6 GE Genkai Gb. E JGN apan LA Gb. E/SONET Converter China 2. 5 Gbps SONET (2. 5 Gbps x 2 in future) JAPAN SL Gb. E/SONET Converter Trans. PAC 2. 5 Gbps x 2 10 Gλx 2 in 2004 July 6, 2004 APAN Cairns Meetings

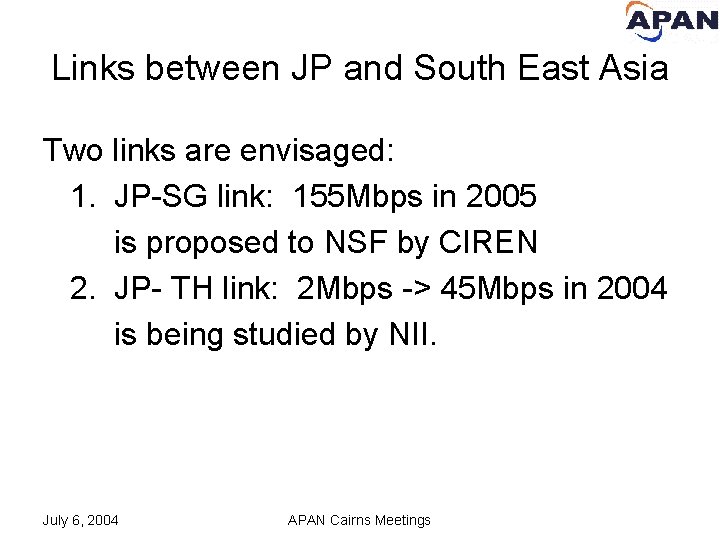

Links between JP and South East Asia Two links are envisaged: 1. JP-SG link: 155 Mbps in 2005 is proposed to NSF by CIREN 2. JP- TH link: 2 Mbps -> 45 Mbps in 2004 is being studied by NII. July 6, 2004 APAN Cairns Meetings

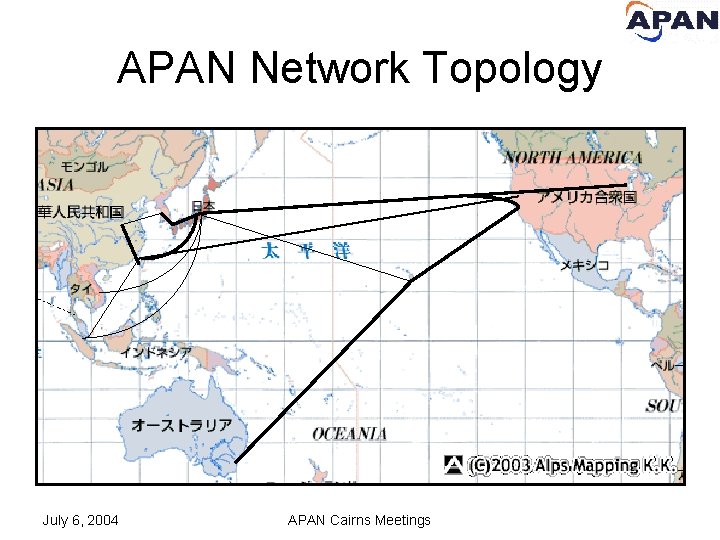

APAN Network Topology July 6, 2004 APAN Cairns Meetings

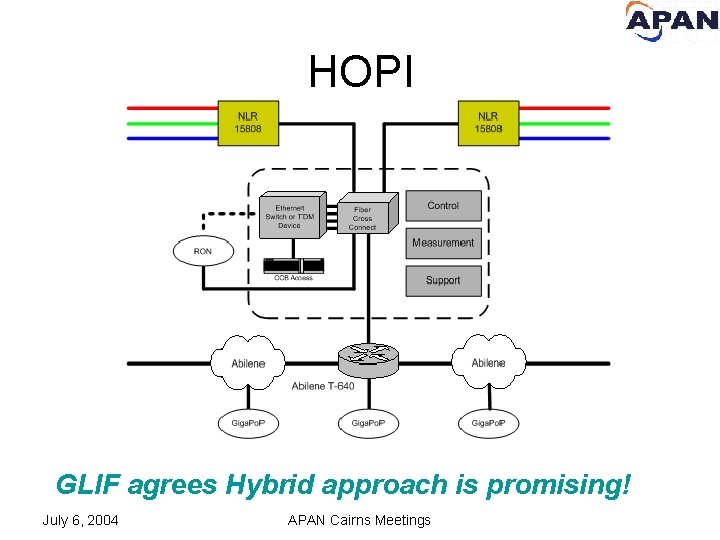

HOPI GLIF agrees Hybrid approach is promising! July 6, 2004 APAN Cairns Meetings

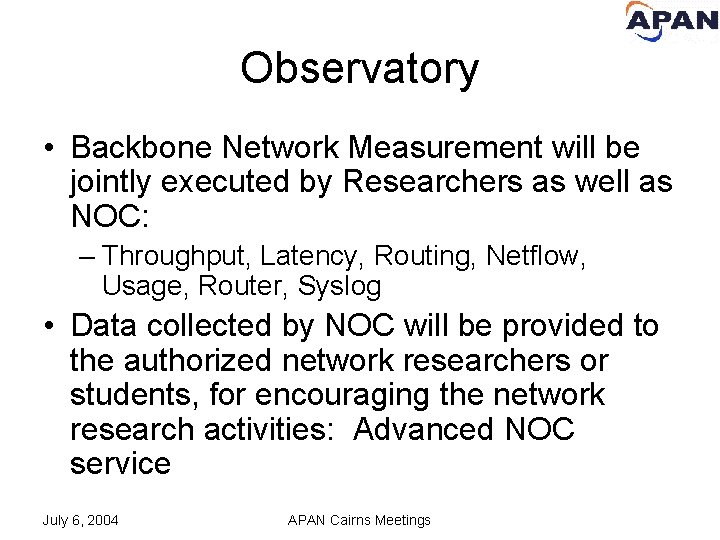

Observatory • Backbone Network Measurement will be jointly executed by Researchers as well as NOC: – Throughput, Latency, Routing, Netflow, Usage, Router, Syslog • Data collected by NOC will be provided to the authorized network researchers or students, for encouraging the network research activities: Advanced NOC service July 6, 2004 APAN Cairns Meetings

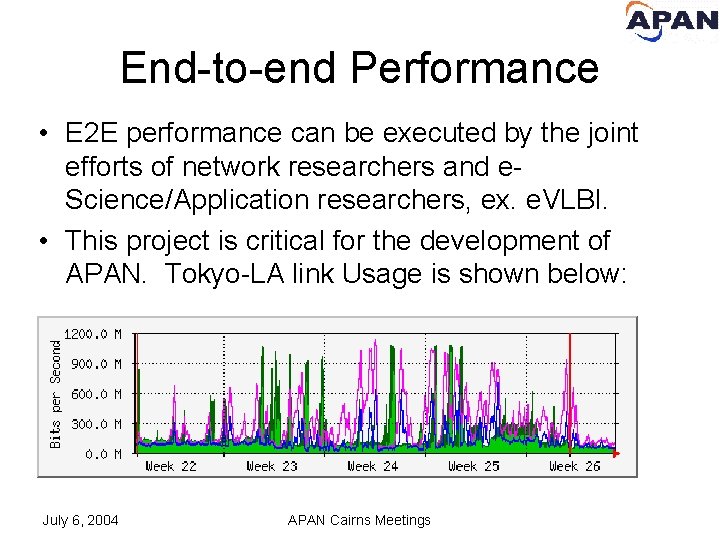

End-to-end Performance • E 2 E performance can be executed by the joint efforts of network researchers and e. Science/Application researchers, ex. e. VLBI. • This project is critical for the development of APAN. Tokyo-LA link Usage is shown below: July 6, 2004 APAN Cairns Meetings

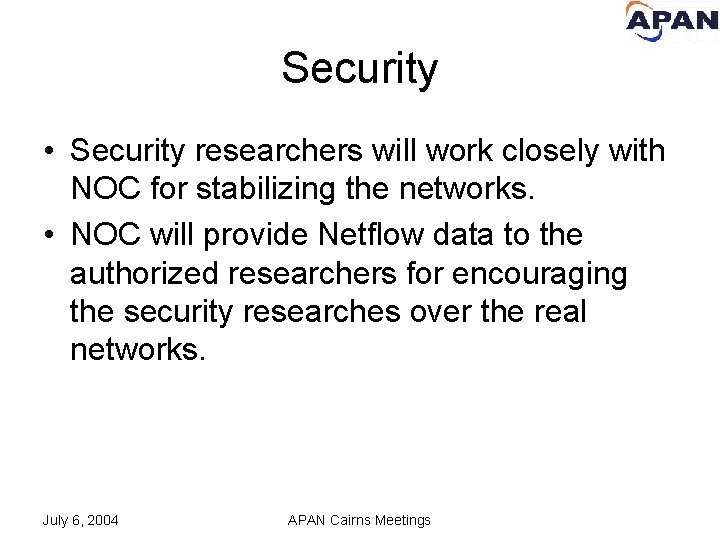

Security • Security researchers will work closely with NOC for stabilizing the networks. • NOC will provide Netflow data to the authorized researchers for encouraging the security researches over the real networks. July 6, 2004 APAN Cairns Meetings

Thank you! July 6, 2004 APAN Cairns Meetings
