Circulatory System Honors Biology

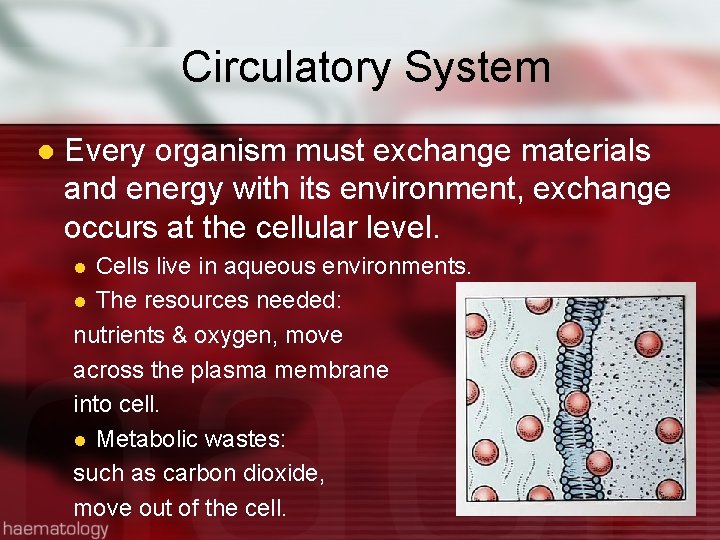

Circulatory System l Every organism must exchange materials and energy with its environment, exchange occurs at the cellular level. Cells live in aqueous environments. l The resources needed: nutrients & oxygen, move across the plasma membrane into cell. l Metabolic wastes: such as carbon dioxide, move out of the cell. l

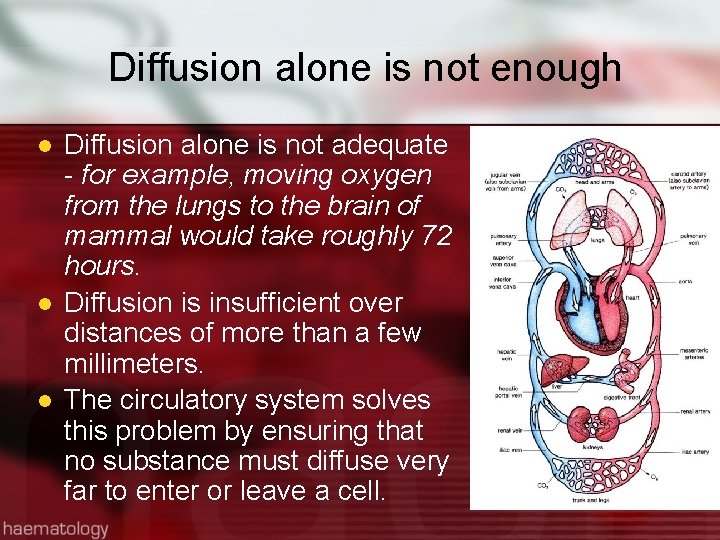

Diffusion alone is not enough l l l Diffusion alone is not adequate - for example, moving oxygen from the lungs to the brain of mammal would take roughly 72 hours. Diffusion is insufficient over distances of more than a few millimeters. The circulatory system solves this problem by ensuring that no substance must diffuse very far to enter or leave a cell.

Varieties of Circulatory System l The body plan of a hydra and other cnidarians makes a circulatory system unnecessary. l l A body wall only two cells thick encloses a central gastrovascular cavity that serves for both digestion and for diffusion of substances throughout the body. Thus diffusion can occur easily because the entire organism is surrounded by water.

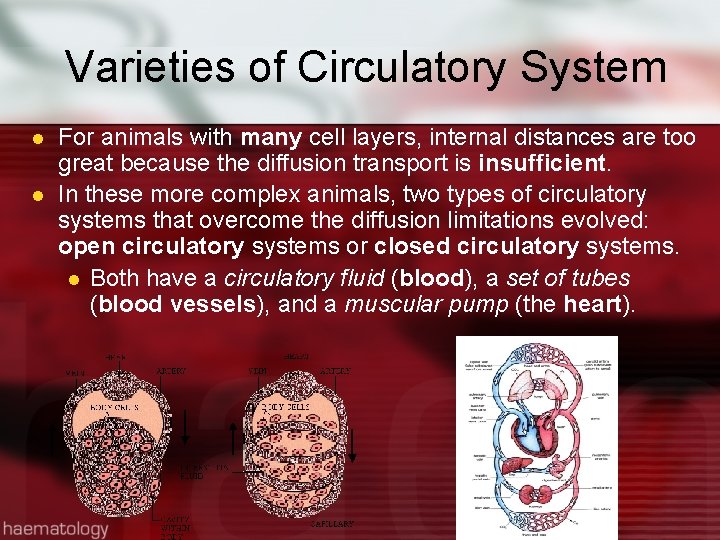

Varieties of Circulatory System l l For animals with many cell layers, internal distances are too great because the diffusion transport is insufficient. In these more complex animals, two types of circulatory systems that overcome the diffusion limitations evolved: open circulatory systems or closed circulatory systems. l Both have a circulatory fluid (blood), a set of tubes (blood vessels), and a muscular pump (the heart).

Open Circulatory System l l l In insects, other arthropods, and most mollusks, blood bathes organs directly in an open circulatory system. There is no distinction between blood and interstitial fluid, collectively called hemolymph. One or more hearts pump the hemolymph into interconnected sinuses surrounding the organs, allowing exchange between hemolymph and body cells.

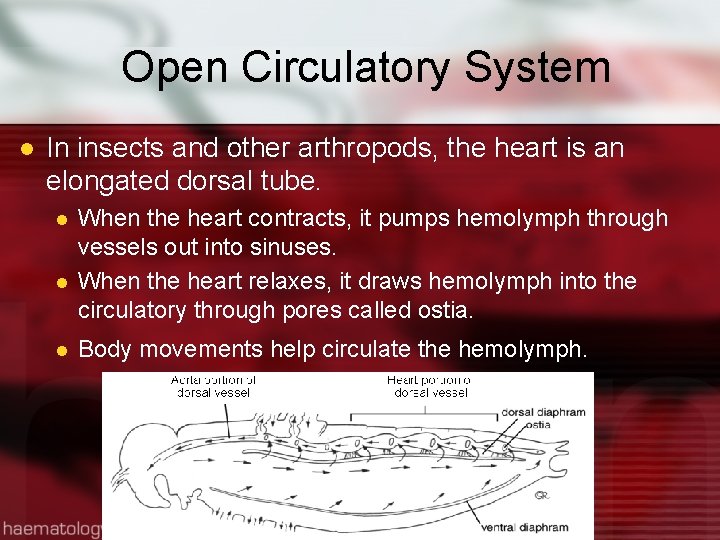

Open Circulatory System l In insects and other arthropods, the heart is an elongated dorsal tube. l l l When the heart contracts, it pumps hemolymph through vessels out into sinuses. When the heart relaxes, it draws hemolymph into the circulatory through pores called ostia. Body movements help circulate the hemolymph.

Closed Circulatory System l In a closed circulatory system, as found in earthworms, squid, octopuses, and vertebrates, blood is confined to vessels and is distinct from the interstitial fluid. l l One or more hearts pump blood into large vessels that branch into smaller ones cursing through organs. Materials are exchanged by diffusion between the blood and the interstitial fluid bathing the cells.

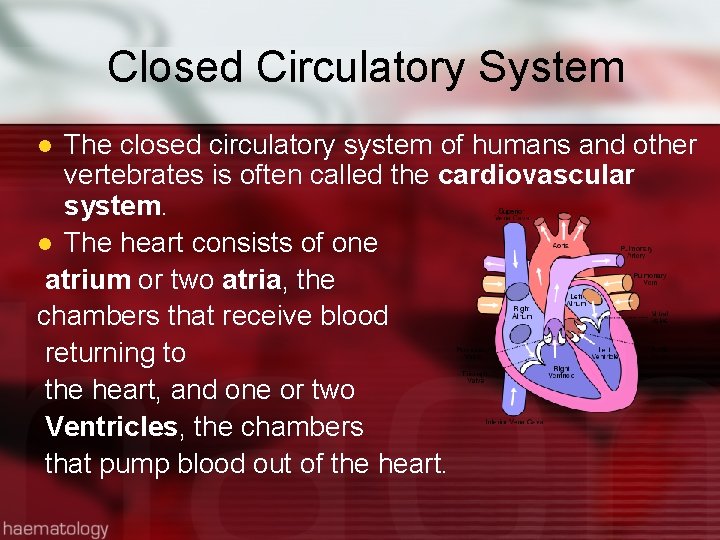

Closed Circulatory System The closed circulatory system of humans and other vertebrates is often called the cardiovascular system. l The heart consists of one atrium or two atria, the chambers that receive blood returning to the heart, and one or two Ventricles, the chambers that pump blood out of the heart. l

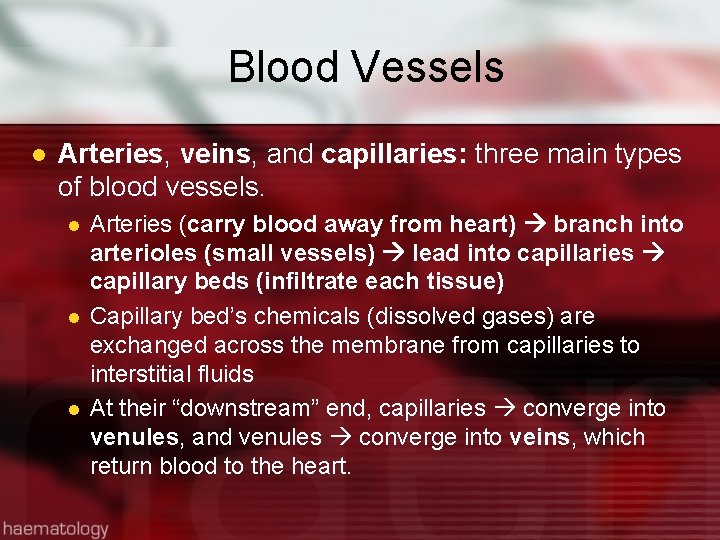

Blood Vessels l Arteries, veins, and capillaries: three main types of blood vessels. l l l Arteries (carry blood away from heart) branch into arterioles (small vessels) lead into capillaries capillary beds (infiltrate each tissue) Capillary bed’s chemicals (dissolved gases) are exchanged across the membrane from capillaries to interstitial fluids At their “downstream” end, capillaries converge into venules, and venules converge into veins, which return blood to the heart.

Two Chamber Heart l l A fish heart has two main chambers, one atrium and one ventricle. Blood is pumped from the ventricle to the gills (the gill circulation) where it picks up oxygen and disposes of carbon dioxide across the capillary walls.

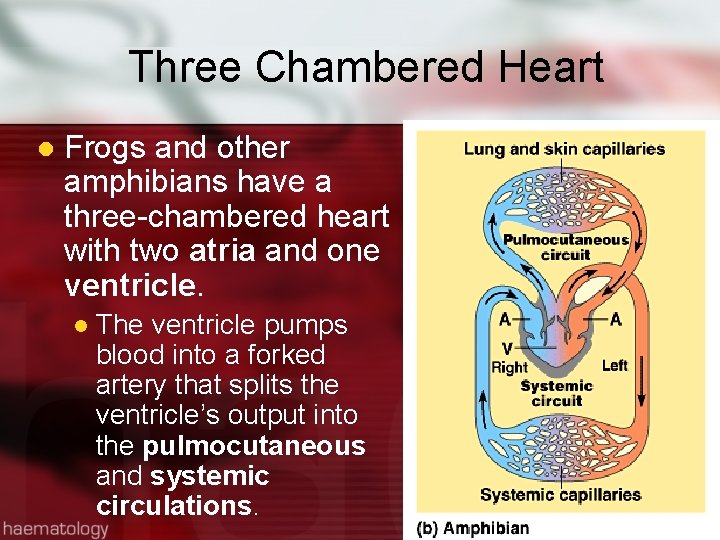

Three Chambered Heart l Frogs and other amphibians have a three-chambered heart with two atria and one ventricle. l The ventricle pumps blood into a forked artery that splits the ventricle’s output into the pulmocutaneous and systemic circulations.

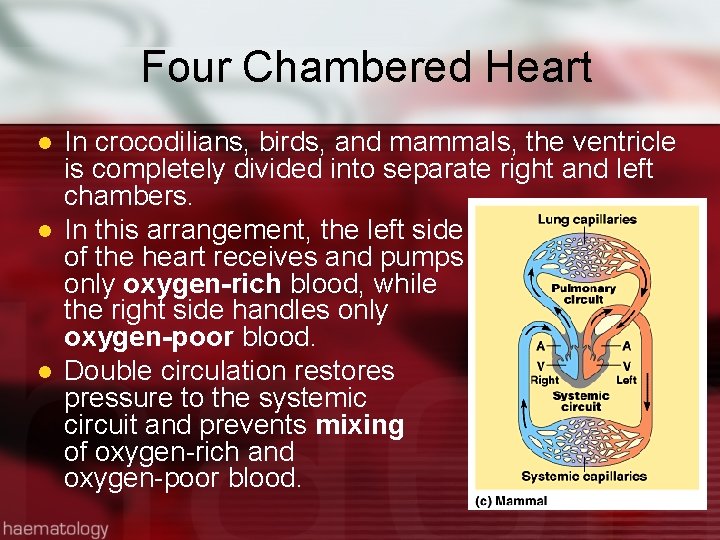

Four Chambered Heart l l l In crocodilians, birds, and mammals, the ventricle is completely divided into separate right and left chambers. In this arrangement, the left side of the heart receives and pumps only oxygen-rich blood, while the right side handles only oxygen-poor blood. Double circulation restores pressure to the systemic circuit and prevents mixing of oxygen-rich and oxygen-poor blood.

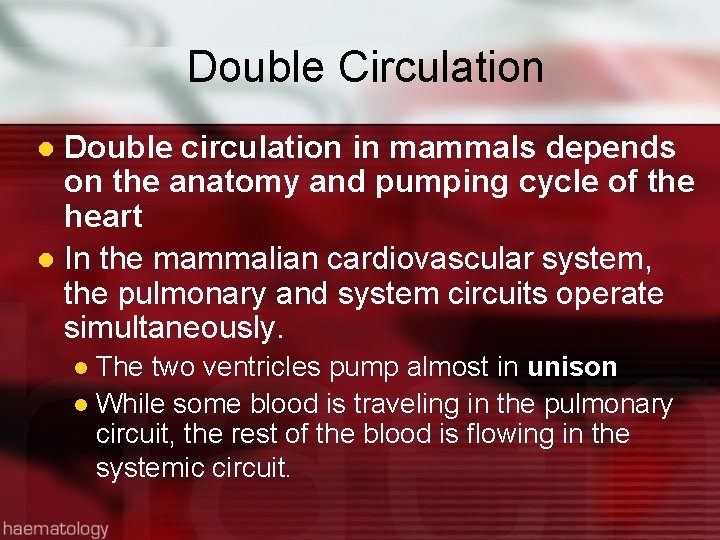

Double Circulation Double circulation in mammals depends on the anatomy and pumping cycle of the heart l In the mammalian cardiovascular system, the pulmonary and system circuits operate simultaneously. l The two ventricles pump almost in unison l While some blood is traveling in the pulmonary circuit, the rest of the blood is flowing in the systemic circuit. l

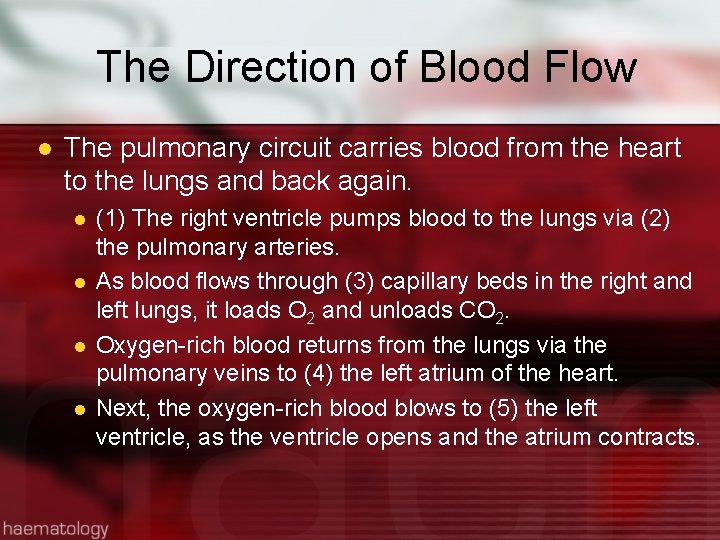

The Direction of Blood Flow l The pulmonary circuit carries blood from the heart to the lungs and back again. l l (1) The right ventricle pumps blood to the lungs via (2) the pulmonary arteries. As blood flows through (3) capillary beds in the right and left lungs, it loads O 2 and unloads CO 2. Oxygen-rich blood returns from the lungs via the pulmonary veins to (4) the left atrium of the heart. Next, the oxygen-rich blood blows to (5) the left ventricle, as the ventricle opens and the atrium contracts.

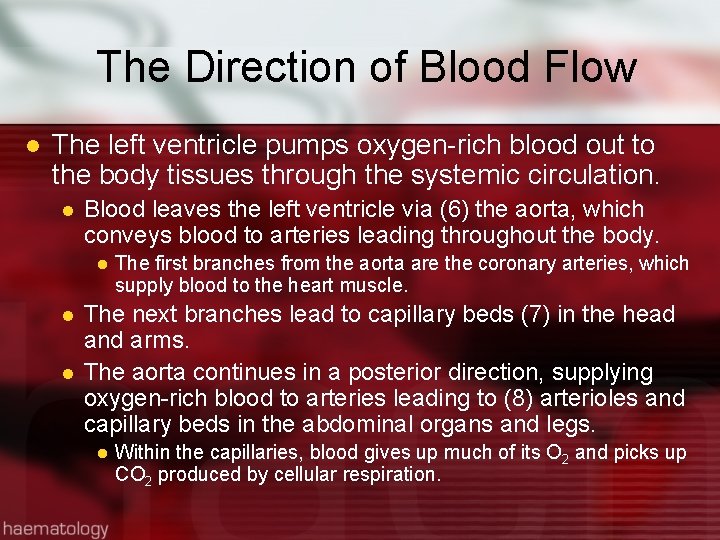

The Direction of Blood Flow l The left ventricle pumps oxygen-rich blood out to the body tissues through the systemic circulation. l Blood leaves the left ventricle via (6) the aorta, which conveys blood to arteries leading throughout the body. l l l The first branches from the aorta are the coronary arteries, which supply blood to the heart muscle. The next branches lead to capillary beds (7) in the head and arms. The aorta continues in a posterior direction, supplying oxygen-rich blood to arteries leading to (8) arterioles and capillary beds in the abdominal organs and legs. l Within the capillaries, blood gives up much of its O 2 and picks up CO 2 produced by cellular respiration.

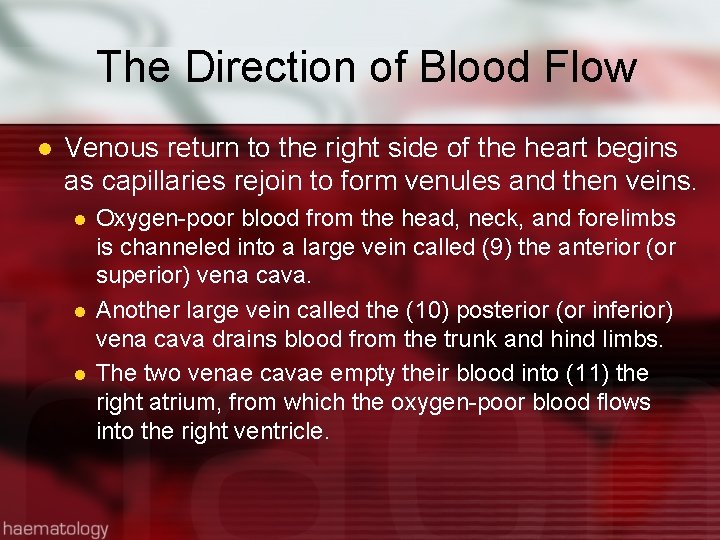

The Direction of Blood Flow l Venous return to the right side of the heart begins as capillaries rejoin to form venules and then veins. l l l Oxygen-poor blood from the head, neck, and forelimbs is channeled into a large vein called (9) the anterior (or superior) vena cava. Another large vein called the (10) posterior (or inferior) vena cava drains blood from the trunk and hind limbs. The two venae cavae empty their blood into (11) the right atrium, from which the oxygen-poor blood flows into the right ventricle.
