Circulation & Respiration Chapter 42
Circulatory systems w Closed circulatory system w Vertebrates w Blood w Enclosed in blood vessels & heart w Lymph system w Interstitial fluid
Functions w 1. Transportation w Substances needed for cellular respiration w A. Respiratory – CO 2 and O 2 w B. Nutritive – glucose w C. Excretory – Metabolic wastes, ions, water
Functions w 2. Regulation – Hormones – Temperature regulation (Endotherms) w 3. Protection – Clotting • Proteins, platelets – Immune defense • WBC, AB
Components of the system w Heart w Blood vessels w Blood
Heart w 4 chambered w Separates systemic & pulmonary blood systems w Systemic circulation: w Blood flow in the body w Pulmonary circulation: w Blood flow between the heart & lungs
Circulation
Circulation
Heart structure w w w w Atrium Small chambers Receive blood Ventricles Larger chambers Pump blood from heart Septum Separates chambers
Septum
Heart structure w w w w w Valves Atrioventricular valves (AV) Between the atrium & ventricles Tricuspid---right Bicuspid or Mitral---left Semilumar valves Exits from the ventricles Aortic valve (L ventricle) Pulmonary valve (R ventricle)
Valves
Heart structure w w w Heart sounds “lub-dub” -valves closing “lub” closing of the AV valves “dub” closing of the semilunar valves Murmur: Abnormal heart sound
Heart structure w w w w Superior & inferior vena cava Brings blood to heart from body Pulmonary arteries Blood from right side of heart to lungs Pulmonary veins Returns blood from lungs to heart Aorta Blood goes from the heart to body
Heart structure w Coronary arteries w First branches off the aorta w Supply blood to the heart

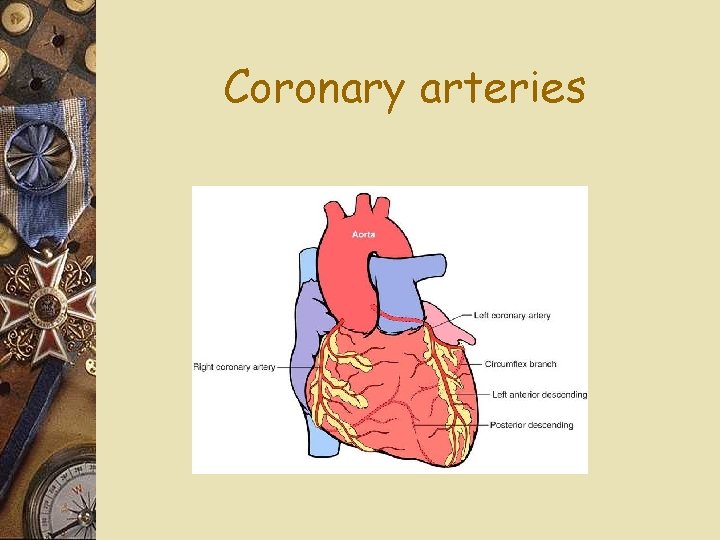

Coronary arteries
Circulation
Path of Blood Flow
Blood flow w Vena cava w Right atrium w Tricuspid valve (AV) w Right ventricle w Pulmonary valve (semilunar) w Pulmonary artery w Lungs
Blood flow w Pulmonary veins w Left atrium w Mitral valve (AV) w Left ventricle w Aortic valve (semilunar) w Aorta

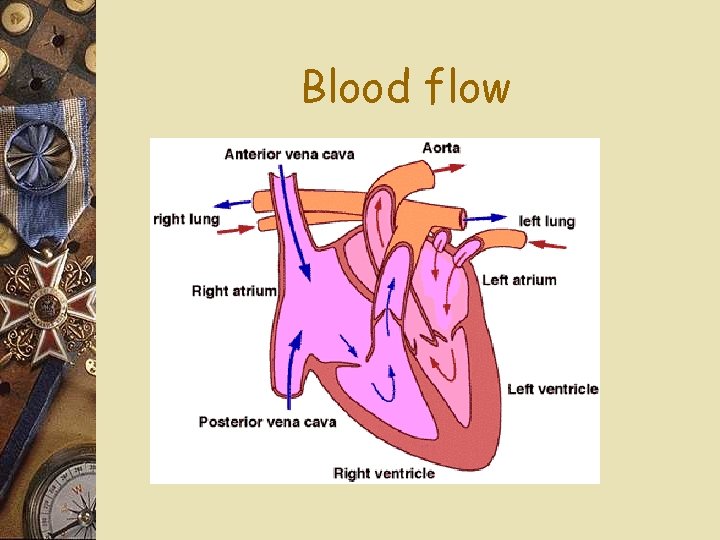

Blood flow

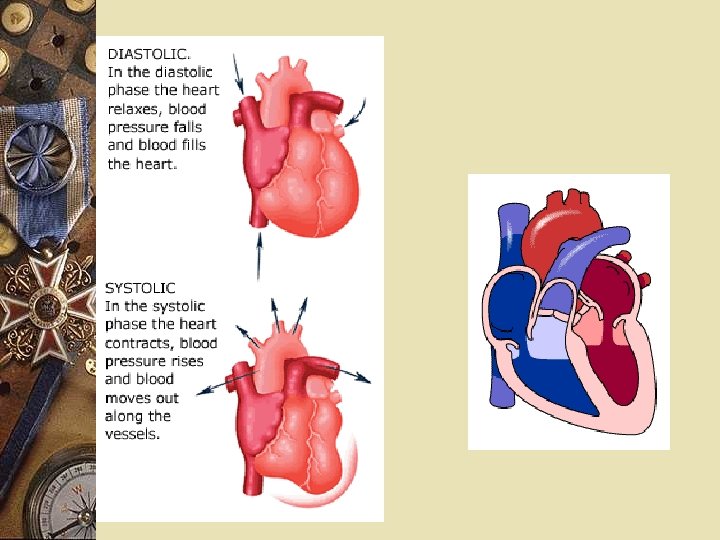

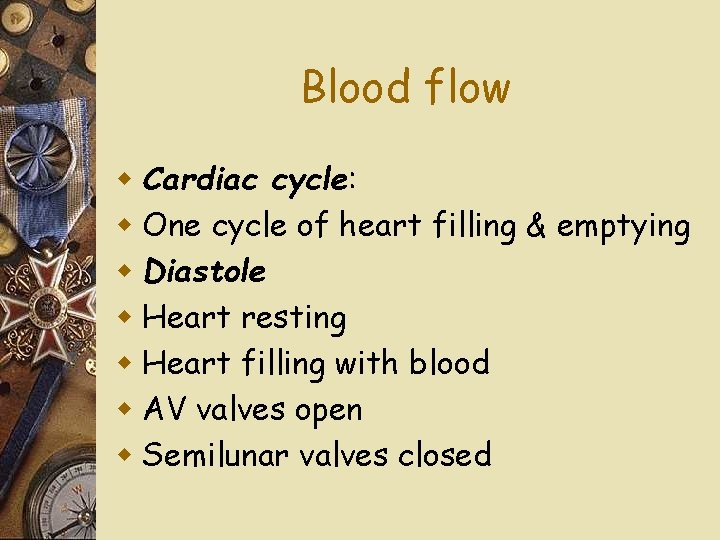

Blood flow w Cardiac cycle: w One cycle of heart filling & emptying w Diastole w Heart resting w Heart filling with blood w AV valves open w Semilunar valves closed
Diastole
Blood flow w Systole w Ventricles contracting w Pumping blood out of the heart w AV valves closed w Semilunar valves open
Systole

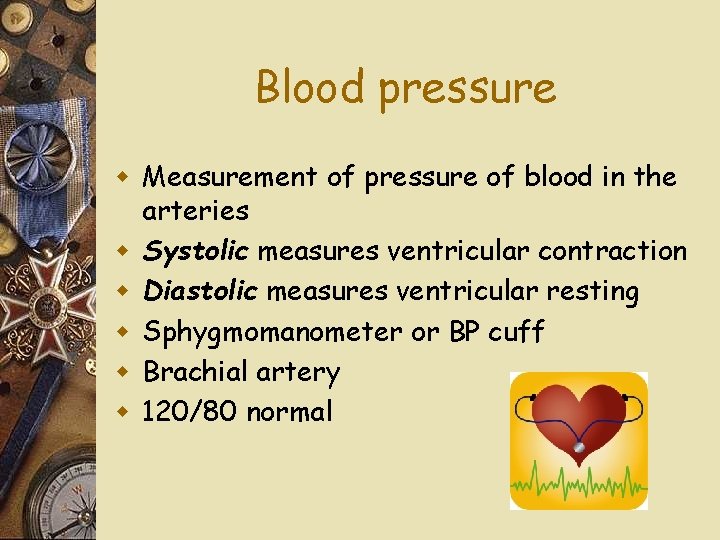

Blood pressure w Measurement of pressure of blood in the arteries w Systolic measures ventricular contraction w Diastolic measures ventricular resting w Sphygmomanometer or BP cuff w Brachial artery w 120/80 normal
Blood pressure
Cardiac output w Volume of blood pumped by left ventricle to the body per minute w 5 liters per minute w Depends on heart rate w Stroke volume w Amount of pumped out per contraction (70 ml)
Cardiac output w Increases with exercise w Increased HR w Better stroke volume
Blood pressure w w w w Cardiac output Flow resistance in the arteries Affect BP More constriction higher BP More dilation lower BP Baroreceptors Aorta & carotids Medulla oblongata
Blood pressure w Depends on blood volume w Decreased cardiac output w Decreased BP
Conduction w Depolarization of heart muscle stimulates contraction w Heart contains autogenic cells w Self stimulate w SA node (sinoatrial) w Pacemaker of the heart w Located in R atrium wall w Near the superior vena cava
Conduction w SA node w Causes atrium to contract w Sends signal to the AV node w AV (atrioventricular) node w Located in wall between R atrium & ventricle w Sends signal to the bundle of His
Contraction w Bundle of His w Sends signal to the Purkinje fibers w Ventricles contract w SA⇨AV⇨Bundle of His⇨Purkinje fibers
Conduction
Conduction
EKG w w w w Electrocardiogram Records electrical impulses of the heart P-wave First wave-atrium contraction QRS-wave Ventricles contracting T-wave Heart re-polarization
EKG or ECG
Vessels w Arteries, arterioles w Veins, venules w Capillaries w arteries⇨arterioles⇨capillaries⇨venules⇨veins

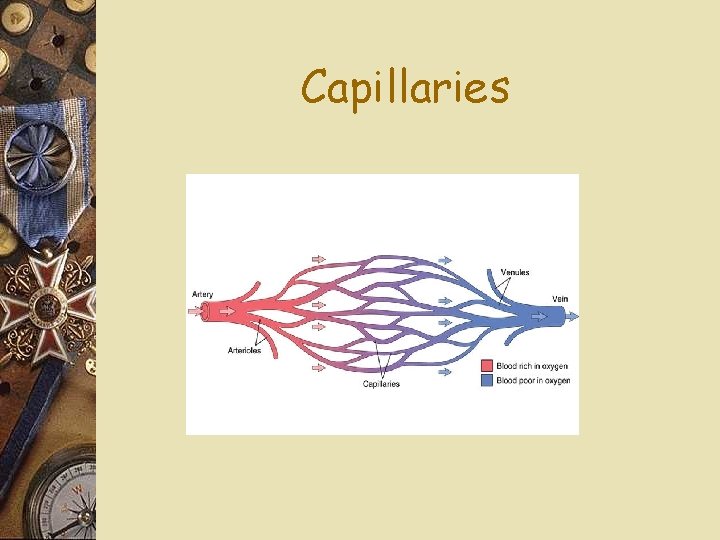

Capillaries
Blood vessels
Vessels w Structure (except capillaries) w Inner layer is endothelium w Next is a layer of elastic fibers w Smooth muscle layer w Connective tissue w Capillaries w Endothelium only

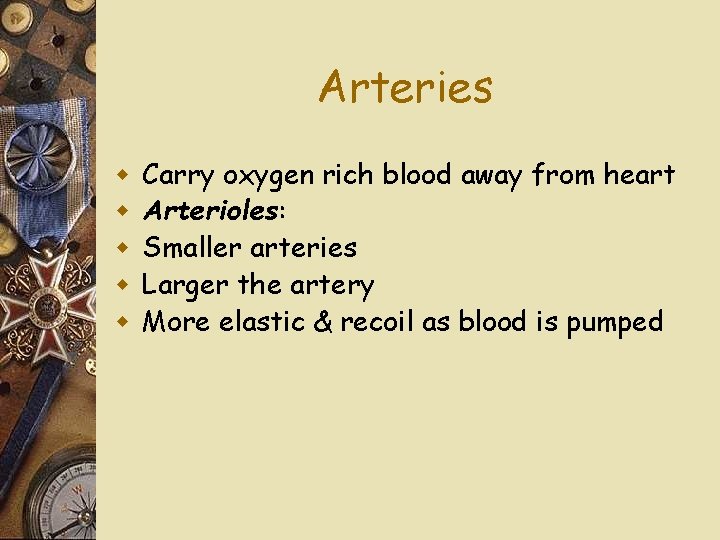

Arteries w w w Carry oxygen rich blood away from heart Arterioles: Smaller arteries Larger the artery More elastic & recoil as blood is pumped
Arteries w w w w Vasoconstriction: Contraction of smooth muscle in arterioles Decrease blood flow Vasodilation: Relaxation of smooth muscle Increase blood flow Precapillary sphincters: Regulate blood flow
Veins w w w w Carry oxygen poor blood to heart Venules Smaller veins Less smooth muscle Skeletal muscles constrict Help flow of blood to heart Venous valves: Help blood flow to heart prevent backflow
Capillaries w Passage of oxygen & nutrients w Into cells or extracellular fluids w Passage of carbon dioxide & wastes w From cells to blood

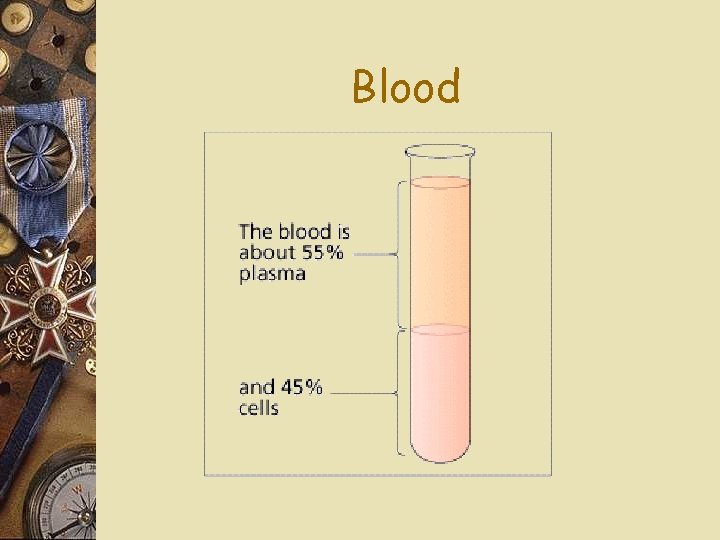

Blood
Blood Plasma (matrix) yellow Metabolites, wastes, hormones Ions Proteins Albumin (fluids), globulins (antibodies), fibrinogen (clots) w Cells w RBC, WBC, platelets w w w
Blood cells

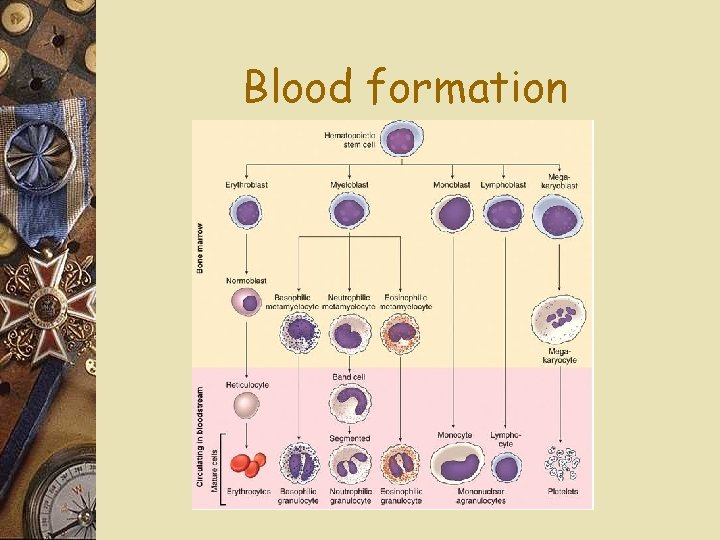

Blood formation
RBC (erythrocyte) w w w w O 2 & CO 2 transport Hemoglobin (protein) Erythropoietin Hormone (Kidney ) Stimulates RBC production Erythropoiesis RBC production from stem cells Spleen, bone marrow & liver remove RBC
Heme
Hemoglobin
RBC
WBC (leukocyte) Larger than RBC Contain a nucleus Fights against infection & FB Interstitial fluid as well as blood Granulocytes: neutrophils, eosinophils, basophils w Non-granulocytes: lymphocytes, monocytes w w w
WBC
Platelets w Megakaryocyte (bone marrow) w Cell fragments w Clotting w First to site of injury w Fibrin (protein that forms clot)
Platelets

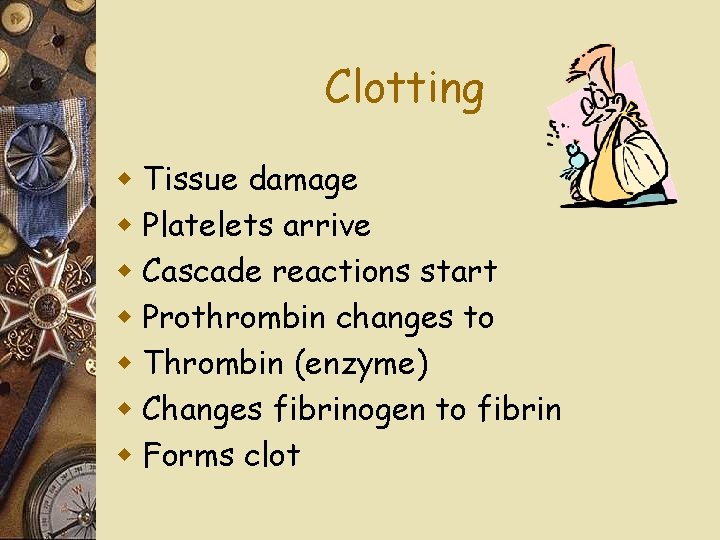

Clotting w Tissue damage w Platelets arrive w Cascade reactions start w Prothrombin changes to w Thrombin (enzyme) w Changes fibrinogen to fibrin w Forms clot
Fibrin
Blood w More RBC than WBC w Hematocrit w Measurement of RBC’s in the blood w RBC last about 120 days
Lymph system w Interstitial fluid w Fluid from blood plasma that leaves the capillaries w Surrounds the tissues w Lymph: w Returns to circulation via lymph system w Lymph nodes, lymph vessels & organs (spleen & thymus)
Edema w Swelling of tissues w Usually ankles or feet w Interstitial fluid cannot be returned w Low protein (albumin) w Liver disease w Heart disease w Pregnancy
Varicose veins w Too much blood in legs w Valves veins do not work
MI
Flutter
Atherosclerosis
Aneurysm
Infarct
Pacemaker
VSD

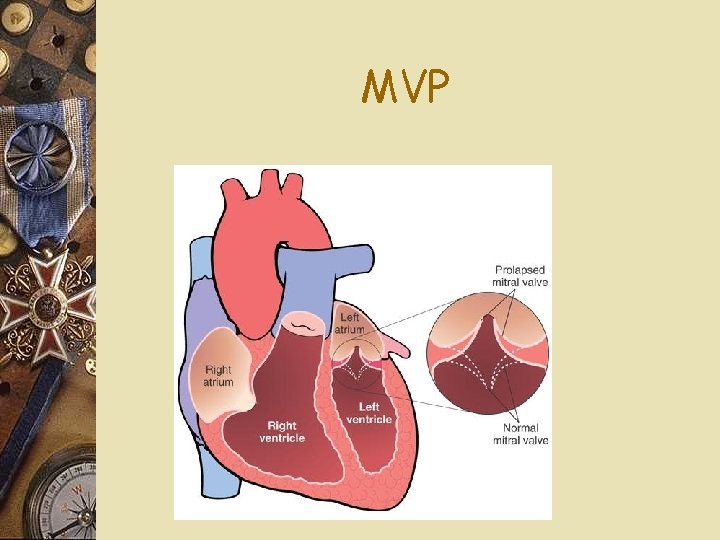

MVP
