Circulation in the Atmosphere Circulation in the atmosphere
- Slides: 70
Circulation in the Atmosphere Circulation in the atmosphere

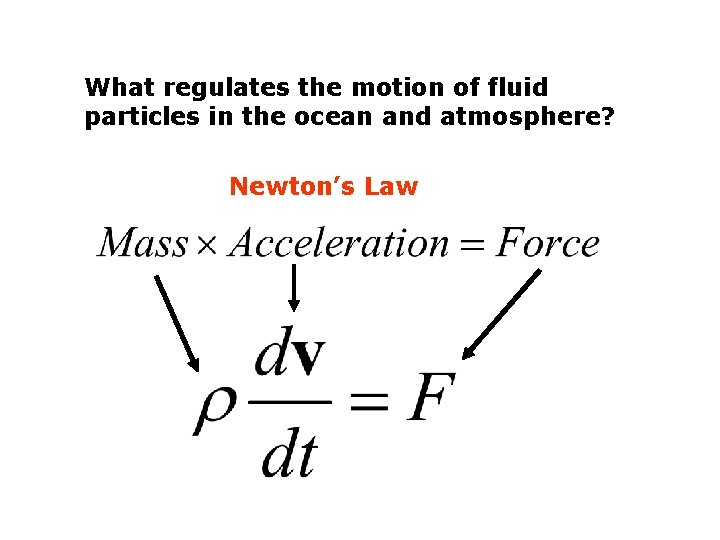

What regulates the motion of fluid particles in the ocean and atmosphere? Newton’s Law
What drives the circulation of the atmosphere? Differential Heating From Equators to Poles
What drives the circulation of the atmosphere? troposphere surface Equator/Tropics Higher Latitudes

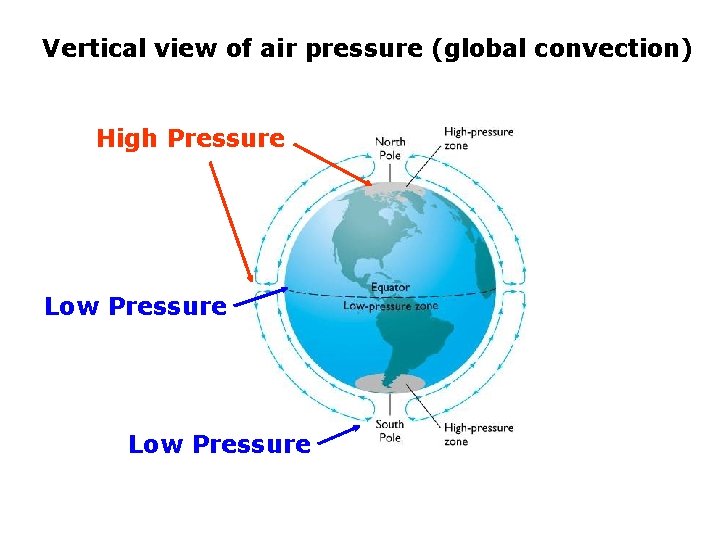

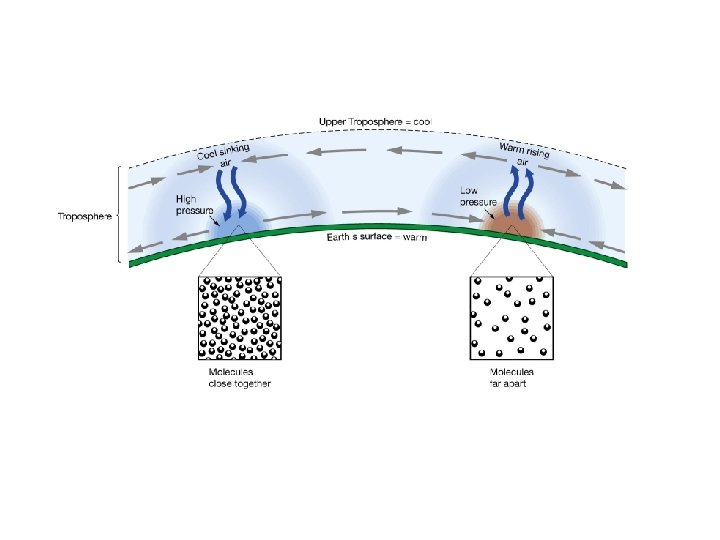

Vertical view of air pressure (global convection) High Pressure Low Pressure

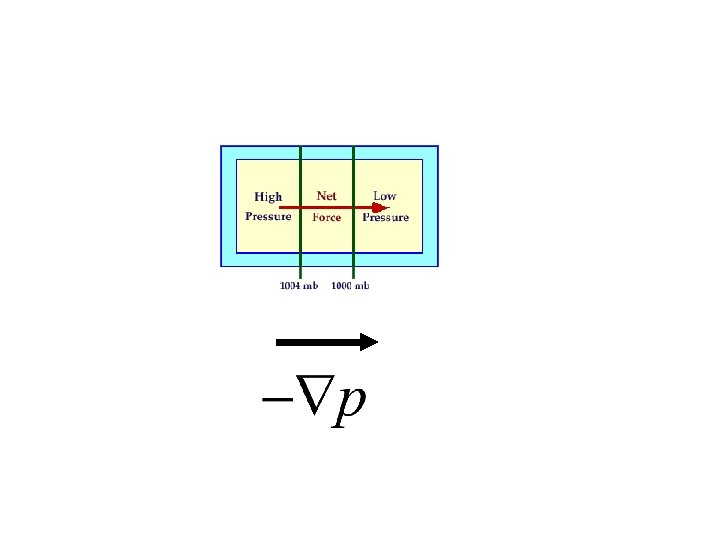

Horizontal view of air pressure at ocean surface High Pressure + Higher Latitudes Surfaces of constant pressure y (latitude) x (longitude) _ Low Pressure Equator/Tropics
v y (latitude) Newton’s Law x (longitude) u Motion across Latitudes Motion along Latitude

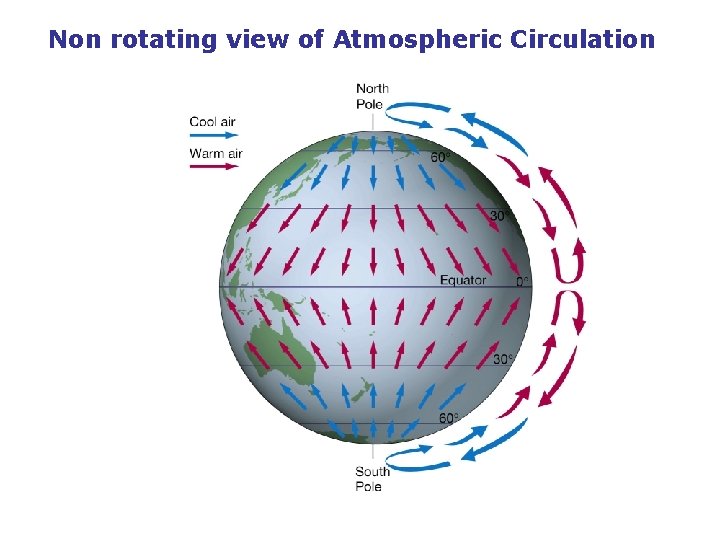

Non rotating view of Atmospheric Circulation
Hurricane IVAN H L H H H
Rate of Rotation North Hemisphere Low Pressure B t 3 t 4 t 2 t 5 t 1 A F pressure High Pressure F Coriolis
v y (latitude) Newton’s Law x (longitude) u Motion across Latitudes Motion along Latitude

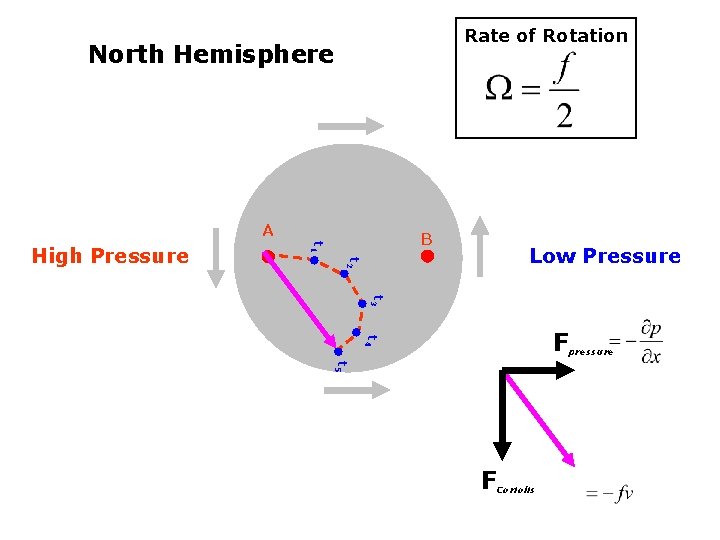

Rate of Rotation North Hemisphere A t 1 Low Pressure t 2 High Pressure B t 3 t 4 F t 5 F Coriolis pressure
v y (latitude) Newton’s Law x (longitude) u Motion across Latitudes Motion along Latitude

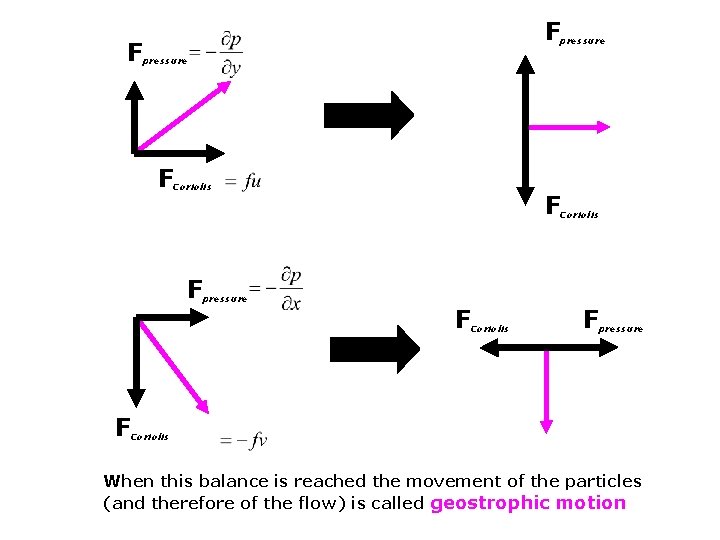

F pressure F Coriolis F pressure F F F Coriolis F pressure Coriolis When this balance is reached the movement of the particles (and therefore of the flow) is called geostrophic motion
v y (latitude) Newton’s Law x (longitude) u Motion across Latitudes Motion along Latitude
Some practical rules to remember: F pressure F Coriolis Low Pressure High Pressure 1) Particle will have the Coriolis force 90 degrees to the right 2) Particles will tend to move along line of constant pressure 3) Particles will have the high pressure on their right (same as Coriolis)

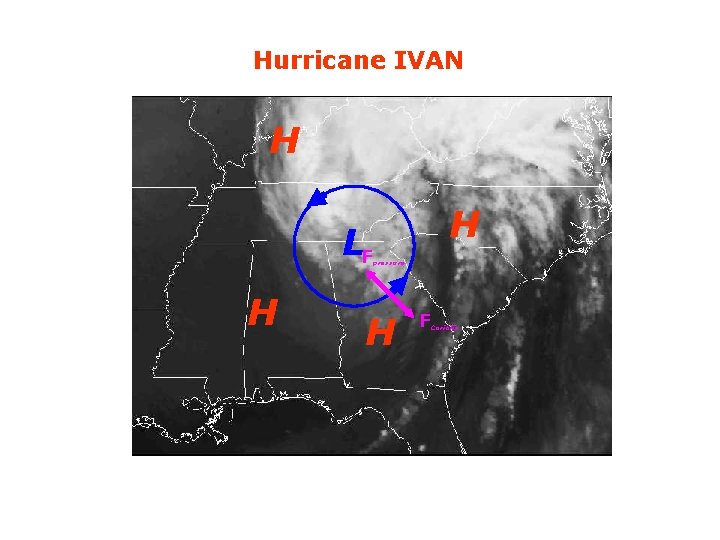

Hurricane IVAN H LF H H pressure H F Coriolis

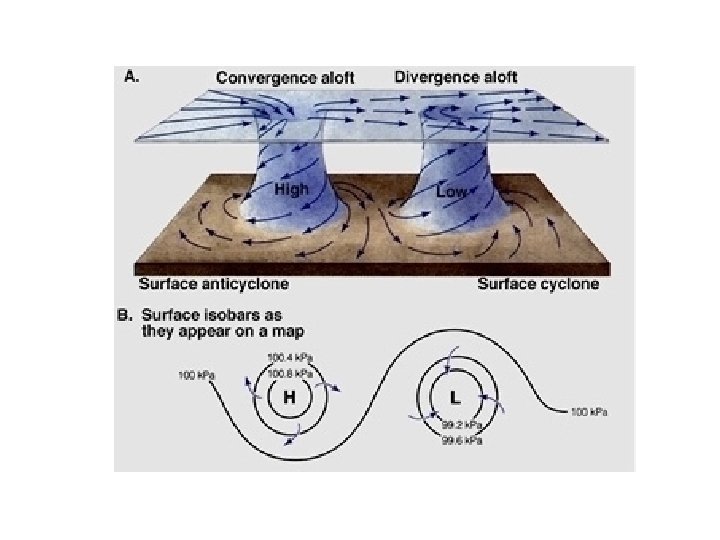

Vortices LF HF pressure F Coriolis Low Pressure System Coriolis F pressure High Pressure System
Atmosheric Circulation Important Concepts to remember: Redistribution of Heat Effects of Rotation The role of friction Conservation of angular momentum
Differential Heating From Equators to Poles
Non rotating view of Atmospheric Circulation High Pressure Low Pressure
Schematic depiction of the development of the atmospheric circulation, starting from a state of rest Easterlies (Trades) Westerlies Redistribution of Heat – Large scale convective Cells
Schematic depiction of the development of the atmospheric circulation, starting from a state of rest Easterlies (Trades) Westerlies
Problem? Circulation in the atmosphere
Role of Friction
Schematic depiction of the development of the atmospheric circulation, starting from a state of rest Easterlies (Trades) Westerlies

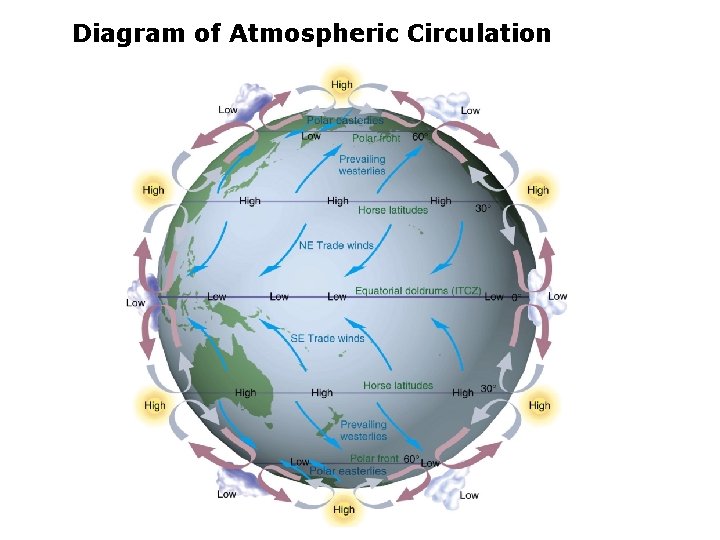

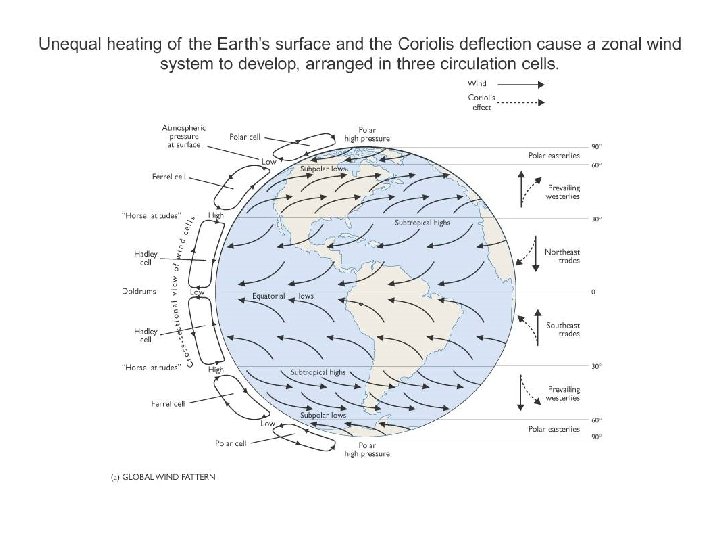

Diagram of Atmospheric Circulation in the atmosphere
Vertical view of the atmosphere and Poleward Transport of Heat Hadley Cell Polar Cell Pole Ferrel Cell Equator

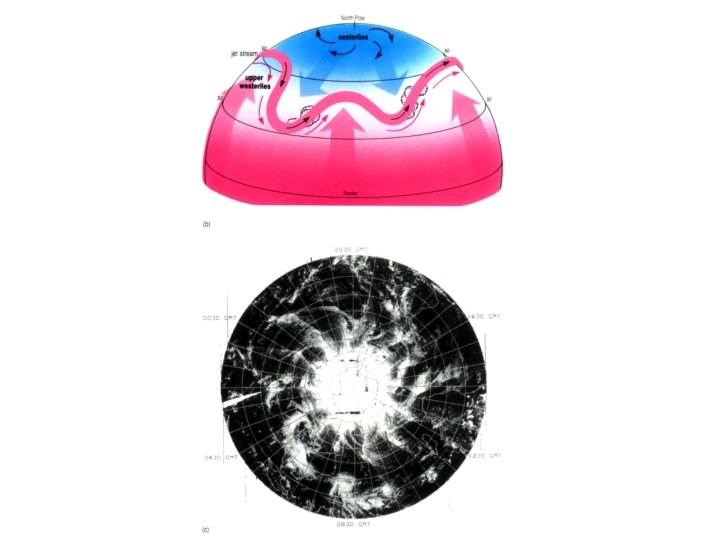

Midlatitude Cyclones
Poleward Heat Transport
Role of Friction on synoptic scales
Vortices LF HF pressure F Coriolis Low Pressure System Coriolis F pressure High Pressure System
Hurricane IVAN H LF H H pressure H F Coriolis

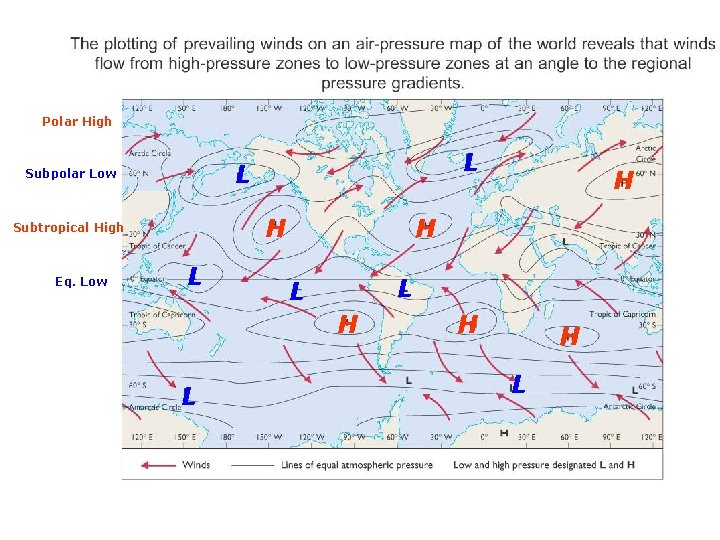

Polar High H Subtropical High Eq. Low L L Subpolar Low L H L H H H L
Rotation effects are not always important

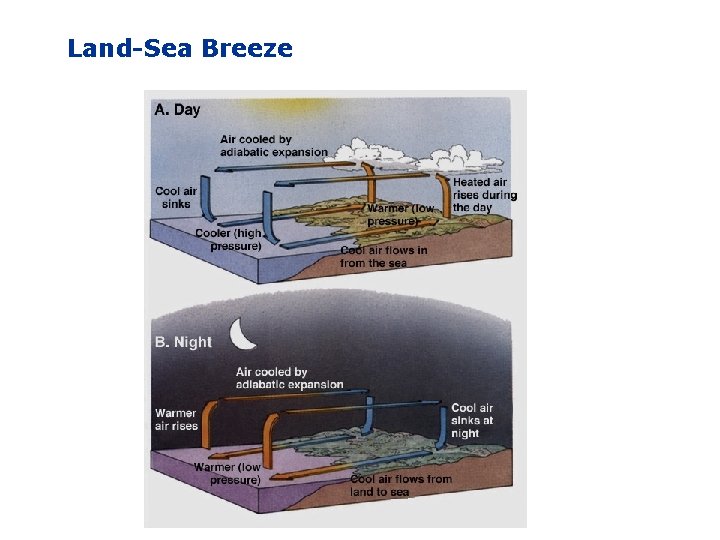

Land-Sea Breeze
Moons, a continental scale land-sea breeze
Atmosheric Circulation Part II Review of Conservation of angular momentum (a second look) The Atmopsheric Circulation (a view from space and from NWS models) A closer look at Huricanes, their formation and the oceanic response Zonal average circulation Radiative Budget

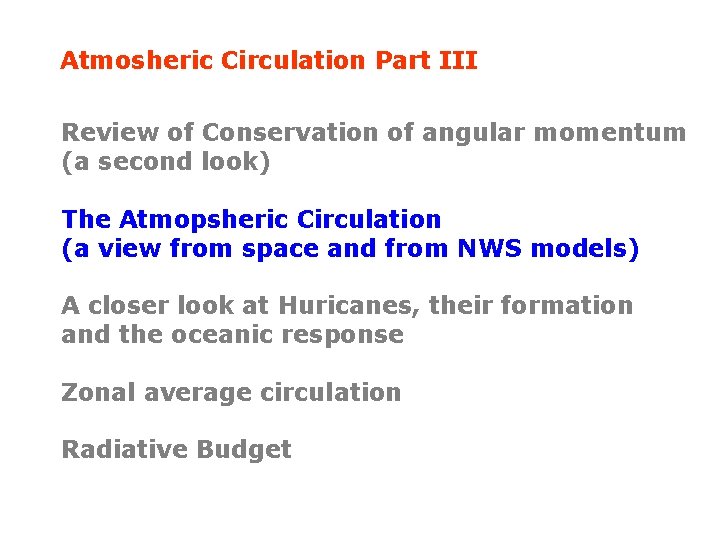

Atmosheric Circulation Part III Review of Conservation of angular momentum (a second look) The Atmopsheric Circulation (a view from space and from NWS models) A closer look at Huricanes, their formation and the oceanic response Zonal average circulation Radiative Budget
Schematic depiction of the development of the atmospheric circulation, starting from a state of rest Easterlies (Trades) Westerlies
Atmosheric Circulation Part III Review of Conservation of angular momentum (a second look) The Atmopsheric Circulation (a view from space and from NWS models) A closer look at Huricanes, their formation and the oceanic response Zonal average circulation Radiative Budget

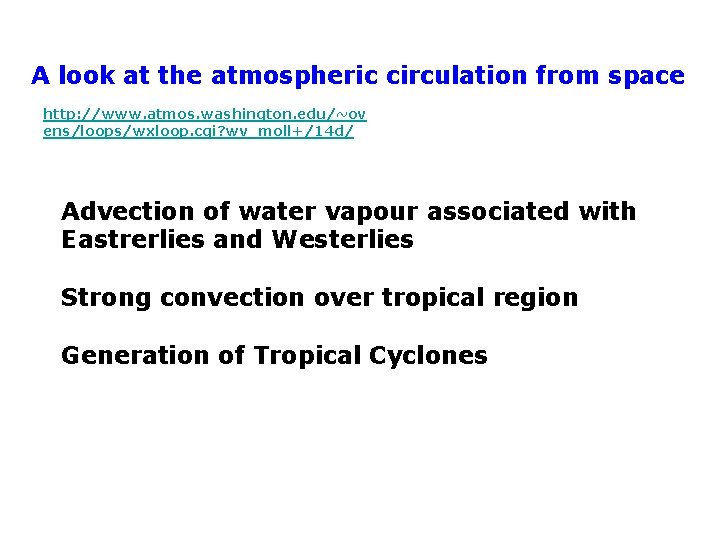

A look at the atmospheric circulation from space http: //www. atmos. washington. edu/~ov ens/loops/wxloop. cgi? wv_moll+/14 d/ Advection of water vapour associated with Eastrerlies and Westerlies Strong convection over tropical region Generation of Tropical Cyclones
equator
ITCZ: Inter-Tropical Convergenze Zone

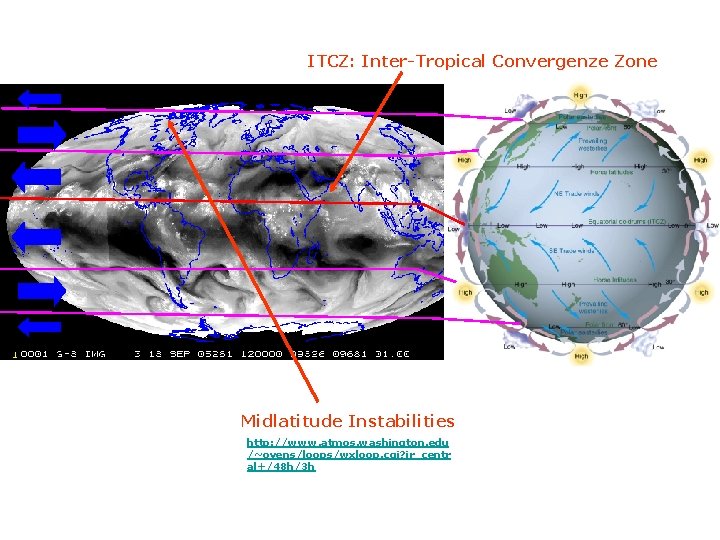

ITCZ: Inter-Tropical Convergenze Zone Midlatitude Instabilities http: //www. atmos. washington. edu /~ovens/loops/wxloop. cgi? ir_centr al+/48 h/3 h
Poleward Heat Transport
Midlatitude Cyclones

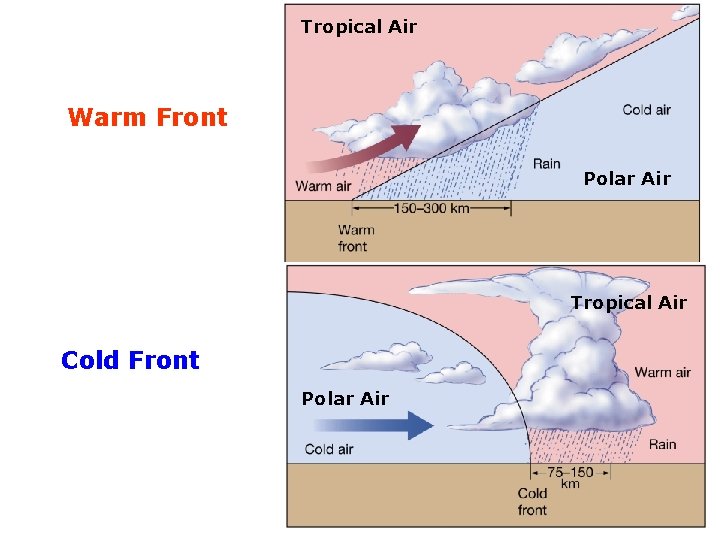

Tropical Air Warm Front Polar Air Tropical Air Cold Front Polar Air
ITCZ: Inter-Tropical Convergenze Zone Midlatitude Instabilities http: //www. atmos. washington. edu /~ovens/loops/wxloop. cgi? ir_centr al+/48 h/3 h
Polar High H Subtropical High Eq. Low L L Subpolar Low L H L H H H L
Atmosheric Circulation Part III Review of Conservation of angular momentum (a second look) The Atmopsheric Circulation (a view from space and from NWS models) A closer look at Tropical Cyclones, their formation and the oceanic response Zonal average circulation Radiative Budget

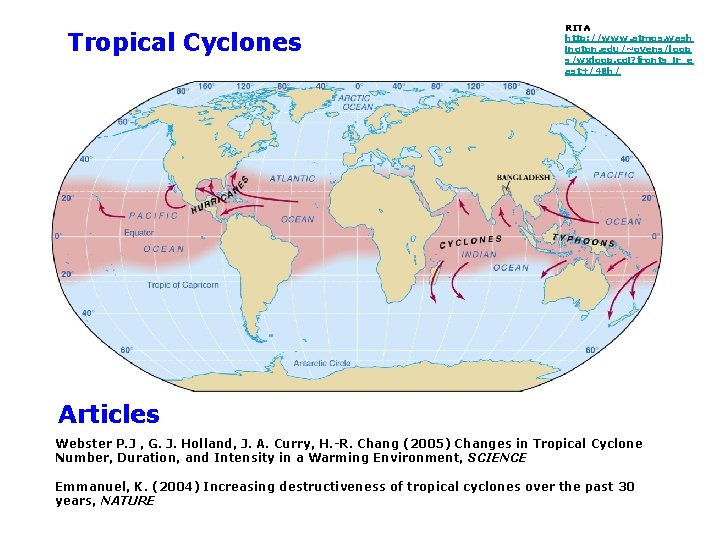

Tropical Cyclones RITA http: //www. atmos. wash ington. edu/~ovens/loop s/wxloop. cgi? fronts_ir_e ast+/48 h/ Articles Webster P. J , G. J. Holland, J. A. Curry, H. -R. Chang (2005) Changes in Tropical Cyclone Number, Duration, and Intensity in a Warming Environment, SCIENCE Emmanuel, K. (2004) Increasing destructiveness of tropical cyclones over the past 30 years, NATURE
LF pressure F Coriolis
Why do tropical storms intensify?
Vortices LF HF pressure F Coriolis Low Pressure System Coriolis F pressure High Pressure System
Tropical cyclone have an eye of anticyclonic circulation!
Storm Surge: sea level rises because of the low atmospheric pressure system
Atmosheric Circulation Part III Review of Conservation of angular momentum (a second look) The Atmopsheric Circulation (a view from space and from NWS models) A closer look at Tropical Cyclones, their formation and the oceanic response Zonal average circulation Radiative Budget
Vertical view of the atmosphere and Poleward Transport of Heat Hadley Cell Polar Cell Pole Ferrel Cell Equator
Atmosheric Circulation Part III Review of Conservation of angular momentum (a second look) The Atmopsheric Circulation (a view from space and from NWS models) A closer look at Tropical Cyclones, their formation and the oceanic response Zonal average circulation Radiative Budget

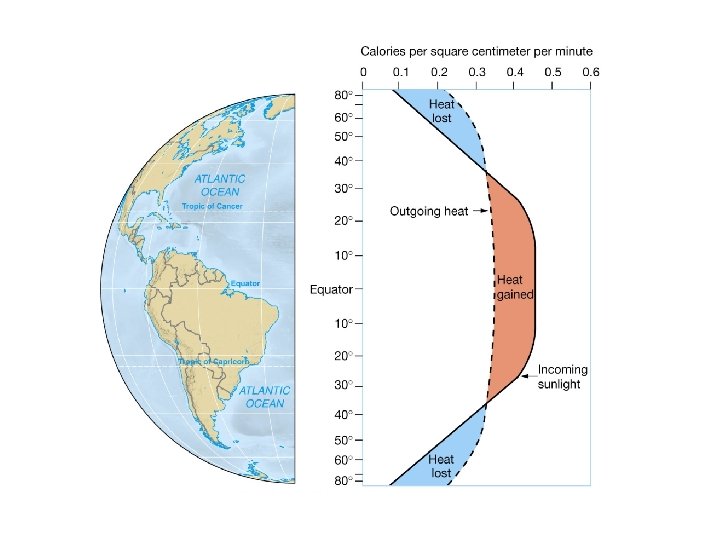

Radiative Budget
